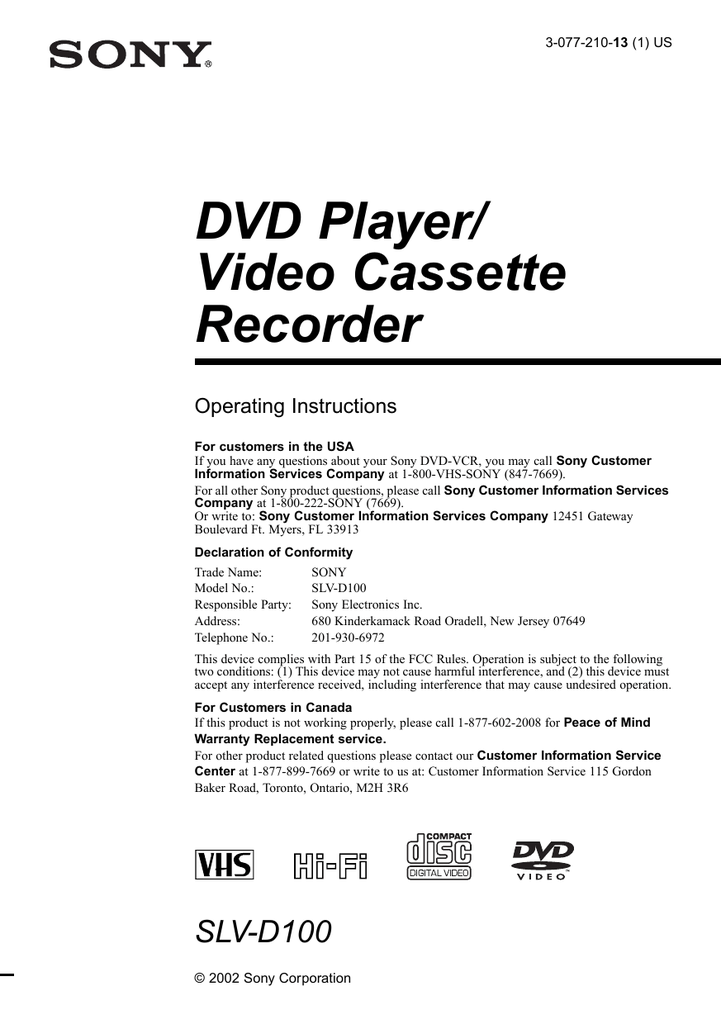

3-077-210-13 (1) US
DVD Player/
Video Cassette
Recorder
Operating Instructions
For customers in the USA
If you have any questions about your Sony DVD-VCR, you may call Sony Customer
Information Services Company at 1-800-VHS-SONY (847-7669).
For all other Sony product questions, please call Sony Customer Information Services
Company at 1-800-222-SONY (7669).
Or write to: Sony Customer Information Services Company 12451 Gateway
Boulevard Ft. Myers, FL 33913
Declaration of Conformity
Trade Name:
Model No.:
Responsible Party:
Address:
Telephone No.:
SONY
SLV-D100
Sony Electronics Inc.
680 Kinderkamack Road Oradell, New Jersey 07649
201-930-6972
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For Customers in Canada
If this product is not working properly, please call 1-877-602-2008 for Peace of Mind
Warranty Replacement service.
For other product related questions please contact our Customer Information Service
Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon
Baker Road, Toronto, Ontario, M2H 3R6
SLV-D100
© 2002 Sony Corporation
WARNING
To prevent fire or shock
hazard, do not expose the
unit to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
To prevent fire or shock
hazard, do not place objects
filled with liquids, such as
vases, on the apparatus.
CAUTION
The use of optical instruments with
this product will increase eye
hazard. As the laser beam used in
this DVD player is harmful to eyes,
do not attempt to disassemble the
cabinet.
Refer servicing to qualified
personnel only.
This symbol is
intended to alert the
user to the presence
of uninsulated
“dangerous voltage”
within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is
intended to alert the
user to the presence
of important
operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT,
FULLY INSERT.
2 WARNING
Welcome!
For customers in the
U.S.A
Owner’s Record
The model and serial numbers are
located at the rear of the unit.
Record the serial number in the
space provided below. Refer to
them whenever you call upon your
Sony dealer regarding this product.
Model No. SLV-D100
Serial No.______________
CAUTION
You are cautioned that any
changes or modifications not
expressly approved in this manual
could void your authority to
operate this equipment.
Note
This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to Part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection
against harmful interference in a
residential installation. This
equipment generates, uses, and can
radiate radio frequency energy
and, if not installed and used in
accordance with the instructions,
may cause harmful interference to
radio communications. However,
there is no guarantee that
interference will not occur in a
particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be
determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the
receiving antenna.
– Increase the separation
between the equipment and
receiver.
– Connect the equipment into an
outlet on a circuit different
from that to which the receiver
is connected.
– Consult the dealer or an
experienced radio/TV
technician for help.
Thank you for purchasing this
Sony DVD Player/Video Cassette
Recorder. Before operating this
player, please read this manual
thoroughly and retain it for future
reference.
General
Precautions
• Operate the unit only on
120 V AC, 60 Hz.
• This unit is not
disconnected from the AC
power source (mains) as
long as it is connected to
the wall outlet, even if the
unit itself has been turned
off.
• Unplug the unit from the
wall outlet if you do not
intend to use it for an
extended period of time.
To disconnect the cord, pull
it out by the plug, never by
the cord.
• If the unit is brought
directly from a cold to a
warm location, moisture
may condense inside the
unit and cause damage to
the video head and tape.
When you first install the
unit, or when you move it
from a cold to a warm
location, wait for about
three hours before
operating the unit.
• Do not install the unit in an
inclined position. It is
designed to be operated in a
horizontal position only.
• Keep the unit and cassettes
away from equipment with
strong magnets, such as
microwave ovens or large
loudspeakers.
• Do not place heavy objects
on the unit.
Important Safeguards
For your protection, please read these safety
instructions completely before operating the
appliance, and keep this manual for future
reference.
Carefully observe all warnings, precautions and
instructions on the appliance, or the one described in
the operating instructions and adhere to them.
Use
Power sources
This set should be operated only
from the type of power source
indicated on the marking label.
If you are not sure of the type of
electrical power supplied to your
home, consult your dealer or
local power company. For those sets designed to
operate from battery power, or other sources, refer
to the operating instructions.
Grounding or Polarization
This set is equipped with a polarized ac power cord
plug (a plug having one blade wider than the
other), or with a three-wire grounding type plug (a
plug having a third pin for grounding). Follow the
instructions below:
For the set with a polarized ac power cord
plug:
This plug will fit into the power
outlet only one way. This is a
safety feature. If you are unable
to insert the plug fully into the
outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to have a
suitable outlet installed. Do not defeat the safety
purpose of the polarized plug by forcing it in.
For the set with a three-wire grounding
type ac plug:
This plug will only fit into a
grounding-type power outlet.
This is a safety feature. If you
are unable to insert the plug into
the outlet, contact your electrician to have a
suitable outlet installed. Do not defeat the safety
purpose of the grounding plug.
Overloading
Do not overload wall outlets,
extension cords or convenience
receptacles beyond their
capacity, since this can result in
fire or electric shock.
Object and Liquid Entry
Never push objects of any kind
into the set through openings as
they may touch dangerous voltage
points or short out parts that could
result in a fire or electric shock.
Never spill liquid of any kind on the set.
Attachments
Do not use attachments not
recommended by the manufacturer,
as they may cause hazards.
Cleaning
Unplug the set from the wall
outlet before cleaning or
polishing it. Do not use liquid
cleaners or aerosol cleaners. Use
a cloth lightly dampened with
water for cleaning the exterior of
the set.
Installation
Water and Moisture
Do not use power-line operated sets
near water - for example, near a
bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or
near a swimming pool, etc.
Power-Cord Protection
Route the power cord so that it is
not likely to be walked on or
pinched by items placed upon or
against them, paying particular
attention to the plugs, receptacles, and the point
where the cord exits from the appliance.
Accessories
Do not place the set on an
unstable cart, stand, tripod,
bracket, or table. The set may
fall, causing serious injury to a
child or an adult, and serious damage to the set.
Use only a cart stand tripod, bracket, or table
recommended by the manufacturer.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
S3125A
Ventilation
The slots and openings in the cabinet are provided
for necessary ventilation. To ensure reliable
operation of the set, and to protect it from
overheating, these slots and openings must never be
blocked or covered.
• Never cover the slots and
openings with a cloth or other
materials.
• Never block the slots and
openings by placing the set on
a bed, sofa, rug or other
similar surface.
continued
Important Safeguards
3
• Never place the set in a
confined space, such as a
bookcase, or built-in cabinet,
unless proper ventilation is
provided.
• Do not place the set near or
over a radiator or heat register,
or where it is exposed to direct
sunlight.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
• When the power cord or plug is
damaged or frayed.
Antennas
Outdoor antenna grounding
If an outdoor antenna or cable system is installed,
follow the precautions below.
An outdoor antenna system should not be located
in the vicinity of overhead power lines or other
electric light or power circuits, or where it can
come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR
ANTENNA SYSTEM, EXTREME CARE
SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR
CIRCUITS AS CONTACT WITH THEM IS
ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to
provide some protection against voltage surges and
built-up static charges. Section 810 of the National
Electrical Code provides information with respect
to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the
National Electrical Code
Antenna Lead in Wire
Ground Clamp
Electric Service
Equipment
Antenna Discharge unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System
(NEC Art 250 Part H)
NEC-NATIONAL ELECTRICAL CODE
Lightning
For added protection for this set during a lightning
storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system. This
will prevent damage to the set due to lightning and
power-line surges.
4 Important Safeguards
• If liquid has been spilled or
objects have fallen into the set.
• If the set has been exposed to
rain or water.
• If the set has been subject
to excessive shock by
being dropped, or the
cabinet has been
damaged.
• If the set does not operate
normally when following the
operating instructions. Adjust
only those controls that are
specified in the operating
instructions. Improper
adjustment of other controls may result in
damage and will often require extensive work by
a qualified technician to restore the set to normal
operation.
• When the set exhibits a distinct change in
performance - this indicates a need for service.
Servicing
Do not attempt to service the set
yourself as opening or removing
covers may expose you to
dangerous voltage or other
hazards.
Refer all servicing to qualified
service personnel.
Replacement parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer that have the same
characteristics as the original parts.
Unauthorized substitutions may result in fire,
electric shock, or other hazards.
Safety Check
Upon completion of any service
or repairs to the set, ask the
service technician to perform
routine safety checks (as
specified by the manufacturer) to
determine that the set is in safe
operating condition.
DVD Precautions
On safety
• Caution – The use of optical instruments with
this product will increase eye hazard.
• To prevent fire or shock hazard, do not place
objects filled with liquids, such as vases, on the
apparatus.
• Should any solid object or liquid fall into the
cabinet, unplug the player and have it checked
by qualified personnel before operating it any
further.
On operation
• If the player is brought directly from a cold to a
warm location, or is placed in a very damp
room, moisture may condense on the lenses
inside the player. Should this occur, the player
may not operate properly. In this case, remove
the disc and leave the player turned on for about
half an hour until the moisture evaporates.
• When you move the player, take out any discs. If
you don’t, the disc may be damaged.
On adjusting volume when playing
DVD
Do not turn up the volume while listening to a
section with very low level inputs or no audio
signals. If you do, the speakers may be damaged
when a peak level section is played.
On cleaning discs
Do not use a commercially available cleaning disc.
It may cause a malfunction.
IMPORTANT NOTICE
Caution: This player is capable of holding a
still video image or on-screen display image
on your television screen indefinitely. If you
leave the still video image or on-screen display
image displayed on your TV for an extended
period of time you risk permanent damage to
your television screen. Projection televisions
are especially susceptible to this.
DVD Precautions
5
Table of contents
2
2
2
3
5
8
8
9
WARNING
Welcome!
General Precautions
Important Safeguards
DVD Precautions
About this manual
This player can play the following discs
Notes about discs
Getting Started
10
11
14
21
22
26
Step 1 : Unpacking
Step 2 : Setting up the remote commander
Step 3 : Basic hookups
Step 4 : Selecting a language
Step 5 : Setting the clock
Step 6 : Presetting channels
Basic Operations
30
33
34
37
40
Playing discs
Guide to the on-screen display
Playing a tape
Recording TV programs
Recording TV programs using the
timer
43 Checking/changing/canceling timer
settings
Advanced Hookups
45 A/V Receiver hookup
47 S-Video/Component Video hookup
DVD Settings and
Adjustements
49 Audio Setup
52 Screen Setup
6 Table of contents
55 Setting the display or sound track
language
57 Parental Control (limiting playback
by children)
DVD Additional Operations
60
61
62
63
64
65
69
71
72
74
77
Using the DVD’s menu
Zooming into a scene
Changing the angles
Displaying the subtitle
Picture navigation
Various play mode functions
(Program play, Random play, Repeat
play)
Using bookmarks
Changing the sound
Virtual surround setting
Playing an MP3 audio track
Playing VIDEO CDs with “MENU
ON/OFF” Functions
VCR Addtional Operations
79 Setting the recording duration time
80 Recording stereo and bilingual
programs
81 Searching using various functions
83 Adjusting the picture (tracking)
84 Changing menu options
85 Editing with another VCR
Additional Information
87
90
95
97
102
General setup information
Troubleshooting
Specifications
Index to parts and controls
DVD AUDIO/SUBTITLE
LANGUAGE
103 Index
Caution
For use of the VCR
Television programs, films, video tapes and
other materials may be copyrighted.
Unauthorized recording of such material may
be contrary to the provisions of the copyright
laws. Also, use of this recorder with cable
television transmission may require
authorization from the cable television
transmission and/or program owner.
For use of the DVD player
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents, other
intellectual property rights owned by
Macrovision Corporation, and other rights
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation, and is intended for
home and other limited viewing uses only
unless otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
Table of contents
7
About this manual
• The meaning of the icons used in this manual is
described below:
Icon
Meaning
Functions available for DVD
VIDEOs or DVD-Rs in video
mode
Functions available for VIDEO
CDs or CD-Rs/CD-RWs in
video CD format
Functions available for DATA
CDs (CD-ROMs/CD-Rs/CDRWs containing MP3* audio
tracks)
Region code
Your player has a region code printed on the
back of the unit and only will play DVD VIDEO
discs (playback only) labeled with identical
region codes. This system is used to protect
copyrights.
DVDs labeled
ALL
If you try to play any other DVD, the message
“Playback prohibited by area limitations.” will
appear on the TV screen. Depending on the DVD,
no region code indication may be labeled even
though playing the DVD is prohibited by area
restrictions.
X
Functions available for music
CDs or CD-Rs/CD-RWs in
music CD format
Functions available for VHS
VIDEOs
* MP3 (MPEG 1 Audio Layer 3) is a standard format
defined by ISO/MPEG which compresses audio data.
will also play on this player.
Region code
SLV–DXXXX
00V 00Hz
00W
NO.
0-000-000-00
Example of discs that the player
cannot play
VIDEO CD
The player cannot play the following discs:
• All CD-ROMs (including PHOTO CDs)/CDRs/CD-RWs other than those recorded in the
following formats:
–music CD format
–video CD format
–MP3 format that conforms to ISO9660*
Level 1/Level 2, or its extended format, Joliet
• Data part of CD-Extras
• DVD-RWs
• DVD-ROMs
• DVD Audio discs
• HD layer on Super Audio CDs
Music CD
* A logical format of files and folders on CD-ROMs,
defined by ISO (International Standard
Organization).
This player can play the
following discs
Format of discs
DVD VIDEO
The “DVD VIDEO” logo is a trademark.
Also, the player cannot play the following
discs:
• A DVD with a different region code.
• A disc recorded in a color system other than
NTSC, such as PAL or SECAM (this player
conforms to the NTSC color system).
• A disc that has a non-standard shape (e.g.,
card, heart).
• A disc with paper or stickers on it.
• A disc that has the adhesive of cellophane tape
or a sticker still left on it.
8
Note
Some CD-Rs, CD-RWs, or DVD-Rs cannot be played
on this player due to the recording quality or physical
condition of the disc, or the characteristics of the
recording device.
Furthermore, the disc will not play if it has not been
correctly finalized. For more information, see the
operating instructions for the recording device.
Note that discs created in the Packet Write format
cannot be played.
Note on playback operations of
DVDs and VIDEO CDs
Some playback operations of DVDs and VIDEO
CDs may be intentionally set by software
producers. Since this player plays DVDs and
VIDEO CDs according to the disc contents the
software producers designed, some playback
features may not be available. Also, refer to the
instructions supplied with the DVDs or VIDEO
CDs.
Notes about discs
• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
• After playing, store the disc in its case.
• Clean the disc with a cleaning cloth.
Wipe the disc from the center out.
Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
9
Getting Started
Step 1 : Unpacking
Check that you have received the following items with the DVD-VCR:
• Remote commander
• Size AA (R6) batteries
• 75-ohm coaxial cable with F-type connectors
• Audio/video cord
(pinplug ×3 y pinplug ×3)
10 Unpacking
Step 2 : Setting up the remote commander
Inserting the batteries
Getting Started
Insert two size AA (R6) batteries
by matching the + and – on the
batteries to the diagram inside the
battery compartment.
Insert the negative (–) end first,
then push in and down until the
positive (+) end clicks into
position.
Using the remote
commander
Remote sensor
You can use this remote
commander to operate this DVDVCR and a Sony TV. Buttons on
the remote commander marked
with a dot (•) can be used to
operate your Sony TV.
If the TV does not have the
symbol near the remote sensor, this
TV /
remote commander will not
DVD·VIDEO
operate the TV.
To operate
Set TV / DVD·VIDEO to
the DVD player
DVD·VIDEO, then press SELECT DVD and point at the remote sensor at
the DVD-VCR
the VCR
DVD·VIDEO, then press SELECT VIDEO and point at the remote sensor
at the DVD-VCR
your TV
TV and point at the remote sensor at your TV
Notes
• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove the batteries
to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
continued
Setting up the remote commander
11
Controlling other TVs with the remote commander
The remote commander is preprogramed to control non-Sony TVs. If your TV is
listed in the following table, set the appropriate manufacturer’s code number.
1 Set TV / DVD·VIDEO at the top of the remote commander to TV.
Hold down ?/1, and enter your TV’s code number using the number buttons.
2 Then
release ?/1.
Now you can use the ?/1, VOL +/–, CH +/–, MUTING*, TV/VIDEO and ENTER*
buttons to control your TV. You can also use the buttons marked with a dot (•) to
control a Sony TV. To control the DVD-VCR, reset TV / DVD·VIDEO to
DVD·VIDEO.
* for Sony TV only
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until you find
the one that works with your TV.
TV brand
Code number
TV brand
Code number
Sony
01
Panasonic
06, 19
Akai
04
Philco
03, 04
AOC
04
Philips
08
Centurion
12
Pioneer
16
Coronado
03
Portland
03
Curtis-Mathes
12
Quasar
06, 18
Daytron
12
Radio Shack
05, 14
Emerson
03, 04, 14
RCA
04, 10
Fisher
11
Sampo
12
General Electric
06, 10
Sanyo
11
Gold Star
03, 04, 17
Scott
12
Hitachi
02, 03
Sears
07, 10, 11
J.C.Penney
04, 12
Sharp
03, 05, 18
JVC
09
Sylvania
08, 12
KMC
03
Teknika
03, 08, 14
Magnavox
03, 08, 12
Toshiba
07
Marantz
04, 13
Wards
03, 04, 12
MGA/Mitsubishi
04, 12, 13, 17
Yorx
12
NEC
04, 12
Zenith
15
12 Setting up the remote commander
Notes
• If you enter a new code number, the code number previously entered will be erased.
• If the TV uses a different remote control system from the one programed to work with the
DVD-VCR, you cannot control your TV with the remote commander.
• When you replace the batteries of the remote commander, the code number may change. Set
the appropriate code number every time you replace the batteries.
Getting Started
Setting up the remote commander
13
Step 3 : Basic hookups
Selecting the best hookup option
There are many ways in which your DVD-VCR can be hooked up. To hook up your
DVD-VCR so that it works best for you, first scan through the table below. Then use
the accompanying diagrams and procedures on the following pages to set up your
DVD-VCR.
If your TV has audio/video inputs, refer to page 15 for audio/video (A/V) hookup.
Then follow one of the hookups below. If your TV does not have A/V inputs, go
directly to one of the hookups below.
If you have
Use
Refer to
Antenna only, no cable TV
Hookup 1
(Plug and Play)
Pages 16 and 17
No cable box or cable box with only a
few scrambled channels
Hookup 2
(Plug and Play)
Pages 18 and 19
Cable box with many scrambled
channels
Hookup 3
Page 20
After you have completed the connections, follow the instructions for setup.
After you have completed the setup, you are ready to use your DVD-VCR.
Procedures differ depending on the hookup you used.
Before you get started
• Turn off the power to all equipment.
• Do not connect the AC power cords until all of the connections are completed. If
you connect the AC power cord before the connections are completed, you may not
be able to use the Plug and Play function.
• Be sure you make connections firmly. Loose connections may cause picture
distortion.
• If your TV does not match any of the examples provided, see your nearest Sony
dealer or qualified technician.
Caution
Connections between the DVD-VCR’s VHF/UHF connector and the antenna terminals of the
TV receiver should be made only as shown in the following instructions. Failure to do so may
result in operation that violates the regulations of the Federal Communications Commission
regarding the use and operation of RF devices. Never connect the output of the DVD-VCR to an
antenna or make simultaneous (parallel) antenna and DVD-VCR connections at the antenna
terminals of your receiver.
Note to CATV system installer (in USA)
This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of cable
entry as practical.
14 Basic hookups
Audio/video (A/V) hookup
If you are not planning to use your DVD-VCR to record programs, you only need to
make the connections shown on this page. If you want to record regular or cable TV
programs, complete these connections first, and then go to the following pages for
antenna or cable hookups.
Getting Started
If your TV has audio/video (A/V) input jacks, you will get better picture and sound if
you hook up your DVD-VCR using these connections. If your TV does not have A/V
inputs, see the following pages for antenna or cable hookups. Note that “Advanced
Hookups” (page 45) explains additional hookup methods that will optimize the
picture and sound for a true “hometheater” experience.
A Use this hookup if your TV has stereo jacks
Stereo receiver
DVD-VCR
TV
VIDEO AUDIO
LINE IN 1
AUX IN
IN
LINE OUT
VIDEO
AUDIO OUT
AUDIO
Audio/video cord (supplied)
Audio cord (not supplied)
B Use this hookup if your TV does not have stereo jacks
Stereo receiver
DVD-VCR
TV
VIDEO AUDIO
AUX IN
LINE IN 1
LINE OUT
IN
VIDEO
AUDIO
Video cord (not supplied)
Audio cord (not supplied)
Notes
• To play a tape/disc in stereo, you must use the A/V connection.
• If you do not have a stereo receiver, connect the white LINE OUT/AUDIO L jack to the
AUDIO IN jack on your TV.
continued
Basic hookups
15
Hookup 1 (Plug and Play)
Antenna hookup
Make the following connections if you are using an antenna (if you do not have cable
TV).
A Use this hookup if you are using:
• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
Rear of TV
VHF/UHF
or
DVD-VCR
A Match the type of
connector on your
TV: A, B, or C.
VHF
B
IN
UHF
or
OUT
VHF
C
UHF
B Use this hookup if you are using a VHF-only antenna (you get
channels 2–13 only)
Rear of TV
VHF/UHF
A
or
DVD-VCR
VHF
B
IN
or
OUT
UHF
VHF
Match the type of
connector on your
TV: A, B, or C.
For connector types
B and C, no UHF
connection is
required.
C
UHF
If you cannot connect your antenna cable to the DVD-VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external
antenna connector (not supplied) so you can connect the cable to the RF IN
connector. If you have separate cables for VHF and UHF antennas, you should use a
U/V band mixer (not supplied) (page 89).
16 Basic hookups
Hookup 1 : DVD-VCR setup
Plug the DVD-VCR into an AC outlet.
The DVD-VCR automatically presets the DVD-VCR’s clock and TV channels
when the DVD-VCR is plugged into the AC outlet.
Getting Started
AC power cord
to AC outlet
The DVD-VCR starts presetting the
clock and channels.
When Auto preset is completed, the
current time appears in the display
window.
You have now completed DVD-VCR setup.
To change the on-screen display language to French or Spanish, see
“Step 4 : Selecting a language” on page 21.
The clock is set using a time signal provided by some TV channels. If the clock
is incorrect, or “--:--” appears in the display window, see “Using Manual Clock
Set” on page 24.
To add or disable channels manually, see “Presetting/disabling channels
manually” on page 28.
Notes
• If you connect the AC power cord before the antenna connections are completed, the channels
may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 26.
• Do not press any buttons on the DVD-VCR or remote commander during Auto preset.
• Auto preset starts automatically only when you plug in the AC power cord for the first time
after you purchase the DVD-VCR.
• Auto preset can be performed by pressing x STOP continuously for 5 seconds or more with
the DVD-VCR power turned off.
continued
Basic hookups
17
Hookup 2 (Plug and Play)
You have no cable box, or a cable box with only a few
scrambled channels
Recommended use
Use this hookup if you do not have a cable box. Also use this hookup if your cable
system scrambles only a few channels.
What you can do with this hookup
• Record any unscrambled channel by selecting the channel on the VCR
What you cannot do
• Record scrambled channels that require a cable box
DVD-VCR
Rear of TV
VHF/UHF
Wall
IN
OUT
or
A Match the type
of connector
on your TV: A,
B, or C.
VHF
B
Connect this cable
directly to your TV if
you do not have a
cable box.
or
UHF
VHF
Cable box
C
IN
OUT
18 Basic hookups
UHF
For connector
types B and C,
no UHF
connection is
required.
Hookup 2 : DVD-VCR setup
Plug the DVD-VCR into an AC outlet.
The DVD-VCR automatically presets the DVD-VCR’s clock and TV channels
when the DVD-VCR is plugged into the AC outlet.
Getting Started
AC power cord
to AC outlet
The DVD-VCR starts presetting the
clock and channels.
When Auto preset is completed, the
current time appears in the display
window.
You have now completed DVD-VCR setup.
To change the on-screen display language to French or Spanish, see
“Step 4 : Selecting a language” on page 21.
The clock is set using a time signal provided by some TV channels. If the clock
is incorrect, or “--:--” appears in the display window, see “Using Manual Clock
Set” on page 24.
To add or disable channels manually, see “Presetting/disabling channels
manually” on page 28.
Notes
• If you connect the AC power cord before the antenna connections are completed, the channels
may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 26.
• Do not press any buttons on the DVD-VCR or remote commander during Auto preset.
• Auto preset starts automatically only when you plug in the AC power cord for the first time
after you purchase the DVD-VCR.
• Auto preset can be performed by pressing x STOP continuously for 5 seconds or more with
the DVD-VCR power turned off.
continued
Basic hookups
19
Hookup 3
Connecting a cable box with many scrambled channels
Recommended use
Use this hookup if your cable system scrambles all or most channels.
What you can do with this hookup
• Record any channel by selecting the channel on the cable box
What you cannot do
• Record with the cable box turned off
• Record one channel while watching another channel
Rear of TV
VHF/UHF
Cable box
Wall
IN
A
OUT
or
VHF
B
UHF
or
VHF
DVD-VCR
Match the type of
connector on your
TV: A, B, or C.
For connector
types B and C, no
UHF connection
is required.
C
IN
UHF
OUT
After you have completed hookup…
After you have completed hookup, plug the DVD-VCR into an AC outlet and see
“Step 4 : Selecting a language” on page 21.
AC power cord
to AC outlet
20 Basic hookups
Step 4 : Selecting a language
Getting Started
You can change the on-screen display
language.
SET UP
Before you start…
• Turn on the DVD-VCR and your TV.
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 87). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you
cannot display the “SETUP MENU.” Stop
DVD playback.
V/v/B/b
ENTER
O RETURN
1
SET UP
Press SET UP.
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
2
ENTER
Press V/v/B/b to select
(Language/
Idioma/Langue), then press ENTER.
VvB b
ENTER
LANGUAGE/IDIOMA/LANGUE
B
English
Español
Français
The “LANGUAGE/IDIOMA/LANGUE”
menu appears.
RETURN
3
Vv
ENTER
Press V/v to select the desired language, English, Spanish or French, then
press ENTER.
ENTER
4
Press O RETURN to exit the menu.
RETURN
Selecting a language
21
Step 5 : Setting the clock
Using the Auto Clock Set
feature
SET UP
Some TV and cable channels transmit time
signals with their broadcasts. Your DVDVCR can pick up this time signal to
automatically set the clock.
The Auto Clock Set feature works only if a
channel in your area is broadcasting a time
signal. If broadcasters in your area are not
yet sending time signals, set the time
manually (page 24).
V/v/B/b
ENTER
Before you start…
• Turn on the DVD-VCR and your TV.
When using a cable box, turn it on.
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 87). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you
cannot display the “SETUP MENU.” Stop
the DVD playback.
1
SET UP
O RETURN
Press SET UP.
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
2
ENTER
Press V/v/B/b to select
Adjust), then press ENTER.
(Clock Set/
VvB b
ENTER
CLOCK SET/ADJUST
B Auto
Manual
The “CLOCK SET/ADJUST” menu appears.
RETURN
22 Setting the clock
Vv
ENTER
3
Press V/v to select “Auto”, then press
ENTER.
CLOCK SET/ADJUST
B
ENTER
[ Auto ]
[ Auto ]
[ Auto ]
Clock data CH:
Time zone:
Daylight saving:
4
Press V/v to select the item you want. Then press B/b to make the setting.
ENTER
• For “Clock data CH”
Leave the setting to “Auto” to have the
DVD-VCR automatically search for a
channel that carries a time signal. Press B/b
to select a channel that carries a time signal.
Use this option if you know of a channel that
carries a time signal. Most PBS member
stations broadcast a time signal. For the
fastest response, select your local PBS
station.
• For “Time zone”
Select the time zone of your area, or select
“Auto” to have the DVD-VCR automatically
set your time zone.
The options are:
Auto y Atl. (Atlantic) y East (Eastern)
y Cen. (Central) y Mtn. (Mountain) y
Pac. (Pacific) y Alas (Alaska) y
Haw. (Hawaii) y Auto
• For “Daylight saving”
Select “Yes” or “No” (standard time), or
“Auto” to have the DVD-VCR automatically
set the daylight saving time.
CLOCK SET/ADJUST
B
[ 123 ]
[ Auto ]
[ Auto ]
Clock data CH:
Time zone:
Daylight saving:
Vv B b
RETURN
CLOCK SET/ADJUST
B
[ Auto ]
[ Pac. ]
[ Auto ]
Clock data CH:
Time zone:
Daylight saving:
Vv B b
RETURN
CLOCK SET/ADJUST
B
[ Auto ]
[ Auto ]
[ No ]
Clock data CH:
Time zone:
Daylight saving:
Vv B b
RETURN
5
Getting Started
Vv B b
RETURN
Press O RETURN repeatedly to exit the menu.
RETURN
6
To activate the Auto Clock Set function, turn off the DVD-VCR.
Notes
• The clock cannot be set automatically if you do not receive a channel that carries a time
signal in your area. If so, set the clock manually (page 24).
• If there are only a few channels in your area that carry time signals, setting the clock
automatically may take up to about 20 minutes. If nothing happens even after you wait about
20 minutes, set the clock manually (page 24).
• If you made Hookup 3, make sure you leave the cable box on.
• To record TV programs using the timer, you must set the clock accurately.
continued
Setting the clock
23
Using Manual Clock Set
Before you start…
• Turn on the DVD-VCR and your TV.
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 87). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you
cannot display the “SETUP MENU.” Stop
the DVD playback.
SET UP
V/v/B/b
ENTER
O RETURN
1
SET UP
Press SET UP.
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
2
Press V/v/B/b to select
Adjust), then press ENTER.
(Clock Set/
VvB b
CLOCK SET/ADJUST
B Auto
ENTER
The “CLOCK SET/ADJUST” menu appears.
Manual
RETURN
3
ENTER
Press V/v to select “Manual,” then press
ENTER.
Vv
ENTER
CLOCK SET/ADJUST
ENTER
TIME DATE
12 : 0 0 AM 1 / 0 1
RETURN
24 Setting the clock
YEAR
2 0 0 2 Tue
Vv B b
4
Press V/v to set the hour.
CLOCK SET/ADJUST
ENTER
TIME DATE
12 : 0 0 AM 1 / 0 1
Press b to select the minutes and press V/v to
set the minutes.
CLOCK SET/ADJUST
ENTER
TIME DATE
12 : 0 0 AM 1 / 0 1
YEAR
2 0 0 2 Tue
Getting Started
Vv B b
RETURN
5
YEAR
2 0 0 2 Tue
Vv B b
RETURN
6
Set the month, day, and year in the same way as the minutes.
7
Press O RETURN to save the clock setting.
The day of the week is set automatically.
Press O RETURN again to exit the menu.
RETURN
Note
• To record TV programs using the timer, you must set the clock accurately.
Setting the clock
25
Step 6 : Presetting channels
This DVD-VCR is capable of receiving VHF
channels 2 to 13, UHF channels 14 to 69 and
unscrambled CATV channels 1 to 125. First,
we recommend that you preset the receivable
channels in your area using automatic
presetting methods. Then, if there are any
unwanted channels, disable them manually.
If you have already decided which channels
you wish to preset, set them directly using
manual presetting methods (page 28).
SET UP
Presetting all receivable
channels automatically
V/v/B/b
ENTER
Before you start…
• Turn on the DVD-VCR and your TV.
When using a cable box, turn it on.
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 87). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you
cannot display the “SETUP MENU.” Stop
the DVD playback.
1
SET UP
Press SET UP.
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
2
Press V/v/B/b to select
Setup), then press ENTER.
(Channel
ENTER
The “CHANNEL SETUP” menu appears.
ENTER
CHANNEL SETUP
B
Ant / Cable: [ Cable TV ]
Auto channel memory
Channel add / delete
RETURN
26 Presetting channels
VvB b
Vv B b
3
Press V/v to select “Ant/Cable.”
ENTER
ENTER
• To preset cable TV channels:
Press B/b to select “Cable TV.”
CHANNEL SETUP
B
Ant / Cable: [Cable TV]
Auto channel memory
Channel add / delete
Vv B b
RETURN
• To preset VHF and UHF channels:
Press B/b to select “Antenna.”
ENTER
CHANNEL SETUP
B
Ant / Cable: [ Antenna ]
Auto channel memory
Channel add / delete
Vv B b
RETURN
5
Press V/v to select “Auto channel memory,”
then press ENTER.
Getting Started
4
Memorizing
CH 125
ENTER
All receivable channels are preset in numerical
sequence. When no more receivable channels
can be found, presetting stops and the picture
from the lowest numbered channel is displayed
on the TV screen.
• • • • • please wait • • • • •
continued
Presetting channels
27
Presetting/disabling channels manually
Before you start…
• Turn on the DVD-VCR and your TV.
When using a cable box, turn it on.
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 87). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you
cannot display the “SETUP MENU.” Stop
the DVD playback.
CH +/–
Number
buttons
SET UP
V/v/B/b
ENTER
1
SET UP
Press SET UP.
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
2
ENTER
Press V/v/B/b to select
Setup) then press ENTER.
VvB b
ENTER
CHANNEL SETUP
(Channel
B
Ant / Cable: [ Cable TV ]
Auto channel memory
Channel add / delete
The “CHANNEL SETUP” menu appears.
RETURN
3
Press V/v to select “Channel add/delete,” then press ENTER.
ENTER
28 Presetting channels
Vv B b
4
1
2
3
4
5
6
7
8
9
0
• To preset a channel:
1 Press the number buttons to enter the
channel number, then press ENTER.
2 Press b, then press ENTER.
Channel to be preset
CHANNEL ADD/DELETE
Select channel:
[123]
(in memory)
• CH/
TRACKING
RETURN
• To disable a channel:
1 Press CH +/– to select the channel
number.
2 Press B, then press ENTER.
CH v V
Channel to be disabled
Getting Started
and press [ b ] to ADD
press [ B ] to DELETE
ENTER
CHANNEL ADD/DELETE
Select channel:
[111]
(deleted)
and press [ b ] to ADD
press [ B ] to DELETE
ENTER
RETURN
5
CH v V
Press O RETURN repeatedly to exit the menu.
RETURN
Presetting channels
29
Basic Operations
Playing discs
Depending on the disc, some operations may
be different or restricted. Refer to the
operating instructions supplied with your
disc.
?/1
Z
SELECT DVD
Before you start ...
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so
that the signal from the player appears on
the TV screen.
• Press SELECT DVD to control the DVD
player.
m/M
C
./ >
X PAUSE
x STOP
H PLAY
1
Press Z to open the disc tray and
place a disc on the disc tray.
with the playback side
facing down
30 Playing discs
2
PLAY
Press H PLAY.
The disc tray closes and the DVD player starts playback.
The display window shows the
playback time.
Depending on the disc, a menu
may appear on the TV screen.
For DVDs, see page 60. For
Hour Minute Second
VIDEO CDs, see page 77.
Additional tasks
Press
Stop
x STOP
Pause
X PAUSE
To resume playback, press H PLAY.
Advance by frame in pause mode
C
Go to the next chapter, track, or scene
in continuous play mode
> on the remote
Go back to the previous chapter, track,
or scene in continuous play mode
. on the remote
Stop play and remove the disc
Z
To Resume playback for the current disc (Resume Play)
The DVD player remembers the point where you stopped the disc even if the DVD
player enters standby mode by pressing ?/1.
Basic Operations
To
1 While playing a disc, press x STOP to stop playback.
H PLAY.
2 Press
The DVD player starts playback from the point where you stopped the disc in
Step 1.
To locate a point quickly by playing a disc in fast forward or fast reverse
in continuous play mode
Press m or M. With each press, the playback speed changes as follows.
×2 t ×4 t ×8 t ×16 t ×32 t ×128
Release the button at the desired speed.
When you find the point you want, press H PLAY.
To watch slow motion in continuous play mode
Press X PAUSE, then press M SLOW y. With each press, the playback speed
changes as follows.
1/8 t 1/4 t 1/2
To resume normal playback, press H PLAY.
continued
Playing discs
31
Tip
• You can listen to the sound during ×2 fast forward playback. However, you cannot listen to
DTS (Only Digital Out) and LPCM sound.
Note
• You can change the screen type using the “SCREEN SETUP” menu. (See “Screen Setup” on
page 52)
• Do not perform VIDEO playback while playing back a disc.
• The VIDEO CD playback speed changes as follows.
×4 t ×8
• You cannot change the CD or DATA-CD playback speed.
Notes on playing DTS* sound tracks on a CD
• When playing DTS-encoded CDs, excessive noise will be heard from the analog stereo jacks.
To avoid possible damage to the audio system, the consumer should take proper precautions
when the analog stereo jacks of the DVD player are connected to an amplification system. To
enjoy DTS Digital Surround™ playback, an external 5.1-channel decoder system must be
connected to the digital jack of the DVD player.
• Set the sound to “STEREO” using the AUDIO button when you play DTS sound tracks on a
CD (page 71).
• Do not play DTS sound tracks without first connecting the DVD player to an audio
component having a built-in DTS decoder. The DVD player outputs the DTS signal via the
DIGITAL AUDIO OUT (COAXIAL or OPTICAL) jack even if “DTS” is set to “Off” in
“AUDIO SETUP” menu (page 50), and may affect your ears or cause your speakers to be
damaged.
Notes on playing DVDs with a DTS sound track
• DTS audio signals are output only through the DIGITAL AUDIO OUT (COAXIAL or
OPTICAL) jack.
• When you play a DVD with DTS sound tracks, set “DTS” to “On” in “AUDIO SETUP”
menu (page 50).
• If you connect the player to audio equipment without a DTS decoder, do not set “DTS” to
“On” in “AUDIO SETUP” menu (page 50). A loud noise may come out from the speakers,
affecting your ears or causing the speakers to be damaged.
* “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
32 Playing discs
Guide to the on-screen display
You can check disc information during
playback.
V/v/B/b
ENTER
The displayed contents differ according to
the type of disc being played.
O RETURN
DISPLAY
Type of disc
Current title/track number
Current chapter number
Counter position
Voice language
Subtitle language
DVD
T:01 B b
C:02
0:01:09
ENG 5.1CH
Basic Operations
Press DISPLAY. The following information appears; type of disc, current title/track,
chapter, counter position, voice language and subtitle language. Refer to “DVD
AUDIO/SUBTITLE LANGUAGE” on page 102 for the abbreviation of the language.
ENG
You can playback the desired title/track, chapter or counter position using this menu.
To playback the desired title/track or chapter
DVD
1
2 Press B/b to change the item.
3 Press ENTER to start playback.
4 Press DISPLAY or O RETURN to turn off the menu.
Press V/v to select the desired item.
T:01 B b
C:02
0:01:09
ENG 5.1CH
ENG
The title/track or chapter icon will appear on the DVD playback screen followed by
the current title/track or chapter number and the counter positon.
To playback from the desired counter position
DVD
1 Press V/v to select the counter position icon.
2 Enter the desired position using the number buttons.
3 Press ENTER to start playback.
4 Press DISPLAY or O RETURN to turn off the menu.
T:01
C:02
0:01:09
ENG 5.1CH
ENG
Note
• The display may not change as operated depending on the disc.
Guide to the on-screen display
33
Playing a tape
Before you start ...
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so
that the signal from the player appears on
the TV screen.
• Press SELECT VIDEO to control the
VCR.
?/1
Z
SELECT VIDEO
TRACKING +/–
CLEAR
REPLAY
MSLOWy
m
./ > SHUTTLE
C SKIP
X PAUSE
x STOP
H PLAY
DISPLAY
1
34 Playing a tape
Insert a tape.
The VCR starts playing automatically if
you insert a tape with its safety tab
removed.
2
PLAY
Press H PLAY.
The display window shows the
playback time.
When the tape reaches the end,
it will rewind automatically.
Hour Minute Second
Additional tasks
To
Press
Stop play
x STOP
X PAUSE
X PAUSE or H PLAY
Fast-forward the tape
M during stop
Rewind the tape
m during stop
Eject the tape
Z
To play a recently watched scene
You can immediately rewind and playback the scene you want to watch again.
During playback, press REPLAY. The VCR rewinds the tape about 10 seconds in the
SP mode (about 15 seconds in the EP mode) on the counter for each press of the
button, and restarts playback.
Basic Operations
Pause play
Resume play after pause
To skip playback
You can skip a scene that you do not want to watch (such as a commercial) and restart
playback.
During playback, press C SKIP up to four times. The VCR skips the tape 30
seconds on the counter for each press of the button, and restarts playback.
To turn off the power while rewinding (Rewind Shut Off)
Press ?/1 while the tape is rewinding. The power will turn off but the tape will keep
rewinding until it reaches the end.
To play/search at various speeds
Playback options
Operation
View the picture during fastforward or rewind
During fast-forward, hold down M. During rewind, hold
down m.
Play at high speed
• During playback, briefly press M or m. The tape
continues to play at 5 times normal speed.
• During playback, hold down M or m. The tape
continues to play at 5 times normal speed. When you
release the button, normal playback resumes.
Play in slow motion
During pause, press MSLOW y.
continued
Playing a tape
35
Playback options
Operation
Play frame by frame
During pause, press C SKIP.
Play at various speeds
(Shuttle play)
During playback, press .or > SHUTTLE. You can
change the playback speed as follows.
–×7 y –×5 y –×3 y STILL y SLOW y PLAY
y ×2 y ×3 y ×5 y ×7
To resume normal playback
Press H PLAY.
To use the time counter
Press CLEAR at the point on the tape that you want to find later. The counter in the
display window resets to “0:00:00.” To search for the counter 0:00:00 point
automatically, see “To search for the counter 0:00:00 point” on page 82.
To display the counter on the TV screen, press DISPLAY.
Tip
• Adjust the picture using the TRACKING +/– buttons if:
– Streaks appear while playing in slow motion.
– The picture shakes during pause.
Notes
• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the
picture quality cannot be guaranteed.
• The counter resets to “0:00:00” whenever a tape is reinserted.
• The counter stops counting when it comes to a portion with no recording.
• When 10 hours have passed, the counter in the display window returns to “0:00:00” and the
count starts over again.
• The sound is muted during playback at various speeds.
• The picture may show noise when playing at high speed in reverse.
• While playing a tape, you can display the “SETUP MENU” but the remote commander’s
function switches to DVD automatically. Press O RETURN repeatedly to exit the menu.
• When playback does not start even if you insert a tape with its safety tab removed, set “Auto
Play” to “On” in the “VIDEO FUNCTION SETUP” menu (page 84).
• Stop disc playback while playing back a video.
36 Playing a tape
Recording TV programs
Before you start ...
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so
that the signal from the player appears on
the TV screen.
• Press SELECT VIDEO to control the
VCR.
• To record from a cable box, turn it on.
• Make sure the tape is longer than the total
recording time.
?/1
Z
SELECT VIDEO
CH +/–
SP/EP
TV/VIDEO
INPUT
SELECT
x STOP
H PLAY
ENTER
Basic Operations
z REC
DISPLAY
1
2
Insert a tape with its safety tab in place.
• CH/
TRACKING
Press CH +/– to select the channel or line input video source you want to
record.
continued
Recording TV programs
37
3
SP / EP
4
REC
Press SP/EP to select the tape speed, SP or EP.
EP (Extended Play) provides recording time three times as long as SP
(Standard Play). However, SP produces better picture and audio quality.
Press z REC to start recording.
“REC” appears in the display window.
To stop recording
Press x STOP.
To check the remaining tape length
Press DISPLAY to display the time counter. With the display on, press DISPLAY
again to check the remaining time. The white bar indicates the current location in
relation to the entire tape length. The remaining time also appears. Press DISPLAY
to turn off the indicators.
0 : 0 0 : 3 0 SP
Rem 1 : 3 8
Time counter
Remaining tape length
To check the remaining tape length of a tape, set “Tape Length” in the “VIDEO
FUNCTION SETUP” menu correctly (page 84).
Maximum Recording Time
Tape Length
SP
EP
T-120
2 hrs
6 hrs
T-160
2 hrs 40 mins
8 hrs
T-180
3 hrs
9 hrs
38 Recording TV programs
To watch another TV program while recording
1 Press TV/VIDEO to display “TV” in the display window.
your TV is connected to the VCR using A/V connections, set the TV to the
2 IfTV’s
antenna input; if not, skip this step.
Select another channel on the TV.
3
To watch a DVD while recording
automatically change to the DVD playback screen.
To save a recording
To prevent accidental erasure, break
off the safety tab as illustrated. To
record on the tape again, cover the tab
hole with adhesive tape.
Basic Operations
1 Press SELECT DVD to control the DVD player.
2 Press Z and place the disc on the disc tray.
H PLAY.
3 Press
The disc tray closes and the DVD player starts playback. The TV screen will
Safety tab
Tips
• To select a channel, you can use the
number buttons on the remote commander. Enter the channel number, then press ENTER.
• You can select a video source from the LINE IN 1 or LINE-2 IN jacks using the INPUT
SELECT button.
• The display appears on the TV screen indicating information about the tape, but the
information will not be recorded on the tape.
• If you do not want to watch TV while recording, you can turn off the TV. When using a cable
box, make sure to leave it on.
Notes
• The remaining tape length may not be indicated accurately for short tapes such as T-20 or
T-30, or tapes recorded in the LP mode.
• The display does not appear during still (pause) mode or slow-motion playback.
• It may take up to one minute for the VCR to calculate and display the remaining tape length
after you press DISPLAY.
• You cannot record a DVD to a VCR tape.
• To watch a TV program during video recording, stop disc playback.
Recording TV programs
39
Recording TV programs using the timer
You can preset up to eight programs at a
time.
Before you start…
• Check that the DVD-VCR clock is set to
the correct time.
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so
that the signal from the player appears on
the TV screen.
• Press SELECT VIDEO to control the
VCR.
• When using a cable box, turn it on.
• Insert a tape with its safety tab in place.
Make sure the tape is longer than the total
recording time.
• If the DVD player is in play mode, you
cannot display the “SETUP MENU.” Stop
the DVD playback.
?/1
SELECT VIDEO
CLEAR
SET UP
TIMER
INPUT
SELECT
x STOP
V/v/B/b
ENTER
O RETURN
1
SET UP
Press SET UP.
SETUP MENU
The “SETUP MENU” appears.
You can also use the TIMER button in VIDEO
mode, then you can skip step2.
DVD Setup
RETURN
40 Recording TV programs using the timer
VvB b
ENTER
2
ENTER
Press V/v/B/b to select
(Set Timer
Recording), then press ENTER.
B
The program menu appears.
CH
––
––
––
––
––
––
––
––
START
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
RETURN
3
END
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
DATE
–––
–––
–––
–––
–––
–––
–––
–––
SPD
---------
Vv Bb
If necessary, press V/v to select the row that is to be set.
ENTER
4
Set the channel number, start and stop time,
date, and tape speed:
ENTER
1 Press b to flash each item in turn.
CH
35
––
––
––
––
––
––
––
START
8 : 0 0 PM
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
RETURN
END
9 : 0 0 PM
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
– : ––
DATE
9 / 30
–––
–––
–––
–––
–––
–––
–––
SPD
SP
--------
Vv Bb
To correct a setting, press B to return to that
setting and reset.
INPUT
SELECT
To record from a source connected to the LINE IN 1 or LINE-2 IN jacks,
press INPUT SELECT or V/v to display “L1 ” or “L2” in the “CH”
position.
Basic Operations
2 Press V/v to set each item.
B
To record the same program every day or the same day every week, press v
while the date is flashing. For details, see “Daily/weekly recording” below.
To use the Auto Tape Speed function, press v to display “AUTO” in the
“SPD” position. For details, see “To use the Auto Tape Speed function” on
page 42.
5
Press O RETURN to confirm the setting.
RETURN
The
indicator appears in the display window.
To enter another setting, press V/v to select the next row and repeat step 4.
CLEAR
6
Press CLEAR repeatedly to cancel the setting.
Press O RETURN repeatedly to exit the menu.
RETURN
The DVD-VCR stands by for recording (you do not have to turn off the
DVD-VCR). When using a cable box, leave it on.
continued
Recording TV programs using the timer
41
To stop recording
To stop the DVD-VCR while recording, press SELECT VIDEO and then press
x STOP.
Daily/weekly recording
In step 4 above, press v to select the recording pattern. Each time you press v, the
indication changes as shown below. Press V to change the indication in reverse order.
MO~FR t SUN’S t MON’S t ..... t SAT’S t 1 month later t (dates count
down) t the current date
To use the Auto Tape Speed function
When you are recording a program in the AUTO mode and the remaining tape
becomes shorter than the recording time, the tape speed is automatically changed to
the EP mode. Note that some noise will appear on the picture when the tape speed is
changed. If you want to keep the tape speed, select SP. To operate this function, set
“Tape Length” in “VIDEO FUNCTION SETUP” menu correctly (page 84).
To watch another TV program after setting the timer
1 Press TV/VIDEO to display “TV” in the display window.
your TV is connected to the VCR using A/V connections, set the TV to the
2 IfTV’s
antenna input; if not, skip this step.
Select another channel on the TV.
3
To watch a DVD after setting the timer
1 Press SELECT DVD to control the DVD player.
2 Press Z and place the disc on the disc tray.
H PLAY.
3 Press
The disc tray closes and the DVD player starts playback. The TV screen will
automatically change to the DVD playback screen.
Tips
• To set the channel, you can also use the V/v or number buttons.
• If the indicator appears, the timer settings overlap. To check, change or cancel the program
setting, repeat the steps of “Recording TV programs using the timer” on page 40.
• If the
indicator appears, this means that the VCR is currently recording this program.
• You can also do the following tasks while the VCR is recording:
– Reset the counter (page 36).
– Display tape information on the TV screen (page 38).
42 Recording TV programs using the timer
Checking/changing/canceling timer
settings
?/1
CLEAR
SET UP
TIMER
Basic Operations
V/v/B/b
ENTER
O RETURN
1
SET UP
Press SET UP when the DVD player is in stop
mode.
SETUP MENU
The “SETUP MENU” appears.
You can also use the TIMER button in VIDEO
mode, then you can skip step2.
DVD Setup
RETURN
VvB b
ENTER
continued
Checking/changing/canceling timer settings
43
2
Press V/v/B/b to select
ENTER
“Set Timer Recording”, then press ENTER.
• If you want to change a setting, go on to the next step.
• If you do not need to change the settings, press O RETURN repeatedly
to exit the menu, then turn off the VCR to return to recording standby.
RETURN
3
Press V/v to select setting you want to change
or cancel.
ENTER
CLEAR
• To change the setting, press B/b to flash the
item you want to change, and press V/v to
change it.
• To cancel the setting, press CLEAR.
4
B
CH
35
20
60
––
––
––
––
––
START
8 : 0 0 PM
10 : 0 0 AM
8 : 3 0 PM
– : ––
– : ––
– : ––
– : ––
– : ––
RETURN
STOP
9 : 0 0 PM
11 : 3 0 AM
10 : 0 0 PM
– : ––
– : ––
– : ––
– : ––
– : ––
DATE
9 / 30
10 / 0 2
9 / 30
–––
–––
–––
–––
–––
SPD
SP
EP
AUTO
------
Vv Bb
Press O RETURN to confirm the setting.
RETURN
5
The
indicator appears in the display window.
Press O RETURN repeatedly to exit the menu.
RETURN
The DVD-VCR stands by for recording (you do not have to turn off the
DVD-VCR). When using a cable box, leave it on.
When the timer settings overlap
The program that starts first has priority and the second program starts recording only
after the first program has finished. If the programs start at the same time, the
program listed first in the menu has priority.
Program 1
Program 2
Will be cut off
44 Checking/changing/canceling timer settings
Advanced Hookups
A/V Receiver hookup
A Use this hookup if your A/V receiver has a Dolby* Surround (Pro
Logic) decoder and 3 to 6 speakers
You can enjoy the Dolby Surround effects only when playing Dolby Surround audio
or multi-channel audio (Dolby Digital) discs.
∗ Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the doubleD symbol are trademarks of Dolby Laboratories.
DVD-VCR
A
VIDEO
AUDIO
L
(red)
Stereo audio cord
(not supplied)
Advanced Hookups
R
LINE IN1
(white)
LINE OUT
to LINE OUT L/R (AUDIO)
l: Signal flow
(white)
(red)
to audio input
[Speakers]
[Speakers]
Amplifier (receiver) with Dolby
Surround decoder
Rear (L)
Front (L)
Rear (R)
Subwoofer
Center
Front (R)
Rear (mono)
Note
• When connecting 6 speakers, replace the monaural rear speaker with a center speaker, 2 rear
speakers and a subwoofer.
continued
A/V Receiver hookup
45
B Use this hookup if your A/V reciever has a Dolby Digital or DTS*
decoder, a digital input jack and 6 speakers
This connection will allow you to use the Dolby Digital or DTS decoder function of
your AV amplifier (receiver). You are not able to enjoy the surround sound effects of
this player. You must make connections using B-1 and B-2 .
∗ “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
DVD-VCR
B-1
VIDEO
AUDIO
R
(red)
L
Stereo audio cord
(not supplied)
B-2
Coaxial digital cord
(not supplied)
DIGITAL AUDIO OUT
OPTICAL
COAXIAL
LINE IN1
and
or
(white)
LINE OUT
to LINE OUT L/R (AUDIO)
(white)
(red)
to DIGITAL OUT
(COAXIAL or OPTICAL)
Optical digital cord
(not supplied)
Remove jack cap
before connecting
l: Signal flow
to coaxial or optical
digital input
to audio input
[Speakers]
[Speakers]
AV amplifier (receiver) having
a decoder
Subwoofer
Rear (L)
Rear (R)
Front (L)
Center
Front (R)
Note
• After you have completed the connection, be sure to set “Dolby Digital” to “Dolby Digital”
and “DTS” to “On” in “Audio Setup” (page 49). Otherwise, no sound or a loud noise will
come from the speakers.
46 A/V Receiver hookup
S-Video/Component Video hookup
Make audio connections using the LINE OUT AUDIO L/R jacks or DIGITAL AUDIO OUT
(OPTICAL or COAXIAL) jacks on the right side of the DVD-VCR when you use S-VIDEO/
Component Video hookup.
A Use this hookup if your TV has an S VIDEO input jack
• Connect an S VIDEO cord (not supplied). You will enjoy high quality images.
DVD-VCR
TV
l : Signal flow
(DVD only)
INPUT
S VIDEO
Audio cord
(not supplied)
Coaxial
digital cord
(not supplied)
to audio
input
or
Advanced Hookups
or
Optical digital
cord (not
S VIDEO cord
supplied)
(not supplied)
Remove jack
cap before
connecting
to coaxial or optical
digital input
TV or AV amplifier
Notes
• Set “Video Out” to “S-Video” in the “SCREEN SETUP” menu (page 52) to view pictures
from the S VIDEO jack.
• The connection using S VIDEO OUT jack is only for the DVD player.
continued
S-Video/Component Video hookup
47
B Use this hookup if your TV has component video input jacks
• Connect your TV via the COMPONENT VIDEO OUT jacks using a component
video cord (not supplied) or three video cords (not supplied) of the same kind and
length. You will enjoy accurate color reproduction and high quality images.
See page 47 for audio connections.
DVD-VCR
(blue)
(red)
(green)
TV
COMPONENT
VIDEO IN
Component video cord
(not supplied)
Y
(green)
PB
PR
(blue)
(red)
l : Signal flow
(DVD only)
Notes
• Set “Video Out” to “Component” in the “SCREEN SETUP” menu (page 52) to view pictures
from the component video jacks.
• The connection using COMPONENT VIDEO OUT jack is only for the DVD player.
48 S-Video/Component Video hookup
DVD Settings and Adjustements
Audio Setup
“Audio Setup” allows you to set the sound
according to the playback and connection
conditions.
SET UP
V/v/B/b
ENTER
O RETURN
SET UP
Press SET UP when the DVD player is in stop
mode.
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
2
ENTER
Press V/v/B/b to select
then press ENTER.
(DVD Setup),
The “DVD SETUP” menu appears.
Press V/v to select “Audio Setup,” then press
ENTER.
ENTER
ENTER
DVD SETUP
DVD Menu
Audio
Subtitle
Parental
Audio Setup
Screen Setup
RETURN
3
VvB b
English
Original
Audio Follow
Unlocked
Vv
DVD Settings and Adjustements
1
ENTER
AUDIO SETUP
Dolby Digital
DTS
Audio DRC
RETURN
B b D - PCM
Off
Standard
Vv
continued
Audio Setup
49
4
Press V/v to select the setup item from the displayed list:
“Dolby Digital,” “DTS,” or “Audio DRC.”
ENTER
5
Press B/b to select an item, then press O RETURN to confirm the setting.
ENTER
RETURN
6
Press O RETURN repeatedly to exit the menu.
RETURN
Menu choices
• Dolby Digital (DVD only)
Selects the type of Dolby Digital signal.
The default setting is indicated in bold print.
D-PCM
Select this when the player is connected to an audio component
lacking a built-in Dolby Digital decoder.
Dolby Digital
Select this when the player is connected to an audio component
with a built-in Dolby Digital decoder.
• DTS (DVD only)
Selects whether or not to output DTS signals.
The default setting is indicated in bold print.
Off
Select this when the player is connected to an audio component
lacking a built-in DTS decoder.
On
Select this when the player is connected to an audio component
with a built-in DTS decoder.
• Audio DRC (Dynamic Range Control) (DVD only)
Makes the sound clear when the volume is turned down when playing a DVD that
conforms to “Audio DRC.” This affects the output from the following jacks:
– LINE OUT AUDIO L/R jacks
– DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack only when “Dolby
Digital” is set to “D-PCM”.
The default setting is indicated in bold print.
50 Audio Setup
Standard
Normally select this position.
TV Mode
Makes the low sounds clear even if you turn the volume down.
Notes
• If you select surround setting while playing a DVD, the player does not output Dolby Digital
signals from the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack (when you set
“Dolby Digital” to “D-PCM”).
• If you connect a component that does not conform to the selected audio signal, a loud noise
(or no sound) will come out from the speakers, affecting your ears or causing the speakers to
be damaged.
DVD Settings and Adjustements
Audio Setup
51
Screen Setup
“Screen Setup” allows you to set the screen
according to the playback and connection
conditions.
SET UP
V/v/B/b
ENTER
O RETURN
1
SET UP
Press SET UP when the DVD player is in stop
mode.
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
2
ENTER
Press V/v/B/b to select
then press ENTER.
(DVD Setup),
The “DVD SETUP” menu appears.
Press V/v to select “Screen Setup,” then press
ENTER.
ENTER
English
Original
Audio Follow
Unlocked
Vv
ENTER
SCREEN SETUP
TV Type
Black Level
Video Out
RETURN
52 Screen Setup
ENTER
DVD SETUP
DVD Menu
Audio
Subtitle
Parental
Audio Setup
Screen Setup
RETURN
3
VvB b
B b 4 : 3 Letter Box
On
S - Video
Vv
4
Press V/v to select the setup item from the displayed list:
“TV Type,” “Black level,” or “Video Out.”
ENTER
5
Press B/b to select an item, then press O RETURN to confirm the setting.
ENTER
RETURN
6
Press O RETURN repeatedly to exit the menu.
RETURN
Menu choices
• TV Type (DVD only)
Selects the aspect ratio of the connected TV (4:3 standard or wide).
The default setting is indicated in bold print.
Select this when you connect a 4:3 screen TV. Displays a wide
picture with bands on the upper and lower portions of the screen.
4:3 Pan Scan
Select this when you connect a 4:3 screen TV. Automatically
displays the wide picture on the entire screen and cuts off the
portions that do not fit.
16:9
Select this when you connect a wide-screen TV or a TV with a wide
mode function.
4:3 Letter Box
4:3 Pan Scan
16:9
DVD Settings and Adjustements
4:3 Letter Box
continued
Screen Setup
53
• Black Level
You can enhance the black level by increasing the brightness and contrast when
viewing DVDs.
The default setting is indicated in bold print.
On
Increases the contrast.
Off
Stops the increase of the contrast.
• Video Out
You must set this setting when you use S VIDEO OUT or COMPONENT VIDEO
OUT jacks to connect to the TV.
The default setting is indicated in bold print.
S-Video
Select this when you use the S VIDEO OUT jack on the rear panel
to connect to the TV.
Component
Select this when you use the COMPONENT VIDEO OUT jacks on
the rear panel to connect to the TV.
Notes
• Playback settings stored in the disc take priority over the “DVD SETUP” menu settings and
not all the functions described may work.
• Depending on the DVD, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan
Scan” or vice versa.
• The connection using S VIDEO OUT or COMPONENT VIDEO OUT jacks is only for the
DVD player.
54 Screen Setup
Setting the display or sound track
language
You can set various languages for the disc’s
menu, sound track or subtitle.
SET UP
V/v/B/b
ENTER
O RETURN
SET UP
Press SET UP when the DVD player is in stop
mode.
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
2
ENTER
Press V/v/B/b to select
then press ENTER.
(DVD Setup),
The “DVD SETUP” menu appears.
ENTER
ENTER
DVD SETUP
DVD Menu
Audio
Subtitle
Parental
Audio Setup
Screen Setup
RETURN
3
VvB b
DVD Settings and Adjustements
1
English
Original
Audio Follow
Unlocked
Vv
ENTER
Press V/v to select the language setup item from the displayed list:
“DVD Menu,” “Audio,” or “Subtitle.”
Then press ENTER.
continued
Setting the display or sound track language
55
4
Press V/v to select the desired language, then press ENTER.
ENTER
• DVD MENU LANGUAGE
You can select the desired language for the
disc’s menu.
DVD MENU LANGUAGE
B
English
Français
Deutsch
Español
Italiano
Nederlands
Others
Vv
RETURN
• AUDIO LANGUAGE
Switches the language of the sound track.
When you select “Original,” the language
given priority in the disc is selected.
• SUBTITLE LANGUAGE
Switches the language of the subtitle
recorded on the DVD.
When you select “Audio Follow,” the
language for the subtitles changes according
to the language you selected for the sound
track.
5
ENTER
AUDIO LANGUAGE
English
Français
Deutsch
Español
Italiano
Nederlands
B Original
Others
RETURN
Vv
ENTER
SUBTITLE LANGUAGE
Audio Follow
English
Français
Deutsch
Español
Italiano
Nederlands
Others
RETURN
B
Vv
ENTER
Press O RETURN repeatedly to exit the menu.
RETURN
Tip
If you select “Others” in step 4, an additional language
menu appears. Press V/v/B/b to select the desired
language, then press ENTER.
DVD MENU LANGUAGE
Cesky
Dansk
Magyar
Svenska
Norsk
Polski
Português
Suomi
RETURN
B
Afrikaans
Arabic
Chinese
Greek
Hindi
Japanese
Russian
Turkish
VvB b
ENTER
Notes
• When you select a language that is not recorded on the DVD
in step 4, one of the recorded languages will be
automatically selected.
• Playback settings stored in the disc take priority over the DVD SETUP settings and not all the
functions described may work.
56 Setting the display or sound track language
Parental Control (limiting playback by children)
Playback of some DVDs can be limited
according to a predetermined level such as
the age of the users. The “PARENTAL
CONTROL” function allows you to set a
playback limitation level.
Number
buttons
SET UP
1
SET UP
Press SET UP when the DVD player is in stop
mode.
DVD Settings and Adjustements
V/v/B/b
ENTER
SETUP MENU
The “SETUP MENU” appears.
DVD Setup
RETURN
VvB b
ENTER
continued
Parental Control (limiting playback by children)
57
2
ENTER
Press V/v/B/b to select
then press ENTER.
(DVD Setup),
The “DVD SETUP” menu appears.
DVD SETUP
DVD Menu
Audio
Subtitle
Parental
Audio Setup
Screen Setup
English
Original
Audio Follow
Unlocked
Vv
RETURN
3
Press V/v to select “Parental,” then press
ENTER.
ENTER
PARENTAL CONTROL
ENTER
Use Password B b No
RETURN
4
ENTER
Press b to select “Yes”.
ENTER
• If you have not entered a password
The display for registering a new password
appears.
Enter a 4-digit password using the number
bottons.
The display for confirming the password
appears.
Re-enter the password.
CREATE PASSWORD
Enter Password
––––
RETURN
PRESS 0-9
• When you have already registered a
password
PASSWORD CHECK
Enter Password
––––
The display for entering the password appears.
Enter a 4-digit password using the number
bottons.
RETURN
PRESS 0-9
PARENTAL CONTROL
Use Password B b Yes
Rating Level
1
Change Password
Vv
RETURN
5
Press V/v to select “Rating Level,” then press
ENTER.
Level 8
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1
ENTER
RETURN
58 Parental Control (limiting playback by children)
ENTER
RATING LEVEL
Adult
Kids Safe
Vv
ENTER
6
Press V/v to select the level you want, then
press ENTER.
Level 8
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1
ENTER
The options are as follows.
Level 8 (Adult) y Level 7 y Level 6 y
Level 5 y Level 4 y Level 3 y Level 2
y Level 1 (Kids Safe)
RETURN
RATING LEVEL
Adult
Kids Safe
Vv
ENTER
The higher the value, the stricter the limitation.
7
Press O RETURN repeatedly to exit the menu.
RETURN
To change the password
“Change Password” in step 4.
1 Select
The display for entering a new password appears.
a new 4-digit password using the number buttons.
2 Enter
The display for confirming the password appears.
3 Re-enter the new password.
To play a disc for which Parental Control is set
the disc, then press H PLAY.
1 Insert
The display for entering your password appears.
your 4-digit password using the number buttons.
2 Enter
The player starts playback.
If you forget your password
1 Remove the disc and turn off the DVD-VCR.
2 Turn on the DVD-VCR again with no disc in the unit.
down m and M on the front panel simultaneously for 5 seconds.
3 Hold
“reset ok” appears on the screen.
off the DVD-VCR.
4 Turn
The password is cleared.
DVD Settings and Adjustements
To turn off the Parental Control function
Set “Use Password” to “No” in Step 4.
Notes
• When you play DVDs which do not have the Parental Control function, playback cannot be
limited on this player.
• All the ratings higher than the level you select will be blocked.
• Write your password down and keep it in a safe place in case you forget it.
Parental Control (limiting playback by children)
59
DVD Additional Operations
Using the DVD’s menu
A DVD is divided into long sections of a
picture or a music feature called “titles.”
When you play a DVD which contains
several titles, you can select the title you
want using the TOP MENU button.
Number
buttons
When you play DVDs that allow you to
select items such as the language for the
subtitles and the language for the sound,
select these items using the MENU button.
V/v/B/b
ENTER
MENU
TOP
MENU
1
Press TOP MENU or MENU.
The disc’s menu appears on the TV screen.
TOP MENU
The contents of the menu vary from disc to disc.
MENU
2
Press V/v/B/b to select the item you want to play or change.
ENTER
3
You can also use the number buttons to select the item.
Press ENTER.
ENTER
Note
• Depending on the DVD, you may not be able to use the TOP MENU button.
60 Using the DVD’s menu
Zooming into a scene
You can zoom into a scene during playback
or still mode.
ZOOM
V/v/B/b
ENTER
MUTING/
ZOOM
Press ZOOM.
“
2
” appears.
Press V/v/B/b to move “
” to the position where you want to zoom in.
ENTER
3
DVD Additional Operations
1
Press ENTER repeatedly to change the magnification.
ENTER
Each time you press the button, the magnification changes as shown below.
2× t 4× t 2× t normal magnification
Note
• You cannot use 4× magnification when you play VIDEO CDs.
• The zoom function may not work depending on the DVD.
Zooming into a scene
61
Changing the angles
If various angles (multi-angles) for a scene
are recorded on the DVD, “ ” appears in
the display when you press ANGLE during
playback. This means that you can change
the viewing angle.
ANGLE
V/v
1
ANGLE
Press ANGLE during playback.
1/6 V v
The angle number appears on the display.
The number after the slash indicates the total
number of angles.
2
Press V/v repeatedly to select the angle number.
ENTER
The scene changes to the selected angle.
Note
• Depending on the DVD, you may not be able to change the angles even if multi-angles are
recorded on the DVD.
62 Changing the angles
Displaying the subtitle
If subtitles are recorded on the disc, you can
change the subtitles or turn them on and off
whenever you want while playing a DVD.
SUBTITLE
V/v/B/b
ENTER
1
TIMER/
SUBTITLE
ENG V v Off B b
Press V/v repeatedly to select the language, then press ENTER.
ENTER
Depending on the DVD, the choice of language varies.
Refer to “DVD AUDIO/SUBTITLE LANGUAGE” on page 102 for the
abbreviation of the language.
3
Press B/b repeatedly to select “On,” then press ENTER.
DVD Additional Operations
2
Press SUBTITLE during playback.
ENTER
To turn off the subtitles
Select “Off” in step 3, then press ENTER.
Note
• Depending on the DVD, you may not be able to change the subtitles even if multilingual
subtitles are recorded on it. You also may not be able to turn them off.
Displaying the subtitle
63
Picture navigation
You can devide the screen into 9 subscreens
and display the first scene of each chapter.
./>
NAVI
V/v/B/b
ENTER
1
SKIP/
PICTURE NAVI
Press PICTURE NAVI during playback.
The 9 subscreens appear.
The scenes represent each of the chapters on
the DVD.
PICTURE NAVI
PAGE ./>
01
02
03
04
05
06
07
08
09
The displayed subscreens differ depending on
the DVD.
2
Press V/v/B/b repeatedly to select the scene you want, then press ENTER.
ENTER
You can start playback from the desired chapter.
Note
• If the DVD has more than 9 chapters, press ./> to view the following subscreens.
• The picture navigation function may not work depending on the DVD.
64 Picture navigation
Various play mode functions (Program play,
Random play, Repeat play)
You can set the following play modes:
• Program play (page 65)
• Random play (page 67)
• Repeat play (page 68)
Note
• The play mode is canceled when:
– you open the disc tray
– the player enters standby mode by pressing [/1.
Creating your own program (Program play)
You can play the contents of a disc in the
order you want by arranging the order of the
chapters or tracks on the disc to create your
own program. You can program up to 20
chapters and tracks.
Number
buttons
CLEAR
H PLAY
V/v/B/b
ENTER
DVD Additional Operations
REPEAT
continued
Various play mode functions (Program play, Random play, Repeat play)
65
1
REPLAY/
REPEAT
2
Press REPEAT when the DVD player is in stop
mode.
B b RANDOM
Press B/b to select “PROGRAM”, then press
ENTER.
ENTER
3
ENTER
Press V/v/B/b to select the chapter/track
number you want to program, then press
ENTER.
You can also use the number buttons to enter
the chapter/track number.
4
To program other chapters/tracks, repeat step 3.
5
Press H PLAY to start program play.
PROGRAM 01
Chap. (T:01)
01 02 03 04
05 06 07 08
09 10 11 12
13 14 15 16
VvBb
Program Order
–– –– ––
–– –– –– ––
–– –– –– ––
–– –– –– ––
Chap. (T:01)
01 02 03 04
05 06 07 08
09 10 11 12
13 14 15 16
VvBb
Program Order
–– ––
01
–– –– –– ––
–– –– –– ––
–– –– –– ––
PROGRAM 02
The programed title, chapter and track numbers are displayed in the selected
order.
Program play starts.
When the program ends, you can restart the same program again by pressing
H PLAY.
To stop program play
Press CLEAR.
To change or cancel a program
1 Follow steps 1 and 2 of “Creating your own program (Program play).”
CLEAR.
2 Press
The last programed number is canceled.
3 Follow step 3 for new programing.
Note
• You can do repeat play or random play of the programed titles, chapters, or tracks. During
program play, follow the steps of “Playing repeatedly (Repeat play)” (page 68) or “Playing in
random order (Random play)” (page 67).
66 Various play mode functions (Program play, Random play, Repeat play)
Playing in random order (Random play)
You can shuffle the playback order of titles,
chapters, or tracks. Subsequent “shuffling”
may produce a different playing order.
CLEAR
REPEAT
V/v/B/b
ENTER
1
REPLAY/
REPEAT
Press B/b to select RANDOM, then press
ENTER.
B b RANDOM
PROGRAM B b RANDOM
ENTER
DVD Additional Operations
2
Press REPEAT when the DVD player is in stop
mode.
To return to normal play
Press CLEAR.
continued
Various play mode functions (Program play, Random play, Repeat play)
67
Playing repeatedly (Repeat play)
You can play all of the titles or tracks on a
disc or a single title, chapter, or track
repeatedly.
CLEAR
REPEAT
1
REPLAY/
REPEAT
2
REPLAY/
REPEAT
Press REPEAT during playback.
Off
Press REPEAT repeatedly to select the item to be repeated.
When playing a DVD
• Chapter: repeats the current chapter.
• Title: repeats the current title on a disc.
When playing a VIDEO CD or CD
• Track: repeats the current track.
• Disc: repeats all of the tracks.
When playing a DATA CD (MP3 audio)
• Track: repeats the current track.
To return to normal play
Select “Off” or press CLEAR in step 2.
68 Various play mode functions (Program play, Random play, Repeat play)
Using bookmarks
You can store scenes in the player’s memory
as bookmarks.
You can set up to three bookmarks.
CLEAR
BOOKMARK
H PLAY
B/b
ENTER
SEARCH MENU/
BOOKMARK
Press BOOKMARK during playback.
– – –
Bb
ENTER
Three bookmark placeholders (- - - ) appear
next to the bookmark icon.
2
Press B/b to select one of the placeholders.
DVD Additional Operations
1
ENTER
3
ENTER
Play the DVD scene you want, then press
ENTER.
The selected placeholder changes to a number
(1, 2 or 3).
1 – – Bb
B
PLAY CLEAR
continued
Using bookmarks
69
To cancel the bookmark
Press CLEAR after step 3.
To exit the Bookmark menu
Press BOOKMARK.
To playback the scene where you insert a bookmark
1 Press BOOKMARK during playback.
B/b to select the bookmark placeholder, then press H PLAY to play the
2 Press
bookmark.
Note
• Depending on the DVD, you may not be able to use the bookmark function.
70 Using bookmarks
Changing the sound
When playing a DVD recorded in multiple
audio formats (PCM, Dolby Digital, or
DTS), you can change the audio format. If
the DVD is recorded with multilingual
tracks, you can also change the language.
AUDIO
With CDs, DATA CDs, or VIDEO CDs, you
can select the sound from the right or left
channel and listen to the sound of the
selected channel through both the right and
left speakers. For example, when playing a
disc containing a song with the vocals on the
right channel and the instruments on the left
channel, you can hear the instruments from
both speakers by selecting the left channel.
AUDIO
2
Press AUDIO during playback.
ENG DOLBY DIGITAL 5.1CH V v
Press V/v repeatedly to select the desired language/audio setting.
ENTER
• When playing a DVD
Depending on the DVD, the choice of language varies.
Refer to “DVD AUDIO/SUBTITLE LANGUAGE” on page 102 for the
abbreviation of the language.
• When playing a VIDEO CD, CD, or DATA CD (MP3 audio)
The default setting is indicated in bold print.
STEREO
The standard stereo sound
Left
The sound of the left channel (monaural)
Right
The sound of the right channel (monaural)
Changing the sound
DVD Additional Operations
1
V/v
71
Virtual surround setting
When you connect a stereo TV or 2 front
speakers, SURROUND lets you enjoy surround
sound effects by using sound imaging to create
virtual rear speakers from the sound of the front
speakers without using actual rear speakers.
This function is designed to work with the LINE
OUT AUDIO L/R jacks.
1
SURROUND
2
SURROUND
Press SURROUND during playback.
Press SURROUND repeatedly to select “On.”
To cancel the setting
Select “Off” in step 2.
72 Virtual surround setting
SURROUND
Off
Notes
• When the playing signal does not contain a signal for the rear speakers, the surround effects
will be difficult to hear.
• When you activate the surround effect, turn off the surround setting of the connected TV or
amplifier (receiver).
• Make sure that your listening position is between and at an equal distance from your
speakers, and that the speakers are located in similar surroundings.
• If you use the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack and set “Dolby
Digital” to “Dolby Digital” or “DTS” to “On” in “AUDIO SETUP” menu, sound will come
from your speakers but it will not have the surround effect.
• Portions of this product are licensed from Desper Products, Inc., a subsidiary of Spatializer
Audio Laboratories, Inc. Copyright ©1997-2001Spatializer®, N-2-2™, and the circle-insquare device are trademarks of Desper Products, Inc.
DVD Additional Operations
Virtual surround setting
73
Playing an MP3 audio track
You can play back DATA CDs (CD-ROMs/
CD-Rs/CD-RWs) recorded in MP3 (MPEG1
Audio Layer 3) format.
Z
H PLAY
V/v/V/v
ENTER
O RETURN
1
Press Z and place a DATA CD on the disc tray,
then press Z to close the tray.
MP3
album 1
track 1
1 track 1
2 track 2
3 track 3
4 track 4
5 track 5
6 track 6
7 track 7
8 track 8
Vv
2
Press V/v to select the desired track, then press ENTER.
ENTER
The selected track starts playing.
When a track or album is being played, its title is shaded.
74 Playing an MP3 audio track
3
To change the album, press O RETURN.
MP3
album 1
RETURN
track 1
1 album 1
2 album 2
3 album 3
Vv
4
Press V/v to select an album, then press
ENTER.
MP3
album 1
track 1
ENTER
The list of tracks contained in the album
appears.
To select a track, repeat step2.
1 track 1
2 track 2
3 track 3
4 track 4
5 track 5
6 track 6
7 track 7
8 track 8
Vv
To go to the next or previous page
Press b or B.
To return to the previous display
Press O RETURN.
To turn off the display
Press x STOP, then press O RETURN.
About MP3 audio tracks
You can play MP3 audio tracks on CD-ROMs, CD-Rs, or CD-RWs. However, the
discs must be recorded according to ISO9660 level 1, level 2, or Joliet format for the
player to recognize the tracks.
You can also play discs recorded in Multi Session.
See the instructions of the CD-R/RW device or recording software (not supplied) for
details on the recording format.
To play a Multi Session CD
This player can play Multi Session CDs when an MP3 audio track is located in the
first session. Any subsequent MP3 audio tracks, recorded in the later sessions, can
also be played back. When audio tracks and images in music CD format or video CD
format are recorded in the first session, only the first session will be played back.
DVD Additional Operations
Notes
• Only the letters in the alphabet and numbers can be used for album or track names. Anything
else is displayed as an asterisk.
• Up to 8 alphanumeric characters can be displayed for album or track names.
• ID3 tags cannot be displayed.
Notes
• If you put the extension “.MP3” to data not in MP3 format, the player cannot recognize the
data properly and will generate a loud noise which could damage your speaker system.
• The player cannot play audio tracks in MP3PRO format.
• This player supports MP3 audio tracks recorded with a bit rate of 128 kbps and a sampling
frequency of 44.1 kHz. Attempting to play MP3 audio tracks recorded with different
specifications may result in loud noise, sound skipping or speaker damage.
• Depending on the disc, playback may take some time to start.
continued
Playing an MP3 audio track
75
The Playback order of MP3 audio tracks
The playback order of albums and tracks recorded on a DATA CD is as follows.
• Structure of disc contents
Tree 1
Tree 2
Tree 3
Tree 4
Tree 5
ROOT
album
track
When you insert a DATA CD and press H PLAY, the numbered tracks are played
sequentially, from 1 through 7. Any sub-albums/tracks contained within a currently
selected album take priority over the next album in the same tree. (Example: C
contains D so 4 is played before 5.)
When you press O RETURN and the list of MP3 albums appears (page 75), the
albums are arranged in the following order: A t B t C t D t F t G.
Albums that do not contain tracks (such as album E) do not appear in the list.
Tips
• If you add numbers (01, 02, 03, etc.) to the front of the track file names, the tracks will be
played in that order.
• Since a disc with many trees takes longer to start playback, place your albums within the first
two trees.
Notes
• Depending on the software you use to create the DATA CD, the playback order may differ
from the illustration above.
• The playback order above may not be applicable if there are more than a total of 200 albums
and tracks in the DATA CD.
• The player can recognize up to 100 albums (the player will count just albums, including
albums that do not contain MP3 audio tracks). The player will not play any albums beyond
the first 100 albums. Of the first 100 albums, the player will play no more than a combined
total of 200 albums and tracks.
76 Playing an MP3 audio track
Playing VIDEO CDs with “MENU ON/OFF”
Functions
The PBC (Playback control) function allows
you to search and perform other operations
interactively. PBC playback follows a selection
menu displayed on your TV screen.
Number
buttons
The “MENU ON” function is the PBC function.
./>
H PLAY
x STOP
V/v
ENTER
O RETURN
MENU
Start playing a VIDEO CD with “MENU ON.”
2
Press V/v to select the item number you want.
DVD Additional Operations
1
The menu for your selection appears.
ENTER
3
You can also use the number buttons to select the item number and track.
Press ENTER.
ENTER
4
Follow the instructions in the menu for interactive operations.
Refer to the instructions supplied with the disc, as the operating procedure
may differ depending on the VIDEO CD.
continued
Playing VIDEO CDs with “MENU ON/OFF” Functions
77
To return to the menu
Press O RETURN.
To play using “MENU OFF”
Press MENU to select “MENU OFF.”
When “MENU OFF” is selected, the DVD player starts continuous play. You cannot play still
pictures such as a menu.
To return to “MENU ON,” press MENU to select “MENU ON.”
Note
• Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in
the instructions supplied with the disc. In this case, press H PLAY.
78 Playing VIDEO CDs with “MENU ON/OFF” Functions
VCR Addtional Operations
Setting the recording duration time
After you have started recording, you can
have the VCR stop recording automatically
after a specified duration.
z REC
x STOP
1 While recording, press z REC.
0:30
1:00
1:30
2:00
2:30
3:00
3:30
4:00
Normal
recording
The tape counter decreases minute by minute to 0:00, then the VCR stops
recording.
To extend the duration
Press z REC repeatedly to set a new duration time.
To cancel the duration
Press z REC repeatedly until the
normal recording mode.
VCR Addtional Operations
z REC repeatedly to set the duration time.
2 Press
Each press advances the time as follows.
indicator disappears and the VCR returns to
To stop while recording
Press x STOP.
Note
• You cannot display the current tape time in the display window when setting the recording
duration time.
Setting the recording duration time
79
Recording stereo and bilingual programs
Recording stereo programs
When you receive a program broadcast in stereo, press AUDIO to display “Hi-Fi” on
the TV screen. You can also select “Left,” “Right,” or “Mono.” If there is noise in the
stereo program, select “Mono.” The sound will be recorded in monaural (on both hifi and normal audio tracks) but with less noise.
Recording bilingual programs
Press AUDIO to display “SAP” on the TV screen. When a SAP (Second Audio
Program) is received, “SAP” appears on the TV screen. When MAIN is selected, the
VCR records only the main sound.
Selecting the sound during playback
During playback, press AUDIO to select the sound you want.
To listen to
On-screen display
Display window
Stereo
Hi-Fi
STEREO indicator
Left channel
Left
STEREO indicator
Right channel
Right
STEREO indicator
Monaural sound on the
normal audio track
Mono
No indicator
How sound is recorded on a video tape
The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the
main track along with the picture. Monaural sound is recorded onto the normal audio
track along the edge of the tape.
Monaural sound
Normal audio track
Hi-fi audio track
(main track)
Stereo sound
(left/right channels)
Notes
• To play a tape in stereo, you must use the A/V connections.
• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the
AUDIO setting.
80 Recording stereo and bilingual programs
Searching using various functions
The VCR automatically marks the tape with
an index signal at the point where each
recording begins.
You can easily find a specific point using
various search functions.
SEARCH
MENU
H PLAY
V/v/B/b
To search using the index function (Scan and Play)
The VCR automatically marks the tape with an index signal at the point where each
recording begins. Use these signals as references to find a specific recording.
Scan and play:
Press
Go to
[ B ] or [ b ]
[ 0 : 00 : 00 ] :
Press [ V ]
End search:
Press
[v]
0 : 01 : 30
b to scan ahead, or B to scan backwards.
3 Press
The VCR searches and then plays back for about five
seconds.
Scan and play
VCR Addtional Operations
1 Insert an indexed tape into the VCR.
2 Press SEARCH MENU.
0 : 01 : 30
H PLAY to view that program.
4 Press
If you do not press H PLAY, the VCR automatically searches for the next index
mark, or until it reaches the end of the tape.
continued
Searching using various functions
81
To search for the counter 0:00:00 point
To mark a point on the tape that you want to find later, reset the tape counter to
“0:00:00.”
The VCR automatically fast-forwards or rewinds to the 0:00:00 point on the tape
counter.
1 Press SEARCH MENU.
V.
2 Press
The VCR starts searching and automatically stops at
the 0:00:00 point.
Go to [ 0 : 0 0 : 0 0 ]
0 : 01 : 30
To search for a blank portion of the tape
The VCR automatically searches for the beginning of a blank portion. You can easily
find a point you can start recording from.
1 Press SEARCH MENU.
v.
2 Press
The VCR starts searching and automatically stops at
the beginning of a blank space. If no blank space is
found, the VCR reaches the end and the tape will be
ejected.
End search
0 : 01 : 30
Note
• Once in recording mode, if the VCR is put in pause and then released to start the recording,
no index mark will be inserted. An index mark will be inserted if the channel is changed
while VCR is put in pause.
82 Searching using various functions
Adjusting the picture (tracking)
Although the VCR automatically adjusts the tracking
when playing a tape, distortion may occur if the
recording is in poor condition. In this case, manually
adjust the tracking.
Press TRACKING +/– to display the tracking meter.
The distortion should disappear as you press one of
the two tracking buttons.
To resume automatic tracking adjustment, eject the
tape and reinsert it.
TRACKING
Tracking meter
Note
• The auto tracking adjustment cannot be guaranteed to work with tapes recorded in the LP
mode on other VCRs.
VCR Addtional Operations
Adjusting the picture (tracking)
83
Changing menu options
SET UP when the DVD player is in stop
1 Press
mode.
SETUP MENU
DVD Setup
RETURN
2 Press V/v/B/b to select
(Video Function
Setup), then press ENTER.
VvB b
ENTER
VIDEO FUNCTION SETUP
Tape Length
Auto Play
Auto Repeat
B b T120
On
Off
The “VIDEO FUNCTION SETUP” menu appears.
RETURN
Vv
3 Press V/v to select the option to change.
4 Press B/b to change the setting.
5 Press O RETURN repeatedly to exit the menu.
Menu choices
The default settings are indicated in bold print.
Menu option
Set this option to
Tape Length
• T-120 when using a T-120 or shorter length tape.
• T-160 when using a T-160 length tape.
• T-180 when using a T-180 or longer length tape.
Auto Play
• On to start playback automatically, when you insert a tape with
its safety tab removed.
• Off to turn off Auto play. You need to press H PLAY to start
playback, even if you insert a tape with its safety tab removed.
Auto Repeat
• On to play back a tape repeatedly. The VCR rewinds a tape to
the beginning and restarts playback automatically.
• Off to turn off Auto repeat.
84 Changing menu options
Editing with another VCR
How to connect to record on this VCR
TV
This VCR (Recorder)
LINE-2 IN
Other VCR (Player)
LINE OUT
Audio/video cord (not supplied)
: Signal flow
VCR Addtional Operations
Notes
• Make sure you connect the plugs to jacks of the same color.
• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connect
the audio plug to the AUDIO L (white) jack. The sound is recorded on both right and left
channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right
channel.
• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR,
select the input correctly to prevent a humming noise.
• You can use the LINE IN 1 jacks for editing. If the other VCR is a monaural type the sound
is recorded only on the channel whose jack is connected to the audio plug. To record on both
right and left channels, connect the audio plugs to the AUDIO R/L jacks using a VMC910MS audio/video cord (not supplied).
continued
Editing with another VCR
85
Operation (when recording on this VCR)
Before you start editing
• Turn on the VCR and the TV and set
it to the video channel.
• Press INPUT SELECT or CH +/– to
display “LINE 1” or “LINE 2” in the
display window.
• Press SP/EP to select the tape speed,
SP or EP.
X PAUSE
z REC
a source tape with its safety tab removed into the other (playback) VCR.
1 Insert
Search for the point to start playback and set it to playback pause.
a tape into this (recording) VCR. Search for the point to start recording
2 Insert
and press X PAUSE.
3 Press z REC on this VCR to set it to recording pause.
4 To start editing, press the X PAUSE buttons on both VCRs at the same time.
To stop editing
Press the x STOP buttons on both VCRs.
Tip
• To cut out unwanted scenes while editing, press X PAUSE on this VCR when an unwanted
scene begins. When it ends, press X PAUSE again to resume recording.
86 Editing with another VCR
Additional Information
General setup information
Changing setup options
1 Press SET UP when the DVD player is in stop mode.
SETUP MENU
DVD Setup
RETURN
V/v/B/b to select
2 Press
press ENTER.
(Option setup), then
VvB b
ENTER
OPTION SETUP
RF Output Channel B b 3 CH
Auto Power Off
Off
The “OPTION SETUP” menu appears.
RETURN
Vv
3 Press V/v to select the option to change.
4 Press B/b to change the setting.
O RETURN repeatedly to exit the menu.
5 Press
If you have changed the RF Output Channel, a confirmation message appears.
Press ENTER to confirm the changed channel.
Menu choices
Initial settings are indicated in bold print.
Set this option to
RF Output Channel
• 3CH when using channel 3 to receive the VCR signal.
• 4CH when using channel 4 to receive the VCR signal.
For details, see page 88.
Auto Power Off
• 1Hr to turn off the VCR automatically one hour after the last
operation.
• 2Hr to turn off the VCR automatically two hours after the last
operation.
• Off to set no specific time to turn off.
Additional Information
Menu option
continued
General setup information
87
Setting the RF Output channel
When connecting the DVD-VCR to the TV
using only the antenna cable, you must set
the RF Output channel in the “OPTION
SETUP” menu so that the TV can receive the
correct signal from the DVD-VCR.
?/1
CH +/–
TV
TV/VIDEO
?/1
CHANNEL +/–
the RF Output channel to “3CH” or “4CH” (see page 87 to set the channel),
1 Set
whichever channel is not used in your area. If both are used, set the switch to
either channel.
Press ?/1 to turn on the DVD-VCR.
2
3 Press TV/VIDEO to turn on “VCR” in the DVD-VCR’s display window.
CH +/– to display a channel number in the display window.
4 Press
Select an active channel number in your area.
on your TV and set it to the channel you selected in step 1 (3CH or 4CH).
5 Turn
The channel you selected in step 4 appears on the TV screen. If the channels
change when you press CH +/–, you have made the correct setting.
Whenever you use the DVD-VCR, set the TV to the channel selected in step 1.
88 General setup information
Attaching the external antenna connector
When using a 300-ohm twin lead cable for a
VHF/UHF antenna, use the EAC-32 antenna
connector (not supplied) to connect the
antenna to the DVD-VCR.
300-ohm twin
lead cable
EAC-32 antenna
connector (not
supplied)
1 Loosen the screws on the antenna connector.
2 Wind the twin leads around the screws on the antenna connector.
3 Retighten the screws.
Attaching a UHF/VHF band mixer
When using both a 75-ohm coaxial cable and
a 300-ohm twin lead cable for a VHF/UHF
antenna, use the EAC-66 UHF/VHF band
separator/mixer (not supplied) to connect the
antenna to the DVD-VCR.
300-ohm twin
lead cable
EAC-66
UHF/VHF
band
separator/
mixer (not
supplied)
Additional Information
75-ohm coaxial
cable
1 Loosen the screws on the mixer.
2 Wind the twin leads around the screws on the mixer.
3 Retighten the screws.
4 Connect the 75-ohm coaxial cable to the mixer.
General setup information
89
Troubleshooting
If you have any questions or problems not covered below, please consult your nearest Sony
dealer.
Remedy
Power
The ?/1 switch does not function.
• Connect the AC power cord securely.
The power is turned on but the DVDVCR does not operate.
• Moisture condensation has occurred. Turn the power off,
unplug the AC power cord and leave the DVD-VCR to
dry for over three hours.
The clock has stopped and “--:--”
appears in the display window.
• The clock stops if the DVD-VCR is disconnected from
the wall outlet. Reset the clock (and timer).
The remote commander does not
function.
• Make sure you are pointing the remote commander at the
remote sensor on the DVD-VCR.
• Replace all the batteries in the remote commander with
new ones if they are weak.
• Make sure the TV / DVD·VIDEO switch is set correctly.
• Select correctly VIDEO or DVD with the SELECT DVD/
VIDEO button.
The tracking meter does not appear
on the screen.
• The recording condition of the tape is very poor and
tracking cannot be adjusted.
You cannot control other TVs.
• Set your TV’s code number. The code number may
change when you replace the batteries of the remote
commander.
Others
Symptom
Clock
General Troubleshooting
DVD Troubleshooting
Remedy
• Re-connect the connecting cord securely.
• The connecting cords are damaged.
• Check the connection to your TV (page 14) and switch
the input selector on your TV so that the signal from the
player appears on the TV screen.
• The disc is dirty or flawed.
• If the picture output from your player goes through your
VCR to get to your TV or if you are connected to a
combination TV/VIDEO player, the copy-protection
signal applied to some DVD programs could affect
picture quality. If you still experience problems even
when you connect your player directly to your TV, please
try connecting your player to your TV’s S VIDEO input
(page 47).
Even though you set the aspect ratio
in “TV Type” of the “SCREEN
SETUP” menu the picture does not
fill the screen.
• The aspect ratio of the disc is fixed on your DVD.
There is no picture from your VCR
connected to the LINE IN jacks.
• The DVD player must be in standby mode to view
pictures from your VCR.
Symptom
There is no picture/picture noise
appears.
90 Troubleshooting
Sound is noisy.
• When playing a CD with DTS sound tracks, noise will
come from the LINE OUT L/R (AUDIO) jacks (page 32)
or DIGITAL OUT (OPTICAL or COAXIAL) jack.
The sound volume is low.
• The sound volume is low on some DVDs. The sound
volume may improve if you set “Audio DRC” to “TV
Mode” (page 50).
The disc does not play.
• The disc is turned over.
• Insert the disc with the playback side facing down on the
disc tray.
• The disc is skewed.
• The player cannot play certain discs (page 8).
• The region code on the DVD does not match the player.
• Moisture has condensed inside the player (page 3).
• The player cannot play CD-Rs, CD-RWs, or DVD-Rs that
are not finalized (page 9).
• Make sure the TV / DVD·VIDEO switch is set correctly.
• Select correctly VIDEO or DVD with SELECT DVD/
VIDEO button.
The MP3 audio track cannot be
played (page 74).
• The DATA CD is not recorded in the MP3 format that
conforms to ISO9660 Level 1/Level 2 or Joliet.
• The MP3 audio track does not have the extension “.MP3.”
• The data is not formatted in MP3 even though it has the
extension “.MP3.”
• The data is not MPEG1 Audio Layer 3 data.
• The player cannot play audio tracks in MP3PRO format.
The title of the MP3 audio album or
track is not correctly displayed.
• The player can only display numbers and alphabet. Other
characters are displayed as asterisks.
The disc does not start playing from
the beginning.
• Program play, random play, or repeat play, has been
selected (pages 65, 67, 68).
• Resume play has taken effect (page 31).
The player starts playing the disc
automatically.
• The disc features an auto playback function.
Playback stops automatically.
• While playing discs with an auto pause signal, the player
stops playback at the auto pause signal.
You cannot perform some functions
such as stop, search, slow-motion
play, repeat play, random play, or
program play.
• Depending on the disc, you may not be able to do some
operations. See the operating manual that comes with the
disc.
Operation
Sound
Remedy
• Re-connect the connecting cord securely.
• The connecting cord is damaged.
• The player is connected to the wrong input jack on the
amplifier (receiver) (page 15).
• The amplifier (receiver) input is not correctly set.
• The player is in pause mode or in Slow-motion Play
mode.
• The player is in fast forward or fast reverse mode.
• If the audio signal does not come through the DIGITAL
AUDIO OUT (OPTICAL or COAXIAL) jack, check the
audio settings (page 49).
Additional Information
Symptom
There is no sound.
continued
Troubleshooting
91
Operation
Symptom
Remedy
The language for the sound track
cannot be changed.
• Try using the DVD’s menu instead of the direct selection
button on the remote (page 60).
• Multilingual tracks are not recorded on the DVD being
played.
• The DVD prohibits the changing of the language for the
sound track.
The subtitle language cannot be
changed or turned off.
• Try using the DVD’s menu instead of the direct selection
button on the remote (page 60).
• Multilingual subtitles are not recorded on the DVD being
played.
• The DVD prohibits the changing of the subtitles.
The angles cannot be changed.
• Try using the DVD’s menu instead of the direct selection
button on the remote (page 60).
• Multi-angles are not recorded on the DVD being played.
• The DVD prohibits changing of the angles.
The player does not operate properly.
• When static electricity, etc., causes the player to operate
abnormally, unplug the player.
92 Troubleshooting
VCR Troubleshooting
The playback picture does not appear
on the TV screen.
• Make sure the TV is set to the channel for the VCR. If
you are using a monitor, set it to video input.
The picture is not clear.
• Adjust the tracking with the TRACKING +/– buttons.
• The video heads are dirty (see the last page of
“Troubleshooting”). Clean the video heads using the
Sony T-25CLD or T-25CLDR video head cleaning
cassette. If these cleaning cassettes are not available in
your area, have the heads cleaned at your nearest Sony
dealer (a standard service fee will be charged). Do not
use a commercially available liquid type cleaning
cassette, as it may damage the video heads.
• The video heads may have to be replaced. Consult your
local Sony dealer for more information.
The picture rolls vertically during
picture search.
• Adjust the vertical hold control on the TV or monitor.
The picture has no sound.
• The tape is defective.
• If you made A/V connections, check the audio cord
connection.
A TV program does not appear on
the TV screen.
• Make sure the TV is set to the channel for the VCR. If
you are using a monitor, set it to video input.
• Select the correct source with the INPUT SELECT or
CH +/– buttons. Select a channel number when recording
TV programs; select “L1” or “L2” when recording from
other equipment.
TV reception is poor.
• Adjust the TV antenna.
The tape starts playing as soon as it is
inserted.
• The safety tab has been removed. To record on this tape,
cover the tab hole.
The tape is ejected when you press
z REC.
• Check that the safety tab has not been removed.
Nothing happens when you press
z REC.
• Make sure the tape is not at its end.
The timer does not operate.
•
•
•
•
•
•
•
•
A tape cannot be inserted.
• Check that a tape is not already in the tape compartment.
The VCR mecanism needs to be
cleaned.
• Clean the cabinet, panel and controls with a dry, soft
cloth, or a soft cloth slightly moistened with a mild
detergent solution. Do not use any type of solvent, such
as alcohol or benzine.
Others
Timer recording
Recording
Playback
Remedy
Check that the clock is set.
Make sure a tape has been inserted.
Check that the safety tab has not been removed.
Make sure the tape is not at its end.
Make sure a program has been set for timer recording.
Make sure your timer settings are past the current time.
Check that the cable box is turned on.
The clock stops if the DVD-VCR is disconnected from
the wall outlet for more than one minute. Reset the clock
and timer.
• Turn the power off and unplug the AC power cord.
Additional Information
Symptom
continued
Troubleshooting
93
Symptoms caused by contaminated video heads
• Normal picture
• Rough picture
initial
contamination
94 Troubleshooting
• Unclear picture
• No picture (or
black & white
screen appears)
terminal
Specifications
System
Inputs and outputs
Laser
Semiconductor laser
Format
VHS NTSC standard
Video recording system
Rotary head helical scanning FM system
Video heads
Double azimuth four heads
Video signal
NTSC color, EIA standards
Tape speed
LINE IN 1 and LINE-2 IN
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced, sync
negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced, sync
negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
DIGITAL OUT
OPTICAL, Optical output jack
–18 dBm (wave length: 660 nm)
COAXIAL, phono jack
Output signal: 0.5 Vp-p, 75 ohms
COMPONENT VIDEO OUT (Y, Pb, Pr)
Phono jack
Y: 1.0 Vp-p/Pb, Pr: 0.7 Vp-p, 75 ohms
SP: 33.35 mm/s (1
3
8
inches/s)
EP: 11.12 mm/s ( 7 16 inches/s)
LP: 16.67 mm/s ( 11 16 inches/s),
playback only
Maximum recording/playback time
8 hrs. in EP mode (with T-160 tape)
Rewind time
Approx. 1 min (with T-120 tape)
Tuner section
Channel coverage
VHF 2 to 13
UHF 14 to 69
CATV A-8 to A-1, A to W, W+1 to W+84
Antenna
75-ohm antenna terminal for VHF/UHF
Audio characteristics
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
8 programs (max.)
Additional Information
Frequency response
DVD VIDEO (PCM 96 kHz): 2 Hz to 44 kHz (±1.0
dB)/DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz
(±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio (S/N ratio)
115 dB (LINE OUT (L/R) AUDIO jacks only)
Harmonic distortion
0.003 %
Dynamic range
DVD VIDEO: 103 dB/CD: 99 dB
Wow and flutter
Less than detected value (±0.001% W PEAK)
Timer section
The signals from LINE OUT L/R (AUDIO) jacks are
measured. When you play PCM sound tracks with a 96
kHz sampling frequency, the output signals from the
DIGITAL OUT (OPTICAL or COAXIAL) jack are
converted to 48 kHz sampling frequency.
continued
Specifications
95
General
Power requirements
120 V AC, 60 Hz
Power consumption
29 W
Operating temperature
0°C to 45°C (32°F to 113°F)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Operating humidity
25% to 80%
Dimensions including projecting parts and controls
(w/h/d)
Approx. 430 × 100 × 330 mm
(Approx. 17 × 4 × 13 inches)
Mass
Approx. 4.5 kg (Approx. 9.9 lbs)
Supplied accessories
Remote commander (1)
Size AA (R6) batteries (2)
75-ohm coaxial cable with F-type connectors (1)
Audio/video cord (pinplug ×3 y pinplug ×3) (1)
Design and specifications are subject to change without
notice.
96 Specifications
Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
A ?/1 POWER switch (12) (35)
I CHANNEL +/– buttons (37)
B Disc tray (30)
J Display window (31) (35)
C A (open/close) button (30) (31)
K
D Tape compartment (37)
L m (rewind)/M (fast-forward) button
(31) (35)
E A (eject) button (35)
Remote sensor
M x (stop) button (31) (35)
N X (pause) button (31) (35)
G SELECT DVD/VIDEO (11)
O H (play) button (31) (35)
Additional Information
F LINE-2 IN VIDEO/AUDIO L/R jacks
(85)
H z REC (record) button (38)
continued
Index to parts and controls
97
Display window
A DVD indicator (31)
G TIMER indicator (41)
B Disc indicator (31)
H STEREO indicator (80)
C Playing time/clock/current status
indicator (31)
I CHAPTER indicator
D Tape indicator (35)
E VCR indicator (35)
F RECORD indicator (38)
98 Index to parts and controls
J TITLE indicator
K DTS indicator (50)
L SURROUND indicator (72)
Rear panel
DVD player and VCR
A RF OUT (To TV) connector (16)
DVD player only
F LINE OUT AUDIO L/R jacks (47)
B RF IN (From ANT.) connector (16)
G COMPONENT VIDEO OUT Pr/Pb/Y
jacks (48)
C LINE IN 1 VIDEO/AUDIO L/R jacks
(15)
H S VIDEO OUT jack (47)
D LINE OUT VIDEO/AUDIO L/R jacks
(15)
I DIGITAL AUDIO OUT jack
(OPTICAL) (46)
E AC power cord (14) (17) (19)
J DIGITAL AUDIO OUT jack
(COAXIAL) (46)
Additional Information
continued
Index to parts and controls
99
Remote commander
A TV / DVD•VIDEO switch (11)
B Z button (30) (31) (35)
[for DVD] (open/close) button
[for VIDEO] (eject) button
C SELECT DVD/VIDEO buttons (11)
D Number buttons* (29)
E CLEAR button (36) (41) (66)
F SURROUND button (72)
G SET UP button (21)
H SUBTITLE/TIMER button (40) (63)
[for DVD] SUBTITLE button
[for VIDEO] TIMER button
I AUDIO button* (71) (80)
J BOOKMARK/SEARCH MENU button
(69) (81)
[for DVD] BOOKMARK button
[for VIDEO] SEARCH MENU button
K REPEAT/REPLAY button (35) (66)
[for DVD] REPEAT button
[for VIDEO] REPLAY button
L C PICTURE NAVI/SKIP button (31)
(36) (64)
[for DVD] PICTURE NAVI button
[for VIDEO] SKIP button
M z REC (record) button (38)
N H PLAY button* (31) (35)
O V/v/B/b button (21)
P DISPLAY button (33) (38)
Q TOP MENU button (60)
∗ Number 5, AUDIO and H PLAY buttons have
a tactile dot. Use the tactile dot as a reference
when operating the DVD-VCR.
100 Index to parts and controls
R ?/1 (power) switch (12) (35)
S CH (channel)/TRACKING +/– buttons*1
(37) (83)
T VOL (volume) +/– buttons (12)
U ENTER button*2 (21)
V MUTING/ZOOM button (12) (61)
[for DVD] ZOOM button
[for VIDEO] No function
[for Sony TV only] MUTING button
W SP (Standard Play)/EP (Extended Play)
button (38)
X TV/VIDEO button (39)
Y ANGLE button (62)
Z INPUT SELECT button (39)
wj m/M SCAN/SLOW y buttons (31)
(35)
[for DVD] m SCAN button
M SCAN button
SLOW y button
[for VIDEO] m (rewind) button
M (fast-forward) button
SLOW y button
wl X PAUSE button (31) (35)
e; x STOP button (31) (35)
ea ENTER button*2 (21)
Additional Information
wk ./> SHUTTLE PREV/NEXT
button (31) (36)
[for DVD] .PREV (previous) button
> NEXT (next) button
[for VIDEO] ./> SHUTTLE
button
es O RETURN button (21)
ed MENU button (60)
*1 CH/TRACKING + button has a tactile dot.
Use the tactile dot as a reference.
*2 The ENTER buttons 21 and 31 can be used
interchangeably.
Index to parts and controls
101
DVD AUDIO/SUBTITLE LANGUAGE
Language
Abbrevaiation
Korean
KOR
English
ENG
Chinese
CHI
Japanese
JPN
Russian
RUS
French
FRA
Spanish
ESP
German
DEU
Dutch
NLD
Italian
ITA
Hindi
IND
Arabic
ARA
Danish
DAN
Finish
FIN
Islandic
ISL
Hebrew
IWR
Norwegian
NOR
Portuguese
POR
Swedish
SVE
Turquish
TUR
Afrikaans
ZAF
Croatian
CRO
Czech
CZK
Greek
GRE
Hungarian
HUN
Indonesian
IDN
Malay
MAL
Polish
POL
Thai
THA
Vietnamese
VIE
102 DVD AUDIO/SUBTITLE LANGUAGE
Index
Numerics
E
R
16:9 53
4:3 Letter Box 53
4:3 Pan Scan 53
Editing 85
EP mode 38
Random play 67
Recording
bilingual programs 80
SAP broadcasts 80
saving 39
stereo broadcasts 80
while watching another
program 39, 42
Repeat play 68
RF channel 88
A
Adjusting
picture 83
tracking 83
Angle 62
Antenna hookup 16
Audio track 80
Audio/video (A/V) hookup 15
Auto Clock Set 22
H
Handling discs 9
Hi-fi audio track 80
L
Language selecting 21
LP mode 39
M
Bookmark 69
Monaural 80
Monitoring audio during
playback 80
MP3 8, 74
C
N
Cable hookup 14
Changing menu option 84
Cleaning the video heads 93
Clock setting 22
Commercial Skip 35
Connecting
Cable TV 20
external antenna connector
89
UHF/VHF band mixer 89
Counter 36
Normal audio track 80
B
D
DATA CD 8, 74
Disabling channels 28
DOLBY DIGITAL 45, 71
DTS 46, 71
Dubbing. see Editing
DVD 8
P
Palyback
MP3 audio track 74
Parental Control 57
PBC (Playback control) 77
Picture adjustment 83
Picture navigation 64
Playback 30
at various speeds 31, 35
frame by frame 31, 36
program play 65
random play 67
repeat play 68
selecting the sound 80
skip 35
slow motion 31, 35
VIDEO CDs 77
Presetting channels 26
Program play 65
S
Safety tab 39
SAP (Second Audio Program)
80
Searching
at various speeds 31, 35
for a blank portion 82
for the counter 0 point 82
Scan and Play 81
SP mode 38
STEREO 71
Stereo 80
Subtitle 63
T
Timer setting
daily/weekly recording 42
Tracking adjustment. see
Adjusting
U
Usable discs 8
V
VIDEO CD 8
Z
Zoom 61
Index
103
