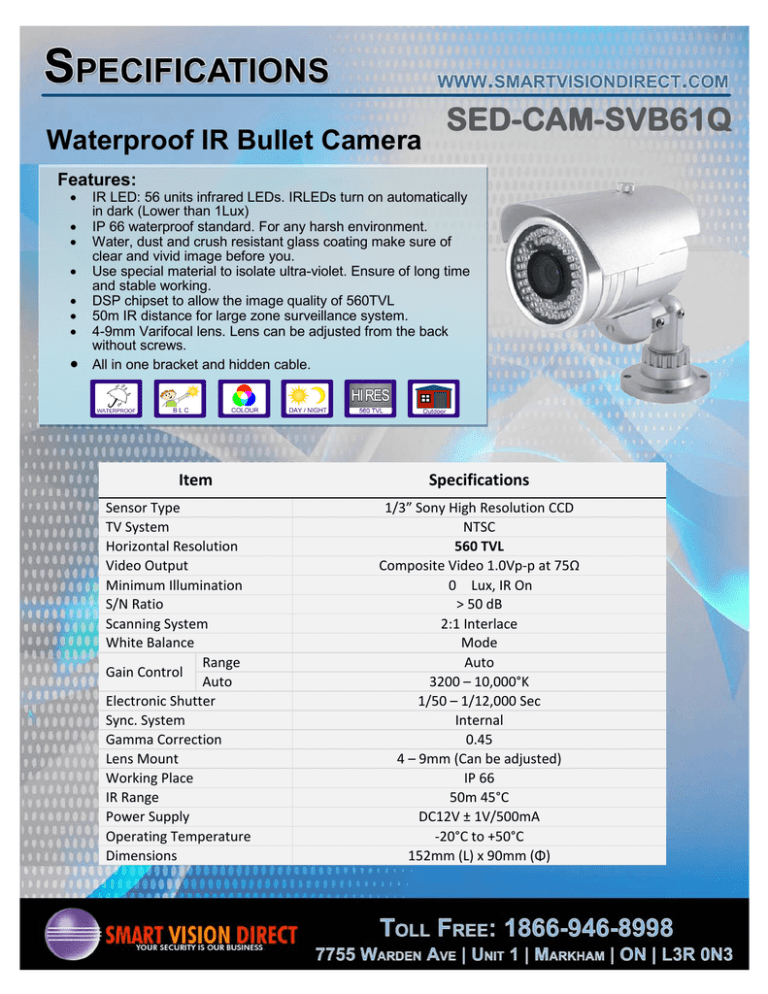

Waterproof IR Bullet Camera
SED-CAM-SVB61Q
Features:
•
•
•
•
•
•
•
•
IR LED: 56 units infrared LEDs. IRLEDs turn on automatically
in dark (Lower than 1Lux)
IP 66 waterproof standard. For any harsh environment.
Water, dust and crush resistant glass coating make sure of
clear and vivid image before you.
Use special material to isolate ultra-violet. Ensure of long time
and stable working.
DSP chipset to allow the image quality of 560TVL
50m IR distance for large zone surveillance system.
4-9mm Varifocal lens. Lens can be adjusted from the back
without screws.
All in one bracket and hidden cable.
Item
Sensor Type
TV System
Horizontal Resolution
Video Output
Minimum Illumination
S/N Ratio
Scanning System
White Balance
Range
Gain Control
Auto
Electronic Shutter
Sync. System
Gamma Correction
Lens Mount
Working Place
IR Range
Power Supply
Operating Temperature
Dimensions
Specifications
1/3” Sony High Resolution CCD
NTSC
560 TVL
Composite Video 1.0Vp-p at 75Ω
0 Lux, IR On
> 50 dB
2:1 Interlace
Mode
Auto
3200 – 10,000°K
1/50 – 1/12,000 Sec
Internal
0.45
4 – 9mm (Can be adjusted)
IP 66
50m 45°C
DC12V ± 1V/500mA
-20°C to +50°C
152mm (L) x 90mm (Φ)
