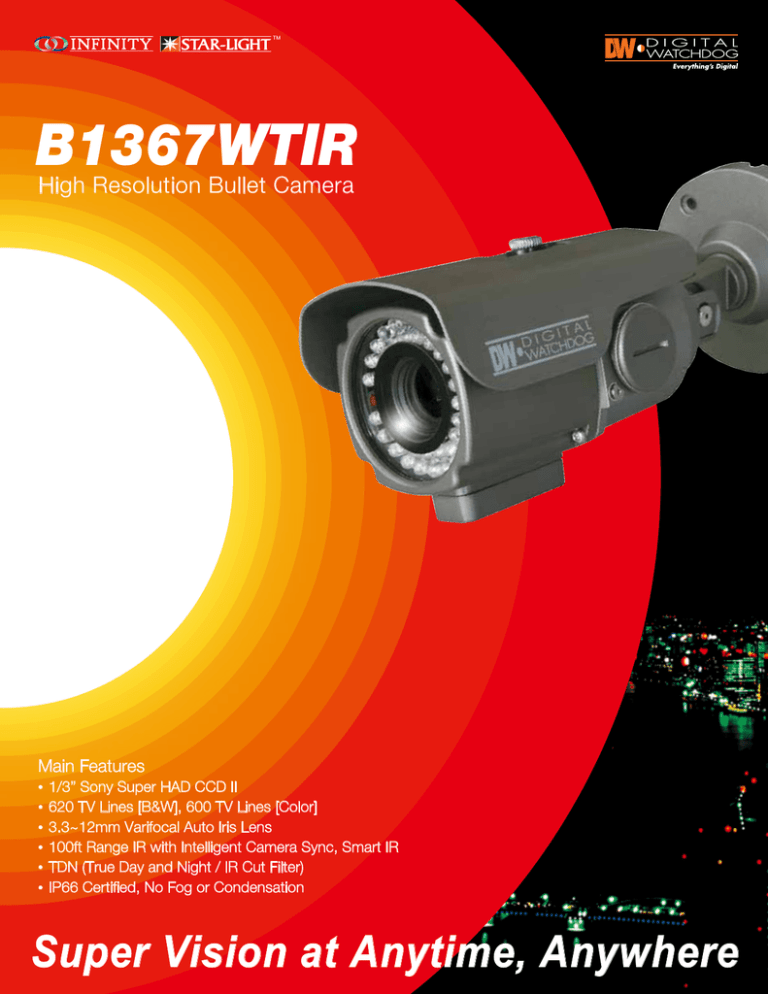

B1367WTIR
High Resolution Bullet Camera
Main Features
•
•
•
•
•
•
1/3” Sony Super HAD CCD II
620 TV Lines [B&W], 600 TV Lines [Color]
3.3~12mm Varifocal Auto Iris Lens
100ft Range IR with Intelligent Camera Sync, Smart IR
TDN (True Day and Night / IR Cut Filter)
IP66 Certified, No Fog or Condensation
Super Vision at Anytime, Anywhere
Icon Driven OSD Menu
ICON Driven OSD Menu will easily guide you
through programming options. Simple and
fast programming.
Smart DNR (Digital Noise Reduction)
Smart DNR produces less noise and more
color at night without image lagging.
HME (Highlight Masking Exposure)
Star-Light (Super Low Light Technology)
Masks overly exposed light to produce a true
video image of any environment.
Offers a slow shutter feature that increases the
length of time the shutter remains open to collect
additional light, illuminating typically dark
environments.
Programmable Privacy Zone
WDR (Wide Dynamic Range)
When privacy is a concern, monitoring can
be masked in certain zones within the scene.
The user can define up to eight rectangular
exclusions.
Enables the camera to capture perfect images
in both bright and dark environments
simultaneously.
3-Axis Gimbal
Smart IR-See what is really happening at night.
Choose the exact scene you wish to view
with our flexible 3-Axis Gimbal technology.
The breakdown of the video image into five
zones allows for an even distribultion of the
IR, which prevents excessive illumination.
Bullet B1367WTIR
230(9.06")
86.5
(3.41”)
122(4.8”)
600TVL
3.3~12mm
High Resolution
Varifocal Lens
Specifications
Summary
Our Infinity DSP Series ensures excellent color sensitivity and high resolution
in both day and night applications. The technology utilizes Star-Light,
Wide Dynamic Range, Highlight Masking Exposure, and other great
features to help produce a clear horizontal resolution of up to 620 TV lines.
Super Vision at Anytime, Anywhere.
Features
• 1/3” Sony Super HAD CCD II
• 620 TV Lines [B&W], 600 TV Lines [Color]
• 3.3~12mm Varifocal Auto Iris Lens
• 100ft Range IR with Intelligent Camera Sync, Smart IR
• TDN (True Day and Night / IR Cut Filter)
• WDR (Wide Dynamic Range)
• Smart DNR (Digital Noise Reduction)
• Star-Light (Super Low Light Technology)
• HME (Highlight Masking Exposure)
• Programmable Privacy Zones (8) & Motion Detection
• AGC / BLC / AWB
• IP66 Certified (Weatherproof)
• No Fog or Condensation under Any Weather Condition
• Easy Icon Driven OSD Menu with Built-in Joystick
• Auto Sensing 12VDC/24VAC with Line Lock
• RS-485 Built-in
• Secondary Video-BNC Output
Accessories (Optional)
DWC-BLJUNC
Junction Box for B1&B2 Housing
96.5(3.8”)
DWC-PMB-BU
Pole Mount for B1&B2 Housing
VIDEO
Image Sensor
1/3" Sony Super HAD CCD II
Total Pixels
811 (H) x 508 (V), 411K Pixels
Scanning System
Frequency
2 : 1 Interlace
15.734KHz (H), 59.95Hz (V)
Synchronization
Internal or External
Horizontal Resolution
620 TV Lines [B&W], 600 TV Lines [Color]
Minimum Illumination
F1.2 (30IRE): 0.14 Lux [Color]
F1.2 (30IRE): 0.00 Lux [B&W]
50dB (AGC off)
CVBS: 1.0Vp-p / 75 Ω
S/N Ratio
Video Output
LENS
Focal Length
Lens Type
3.3-12mm
DC Auto Iris
IR Distance
OPERATIONAL
Back Light
Auto Gain Control
Star-Light
3D Digital Noise Reduction
White Balance
Mirror
Sharpness
Gamma
Side Light Compensation
Night Up
Motion Detection
Privacy Zones
Dead Pixel Cancellation
Languages
100ft Range IR
OFF / BLC / HME / WDR
OFF / LOW / MID / HIGH / HIGHEST
OFF / X2-X1024
OFF / LOW / MID / HIGH / SMART
AWC / ATW / MANUAL / PUSHLOCK
OFF / MIRROR
0-30
MANUAL / 0.45 / 0.60 / 1.0
OFF / ON
OFF / ON
OFF / ON (4 Areas)
OFF / ON (8 Programmable Zones)
OFF / AUTO
ENGLISH / MANDARIN / CANTONESE / JAPANESE /
GERMAN / FRENCH / ITALIAN / RUSSIAN / SPANISH /
DUTCH
ENVIRONMENTAL
Operating Temperature
Operating Humidity
-10oC ~ 55oC (14oF ~ 131oF)
Less than 90% (Non-Condensing)
Storage Temperature
-20oC ~ 70oC (-4oF ~ 158oF)
IP Rating
ELECTRICAL
Power Requirement
Power Consumption
IP66 (Protects against dust and high pressure water.)
Dual (12VDC & 24VAC)
12VDC: 3.3W, 275mA / LED ON 6.6W, 550mA
24VAC: 3.8W, 158mA / LED ON 7.1W, 296mA
MECHANICAL
Housing Material
Aluminum
Dimensions
Weight
230 X 86.5 mm (9.06 X 3.41 in)
1.52 lbs
INFINITY BULLET CAMERA
Dimensions (unit : mm)
