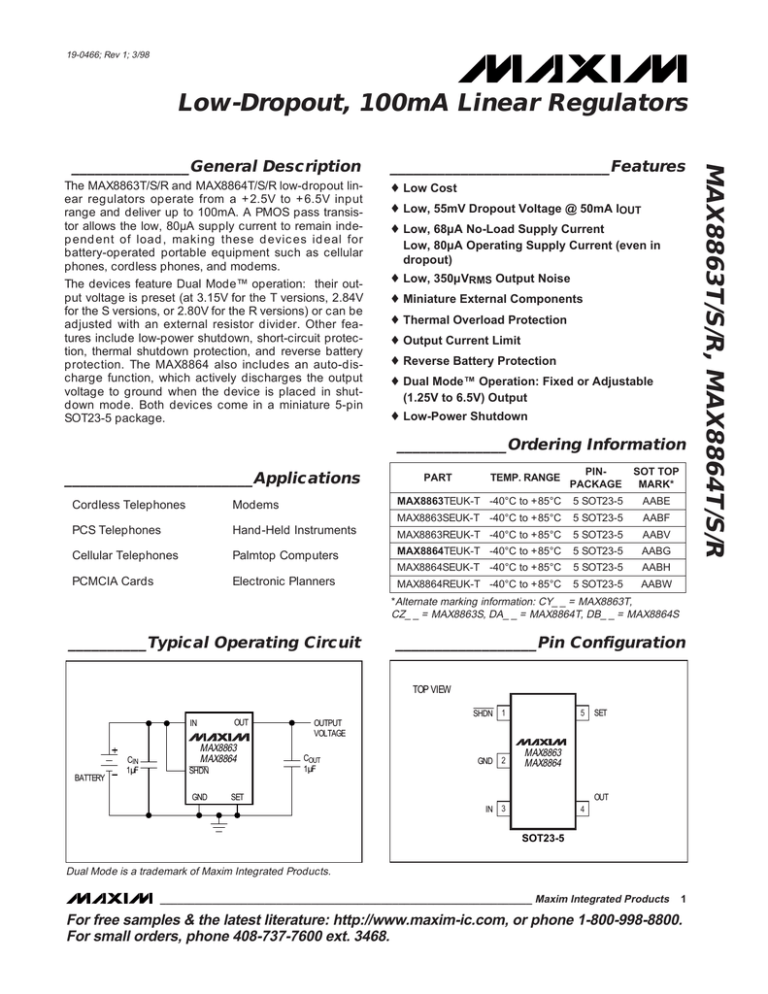

19-0466; Rev 1; 3/98 Low-Dropout, 100mA Linear Regulators ____________________________Features ♦ Low Cost ♦ Low, 55mV Dropout Voltage @ 50mA IOUT ♦ Low, 68µA No-Load Supply Current Low, 80µA Operating Supply Current (even in dropout) ♦ Low, 350µVRMS Output Noise ♦ Miniature External Components ♦ Thermal Overload Protection ♦ Output Current Limit ♦ Reverse Battery Protection ♦ Dual Mode™ Operation: Fixed or Adjustable (1.25V to 6.5V) Output ♦ Low-Power Shutdown ______________Ordering Information ________________________Applications Cordless Telephones Modems TEMP. RANGE PINPACKAGE SOT TOP MARK* MAX8863TEUK-T -40°C to +85°C 5 SOT23-5 AABE -40°C to +85°C 5 SOT23-5 AABF PART MAX8863SEUK-T PCS Telephones Hand-Held Instruments MAX8863REUK-T -40°C to +85°C 5 SOT23-5 AABV Cellular Telephones Palmtop Computers MAX8864TEUK-T -40°C to +85°C 5 SOT23-5 AABG MAX8864SEUK-T -40°C to +85°C 5 SOT23-5 AABH PCMCIA Cards Electronic Planners MAX8864REUK-T -40°C to +85°C 5 SOT23-5 AABW *Alternate marking information: CY_ _ = MAX8863T, CZ_ _ = MAX8863S, DA_ _ = MAX8864T, DB_ _ = MAX8864S __________Typical Operating Circuit __________________Pin Configuration TOP VIEW SHDN 1 OUT IN BATTERY CIN 1µF MAX8863 MAX8864 SHDN GND 5 SET OUTPUT VOLTAGE COUT 1µF GND 2 MAX8863 MAX8864 OUT SET IN 3 4 SOT23-5 Dual Mode is a trademark of Maxim Integrated Products. ________________________________________________________________ Maxim Integrated Products 1 For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800. For small orders, phone 408-737-7600 ext. 3468. MAX8863T/S/R, MAX8864T/S/R _______________General Description The MAX8863T/S/R and MAX8864T/S/R low-dropout linear regulators operate from a +2.5V to +6.5V input range and deliver up to 100mA. A PMOS pass transistor allows the low, 80µA supply current to remain independent of load, making these devices ideal for battery-operated portable equipment such as cellular phones, cordless phones, and modems. The devices feature Dual Mode™ operation: their output voltage is preset (at 3.15V for the T versions, 2.84V for the S versions, or 2.80V for the R versions) or can be adjusted with an external resistor divider. Other features include low-power shutdown, short-circuit protection, thermal shutdown protection, and reverse battery protection. The MAX8864 also includes an auto-discharge function, which actively discharges the output voltage to ground when the device is placed in shutdown mode. Both devices come in a miniature 5-pin SOT23-5 package. MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 100mA Linear Regulators ABSOLUTE MAXIMUM RATINGS VIN to GND ..................................................................-7V to +7V Output Short-Circuit Duration ............................................Infinite SET to GND ..............................................................-0.3V to +7V SHDN to GND..............................................................-7V to +7V SHDN to IN ...............................................................-7V to +0.3V OUT to GND ................................................-0.3V to (VIN + 0.3V) Continuous Power Dissipation (TA = +70°C) SOT23-5 (derate 7.1mW/°C above +70°C) .................571mW Operating Temperature Range ...........................-40°C to +85°C Junction Temperature ......................................................+150°C θJA ..............................................................................140°C/Watt Storage Temperature Range .............................-65°C to +160°C Lead Temperature (soldering, 10sec) .............................+300°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. ELECTRICAL CHARACTERISTICS (VIN = +3.6V, GND = 0V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1) PARAMETER Input Voltage (Note 2) Output Voltage Adjustable Output Voltage Range (Note 3) SYMBOL CONDITIONS MIN VIN VOUT 0mA ≤ IOUT ≤ 50mA, SET = GND Ground Pin Current MAX UNITS 6.5 V MAX886_T 3.05 3.15 3.25 MAX886_S 2.75 2.84 2.93 MAX886_R 2.70 2.80 2.88 VOUT VSET Maximum Output Current Current Limit (Note 4) TYP 2.5 6.5 100 ILIM IQ Dropout Voltage (Note 5) ILOAD = 0mA 68 ILOAD = 50mA 80 150 1.1 IOUT = 50mA 55 120 0 0.15 SET = GND 0.011 0.040 SET tied to OUT 0.006 ∆VLNR VIN = 2.5V to 6.5V, SET tied to OUT, IOUT = 1mA Load Regulation ∆VLDR IOUT = 0mA to 50mA Output Voltage Noise mA IOUT = 1mA Line Regulation 10Hz to 1MHz -0.15 V mA 220 SET = GND V COUT = 1µF 350 COUT = 100µF 220 µA mV %/V %/mA µVRMS SHUTDOWN SHDN Input Threshold VIH SHDN Input Bias Current ISHDN Shutdown Supply Current IQSHDN Shutdown Discharge Resistance (MAX8864) 2 2.0 VIL 0.4 V SHDN = VIN VOUT = 0V TA = +25°C 0 TA = TMAX 0.05 TA = +25°C 0.0001 TA = TMAX 0.02 300 _______________________________________________________________________________________ 100 1 V nA µA Ω Low-Dropout, 100mA Linear Regulators (VIN = +3.6V, GND = 0V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1) PARAMETER SYMBOL CONDITIONS MIN TYP MAX TA = +25°C 1.225 1.25 1.275 TA = TMIN to TMAX 1.215 1.25 1.285 TA = +25°C 0.015 2.5 TA = TMAX 0.5 UNITS SET INPUT SET Reference Voltage (Note 3) VSET VIN = 2.5V to 6.5V, IOUT = 1mA SET Input Leakage Current (Note 3) ISET VSET = 1.3V V nA THERMAL PROTECTION Thermal Shutdown Temperature Thermal Shutdown Hysteresis TSHDN 170 ˚C ∆TSHDN 20 ˚C Note 1: Limits are 100% production tested at TA = +25°C. Limits over the operating temperature range are guaranteed through correlation using Statistical Quality Control (SQC) Methods. Note 2: Guaranteed by line regulation test. Note 3: Adjustable mode only. Note 4: Not tested. For design purposes, the current limit should be considered 120mA minimum to 320mA maximum. Note 5: The dropout voltage is defined as (VIN - VOUT) when VOUT is 100mV below the value of VOUT for VIN = VOUT +2V. __________________________________________Typical Operating Characteristics (VIN = +3.6V, CIN = 1µF, COUT = 1µF, TA = +25°C, MAX886_T, unless otherwise noted.) SUPPLY CURRENT vs. LOAD CURRENT 3.15 3.10 3.0 90 OUTPUT VOLTAGE (V) 3.20 3.5 MAX8863/4-02 95 SUPPLY CURRENT (µA) 3.25 OUTPUT VOLTAGE (V) 100 MAX8863/4-01 3.30 OUTPUT VOLTAGE vs. INPUT VOLTAGE MAX8863/4-03 OUTPUT VOLTAGE vs. LOAD CURRENT 85 80 75 70 65 2.5 2.0 NO LOAD 1.5 1.0 60 3.05 0.5 55 50 3.00 0 10 20 30 40 50 60 70 80 90 100 LOAD CURRENT (mA) 0 0 10 20 30 40 50 60 70 80 90 100 LOAD CURRENT (mA) 0 1 2 3 4 5 6 INPUT VOLTAGE (V) _______________________________________________________________________________________ 3 MAX8863T/S/R, MAX8864T/S/R ELECTRICAL CHARACTERISTICS (continued) ____________________________Typical Operating Characteristics (continued) (VIN = +3.6V, CIN = 1µF, COUT = 1µF, MAX886_T, TA = +25°C, unless otherwise noted.) OUTPUT VOLTAGE vs. TEMPERATURE ILOAD = 50mA ILOAD = 0mA 50 40 30 100 3.25 3.20 3.15 3.10 ILOAD = 50mA 90 SUPPLY CURRENT (µA) 70 60 3.30 MAX8863/4-05 ILOAD = 50mA OUTPUT VOLTAGE (V) 20 80 70 60 50 40 30 20 3.05 10 10 3.00 0 1 2 4 3 5 0 -40 6 -20 0 20 40 80 60 100 0 20 60 80 100 POWER-SUPPLY REJECTION RATIO vs. FREQUENCY OUTPUT SPECTRAL NOISE DENSITY vs. FREQUENCY 100 MAX8863/4-07 70 60 50 PSRR (dB) TA = +25°C 80 60 TA = -40°C 40 VOUT = 3.15V RL = 100Ω COUT = 10µF 40 30 COUT = 1µF 20 20 10 0 0 10 20 30 40 50 60 70 80 90 100 0.01 LOAD CURRENT (mA) 0.1 1 10 100 FREQUENCY (kHz) 100 RL = 50Ω COUT = 1µF 1 COUT = 100µF 0.10 0.01 0.1 1 10 FREQUENCY (kHz) MAX8863/64-8B COUT = 1µF 10 OUTPUT NOISE DC TO 1MHz REGION OF STABLE COUT ESR vs. LOAD CURRENT 1000 1000 OUTPUT SPECTRAL NOISE DENSITY (µV/√Hz) DROPOUT VOLTAGE vs. LOAD CURRENT 120 INTERNAL FEEDBACK 10 VOUT EXTERNAL FEEDBACK 1 STABLE REGION 0.1 0.01 0 10 20 30 40 50 60 70 80 90 100 LOAD CURRENT (mA) 4 40 TEMPERATURE (°C) TA = +85°C COUT ESR (Ω) -20 TEMPERATURE (°C) 140 0 -40 INPUT VOLTAGE (V) MAX8863/4-08 0 MAX8863/64-8A SUPPLY CURRENT (µA) 80 MAX8863/4-04 90 SUPPLY CURRENT vs. TEMPERATURE MAX8863/4-06 SUPPLY CURRENT vs. INPUT VOLTAGE DROPOUT VOLTAGE (mV) MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 100mA Linear Regulators 1ms/div ILOAD = 50mA, VOUT IS AC COUPLED _______________________________________________________________________________________ 100 1000 Low-Dropout, 100mA Linear Regulators LOAD TRANSIENT LINE TRANSIENT 3.16V 3.16V VOUT 3.15V VOUT 3.15V 3.14V 3.14V VIN 4.6V ILOAD 3.6V 10µs/div ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED 50µs/div ILOAD = 50mA, VOUT IS AC COUPLED LOAD TRANSIENT LOAD TRANSIENT 3.16V 3.16V VOUT 3.15V VOUT 3.15V 3.14V 3.14V 50mA ILOAD 0mA ILOAD 10µs/div 10µs/div VIN = VOUT + 0.2V, ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED VIN = VOUT + 0.1V, ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED MAX8864 SHUTDOWN (NO LOAD) MAX8864 SHUTDOWN 4V VOUT 4V 2V VOUT 0V VSHDN 2V 0V 2V VSHDN 0V 2V 0V 500µs/div NO LOAD 200µs/div ILOAD = 50mA _______________________________________________________________________________________ 5 MAX8863T/S/R, MAX8864T/S/R ____________________________Typical Operating Characteristics (continued) (VIN = +3.6V, CIN = 1µF, COUT = 1µF, MAX886_T, TA = +25°C, unless otherwise noted.) MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 100mA Linear Regulators ______________________________________________________________Pin Description PIN NAME FUNCTION 1 SHDN Active-Low Shutdown Input. A logic low reduces the supply current to 0.1nA. On the MAX8864, a logic low also causes the output voltage to discharge to GND. Connect to IN for normal operation. 2 GND Ground. This pin also functions as a heatsink. Solder to large pads or the circuit board ground plane to maximize thermal dissipation. 3 IN 4 OUT Regulator Output. Fixed or adjustable from 1.25V to +6.5V. Sources up to 100mA. Bypass with a 1µF, <0.2Ω typical ESR capacitor to GND. 5 SET Feedback Input for Setting the Output Voltage. Connect to GND to set the output voltage to the preset 2.80V (MAX886_R), 2.84V (MAX886_S), or 3.15V (MAX886_T). Connect to an external resistor divider for adjustable-output operation. Regulator Input. Supply voltage can range from +2.5V to +6.5V. Bypass with 1µF to GND (see Capacitor Selection and Regulator Stability). _______________Detailed Description and applies the appropriate drive to the P-channel pass transistor. If the feedback voltage is lower than the reference, the pass-transistor gate is pulled lower, allowing more current to pass and increasing the output voltage. If the feedback voltage is too high, the pass-transistor gate is pulled up, allowing less current to pass to the output. The MAX8863/MAX8864 are low-dropout, low-quiescentcurrent linear regulators designed primarily for batterypowered applications. They supply an adjustable 1.25V to 6.5V output or a preselected 2.80V (MAX886_R), 2.84V (MAX886_S), or 3.15V (MAX886_T) output for load currents up to 100mA. As illustrated in Figure 1, these devices consist of a 1.25V reference, error amplifier, MOSFET driver, Pchannel pass transistor, Dual Mode™ comparator, and internal feedback voltage divider. The 1.25V bandgap reference is connected to the error amplifier’s inverting input. The error amplifier compares this reference with the selected feedback voltage and amplifies the difference. The MOSFET driver reads the error signal IN SHDN The output voltage is fed back through either an internal resistor voltage divider connected to the OUT pin, or an external resistor network connected to the SET pin. The Dual Mode comparator examines the SET voltage and selects the feedback path. If SET is below 60mV, internal feedback is used and the output voltage is regulated to the preset output voltage. Additional blocks include a current limiter, reverse battery protection, thermal sensor, and shutdown logic. REVERSE BATTERY PROTECTION ERROR AMP MAX8863 MAX8864 P MOS DRIVER WITH ILIMIT SHUTDOWN LOGIC N * THERMAL SENSOR 1.25V REF DUAL-MODE COMPARATOR 60mV GND * AUTO-DISCHARGE, MAX8864 ONLY Figure 1. Functional Diagram 6 _______________________________________________________________________________________ OUT SET Low-Dropout, 100mA Linear Regulators SHDN R1 20pF SET GND R2 COUT 1µF RL Shutdown Figure 2. Adjustable Output Using External Feedback Resistors Internal P-Channel Pass Transistor The MAX8863/MAX8864 feature a 1.1Ω typical P-channel MOSFET pass transistor. This provides several advantages over similar designs using PNP pass transistors, including longer battery life. The P-channel MOSFET requires no base drive current, which reduces quiescent current considerably. PNPbased regulators waste considerable amounts of current in dropout when the pass transistor saturates. They also use high base-drive currents under large loads. The MAX8863/MAX8864 do not suffer from these problems, and consume only 80µA of quiescent current, whether in dropout, light load, or heavy load applications (see Typical Operating Characteristics). Output Voltage Selection The MAX8863/MAX8864 feature Dual Mode operation: they operate in either a preset voltage mode or an adjustable mode. In preset voltage mode, internal, trimmed feedback resistors set the MAX886_R output to 2.80V, the MAX886_S output to 2.84V, and the MAX886_T output to 3.15V. Select this mode by connecting SET to ground. In adjustable mode, select an output between 1.25V and 6.5V using two external resistors connected as a voltage divider to SET (Figure 2). The output voltage is set by the following equation: VOUT = VSET (1 + R1 / R2) where VSET = 1.25V. To simplify resistor selection: V R1 = R2 OUT VSET − 1 A low input on the SHDN pin shuts down the MAX8863/MAX8864. In shutdown mode, the pass transistor, control circuit, reference, and all biases are turned off, reducing the supply current to typically 0.1nA. Connect SHDN to IN for normal operation. The MAX8864 output voltage is actively discharged to ground when the part is placed in shutdown (see Typical Operating Characteristics). Current Limit The MAX8863/MAX8864 include a current limiter that monitors and controls the pass transistor’s gate voltage, estimating the output current and limiting it to about 220mA. For design purposes, the current limit should be considered 120mA (min) to 320mA (max). The output can be shorted to ground for an indefinite time period without damaging the part. Thermal Overload Protection Thermal overload protection limits total power dissipation in the MAX8863/MAX8864. When the junction temperature exceeds T J = +170°C, the thermal sensor sends a signal to the shutdown logic, turning off the pass transistor and allowing the IC to cool. The thermal sensor will turn the pass transistor on again after the IC’s junction temperature typically cools by 20°C, resulting in a pulsed output during continuous thermal overload conditions. Thermal overload protection is designed to protect the MAX8863/MAX8864 in the event of fault conditions. Stressing the device with high load currents and high input-output differential voltages (which result in die temperatures above +125°C) may cause a momentary overshoot (2% to 8% for 200ms) when the load is completely removed. This can be remedied by raising the minimum load current from 0µA (+125°C) to 100µA (+150°C). For continuous operation, do not exceed the absolute maximum junction temperature rating of TJ = +150°C. _______________________________________________________________________________________ 7 MAX8863T/S/R, MAX8864T/S/R MAX8863 MAX8864 CIN BATTERY 1µF OUTPUT VOLTAGE OUT IN Choose R2 = 100kΩ to optimize power consumption, accuracy, and high-frequency power-supply rejection. The total current through the external resistive feedback and load resistors should not be less than 10µA. Since the VSET tolerance is typically less than ±25mV, the output can be set using fixed resistors instead of trim pots. Connect a 10pF to 25pF capacitor across R1 to compensate for layout-induced parasitic capacitances. In preset voltage mode, impedances between SET and ground should be less than 100kΩ. Otherwise, spurious conditions could cause the voltage at SET to exceed the 60mV Dual Mode threshold. MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 100mA Linear Regulators Operating Region and Power Dissipation Noise Maximum power dissipation of the MAX8863/MAX8864 depends on the thermal resistance of the case and circuit board, the temperature difference between the die junction and ambient air, and the rate of air flow. The power dissipation across the device is P = IOUT (VIN VOUT). The resulting maximum power dissipation is: PMAX = (TJ - TA) / θJA The MAX8863/MAX8864 exhibit 350µVRMS noise during normal operation. When using the MAX8863/MAX8864 in applications that include analog-to-digital converters of greater than 12 bits, consider the ADC’s power-supply rejection specifications (see the Output Noise DC to 1MHz photo in the Typical Operating Characteristics). where (TJ - TA) is the temperature difference between the MAX8863/MAX8864 die junction and the surrounding air, and θJA is the thermal resistance of the chosen package to the surrounding air. The GND pin of the MAX8863/MAX8864 performs the dual function of providing an electrical connection to ground and channeling heat away. Connect the GND pin to ground using a large pad or ground plane. Reverse Battery Protection The MAX8863/MAX8864 have a unique protection scheme that limits the reverse supply current to less than 1mA when either VIN or V SHDN falls below ground. The circuitry monitors the polarity of these two pins, disconnecting the internal circuitry and parasitic diodes when the battery is reversed. This feature prevents the device from overheating and damaging the battery. VIN > 5.5V Minimum Load Current When operating the MAX8863/MAX8864 with an input voltage above 5.5V, a minimum load current of 20µA is required to maintain regulation in preset voltage mode. When setting the output with external resistors, the minimum current through the external feedback resistors and load must be 30µA. __________Applications Information Capacitor Selection and Regulator Stability Normally, use a 1µF capacitor on the input and a 1µF capacitor on the output of the MAX8863/MAX8864. Larger input capacitor values and lower ESR provide better supply-noise rejection and transient response. A higher-value input capacitor (10µF) may be necessary if large, fast transients are anticipated and the device is located several inches from the power source. Improve load-transient response, stability, and power-supply rejection by using large output capacitors. For stable operation over the full temperature range, with load currents up to 100mA, a minimum of 1µF is recommended. Power-Supply Rejection and Operation from Sources Other than Batteries The MAX8863/MAX8864 are designed to deliver low dropout voltages and low quiescent currents in batterypowered systems. Power-supply rejection is 62dB at low frequencies and rolls off above 300Hz. As the frequency increases above 20kHz, the output capacitor is the major contributor to the rejection of power-supply noise (see the Power-Supply Rejection Ratio vs. Ripple Frequency graph in the Typical Operating Characteristics). When operating from sources other than batteries, improve supply-noise rejection and transient response by increasing the values of the input and output capacitors, and using passive filtering techniques (see the supply and load-transient responses in the Typical Operating Characteristics). Load Transient Considerations The MAX8863/MAX8864 load-transient response graphs (see Typical Operating Characteristics) show two components of the output response: a DC shift of the output voltage due to the different load currents, and the transient response. Typical overshoot for step changes in the load current from 0mA to 50mA is 12mV. Increasing the output capacitor’s value and decreasing its ESR attenuates transient spikes. Input-Output (Dropout) Voltage A regulator’s minimum input-output voltage differential (or dropout voltage) determines the lowest usable supply voltage. In battery-powered systems, this will determine the useful end-of-life battery voltage. Because the MAX8863/MAX8864 use a P-channel MOSFET pass transistor, their dropout voltage is a function of RDS(ON) multiplied by the load current (see Electrical Characteristics). ___________________Chip Information TRANSISTOR COUNT: 148 8 _______________________________________________________________________________________ Low-Dropout, 100mA Linear Regulators E P0 D P2 W B0 t D1 F P K0 A0 A0 3.200 ±0.102 B0 3.099 ±0.102 D 1.499 +0.102 +0.000 D1 0.991 +0.254 +0.000 E 1.753 ±0.102 F 3.505 ±0.051 K0 1.397 ±0.102 NOTE: DIMENSIONS ARE IN MM. AND FOLLOW EIA481-1 STANDARD. P 3.988 ±0.102 P0 3.988 ±0.102 P010 40.005 ±0.203 P2 2.007 ±0.051 t 0.254 ±0.127 W 8.001 +0.305 -0.102 _______________________________________________________________________________________ 9 MAX8863T/S/R, MAX8864T/S/R __________________________________________________Tape-and-Reel Information ________________________________________________________Package Information SOT5L.EPS MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 100mA Linear Regulators 10 ______________________________________________________________________________________ Low-Dropout, 100mA Linear Regulators ______________________________________________________________________________________ MAX8863T/S/R, MAX8864T/S/R NOTES 11 MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 100mA Linear Regulators NOTES Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied. Maxim reserves the right to change the circuitry and specifications without notice at any time. 12 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 © 1998 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
