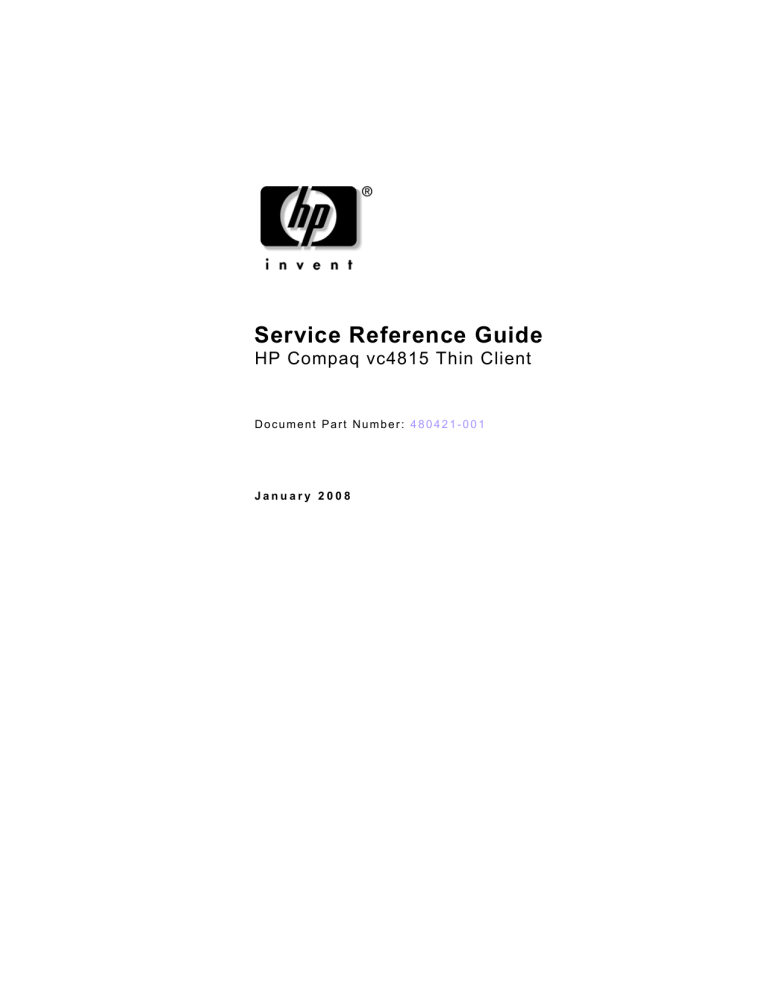

Service Reference Guide

HP Compaq vc4815 Thin Client

D o c u m e n t P a r t N u m b e r : 4 8 0 4 2 1 - 0 0 1

J a n u a r y 2 0 0 8

© 2008 Hewlett-Packard Development Company, L.P.

HP, Hewlett Packard, and the Hewlett-Packard logo are trademarks of

Hewlett-Packard Company in the U.S. and other countries.

Compaq, and the Compaq logo are trademarks of Hewlett-Packard Development

Company, L.P. in the U.S. and other countries.

Microsoft, Windows, and Windows NT are U.S. registered trademarks of

Microsoft Corporation.

Transmeta, the Transmeta logo, Crusoe, the Crusoe logo, and combinations thereof are trademarks of Transmeta Corporation in the U.S.A. and other countries.

All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express limited warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

W A R N I N G :

Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

C A U T I O N :

Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

S e r vi c e R e f e r e n c e G u i d e

HP Compaq vc4815 Series Thin Client

First Edition (Jan 2008)

Document Part Number: 480421-001

Contents

Product Description

Network Firmware .......................................................................................................... 1–1

HP Compaq Thin Client vc4815 Series .......................................................................... 1–2

Serial Number Location .................................................................................................. 1–6

Connecting USB Equipment ........................................................................................... 1–6

Locating Additional Information .................................................................................... 1–7

Spare Parts Lists

vc4815 Series Spare Parts List ........................................................................................ 2–1

HP vc4815 Series Setup (F10) Utility

Using HP vc4815 Series Setup (F10) Utility .................................................................. 3–1

Diagnostics and Troubleshooting

Diagnostic Front Panel LEDs and Audible Codes .......................................................... 4–1

Appendix A vc4815 Serial ports definition

Service Reference Guide www.hp.com

iii

Contents

Upload the Flash Image and system BIOS

Upload the Flash image and BIOS .................................................................................... 5–1

Thin Client vc4815 Specifications

6-1

iv www.hp.com

Service Reference Guide

1

Product Description

The HP Compaq Thin Client vc4815 Series are Redflag Linux-based terminals that connect over a network to a server where all processing and storage occurs. Because of the nature of the products, troubleshooting is significantly simpler than on a standard PC and previous thin clients.

The Graphical User Interface (GUI) is Chinese on all thin clients. If you are using a foreign language keyboard, you will need to set localized settings to perform the localization between a server-based application and the device, but interaction with the unit itself remains in

Chinese.

N e t w o r k F i r m w a r e

PXE (Pre-boot Execution Environment) is supported on all HP

Compaq Thin Client vc4815 Series products.

PXE allows a client to boot from a server on a network prior to booting the embedded Operating System (OS) from the local Flash module. As long as the system is connected to AC power, the Network

Interface Controller (NIC) on a PXE-enabled client remains powered even when the system is turned off. This allows a network administrator to remotely wake up the unit and perform various management tasks, including loading the operating system and other software onto the device from a server over the network.

Service Reference Guide www.hp.com

1-1

Product Description

H P C o m p a q T h i n C l i e n t v c 4 8 1 5 S e r i e s

Front view - vc4815

1

Power button

2

Power LED

3

Flash activity LED

4

USB ports (2)

Service Reference Guide www.hp.com

1-2

Product Description

H P C o m p a q T h i n C l i e n t v c 4 8 1 5 S e r i e s

Product Description

Rear View of the vc4815

1

PS/2 connectors (2)

2

Serial connectors (4)

3

Monitor connector

4

Universal Serial Bus (USB) connectors (2)

7

8

5

6

Power connector

Lock Slot

Ethernet RJ-45 connector

Parallel connector

C A U T I O N :

The vc4815 Series power cord connector is for use only with the supplied power adaptor. Replace only with the same or equivalent type as recommended by the manufacturer.

Service Reference Guide www.hp.com

1-3

Product Description

Serial Number Location

The serial number is displayed on the side of the unit.

Connecting USB Equipment

USB mouse devices and keyboards do not require special drivers and are considered to be plug and play peripherals. Certain USB devices such as printers and modems, however, may require special drivers.

For information on requirements for special drivers, refer to the documentation that is included with the USB device.

Service Reference Guide www.hp.com

1-4

Product Description

L o c a t i n g A d d i t i o n a l I n f o r m a t i o n

The following documentation is available to support these products:

„

Quick Setup

„

Hardware Reference Guide

„

Redflag Linux User manual

„

Customer and Service Notifications, Bulletins and Advisories

„

Quickspecs

Documentation, white papers, and drivers are subject to change. For the latest HP thin client documentation, visit the following Web site: http: //h18004.www1.hp.com/products/thinclients/software.html

Service Reference Guide www.hp.com

1-5

2

Spare Parts Lists

v c 4 8 1 5 S e r i e s S p a r e P a r t s L i s t

The spare parts tables that follow provide a listing of the spare parts available for the Thin Client vc4815 Series.

vc4815 Series Spare Parts Table

SPS-Base, vc4815 512F/512R Linux

SPS-Base, vc4815 1GBF/512R Linux

SPS-Base, vc4815 2GBF/512R Linux

SPS-KYBD USB, Basic, Vista-PRC

SPS-MOUSE,OPTICAL CARBONITE

Number

458813-001

458814-001

458815-001

435382-AA1

390938-001

For a full list of supported and leveraged Hewlett-Packard and third party options, go to: http://h18004.www1.hp.com/products/thinclients/software.html

Service Reference Guide www.hp.com

1-6

3

HP vc4815 Series Setup

(F10) Utility

U s i n g H P v c 4 8 1 5 S e r i e s S e t u p ( F 1 0 ) U t i l i t y

The Setup utility can be accessed only by turning the computer on or restarting the system. To access the Setup Utility menu, complete the following steps:

1.

Turn on or restart the computer.

2.

When the

F10 <BIOS Setup>

message displays in the task bar at the bottom of the screen, press the

F 1 0

key.

If you do not press the

F 1 0

key while the message is displayed, you must restart the computer again to access the utility. When the F10

Post Screen display is set to zero seconds, it may be necessary to press and hold

F 1 0

on the keyboard, then power on the computer.

3.

A choice of five menu headings and five task headings appears in the Setup Utility menu:

Menu Headings:

System Information, Standard CMOS Features,

Advanced BIOS Features, Integrated Peripherals, and Power

Management Setup.

Task Headings:

Load Defaults Setting, Set Supervisor

Password, Set User Password, Save Setting and Exit, and

Exit without Saving.

Service Reference Guide www.hp. com 3-1

HP vc4815 Series Setup (F10) Utility

4.

Use the arrow (up and down, or left and right) keys to select the appropriate heading, then press the

Enter

key. To return to the

Setup Utility menu, press the

Esc

key.

5.

To apply and save changes, select

Save Setting and Exit Setup.

If you have made changes that you do not want applied, select

Exit without Saving.

To reset to factory settings, select

Load Defaults Setting.

This option will restore the original factory system defaults.

C A U T I O N :

Do NOT turn the computer power OFF while the ROM is saving your F10 Setup changes because the CMOS could become

corrupted. It is safe to turn off power to the computer ONLY after you exit

the F10 Setup screen.

v c 4 8 1 5 S e r i e s S e t u p U t i l i t y

H e a d i n g O p t i o n D e s c r i p t i o n

System

Information

Lists:

- Product name

- BIOS Version

- BIOS Release Date

- System Chipset Type

- Processor type

- Processor Speed

- CPU ID

- DDR Memory Size

- UUID (Universal Unique ID)

- Chassis Serial Number

- Set Asset TAG number

- Asset Tag Number

Service Reference Guide

Support for specific Setup options may vary depending on your hardware configuration.

www.hp.com

3-2

HP vc4815 Series Setup (F10) Utility

v c 4 8 1 5 S e r i e s S e t u p U t i l i t y

(Continued)

H e a d i n g O p t i o n D e s c r i p t i o n

Standard

CMOS

Features

System Date Allows you to set the date

Advanced

BIOS

Features

System Time Allows you to set the time.

IDE channel 0

Master

Indicates ATA Flash settings

IDE Channel 1

Master

Halt on Allows you to select system response when POST Error has been detected.

Quick Power

On Self Test

Allows the system to skip certain tests while booting so the unit has a faster boot.

Hard Disk Boot

Priority

Allows Setting of ATA Flash Disk or

Bootable Add-in Cards Boot Priority

Service Reference Guide

First Boot

Device

Second Boot

Device

Third Boot

Device

Boot other

Device

Bootup

NumLock

Status

Select Boot Device Priority. The default is set to Hard Disk.

Select Boot Device Priority

Select Boot Device Priority

Enable/disable boot from other device

Select Power On state for NumLock.

Security

Option

Select whether the Password is required every time the system boots or only when you enter Setup.

Support for specific Setup options may vary depending on your hardware configuration.

www.hp.com

3-3

HP vc4815 Series Setup (F10) Utility

Service Reference Guide

v c 4 8 1 5 S e r i e s S e t u p U t i l i t y

(Continued)

H e a d i n g O p t i o n D e s c r i p t i o n

Integrated

Peripherals

USB Controller Enable/disable USB controller

Integrated

Audio

Network

Controller

Enable/disable onboard AC97 audio controller

Enable/disable onboard LAN device

Onboard Serial port 1

Onboard Serial port 2

Onboard Serial port 3

Onboard Serial port 4

Select serial port base IO port address and IRQ

Onboard Parallel Select parallel port base IO port address

Port and IRQ

Parallel Mode Select parallel port transfer mode

ECP Mode

Use DMA

Select DMA channel if parallel is

Operated in ECP mode.

Power

Manage- ment Setup

Restore On

AC/Power Loss

Allows you to set off, On, Last State

Resume on PME Enable/disable system wakeup capability for onboard LAN device and PCI Card

Wake on Ring

Enable/disable Wake on Ring

Resume On

Alarm

Enable/disable Resume On Alarm, allow to set Date(of month), Resume

Time(hh:mm:ss)

Select Yes or No (Y/N) Load Defaults

Setting

Support for specific Setup options may vary depending on your hardware configuration.

www.hp.com 3-4

HP vc4815 Series Setup (F10) Utility

Heading Option Description

HP vc4815 Series Setup (F10) Utility

v c 4 8 1 5 S e r i e s S e t u p U t i l i t y

(Continued)

H e a d i n g O p t i o n D e s c r i p t i o n

Set

Supervisor

Password

Set User

Password

Allows you to set and enable the administrative password.

If the administrative password is set, it is required to change the Setup options, flash the ROM, and make changes to certain plug and play settings under

Windows

Allows you to set and enable the user password.

When the user password is set, it prevents unauthorized access to the user’s setup. User password provides read-only access to Setup options.

Save

Setting and Exit

Exit without

Saving

Saves data to CMOS

Exits the Setup Utility without saving any changes.

Support for specific Setup options may vary depending on your hardware configuration.

Service Reference Guide www.hp.com

3 -5

4

Diagnostics and Troubleshooting

POST Diagnostic Front Panel LEDs and Audible

Codes

This section covers the front panel LED codes as well as the audible codes that may occur before or during POST that do not necessarily have an error code or text message associated with them.

If you see flashing LEDs on a PS/2 keyboard look for flashing LEDs on the front panel of the computer and refer to the following table to determine the front panel

LED codes.

Recommended actions in the following table are listed in the order in which they should be performed.

D i a g n o s t i c F r o n t P a n e l L E D s a n d A u d i b l e C o d e s

Possible Cause

Computer on.

Beeps &

LED blink

Activity

None Green Power LED On.

Recommended Action

None

Pre-video memory 5

Green Power LED flashes five times, once every second, followed by a two second pause.

Beeps stop after fifth iteration but LEDs continue until problem is solved.

CAUTION: To avoid damage to the DIMMs or the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a DIMM module.

1. Reseat DIMMs.

2. Replace DIMMs one at a time to isolate the faulty module.

3. Replace third-Party memory with HP memory.

4.Replace the system board

Service Reference Guide www.hp.com

4 -1

D i a g n o s t i c F r o n t P a n e l L E D s a n d A u d i b l e C o d e s

Possibl e Cause

Beeps

& LED blink

System unable to power on. does Press and hold the power button for less than 4 not power on and LEDs are seconds. not flashing.

If the hard drive LED turns green, the power button is working correctly. Then, Replace the system board.

OR

If the hard drive LED does not turn on green then:

1. Check that the unit is plugged into a working AC outlet.

2. Check that both power supply cables are properly connected to the system board.

3. Check to see if the 5V_aux light on the system board is turned on. If it is turned on, then replace the power button harness. If the problem persists, replace the system board.

4. If the 5V_aux light on the system board is not turned on, remove the expansion cards one at a time until the 5V_aux light on the system board turns on. It the problem persists, replace the power adapter.

* Replacing the system board should ONLY be the last resort.

* * Replacing the power supply should ONLY be the last resort.

Service Reference Guide www.hp.com

4-2

5

Reload Flash Image and BIOS

System Requirements

To create a recovery device for the purpose of reflashing or restoring the software image on the ROM, you will need the following:

„

One or more HP Compaq vc4815 Series Thin Clients

„

USB flash device 512MB Compatible USB flash devices (drive keys) are available from www.diskonkey.com

.

This restore method will not work with all USB flash devices.

USB flash devices with multiple partitions generally do not support this restore method. The range of USB flash devices available on the market is constantly changing. Not all USB flash devices (drive keys) have been tested with the HP Compaq Thin

Client Imaging Tool.

„

USB CD-ROM drive for thin client (if using the ISO Image option)

Before using the utility, you must download the appropriate image from http://www.hp.com/products/thinclientsoftware.

Service Reference Guide www.hp.com

5-14

Reload image and system BIOS

Hainan Image Reloading

1, Download the Image file *.gho from web.

2, Make a DOS Bootable USB flash drive(>=512M). Copy the image file and ghost.exe (ver11.0.1) to the USB flash drive.

3, Boot from the USB device. Run ghost.exe.

System BIOS Update

1. Download the SoftPaq .EXE file to a directory on your hard drive.

2. Execute the downloaded file and follow the on-screen instructions.

3. Choose one of the following three options when presented:

- Create BIOS Flash Diskette,

- Create BIOS Flash DriveKey

4, Boot Unit with the diskette or Flash DriveKey made last in step.

Do not power off or reset the unit during flash BIOS process.

Service Reference Guide www.hp.com

5-2

6

Thin Client vc4815 Specifications

S p e c i f i c a t i o n s - v c 4 8 1 5 S e r i e s

I t e m D e s c r i p t i o n

GV665PA#AB2 vc4815 vc4815 LNX 512F/512R

PRC

GV666PA#AB2

Processor

Chipset

Operating System

VIA C7 1GHz

VIA CN700 + 8237R

Redflag Linux (Chinese version only) vc4815 LNX 1GBF/512R

PRC

GV667PA#AB2 vc4815 LNX 2GBF/512R

PRC

Flash Memory

Memory

Graphics

Apacer ADMII series 44PIN 180 degree DOM,

512 MB, 1GB, 2GB

2 slots

HP 512 MB DDR2 533 SDRAM or DDR2 667 SDRAM downgraded to 533 One slot

(NOTE: 16 MB of system RAM is reserved for graphics memory)

VIA S3 Unichromo Pro Graphic integrated

PCI Expansion No

Browser Firefox Explorer with java support

Altiris Deployment Solution (client agent)

Client Management

Software

Terminal Personalities

Standard

Yes, terminal emulation tool under Linux

Power adapter

Keyboard

Mouse

Foot stand

65W

USB or PS/2 (both supported)

Keyboard included with every thin client. Type of included keyboard (USB or PS/2) varies by region

USB or PS/2 (both supported)

Keyboard included with every thin client. Type of included keyboard (USB or PS/2) varies by region

Yes

Service Reference Guide www.hp.com

6-1

Thin Client vc4815 Specifications

S p e c i f i c a t i o n s - v c 4 8 1 5 S e r i e s

I t e m D e s c r i p t i o n

Memory

Graphics

Flash Memory

System Memory

512 MB , 1GB, 2GB, Apacer ADMII series 44PIN 180 degree DOM

512 MB DDR-II SDRAM

NOTE: 16 MB of system RAM is reserved for graphics memory

VIA S3 Unichromo Pro VGA integrated

Mode Refresh Rates

800 x 600

1024 x 768

1152 X 864

60-120 Hz

60-100 Hz

60-85 Hz

Color Depth

16/32 bit

16/32 bit

16/24 bit

Input/Output/

Peripheral Support

1280 x 1024

1600 x 1200

640x480

800x600

1024x768

1280x720

1280x768

1280x800

1280x1024

1360x768

1366x768

1440x900

1600x1200

1920x 1440

1440x 900

1680 x 1050

1920x1200

Keyboard

60-85 Hz

60-85 Hz

16/32 bit

16/24 bit

60-160 Hz

60-120 Hz

60-100 Hz

60-85 Hz

60-85 Hz

60-85 Hz

60-85 Hz

60-85 Hz

60-85 Hz

60-85 Hz

60-85 Hz

60-75Hz

60 Hz

60 Hz

60 Hz

HP USB or PS2 Standard Keyboard

Security

Terminal Server

Protocols

Networking

Mouse

Printer

HP USB or PS2 two-button scroll mouse

Local and/or network printers (RDP, ICA, LPD) as per the printer support statement

Video VIA S3 Unichromo Pro VGA integrated

One security lock slot (cable lock sold separately)

Integrated rdesktop RDP client (1.4.1) and Citrix ICA 10.0 client support. Terminal

Emulation software re-development for finance

10/100 BaseT Fast Ethernet, twisted pair (RJ-45)

TCP/IP with DNS and DHCP, Direct Connection through RS-232

Point-to-Point Protocol (PPP),PPPoE, PPTP, EAP, PEAP, Wake on LAN (WOL), PXE

Service Reference Guide www.hp.com

6-2

I/O ports and connectors

Resident Operating

System

Session Allocation

Managers/Session

Brokers

Server OS

Compatibility/

Support

Software Included

Languages

Four USB ports (two in front, two in rear), 4 serial, one parallel, one RJ-45, two PS/2

Redflag Linux

HP PC Session Allocation Manager Software for the Consolidated Client Infrastructure,

Citrix Desktop Broker for Virtual Desktop Infrastructure

Open source Terminal Emulation:

CT100, VT100, VT220, VT382, Xenix, ANSI

Terminal service:

Microsoft® Windows® NT 4.0 Server, Windows NT 4.0 Terminal Server Edition, Windows

2000/2003 Server families, Windows 2000/2003 Server Terminal Services, Windows 2000

Advanced Server, Windows 2000 Advance Server Terminal Services

Citrix:

Citrix Presentation Server 4.0, including the Desktop Broker feature, Citrix Metaframe

Presentation Server 3.0, Citrix Metaframe XP Presentation Server, Citrix Metaframe 1.x, and Linux Server versions

HP Connection Administrator, Firefox Browser, Citrix ICA, rdesktop RDP client (for RDP),

Altiris Deployment Solution 6.8 (client agent) preinstalled.

Terminal Emulation software re-development for finance system.

Printing: support screen print, transparent print , 4 auxiliary serial ports terminal emulation & Graphic display

Flash Player support, txtpad , control panel support

Chinese input: Pinyin, Wu bi, Qu wei

Note: Altiris Deployment Solution (management console) available as free download from Altiris at: www.altiris.com/hptc

Other software available as add-ons (see www.hp.com/support for latest list of available add-ons)

Chinese only

Dimensions H x W x D

(approximate)

Without stand 235 x 60 x 195 mm

Environmental

Regulatory

Compliance

Warranty

Emulations

Temperature range on 50° to 104° F (10° to 40° C)

Temperature range off -22° to 140° F (-30° to 60° C)

Humidity

Power

1

20% to 80% condensing

10% to 95% non-condensing

Worldwide auto-sensing 100-240 VAC, 50-60 Hz, energy-savin automatic power-down, surge-tolerant, 65-watt power supp

Agency

Environmental

CCC and CB

CECP (to be applied after product launch), ROHS complian

ESD 4KV for Direct, and 8KV for discharge

Three-year limited hardware warranty

NOTE: Certain restrictions apply. Consult the HP Customer Support Center for details

Emulation

ANSI

Terminal ID

CT100

VT100 VT100, VT220, VT382

Xenix

Service Reference Guide www.hp.com

6-4

Appendix A

HP Compaq vc4815

系列串口定义用户指南

HP Compaq vc4815

终端默认具有

4

个串口,分别为串口一、串口二,串口三、

串口四。

引脚

1

主口

(串口

1

DCD/ +5V

辅口

(串口

1

2

+5V / DCD

辅口

(串口

TTL

2

3

+5V / DCD

辅口

(串口

3

4

+5V / DCD

2

3

4

5

6

7

8

RXD RXD RXD/TXD RXD

DTR/ +12V DTR/+5V /+12V NC/DTR DTR/+5V /+12V

GND GND GND GND

DSR DSR NC/DSR DSR

RTS/+12V RTS/+12V NC/RTS RTS/+12V

CTS RXD/TXD(TTL) CTS

9

CTS/RXD

TTL

RI/TXD

TTL

RI TXD/RXD(TTL) RI

HP Compaq vc4815

终端默认出厂设置

主口

(串口

1

引脚

1

DCD

辅口

1

(串口

2

DCD

2

3

辅口

2

(串口

3

TTL

DCD

辅口

(串口

3

4

DCD

RXD RXD RXD RXD

TXD TXD TXD TXD

4

5

6

7

8

9

DTR DTR

GND GND GND GND

DSR DSR

RTS RTS

NC

NC

NC

DTR

DSR

RTS

CTS CTS RXD CTS

RI RI TXD RI

注:辅口

2

2

3

脚为

RS232

8

9

脚为

TTL

主串一的

1

脚可以提供

+5V

供电,

8

9

脚可跳选为

RXD/TXD

TTL

模式

主口(串口

1

)定义:

主口

(串口

1

引脚

1

DCD/ +5V

2

3

RXD

TXD

4

5

6

7

8

DTR/ +12V

GND

DSR

RTS/+12V

9

CTS/RXD

TTL

RI/TXD

TTL

跳线器默认如上图所示

COMA_JP1

:更改跳线器将其置左

(2

连接

3)

,可为主口(串口

1

)的

1

脚取+

5V

COMA_JP2

:更改跳线器将其置左

(2

连接

3)

,可为主口(串口

1

)的

4

脚取+

12V

COMA_JP3

:更改跳线器将其置左

(2

连接

3)

,可为主口(串口

1

)的

7

脚取+

12V

COMA_JP4

:更改跳线器将其置左

(2

连接

3)

,可为主口(串口

1

)的

8

脚取

RXD

TTL

电平)

COMA_JP5

:更改跳线器将其置左

(2

连接

3)

,可为主口(串口

1

)的

8

脚取

TXD

TTL

电平)

辅口

2

(串口

3

)(

TTL

)定义:

引脚

1

辅口

2

(串口

3

TTL

+5V / DCD

2

RXD/TXD

3

4

5

6

TXD/RXD

NC/DTR

GND

NC/DSR

7

8

9

NC/RTS

RXD/TXD(TTL)

TXD/RXD(TTL)

跳线器默认如上图所示

COMB_JP1

:更改跳线器将其置右

(2

连接

3)

,可为辅口

2(

串口

3)(TTL)

1

脚取

+5V

COMB_JP2

:更改跳线器将其置左

(2

连接

3)

,可为辅口

2(

串口

3)(TTL)

2

脚取

TXD(RS232)

信号

COMB_JP3

:更改跳线器将其置左

(2

连接

3)

,可为辅口

2(

串口

3)(TTL)

3

脚取

RXD(RS232)

信号

COMB_JP4

:更改跳线器将其置左

(2

连接

3)

,可为辅口

2(

串口

3)(TTL)

8

脚取

TXD

TTL

电平)信号

COMB_JP5

:更改跳线器将其置左

(2

连接

3)

,可为辅口

2(

串口

3)(TTL)

9

脚取

RXD

TTL

电平)信号

COMB_JP6

:插上跳线器

(1

连接

2)

,可为辅口

2(

串口

3)(TTL)

4

脚取

DTR (RS232)

信号

COMB_JP7

:插上跳线器

(1

连接

2)

,可为辅口

2(

串口

3)(TTL)

6

脚取

RTS (RS232)

信号

COMB_JP8

:插上跳线器

(1

连接

2)

,可为辅口

2(

串口

3)(TTL)

7

脚取

DSR (RS232)

信号

辅口

1

(串口

2

)与 辅口

3

(串口

4

)定义:

辅口

1

(串口

2

引脚

1

+5V / DCD

2

辅口

(串口

3

4

+5V / DCD

RXD RXD

3

4

5

6

TXD TXD

DTR/+5V /+12V DTR/+5V /+12V

GND GND

DSR DSR

7

8

9

RTS/+12V RTS/+12V

CTS CTS

RI RI

跳线器默认如上图所示

COMC_JP1

:更改跳线器将其置下

(2

连接

3)

,可为辅口

1

(串口

2

)的

1

脚取

+5V

COMC_JP2

:更改跳线器将其置下

(2

连接

3)

,可为辅口

1

(串口

2

)的

7

脚取+

12V

COMCD_JP1

COMCD_JP1 DTR +5V +5V +12V

辅口

1

4

7

连接

9 5

连接

7 3

连接

5 1

连接

3

辅口

4

4

8

连接

10 6

连接

8 4

连接

6 2

连接

4

COMD_JP1

:更改跳线器将其置下

(2

连接

3)

,可为辅口

3

(串口

4

)的

1

脚取

+5V

COMD_JP2

:更改跳线器将其置下

(2

连接

3)

,可为辅口

3

(串口

4

)的

7

脚取+

12V

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
