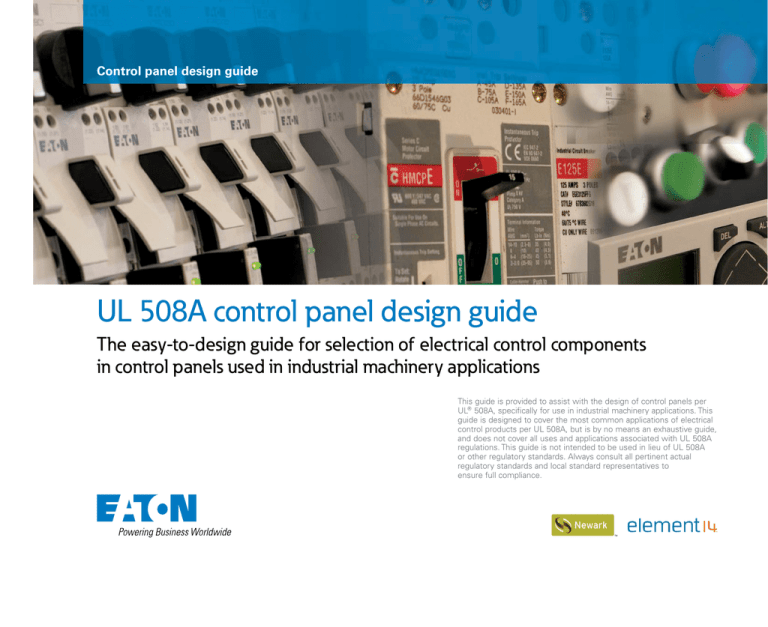

Control panel design guide
UL 508A control panel design guide
The easy-to-design guide for selection of electrical control components
in control panels used in industrial machinery applications
This guide is provided to assist with the design of control panels per
ULT 508A, specifically for use in industrial machinery applications. This
guide is designed to cover the most common applications of electrical
control products per UL 508A, but is by no means an exhaustive guide,
and does not cover all uses and applications associated with UL 508A
regulations. This guide is not intended to be used in lieu of UL 508A
or other regulatory standards. Always consult all pertinent actual
regulatory standards and local standard representatives to
ensure full compliance.
A long history
of innovation
in control
and protection
Through continuing
investments, Eaton’s
Electrical Sector has
grown into a world-class
provider of power protection and control products.
Meeting your specific
needs means offering
a complete line of motor
protection, control and
logic devices—all the
latest in technology.
From contactors,
starters and drives to
pushbuttons, relays and
programmable controllers,
you’ll have the edge when
it comes to applicationspecific solutions. Trust
Eaton to deliver the
products and solutions
that will make your
process more efficient
and effective.
