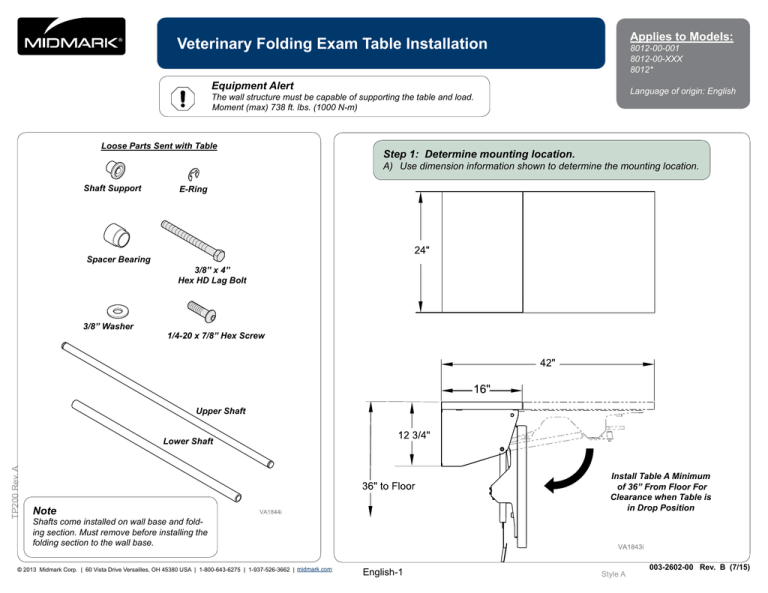

Applies to Models:
Veterinary Folding Exam Table Installation
8012-00-001
8012-00-XXX
8012*
Equipment Alert
Language of origin: English
The wall structure must be capable of supporting the table and load. Moment (max) 738 ft. lbs. (1000 N-m)
Loose Parts Sent with Table
Step 1: Determine mounting location.
A) Use dimension information shown to determine the mounting location.
Shaft Support
Spacer Bearing
3/8” Washer
E-Ring
3/8” x 4”
Hex HD Lag Bolt
1/4-20 x 7/8” Hex Screw
Upper Shaft
TP200 Rev. A
Lower Shaft
Install Table A Minimum
of 36” From Floor For
Clearance when Table is
in Drop Position
Note
Shafts come installed on wall base and folding section. Must remove before installing the
folding section to the wall base.
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
English-1
Style A
003-2602-00 Rev. B (7/15)
Equipment Alert
Table top must be 36” minimum from floor.
Step 2: Install wall base for Wood Studs.
A)
B)
C)
D)
E)
Mark top two mounting holes on stud centers, 33.25” from floor.
Drill two 1/4” holes 4” deep at mark hole locations.
Secure wall base to wall with two 3/8” lag bolts (for wood) and washers.
Drill other four mounting holes for wall base and install remaining bolts and washers.
As you tighten all bolts, use level to make sure wall base is flat.
Note
Refer to chase installation manual for mounting hole locations in chase cabinet. To install table to chase, use hardware
included with chase cabinet. (3/8” bolts, washers and nuts)
Wall Base Mounting Holes
TP200 Rev. A
Wall Base
Lag Bolts
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
English-2
Style A
Step 2: Install wall base for Steel Stud.
If mounting table to a steel stud wall, there are two options.
1. Use backer plate kit, 002-1692-00 (ordered separately), install per instructions included with kit. Install wall base to backer plate starting with Step 2: E) - or
2. Install wood blocking design into steel studs as described below. Install wall base directly into wood
blocking with lag bolts. In existing facilities cut hole in drywall large enough to install blocking design.
A)
B)
C)
D)
E)
F)
G)
warning
Serious injury possible if instructions are not followed
Equipment Alert
Table top must be 36” minimum from floor.
Make relief cut on 2 - 2x12’s. Starting with right side insert first 2x12 on steel stud stiffening lip and use 4 - 2” #14 flat head wood screws to affix 2x12 to steel web at 34.5” high. Screw plywood
spacer to first 2x12. Insert second 2x12 onto stiffening lip and screw into place. Repeat for left side.
Screw 4 - 3” #14 flat head wood screws onto front of stud flange using a total of 8 to secure blocking.
Repair drywall and mark top two mounting holes (on new blocking design), 33.25” from floor.
Drill two 1/4” holes 4” deep at mark hole locations.
Secure wall base to wall with two 3/8” lag bolts (3/8 bolt for backer plate) and washers.
Drill four mounting holes for wall base (wood block design). Install remaining bolts and washers.
As you tighten all bolts, use level to make sure wall base is flat.
Plywood Spacer
Relief Cut
2 x 12
Stiffening Lip
TP200 Rev. A
3” #14 flat head wood screws
2” #14 flat head wood screws
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
English-3
Style A
Step 3: Install folding section.
A) Install first e-ring on one end of upper shaft.
B) Position folding section to wall base and slide top shaft through mounting holes.
C) Install second e-ring to other end of top shaft.
Wall Base
First
E-Ring
Upper Shaft
Second
E-Ring
TP200 Rev. A
Folding Section
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
English-4
Style A
Step 4: Install gas spring.
A)
B)
C)
Snap rod end of gas spring into ball stud on wall base.
Snap large end of gas spring into ball stud on folding section.
If gas spring is not aligning with the ball stud on folding section, do the following:
• Loosen four table top screws under folding section.
• Pivot folding section higher to align gas spring to ball stud.
• Reposition table top to have approximately 1/8” seam gap and tighten screws.
Note: Midmark recommends the gas spring be installed rod end down.
Table Top Screws
TP200 Rev. A
Gas Spring
Ball Studs
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
English-5
Style A
Step 5: Install locking arm.
A)
B)
C)
D)
E)
F)
Install spacer bearing onto one side of locking arm
Slide locking arm through opening in folding section bracket.
Install spacer bearing onto other side of locking arm.
Slide lower shaft through spacer bearings on locking arm.
Align shaft in locking arm with holes in wall base.
Install shaft supports using 1/4-20 screws and a 5/32 allen wrench.
Locking Arm
Equipment Alert
Install Locking Arm with Gas Spring Cut Out facing
top. Will damage Gas Spring if installed incorrectly.
Spacer Bearing
Gas Spring Cut Out
Spacer Bearing
TP200 Rev. A
Lower Shaft
Shaft Support
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
English-6
Style A
To adjust table (if needed)..
Step 6: Level table.
A)
B)
C)
A)
B)
Place level on table folding section to verify it is flat.
Adjust table if needed.
Lift one side of the locking arm handle to allow table to go down.
Lift up the table top to raise and verify it is working properly.
Loosen all four bolts under end of table.
• Turn two adjustment screws clockwise to raise table.
• Turn two adjustment screws counterclockwise to lower table.
Tighten all four bolts.
Note: Both adjustment screws need to be loosened to properly level.
Adjustment
Screws
Locking Arm
Typical
TP200 Rev. A
Bolts
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
English-7
Style A
