INSTALLATION INSTRUCTIONS
P R I V A C Y
S H A D E S
Volkswagen Passat 4dr
VW-PASS-4-B

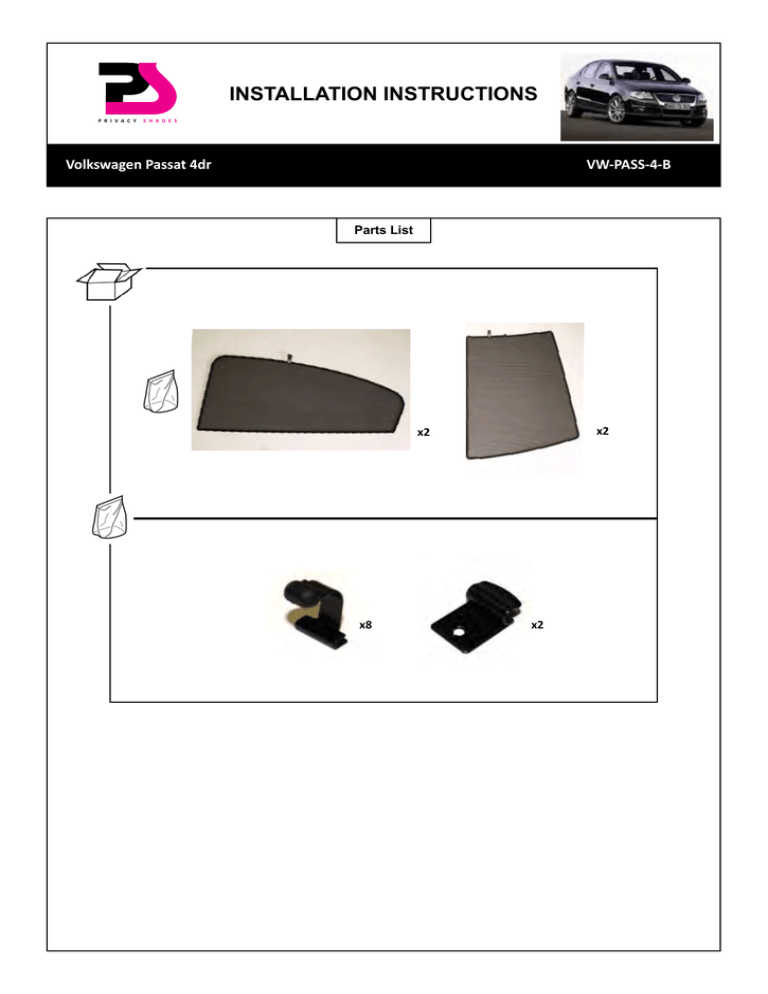

Parts List
x2
x2
x8
x2
INSTALLATION INSTRUCTIONS - VW-PASS-4-B
1
Attach clip behind rubber seal
2
Present shade up to the window
3
Attach top clips
Clip positions
Attach to bottom clips
4
Shade is installed
Repeat on opposite window
INSTALLATION INSTRUCTIONS - VW-PASS-5-B
1
Attach clips at positions shown
x2
2
Install shades to each side
3
Place shade against window and fix clip behind the trim
4
Shade is installed
5
Repeat on opposite side
