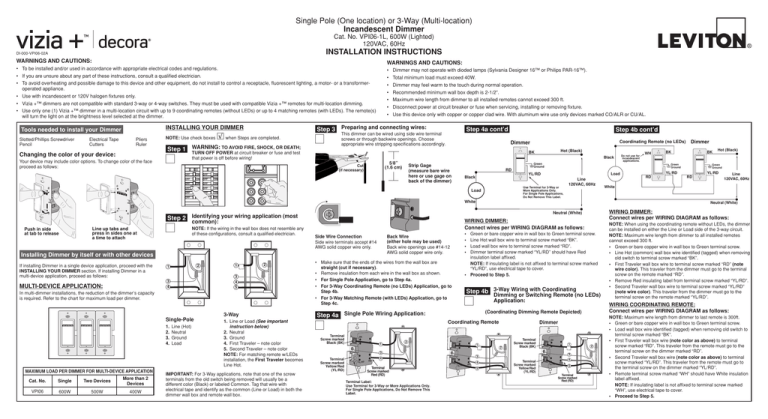

Single Pole (One location) or 3-Way (Multi-location)
Incandescent Dimmer
Cat. No. VPIØ6-1L, 600W (Lighted)
120VAC, 60Hz
INSTALLATION INSTRUCTIONS
DI-000-VPI06-02A
WARNINGS AND CAUTIONS:
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• Dimmer may not operate with dioded lamps (Sylvania Designer 16™ or Philips PAR-16™).
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Total minimum load must exceed 40W.
• T
o avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, fluorescent lighting, a motor- or a transformeroperated appliance.
• Dimmer may feel warm to the touch during normal operation.
• Recommended minimum wall box depth is 2-1/2”.
• Use with incandescent or 120V halogen fixtures only.
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft.
• Vizia +™ dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia +™ remotes for multi-location dimming.
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use only one (1) Vizia +™ dimmer in a multi-location circuit with up to 9 coordinating remotes (without LEDs) or up to 4 matching remotes (with LEDs). The remote(s)
will turn the light on at the brightness level selected at the dimmer.
INSTALLING YOUR DIMMER
Tools needed to install your Dimmer
Slotted/Phillips Screwdriver
Pencil
Electrical Tape
Cutters
Pliers
Ruler
Changing the color of your device:
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Step 3 Preparing and connecting wires:
Step 1 WARNING: To avoid fire, shock, or death;
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Coordinating Remote (no LEDs)
Dimmer
hot (Black)
Black
5/8”
(1.6 cm)
Cut
(if necessary)
OFF
Step 4b cont’d
Bk
turn off power at circuit breaker or fuse and test
that power is off before wiring!
Your device may include color options. To change color of the face
proceed as follows:
Step 4a cont’d
This dimmer can be wired using side wire terminal
screws or through backwire openings. Choose
appropriate wire stripping specifications accordingly.
√
NOTE: Use check boxes when
Steps are completed.
Strip Gage
(measure bare wire
here or use gage on
back of the dimmer)
RD
Black
Green
Ground
Line
120vAC, 60hz
White
NOTE: If the wiring in the wall box does not resemble any
of these configurations, consult a qualified electrician.
Side Wire Connection
Side wire terminals accept #14
AWG solid copper wire only.
Installing Dimmer by itself or with other devices
If installing Dimmer in a single device application, proceed with the
Installing your Dimmer section. If installing Dimmer in a
multi-device application, proceed as follows:
1
3
4
Multi-device Application:
2
1
2
3
4
5
In multi-dimmer installations, the reduction of the dimmer’s capacity
is required. Refer to the chart for maximum load per dimmer.
Single-Pole
1. Line (Hot)
2. Neutral
3. Ground
4. Load
MAXIMUM LOAD PER DIMMER FOR MULTI-DEVICE APPLICATION
Cat. No.
Single
Two Devices
More than 2
Devices
VPIØ6
600W
500W
400W
3-Way
1. L
ine or Load (See important
instruction below)
2. Neutral
3. Ground
4. First Traveler – note color
5. Second Traveler – note color
NOTE: For matching remote w/LEDs
installation, the First Traveler becomes
Line Hot.
IMPORTANT: For 3-Way applications, note that one of the screw
terminals from the old switch being removed will usually be a
different color (Black) or labeled Common. Tag that wire with
electrical tape and identify as the common (Line or Load) in both the
dimmer wall box and remote wall box.
Green or bare copper wire in wall box to Green terminal screw.
Line Hot wall box wire to terminal screw marked “BK”.
Load wall box wire to terminal screw marked “RD”.
D
immer terminal screw marked “YL/RD” should have Red
insulation label affixed.
NOTE: If insulating label is not affixed to terminal screw marked
“YL/RD”, use electrical tape to cover.
• Proceed to Step 5.
•
•
•
•
Back Wire
(either hole may be used)
Back wire openings use #14-12
AWG solid copper wire only.
• M
ake sure that the ends of the wires from the wall box are
straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single Pole Application, go to Step 4a.
• F
or 3-Way Coordinating Remote (no LEDs) Application, go to
Step 4b.
• F
or 3-Way Matching Remote (with LEDs) Application, go to
Step 4c.
Step 4a
Step 4b 3-Way Wiring with Coordinating
Dimming or Switching Remote (no LEDs)
Application:
(Coordinating Dimming Remote Depicted)
Single Pole Wiring Application:
Coordinating Remote
Terminal
Screw marked
Black (Bk)
Dimmer
Bk
1
2
Bk
1
2
Terminal
Screw marked
Black (Bk)
Bk
1
3
Terminal
Screw marked
yellow/Red
(yL/RD)
yL/RD
RD
Terminal
Screw marked
Red (RD)
Terminal Label:
Use Terminal for 3-Way or More Applications Only.
For Single Pole Applications, Do Not Remove This
Label.
3
3
4
yL/RD
RD
RD
yL/RD
hot (Black)
Green
Ground
RD
yL/RD
Line
120vAC, 60hz
White
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
common):
Line up tabs and
press in sides one at
a time to attach
Push in side
at tab to release
Bk
Bk
Neutral (White)
Neutral (White)
Step 2 Identifying your wiring application (most
Wh
Green
Ground
Load
yL/RD
Use Terminal for 3-Way or
More Applications Only.
For Single Pole Applications,
DoNotRemoveThisLabel.
Load
Do not use for
incandescent
applications.
Dimmer
4
5
Terminal
Screw marked
yellow/Red
(yL/RD)
4
yL/RD
RD
5
Terminal
Screw marked
Red (RD)
2
NOTE: When using the coordinating remote without LEDs, the dimmer
can be installed on either the Line or Load side of the 3-way circuit.
NOTE: Maximum wire length from dimmer to all installed remotes
cannot exceed 300 ft.
• Green or bare copper wire in wall box to Green terminal screw.
• L
ine Hot (common) wall box wire identified (tagged) when removing
old switch to terminal screw marked “BK”.
• F
irst Traveler wall box wire to terminal screw marked “RD” (note
wire color). This traveler from the dimmer must go to the terminal
screw on the remote marked “RD”.
• R
emove Red insulating label from terminal screw marked “YL/RD”.
• S
econd Traveler wall box wire to terminal screw marked “YL/RD”
(note wire color). This traveler from the dimmer must go to the
terminal screw on the remote marked “YL/RD”.
WIRING COORDINATING REMOTE:
Connect wires per WIRING DIAGRAM as follows:
NOTE: Maximum wire length from dimmer to last remote is 300ft.
• Green or bare copper wire in wall box to Green terminal screw.
• L
oad wall box wire identified (tagged) when removing old switch to
terminal screw marked “BK”.
• F
irst Traveler wall box wire (note color as above) to terminal
screw marked “RD”. This traveler from the remote must go to the
terminal screw on the dimmer marked “RD”.
• S
econd Traveler wall box wire (note color as above) to terminal
screw marked “YL/RD”. This traveler from the remote must go to
the terminal screw on the dimmer marked “YL/RD”.
• R
emote terminal screw marked “WH” should have White insulation
label affixed.
NOTE: If insulating label is not affixed to terminal screw marked
“WH”, use electrical tape to cover.
• Proceed to Step 5.
Step 5 Testing your Dimmer prior to mounting in
(w/LEDs) Application:
wall box:
Dimmer
Matching Dimmer Remote
Additional
Neutral Wire
2
Bk
Terminal
Screw marked
Black (Bk)
1
4
4
Bk
2
RD
NOTE: Dress wires with a bend
as shown in diagram in order to
relieve stress when mounting
device.
3
3
yL/RD
•Position all wires to provide room in
outlet wall box for device.
• E
nsure that the word “TOP” is facing
up on device strap.
• P
artially screw in mounting screws
in wall box mounting holes.
1
Terminal
Screw marked
yellow/Red
(yL/RD)
5
Matching Dimmer
Remote (with LEDs)
hot (Black)
Line
120vAC, 60hz
Wh
yL/RD
5
Terminal
Screw marked
Red (RD)
Bk
Green
Ground
Green
Ground
RD
yL/RD
Gently press top
of push pad
Air-Gap Switch: On the dimmer only,
engage the air-gap switch by gently pressing
the top of the push pad until the bottom lifts
completely out of the frame and a click is
heard (refer to Figure). LEDs will turn OFF.
This will stop power to the fixture to replace
the bulb. After servicing is complete, press
the push pad back into place for normal
operation.
Black
• Restore power at circuit breaker or fuse.
• Press pad until locator light is OFF. Lights
should turn ON. If lights do not turn ON,
press the upper half of DIM/BRIGHT bar
until the lights brighten.
If lights still do not turn ON, refer to the
TROUBLESHOOTING section.
White
Turn off power at circuit breaker or
fuse.
Neutral (White)
NOTE: The dimmer must be installed in a wall box that has a Load
connection. The matching remote must be installed in a wall box
with a Line Hot connection and a Neutral connection. A Neutral
wire to the matching remote needs to be added as shown.
If you are unsure about any part of these instructions, consult a
qualified electrician.
NOTE: Maximum wire length from dimmer to all installed remotes
cannot exceed 300 ft.
Wiring Matching Remote (wall box with Line Hot
connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• L
ine Hot (common) wall box wire identified (tagged) when
removing old switch and First Traveler to remote terminal screw
marked “BK”.
• S
econd Traveler wall box wire from dimmer to remote terminal
screw marked “YL/RD” (note wire color). This traveler from the
remote must go to the terminal screw on the dimmer marked
“YL/RD”.
• Line Neutral wall box to remote terminal screw marked “WH”.
Wiring Dimmer (wall box with Load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• L
oad wall box wire identified (tagged) when removing old switch
to dimmer terminal screw marked “RD”.
• First Traveler Line Hot to dimmer terminal screw marked “BK”.
• R
emove Red insulating label from terminal screw marked
“YL/RD”.
• S
econd Traveler wall box wire (note color as above) to dimmer
terminal screw marked “YL/RD”. This traveler from the dimmer
must go to the terminal screw on the remote marked “YL/RD”.
• Proceed to Step 5.
Installation may now be
completed by tightening
mounting screws into wall box.
Attach wallplate.
Step 7
or fuse.
OPERATION
C)
Restore Defaults: Restores the factory default settings.
Definition of LEDs
Installation is complete.
LED Brightness
Display
DIM/BRIGHT
Bar
NOTE: The locator light will illuminate
when the load is in the OFF position to
facilitate access in the dark.
NOTE: If using the dimmer in a 3-way
application, the lights will turn ON at
brightness set on dimmer’s DIM/BRIGHT
bar. The lighting can be controlled from
either the dimmer or the remote location.
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Lights turn ON to preset level.
Locator
Press and Hold – Lights turn ON to full bright. Push
Pad
Light
Turn OFF from ON position:
Tap – Lights turn OFF.
DIM/BRIGHT Bar
BRIGHTEN:
Press right half of DIM/BRIGHT Bar – Lights brighten to desired level.
DIM:
Press left half of DIM/BRIGHT Bar – Lights dim to desired level.
If you continue to hold the left half of the DIM/BRIGHT Bar, the lights will
DIM to minimum level and then turn OFF.
Energy consumption
savings amounts to
7
6
5
4
3
2
1
100%
97%
95%
90%
85%
80%
75%
0%
5%
8%
11%
14%
17%
20%
Program Mode B
A-1)Energy Save: Sets the maximum brightness level for energy
savings.
A-2) Minimum Brightness Level: Sets the minimum dimming level.
A-3)Preset ON Level: Sets the turn on brightness level regardless
of the previous set light level (formerly Dim Lock).
A-4)Almost OFF Level: Sets the brightness level the device will dim
to when the push pad is pressed to turn off. In this mode the
lights will always remain on.
Definition of B Modes
Restore Power: Restore power at circuit breaker
Light output is at
Definition of C Modes
Definition of A Modes
Step 6 Dimmer Mounting:
When indicator
light is at LED #
B-1)ON Fade Rate: Sets the amount of time in seconds it takes the
lights to turn ON to maximum brightness.
B-2)OFF Fade Rate: Sets the amount of time in seconds it takes
the lights to turn OFF from maximum brightness.
B-3)LED Options: Sets the time period in seconds the Locator LED
and Brightness display will stay on before extinguishing.
ADVANCED PROGRAMMING FEATURES
Load
Chart A
A-2) The Locator LED will blink 2 times per second to indicate the
device is in Program Mode A-2, Minimum Brightness Level.
The default Minimum Brightness Level is LED 2. To change the
Minimum Brightness Level from 1-50%, use the DIM/BRIGHT
Bar. The light output will reflect the minimum brightness level
selected. By tapping the Push Pad this setting will automatically
be saved and the device will advance to the next programming
mode, A-3.
A-3) The Locator LED will blink 3 times per second to indicate
Program Mode A-3, Preset ON Level. To change the current
Preset ON Level from 1-100%, use the DIM/BRIGHT Bar. If
this feature is not desired, press and hold the left half of the
DIM/BRIGHT Bar (v) until no LED is lit (default setting). By
tapping the Push Pad this setting will automatically be saved and
the device will advance to the next programming mode, A-4.
A-4) The Locator LED will blink 4 times per second to indicate
Program Mode A-4, Almost OFF Level. To change the current
Almost OFF Level, use the DIM/BRIGHT Bar to adjust the
preset light level. If this feature is not desired, press and hold
the right half of the DIM/BRIGHT Bar (^) until no LED is lit
(default setting). Almost OFF can be overridden by pressing
and holding the left half of the DIM/BRIGHT Bar (v). By tapping
the Push Pad this setting will automatically be saved and the
device will exit Programming Mode A.
NOTE: When Almost OFF Level is set the LED Locator will be
illuminated when the dimmer is in the Almost OFF state, even though
the light remains on.
Cleaning: Clean with a damp cloth.
DO NOT use chemical cleaners.
Dimmer
Bk
yL/RD
RD
NOTE: The turn on light level can be changed when lights are
off using the DIM/BRIGHT Bar. In the event of power outage or
interruption, the lights will reset to the last level when power is
restored.
Leftmost LED = LED 1
Rightmost LED = LED 7
NOTES:
• The device will exit programming
mode after 3 minutes of inactivity.
• Pressing the Push Pad at any time
during programming will advance
the device to the next programming
mode.
1 2 3 4 5 6 7
LED Brightness
Display
Program Mode A
To enter Program Mode A:
Press and hold the Push Pad and then the right half of the DIM/
BRIGHT Bar (^) for 5 seconds until the Locator LED and leftmost
LED (LED 1) begin to blink.
A-1) Upon releasing the Push Pad and the right half of the
DIM/BRIGHT Bar (^), the Locator LED will continue to blink
once per second and the rightmost LED will illuminate to
display the device is in Program Mode A-1, Energy Save. The
default energy save mode is 100% i.e. full bright. To change
the Energy Save level, use the DIM/BRIGHT Bar to move
the corresponding LED to the desired discrete preset level
according to Chart A. By tapping the Push Pad this setting will
automatically be saved and the device will advance to the next
programming mode, A-2.
To enter Program Mode B:
Press and hold the Push Pad and then the left half of the
DIM/BRIGHT Bar (v) for 5 seconds until the Locator LED and
rightmost LED (LED 7) begin to blink.
B-1) Upon releasing the Push Pad and the left half of the
DIM/BRIGHT Bar (v), the Locator LED will continue to blink
once per second indicating he dimmer is in Program Mode
B-1, ON Fade Rate. To change the ON Fade Rate, use the
DIM/BRIGHT Bar to move the LED to the desired preset level
according to Chart B. By tapping the Push Pad this setting will
automatically be saved and the device will advance to the next
programming mode, B-2.
B-2) The Locator LED will blink 2 times per second to indicate
Program Mode B-2, OFF Fade Rate. To change the OFF Fade
Rate, use the DIM/BRIGHT Bar to move the LED to the desired
preset level according to Chart B. By tapping the Push Pad this
setting will automatically be saved and the device will advance
to the next programming mode, B-3.
Chart B
LED
FADE ON
FADE OFF
LED 1
0 seconds (instant)
0 seconds (instant)
LED 2 (Default)
0.5 seconds
0.5 seconds
LED 3
1.5 seconds
1.5 seconds
LED 4
3.0 seconds
3.0 seconds
LED 5
6.0 seconds
6.0 seconds
LED 6
10 seconds
10 seconds
LED 7
25 seconds
25 seconds
B-3) The Locator LED will blink 3 times per second to indicate
Program Mode B-3, LED Options. To change the LED
Options settings, use the DIM/BRIGHT Bar to move the
LED to the desired preset setting according to the Chart
B-3. By tapping the Push Pad this setting will automatically
be saved and the device will exit Programming Mode B.
Chart B-3
LED
LOCATOR LED TIMEOUT LED BRIGHTNESS DISPLAY OPTIONS
LED 1 Active
Active
LED 2 Active
Turns off 5 sec. after use
LED 3 Turns off 5 sec. after use
Active
LED 4 Turns off 5 sec. after use
Turns off 5 sec. after use
LED 5 N/A
N/A
LED 6 N/A
N/A
LED 7 N/A
N/A
Program Mode C
Gently press top
of push pad
To enter Program Mode C:
Engage the air-gap switch by gently
pressing the top of the Push Pad until the
bottom lifts completely out of the frame and
a click is heard. All LEDs will extinguish.
C)Press Push Pad back into the frame
and hold for 7 seconds until the LED
Brightness Display starts bidirectional
strobing to indicate Program Mode
C, Restore Default. To Restore
Default settings, release the Push
Pad. This will exit programming
mode C.
TROUBLESHOOTING
• Lights Flickering
- Lamp has a bad connection.
- Wires not secured firmly under terminal screws of dimmer
and/or remote.
• L
ight does not turn ON and Locator LED does not turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out.
- Lamp Neutral connection is not wired.
• Intermittent dimmer operation
- Minimum load is under 40W.
• Remote does not operate lights
- Ensure that total wire length does not exceed 300 ft.
For additional information, contact Leviton’s Techline at
1-800-824-3005 or visit Leviton’s website at www.leviton.com
Covered by one or more US & Foreign
Patents and patents pending
Copyright © 2008 Leviton Manufacturing Co., Inc.
All Rights Including Trade Dress Rights Reserved
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment OFF and ON, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
DI-000-VPI06-02A
Step 4c 3-Way Wiring with Matching Remote
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof of
purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused,
or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is
limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
