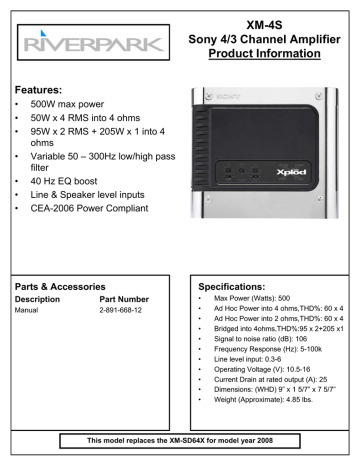

XM-4S Product Information Document

XM-4S Product Information Document
XM-4S
Sony 4/3 Channel Amplifier
Product Information
Features:
•
•
•
•
•
•
•
500W max power
50W x 4 RMS into 4 ohms
95W x 2 RMS + 205W x 1 into 4
ohms
Variable 50 – 300Hz low/high pass
filter
40 Hz EQ boost
Line & Speaker level inputs
CEA-2006 Power Compliant
Parts & Accessories
Specifications:
Description
Part Number
Manual
2-891-668-12
•
•
•
•
•
•
•
•
•
•
•
Max Power (Watts): 500
Ad Hoc Power into 4 ohms,THD%: 60 x 4
Ad Hoc Power into 2 ohms,THD%: 60 x 4
Bridged into 4ohms,THD%:95 x 2+205 x1
Signal to noise ratio (dB): 106
Frequency Response (Hz): 5-100k
Line level input: 0.3-6
Operating Voltage (V): 10.5-16
Current Drain at rated output (A): 25
Dimensions: (WHD) 9” x 1 5/7” x 7 5/7”
Weight (Approximate): 4.85 lbs.
This model replaces the XM-SD64X for model year 2008
