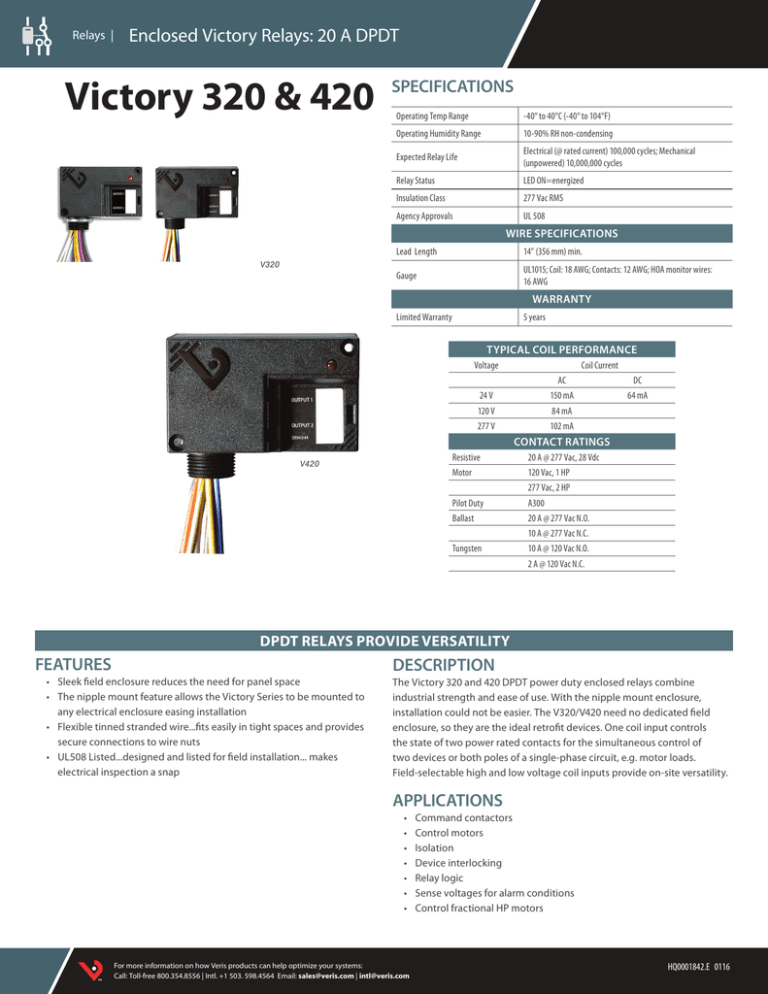

Enclosed Victory Relays: 20 A DPDT
Victory 320 & 420
SPECIFICATIONS
Operating Temp Range
-40° to 40°C (-40° to 104°F)
Operating Humidity Range
10-90% RH non-condensing
Expected Relay Life
Electrical (@ rated current) 100,000 cycles; Mechanical
(unpowered) 10,000,000 cycles
Relay Status
LED ON=energized
Insulation Class
277 Vac RMS
Agency Approvals
UL 508
WIRE SPECIFICATIONS
V320
Lead Length
14” (356 mm) min.
Gauge
UL1015; Coil: 18 AWG; Contacts: 12 AWG; HOA monitor wires:
16 AWG
Limited Warranty
5 years
WARRANTY
TYPICAL COIL PERFORMANCE
Voltage
Coil Current
24 V
AC
DC
150 mA
64 mA
120 V
84 mA
277 V
102 mA
CONTACT RATINGS
V420
Resistive
20 A @ 277 Vac, 28 Vdc
Motor
120 Vac, 1 HP
277 Vac, 2 HP
Pilot Duty
A300
Ballast
20 A @ 277 Vac N.O.
10 A @ 277 Vac N.C.
Tungsten
10 A @ 120 Vac N.O.
2 A @ 120 Vac N.C.
DPDT RELAYS PROVIDE VERSATILITY
FEATURES
DESCRIPTION
• Sleek field enclosure reduces the need for panel space
• The nipple mount feature allows the Victory Series to be mounted to
any electrical enclosure easing installation
• Flexible tinned stranded wire...fits easily in tight spaces and provides
secure connections to wire nuts
• UL508 Listed...designed and listed for field installation... makes
electrical inspection a snap
The Victory 320 and 420 DPDT power duty enclosed relays combine
industrial strength and ease of use. With the nipple mount enclosure,
installation could not be easier. The V320/V420 need no dedicated field
enclosure, so they are the ideal retrofit devices. One coil input controls
the state of two power rated contacts for the simultaneous control of
two devices or both poles of a single-phase circuit, e.g. motor loads.
Field‑selectable high and low voltage coil inputs provide on-site versatility.
APPLICATIONS
•
•
•
•
•
•
•
TM
For more information on how Veris products can help optimize your systems:
Call: Toll-free 800.354.8556 | Intl. +1 503. 598.4564 Email: [email protected] | [email protected]
Command contactors
Control motors
Isolation
Device interlocking
Relay logic
Sense voltages for alarm conditions
Control fractional HP motors
HQ0001842.E 0116
Relays | Victory 320 & 420
WIRING DIAGRAMS
DIMENSIONAL DRAWING
4.0"
(103 mm)
Nipple mount directly to a panel
To Load
CONTACTS
CONTROL
PANEL
COIL
3.8"
(97 mm)
2.0"
(52 mm)
To Controls
2.3"
(59 mm)
Nipple mount to any 2x or 4x electrical box
2.5"
(64 mm)
Contacts
To Load
CONTACTS
3/4" NPT Nipple
COIL
To Load
Wire Nut
To Controls
WIRE COLOR CODES
CONTROL SYSTEM INPUT
208 to 277 Vac
N.C. #1
BLUE
or
YELLOW
Common #1
ORANGE
N.O. #1
GREY
N.C. #2
24 Vac/dc
VIOLET
Common #2
White
BROWN
N.O. #2
c
bla
White
c
bla
k
k
HI
wht/black
CONTACT OUTPUT
wn
bro
White
wn
bro
HI
wht/brown
120 Vac
w
llo
ye
w
llo
ye
COMM
wht/yellow
e
bl u
White
e
blu
LOW
wht/blue
Common
ORDERING INFORMATION
MODEL
RELAY
V320
V420
DPDT
COIL
24 Vac/dc,120 Vac
24 Vac/dc, 208 to 277 Vac
E150462
AMPERAGE RATING
20 A
RELAY POWER LED
UL
n
n
n
n
Some devices are plenum rated per UL 1995...see White Paper VWP01 at veris.com for details.
HQ0001842.E 0116
www.veris.com | Relays | Victory 320 & 420
