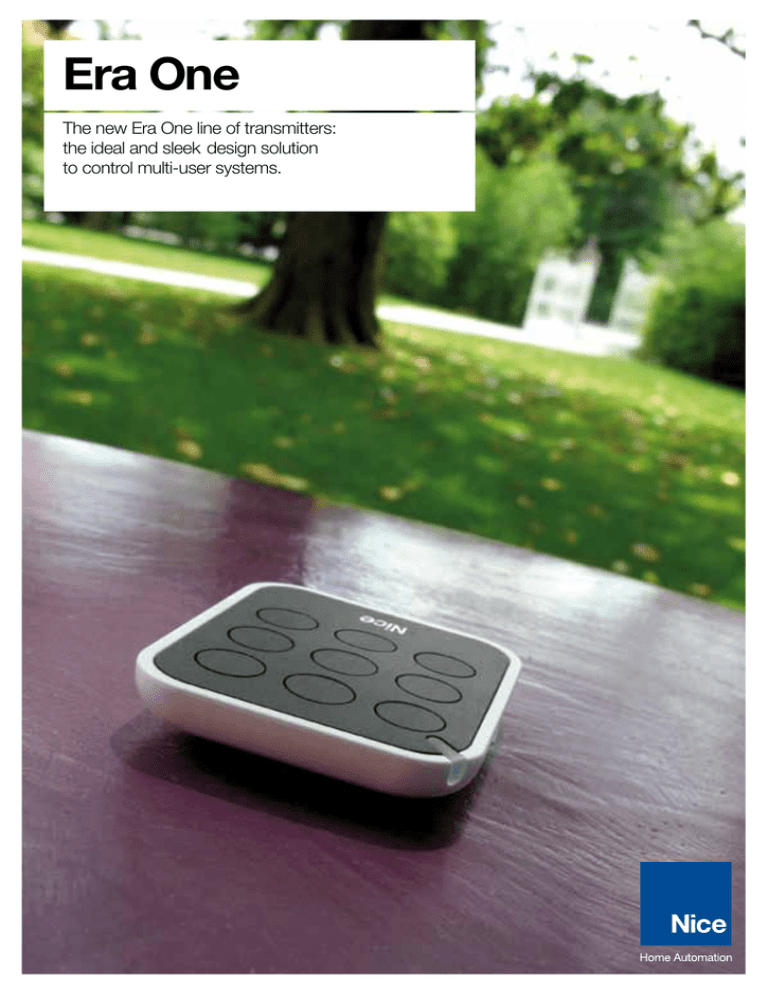

Era One
The new Era One line of transmitters:
the ideal and sleek design solution
to control multi-user systems.
Era One
The system includes
1, 2, 4 and 9 channel
transmitters and prewired
receivers with connector,
with and without built-in
transmitter.
ON1E, ON1CE
433.92 MHz rolling code, with management
of Identity Codes and Certificates,
self-learning and built-in proximity receiver;
with 72 bit O-Code encoding,
also compatible with receivers with
Nice FLOR encoding.
Available in versions with multiple input
sequential encoding (Era OneC).
Evolved: uses data processing and recognition
systems that increase its degree of security
and deliver a threefold reduction in automation
response times.
ON2E, ON2CE
There are two options for enabling
a new Inti transmitter, even at a distance
from the system:
• using a transmitter already programmed
in the receiver, thanks to the enabling
Code exchange between the two (figure 1);
• using the Nice O-Box connection interface;
the receiver’s Certificate is entered by just
placing the new Era One next to the O-Box
and following the guided procedure
on a PC or PDA (figure 2).
Easy memorisation, even at a distance,
thanks to Opera receivers.
1.
2.
ON4E, ON4CE
ON9E
Safe, if a transmitter is stolen or lost,
with the O-Box the user can:
• replace it, maintaining the same functions
as in the previous one;
• disable the old transmitter by increasing
the priority level on the new Era One.
Extremely practical: using the O-Box software,
the Era OneC version allows whole packs
of 10 devices to be programmed in a single
procedure, without even opening them!
Elegant and convenient: the Era One
transmitter can be used as a stylish,
high-tech keyring or fixed to the wall
or your car’s dashboard with the handy
support included in the pack.
More secure transmissions!
Era OneFM, ideal for use in cities or places
where many devices are present.
868.46 MHz Rolling Code transmitter line,
using frequency modulation (FM), less sensitive
to interference than amplitude modulation AM.
ON1EFM
The complete line of receivers with Opera
system functions, suitable for all installation
requirements:
• with connector, compatible with latestgeneration Nice control units with SM port;
• universal prewired, for use with
all types of control unit, for the control
of any automation, lighting or irrigation
system or other electric circuits.
3.
ON4EFM
ON9EFM
Maximum flexibility:
up to 1024 transmitters can be memorised.
Secure use, thanks to the
3 password-protected levels.
Convenient and practical:
the inclusion of a transmitter in the OXIT/OXITFM,
OX2T/OX2TFM and OX4T receivers allows radio
codes to be accessed by means of the O-Box
multifunction interface even when in inaccessible
positions (figure 3). OXIT/OXITFM, OX2T/OX2TFM
and OX4T receivers can be used as signal
repeaters to increase the operating distance
between transmitters and other One series
receivers (figure 4).
The O-Box and dedicated software applications
for PC and PDA allow:
433,92 MHz receivers
OXI, OXIT
ON2EFM
- quick, user-friendly programming
of receivers and transmitters;
- management and printout of code list;
- creation of individual installation
databases (useful in multi-user systems).
868,46 MHz receivers
OX2, OX2T
OX4T
4.
OXIFM, OXITFM
OX2FM, OX2TFM
O-BOX
Photo Wurbs Product Design Roberto Gherlenda Printed by AGCM
Era One 433.92 MHz transmitters
Era One 868.46 MHz transmitters
Code
Description
ON1E
ON2E
ON4E
ON9E
ON1CE
1 channel, 433.92 MHz
2 channels, 433.92 MHz
4 channels, 433.92 MHz
9 channels, 433.92 MHz
1 channel, 433.92 MHz, with multiple
input sequential encoding
Pcs/pack
10
10
10
10
10
ON2CE
2 channels, 433.92 MHz, with multiple
input sequential encoding
10
ON4CE
4 channels, 433.92 MHz, with multiple
input sequential encoding
10
Code
Description
ON1EFM
ON2EFM
ON4EFM
ON9EFM
1 channel, 868.46 MHz
2 channels, 868.46 MHz
4 channels, 868.46 MHz
9 channels, 868.46 MHz
Pcs/pack
10
10
10
10
868.46 Hz receivers
With connector
433.92 MHz receivers
Code
Description
OXIFM
OXITFM
4 channels, without built-in transmitter
4 channels, with built-in transmitter
Pcs/pack
1
1
Pre-wired
With connector
Code
Description
Pcs/pack
OXI
OXIT
4 channels, without built-in transmitter
4 channels, with built-in transmitter
1
1
Code
Description
OX2FM
OX2TFM
2 channels, without built-in transmitter
2 channels, with built-in transmitter
Pcs/pack
1
1
Connection interface
Pre-wired universal
Code
Description
OX2
OX2T
OX4T
2 channels, without built-in transmitter
2 channels, with built-in transmitter
4 channels, with built-in transmitter
Pcs/pack
1
1
1
Code
Description
OBOX2
Dual Band Interface, for 433.92/868.46 MHz
devices, complete with software,
supplied with USB connection cable.
Pcs/pack
1
OBOX2B
Dual Band Interface, for 433.92/868.46 MHz
devices, complete with software, with USB
connection cable and built-in Bluetooth module.
1
Transmitter technical specifications
Carrier frequency
ON_E, ON_CE
433.92 MHz
ON_EFM
868.46 MHz
Estimated range
Encoding
Power supply
Battery life
Protection class
200 m (outdoor);
35 m (if inside buildings)*
O-Code 72 bit;
rolling code
3 Vdc;
type CR2032 lithium
battery
2 years (with 10
transmissions per day)
IP40
(use in protected
environments)
Dimensions
Weight
44x55x10 h mm
11 g
* Transmitter range and receiver reception capacity may be affected by any devices operating on the same frequency in the area.
Receiver technical specifications
OXI
OXIT
OX2
OX2T
Input
impedance
Sensitivity
Encoding
>0.5 μ V
for signals with
successful
outcomes
433.92 MHz
433.92 MHz
O-Code,
FloR, Flo
52 Ohm
868.46 MHz
Number
of channels
4
(15 on BUS T4)
433.92 MHz
OX4T
OXIFM
OXITFM
OX2FM
OX2TFM
Transmission
frequency
868.46 MHz
868.46 MHz
>0.8 μ V
for signals with
successful
outcomes
Relay contact
Power supply
Absorption
-
5 Vdc
30 mA (max)
2
max 0.5 A
50 V (NA)
from 12 to 28
Vdc/Vac
80 mA (max)
with relays
active
4 relays with
NO and NC
contacts,
voltage-free
5 A - 250 V
110 ÷ 240
Vac 50/60 Hz
80 mA
4
(15 on BUS T4)
-
5 Vdc
30 mA (max)
O-Code
2
max 0.5 A
50 V (NA)
from 12 to 28
Vdc/Vac
100 mA (max)
with relays
active
Protection
class
Dimensions
Weight
50x19x45 h mm,
20 g
IP 30
58x86x22 h mm,
55 g
IP 44 (with
container
intact)
128x112x43 h mm,
260 g
50x19x45 h mm,
20 g
IP 30
58x86x22 h mm,
55 g
Nice SpA
Oderzo TV Italia
[email protected]
www.niceforyou.com
Nice cares for the environment.
Using natural paper it avoids excessive
use of raw materials and forest exploitation.
Waste is reduced, energy is saved
and climate quality is improved.
The data indicated in this brochure
is purely illustrative. Nice reserve the right to
make any necessary changes to the products.
DEP4901/01/11-12
