Hoppecke OPzV bloc solar.power 6 Volt / 12 Volt

Hoppecke OPzV bloc solar.power 6 Volt / 12 Volt

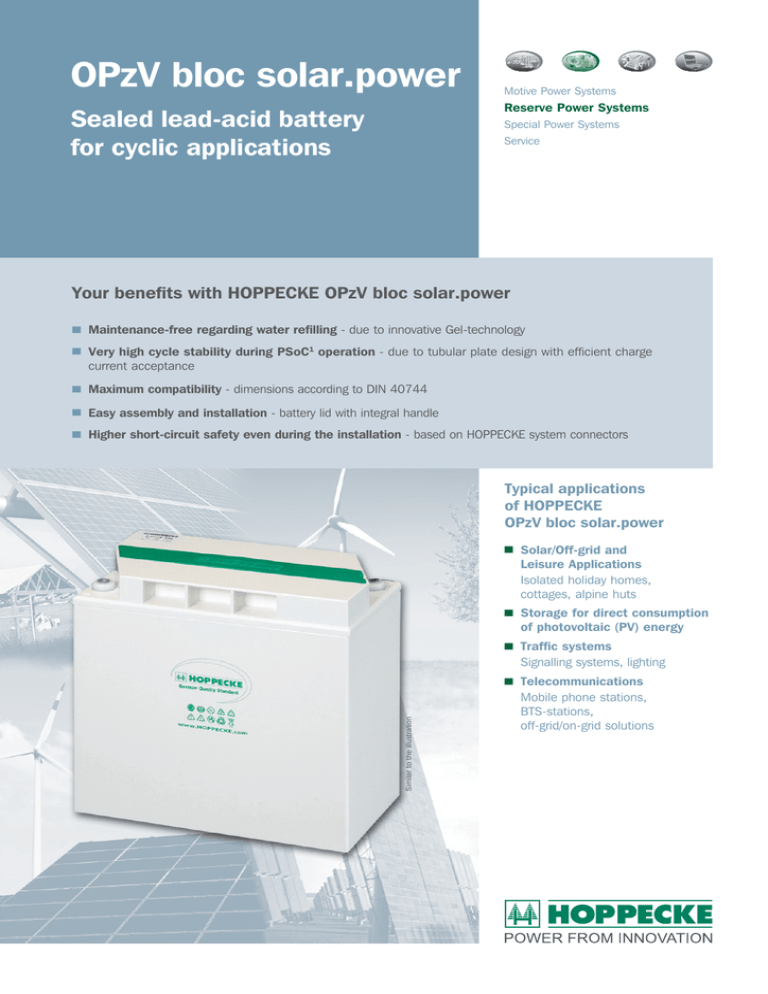

OPzV bloc solar.power
Motive Power Systems
Reserve Power Systems
Sealed lead-acid battery
for cyclic applications
Special Power Systems
Service
Your benefits with HOPPECKE OPzV bloc solar.power
■
Maintenance-free regarding water refilling - due to innovative Gel-technology
■
Very high cycle stability during PSoC1 operation - due to tubular plate design with efficient charge
current acceptance
■
Maximum compatibility - dimensions according to DIN 40744
■
Easy assembly and installation - battery lid with integral handle
■
Higher short-circuit safety even during the installation - based on HOPPECKE system connectors
Similar to the illustration
Typical applications
of HOPPECKE
OPzV bloc solar.power
■
Solar/Off-grid and
Leisure Applications
Isolated holiday homes,
cottages, alpine huts
■
Storage for direct consumption
of photovoltaic (PV) energy
■
Traffic systems
Signalling systems, lighting
■
Telecommunications
Mobile phone stations,
BTS-stations,
off-grid/on-grid solutions
OPzV bloc solar.power
Type overview
C100/1.85 V C50/1.85 V C24/1.83 V C10/1.80 V C5/1.77 V
Ah
Ah
Ah
Ah
Ah
12V 1 OPzV bloc solar.power 70
12V 2 OPzV bloc solar.power 120
12V 3 OPzV bloc solar.power 180
6V 4 OPzV bloc solar.power 250
6V 5 OPzV bloc solar.power 300
6V 6 OPzV bloc solar.power 370
70.0
120.0
180.0
250.0
300.0
370.0
55.0
120.0
175.0
235.0
295.0
350.0
55.2
110.4
165.6
220.8
276.0
333.6
48.0
96.0
144.0
192.0
240.0
289.0
38.0
52.0
74.0
51.0
66.0
73.0
272
272
380
272
380
380
205
205
205
205
205
205
383
383
383
383
383
383
Fig.
A
A
A
B
B
B
C100, C50, C24, C10 and C5 = Capacity at 100 h, 50 h,
24 h, 10 h and 5 h discharge
Service life in cycles and Depth of Discharge
7000
6000
Number of cycles [n]
42.5
84.0
126.5
168.5
210.5
252.5
Max. Weight max.* Length L max.* Width W max.* Height H
kg
mm
mm
mm
* according to DIN 40744 data to be understood as maximum
values
5000
4000
3000
2000
1000
0
0
10
20
30
40
50
60
70
80
90
Depth of Discharge [%]
H
Fig. B
Printed in Germany
W
W
H
Fig. A
L
L
12 V 1 OPzV bloc solar.power 70 - 12 V 3 OPzV bloc solar.power 180
6 V 4 OPzV bloc solar.power 250 - 6 V 6 OPzV bloc solar.power 370
Optimal environmental compatibility - closed loop for recovery of materials in an accredited recycling system.
IEC 60896-21
IEC 61427
1
Partial State of Charge
HOPPECKE Batterien GmbH & Co. KG
P.O. Box 1140 · D-59914 Brilon · Germany
Bontkirchener Straße 1 · D-59929 Brilon-Hoppecke
Phone: + 49 (0) 29 63 61-3 74
Fax:
+ 49 (0) 29 63 61-2 70
Email: [email protected]
Internet: www.hoppecke.com
Form OPzV bloc solar.power EN/04.11/2 K
Type
All details in this brochure are based on state-of-the-art technology. Our products are subject to constant development. We therefore reserve the right to make changes.
Capacities, dimensions and weights
