datasheet for PIDS by Comcore Technologies, Inc.

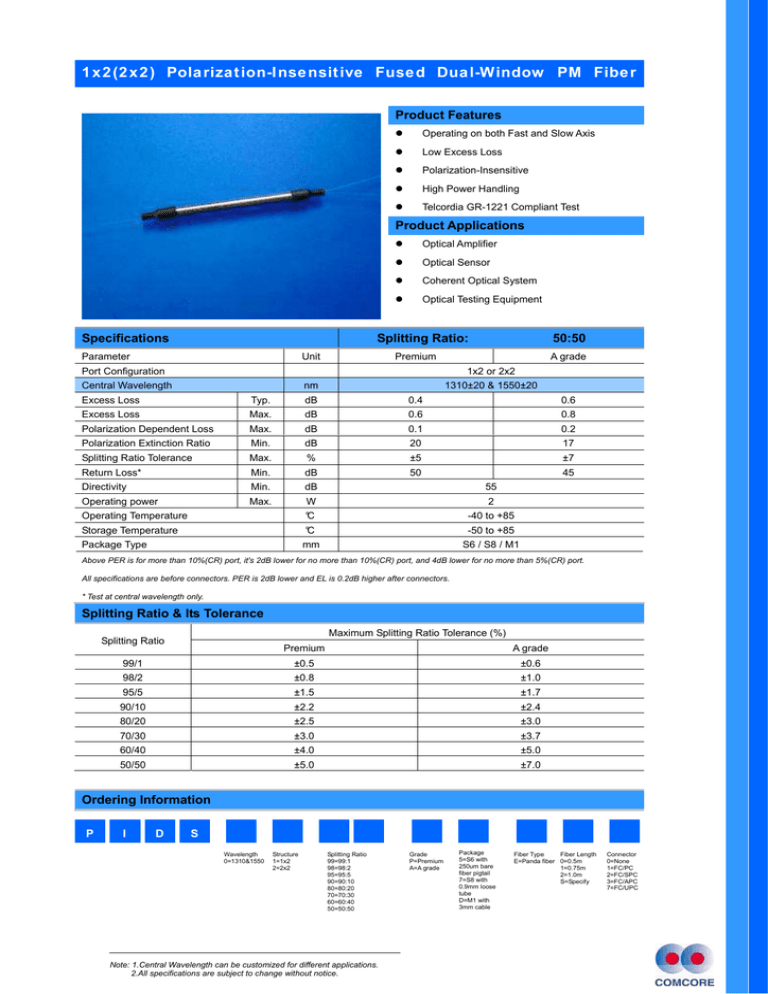

1 x 2 (2 x 2 ) Pola rizat ion-I nse nsit ive Fuse d Dua l-Window PM Fibe r Product Features Operating on both Fast and Slow Axis Low Excess Loss Polarization-Insensitive High Power Handling Telcordia GR-1221 Compliant Test Product Applications Optical Amplifier Optical Sensor Coherent Optical System Optical Testing Equipment Specifications Splitting Ratio: Parameter Unit 50:50 Premium A grade Port Configuration 1x2 or 2x2 Central Wavelength nm 1310±20 & 1550±20 Excess Loss Typ. dB 0.4 0.6 Excess Loss Max. dB 0.6 0.8 Polarization Dependent Loss Max. dB 0.1 0.2 Polarization Extinction Ratio Min. dB 20 17 Splitting Ratio Tolerance Max. % ±5 ±7 Return Loss* Min. dB 50 Directivity Min. dB Operating power Max. Operating Temperature 45 55 W 2 °C -40 to +85 Storage Temperature °C -50 to +85 Package Type mm S6 / S8 / M1 Above PER is for more than 10%(CR) port, it's 2dB lower for no more than 10%(CR) port, and 4dB lower for no more than 5%(CR) port. All specifications are before connectors. PER is 2dB lower and EL is 0.2dB higher after connectors. * Test at central wavelength only. Splitting Ratio & Its Tolerance Maximum Splitting Ratio Tolerance (%) Splitting Ratio Premium A grade 99/1 ±0.5 ±0.6 98/2 ±0.8 ±1.0 95/5 ±1.5 ±1.7 90/10 ±2.2 ±2.4 80/20 ±2.5 ±3.0 70/30 ±3.0 ±3.7 60/40 ±4.0 ±5.0 50/50 ±5.0 ±7.0 Ordering Information P I D S Wavelength 0=1310&1550 Structure 1=1x2 2=2x2 Splitting Ratio 99=99:1 98=98:2 95=95:5 90=90:10 80=80:20 70=70:30 60=60:40 50=50:50 Note: 1.Central Wavelength can be customized for different applications. 2.All specifications are subject to change without notice. Grade P=Premium A=A grade Package 5=S6 with 250um bare fiber pigtail 7=S8 with 0.9mm loose tube D=M1 with 3mm cable Fiber Type Fiber Length E=Panda fiber 0=0.5m 1=0.75m 2=1.0m S=Specify Connector 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 7=FC/UPC
