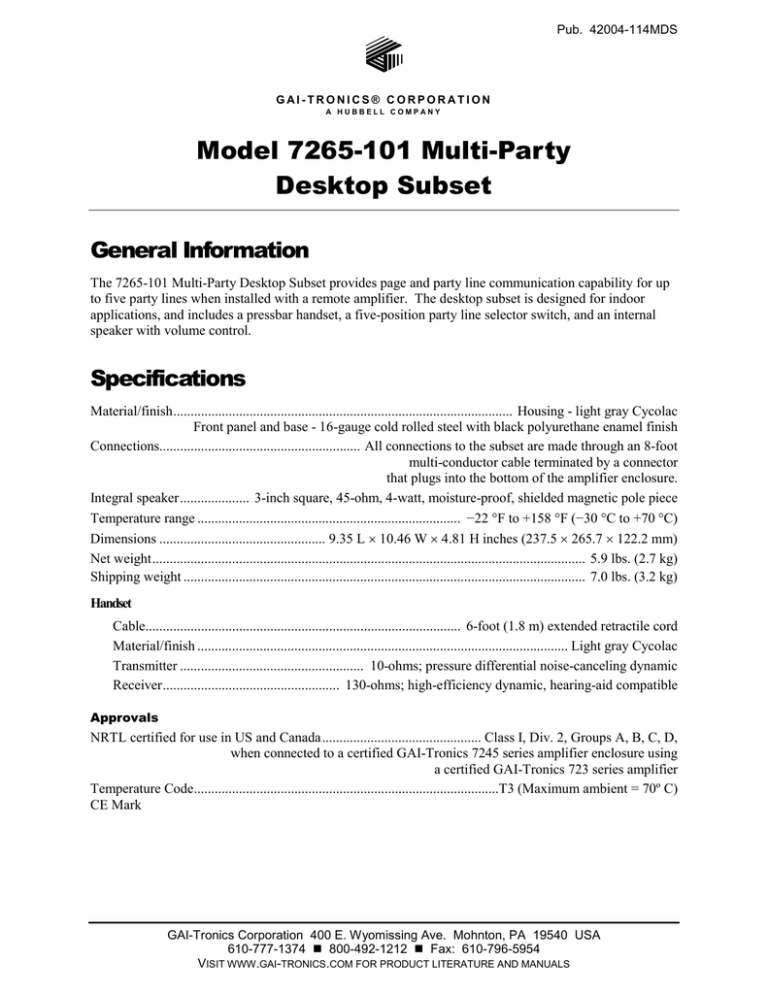

Pub. 42004-114MDS
GAI-TRONICS® CORPORATION
A HUBBELL COMPANY
Model 7265-101 Multi-Party
Desktop Subset
General Information
The 7265-101 Multi-Party Desktop Subset provides page and party line communication capability for up
to five party lines when installed with a remote amplifier. The desktop subset is designed for indoor
applications, and includes a pressbar handset, a five-position party line selector switch, and an internal
speaker with volume control.
Specifications
Material/finish .................................................................................................. Housing - light gray Cycolac
Front panel and base - 16-gauge cold rolled steel with black polyurethane enamel finish
Connections.......................................................... All connections to the subset are made through an 8-foot
multi-conductor cable terminated by a connector
that plugs into the bottom of the amplifier enclosure.
Integral speaker .................... 3-inch square, 45-ohm, 4-watt, moisture-proof, shielded magnetic pole piece
Temperature range ............................................................................ −22 F to +158 F (−30 C to +70 C)
Dimensions ................................................ 9.35 L  10.46 W  4.81 H inches (237.5  265.7  122.2 mm)
Net weight ............................................................................................................................. 5.9 lbs. (2.7 kg)
Shipping weight .................................................................................................................... 7.0 lbs. (3.2 kg)
Handset
Cable........................................................................................... 6-foot (1.8 m) extended retractile cord
Material/finish ........................................................................................................... Light gray Cycolac
Transmitter ..................................................... 10-ohms; pressure differential noise-canceling dynamic
Receiver ................................................... 130-ohms; high-efficiency dynamic, hearing-aid compatible
Approvals
NRTL certified for use in US and Canada .............................................. Class I, Div. 2, Groups A, B, C, D,
when connected to a certified GAI-Tronics 7245 series amplifier enclosure using
a certified GAI-Tronics 723 series amplifier
Temperature Code........................................................................................T3 (Maximum ambient = 70º C)
CE Mark
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374  800-492-1212  Fax: 610-796-5954
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Model 7265-101 Multi-Party Desktop Subset
Figure 1. 7265-101 Multi-Party Desktop Subset
f:\standard ioms - current release\data sheets\42004-114mds\42004-114mds.doc
04/13
Pub. 42004-114MDS
Page 2 of 2
