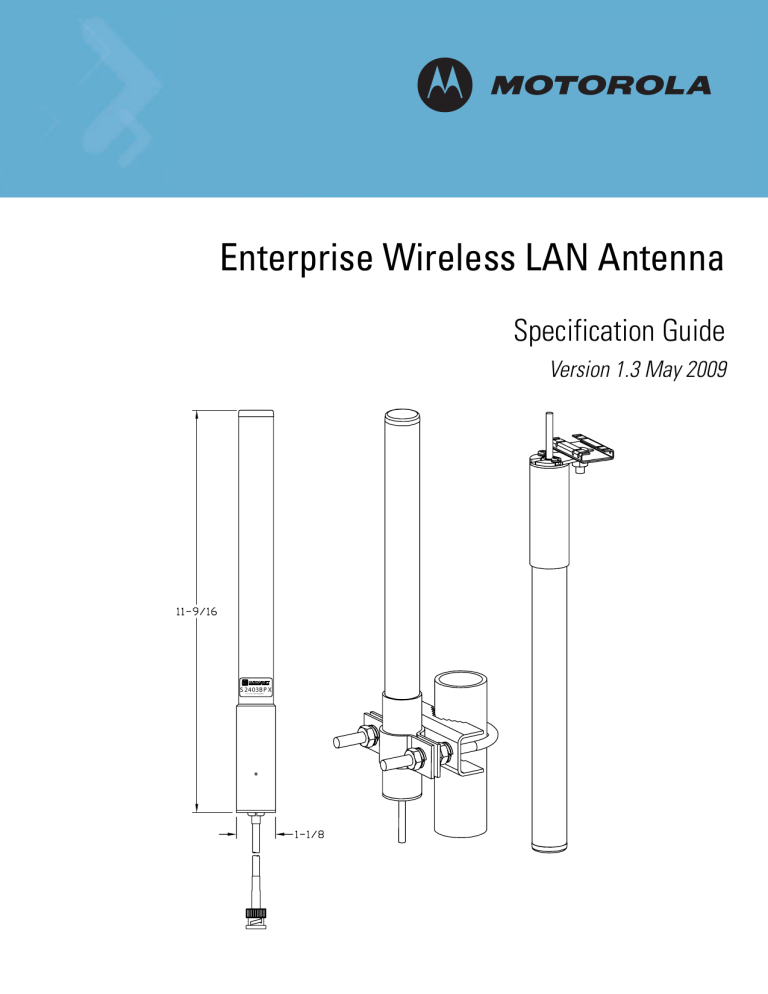

Enterprise Wireless LAN Antenna

Specification Guide

Version 1.3 May 2009

S 2 4 0 3 B

2 4 2 5 G H z 3 d B d O m n d e c o a

P X

© 2009 Motorola, Inc. All rights reserved.

MOTOROLA

and the Stylized M Logo are registered in the US Patent & Trademark Office. Symbol is a registered trademark of Symbol Technologies, Inc. All other product or service names are the property of their respective owners.

Contents

Chapter 1. Antenna Selection and Description

1.1 Antenna Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 Antenna Selection Criteria . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

1.3 Antenna Accessories for Motorola Enterprise WLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Chapter 2. Product Compatibility

2.1 FCC/USA Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.2 Antenna Suite Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Chapter 3. 802.11b/g Antenna Suite

3.1 Supported 802.11b/g/n Antenna Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Chapter 4. 802.11a Antenna Suite

4.1 Supported 802.11a Antenna Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Chapter 5. 2.4GHz - 5.2GHz Dual Band Antenna Suite

5.1 Supported 2.4GHz - 5.2GHz Dual Band Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Chapter 6. Antenna Cables

6.1 Supported Antenna Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Chapter 7. Supported Antenna Adapters

7.1 Supported Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Chapter 8. Supported Lightning Arrestors

8.1 Lightning Arrestors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Chapter 9. Mounting Kits

9.1 Mounting Kit Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Chapter 10. AP-5131 Antenna Connections

10.1 2.4 GHz AP-5131 Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2

10.2 5 GHz AP-5131 Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9

TOC-2

Enterprise Wireless LAN Antenna Specification Guide

Chapter 11. AP300 Antenna Connections

11.1 2.4 GHz AP300 Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

11.2 5 GHz AP300 Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8

Appendix A.Technical Support

About This Guide

Introduction

This guide provides an RF engineer a catalog of antenna parts and accessories to complete a customized RF environment. This guide specifically addresses the antennas used for 802.11a, 802.11b, and 802.11g implementations for

Wireless Local Area Networks

(WLANs).

It is important to understand that antenna and accessory selection should be qualified by on-site testing with the actual components used. Signal attenuation is cumulative with each connection and component added between the antenna and the radio, so careful study should verify the given arrangement delivers the expected results.

NOTE:

Illustrations displayed in this guide are samples and can differ from the actual antenna.

Document Conventions

The following conventions are used in this document to draw your attention to important information:

NOTE:

Indicate tips or special requirements.

!

CAUTION:

Indicates conditions that can cause equipment damage or data loss.

WARNING! Indicates a condition or procedure that could result in personal injury or equipment damage.

viii

Enterprise Wireless LAN Antenna Specification Guide

Notational Conventions

The following additional notational conventions are used in this document:

Italics

are used to highlight the following:

• Chapters and sections in this and related documents

• Dialog box, window and screen names

• Drop-down list and list box names

• Check box and radio button names

• Icons on a screen.

GUI

text is used to highlight the following:

• Screen names

• Menu items

• Button names on a screen.

• bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential

• Sequential lists (those that describe step-by-step procedures) appear as numbered lists.

Antenna Selection and Description

1.1 Antenna Selection

While several antennas may work in a given environment, some will provide better coverage than others.

Using the right antenna in the right location will maximize both the performance and coverage of your network. Understanding the key characteristics that describe how an antenna sends and receives radio frequency signals is critical to finding the ideal antenna for your deployment. This guide supports the antennas used for an AP-5131 or AP-5181 model access point and an AP300 (non-integrated antenna) model access port.

Motorola Enterprise Wireless LAN products operate in the 2.4 GHz and 5 GHz ISM bands allocated for unlicensed use. Access point and access port products available today support either the 802.11b/g or the

802.11a standard, or both. Wireless devices conforming to the 802.11b/g standard operate in the 2.4 GHz

ISM band, while 802.11a devices operate in the 5 GHz band. The antennas in this guide are grouped according to the frequency band they support. Some antennas are designed to operate on either band. These antennas (described as "Dual-band") may be connected to radios operating in either the 2.4 or 5 GHz bands, although a single antenna may not be connected to two radios at the same time.

1-2

Enterprise Wireless LAN Antenna Specification Guide

1.1.1 Access Points and Access Ports Supported

The antennas and accessories referenced in this guide are intended to customize the radiated signal lobes of Motorola's WLAN product suite.

The

access port

(AP) supported is the AP300 (Part No. WSAP-5100-100-WWR). This access port has no integrated antennas and some antenna must be added to the device. The AP300 supports both 5 GHz

(802.11a) and 2.4 GHZ (802.11b/g). The AP300 has two sets of antenna connectors providing diversity (for each spectrum supported.

The two 5 GHz connectors on the AP300 are -

RPSMA-Female

The two 2.4 GHz connectors on the AP300 are -

RPBNC-Female

The AP-5131 and AP-5181 access points are also addressed in this document. For an AP-5131, there are several different part number configurations unrelated to the actual antenna connections. An AP-5131 and

AP-5181 supports both 5 GHz (802.11a) and 2.4 GHZ (802.11b/g). Valid AP-5131 part numbers include:

The AP-5131 supports both 5 GHz and 2.4 GHZ spectrums, but the antenna connectors implemented on the

AP provide dual spectrum capability - both spectrums on one physical connector.

The connectors on the AP-5131are

RP-SMA-Female

.

The AP-5181 is used outdoors and only one part number is currently available (AP-5181-13040-WWR). Since this device is intended to be mounted outside in unpredeicable weather, lightening protection is integrated into the device design. As such, no additional lightning protection is required.

The connectors on the AP-5181are

N-Type-Female

.

AP

AP-7131

AP-300

AP-5131

AP-5181

Port 1

R1-A

AP Antenna Port Connectors

Port 2

R1-B

Port 3

R1-C

Port 4

R2-A

Port 5

R2-B

11n 2.4 GHz and 5 GHz (dual band)

RP-SMA(f)

● 2.4GHz

●● 2.4GHz

11bg

RP-BNC(f)

● 5GHz

11a

●● 5GHz

RP-SMA(f)

Radio 1 ● Radio 1 ●●

11bg

Radio 2 ●

RP-SMA(f)

Radio 2 ●●

11a

Radio 1 ● Radio 1 ●●

11bg

Radio 2 ●

Type N(f)

Radio 2 ●●

11a

Port 6

R2-C

Antenna Selection and Description

1-3

1.1.2 Connector Types and Definitions

There are combinations of antenna types and cables required to provide a satisfactory connection to the AP.

One confusing factor is “reverse polarity”. Reverse polarity is the FCC's requirement for each WLAN manufacturer to have unique access point connectors. Motorola (Symbol) had previously standardized our offerings for access points/ports:

• 2.4 GHz is Reverse polarity BNC female (RP-BNC-F)

• 5 GHz is reverse polarity SMA female (RP-SMA-F)

• Dual Band is reverse polarity SMA female (for AP-5131), and N-Female (for AP-5181).

NOTE:

Reverse polarity presents confusion because of a lack of a standardized definition from connector manufactures. Reverse polarity provides a center element, which should not be confused with a male connector. A male connector is defined by the outer jacket of the connector rather than the center element .

The following displays the connectors used within this antenna specification guide:

Figure 1.1 RP-BNC-F

Figure 1.2 RP-BNC-M

1-4

Enterprise Wireless LAN Antenna Specification Guide

Figure 1.3 RP-SMA-F

Figure 1.4 RP-SMA-M

Antenna Selection and Description

1-5

Additionally, antennas deployed outdoors and industry standard accessories like lightening arrestors use

Type-N connectors (as displayed below). Therefore, with the combinations devices required

(access points/ports, antennas, cable extensions, and lightening arrestors), various adapter cables are required to connect an antenna to an access point/port.

Figure 1.5 Type N-F

Figure 1.6 Type N-M

1-6

Enterprise Wireless LAN Antenna Specification Guide

1.1.3 Indoor and Outdoor Antennas

One important aspect of an antenna is whether it is weather sealed to protect it from the environment

Because of this extra protection, outdoor antennas are typically more expensive than those rated for indoor use. Outdoor antennas can be used for indoor applications, such as freezers and cooler where moisture is common. Outdoor antennas can be used for indoor applications, but indoor applications should not be used in outdoor applications.

One common distinction of outdoor antennas is the connector. Since lightning protection is always advised for outdoor antennas, these antennas typically have Type N Male to directly attach the lightning arrestor.

This is tru of the 2.4 GHz, 5 GHz, and the dual-band outdoor antennas.

1.1.4 Spectrum and Part Number Designations

The antennas listed in this document are ultimately referenced by part number. A numerical sequence is used within each antenna’s part number to identify the spectrum supported by the antennas.

• The antenna part numbers with a 2499 indicates a 2.4 GHz antenna. For more informaion on the 2.4 GHz antenna suite, see

802.11b/g Antenna Suite on page 3-1

.

• The antenna part numbers with a 5299 indicates a 5 GHz antenna. For more informaion on the 2.4 GHz antenna suite, see

802.11a Antenna Suite on page 4-1

.

• The antenna part numbers with a 2452 indicates a dual band antenna (2.4GHz and 5 GHz). For more

informaion on the 2.4 GHz antenna suite, see

2.4GHz - 5.2GHz Dual Band Antenna Suite on page 5-1

.

1.1.5 Extended AP to Antenna Cable Lengths

Most indoor antennas are intended to be mounted directly to the AP's connectors. Some mounting arrangements call for positioning the AP a significant distance away from the antenna due to serviceability or other reason. In these situations, various adapters and cable extensions are required.

In these situations be mindful of:

• The connector on the AP

• The connector on the Antenna

• The spectrum being implemented

• Signal loss due to multiple connectors and long cable lengths

Combinations of these attributes present different parts required to complete the connection. The Product

Compatibility matrix in addresses the parts required to make a proper connection.

Antenna Selection and Description

1-7

1.2

Antenna Selection Criteria

In addition to antenna frequency, there is other criteria to consider when selecting an antenna for the

AP-5131, AP-5181 or AP300 (non-integrated antenna) model access port.

1.2.1 Antenna Pattern

1.2.1.1 Omni-Directional

Signal radiates from the antenna in all directions on the horizontal plane.

1.2.1.2 Directional

Signal radiates in a specific direction, typically described as a beam of given width, expressed in degrees in the horizontal and vertical plane. For more information, see

Azimuth 3dB Beamwidth on page 1-8

and

Elevation 3dB Beamwidth on page 1-8

.

1.2.2 Antenna Type

1.2.2.1 Panel

A panel antenna is a flat antenna mounted to a wall or other vertical surface and radiates RF energy (radio waves) directionally away from the wall. They usually have gain greater than 5 dBi and are not suitable for omni-directional situations. Ideally suited for long hallways.

1.2.2.2 Patch

A patch antenna is a flat antenna mounted on the ceiling but whose pattern is omni-directional. Most of the energy goes out horizontally to the sides of the antenna and equal in all directions.

1.2.2.3 Dipole

A dipole antenna is a tubular antenna that can be either a pipe shape, a straight flexible rod or a paddle. This antenna has an omni-directional pattern when placed in a vertical position. It usually has 2 dBi of gain.

1.2.2.4 Dipole Array

Essentially a dipole, a dipole array is two or more dipoles that are placed one on top of the other, requiring a longer tube to hold them. The advantage of a dipole array is that it has higher gain.

1.2.2.5 Parobolic Grid

A paraobolic grid antenna is a very directional, dish-like antenna. Its parabolic reflector focuses the RF energy like a flashlight. Most of the time the radiating element is a dipole, but when combined with the dish, it becomes very directional with gain up to 24 dBi. Usually used in long point-to-point systems.

1.2.2.6 Yagi

A yagi antenna is a antenna that has an internal structure resembling that of typical antennas used for TV reception (a series of rods perpendicular to a main rod, making a triangular shape). This is a directional antenna with less gain than the PGA, typically around 13 dBi. It may be used in either point-to-point situations, or to cover a very long, narrow area in point-to-multi-point situations.

1-8

Enterprise Wireless LAN Antenna Specification Guide

1.2.3 Antenna Performance Characteristics

1.2.3.1 Frequency

The frequency band within which the antenna performs at the stated specifications

1.2.3.2 Gain (dBi)

The relative amplification of the antenna with respect to an equivalent isotropic antenna, expressed on the decibel logarithmic scale.

1.2.3.3 Cable loss (dB)

The signal strength loss introduced by the cable connected to the antenna expressed on the decibel logarithmic scale.

1.2.3.4 Net gain (dBi)

The resulting amplification of the antenna paired with its cable.

1.2.3.5 Polarization

The orientation of the electrical field which the antenna is optimized to receive. If the transmitting and receiving antennas are both linear polarized, then turning one 90° so that they are cross polarized will reduce the range significantly.

1.2.3.6 VSWR

Voltage Standing Wave Ratio

(VSWR) is the ratio of maximum voltage to minimum voltage along the line.

Expresses the degree of match between the transmission line and the terminating element (antenna). When

VSWR is 1:1 the match is perfect, a VSWR of 1.5:1 corresponds to 96% power efficiency.

1.2.3.7 Azimuth 3dB Beamwidth

Width of the antenna beam on the horizontal plane expressed in degrees.

1.2.3.8 Elevation 3dB Beamwidth

Height of the antenna beam on the vertical plane expressed in degrees.

1.3 Antenna Accessories for Motorola Enterprise WLANs

Motorola offers a complete selection of antennas and accessories to ensure optimal coverage and performance for 802.11a/b/g wireless LANs. Regardless of the size or layout of your environment, from a small office or storefront to campus-wide, multiple-site, indoor and outdoor deployments, Motorola offers the antennas, cables and accessories designed to fit your needs.

By combining this portfolio with a broad line of wireless switches, access ports, access points, client connectivity cards, ruggedized mobile voice/data devices and network management software, as well as wireless mobility planning and deployment services, Motorola offers comprehensive end-to-end wireless enterprise LAN solutions, giving you secure, reliable access to your critical business data and applications at the point of activity. For more information on Motorola's wireless products, visit

www.motorola.com

.

Antenna Selection and Description

1-9

1.3.1 Choosing the Right Antenna and accessories for your WLAN

It is important to consider a number of factors when choosing an antenna and accessories for your Motorola enterprise WLAN. To choose the right components, you'll need to know:

• Where is the antenna to be installed, and what type of coverage is required. Knowing the intended radio band is central. Determine if the intended radio coverage area supports dual 2.4/5.2 band traffic. Has the antenuation of the coverage been discerned in respect to known barriers.

• In which band (802.11b/g or 802.11a) your network operates

• Which Motorola AP to use

• Whether you will be deploying the network indoors or outdoors

• The distance between AP and antenna, to determine extender cable length, if any

• the serviceablity requirement for each AP and antenna deployment

Review the chart to determine which antennas suit your needs. Using the part numbers provided, determine which of the antennas will work with your hardware in your environment.

1-10

Enterprise Wireless LAN Antenna Specification Guide

Product Compatibility

To find the right antenna and accessories for your AP-5131, AP-5181 or AP300 (non-integrated antenna) deployment:

• Find your Motorola access point or access point model at the top of the chart (refer to the chart on the following page). Follow that column down to find the antennas, cables and lightning arrestors compatible with that model access port or access point. Write those part numbers down.

• Follow the row antenna across the table to the columns for the lightning arrestors and cables you wrote down to confirm that they compatible with the antenna you've chosen and determine if an adaptor is required to connect the two selected parts.

NOTE:

The product compatibility chart on the next displays a global compatibility matrix, and does not apply to FCC USA specific compatibility. For information specific to FCC USA compatibility, see

FCC/USA Compatibility on page 2-3

.

2-2

Enterprise Wireless LAN Antenna Specification Guide

AP Radios Cables LAs

ML-2499-11PNA2-01R

ML-2499-5PNL-72-N

ML-2499-7PNA2-01R

ML-2499-APA2-01

ML-2499-BPNA3-01R

ML-2499-BYGA2-01R

ML-2499-FHPA5-01R

ML-2499-FHPA9-01R

ML-2499-HPA3-01R

ML-2499-PNAHD-01R

ML-2499-SD3-01R

ML-5299-APA1-01R

ML-5299-FHPA10-01R

ML-5299-FHPA6-01R

ML-5299-HPA1-01R

ML-5299-PTA1-01R

ML-5299-WPNA1-01R

ML-2452-APA2-01

ML-2452-PNA5-01R

ML-2452-PNA7-01R

ML-2452-PTA2M3X3-1

ML-2452-PTA3M3-036

ML-1499-LAK1-01R

ML-1499-LAK2-01R

ML-2452-LAK1-01R

ML-1499-100JK-01R

ML-1499-10JK-01R

ML-1499-25JK-01R

ML-1499-50JK-01R

ML-1499-72PJ-01R

*

X

8

9

6

7

A

3

4

1

2

5

ML-1499-RBNCA1-01R

ML-1499-RBNCA2-01R

25-72178-01

25-90262-01R

25-90263-01R

25-85391-01R

25-85392-01R must use ML-1499-LAK1-01R

25-97261-01R

25-99175-01R

Compatible

Not compatible

Not required

*

*

X

*

*

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

* X

A X

3

3

9

3

6

6

3

3

9

3

7

X

X

X

X

*

X

X

X

X

X

X

X

X

X

X

X

X

X

*

*

8

*

X

X

9

9

*

*

8

*

8

*

*

X

*

*

X

X

X

X

X

X

X

X

*

X

X

X

X

X

X

X

X

X

X

X

X

*

*

*

X

X

X

3

X

3

X

X

X

6

X

X

X

3

7

*

*

X

*

*

*

*

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

*

*

X

X

*

X

X

X

X

X

X

X

*

X

*

X

X

*

X

X

X

X

*

*

X

X

X

X

X

*

X

X

X

X

X

X

X

X

X

*

*

X

X

X

X

*

X

X

*

X

X

*

X

X

*

7

7

X

7

7

X

X

*

X

X

7

7

X

7

7

7

7

X

7

7

*

*

X

*

*

*

*

X

*

*

7

7

X

7

7

7

7

X

7

7

1 1 1 1 *

A A A A X

*

*

1

X

1

X

*

*

1

X

*

*

1

X

*

*

*

X

A A A A X

X

X

1

1

A A A A X

1 1 1 1 *

1

1

1

1

1

1

*

*

X X X X X

A A A A X

4

4

A A A A X

4 4 4 4 X

4

4

4

4

4

4

X

X

X X X X X

A A A A X

A A A A X

*

*

*

*

*

*

*

*

*

*

*

*

X

X

X

X

X

2

X

2

*

*

*

2

X

2

*

X

X

2

X

2

*

2

2

2

X

2

2

2

X

2

2

2

X

5

5

5

X

5

5

5

X

5

5

5

X

Product Compatibility

2-3

2.1 FCC/USA Compatibility

The following displays Motorola’s FCC approved AP radio, antenna, cable and accessory combinations for use in the United States.,

AP Radios Cables LAs

ML-2499-11PNA2-01R

ML-2499-5PNL-72-N

ML-2499-7PNA2-01R

ML-2499-APA2-01

ML-2499-BPNA3-01R

ML-2499-BYGA2-01R

ML-2499-FHPA5-01R

ML-2499-FHPA9-01R

ML-2499-HPA3-01R

ML-2499-PNAHD-01R

ML-2499-SD3-01R

ML-5299-APA1-01R

ML-5299-FHPA10-01R

ML-5299-FHPA6-01R

ML-5299-HPA1-01R

ML-5299-PTA1-01R

ML-5299-WPNA1-01R

ML-2452-APA2-01

ML-2452-PNA5-01R

ML-2452-PNA7-01R

ML-2452-PTA2M3X3-1

ML-2452-PTA3M3-036

ML-1499-LAK1-01R

ML-1499-LAK2-01R

ML-2452-LAK1-01R

ML-1499-100JK-01R

ML-1499-10JK-01R

ML-1499-25JK-01R

ML-1499-50JK-01R

ML-1499-72PJ-01R

A

*

X

7

8

9

3

4

5

6

1

2

ML-1499-RBNCA1-01R

ML-1499-RBNCA2-01R

25-72178-01

25-90262-01R

25-90263-01R

25-85391-01R

25-85392-01R must use ML-1499-LAK1-01R

25-97261-01R

25-99175-01R

Compatible

Not compatible

Not required

*

X

*

*

*

8

8

*

*

9

*

8

X

X

X

X

X

*

*

X

X

X

*

*

*

*

*

8

8

*

*

9

*

8

X

X

*

*

*

*

*

X

X

X

X

*

3

3

6

9

X

3

X

X

3

X

X

X

*

X

*

*

X

X

X

X

X

X

3

X

6

X

X

X

X

X

3

7

X

X

*

X

*

*

X

X

*

X

X

X

X

X

X

*

*

X

X

X

X

X

*

*

X

X

X

X

*

*

X

X

X

X

*

*

X

X

X

X

*

7

7

7

7

X

X

X

X

X

*

7

7

7

7

X

*

*

*

*

X

7

7

7

7

X

X

X

*

1

X

*

1 1 1 1 *

A A A A X

1

X

*

1

X

*

1

X

*

*

X

X

1

X

1

1

* * * * X

A A A A X

A A A A X

1

1

1

X

1

1

1

X

1

1

1

X

*

X

*

*

4

4

A A A A X

A A A A X

4 4 4 4 X

4

4

4

4

4

4

X

X

X X X X X

A A A A X

A A A A X

2

*

2

X

X

X

2

*

2

X

*

*

2

*

2

X

X

X

2

X

2

2

2

X

2

2

2

X

2

2

5

5

5

X

5

5

5

X

5

5

5

X

*

*

*

*

*

*

*

*

*

*

*

*

X

X

X

2-4

Enterprise Wireless LAN Antenna Specification Guide

2.2 Antenna Suite Summary

The following aligns Motorola’s antenna suite with their respective part numbers, description, band, gain, mounting orientation, radiation patterns, outdoor versus indoor deployment and plenum rating.

802.11b/g Antenna Suite

3.1 Supported 802.11b/g/n Antenna Suite

Motorola supports numerous single-band 2.4 GHz 802.11b/g/n antennas to suit the requirements of your unique

AP-5131, AP-5181 or AP 300 (non-integrated antenna) deployment. Check the Motorola Web site periodically, as newly supported 802.11b/g/n antennas will be added to this document as they are released. For more information, go to

http://support.symbol.com/support/product/manuals.do

.

For detailed information on supported 802.11b/g/n antenna models, refer to:

ML-2499-5PNL-72-N Outdoor 135° Panel Antenna: Male Connector

ML-2499-7PNA2-01R Indoor 60° Diversity Panel: RP-BNC Male

ML-2499-11PNA2-01R Outdoor 97°Sector Panel: RP-BNC Male

• ML-2499-APA2-01R Indoor Rubber Flex, Elbow Joint Dipole: RP-BNC Male

ML-2499-BPDA1-01R Outdoor 10°High-Gain Dish: 20.5 N Female

ML-2499-BPNA3-01R Outdoor 35° High-Gain Directional Panel: Type N - Female

ML-2499-BYGA2-01R Outdoor 35° High-Gain Directional Yagi: N Female

ML-2499-HPA3-01R High Performance Omni-Directional "Pipe" Antenna: RP-BNC Male

ML-2499-PNAHD-01R Indoor 55°Directional Panel: RP-BNC Male

ML-2499-SD3-01R Low Profile Ceiling/Surface Mount Omni-Directional Patch: RP-BNC Male

ML-2499-FHPA5-01R Omni-Directional "Pipe" Antenna: N Male Connector

ML-2499-FHPA9-01R High Performance Fixed Point Dipole: Male Connector

NOTE:

For examples on how various antenna and connectors are deployed in a 2.4 GHz

AP-5131 installation, see

2.4 GHz AP-5131 Antenna Connections

.

3-2

Enterprise Wireless LAN Antenna Specification Guide

3.1.1 ML-2499-5PNL-72-N Outdoor 135

°

Panel Antenna: Male Connector

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Panel

2400-2500 MHz

5.5

Linear, Vertical

3dB Beamwidth: 135°

3dB Beamwidth: 56°

72

RG-58 Ultralink

Type N Male

0.5 lb

No

Yes

Yes

9 / 1 3 / 2 0 0 5 1 2 : 2 0 : 0 1 P M

1 8 0

9 0

F t ( M H z ) 2 4 3 7 .

0 P o l a r i t y

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

802.11b/g Antenna Suite

3-3

9 / 1 3 / 2 0 0 5 1 2 : 0 7 : 2 2 P M

1 8 0

B e a m w i d t h (°)

B e a m w i d t h A v e ( d B i )

1 3 4 .

1

5 .

7 1

2 7 0

A z i m u t h P a t t e r n

9 0

F t ( M H z ) 2 4 3 7 .

0 P o l a r i t y H o r z

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

B e a m w i d t h (°)

B e a m w i d t h A v e ( d B i )

7 2 .

6

6 .

3 2

2 7 0

E l e v a t i o n P a t t e r n

3-4

Enterprise Wireless LAN Antenna Specification Guide

3.1.2 ML-2499-7PNA2-01R Indoor 60

°

Diversity Panel: RP-BNC Male

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Panel x 2 (Diversity)

2400-2500 MHz

6.3

Linear, Vertical

3dB Beamwidth: 60°

3dB Beamwidth: 60°

48

RG-58 Ultralink

RP-BNC Male x 2

0.6 lbs

No

Yes

No

M o d e l M L 2 4 9 9 7 P N A 2 0 1 A z C u t

9 0

1 8 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

802.11b/g Antenna Suite

3-5

1 1 / 1 2 / 2 0 0 3 2 : 5 0 : 2 9 P M

M o d e l M L 2 4 9 9 7 P N A 2 0 1 E l C u t

1 8 0

B e a m w i d t h (°)

5 9 .

7

2 7 0

A z i m u t h C u t

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

2 7 0

1 1 / 1 2 / 2 0 0 3 2 : 5 3 : 2 6 P M

E l e v a t i o n C u t

B e a m w i d t h (°)

5 7 .

1

3-6

Enterprise Wireless LAN Antenna Specification Guide

3.1.3 ML-2499-11PNA2-01R Outdoor 97

°

Sector Panel: RP-BNC Male

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Panel

2400-1500 MHz

8.5

Linear, Vertical

3dB Beamwidth: 97°

3dB Beamwidth: 14°

96

RG-58 Ultralink

RP-BNC Male

1.5 lb

No

Yes

Yes

M o d e l l M L 2 4 9 9 1 1 P N A 2 0 1 A z C u t t t

1 8 0

9 0

F t M H z ) 5 0 .

.

0 P o l l a r r r i t y e r r t t

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

802.11b/g Antenna Suite

3-7

1 1 / 1 2 / 2 0 0 3 7 : 4 7 : 4 8 P M

M o d e l l l M L 2 4 9 9 1 1 P N A 2 0 1 E l l C u t t

1 8 0

2 7 0

A z i m u t h P a t t e r n e a m w i i d t h (°)

.

.

6

9 0

F t M H z ) 4 5 0 .

.

P o l l a r r i i i t t t y e r r t t

5 .

0

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

1 1 / 1 2 / 2 0 0 3 7 : 5 5 : 0 4 P M

2 7 0

E l e v a t i o n P a t t e r n

B e m w i i d t (°)

3 .

.

3-8

Enterprise Wireless LAN Antenna Specification Guide

3.1.4 ML-2499-APA2-01R Indoor Rubber Flex, Elbow Joint Dipole: RP-BNC Male

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Dipole

2400-2500 MHz

2

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 60°

0

N/A

RP-BNC Male

0.075 lbs

No

N/A

No

M o d e l M L 2 4 9 9 A P A 2 0 1 A z C u t

1 8 0

9 0

F ( M H z ) 2 4 5 0 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

802.11b/g Antenna Suite

3-9

B e a m w i d t h (°)

2 8 2 .

6

2 7 0

1 1 / 1 2 / 2 0 0 3 4 : 1 3 : 4 1 P M

M o d e l M L 2 4 9 9 A P A 2 0 1 E l C u t

1 8 0

A z i m u t h P a t t e r n

9 0

F ( M H z ) 2 4 5 0 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

1 1 / 1 2 / 2 0 0 3 4 : 0 8 : 2 4 P M

2 7 0

E l e v a t i o n P a t t e r n

B e a m w i d t h (°)

1 6 .

6

3-10

Enterprise Wireless LAN Antenna Specification Guide

3.1.5 ML-2499-BPDA1-01R Outdoor 10

°

High-Gain Dish: 20.5 N Female

20.85”

6.25”

Type

Frequency

Gain (dBi)

Net Gain (dBi)

Cable Loss (dB)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Parabolic Dish

2400-2500 MHz

23.5

20.5 (minimum cable configuration)

3 (minimum cable configuration)

Linear, Vertical

3dB Beamwidth: 10°

3dB Beamwidth: 11°

Use minimum configuration (or more)

Varies per cable configuration

Type N Female

13 lb

N/A

N/A

Yes

180

90

20.0

15.0

10.0

5.0

0.0

-5.0

-10.0

-15.0

-20.0

-25.0

-30.0

802.11b/g Antenna Suite

3-11

180

270

Beam width(°)

11.2

A z i m u t h P a t t e r n

90

20.0

15.0

10.0

5.0

0.0

-5.0

-10.0

-15.0

-20.0

-25.0

-30.0

270

E l e v a t i o n P a t t e r n

3-12

Enterprise Wireless LAN Antenna Specification Guide

3.1.6 ML-2499-BPNA3-01R Outdoor 35

°

High-Gain Directional Panel: Type N - Female

10.13 ± .04”

1.58 ± .04”

5.14”

10.13 ± .04”

Type

Frequency

Gain (dBi)

Net Gain (dBi)

Cable Loss (dB)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Panel (Outdoor)

2400-2500 MHz

13.9

10.9 (minimum cable configuration)

3 (minimum cable configuration)

Linear, Vertical

3dB Beamwidth: 35°

3dB Beamwidth: 28°

Use minimum configuration (or more)

Varies per cable configuration

Type N Female

1.5 lb

N/A

N/A

Yes

M o d e l M L 2 4 9 9 B P N A 3 0 1 A z C u t

1 8 0

802.11b/g Antenna Suite

3-13

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

1 5 .

0

1 0 .

0

5 .

0

0 .

0

5 .

0

1 1 / 1 2 / 2 0 0 3 4 : 4 9 : 0 0 P M

M o d e l M L 2 4 9 9 B P N A 3 0 1 E l C u t

2 7 0

A z i m u t h P a t t e r n

B e a m w i d t h (°)

3 1 .

3

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

1 5 .

0

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

1 1 / 1 2 / 2 0 0 3 4 : 4 4 : 4 0 P M

B e a m w i d t h (°)

2 8 .

1

2 7 0

E l e v a t i o n P a t t e r n

3-14

Enterprise Wireless LAN Antenna Specification Guide

3.1.7 ML-2499-BYGA2-01R Outdoor 35

°

High-Gain Directional Yagi: N Female

1.40”

26.44”

3.73”

Type

Frequency

Gain (dBi)

Net Gain (dBi)

Cable Loss (dB)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Power

Weight

Yagi (Outdoor)

2400-2500 MHz

14.1

11.1 (minimum cable configuration)

3 (minimum cable configuration)

Linear, Vertical

3dB Beamwidth: 35°

3dB Beamwidth: 30°

12

Varies per the cable configuration used

Type N - Female

50 W

1.25 lb

M o d e l M L 2 4 9 9 B Y G A 2 0 1 A z C u t

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

1 5 .

0

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

802.11b/g Antenna Suite

3-15

1 1 / 1 2 / 2 0 0 3 5 : 5 8 : 1 0 P M

2 7 0

A z i m u t h P a t t e r n

B e a m w i d t h (°)

2 7 .

8

M o d e l M L 2 4 9 9 B Y G A 2 0 1 E l C u t

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

1 5 .

0

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

1 1 / 1 2 / 2 0 0 3 6 : 0 0 : 0 2 P M

2 7 0

E l e v a t i o n P a t t e r n

B e a m w i d t h (°)

2 7 .

2

3-16

Enterprise Wireless LAN Antenna Specification Guide

3.1.8 ML-2499-HPA3-01R High Performance Omni-Directional "Pipe" Antenna:

RP-BNC Male

S 2 4 0

2 4 2 5 G H z 3 d B d

3 B

O n d c o a

P X

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Dipole Array

2400-2500 MHz

3.3

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 31°

48

RG-58 Ultralink

RP-BNC Male

0.3 lb

No

Yes

Yes (in a cable down orientation)

M o d e l M L 2 4 9 9 H P A 3 0 1 A z C u t

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

5 .

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

802.11b/g Antenna Suite

3-17

1 1 / 1 2 / 2 0 0 3 6 : 2 2 : 1 3 P M

2 7 0

A z i m u t h P a t t e r n

B e a m w i d t h (°)

M o d e l M L 2 4 9 9 H P A 3 0 1 E l C u t

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

5 .

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

1 1 / 1 2 / 2 0 0 3 6 : 1 9 : 1 0 P M

2 7 0

E l e v a it o n P a t t e r n

B e a m w i d t h (°)

1 4 .

3

3-18

Enterprise Wireless LAN Antenna Specification Guide

3.1.9 ML-2499-PNAHD-01R Indoor 55

°

Directional Panel: RP-BNC Male

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Panel

2400-2500 Mhz

6.3

Linear, Vertical

3dB Beamwidth: 55°

3dB Beamwidth: 56°

48

RG-58 Ultralink

RP-BNC Male

0.5 lb

No

Yes

No

M o d e l M L 2 4 9 9 P N A H D 0 1 A z C u t

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

802.11b/g Antenna Suite

3-19

1 1 / 1 2 / 2 0 0 3 6 : 4 1 : 1 7 P M

2 7 0

A z i m u t h P a t t e r n

B e a m w i d t h (°)

5 5 .

3

M o d e l M L 2 4 9 9 P N A H D 0 1 E l C u t

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

1 1 / 1 2 / 2 0 0 3 6 : 4 4 : 3 7 P M

B e a m w i d t h (°)

5 6 .

2

2 7 0

E l e v a t i o n P a t t e r n

3-20

Enterprise Wireless LAN Antenna Specification Guide

3.1.10 ML-2499-SD3-01R Low Profile Ceiling/Surface Mount Omni-Directional

Patch: RP-BNC Male

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Patch (ceiling mount)

2400-2500 MHz

3.5

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 52°

48

RG-58 Ultralink

RP-BNC Male

0.21 lbs

No

Yes

No

M o d e l M L 2 4 9 9 S D 3 0 1 A z C u t

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

802.11b/g Antenna Suite

3-21

1 1 / 2 4 / 2 0 0 3 4 : 1 4 : 2 7 P M

2 7 0

A z i m u t h P a t t e r n

B e a m w i d t h (°)

3 6 0

M o d e l M L 2 4 9 9 S D 3 0 1 E l C u t

1 8 0

9 0

M H z ) 2 4 5 0 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

1 1 / 1 2 / 2 0 0 3 6 : 5 4 : 3 0 P M

2 7 0

E l e v a t i o n P a t t e r n

B e a m w i d t h (°)

5 1 .

7

3-22

Enterprise Wireless LAN Antenna Specification Guide

3.1.11 ML-2499-FHPA5-01R Omni-Directional "Pipe" Antenna: N Male Connector

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

ML-2499-FHPA5-01R

Dipole Array

2400-2500 MHz

5

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 25°

N/A

N/A

Type N Male

0.7 lb

No

N/A

Yes

M o u n t

W a ll

H z 2 .

4 5 0 G

M a i n / A u x i n C u t Az

9 0

P o l a r i t y

1 8 0

0 .

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

802.11b/g Antenna Suite

3-23

2 7 0

Azimuth Pattern

B e a m w i d t h (°)

4 5 .

9

3-24

Enterprise Wireless LAN Antenna Specification Guide

3.1.12 ML-2499-FHPA9-01R High Performance Fixed Point Dipole: Male Connector

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

ML-2499-FHPA9-01R

Dipole Array

2400-2500 MHz

6

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 14°

N/A

N/A

Type N Male

1.1 lb

No

N/A

Yes

M o u n t

W a ll

H z

2 .

4 5 0 G

M a i n / A u x i n C u t Az

9 0

P o l a r i t y

1 8 0

1 0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

802.11b/g Antenna Suite

3-25

B e a m w i d t h (°)

4 5 .

9

2 7 0

A z i m u t h P a t t e r n 2 4 5 0 M H z

3-26

Enterprise Wireless LAN Antenna Specification Guide

802.11a Antenna Suite

4.1 Supported 802.11a Antenna Suite

Motorola supports numerous 802.11a antennas to suit the requirements of your unique AP-5131, AP-5181 or AP300 (non-integrated antenna) deployment. Check the Motorola Web site periodically, as newly supported 802.11a antennas will be added to this document as they are released. For more information, go to

http://support.symbol.com/support/product/manuals.do

.

For detailed information on supported 802.11a antenna models, refer to:

ML-5299-APA1-01R Indoor Rubber Flex Jointed Dipole: RP-SMA Male Connector

ML-5299-HPA1-01R High Performance Omni-Directional Dipole Antenna: RP-SMA Male Connector

ML-5299-PTA1-01R Low Profile Ceiling-Tile Mount Patch: RP-SMA Male Connector

ML-5299-WPNA1-01R Wall Mount Panel Antenna w/Articulating Mount: RP-SMA Male

ML-5299-FHPA10-01R Omni-Directional "Pipe" Antenna: N-Male Connector

ML-5299-FHPA6-01R Omni-Directional "Pipe" Antenna: N-Male Connector

NOTE:

For examples on how various antenna and connectors are deployed in a 5 GHz

AP-5131 installation, see

5 GHz AP-5131 Antenna Connections

.

4-2

Enterprise Wireless LAN Antenna Specification Guide

4.1.1

ML-5299-APA1-01R Indoor Rubber Flex Jointed Dipole: RP-SMA Male Connector

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Dipole

4900-5875 MHz

2

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 75°

N/A

N/A

RP-SMA Male

0.063 lb

No

N/A

No

M o d e l

M L 5 2 9 9 A P A 1 0 1 A z C u t

1 8 0

9 0

F ( M H z ) 5 2 5 0 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

802.11a Antenna Suite

4-3

1 / 7 / 2 0 0 4 8 : 4 2 : 2 6 P M

B e a m w i d t h (°)

3 0 2 .

4

2 7 0

A z i m u t h P a t t e r n

M o d e l M L 5 2 9 9 A P A 1 0 1 E l C u t

1 8 0

9 0

M H z ) 5 2 5 0 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

1 / 7 / 2 0 0 4 8 : 4 7 : 5 7 P M

B e a m w i d t h (°)

75

2 7 0

E l e v a t i o n P a t t e r n

4-4

Enterprise Wireless LAN Antenna Specification Guide

4.1.2 ML-5299-HPA1-01R High Performance Omni-Directional Dipole Antenna: RP-SMA

Male Connector

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Dipole Array

4900-5875 MHz

5

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 17°

36

LMR195

RP-SMA Male

0.3 lb.

No

Yes

Yes (cable down orientation only)

M o d e l

M L 5 2 9 9 H P A 1 0 1 A z C u t

1 8 0

9 0

M H z ) 5 2 5 0 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

802.11a Antenna Suite

4-5

B e a m w i d t h (°)

9 0 .

6

2 7 0

1 2 / 1 5 / 2 0 0 3 1 1 : 4 8 : 0 2 A M

M o d e l

M L 5 2 9 9 H P A 1 0 1 E l C u t

A z i m u t h P a t t e r n

1 8 0

9 0

M H z ) 5 2 5 0 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

B e a m w i d t h (°)

2 7 0

1 2 / 1 5 / 2 0 0 3 1 1 : 4 0 : 3 0 A M

E l e v a t i o n P a t t e r n

4-6

Enterprise Wireless LAN Antenna Specification Guide

4.1.3 ML-5299-PTA1-01R Low Profile Ceiling-Tile Mount Patch: RP-SMA

Male Connector

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Patch

5150-5875 MHz

4.6

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 45°

36

RG-58

RP-SMA Male

0.15 lb.

No

Yes

No

M o d e l

V e r s i o n

8 0 2 .

1 1 a S q u i n t

H o r z .

M o u n t A z S c a n

1 8 0

9 0

F t ( M H z ) 5 7 7 5 .

0 P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

802.11a Antenna Suite

4-7

7 / 1 4 / 2 0 0 4 1 0 : 4 6 : 0 6 A M

2 7 0

P e a k

1 .

4 3

B e a m w i d t h (°)

3 1 8 .

5 m e a n

0 .

0 3

%

1 0 0

σ

0 .

1 7 5

A z i m u t h P a t t e r n

M o d e l

V e r s i o n

8 0 2 .

1 1 a S q u i n t

H o r z .

M o u n t E l S c a n

F t ( M H z ) 5 7 4 5 .

0

9 0

1 8 0

P o l a r i t y

.

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

3 5 .

0

d B i

7 / 1 4 / 2 0 0 4 1 1 : 2 7 : 2 5 A M

2 7 0

P e a k

4 .

6 1

B e a m w i d t h (°)

4 4 .

6 m e a n

1 .

0 4

%

7 3

σ

0 .

5 4 7

E l e v a t i o n P a t t e r n

4-8

Enterprise Wireless LAN Antenna Specification Guide

4.1.4 ML-5299-WPNA1-01R Wall Mount Panel Antenna w/Articulating Mount:

RP-SMA Male

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Panel

5150-5875 MHz

12.5

Linear, Vertical

3dB Beamwidth: 31°

3dB Beamwidth: 27°

36

RG-303

RP-SMA Male

0.7 lb.

No

Yes

Yes

M o d e l M L 5 2 9 9 W P N A 1 0 1 A z C u t

1 8 0

9 0

M H z ) 5 2 5 0 .

0 P o l a r i t y

2 0 .

0

1 5 .

0

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

802.11a Antenna Suite

4-9

B e a m w i d t h (°)

2 7 .

9

2 7 0

1 / 5 / 2 0 0 4 3 : 0 9 : 3 3 P M

M o d e l M L 5 2 9 9 W P N A 1 0 1 E l C u t

A z i m u t h P a t t e r n

1 8 0

9 0

M H z ) 5 2 5 0 .

0 P o l a r i t y

2 0 .

0

1 5 .

0

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

1 / 5 / 2 0 0 4 3 : 1 6 : 2 1 P M

B e a m w i d t h (°)

2 3 .

3

2 7 0

E l e v a t i o n P a t t e r n

4-10

Enterprise Wireless LAN Antenna Specification Guide

4.1.5 ML-5299-FHPA10-01R Omni-Directional "Pipe" Antenna: N-Male Connector

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

ML-5299-FHPA10-01R

Dipole Array

4900-5850 MHz

8

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 13

N/A

N/A

Type N Male

0.37 lb

No

N/A

Yes

M o u n t W a ll

H z

5 .

5 7 0 G

M a i n / A u x i n

C u t Az

9 0

P o l a r i t y

1 8 0

1 0 .

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

802.11a Antenna Suite

4-11

B e a m w i d t h (°)

1 4 8 .

4

2 7 0

A z i m u t h P a t t e r n 5 5 7 0 M H z

4-12

Enterprise Wireless LAN Antenna Specification Guide

4.1.6 ML-5299-FHPA6-01R Omni-Directional "Pipe" Antenna: N-Male Connector

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Dipole Array

5150-5850

0

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 16°

N/A

N/A

Type N Male

0.37 lb

No

N/A

Yes

802.11a Antenna Suite

4-13

A z i m u t h P a t t e r n 5 5 0 0 M H z

E l e v a t i o n P a t t e r n 5 5 0 0 M H z

4-14

Enterprise Wireless LAN Antenna Specification Guide

2.4GHz - 5.2GHz Dual Band Antenna Suite

5.1 Supported 2.4GHz - 5.2GHz Dual Band Antennas

Motorola supports several 2.4GHz - 5.2GHz Dual Band antennas to suit the requirements of your unique

AP-5131, AP-5181 or AP 300 (integrated antenna) deployment. Check the Motorola Web site periodically, as newly supported 2.4GHz - 5.2GHz Dual Band antennas will be added to this document as they are released.

For more information, go to

http://support.symbol.com/support/product/manuals.do

.

For detailed information on supported 2.4GHz - 5.2GHz Dual Band antenna models, refer to:

ML-2452-APA2-01 Indoor Dual Band Elbow Jointed Dipole: RP-SMA Male

ML-2452-PNA5-01R Dual Band Panel: Connector Type N-Male

ML-2452-PNA7-01R Dual Band Panel: Connector Type N-Male

ML-2452-PTA2M3X3-1 AP-7131 MIMO Facade: 1 IN, RPSMA

ML-2452-PTA3M3-036 Ceiling Mount, Dual Band, MIMO Patch: RPSMA

5-2

Enterprise Wireless LAN Antenna Specification Guide

5.1.1

ML-2452-APA2-01 Indoor Dual Band Elbow Jointed Dipole: RP-SMA Male

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Dipole

2400-2500/5150-5850 MHz

6 / 7

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 35°

N/A

N/A

RP-SMA Male

0.7 oz

No

N/A

No

M o d e l

V e r s i o n

M L 2 4 5 2 A P A 2 0 1

V e r t M o u n t , A z C u t

2 / 1 8 / 2 0 0 5 1 2 : 5 0 : 4 6 P M

1 8 0

9 0

F t ( M H z )

2 4 3 6 .

0 P o l a r i t y

1 0 .

.

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

M o d e l

V e r s i o n

M L 2 4 5 2 A P A 2 0 1

V e r t M o u n t , E l C u t

3 / 7 / 2 0 0 5 1 0 : 5 9 : 3 0 A M

1 8 0

2.4GHz - 5.2GHz Dual Band Antenna Suite

9 0

F t ( M H z )

2 4 3 7 .

0 P o l a r i t y H o r z

1 0 .

.

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

M o d e l

V e r i o

M

V

L e r

2 4 t M

5 2 A o n t

P A

A

2 z

0 1

C u t

2 / 1 8 / 2 0 0 5 2 : 0 2 : 4 2 P M

B e a m w i d t h (°)

9 1 .

8

2 7 0

A z i m u t h P a t t e r n

8 0 2 .

1 1 b B a n d

M o d e l

V e r

M L -

V e r t

2 4 5 2 -

M o n

A t

P A

E

2 0 1 l C u t

3 / 7 / 2 0 0 5 1 1 : 0 0 : 3 5 A M

1 8 0

9 0

F t ( M H z ) 5 2 5 0 .

0 P o l a r i t y

1 0 .

.

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

1 8 0

B e a m w i d t h (°)

4 5 .

6

2 7 0

E l e v a t i o n P a t t e r n

9 0

F t ( M H z ) 5 2 5 0 .

0 P o l a r i t y H o r z

1 0 .

.

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

2 7 0

A z i m u t h P a t t e r n

B e a m w i d t h(°)

3 3 5 .

4

8 0 2 .

1 1 a B a n d

B e a m w i d t h(°)

2 7 0

E l e v a t i o n P a t t e r n

5-4

Enterprise Wireless LAN Antenna Specification Guide

5.1.2 ML-2452-PNA5-01R Dual Band Panel: Connector Type N-Male

2.10”

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Panel

2400-2500/4900-5900 MHz

4.5 (2400-2500); 5.0 (4900-5250); 4.0 (5250-5900)

Linear, Vertical

3dB Beamwidth: 120°

3dB Beamwidth: 65°

12

RG-58 Ultralink

Type N Male

0.2 lb

No

Yes

Yes

M o u n t W a ll

H z

2 .

4 5 0 G

M a i n / A u x i

C u t Az

9 0

P o l a r i t y

1 8 0

2.4GHz - 5.2GHz Dual Band Antenna Suite

1 0 .

.

0

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

M o u n t

W a ll

H z 5 .

5 0 0 G

M a i n / A u x i

1 8 0

C u t

9 0

Az P o l a r i t y

0 .

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

B e a m w i d t h (°)

1 0 6 .

1

2 7 0

A z i m u t h P a t t e r n 2 4 5

( R e f e r e n c e O n l y )

0 M H z

B e a m w i d t h (°)

1 1 3 .

3

2 7 0

A z i m u t h P a t t e r n 5 5

( R e f e r e n c e O n l y )

0 0 M H z

5-6

Enterprise Wireless LAN Antenna Specification Guide

5.1.3 ML-2452-PNA7-01R Dual Band Panel: Connector Type N-Male

4.1”

4.1”

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Weight

Plenum Antenna

Plenum Cable

Outdoor

Panel

2400-2500/4900-5900 MHz

7 (2400-2500); 6.3 (4900-5250); 9 (5250-5900)

Linear, Vertical

3dB Beamwidth: 68°/ 52°

3dB Beamwidth: 66°/ 60°

12

RG-58 Ultralink

Type N Male

0.5 lb

No

Yes

Yes

M o u n t W a ll

H z

2 .

4 5 0 G

M a i n / A u x

1 8 0

C u t Az

9 0

P o l a r i t y

2.4GHz - 5.2GHz Dual Band Antenna Suite

0 .

5 .

0

0 .

0

5 .

0

1 0 .

0

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

M o u n t W a ll

H z

5 0 0 G

M a i n / A u x i n C u t Az

9 0

1 8 0

P o l a r i t y

1 5 .

0

2 0 .

0

2 5 .

0

3 0 .

0

d B i

1 0 .

.

0

5 .

0

0 .

0

5 .

0

1 0 .

0

B e a m w i d t h (°)

5 1 .

4

2 7 0

A z i m u t h P a t t e r n 2 4

( R e f e r e n c e O n l y )

5 0 M H z

B e a m w i d t h (°)

5 6 .

6

2 7 0

A z i m u t h P a t t e r n 5

( R e f e r e n c e O n l y )

5 0 0 M H z

5-8

Enterprise Wireless LAN Antenna Specification Guide

5.1.4 ML-2452-PTA2M3X3-1 AP-7131 MIMO Facade: 1 IN, RPSMA

NOTE:

ML-2452-PTA2M3x3-1 was formally released as Motorola part number

ML-2452-APA2-FAC.

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Antenna Plenum Rated

Cable Plenum Rated

Outdoor

Weight

Patch x 6 in snap-on facade

2400-2500/4900-5990 MHz

3 dBi 5 dBi

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 90° (southern hemisphere pattern)

Integrated into snap-on facade

1.20 mm coax

RP-SMA Male

No

No

No

0.79 lb

2.4GHz - 5.2GHz Dual Band Antenna Suite

5-10

Enterprise Wireless LAN Antenna Specification Guide

5.1.5 ML-2452-PTA3M3-036 Ceiling Mount, Dual Band, MIMO Patch: RPSMA

Type

Frequency

Gain (dBi)

Polarization

Azimuth

Elevation

Cable Length (in.)

Cable Type

Connector Type

Antenna Plenum Rated

Cable Plenum Rated

Outdoor

Weight

12”

Patch x 3

2400-2500/4900-5990 MHz

3 dBi 7 dBi

Linear, Vertical

3dB Beamwidth: 360°

3dB Beamwidth: 90° (southern hemisphere pattern)

36

RG-58 50 Ohm coax

RP-SMA Male

No

Yes

No

0.7 lb

2.4GHz - 5.2GHz Dual Band Antenna Suite

5-12

Enterprise Wireless LAN Antenna Specification Guide

Antenna Cables

6.1 Supported Antenna Cables

Motorola supports numerous cables to suit your unique AP-5131, AP-5181 or AP 300 (non-integrated antenna) deployment. Check the Motorola Web site periodically, as new cables will be added to this document as they are released. For more information, go to

http://support.symbol.com/support/product/manuals.do

.

For detailed information on supported cables, refer to:

ML-1499-100JK-01R 100 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

ML-1499-10JK-01R 10 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male

ML-1499-25JK-01R 25 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

ML-1499-50JK-01R 50 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

ML-1499-72PJ-01R 6 ft. RP BNC Female to RP BNC Male Plenum Coaxial Jumper

6-2

Enterprise Wireless LAN Antenna Specification Guide

6.1.1

ML-1499-100JK-01R 100 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

100 ft. (30.5 m)

Type

RF Connectors

Cable Attenuation (dB)

Frequency

ML-1499-100JK-01R

Ultralink TL 93605

N (m) to N (m)

10.6 @ 2.4 GHz; 15.5 @ 5.8 GHz

2 - 6 GHz

6.1.2 ML-1499-10JK-01R 10 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male

10 ft. (3.05 m)

Type

RF Connectors

Cable Attenuation (dB)

Frequency

ML-1499-10JK-01R

Ultralink TL 93605

N (m) to N (m)

2.0 @ 2.4 GHz; 2.9 @ 5.8 GHz

2 - 6 GHz

Antenna Cables

6-3

6.1.3

ML-1499-25JK-01R 25 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

FTM

Type

RF Connectors

Cable Attenuation (dB)

Frequency

-,*+2

Ultralink TL 93605

N (m) to N (m)

2.5 @ 2.4 GHz; 4.0 @ 5.8 GHz

2 - 6 GHz

6.1.4 ML-1499-50JK-01R 50 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

FTM

Type

RF Connectors

Cable Attenuation (dB)

Frequency

-,*+2

Ultralink TL 93605

N (m) to N (m)

4.5 @ 2.4 GHz; 7.0 @ 5.8 GHz

2 - 6 GHz

6-4

Enterprise Wireless LAN Antenna Specification Guide

6.1.5 ML-1499-72PJ-01R 6 ft. RP BNC Female to RP BNC Male Plenum Coaxial Jumper

FTM

Type

RF Connectors

Cable Attenuation (dB)

Frequency

-,0*2FT

CMP Plenum, RG-58

RP BNC (f) to RP. BNC (m)

2.3 dB

2400-2500 Mhz

Supported Antenna Adapters

7.1 Supported Adapters

Motorola supports many adapters to suit your unique AP-5131, AP-5181 or AP 300 (non-integrated antenna) deployment. Check the Motorola Web site periodically, as new adapters will be added to this document as they are released. For more information, go to

http://support.symbol.com/support/product/manuals.do

.

For detailed information on supported antenna adapters, refer to:

ML-1499-RBNCA1-01R 1 ft. N Female to RP BNC Female Cable Adapter with Connector Seal Kit

ML-1499-RBNCA2-01R 1 ft. N Male to RP BNC Female Cable Adapter with Connector Seal Kit

25-85391-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Male) Adaptor

25-85392-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Female) Adaptor

25-72178-01 Jumper, RP-SMA(M) to RP-BNC(F)

25-90262-01R RP-SMA (Female) to Type N (Female) Adapter

25-90263-01R Type N (Male) to RP-SMA (Female) Bulkhead Adapter

7-2

Enterprise Wireless LAN Antenna Specification Guide

7.1.1

ML-1499-RBNCA1-01R 1 ft. N Female to RP BNC Female Cable Adapter with

Connector Seal Kit

FTCM

Type

RF Connectors

Frequency

Attenuation

-,2".#!2

Black, Ultralink, RG-58

N (f) to RP. BNC (f)

2400-2500 MHz

0.2 dB

7.1.2 ML-1499-RBNCA2-01R 1 ft. N Male to RP BNC Female Cable Adapter with

Connector Seal Kit

FTCM

Type

Frequency

Cable Loss (dB)

Cable Length (in.)

Connector 1

Connector 2

Color

-,2".#!2

RG-58

2400-2500 MHz

0.85 dB

12

N - Male

RP-BNC-F

Black

Supported Antenna Adapters

7-3

7.1.3 25-85391-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Male) Adaptor

INCM

Type

Connector 1

Connector 2

Insertion Loss

Insertion Loss

2

Clear Jacket, RG-316

RP-SMA, Male

Type N, Male

2.4 GHz: 0.2 dB MIN

5.2 GHz: 0.3 dB MIN

7.1.4 25-85392-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Female) Adaptor

3.5 in.

Type

Connector 1

Connector 2

Insertion Loss

Insertion Loss

25-85 3 92-01R

0.3 dB loss

Clear Jacket, RG-316

RP-SMA, Male

Type N, Female, Bulkhead

2.4 GHz: 0.2 dB MIN

5.2 GHz: 0.3 dB MIN

7-4

Enterprise Wireless LAN Antenna Specification Guide

7.1.5 25-72178-01 Jumper, RP-SMA(M) to RP-BNC(F)

INCM

Type

Connector 1

Connector 2

Insertion Loss

Insertion Loss

RG-316

RP-SMA, Male

RP-BNC, Female

2.4 GHz: .2 dB

5.2 GHz: .3 dB

7.1.6 25-90262-01R RP-SMA (Female) to Type N (Female) Adapter

3.5 in.

Type

Connector 1

Connector 2

Insertion Loss

Insertion Loss

25-85 3 92-01R

0.3 dB loss

RG-316

RP-SMA, Female, Bulkhead

Type N, Female, Bulkhead

2.4 GHz: .2 dB

5.2 GHz: .3 dB

Supported Antenna Adapters

7-5

7.1.7 25-90263-01R Type N (Male) to RP-SMA (Female) Bulkhead Adapter

INCM

Type

Connector 1

Connector 2

Insertion Loss

Insertion Loss

2

RG-316

Type N, Male

RP-SMA, Female, Bulkhead

2.4 GHz: 0.2 dB MIN

5.2 GHz: 0.3 dB MIN

7-6

Enterprise Wireless LAN Antenna Specification Guide

Supported Lightning Arrestors

8.1 Lightning Arrestors

Motorola supports several lightning arrestors to support your unique AP-5131, AP-5181 or AP 300

(non-integrated antenna) deployment safety requirements. Check the Motorola Web site periodically, as new lightning arrestors will be added to this document as they are released. For more information, go to

http://support.symbol.com/support/product/manuals.do

.

For detailed information on supported lightning arrestors refer to:

ML-1499-LAK1-01R 1 ft. N Male to RP BNC Male Lightning Arrestor with Connector Seal Kit

ML-1499-LAK2-01R Lightning Arrestor Kit with N Male to N Male Barrel Adapter

ML-2452-LAK1-01R Lightning Arrestor (N Female to N Female) with N Male to RP-SMA Male Adapter

WARNING! The grounding lug on a lightning arrestor must be grounded in compliance with local electrical codes.

8-2

Enterprise Wireless LAN Antenna Specification Guide

8.1.1

ML-1499-LAK1-01R 1 ft. N Male to RP BNC Male Lightning Arrestor with Connector

Seal Kit

( )

ML-1499-LAK1-01R

Cable

RF Connectors

Arrestor RF Connectors

Black, Ultralink, RG-58

N (m) to RP. BNC (m)

N (f) to N (f)

Frequency

2400-2500 MHz

Insertion Loss - Lightning Arrestor

0.25 dB @ 2.4 GHz

Insertion Loss - Cable

0.6 dB @ 2.4 GHz

NOTE:

Not for use above 2500 MHz.

Supported Lightning Arrestors

8-3

8.1.2 ML-1499-LAK2-01R Lightning Arrestor Kit with N Male to N Male Barrel Adapter

ML-1499-LAK2-01R

RF Connectors

Arrestor RF Connectors

Frequency

Maximum RF Power

N (m) to N (m)

N (f) to N (f)

2400-2500 MHz

100 W

Insertion Loss - Lightning Arrestor

0.25 dB @ 2.4 GHz / 14 dB @ 5.5GHz

NOTE:

Not for use above 2500 MHz.

8-4

Enterprise Wireless LAN Antenna Specification Guide

8.1.3 ML-2452-LAK1-01R Lightning Arrestor (N Female to N Female) with N Male to RP-SMA Male Adapter

12 in. (30.5 cm)

ML-2452-LAK1-01R

Cable

Connectors - Cable

Frequency

Insertion Loss - Cable

Black, Ultralink, RG-58

N (m) to RP. SMA (m)

100-6000 MHz

0.6 @ 2.4 GHz, 1.4 @ 5.5 GHz

Insulation Resistance

Connectors - Lightning Arrestor

Weight

Operating Temperature

50 M-ohms

Type N (f) to N (f)

4.5 oz

- 40° to 85°C

Insertion Loss - Lightning Arrestor

0.14 @ 2.4 GHz, 0.35 @ 5.5 GHz

Mounting Kits

9.1 Mounting Kit Support

Motorola supports mounting kits to support your unique AP-5131, AP-5181 or AP 300 (non-integrated antenna) deployment. Check the Motorola Web site periodically, as new kits will be added to this document as they are released. For more information, go to

http://support.symbol.com/support/product/manuals.do

.

For detailed information on supported mounting kits refer to:

ML-1499-APAMK-01R Magnetic Base for ML-2452-APA2-01 with 6 Ft. Cable RP-SMA (Male)

ML-1499-SD3MK-01R Articulating I-Beam Mount Kit for ML-2499-SD3-01 Omni Antenna

9-2

Enterprise Wireless LAN Antenna Specification Guide

9.1.1

ML-1499-APAMK-01R Magnetic Base for ML-2452-APA2-01 with 6 Ft. Cable

RP-SMA (Male)

Cable

Connector 3

Connector 4

Attenuation (dB)

RG-178

RP-SMA, Male

RP-SMA, Female

2.6 @ 2.4 GHz; 4.6 @ 5.5 Ghz

9.1.2 ML-1499-SD3MK-01R Articulating I-Beam Mount Kit for ML-2499-SD3-01

Omni Antenna

Functionality

Mounts Part No. ML-2499-SD3-01 to an I-beam.

AP-5131 Antenna Connections

This chapter describes how the 2.4 and 5 GHz antennas described within this guide are physically connected to an AP-5131 model access point. Central in this discussion are descriptions of the single and dual-band antennas supported, their supported connector models and how lightning arrestors are supported for specific antenna and connector combinations.

For more information, see:

2.4 GHz AP-5131 Antenna Connections

5 GHz AP-5131 Antenna Connections

25-72178-01

25-85391-01R

25-85392-01R

25-90262-01R

25-90263-01R

P/N

25-97261-01R

25-99175-01R

ML-1499-100JK-01R

ML-1499-10JK-01R

ML-1499-25JK-01R

ML-1499-50JK-01R

ML-1499-72PJ-01R

ML-1499-LAK1 Cable

ML-1499-LAK1/2 Arrestor

ML-1499-LAK2 Adapter

ML-1499-RBNCA1-01R

ML-1499-RBNCA2-01R

ML-2452-LAK1 Arrestor

ML-2452-LAK1 Cable

100 ft

10 ft

25 ft

50 ft

6 ft

12 in.

2.25 in

1.5 in.

1 ft

1 ft

1.75 in.

12 in.

Length

3.1 in.

3.5 in

3.5 in

3.55 in.

3.55 in.

48 in.

1.5 in.

Conn 1

RSMA-m

RSMA-m

RSMA-m

RSMA-f

RSMA-f

N-m

N-f

N-f

N-m

N-f

N-m

N-m

N-m

N-m

N-m

N-m

N-m

RPBNC-f

N-m

Conn 2

RBNC-f

N-m

N-f bulkhead

N-f bulkhead

N-m

RBNC-m

N-f

N-m

N-m

N-m

N-m

RBNC-m

RBNC-m

N-f

N-m

RBNC-f

RBNC-f

N-m

RSMA-m

Attn 2.4

Attn 5.5

0.2 N/A

0.2

0.2

0.3

0.3

0.2

0.2

1.5 N/A

0.2

0.3

0.3

10.6

2

2.5

0.3

15.5

2.9

4

7 4.5

2.3 N/A

0.6 N/A

0.24 N/A

0.15 N/A

0.85 N/A

0.85 N/A

0.14

0.6

0.35

1.4

10-2

Enterprise Wireless LAN Antenna Specification Guide

10.1 2.4 GHz AP-5131 Antenna Connections

This section describes how the components described within this guide are used collectively in the following

AP-5131 installation scenarios supporting the 2.4 GHz band:

RP-BNC Male Antenna Installation

Type N Male Connector Installation

NOTE:

For information on the individual 2.4 GHz antennas approved for use with an

AP-5131, see

802.11b/g Antenna Suite

.

AP-5131 Antenna Connections

10-3

10.1.1 RP-BNC Male Antenna Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

2.4 GHz AP-5131 model access point using RP-BNC male antennas:

Antennas:

ML-2499-7PNA2-01R

ML-2499-11PNA2-01R

ML-2499-APA2-01R

ML-2499-HPA3-01R

ML-2499-PNAHD-01R

ML-2499-SD3-01R

3.11 in.

6 ft.

25-72178-01

0.2 dB loss

ML-1499-72PJ-01R

2.3 dB loss

(optional)

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

12 in.

25-85 3 92-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

25-99175-01

0.3 dB loss

ML-1499-RBNCA2-01R

0.9 dB loss

10-4

Enterprise Wireless LAN Antenna Specification Guide

Light n i n g A r essto r , A n te nn a side

Antennas:

ML-5299-PTA1-01R

ML-5299-WPNA1-01R

ML-5299-HPA1-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.55 in.

25-85 3 92-01R

0.3 dB loss

2.9 dB

4 dB

7 dB

15.5 dB

ML-2452-LAK1-01R

0.35 dB loss

25-9026 3 -01R

0.3 dB loss

Light n i n g A r essto r , AP side

Antennas:

ML-5299-PTA1-01R

ML-5299-WPNA1-01R

ML-5299-HPA1-01R

14 in.

ML-2452-LAK1-01R

1.6 dB loss @ 5.5 GHz

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.5 in.

2.9 dB

4 dB

7 dB

15.5 dB

25-90262-01R

0.3 dB loss

AP-5131 Antenna Connections

10-5

10.1.2

Type N Female Connector Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

2.4 GHz AP-5131 model access point using Type N female connectors:

Antennas:

ML-2499-BPDA1-01R

ML-2499-BPNA3-01R

ML-2499-BYGA2-01R

3.5 in.

25-85 3 91-01R

0.3 dB loss

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

25-85 3 92-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

!!

CAUTION:

The minimum cable configuration is required to meet regulatory requirements.

CAUTION:

The installation of lightning arrestors must meet local electrical codes.

!

10-6

Enterprise Wireless LAN Antenna Specification Guide

Light n i n g A r essto r , A n te nn a side

Antennas:

ML-2499-BPDA1-01R

ML-2499-BPNA3-01R

ML-2499-BYGA2-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.75 in.

25-85 3 92-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

ML-1499-LAK2-01R

0.4 dB loss

Light n i n g A r essto r , AP side

Antennas:

ML-2499-BPDA1-01R

ML-2499-BPNA3-01R

ML-2499-BYGA2-01R

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

14 in.

ML-2452-LAK1-01R

1.6 dB loss @ 5.5 GHz

2.0 dB

2.5 dB

4.5 dB

10.6 dB

AP-5131 Antenna Connections

10-7

10.1.3 Type N Male Connector Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

2.4 GHz AP-5131 model access point using Type N male connectors:

Antennas:

ML-2499-5PNL-72-N

ML-2499-FHPA5-01R

ML-2499-FHPA9-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

25-85 3 92-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

25-99175-01

0.3 dB loss

Antennas:

ML-2499-5PNL-72-N

ML-2499-FHPA5-01R

ML-2499-FHPA9-01R

3.5 in.

25-85 3 92-01R

0.3 dB loss

10-8

Enterprise Wireless LAN Antenna Specification Guide

Antennas:

ML-2499-HPA3-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

12 in.

25-85 3 92-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

ML-2452-LAK1-01R

0.35 dB loss

ML-1499-RBNCA2-01R

0.9 dB loss

Light n i n g A rr esto r , AP side

14 in.

ML-2452-LAK1-01R

1.6 dB loss @ 5.5 GHz

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

12 in.

2.0 dB

2.5 dB

4.5 dB

10.6 dB

ML-1499-RBNCA1-01R

0.9 dB loss

OR

12 in.

ML-1499-RBNCA2-01R

0.9 dB loss

AP-5131 Antenna Connections

10-9

10.2 5 GHz AP-5131 Antenna Connections

This section describes how the components described within this guide are used collectively in the following

AP-5131 installation scenarios supporting the 5 GHz band:

RP-SMA Male Antenna Installation

Type N Male Connector Installation

NOTE:

For information on the individual 5 GHz antennas approved for use with an

AP-5131, see

802.11a Antenna Suite

.

10.2.1 RP-SMA Male Antenna Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

5 GHz AP-5131 model access point using a RP-SMA male antenna (with no lightning arrestor):

Antennas:

ML-5299-PTA1-01R

ML-5299-WPNA1-01R

ML-5299-HPA1-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.5 in.

25-85 3 92-01R

0.3 dB loss

2.9 dB

4 dB

7 dB

15.5 dB

25-90262-01R

0.3 dB loss

10-10

Enterprise Wireless LAN Antenna Specification Guide

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

5 GHz AP-5131 model access point using a RP-SMA male antenna (with a lightning arrestor):

Light n i n g A r essto r , A n te nn a side

Antennas:

ML-5299-PTA1-01R

ML-5299-WPNA1-01R

ML-5299-HPA1-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.55 in.

25-85 3 92-01R

0.3 dB loss

2.9 dB

4 dB

7 dB

15.5 dB

ML-2452-LAK1-01R

0.35 dB loss

25-9026 3 -01R

0.3 dB loss

Light n i n g A r essto r , AP side

Antennas:

ML-5299-PTA1-01R

ML-5299-WPNA1-01R

ML-5299-HPA1-01R

14 in.

ML-2452-LAK1-01R

1.6 dB loss @ 5.5 GHz

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.5 in.

2.9 dB

4 dB

7 dB

15.5 dB

25-90262-01R

0.3 dB loss

AP-5131 Antenna Connections

10-11

10.2.2 Type N Male Connector Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

5 GHz AP-5131 model access point using Type N male connectors:

Antennas:

ML-2452-PNA5-01R

ML-5299-FHPA10-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

25-85392-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

25-99175-01

0.3 dB loss

10-12

Enterprise Wireless LAN Antenna Specification Guide

Light n i n g A r essto r , A n te nn a side

Antennas:

ML-2452-PNA5-01R

ML-5299-FHPA10-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

25-85392-01R

0.3 dB loss

2.9 dB

4 dB

7 dB

15.5 dB

ML-2452-LAK1-01R

0.3 dB loss

Light n i n g A r essto r , AP side

14 in.

Antennas:

ML-2452-PNA5-01R

ML-5299-FHPA10-01R

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

ML-2452-LAK1-01R

1.6 dB loss @ 5.5 GHz

2.9 dB

4 dB

7 dB

15.5 dB

25-99175-01

0.

3 dB loss

AP300 Antenna Connections

This chapter describes how the 2.4 and 5 GHz antennas described within this guide are physically connected to an AP300 model access port. The information in this chapter supports an AP300 external antenna model only.

For more information, see:

2.4 GHz AP300 Antenna Connections

5 GHz AP300 Antenna Connections

11.1 2.4 GHz AP300 Antenna Connections

This section describes how the components described within this guide are used collectively in the following

AP300 installation scenarios supporting the 2.4 GHz band:

RP-BNC Male Antenna Installation

Type N Female Connector Installation

Type N Male Connector Installation

11-2

Enterprise WLAN Antenna Specification Guide

11.1.1 RP-BNC Male Antenna Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

2.4 GHz AP300 model access port using RP-BNC male antennas:

AP 300

Antennas:

ML-2499-7PNA2-01R

ML-2499-11PNA2-01R

ML-2499-APA2-01R

ML-2499-HPA3-01R

ML-2499-PNAHD-01R

ML-2499-SD3-01R

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.5 in.

12 in.

25-116485-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

ML-1499-RBNCA1-01R

0.9 dB loss

OR

6 ft.

ML-1499-72PJ-01R

2.3 dB loss

(optional)

AP 300

AP 300

AP300 Antenna Connections

11-3

Light n i n g A rr esto r , A n te nn a side

Antennas:

ML-2499-HPA3-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

12 in.

25-116485-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

ML-2452-LAK1-01R

0.35 dB loss

ML-1499-RBNCA2-01R

0.9 dB loss

OR

48 in.

25-97261-01R

1.5 dB loss

Light n i n g A rr esto r , AP side

15 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

12 in.

ML-2499-LAK1-01R

0.8 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

ML-1499-RBNCA1-01R

0.9 dB loss

OR

12 in.

ML-1499-RBNCA2-01R

11-4

Enterprise WLAN Antenna Specification Guide

11.1.2 Type N Female Connector Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

2.4 GHz AP300 model access port using Type N female connectors.

AP 300

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

25-116485-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

OR

48 in.

25-97261-01R

1.5 dB loss

AP 300

AP 300

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.5 in.

3.75 in.

25-116485-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

ML-1499-LAK2-01R

0.4 dB loss

OR

48 in.

25-97261-01R

1.5 dB loss

AP300 Antenna Connections

11-5

Light n i n g A r essto r , AP side

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

15 in.

ML-2499-LAK1-01R

0.8 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

11-6

Enterprise WLAN Antenna Specification Guide

11.1.3 Type N Male Connector Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

2.4 GHz AP300 model access port using Type N male connectors:

AP 300

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

25-116485-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

25-99175-01

0.3 dB loss

OR

48 in.

25-97261-01R

1.5 dB loss

AP 300

Light n i n g A rr esto r , A n te nn a side

AP300 Antenna Connections

11-7

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

25-116485-01R

0.3 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

ML-1499-LAK2-01R

0.24 dB loss

OR

48 in.

25-97261-01R

1.5 dB loss

AP 300

Light n i n g A rr esto r , AP side

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

15 in.

ML-2499-LAK1-01R

0.8 dB loss

2.0 dB

2.5 dB

4.5 dB

10.6 dB

25-99175-01

0.3 dB loss

11-8

Enterprise WLAN Antenna Specification Guide

11.2 5 GHz AP300 Antenna Connections

This section describes how the components described within this guide are used collectively in the following

AP300 installation scenarios supporting the 5 GHz band:

RP-SMA Male Antenna Installation

Type N Male Connector Installation

11.2.1 RP-SMA Male Antenna Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

5 GHz AP300 model access port using a RP-SMA male antenna.

AP 300

Antenna:

ML-5299-HPA1-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.55 in.

25-85 3 92-01R

0.3 dB loss

2.9 dB

4 dB

7 dB

15.5 dB

ML-2452-LAK1-01R

0.35 dB loss

25-9026 3 -01R

0.3 dB loss

AP 300

AP300 Antenna Connections

11-9

Light n i n g A r essto r , A n te nn a side

Antenna:

ML-5299-HPA1-01R

3.5 in.

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.55 in.

25-85 3 92-01R

0.3 dB loss

2.9 dB

4 dB

7 dB

15.5 dB

ML-2452-LAK1-01R

0.35 dB loss

25-9026 3 -01R

0.3 dB loss

AP 300

Light n i n g A r essto r , AP side

Antenna:

ML-5299-HPA1-01R

14 in.

ML-2452-LAK1-01R

1.6 dB loss

ML-1499-10JK-01R - 10 ft.

ML-1499-25JK-01R - 25 ft.

ML-1499-50JK-01R - 50 ft.

ML-1499-100JK-01R - 100ft.

3.5 in.

2.9 dB

4 dB

7 dB

15.5 dB

25-90262-01R

0.3 dB loss

11-10

Enterprise WLAN Antenna Specification Guide

11.2.2 Type N Male Connector Installation

Refer to the following for a graphical depiction of the parts and connection options available for cabling an

5 GHz AP300 model access port using Type N male connectors:

AP 300

Antennas:

ML-2452-PNA5-01R

ML-5299-FHPA10-01R

3.5 in.

ML-1499-10JK-01R

- 10 ft.

ML-1499-25JK-01R

- 25 ft.

ML-1499-50JK-01R

- 50 ft.

ML-1499-100JK-01R

- 100ft.

25-85392-01R

0.3 dB loss

2.9 dB

4 dB

7 dB

15.5 dB

25-99175-01

0.3 dB loss

(optio n al)

AP 300

Light n i n g A r essto r , A n te nn a side

Antennas:

ML-2452-PNA5-01R

ML-5299-FHPA10-01R

3.5 in.

ML-1499-10JK-01R

- 10 ft.

ML-1499-25JK-01R

- 25 ft.

ML-1499-50JK-01R

- 50 ft.

ML-1499-100JK-01R

- 100ft.

25-85 3 92-01R

0.3 dB loss

2.9 dB

4 dB

7 dB

15.5 dB

ML-2452-LAK1-01R

0.3 dB loss

AP300 Antenna Connections

11-11

AP 300

Light n i n g A r essto r , AP side

14 in.

Antennas:

ML-2452-PNA5-01R

ML-5299-FHPA10-01R

ML-1499-10JK-01R

- 10 ft.

ML-1499-25JK-01R

- 25 ft.

ML-1499-50JK-01R

- 50 ft.

ML-1499-100JK-01R

- 100ft.

ML-2452-LAK1-01R

1.6 dB loss @ 5.5 GHz

2.9 dB

4 dB

7 dB

15.5 dB

25-99175-01

0.

3 dB loss

(optio n al)

11-12

Enterprise WLAN Antenna Specification Guide

Technical Support

Comprehensive on-line support is available at the Support Central site at

http://www.symbol.com/support/

. Support Central provides our customers with a wealth of information and online assistance including developer tools, software downloads, product manuals and online repair requests.

When contacting the Motorola Support Center, please provide the following information:

• serial number of unit model number or product name software type and version number.

A-

2

Enterprise Wireless LAN Antenna Specification Guide

North American Contacts

Support (for warranty and service information): telephone: 1-800-653-5350 fax: (631) 738-5410

Email:

[email protected]

International Contacts

Outside North America:

Motorola, inc.

Symbol Place

Winnersh Triangle, Berkshire, RG41 5TP

United Kingdom

0800-328-2424 (Inside UK)

+44 118 945 7529 (Outside UK)

Web Support Sites

Product Downloads

http://www.symbol.com/downloads

Manuals

http://support.symbol.com/support/product/manuals.do

Additional Information

Obtain additional information by contacting Motorola at:

1-800-722-6234, inside North America

+1-516-738-5200, in/outside North America

http://www.motorola.com/

MOTOROLA INC.

1303 E. ALGONQUIN ROAD

SCHAUMBURG, IL 60196

http://www.motorola.com

72E-125164-01 Revision A

May 2009

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
