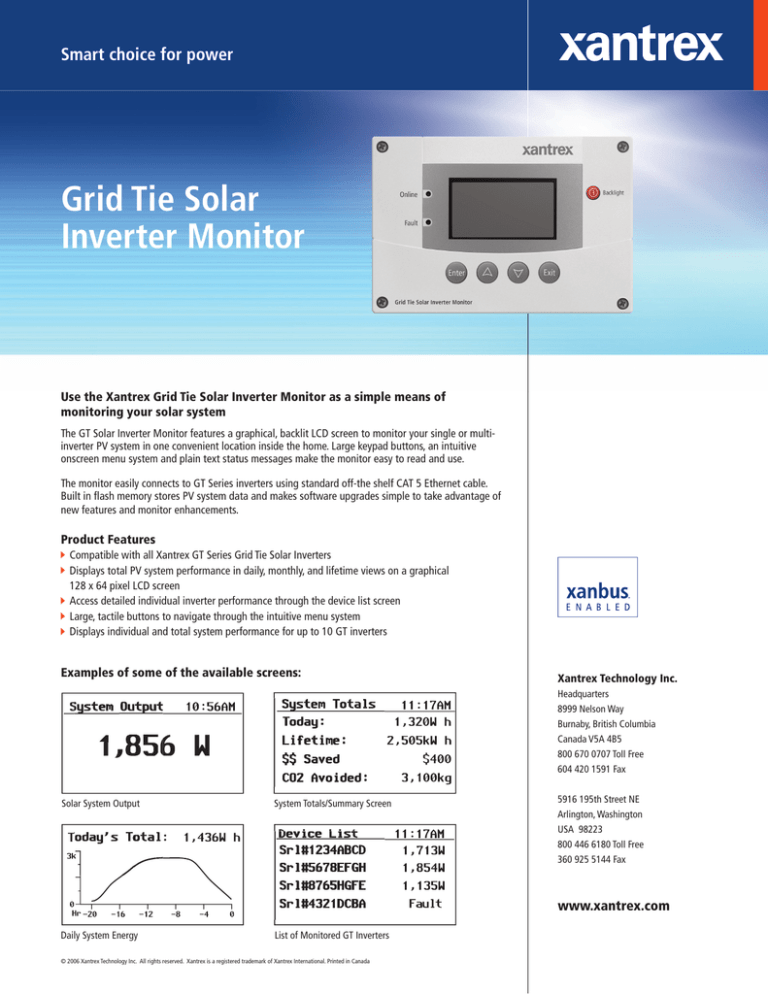

User manual | Grid Tie Solar Inverter Monitor Smart choice for power

Smart choice for power
Grid Tie Solar
Inverter Monitor
Use the Xantrex Grid Tie Solar Inverter Monitor as a simple means of
monitoring your solar system
The GT Solar Inverter Monitor features a graphical, backlit LCD screen to monitor your single or multiinverter PV system in one convenient location inside the home. Large keypad buttons, an intuitive
onscreen menu system and plain text status messages make the monitor easy to read and use.
The monitor easily connects to GT Series inverters using standard off-the shelf CAT 5 Ethernet cable.
Built in flash memory stores PV system data and makes software upgrades simple to take advantage of
new features and monitor enhancements.
Product Features
Compatible with all Xantrex GT Series Grid Tie Solar Inverters
Displays total PV system performance in daily, monthly, and lifetime views on a graphical
128 x 64 pixel LCD screen
Access detailed individual inverter performance through the device list screen
Large, tactile buttons to navigate through the intuitive menu system
Displays individual and total system performance for up to 10 GT inverters
Examples of some of the available screens:
Xantrex Technology Inc.
Headquarters
8999 Nelson Way
Burnaby, British Columbia
Canada V5A 4B5
800 670 0707 Toll Free
604 420 1591 Fax
Solar System Output
System Totals/Summary Screen
5916 195th Street NE
Arlington, Washington
USA 98223
800 446 6180 Toll Free
360 925 5144 Fax
www.xantrex.com
Daily System Energy
List of Monitored GT Inverters
© 2006 Xantrex Technology Inc. All rights reserved. Xantrex is a registered trademark of Xantrex International. Printed in Canada
Grid Tie Solar Inverter Monitor
Optional equipment for Xantrex GT Series inverters (240 Vac and 208 Vac)
Mechanical Specifications
Display
Dot matrix 128 x 64 LCD with white LED backlight
Dimensions (H x W x D)
6 x 4 x 1 9/16” (152 x 103 x 40 mm)
Weight
0.46 lb (0.207 kg)
Environmental Specifications
Operating temperature
-4 °C to 122°F (-20 °C to 50 °C)
Storage temperature
-40 °C to 185°F (-40 °C to 85 °C)
Regulatory Compliance
Safety
CSA certified to CSA 107.1-01 and IFCC Class B
Part number
864-0203
This booklet is printed on acid free, 10% post-consumer, elemental chlorine free Productolith paper stock.
© 2006 Xantrex Technology Inc. All rights reserved. Xantrex is a registered trademark of Xantrex International. Printed in Canada
DS20060529R02_gt-solar-monitor.indd
Note: Specifications subject to change without notice.
