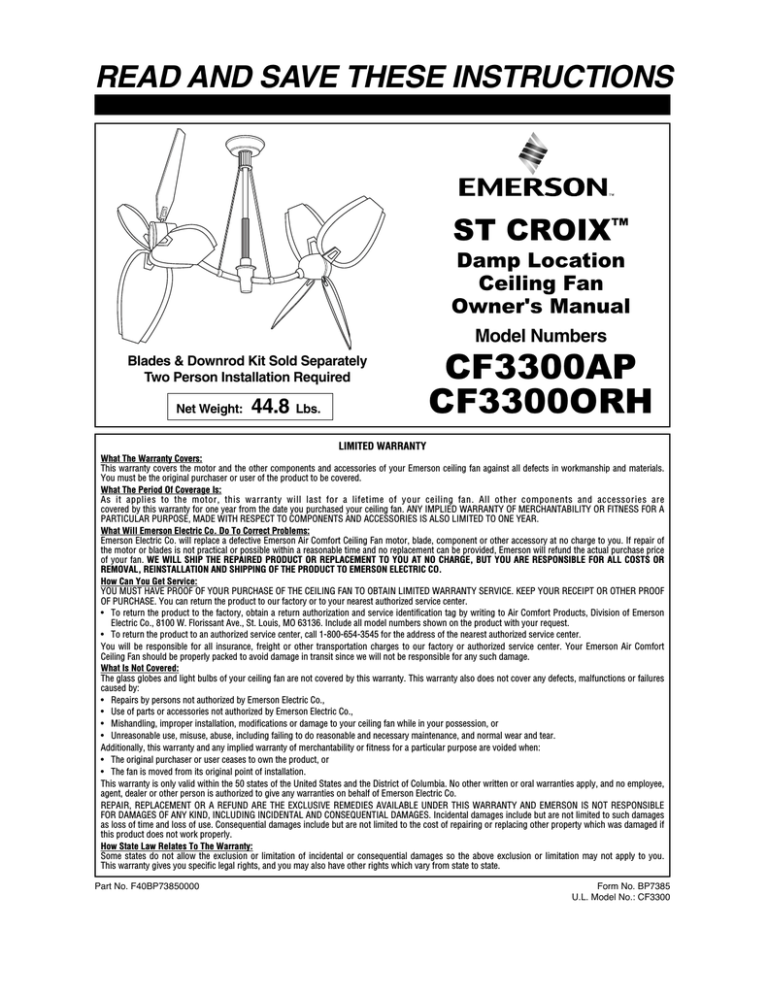

READ AND SAVE THESE INSTRUCTIONS
ST CROIX™
Damp Location
Ceiling Fan
Owner's Manual
Model Numbers
Blades & Downrod Kit Sold Separately
Two Person Installation Required
Net Weight:
44.8 Lbs.
CF3300AP
CF3300ORH
LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials.
You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for a lifetime of your ceiling fan. All other components and accessories are
covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of
the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price
of your fan. WE WILL SHIP THE REPAIRED PRODUCT OR REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS OR
REMOVAL, REINSTALLATION AND SHIPPING OF THE PRODUCT TO EMERSON ELECTRIC CO.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF
OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of Emerson
Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort
Ceiling Fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions or failures
caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no employee,
agent, dealer or other person is authorized to give any warranties on behalf of Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT RESPONSIBLE
FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages
as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if
this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Part No. F40BP73850000
Form No. BP7385
U.L. Model No.: CF3300
!
WARNING
WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.
Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the
service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off
the power to the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not
operate fan without blades.
2. All wiring must be in accordance with the National Electrical Codes “ANSI/NFPA 70-1999” and
Local Electrical Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling
fan must be grounded as a precaution against possible electrical shock. Electrical installation
should be made or approved by a licensed electrician.
3. The fan mounting bracket must be surely mounted and capable of reliably supporting at least 100
lbs. Outlet boxes are not acceptable for fan support. See Page 6 of owner’s manual for support
requirements. Consult a qualified electrician if in doubt.
CAUTION: To reduce the risk of personal injury, mount the fan base to a ceiling joist or structural
member using the hardware provided with your fan.
WARNING: Support Directly from Building Structure.
4. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental
contact with the fan blades.
5. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do
not know enough about electrical wiring, have your fan installed by a licensed electrician.
WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not
specifically approved for this fan.
WARNING: This product is designed to use only those parts supplied with this product and/or any
accessories designated specifically for use with this product by Emerson Electric Co. Substitution
of parts or accessories not designated for use with this product by Emerson Electric Co. could
result in personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the
blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
NOTE: This fan is suitable for use with solid-state speed controls.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed
control SW22, manufactured by Rhine Electric Co., Ltd.
WARNING: To reduce the risk of electrical shock, this fan must be installed with an isolating
wall control/switch.
WARNING: To reduce the risk of fire, electric shock, and injury to persons, ceiling fan must be
installed with fan blades and light kits that are marked to indicate the suitability with this model.
Other blades and light kits can not be substituted.
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label.
You should record this data above and keep it in a safe place for future use.
2
U.L. Model No.: CF3300
THIS FAN IS SUITABLE FOR DAMP LOCATIONS
SUCH AS COVERED PORCHES, COVERED PATIOS, AND COVERED
DECKS...ANYWHERE THERE IS A ROOF OVERHEAD.
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
One 1/4” blade screwdriver
One wire stripper
One 5/16” open end wrench or pliers
7/16”, 1/2” & 9/16” wrench or socket wrench
One 1/4” drill bit
MATERIALS
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would
be a 3-conductor (2-wire with ground) of following
size:
Installed Wire Length
Up to 50 ft.
50-100 ft.
!
Wire Size A.W.G.
14
12
WARNING
Before you assemble your ceiling fan, refer to
section on proper method of wiring your fan
(page 8). If you feel you do not have enough
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is completed, place a
check mark in the box. This will insure that all steps have been completed and will be helpful in finding
your place should you be interrupted.
!
WARNING
Do not install or use fan if any part is damaged
or missing. Call Toll-Free:
1-800-654-3545
!
WARNING
This product is designed to use only those
parts supplied with this product and/or any
accessories designated specifically for use
with this product by Emerson Electric Co.
Substitution of parts or accessories not
designated for use with this product by
Emerson could result in personal injury or
property damage.
1. Check to see that you have received the following
parts:
NOTE: If you are uncertain of part description,
refer to exploded view illustration.
NOTE: Blades and downrod kit sold separately.
a. Fan assembly
b. Two fan motor covers
c. One decorative downrod sleeve
d. One upper decorative downrod sleeve
assembly
e. One decorative strap ring
f. One ceiling canopy
g. Four right hand blade flanges
h. Four left hand blade flanges
i. One hanger ball/downrod extension assembly
j. One hanger bracket assembly
k. Eight blade medallions
l. One SW22 wall control with almond and
white knobs
3
m.Mounting bracket bag, containing:
1. One 3/8 x 2” lag bolt
2. One 3/8 x 5” lag bolt
3. Two 3/8” flat washers
4. One brass barrel nut
5. One bushing
6. One ceiling support cable
7. One 5/32 x 10mm phillips screw
n. One hardware bag, containing:
1. Five wire connectors
2. One 1/16” hex wrench
3. One clevis pin
4. One hair pin clip
5. Two threaded studs
6. Two lockwashers
7. Two knurled knobs
8. Two 5/16-18 x 1/4” cup point setscrews
9. One 3/16” hex wrench
o. One flange assembly bag, containing:
1. Seventeen #8-32 x 15mm flat head screws
p. Two blade assembly bags, each containing:
1. Twenty-five #10-32 x 18mm oval head
screws
q. One downrod assembly bag, containing:
1. Nine 1/4 x 10mm round head screws
NOTE: Keep all bags unopened until time of
assembly. Then place the parts from each loose
parts bags in a small container to keep them from
being lost. If any parts are missing, contact your
local retailer or catalog outlet for replacement
before proceeding.
2. Remove the fan assembly from the protective
plastic bag. Place the fan assembly into the foam
pad with the downrod coupling facing up.
The foam pad serves as a holder for the fan during
the first stages of assembly.
U.L. Model No.: CF3300
F. DECORATIVE
STRAP RING
D. UPPER
DECORATIVE
DOWNROD SLEEVE
A. FAN
ASSEMBLY
M. SW22
WALL
CONTROL
OFF
B. FAN MOTOR
COVERS (2)
C. DECORATIVE DOWNROD
SLEEVE ASSEMBLY
H. RIGHT HAND
BLADE FLANGES (4)
M. MOUNTING
BRACKET BAG
I.LEFT HAND BLADE
FLANGES (4)
N. HARDWARE
BAG
L. BLADE
MEDALLIONS (8)
G. CEILING
CANOPY
O. FLANGE
ASSEMBLY
BAG
E. DOWNROD
EXTENSION
K. HANGER BRACKET
ASSEMBLY
J. HANGER BALL/
DOWNROD
EXTENSION
P. BLADE
ASSEMBLY
BAGS
Q. DOWNROD
ASSEMBLY
BAG
How to Put Your Ceiling Fan Together
1. Loosely install both 5/16-18 x 1/4” cup point
setscrews (supplied) into the downrod coupling.
Separate, untwist and unkink the three 80” motor
leads and support wire. Route the motor lead wires
and support wire through the downrod extension.
Align the clevis pin holes in the downrod extension
with the holes in the downrod coupling. Install the
clevis pin and secure with the hairpin clip
(Figure 1). The clevis pin must go through the
holes in the downrod coupling and the holes in the
downrod extension. Be sure to push the straight leg
of the hairpin clip through the hole near the end of
the clevis pin until the curved portion of the hairpin
clip snaps around the clevis pin. The hairpin clip
must be properly installed to prevent the clevis pin
from working loose. Pull on the downrod extension
to make sure the clevis pin is properly installed.
DOWNROD
EXTENSION
CLEVIS PIN
DOWNROD
COUPLING
NOTE: For ease of installation, loosely tape the
ends of the motor leads and the support wire
together to route through downrod during fan
installation.
3. Route the motor leads and support wire through
the downrod (Figure 2).
4. Securely attach the downrod to the downrod
extension using the four 1/4 x 10mm round head
screws (supplied in the downrod assembly bag).
The round head screws must be fully tightened into
the downrod extension. A loose downrod will result
with fan assembly noise and vibration.
WARNING
It is critical that the clevis pin in the downrod
coupling is properly installed and the
setscrews securely tightened. Failure to verify
that the pin and setscrews are properly
installed (as shown in Figure 1) could result in
the fan falling.
5/16-18 x 1/4" CUP
POINT SETSCREW (2)
Figure 1
2. While pulling up on the downrod extension,
securely tighten the two setscrews in the downrod
coupling using the 3/16” hex wrench (supplied).
The setscrews must be tightened into the downrod
extension. A loose extension downrod will result
with fan assembly noise and vibration.
!
HAIRPIN
CLIP
4
U.L. Model No.: CF3300
7. Route the motor lead wires and support wire
through the upper decorative downrod sleeve and
the decorative strap ring (Figure 4). Careful not to
scratch the downrod with the sleeve and ring
during installation.
DOWNROD
1/4 x 10mm ROUND
HEAD SCREW (4)
DOWNROD
EXTENSION
NOTE: Be careful not to scratch the downrod
during installation.
8. Position the upper decorative downrod sleeve and
the decorative strap ring just above the decorative
downrod sleeve assembly during initial installation
(Figure 4).
DOWNROD
DECORATIVE
STRAP RING
Figure 2
5. Route the motor lead wires and support wire
through the decorative downrod sleeve assembly.
Carefully slide the decorative downrod sleeve
assembly over the downrod and set firmly on
downrod coupling (Figure 3).
UPPER DECORATIVE
DOWNROD SLEEVE
6. Using the hex wrench (supplied), tighten the three
setscrews located at the top of the decorative
downrod sleeve assembly (Figure 3).
DOWNROD
SETSCREW (3)
NOTE: It is important that all setscrews are
securely tightened and the decorative downrod
sleeve assembly is secure. To not overtighten
setscrews.
Figure 4
NOTE: Apply masking tape to the entire edge of
the ceiling canopy center hole to prevent
accidental scratching of downrod surface
(Figure 5).
DOWNROD
9. Route the motor lead wires and support wire
through the ceiling canopy (Figure 5). Use extreme
caution not to scratch the downrod with the ceiling
canopy during installation.
SETSCREW (3)
DOWNROD
CEILING
CANOPY
DECORATIVE
DOWNROD SLEEVE
ASSEMBLY
MASKING
TAPE
Figure 5
NOTE: Be careful not to scratch the downrod
during installation.
Figure 3
5
U.L. Model No.: CF3300
10. Route the motor lead wires and support wire
through the downrod extension and the hanger
ball (Figure 6).
11. Securely attach the downrod to the downrod
extension/hanger ball using the four 1/4 x 10mm
round head screws (supplied in the downrod
assembly bag) (Figure 6). The round head screws
must be fully tightened into the downrod
extension. A loose downrod will result with fan
assembly noise and vibration.
12. Be sure the hanger ball setscrews are securely
tighten at this time.
13. The fan comes with blue, black and white leads
that are 80-inches long. Before installing the fan,
measure up approximately 6 to 9-inches above
top of hangerball/downrod assembly. Cut off
excess leads and strip back insulation 1/2-inch
from end of leads.
PIN
HANGER BALL
DOWNROD
EXTENSION
SETSCREW
1/4 x 10mm ROUND
HEAD SCREW (4)
DOWNROD
CEILING
CANOPY
Figure 6
14. Downrod assembly is now complete.
Electrical Requirements
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
!
The fan hanger bracket assembly shall be supported
directly from the supporting building structure. An
electrical box is not acceptable for fan support. The
building structure must be capable of supporting a
load of at least 100 pounds. Consult a qualified
professional to determine if your installation meets the
structural requirements.
WARNING
To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box
before wiring.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for
advise, as it must be grounded for safe
operation.
!
WARNING
To avoid fire or shock, follow all wiring
instructions carefully.
Any electrical work not described in these
instructions should be done or approved by a
licensed electrician.
How to Hang Your Ceiling Fan
IMPORTANT
CEILING
Do not attach fan blades to fan assembly until the
fan assembly is securely installed to the ceiling.
Hanging the fan with blades attached may result
in damage to the fan blades.
!
WARNING
AT
LEAST
7'
The fan must be hung with at least 7' of
clearance from floor to blades (Figure 7).
Figure 7
!
WARNING
FLOOR
Support directly from building structure.
Structure must be capable of reliably
supporting 100 pounds.
6
U.L. Model No.: CF3300
1. Securely attach the ceiling support wire to the
ceiling joist or structural member using the 3/8 x 2”
hex lag bolt and flat washer. Drill a maximum
diameter 1/4” pilot hole into the supporting member
to prevent splitting or cracking. Install a washer
onto the screw and insert the screw through one of
the loops (Figure 8). Securely tighten the screw
into the structure.
!
Hanger bracket must seat firmly against outlet
box. If the outlet box is recessed, remove wall
board until bracket contacts box. If bracket
and/or outlet box are not securely attached, the
fan could wobble or fall.
IMPORTANT
!
Do not use any lubricant when installing the lag
bolts.
WARNING
Failure to seat tab in groove could cause
damage to electrical wires and possible shock
or fire hazard.
IMPORTANT
The pilot holes should be drilled no larger than
the minor diameter of the mounting screw
threads, and at least 1-1/2 inches of the threaded
part of the mounting screw should be inches
secured into a structural wood joist to provide
secure mounting.
2. Drill a second maximum diameter 1/4” pilot hole up
through the center of the electrical box (Figure 8).
Install the hanger bracket assembly using 3/8 x 5”
lag bolt and 3/8” flat washer. Route the electrical
supply wires through the opening provided on the
hanger bracket. Do not completely tighten the lag
bolt, leave it lose enough such that the hanger
bracket assembly can be freely rotated against the
electrical box.
3. Temporarily hang the ceiling fan assembly on the
hanger bracket, be sure the hanger ball groove
engages the hanger bracket tab. Rotate the fan
assembly and hanger bracket to the desired
orientation. Remove the fan assembly from the
hanger bracket.
4. Completely tighten the center lag bolt while holding
the hanger bracket in the desired position.
WOOD MEMBER
(2" x 4" Approx.)
WARNING
NOTE: If not done so already, carefully remove
the masking tape applied to the motor leads and
support wire to complete wiring.
5. Position the motor lead wires and support cable on
the back side of the hanger bracket for final
connection to the electrical supply wires.
6. Carefully lift the fan assembly and seat the
hangerball/downrod fan assembly into the hanger
bracket. Be sure the groove in the hanger ball lines
up with the tab on the hanger bracket
(Figure 9).
7. Install the end of the fan support cable through the
center of the small brass bushing (supplied). Do
not allow the bushing to slide down the cable and
into the downrod. Now pass the fan support cable
through the loop provided on the free end of the
ceiling support cable previously installed into the
building structure. Next, pass the fan support cable
back through the center of the small brass bushing
in the opposite direction as the first pass. Pull as
much cable as possible through the brass bushing
(Figure 9A).
CEILING JOIST
SHORT CABLE
ASSEMBLY
ATTACHED TO
CEILING
SMALL BRASS
BARREL BUSHING
CEILING
OUTLET BOX
CEILING
SUPPORT CABLE
HANGER
BRACKET
Figure 8
IMPORTANT
If you are installing your ceiling fan on a sloped
ceiling, the hanger bracket must be mounted with
the hanger ball opening facing up-slope.
!
ATTACH SUPPORT WIRE
TO CEILING SUPPORT
WIRE
WARNING
To avoid possible fire or shock, do not pinch
wires between the hanger ball/downrod
assembly and hanger bracket.
HANGER BALL TAB
HANGER BALL/DOWNROD
ASSEMBLY
Figure 9
7
U.L. Model No.: CF3300
8. Insert the fan cable through the hole of the large
brass barrel nut (supplied) and push it up the cable
to within one inch of the small brass bushing. Pass
the free end of the cable back through the large
brass barrel nut in the opposite direction and
remove as much slack as possible.
9. Full tighten the 5/32 phillips head screw on the
brass barrel nut to secure the fan cable in position.
Cut off and discard the excess fan cable protruding
from the brass barrel nut (Figure 9B).
LOOP THE CABLE
BACK INTO THE
LARGE BARREL
NUT
PASS THE FAN CABLE
THROUGH THE LOOP
AND BACK INTO THE
SMALL BARREL
BUSHING
INSTALL LARGE
BRASS BARREL NUT
ONTO THE CABLE
FAN CABLE
FAN CABLE
FAN
CABLE
LARGE BRASS
BARREL NUT
SMALL
BARREL
BUSHING
LARGE BRASS
BARREL NUT
Figure 9B
Figure 9A
How to Wire Your Ceiling Fan
2. Securely connect the fan motor white wire to the
supply white (neutral) wire using wire connector
supplied (Figure 10). Securely connect the fan
motor black wire to the supply black (hot) wire
using wire connector supplied (Figure 15). The
blue wire is for optional light kit accessory. Do not
connect the blue wire to the supply black wire. Cap
the blue wire with a wire connector supplied. After
connections have been made, turn leads upward
and carefully push leads into the outlet box, with
the white and green leads on one side of the outlet
box and the black and blue leads on the other side
of the outlet box.
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
!
WARNING
To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box
before wiring.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for
advice, as it must be grounded for safe
operation.
1. Connect the green grounding lead from the hanger
ball and the green grounding lead from the hanger
bracket to the grounding conductor of supply (this
may be a bare wire or wire with green colored
insulation). Securely connect wires with wire
connectors supplied. (Figure 10.)
!
SUPPLY
GROUND
WIRE
BLACK
FAN WIRES
NOTE: CEILING COVER
OMITTED FOR CLARITY.
LISTED
WIRE
CONNECTOR (3)
WHITE SUPPLY
(NEUTRAL)
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
WHITE FAN
WIRE
WARNING
This product is designed to use only those
parts supplied with this product and/or any
accessories designated specifically for use
with this product by Emerson Electric Co.
Substitution of parts or accessories not
designated for use with this product by
Emerson Electric Co. could result in personal
injury or property damage.
BLACK SUPPLY (HOT)
GREEN WIRE
(GROUND) FROM
HANGER BALL
THREADED
STUD (2)
Figure 10
!
WARNING
Check to see that all connections are tight,
including ground, and that no bare wire is
visible at the wire connectors, except for the
ground wire. Do not operate fan until blades are
in place. Noise and fan damage could result.
8
U.L. Model No.: CF3300
NOTE: Carefully remove the masking tape applied
to the center hole of ceiling cover, still taking
caution to not scratch downrod during
installation.
#10-32 X 18mm OVAL HEAD
SCREWS (3 per flange)
MEDALLION
3. Screw the two threaded studs (supplied) into the
tapped holes in the hanger bracket.
BLADE (sold
separately)
4. Lift the ceiling canopy up to the threaded studs and
turn until studs protrude through the holes in the
ceiling cover (Figure 11).
FLANGE
Figure 12
5. Secure the ceiling canopy in place by sliding
lockwashers over the threaded studs and installing
the two knurled knobs (supplied). (Figure 11.)
Tighten the knurled knobs securely until the ceiling
canopy fits snugly against the ceiling and the hole
in the ceiling canopy is clear of the downrod.
2. Assemble remaining seven blades per previous
instructions.
NOTE: Take care not to scratch fan blades while
installing flanges.
Blade Assembly Installation:
3. With the fan suspended on the ceiling, install each
blade assembly onto the color coded motor hub by
sliding the tip of each blade flange into one of the
four large mounting holes on the exterior of each
motor hub. The flange tip and mounting hole are
keyed to ensure correct installation, do not force
the parts together. Secure the blade assembly to
the motor hub using two #8-32 x 15mm flat head
screws provided (Figure 13).
NOTE: Be sure to match the blade flange color
code with the same matching color code on the
motor.
1-1/4" THREADED
STUD (2)
CEILING
CANOPY
#8 EXTERNAL TOOTH
LOCKWASHER (2)
4. Repeat flange/blade assembly instructions for
remaining three blades per each fan motor hub
assembly.
#8-32 KNURLED
KNOB (2)
Figure 11
!
NOTE: Take care not to scratch fan housing when
installing blades.
WARNING
To avoid possible fire or shock, make sure that
the electrical wires are completely inside the
outlet box and not pinched between the ceiling
canopy and the ceiling.
FLANGE/BLADE ASSEMBLY
#8-32 x 15mm FLAT HEAD SCREW
(2 per flange/blade assembly)
Blade Installation
FAN MOTOR
ASSEMBLY
NOTE: The right hand and left hand blade flanges
are color coded and to be installed on the
matching color coded motor for correct operation
of the fan.
1. Assemble one flange and one medallion to each
blade (sold separately) as shown (Figure 12) using
#10-32 x 18mm oval head screws (provided).
NOTE: Be careful not to scratch the blade surface
during installation.
Figure 13
9
U.L. Model No.: CF3300
5. Thread the fan motor cover onto the fan motor
assembly threaded nipple and rotate cover
clockwise to tighten securely. (Figure 14).
6. Repeat fan motor cover instructions for second fan
motor assembly.
CEILING
CANOPY
DECORATIVE
STRAP RING
SETSCREW (4)
FAN ASSEMBLY
STRAP SLOT
UPPER DECORATIVE
DOWNROD SLEEVE
DOWNROD
Figure 15
4. Attach the decorative straps to the upper ring using
the flat head screw and nut (provided in the
downrod kit), Figure 16.
FAN MOTOR
ASSEMBLY
THREADED NIPPLE
Figure 14
FAN MOTOR COVER (1 FOR
EACH FAN MOTOR ASSEMBLY)
DECORATIVE
STRAP RING
Final Installation
FLAT HEAD
SCREW
CEILING
CANOPY
NUT
UPPER DECORATIVE
DOWNROD SLEEVE
NOTE: Be careful not to scratch the downrod
while moving the sleeve.
DECORATIVE
STRAP
DOWNROD
1. Loose the setscrew on the upper decorative
downrod sleeve and gently slide it up toward the
ceiling canopy (Figure 15).
2. Position the top of the decorative strap ring
approximately 1/4” below the knurled nuts on the
canopy cover. The strap ring must not make
contact with the knurled nuts to allow the fan to
freely pivot on the hanger ball. Align the support
strap ring so that the slots are in the same position
as the slots of the strap supports on the fan
assembly below (Figure 15).
Figure 16
5. Assemble the buckle onto the decorative strap
(Figure 17).
6. Slide the strap back through the buckle as shown
in Figure 17.
3. Tighten the four setscrews in the upper decorative
downrod sleeve to secure the decorative strap ring
and upper decorative downrod sleeve to the
downrod (Figure 15).
7. Position the buckle on the strap as desired.
NOTE: Do not over tighten the straps, the tension
should be snug but not over tight.
8. Slide the other end of the decorative strap through
the fan assembly strap slot (Figure 17).
9. Assemble the second decorative strap to the other
side of strap support on the fan assembly as
previously instructed.
10
U.L. Model No.: CF3300
Control Operation:
BUCKLE
GRN
BLK
WHT
120 VAC SUPPLY
(User Supplied)
GRN - From Bracket
WHT - TO MOTOR
BLK - TO MOTOR
BLUE - Not Used
BLK
DECORATIVE
STRAP
FAN LOAD
BLK HOT
FAN ASSEMBLY
STRAP SLOT
Figure 18
Figure 17
4. Position the faceplate (not provided) onto the
speed control. Using the two 6-32 screws supplied
with the faceplate, screw the faceplate and speed
control to the wall outlet box (Figure 19).
10. This completes the installation of your ceiling fan.
5. Press knob onto the shaft and rotate counterclockwise to the full-OFF position.
How to Wire Your Ceiling
Fan - SW22 Wall Control
!
6. Restore power at the main fuse box or circuit
breaker panel.
WALL OUTLET
BOX
WARNING
To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box
before wiring.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for
advice, as it must be grounded for safe
operation.
This control is designed to operate two ceiling
fans, and not any accessory light kits. The SW22
speed control is rated for 3.0 amps at 120 volts.
SW22 WALL CONTROL
FACEPLATE
6-32 SCREWS (2)
NOTE: Electrical connections should be in
accordance with the National Electrical Codes and
all Local Codes. Before starting, disconnect
power to the circuit at the fuse box or circuit
breaker panel.
Figure 19
The SW22 Wall Control has one high speed and one
low speed setting. From the OFF position, rotate the
knob in the clockwise direction to the high position.
For low speed, rotate the knob clockwise to the next
position. Turn the fans off by fully rotating the knob
counter-clockwise to the OFF potion (Figure 20).
1. Set the SW22 Wall Control in the off position (full
counter-clockwise), and pull off the knob.
2. Connect one BLACK wire from the SW22 Wall
Control to the supply HOT lead with a wire
connector (provided) (Figure 18).
3. Connect the other BLACK wire from the SW22 Wall
Control to the Black LOAD wire with a wire
connector (provided) (Figure 18) .
NOTE: Use wire connectors (supplied) to secure
electrical connections.
Figure 20
11
U.L. Model No.: CF3300
Reversing Air Flow Direction:
AIR DIRECTION SWITCH
(1 switch located on each
fan housing)
7 If airflow is desired in the opposite direction, turn
the fans off at wall control and wait for the blades
to stop turning. Then slide the reversing switches,
located on both housings, to the opposite position
(Figure 21) and turn the fan on again. The blades
will turn in the opposite direction and reverse the
airflow.
FAN HOUSING
Figure 21
Accessories
Maintenance
1. Ceiling Fan Light Kits (see store or catalog).
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
2. Ceiling Fan/Light Controls (see store or catalog).
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
3. Downrod Extension Kits (see store or catalog).
When cleaning, use only a soft brush or lint free cloth
to avoid scratching the finish.
!
The use of any other control not specifically
approved for this fan could result in fire, shock
and personal injury.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
!
WARNING
WARNING
!
Do not use water when cleaning your ceiling
fan. It could damage the motor or the blades
and create the possibility of an electrical shock.
WARNING
This product is designed to use only those
parts supplied with this product and/or any
accessories designated specifically for use
with this product by Emerson Electric Co.
Substitution of parts or accessories not
designated for use with this product by
Emerson Electric Co. could result in personal
injury or property damage.
12
U.L. Model No.: CF3300
!
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER
BEFORE TROUBLE SHOOTING YOUR FAN.
Trouble Shooting
TROUBLE
PROBABLE CAUSE
SUGGESTED REMEDY
1. Fan will not start. 1. Fuse or circuit breaker blown.
1. Check main and branch circuit fuses or circuit breakers.
2. Loose power line connections to the fan, or loose 2. Check line wire connections to fan and switch wire
switch wire connections in the switch housing.
connections in the switch housing.
!
3. Reversing switch in neutral position.
3. Make sure reversing switch position is all the way to one
side.
2. Fan sounds noisy. 1. Blades not attached to fan.
1. Attach blades to fan before operating.
2. Screws securing fan blade flanges to motor
are loose.
2. Check to make sure the screws which attach the fan flanges
to the motor are tight.
3. Wire connectors inside switch housing rattling.
3. Check to make sure wire connectors in switch housing are
not rattling against each other or against the interior wall
of the switch housing.
!
3. Fan wobbles
excessively.
WARNING: Make sure main power is turned off.
WARNING:Make sure main power is turned off.
4. Motor noise caused by solid-state variable
speed control.
4. Some fan motors are sensitive to signals from Solid-State
variable speed controls. If Solid-State Control is used and
motor noise results choose an alternative control method.
5. Screws holding blades to flanges are loose.
5. Tighten screws securely.
1. Setscrews in motor coupling are not
tightened securely.
1. Unscrew screws with hex wrench, raise decorative
downrod sleeve and tighten setscrews securely.
2. Setscrew in the hanger ball/downrod assembly
is loose.
2. Tighten the setscrew in the hanger ball/downrod assembly.
3. Screws securing fan blade flanges to motor
are loose.
3. Check to be sure screws which attach the fan blade flanges
to the motor are tight.
4. Fan blade flanges not seated properly.
4. Check to be sure the fan blade flanges seat firmly and
uniformly to the surface of the motor. If flanges are
seated incorrectly, loosen the flange screws and retighten
according to the procedure in the
section on "How to Put Your Ceiling Fan Together".
5. Hanger bracket and/or ceiling outlet box is not
5. Tighten the hanger bracket screws to the outlet box,
and/or secure securely fastened outlet box.
6. Fan blades out of balance.
6. Interchanging an adjacent (side-by-side) blade pair can
redistribute the weight and result in smoother operation.
13
U.L. Model No.: CF3300
Repair Parts
1
2
19
10
3
OFF
18
25
4
28
12
20
21
30
13
5
14
15
16
6
17
DOWNROD KIT SOLD SEPARATELY
27
BLADES - SOLD
SEPARATELY
BLADES - SOLD
SEPARATELY
7
9
8
11
26
26
25
11
25
3
29
23
22
31
14
32
U.L. Model No.: CF3300
Repair Parts Listing
Key
No.
Model Numbers
CF3300AP00
CF3300ORH00
Hanger Bracket Assembly,
Consisting of:
Structural Mounting Plate
Hanger Bracket
763548
763548
—
—
—
—
763550
763550
*
Hanger Ball Assembly,
Consisting of:
Hanger Ball
—
—
3
Downrod Extension (1)
763553
763553
4
Ceiling Canopy
763552
763552-1
5
Upper Trim Ring
763554
763554-1
6
Upper Decorative Sleeve
763555
763555-1
7
Decorative Downrod Sleeve Assembly
763563
763563-1
8
Blade Flange Set Clockwise (4)
763577
763577-1
9
Blade Flange Set Counter-Clockwise (4)
763579
763579-1
10
SW22 Wall Control
763859
763859
11
Blade Medallion (8)
763575
763575-1
*
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Bag Assembly, Containing:
3/8 x 2” Lag Bolt (1)
3/8 x 5” Lag Bolt (1)
3/8” Flat washer (2)
Barrel Nut (1)
Bushing (1)
5/32 x 10mm Phillips Screw (1)
Wire Connector (5)
Threaded Stud (2)
Lockwasher (2)
Knurled Knob (2)
Pin, Clevis (1)
Clip, Hairpin (1)
Hex Wrench (1)
Screw, Flat Head, #8-32 x 15mm (17)
Screw, Oval Head, #10-32 x 18mm (25)
Screw, Round Head, 1/4 x 10mm (9)
3/16” Hex Wrench (1)
5/16-18 x 1/4” Cup Point Setscrew (2)
Support Cable Assembly (1)
763587
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
763587
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
31
Motor
763867
763867
32
Hub, Rubber
760601
760601
—
Owner's Manual
BP7385
BP7385
1
*
*
2
Description
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
• PART NUMBER
• NAME OF ITEM
• PART DESCRIPTION
• MODEL NUMBER
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone 1-800-654-3545.
15
U.L. Model No.: CF3300
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant • St. Louis, MO 63136
Part No. F40BP73850000
Printed in China 02/09
Form No. BP7385
U.L. Model No.: CF3300
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
