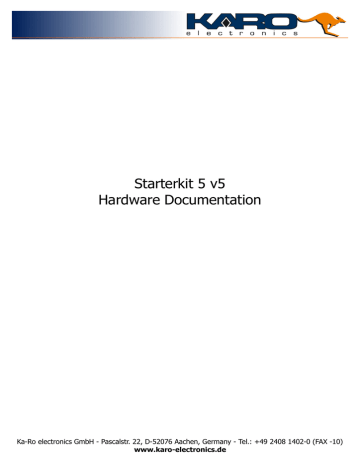

Starterkit 5 v5
Hardware Documentation
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
Starterkit 5 v5
Table of contents
1 Introduction...................................................................................................................................3
1.1 Base Board..............................................................................................................................3
2 Hardware.......................................................................................................................................5
2.1 Blockdiagram...........................................................................................................................5
2.2 Jumper....................................................................................................................................6
2.2.1 ST3-BOOTMODE...............................................................................................................6
2.2.2 ST14, ST15 Resistive TOUCH............................................................................................6
2.2.3 ST7 CAN..........................................................................................................................7
2.2.4 ST31-35 PolyTouch............................................................................................................7
2.3 Pin Description.........................................................................................................................8
2.3.1 ST13 JTAG ICE Interface..................................................................................................8
2.3.2 ST1, ST2 CAN-A, CAN-B...................................................................................................9
2.3.3 ST6 Family Concept LCD..................................................................................................10
2.3.4 ST9 RS232 (UART-A).......................................................................................................11
2.3.5 ST4, ST5 RS232 (UART-C, UART-B).................................................................................12
2.3.6 ST19 Ethernet................................................................................................................13
2.3.7 ST17 USB Host Interface................................................................................................14
2.3.8 ST12 USB OTG...............................................................................................................15
2.3.9 X1 LCD 40-pin header ...................................................................................................16
2.3.10 ST20 Power Supply........................................................................................................17
2.3.11 ST8 Line-Out.................................................................................................................18
2.4 Component Locations.............................................................................................................19
3 Document revision history.............................................................................................................20
2/20
2012-04-12
Hardware Documentation
Starterkit 5 v5
1 Introduction
The Ka-Ro Starterkit’s are ready-to-use development systems for building applications based on the
Ka-Ro embedded processor modules.
1.1 Base Board
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DIMM200 TX socket
SD-card socket
USB 2.0 OTG connector
USB 2.0 Host connector
40pin LCD flat cable header
40pin LCD Family Concept connector
3.5mm headphone connector
JTAG interface
SGTL5000 audio codec
TSC2003 touchscreen controller
RS232 on 10pin flat cable and SUB-D header
All pins of the TX socket are connected to
daughter board slot for easy application
design-in
10/100 Mbit/s Ethernet
Dual CAN
5VDC Power Supply by USB-OTG or power
jack.
100mm x 148mm
Schematics of the base board
are included for reference.
Only for 3.3V TX modules, no level shifter
Connects directly to Glyn Family Concept and
PolyTouch Family Concept displays.
Can be mounted behind 5.7” VGA display
Hardware Documentation
2012-04-12
3/20
Starterkit 5 v5
1
2
3
4
5
6
19
20
17
7
22
12
16
21
18
8
15
9
13
14
10
12
11
4/20
Four 50pin debug headers
1
CAN 1
12
2
CAN 2
13
SD-Card 1
3
BOOTMODE
14
Power supply input
4
Family Concept LCD
15
USB-Host
5
RS232 - 3rd UART
16
USB-OTG
6
RS232 - 2nd UART
17
Audio out
7
RS232 - 1st UART
18
User button
8
Resistive Touch jumper
19
CAN jumper
9
PolyTouch jumper
20
LCD connector
10
Ethernet
21
JTAG ICE connector
11
Status LEDs
22
RESET button
2012-04-12
Hardware Documentation
Starterkit 5 v5
2 Hardware
2.1 Blockdiagram
JTAG
20-pin ICE connector
3.3V /2A
regulator
LCD power supply
VIN
Power
Supply
3V3
DC-Jack
USB
Power
supply
GOLDCAP
VBACKUP
USB HOST/DEVICE
USBHOST
USB HOST
Ethernet
Ethernet
UART1
UART2
UART3
SSI1
I2C
TOUCH
4x 50pin pin headers
USBOTG
Mini USB type A/B
USB type A
RJ45 with magnetics
RS232
2x MAX3243
RS232
RS232
I2S
SGTL5000
I2C
audio
out
SUB-D9
flat cable header
flat cable header
3.5mm headphone
TSC2003
4-wire resistive touch
PolyTouch
40-pin flat cable header
PWM
Family Concept header
Dimming
LCD
SD1
2x CAN
SD-Card slot
CAN
2x SN65HVD230
KEYPAD
KEYPAD button
power on reset
TX
Module
Hardware Documentation
flat cable header
flat cable header
RESET button
bootmode
2012-04-12
5/20
Starterkit 5 v5
2.2 Jumper
ST3-BOOTMODE
ST14, ST15 TOUCH
GND
2.2.1 ST3-BOOTMODE
closed
Boot from USB/UART (SD-Card - TX28 only)
open
Boot from NAND (default)
2.2.2 ST14, ST15 Resistive TOUCH
TX53: – Resistive Touch panel connected to TSC2003
TX25, TX28: – Resistive Touch panel connected to TX module
6/20
2012-04-12
Hardware Documentation
Starterkit 5 v5
ST7-CAN
ST31-35
GND
2.2.3 ST7 CAN
120R Termination on CAN0 & CAN1
(default open)
Bypass R13: SN65HVD230 Rs connected to LCD[0]
(default open)
2.2.4 ST31-35 PolyTouch
PolyTouch panel connected (default)
Resistive Touch panel connected
(refer also to chap. 2.2.2 ST14, ST15 Resistive TOUCH )
Hardware Documentation
2012-04-12
7/20
Starterkit 5 v5
2.3 Pin Description
For information about the DIMM pinout, please refer to the TX module datasheet.
2.3.1 ST13 JTAG ICE Interface
20
19
2
1
Name
3V3
TRST#
TDI
TMS
TCK
RTCK
TDO
SRESET#
not connected
not connected
8/20
Pin
1
3
5
7
9
11
13
15
17
19
#
2
4
6
8
10
12
14
16
18
20
2012-04-12
Name
3V3
GND
GND
GND
GND
GND
GND
GND
GND
GND
Hardware Documentation
Starterkit 5 v5
2.3.2 ST1, ST2 CAN-A, CAN-B
9
1
10
2
ST1/CAN-1
ST2/CAN-0
Name
not connected
CAN_L
GND
not connected
not connected
Hardware Documentation
Pin
1
3
5
7
9
#
2
4
6
8
10
Name
GND
CAN_H
not connected
not connected
not connected
2012-04-12
9/20
Starterkit 5 v5
2.3.3 ST6 Family Concept LCD
1
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
10/20
Name
#LCD_RESET/P150
GND | #RST/P149
LDD[7]
LDD[6]
LDD[5]
LDD[4]
LDD[3]
LDD[2]
GND
LDD[15]
LDD[14]
LDD[13]
LDD[12]
LDD[11]
LDD[10]
GND
LDD[23]
LDD[22]
LDD[21]
LDD[20]
40
Pin #
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
2012-04-12
Name
LDD[19]
LDD[18]
GND
LSCLK/P146
GND | WAKE/P152
HSYNC/P143
VSYNC/P144
OE_ACD/P145
LCD_ENABLE/P151
3V3
GND
GND
3V3
3V3
NC | #INT/P148
PWM0/P42
TSPY | SCL
TSPX
TSMY | SDA
TSMX
Hardware Documentation
Starterkit 5 v5
2.3.4 ST9 RS232 (UART-A)
Pin #
1
2
3
4
5
6
7
8
9
Hardware Documentation
Name
1-4-6 connected onboard
TxD
RxD
1-4-6 connected onboard
GND
1-4-6 connected onboard
CTS
RTS
not connected
2012-04-12
11/20
Starterkit 5 v5
2.3.5 ST4, ST5 RS232 (UART-C, UART-B)
9
1
10
2
ST4/UART-C
Name
1-2-7 connected onboard
TxD
RxD
1-2-7 connected onboard
GND
12/20
Pin
1
3
5
7
9
#
2
4
6
8
10
ST5/UART-B
Name
1-2-7 connected onboard
CTS
RTS
not connected
not connected
2012-04-12
Hardware Documentation
Starterkit 5 v5
2.3.6 ST19 Ethernet
Pin # Name
1
TX+
2
TX3
RX+
4
not used
5
not used
6
RX7
not used
8
not used
Hardware Documentation
2012-04-12
13/20
Starterkit 5 v5
2.3.7 ST17 USB Host Interface
Pin # Name
1
5V
2
DATA3
DATA+
4
GND
14/20
2012-04-12
Hardware Documentation
Starterkit 5 v5
2.3.8 ST12 USB OTG
Pin #
1
2
3
4
5
Hardware Documentation
Name
5V
DATADATA+
ID
GND
2012-04-12
15/20
Starterkit 5 v5
2.3.9 X1 LCD 40-pin header
2
40
1
39
Name
GND
HSYNC
GND
LDD[19]
LDD[21]
LDD[23]
LDD[10]
LDD[12]
LDD[14]
GND
LDD[3]
LDD[5]
LDD[7]
OE_ACD
3V3
PC_BVD[1]
5V
GND
TSMX
TSPX
16/20
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
#
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
2012-04-12
Name
LSCLK
VSYNC
LDD[18]
LDD[20]
LDD[22]
GND
LDD[11]
LDD[13]
LDD[15]
LDD[2]
LDD[4]
LDD[6]
GND
3V3
PC_BVD[2]
PWM0
5V
GND
TSMY
TSPY
Hardware Documentation
Starterkit 5 v5
2.3.10
ST20 Power Supply
Pin
Name
Inner 3-5VDC
Outer GND
Hardware Documentation
2012-04-12
17/20
Starterkit 5 v5
2.3.11
ST8 Line-Out
Pin
GROUND
R
L
18/20
Function
GND
Line out right channel
Line out left channel
2012-04-12
Hardware Documentation
Starterkit 5 v5
2.4 Component Locations
Hardware Documentation
2012-04-12
19/20
Starterkit 5 v5
3 Document revision history
Revision
2012-04-12
20/20
Changes
Initial release
2012-04-12
Hardware Documentation
