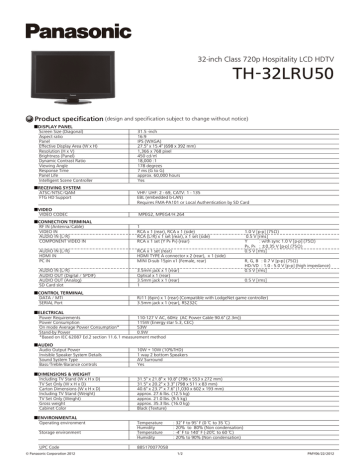

TH-32LRU50
32-inch Class 720p Hospitality LCD HDTV
TH-32LRU50
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size (Diagonal)
Aspect ratio
Panel
Effective Display Area (W x H)
Resolution (H x V)
Brightness (Panel)
Dynamic Contrast Ratio
Viewing Angle
Response Time
Panel Life
Intelligent Scene Controller
■RECEIVING SYSTEM
ATSC/NTSC/QAM
FTG HD Support
■VIDEO
VIDEO CODEC
■CONNECTION TERMINAL
RF IN (Antenna/Cable)
VIDEO IN
AUDIO IN (L/R)
COMPONENT VIDEO IN
31.5 -inch
16:9
IPS (WXGA)
27.5" x 15.4" (698 x 392 mm)
1,366 x 768 pixel
450 cd/㎡
18,000 :1
178 degrees
7 ms (G to G)
approx. 60,000 hours
Yes
VHF/ UHF: 2 - 69, CATV: 1 - 135
EBL (embedded b-LAN)
Requires FMA-PA101 or Local Authentication by SD Card
MPEG2, MPEG4/H.264
1
RCA x 1 (rear), RCA x 1 (side)
RCA (L/R) x 1 set (rear), x 1 set (side)
RCA x 1 set (Y PB PR) (rear)
AUDIO IN (L/R)
HDMI IN
PC IN
RCA x 1 set (rear)
HDMI TYPE A connector x 2 (rear), x 1 (side)
MINI D-sub 15pin x1 (Female, rear)
AUDIO IN (L/R)
AUDIO OUT (Digital / SPDIF)
AUDIO OUT (Analog)
SD Card slot
3.5mm jack x 1 (rear)
Optical x 1 (rear)
3.5mm jack x 1 (rear)
1
■CONTROL TERMINAL
DATA / MTI
SERIAL Port
1.0 V [p-p] (75Ω)
0.5 V [rms]
Y
: with sync 1.0 V [p-p] (75Ω)
PB, PR : ±0.35 V [p-p] (75Ω)
0.5 V [rms]
R, G, B : 0.7 V [p-p] (75Ω)
HD/VD : 1.0 - 5.0 V [p-p] (high impedance)
0.5 V [rms]
0.5 V [rms]
RJ11 (6pin) x 1 (rear) (Compatible with LodgeNet game controller)
3.5mm jack x 1 (rear), RS232C
■ELECTRICAL
110-127 V AC, 60Hz (AC Power Cable 90.6" (2.3m))
Power Requirements
115W (Energy star 5.3, CEC)
Power Consumption
53W
On mode Average Power Consumption*
0.9W
Stand-by Power
*Based on IEC 62087 Ed.2 section 11.6.1 measurement method
■AUDIO
Audio Output Power
Invisible Speaker System Details
Sound System Type
Bass/Treble/Barance controls
10W + 10W (10%THD)
1 way 2 bottom Speakers
AV Surround
Yes
■DIMENSIONS & WEIGHT
Including TV Stand (W x H x D)
TV Set Only (W x H x D)
Carton Dimensions (W x H x D)
Including TV Stand (Weight)
TV Set Only (Weight)
Gross weight
Cabinet Color
31.5" x 21.8" x 10.8" (798 x 553 x 272 mm)
31.5" x 20.2" x 3.3" (798 x 511 x 83 mm)
40.6" x 23.7" x 7.6" (1,030 x 602 x 193 mm)
approx. 27.6 lbs. (12.5 kg)
approx. 21.0 lbs. (9.5 kg)
approx. 35.3 lbs. (16.0 kg)
Black (Texture)
■ENVIRONMENTAL
Operating environment
Storage environment
UPC Code
© Panasonic Corporation 2012
Temperature
Humidity
Temperature
Humidity
:
:
:
:
32°
F to 95°F (0 ℃ to 35 ℃)
20% to 80% (Non condensation)
-4°F to 140°F (-20℃ to 60 ℃)
20% to 90% (Non condensation)
885170077058
1/2
PMY06/22/2012
TH-32LRU50
32-inch Class 720p Hospitality LCD HDTV
MAIN FEATURE
ACCESSORIES
Yes
Yes
Yes
Yes
Yes
Image Viewer (JPEG playback)
Cloning
15/30/60/90 minutes
Initial INPUT
Initial Channel
Initial VOL level
Maximum VOL level
Button Lock
Power Control
VIERA LinkTM, HDAVI ControlTM
Fast Boot
Integrated Pro:Idiom
Local Aucentication
Welcome Image
SD Card Slot
OFF Timer
Hotel Mode
INCLUDED ACCESSORIES
Optional Accessories
Swivel Stand (degrees:30°
/60°
/90°
)
Antitheft Screw for Stand
Remote control transmitter
Batteries for the Remote Control
Transmitter (AA Battery x 2)
Security Lockdown Screws
(Security Bit : Optional)
Operating Instruction
Wall hanging bracket (TY-WK3L2RW)
*VESA Compliant W200xH200 mm
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS
RADIATION REGULATIONS
ENERGY STAR 5.3, CEC
DIMENSIONS
UL6500 Ver.2, cUL, BETS-7
FCC Part 15 Class-B, ICES-003, ISTA
Yes
Cautions: This drawing is not a scale
7.7 (194)
Units : inches (mm)
7.6
(193)
9.8
(248)
Rotation angle of 30°
3.3 (83)
31.5 (798)
2.8 (69)
4.8 (120)
2.6 (65)
Rotation angle of 90°
7.7 (195)
1.6 (42)
12.8
(323)
21.8 (553)
2 (49)
1.1 (28)
12.2 (308)
15.0
(381)
20.2(511)
Rotation angle of 60°
8.6 (217)
14.2 (359)
17.3
(438)
10.8 (272)
<rear>
© Panasonic Corporation 2012
<side>
2/2
14.2
(360)
CONNECTION TERMINAL
PMY06/22/2012
