Panasonic PT-DS20K, PT-DS20KU Specification

Panasonic PT-DS20K, PT-DS20KU Specification
S
P
E
C
F
I
L
E

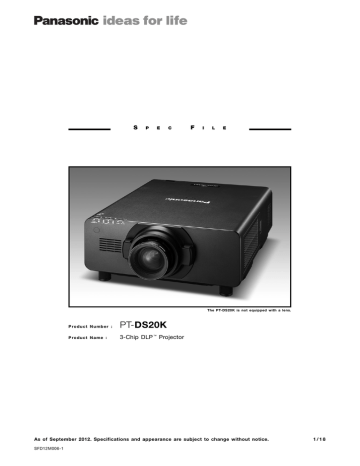

The PT-DS20K is not equipped with a lens.
P ro d u c t N u m b e r :
PT-DS20K
P ro d u c t N a m e :
3-Chip DLP ™ Projector
As of September 2012. Specifications and appearance are subject to change without notice.
SFD12M006-1
1/18
S
P
E
C
F
I
L
E
3-Chip DLP ™ Projector
PT-DS20K
Specifications
Main unit
Power supply
Power consumption
DLP™ chip
Panel size
Display method
Pixels
Lens
Lamp
Screen size
Brightness* 2
Center-to-corner uniformity* 2
Contrast* 2
Resolution
Scanning frequency
SDI
HDMI/DVI-D
RGB
YPBPR (YCBCR)
Video/S-Video
As of September 2012
SFD12M006-1
200 – 240 V AC, 12 A, 50/60 Hz (3-wire single-phase)
2,300 W (2,350 VA) (0.3 W with STANDBY MODE set to ECO.* 1 9 W with
STANDBY MODE set to NORMAL .),
max. 7,848 BTU (without light output: 7,585 BTU )
24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)
DLP™ chip × 3 (R, G, B), DLP™ projection system
1,470,000 (1,400 × 1,050) × 3, total of 4,410,000 pixels
Optional powered zoom/focus lenses
465 W UHM lamps (× 4) (four lamp system)
1.78–15.24 m (70 – 600 inches) (1.78–7.62 m (70 – 300 inches) with the
ET-D75LE50), 4:3 aspect ratio
20,000 lumens (four lamp)
90%
10,000:1 (full on/full off, in dynamic iris 3 mode)
1,400 × 1,050 pixels (Input signals that exceed this resolution will be
converted to 1,400 × 1,050 pixels.)
Dual-link HD-SDI signal (RGB 4:4:4 12-bit/10-bit):
SMPTE ST 372 compliant: 1080/50i, 1080/60i, 1080/25p, 1080/24p,
1080/24sF, 1080/30p,
Dual-link HD-SDI signal (X´Y´Z´ 4:4:4 12-bit):
SMPTE ST 372 compliant: 2048 × 1080/24p, 2048 × 1080/24sF,
3G-SDI signal (RGB 4:4:4 12-bit/10-bit):
SMPTE ST 424 compliant: 1080/50i, 1080/60i, 1080/25p, 1080/24p,
1080/24sF, 1080/30p,
3G-SDI signal (YPBPR 4:2:2 10-bit):
SMPTE ST 424 compliant: 1080/50p, 1080/60p,
HD-SDI signal (YPBPR 4:2:2 10-bit):
SMPTE ST 292 compliant: 720/50p, 720/60p, 1035/60i, 1080/50i,
1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p,
SD-SDI signal (YCBCR 4:2:2 10-bit):
SMPTE ST 259 compliant: 480i, 576i
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p,
1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 × 480) – WUXGA (1,920 × 1,200), compatible with
non-interlaced signals only, dot clock: 25 –162 MHz
Horizontal: 15 –100 kHz, vertical: 24 – 120 Hz,
dot clock: 162 MHz or less
480i (525i):
fH 15.75 kHz; fV 60 Hz,
576i (625i):
fH 15.63 kHz; fV 50 Hz,
480p (525p):
fH 31.50 kHz; fV 60 Hz,
576p (625p):
fH 31.25 kHz; fV 50 Hz,
720 (750)/60p: fH 45.00 kHz; fV 60 Hz,
720 (750)/50p: fH 37.50 kHz; fV 50 Hz,
1035/60i:
fH 33.75 kHz; fV 60 Hz,
1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz,
1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz,
1080/25p:
fH 28.13 kHz; fV 25 Hz,
1080/24p:
fH 27.00 kHz; fV 24 Hz,
1080/24sF:
fH 27.00 kHz; fV 48 Hz,
1080/30p:
fH 33.75 kHz; fV 30 Hz,
1080/60p:
fH 67.50 kHz; fV 60 Hz,
1080/50p:
fH 56.25 kHz; fV 50 Hz
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
2/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Optical axis shift
Vertical
Horizontal
±50% (±40% with the ET-D75LE6) from center of screen, powered
±30% (±20% with the ET-D75LE6) from center of screen, powered
NOTE: Optical axis shift function cannot be operated when used with the
ET-D75LE50.
Keystone correction range
Keystone correction range when using the
optional upgrade kit ET-UK20*3
Installation
Terminals
SDI IN 1
SDI IN 2
HDMI IN
Vertical ±40°, horizontal ±15°
(vertical ±22° and horizontal ±15° with the ET-D75LE50,
vertical ±28° and horizontal ±15° with the ET-D75LE6)
Vertical ±45°, horizontal ±40°
(vertical ±22° and horizontal ±15° with the ET-D75LE50,
vertical ±28° and horizontal ±15° with the ET-D75LE6,
vertical ±40° and horizontal ±40° with the ET-D75LE10/D75LE20)
Ceiling/floor, front/rear
BNC × 1,
Dual-link HD-SDI signal: SMPTE ST 372 compliant (Link-A)
3G-SDI signal: SMPTE ST 424 compliant
HD-SDI signal: SMPTE ST 292 compliant
SD-SDI signal: SMPTE ST 259 compliant
BNC × 1,
Dual-link HD-SDI signal: SMPTE ST 372 compliant (Link-B)
HD-SDI signal: SMPTE ST 292 compliant
SD-SDI signal: SMPTE ST 259 compliant
HDMI 19-pin × 1, Deep Color, compatible with HDCP,
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p,
1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p
VGA (640 × 480) – WUXGA*4 (1,920 × 1,200),
dot clock: 25 MHz –162 MHz
NOTE: Compatible with non-interlaced signals only.
DVI-D IN
DVI-D 24-pin × 1, DVI 1.0 compliant, HDCP compatible,
for single link only
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p,
1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 × 480) – WUXGA*4 (1,920 × 1,200),
dot clock: 25 MHz –162 MHz
NOTE: Compatible with non-interlaced signals only.
RGB 1 IN
R, G, B
BNC × 5
R: 0.7 Vp-p, 75 ohms,
G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
B: 0.7 Vp-p, 75 ohms
HD, VD/SYNC: TTL, high impedance, positive/negative automatic
NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Y, PB, PR (Y, CB, CR)
S-Video signal
RGB 2 IN
R, G, B
Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
D-sub HD 15-pin (female) × 1
R: 0.7 Vp-p, 75 ohms,
G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
B: 0.7 Vp-p, 75 ohms
HD, VD/SYNC: TTL, high impedance, positive/negative automatic
NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Y, PB, PR (Y, CB, CR)
VIDEO IN
3D SYNC 1 IN/OUT
3D SYNC 2 OUT
SERIAL IN
SERIAL OUT
REMOTE 1 IN
REMOTE 1 OUT
As of September 2012
SFD12M006-1
Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
BNC × 1, 1.0 Vp-p, 75 ohms
BNC × 1, 1.0 Vp-p, 75 ohms
Input: TTL, high impedance. Output: TTL, max. 10 mA
BNC × 1, 1.0 Vp-p, 75 ohms, TTL, max. 10 mA
D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
D-sub 9-pin (male) × 1 for link control
M3 jack × 1 for wired remote control
M3 jack × 1 for link control
3/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
REMOTE 2 IN
LAN
Power cord length
Cabinet materials
Dimensions (W × H × D):
Weight* 7
Operation noise* 2
Operating temperature
Operating humidity
Remote control unit
Power supply
Operation range* 9
Dimensions (W × H × D)
Weight
D-sub 9-pin × 1 for external control (parallel)
RJ-45 × 1 for network connection, 100Base-TX/10Base-T, compliant
with PJLink™ (class 1)
3.0 m (9 ft 10 in)
Molded plastic
620 × 291* 5 × 800* 6 mm
(24-7/16 × 11-15/32* 5 × 31-1/2* 6 inches) (without lens)
Approx. 43 kg (94.8 lbs) (without lens)
49 dB (quad lamp operation)
0°– 45°C (32°–113°F) * 8
10%– 80% (no condensation)
3 V DC (AA type battery × 2)
Approx. 30 m (98 ft 5 in) when operated from directly in front of the
signal receptor
51 × 176 × 28 mm (2 × 6-15/16 × 1-3/32 inches)
Approx. 134 g (4.7 oz) (including batteries)
Supplied accessories
Power cord with security lock (× 1)
Wireless/wired remote control unit (× 1)
Batteries for remote control (AA type × 2)
Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring
& Control Software) (× 1)
Optional accessories
Zoom lens (1.0 – 1.2:1)
Zoom lens (1.4 – 1.8:1)
Zoom lens (1.8 – 2.6:1)
Zoom lens (2.6 – 5.1:1)
Zoom lens (5.0 – 8.0:1)
Zoom lens (7.9 – 15.0:1)
Fixed-focus lens (0.8:1)
Lens motor cover
Ceiling mount bracket
Frame
Smoke cut filter
Upgrade kit
Replacement lamp unit
Replacement lamp unit for portrait mode
Replacement filter unit
ET-D75LE6
ET-D75LE10
ET-D75LE20
ET-D75LE30
ET-D75LE40
ET-D75LE8
ET-D75LE50
ET-D75MC1
ET-PKD510H (for high ceilings)
ET-PKD510S (for low ceilings)
ET-PFD510
ET-SFR510
ET-UK20
ET-LAD510 (one bulb)
ET-LAD510F (a set of four bulbs)
ET-LAD510P (one bulb)
ET-LAD510PF (a set of four bulbs)
ET-EMF510
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
* 1 When the standby mode is set to eco, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only certain commands can be received for external control using the serial terminal.
* 2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
* 3 Up to a total of ±55° during simultaneous horizontal and vertical correction.
* 4 WUXGA resolution is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
* 5 With legs at shortest position.
* 6 Excluding the optional lens.
* 7 Average value (excluding the optional lens). May differ depending on models.
* 8 The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when the FAN CONTROL is set to HIGH ALTITUDE MODE (for altitudes from 1,400 m
to 2,700 m (4,593 ft to 8,858 ft) above sea level). When the projector is used with the ET-SFR510 Smoke Cut Filter, the operating temperature
range is 0 °C to 35 °C (32 °F to 95 °F), and the projector cannot be used in places at high altitude. The operating temperature range is 0 °C to
40 °C (32 °F to 104 °F) when the ET-LAD510P/LAD510PF lamp is mounted and the projector is used in portrait configuration. The operating temperature range is 0 °C to 35 °C (32 °F to 95 °F) when the FAN CONTROL is set to HIGH ALTITUDE MODE (for altitudes from 1,400 m to 2,700 m (4,593 ft
to 8,858 ft) above sea level). When the projector is used with the ET-SFR510 Smoke Cut Filter, the operating temperature range is 0 °C to 30 °C
(32 °F to 86 °F).
* 9 Operation range differs depending on environments.
As of September 2012
SFD12M006-1
4/18
S
P
E
F
C
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
80 0 ( 31-1/ 2 )
730 ( 28 -3 /4 )
Dimensions
36
(1-13 / 32 )
244
244
( 9 -19 / 32 ) ( 9 -19 / 32 )
620 ( 24-13 / 32 )
177
( 6 -31/ 32 )
291 (11-15 / 32 )
70
( 2-3 /4 )
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
47
(1-27/32)
608
( 23 -15 /16 )
Terminals
1
6
2
7
3
4
8
As of September 2012
SFD12M006-1
5
9
10
11 12 13 14 15
1
Remote 1 input
2
Remote 1 output
3
Remote 2 input
4
Serial input
5
Serial output
6
SDI 1 input
7
SDI 2 input
8
HDMI input
9
RGB 1 input
10
RGB 2 Input
11
DVI-D input
12
Video input
13
3D sync 1 input/output
14
3D sync 2 output
15
LAN connector
5/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
H
Upper edge of projected image
2
∅60.5
(2-3/8)
560– 680*
(22-1/16–
26-25/32)
419– 539*
(16-1/2–
21-7/32)
2
Standard setting-up position
*1 When the lens protrudes to the
maximum.
212 mm (8-11/32) with the ET-D75LE6
125 mm (4-29/32) with the ET-D75LE10
121 mm (4-3/4) with the ET-D75LE20
121 mm (4-3/4) with the ET-D75LE30
124 mm (4-7/8) with the ET-D75LE40
254 mm (10) with the ET-D75LE8
203 mm (8) with the ET-D75LE50
L
*2 Adjustable in 40 mm (1-9/16) steps.
*1
Projected image
298
(11-23/32)
432
(18)
H
L
Lower edge of projected image
314
(12-3/8)
157
(6-3/16)
unit : mm (inch)
L
87.5
(3-7/16)
87.5
(3-7/16)
175
(6-7/8)
157
(6-3/16)
Projected image
NOTE:
Illustrations show the projector installed
using optional ceiling mount bracket
ET-PKD510H and an optional lens.
This illustration is not drawn to scale.
Caution:
• All construction work should be done by a qualified technician.
• When mounting to the ceiling, use the special mounting bracket. To prevent the projector from swaying or dropping, attach the wire that is included with the projector between the mounting bracket and the ceiling.
As of September 2012
SFD12M006-1
6/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Projection distance for 4:3 aspect ratio screen
(ET-D75LE6/D75LE10/D75LE20/D75LE30/D75LE40/D75LE8/D75LE50)
Unit: meters
Screen size
(diagonal)
Distance to screen (L)
Zoom
Fixed-focus
Height from the edge of screen
to center of lens (H)
Zoom lenses
FixedET-D75LE8 ET-D75LE50
focus
Zoom lens Fixed-focus
Except
ET-D75LE6
lens
lens
ET-D75LE6
min. max.
ET-D75LE6
Zoom lens
ET-D75LE10
Zoom lens
ET-D75LE20
Zoom lens
ET-D75LE30
Zoom lens
ET-D75LE40
Zoom lens
[m] / [in]
min.
max.
min.
max.
min.
max.
min.
max.
min.
max.
1.78 / 70
1.39
1.66
1.95
2.52
2.52
3.66
3.64
7.10
7.02
11.29
11.09
21.14
1.03
0.00 – 1.07
0.11 – 0.96
0.53
2.03 / 80
1.60
1.91
2.24
2.89
2.89
4.20
4.17
8.13
8.05
12.92
12.73
24.22
1.19
0.00 – 1.22
0.12 – 1.10
0.61
2.29 / 90
1.81
2.16
2.53
3.27
3.26
4.74
4.71
9.17
9.07
14.56
14.37
27.29
1.35
0.00 – 1.37
0.14 – 1.23
0.69
2.54 / 100
2.01
2.41
2.82
3.64
3.63
5.28
5.24
10.21
10.10
16.19
16.01
30.36
1.50
0.00 – 1.52
0.15 – 1.37
0.76
3.05 / 120
2.43
2.90
3.40
4.39
4.37
6.36
6.32
12.29
12.15
19.46
19.29
36.50
1.82
0.00 – 1.83
0.18 – 1.65
0.91
3.81 / 150
3.05
3.65
4.27
5.52
5.49
7.98
7.92
15.41
15.23
24.37
24.21
45.72
2.29
0.00 – 2.29
0.23 – 2.06
1.14
5.08 / 200
4.08
4.89
5.72
7.39
7.34
10.67
10.60
20.60
20.36
32.54
32.40
61.08
3.08
0.00 – 3.05
0.31 – 2.74
1.52
6.35 / 250
5.12
6.13
7.17
9.27
9.20
13.37
13.28
25.80
25.48
40.72
40.60
76.44
3.87
0.00 – 3.81
0.38 – 3.43
1.91
7.62 / 300
6.15
7.37
8.62
11.14
11.06
16.07
15.96
30.99
30.61
48.89
48.80
91.79
4.65
0.00 – 4.57
0.46 – 4.12
2.29
10.16 / 400
8.22
9.85
11.52
14.90
14.77
21.46
21.31
41.38
40.87
65.25
65.19 122.51
–
0.00 – 6.10
0.61 – 5.49
–
12.70 / 500
10.29
12.33
14.42
18.65
18.48
26.86
26.67
51.77
51.12
81.60
81.59 153.23
–
0.00 – 7.62
0.76 – 6.86
–
15.24 / 600
12.36
14.81
17.33
22.40
22.20
32.25
32.03
62.15
61.38
97.95
97.98 183.95
–
0.00 – 9.14
0.91 – 8.23
–
Unit: feet
Screen size
(diagonal)
Distance to screen (L)
Zoom
Fixed-focus
Height from the edge of screen
to center of lens (H)
ET-D75LE6
Zoom lens
ET-D75LE10
Zoom lens
ET-D75LE20
Zoom lens
ET-D75LE30
Zoom lens
ET-D75LE40
Zoom lens
[m] / [in]
min.
max.
min.
max.
min.
max.
min.
max.
min.
max.
Zoom lenses
FixedET-D75LE8 ET-D75LE50
focus
Zoom lens Fixed-focus
Except
ET-D75LE6
lens
lens
ET-D75LE6
min. max.
1.78 / 70
4.6
5.5
6.4
8.3
8.3
12.0
11.9
23.3
23.0
37.0
36.4
69.4
3.4
0.0 – 3.5
0.4 – 3.1
1.7
2.03 / 80
5.2
6.3
7.3
9.5
9.5
13.8
13.7
26.7
26.4
42.4
41.8
79.4
3.9
0.0 – 4.0
0.4 – 3.6
2.0
2.29 / 90
5.9
7.1
8.3
10.7
10.7
15.5
15.4
30.1
29.8
47.8
47.1
89.5
4.4
0.0 – 4.5
0.4 – 4.0
2.3
2.54 / 100
6.6
7.9
9.2
11.9
11.9
17.3
17.2
33.5
33.1
53.1
52.5
99.6
4.9
0.0 – 5.0
0.5 – 4.5
2.5
3.05 / 120
8.0
9.5
11.1
14.4
14.3
20.9
20.7
40.3
39.9
63.8
63.3
119.8
6.0
0.0 – 6.0
0.6 – 5.4
3.0
3.81 / 150
10.0
12.0
14.0
18.1
18.0
26.2
26.0
50.5
50.0
79.9
79.4
150.0
7.5
0.0 – 7.5
0.8 – 6.7
3.8
5.08 / 200
13.4
16.0
18.8
24.3
24.1
35.0
34.8
67.6
66.8
106.8
106.3
200.4
10.1
0.0 – 10.0
1.0 – 9.0
5.0
6.35 / 250
16.8
20.1
23.5
30.4
30.2
43.9
43.6
84.6
83.6
133.6
133.2
250.8
12.7
0.0 – 12.5
1.3 – 11.3
6.3
7.62 / 300
20.2
24.2
28.3
36.6
36.3
52.7
52.4
101.7
100.4
160.4
160.1
301.2
15.3
0.0 – 15.0
1.5 – 13.5
7.5
10.16 / 400
27.0
32.3
37.8
48.9
48.5
70.4
69.9
135.8
134.1
214.1
213.9
401.9
–
0.0 – 20.0
2.0 – 18.0
–
12.70 / 500
33.8
40.4
47.3
61.2
60.6
88.1
87.5
169.8
167.7
267.7
267.7
502.7
–
0.0 – 25.0
2.5 – 22.5
–
15.24 / 600
40.6
48.6
56.8
73.5
72.8
105.8
105.1
203.9
201.4
321.4
321.5
603.5
–
0.0 – 30.0
3.0 – 27.0
–
• The value for L (distance to screen) varies slightly within ±5% depending on the zoom lens characteristics.
• At the shortest projection distance, the zoom lens characteristics may cause slight image distortion.
• When vertical keystone correction is used, the image is corrected in the direction that reduces its projected size.
NOTE: When the ET-D75LE50 is mounted, the optical lens shift function cannot be used.
As of September 2012
SFD12M006-1
7/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Calculation of the projection distance
For a screen size different from the above, use the equation below to calculate the projection distance.
Aspect ratio 4:3
Zoom lenses
ET-D75LE6
minimum
maximum
L (m) = (diagonal screen size in inches) × 0.0207 – 0.0566
L (m) = (diagonal screen size in inches) × 0.0248 – 0.0736
ET-D75LE10
minimum
maximum
L (m) = (diagonal screen size in inches) × 0.0290 – 0.0857
L (m) = (diagonal screen size in inches) × 0.0375 – 0.1085
ET-D75LE20
minimum
maximum
L (m) = (diagonal screen size in inches) × 0.0371 – 0.0832
L (m) = (diagonal screen size in inches) × 0.0540 – 0.1162
ET-D75LE30
minimum
maximum
L (m) = (diagonal screen size in inches) × 0.0536 – 0.1131
L (m) = (diagonal screen size in inches) × 0.1039 – 0.1765
ET-D75LE40
minimum
maximum
L (m) = (diagonal screen size in inches) × 0.1026 – 0.1577
L (m) = (diagonal screen size in inches) × 0.1635 – 0.1615
ET-D75LE8
minimum
maximum
L (m) = (diagonal screen size in inches) × 0.1640 – 0.3862
L (m) = (diagonal screen size in inches) × 0.3072 – 0.3598
Fixed-focus lens
ET-D75LE50
L (m) = (diagonal screen size in inches) × 0.0158 – 0.0713
• Distances calculated with the above equations will include slight deviations.
As of September 2012
SFD12M006-1
8/18
S
P
E
F
C
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Shift range
Optical axis shift function allows to shift the position of a projected image as shown below.
• When the lens except the ET-D75LE6 is mounted
• When the ET-D75LE6 is mounted
H
H
0.3H
0.2H
0.4V
0.12V 0.12V
V
0.5V
(Height of
projected image)
0.1V
0.1V
(Width of
projected image)
0.4V
0.2H
0.5V
(Width of
projected image)
(Height of
projected image)
V
0.3H
Standard postition of projected image
Standard postition of projected image
• Because the ET-D75LE50 is a fixed short-throw lens, the lens shift function cannot be used with it.
Installable angle
Install the projector at an angle within the range shown below.
• Horizontal direction
The projector may be installed at a horizontal
angle of ±15°.
-15°
+15°
36
0°
• Vertical direction
The projector may be installed at a vertical
angle of 360°.
• Vertical direction in portrait mode with the
ET-LAD510P/LAD510PF mounted
The projector may be installed at a vertical
angle of ±15°.
• Horizontal direction in portrait mode with
the ET-LAD510P/LAD510PF mounted
The projector may be installed at a horizontal
angle of ±15°.
-15°
+15°
+15°
-15°
NOTE: The projector cannot be vertically installed all by itself. Also, the terminal side must face downward when vertically installed.
As of September 2012
SFD12M006-1
9/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
List of compatible signals
The signals that can be input to this projector are shown in the table below. Horizontal scanning frequencies of 15 kHz to 100 kHz, vertical scanning frequencies of 24 Hz to 120 Hz, and a dot clock of
162 MHz maximum can be input.
NOTE:
The native resolution of this projector is 1,400 × 1,050 pixels. If the display resolution of the input signal is different from the
native resolution, image compression or expansion will be used to convert the input signal to a level within the native resolution.
Display mode
NTSC/NTSC4.43/PAL-M/PAL60
PAL/PAL-N/SECAM
480i (525i)
576i (625i)
480p (525p)
576p (625p)
720/60p
720/50p
1080/60i
1080/50i
1080/24p
1080/24sF
1080/25p
1080/30p
1080/60p
1080/50p
2K/24p
2K/24sF
VGA400
Display
resolution
(dots)*1
720 × 480i
720 × 576i
720 × 480i
720 × 576i
720 × 483
720 × 576
1280 × 720
1920 × 1080i
1920 × 1080
1920 × 1080i
1920 × 1080
2048 × 1080
640 × 400
VGA480
640 × 480
SVGA
800 × 600
MAC16
XGA
832 × 624
1024 × 768
MXGA
1152 × 864
MAC21
1152 × 870
Scanning frequency
H
V
(kHz)
(kHz)
Dot clock
frequency
(MHz)
−
−
13.5
13.5
27.0
15.7
15.6
15.7
15.6
31.5
31.3
45.0
37.5
33.8
28.1
27.0
59.9
50.0
59.9
50.0
59.9
50.0
60.0
50.0
60.0
50.0
24.0
28.1
33.8
67.5
56.3
27.0
25.0
30.0
60.0
50.0
24.0
148.5
31.5
37.9
31.5
35.0
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
49.7
39.6
48.4
56.5
60.0
65.5
68.7
81.4
98.8
53.7
64.0
67.5
76.7
68.7
70.1
85.1
59.9
66.7
72.8
75.0
85.0
56.3
60.3
72.2
75.0
85.1
74.6
50.0
60.0
70.1
75.0
81.6
85.0
100.0
120.0
60.0
71.2
74.9
85.0
75.1
25.2
31.5
25.2
30.2
31.5
31.5
36.0
36.0
40.0
50.0
49.5
56.3
57.3
51.9
65.0
75.0
78.8
86.0
94.5
113.3
139.1
81.6
94.2
108.0
121.5
100.0
74.3
74.3
Format
VIDEO/S-VIDEO
SDI/RGB/YC B C R
HDMI/DVI-D/
RGB/YC B C R
SDI/HDMI/DVI-D/
RGB/YP B P R
SDI*2 /HDMI/DVI-D/
RGB/YP B P R
SDI*3
HDMI/DVI-D/RGB
* 1 The “i” appearing after the resolution indicates an interlaced signal.
* 2 SDI 1 only.
* 3 For dual-link connection only.
As of September 2012
SFD12M006-1
10/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Display mode
Display
resolution
(dots)
1280 × 720
1280 × 720
1280 × 768
1280 × 768
1280 × 768 *
1280 × 768
1280 × 800
1280 × 800
1280 × 800 *
1280 × 800
MSXGA
SXGA
1366×768
1280 × 768
SXGA+
1400 × 1050
WXGA+
1440 × 900
UXGA60
WSXGA+
1600 × 1200
1680 × 1050
1920×1080
1920
1920
1920
1920
1920
1920
WUXGA
*
1280 × 960
1280 × 1024
×
×
×
×
×
×
1080
1080 *
1080
1200
1200 *
1200
Scanning frequency
H
V
(kHz)
(kHz)
37.1
44.8
76.3
92.6
39.6
47.8
47.4
60.3
68.6
41.3
49.7
49.3
62.8
71.6
60.0
52.4
64.0
72.3
78.2
80.0
91.1
47.7
39.6
54.1
64.0
65.2
65.3
78.8
82.2
55.9
46.3
75.0
65.3
54.1
55.6
66.6
67.2
61.8
74.0
74.6
49.8
59.9
100.0
120.0
49.9
59.9
60.0
74.9
84.8
50.0
59.8
59.9
74.9
84.9
60.0
50.0
60.0
66.3
72.0
75.0
85.0
59.8
49.9
50.0
60.0
72.0
75.0
59.9
49.9
60.0
50.0
49.9
59.9
60.0
49.9
60.0
59.9
Dot clock
frequency
(MHz)
Format
60.5
74.5
131.8
161.6
65.3
79.5
68.3
102.3
117.5
68.0
83.5
71.0
106.5
122.5
108.0
88.0
108.0
125.0
135.1
135.0
157.5
85.5
69.0
99.9
108.0
122.6
121.8
149.3
155.9
106.5
86.8
162.0
146.3
119.5
141.5
138.5
173.0
158.3
154.0
193.3
HDMI/DVI-D/RGB
RGB
HDMI/DVI-D/RGB
RGB
Compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
As of September 2012
SFD12M006-1
11/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
List of compatible 3D signals
The 3D signals that can be input to this projector are shown in the table below.
Display mode
720/60p
720/50p
1080/60i
1080/50i
1080/24p
1080/24sF
1080/25p
1080/30p
1080/60p
1080/50p
VGA480
SVGA
MAC16
XGA
MXGA
1280 × 720
Display
resolution
(dots)*1
Scanning
frequency
H
V
(kHz)
(kHz)
1280 × 720
45.0
37.5
33.8
28.1
27.0
27.0
28.1
33.8
67.5
56.3
31.5
37.9
49.7
39.6
48.4
81.4
98.8
53.7
37.1
44.8
76.3
92.6
39.6
47.8
47.4
41.3
49.7
49.3
60.0
52.4
64.0
47.7
39.6
54.1
64.0
65.2
65.3
55.9
46.3
75.0
65.3
54.1
55.6
66.6
61.8
74.0
1920 × 1080i
1920 × 1080
1920 × 1080i
1920 × 1080
640
800
832
1024
×
×
×
×
480
600
624
768
1152 × 864
1280 × 720
1280 × 768
1280 × 768
1280 × 800
1280 × 768 * 3
1280 × 800
MSXGA
SXGA
1366 × 768
1280 × 800 * 3
1280 × 960
1280 × 1024
1280 × 768
SXGA+
1400 × 1050
WXGA+
1440 × 900
UXGA60
WSXGA+
1600 × 1200
1680 × 1050
1920 × 1080
1920
1920
1920
1920
WUXGA
×
×
×
×
1080
1080 * 3
1200
1200 * 3
60.0
50.0
60.0
50.0
24.0
24.0
25.0
30.0
60.0
50.0
59.9
60.3
74.6
50.0
60.0
100.0
120.0
60.0
49.8
59.9
100.0
120.0
49.9
59.9
60.0
50.0
59.8
59.9
60.0
50.0
60.0
59.8
49.9
50.0
60.0
60.0
60.0
59.9
49.9
60.0
60.0
50.0
49.9
59.9
49.9
60.0
Dot clock
frequency
(MHz)
74.3
74.3
74.3
74.3
74.3
74.3
74.3
74.3
148.5
148.5
25.2
40.0
57.3
51.9
65.0
113.3
139.1
81.6
60.5
74.5
131.8
161.6
65.3
79.5
68.3
68.0
83.5
71.0
108.0
88.0
108.0
85.5
69.0
99.9
108.0
122.6
121.8
106.5
86.8
162.0
146.3
119.5
141.5
138.5
158.3
154.0
HDMI
Frame
packing
Side by
side*2
Top and
bottom
DVI
Side by
side*2
Top and
bottom
Line by
line
Yes
Yes
Yes
Yes
Yes
Yes
–
Yes
–
–
–
Yes
–
Yes
Yes
–
–
Frame
sequential
–
–
–
–
Yes
Yes
–
–
Yes
Yes
–
Yes
* 1 The “i” appearing after the resolution indicates an interlaced signal.
* 2 Compatible with half-resolution signals.
* 3 Compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
As of September 2012
SFD12M006-1
12/18
S
P
E
F
C
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Display mode
720/60p
720/50p
1080/60i
1080/50i
1080/24p
1080/24sF
1080/25p
1080/30p
1080/60p
1080/50p
VGA480
SVGA
MAC16
XGA
MXGA
1280 × 720
Display
resolution
(dots)*1
1280 × 720
1920 × 1080i
1920 × 1080
1920 × 1080i
1920 × 1080
640
800
832
1024
×
×
×
×
480
600
624
768
1152 × 864
1280 × 720
1280 × 768
1280 × 768
1280 × 800
1280 × 768 * 4
1280 × 800
MSXGA
SXGA
1366 × 768
1280 × 800 * 4
1280 × 960
1280 × 1024
1280 × 768
SXGA+
1400 × 1050
WXGA+
1440 × 900
UXGA60
WSXGA+
1600 × 1200
1680 × 1050
1920 × 1080
1920
1920
1920
1920
WUXGA
*1
*2
*3
*4
×
×
×
×
1080
1080 * 4
1200
1200 * 4
Scanning
frequency
H
V
(kHz) (kHz)
45.0
37.5
33.8
28.1
27.0
27.0
28.1
33.8
67.5
56.3
31.5
37.9
49.7
39.6
48.4
81.4
98.8
53.7
37.1
44.8
76.3
92.6
39.6
47.8
47.4
41.3
49.7
49.3
60.0
52.4
64.0
47.7
39.6
54.1
64.0
65.2
65.3
55.9
46.3
75.0
65.3
54.1
55.6
66.6
61.8
74.0
60.0
50.0
60.0
50.0
24.0
24.0
25.0
30.0
60.0
50.0
59.9
60.3
74.6
50.0
60.0
100.0
120.0
60.0
49.8
59.9
100.0
120.0
49.9
59.9
60.0
50.0
59.8
59.9
60.0
50.0
60.0
59.8
49.9
50.0
60.0
60.0
60.0
59.9
49.9
60.0
60.0
50.0
49.9
59.9
49.9
60.0
Dot clock
frequency
(MHz)
RGB1/RGB2
Side
by
side*2
74.3
74.3
74.3
74.3
74.3
74.3
74.3
74.3
148.5
148.5
25.2
40.0
57.3
51.9
65.0
113.3
139.1
81.6
60.5
74.5
131.8
161.6
65.3
79.5
68.3
68.0
83.5
71.0
108.0
88.0
108.0
85.5
69.0
99.9
108.0
122.6
121.8
106.5
86.8
162.0
146.3
119.5
141.5
138.5
158.3
154.0
Yes
SDI1/SDI2
Line
Top
by
and
bottom line
Yes
Yes
Frame Side
sequen- by
side*2
tial
–
Yes
HDMI
& DVI
Top
Line
and
by
bottom line
Yes
Yes
RGB1
&
RGB2
SDI1
&
SDI2
3G-SDI
Level B
Simul- Simul- Simul- Simultaneous taneous taneous taneous
Yes
Yes
Yes
Yes* 3
–
–
–
–
–
–
Yes
Yes
–
–
Yes
Yes
–
Yes* 3
Yes* 3
–
–
–
–
Yes
Yes
–
–
Yes
Yes
Yes
The “i” appearing after the resolution indicates an interlaced signal.
Compatible with half-resolution signals.
SDI 1 only.
Compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
As of September 2012
SFD12M006-1
13/18
S
P
E
F
C
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, commands must be input through communication software, based on the format and satisfying the communication conditions shown below.
Pin assignments and signal names
6
No.
1
2
3
4
5
9
1
5
Signal name
–
TXD
RXD
–
GND
Description
NC
Send data
Receive data
Connected internally
Ground
No.
6
7
8
9
Signal name
–
CTS
RTS
–
Description
NC
Connected internally
Connected internally
NC
Description
NC
Receive data
Send data
Connected internally
Ground
No.
6
7
8
9
Signal name
–
RTS
CTS
–
Description
NC
Connected internally
Connected internally
NC
D-sub 9-pin (female) Serial input
Pin assignments and signal names
9
No.
1
2
3
4
5
6
5
1
Signal name
–
RXD
TXD
–
GND
D-sub 9-pin (male) Serial output
Communication conditions (factory setting)
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
X parameter
S parameter
RS-232C-compliant
Start-stop synchronization
9,600 bps
None
8 bits
1 bit
None
None
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent
in this order. Add parameters according to the details of control.
STX
A
D
I1 I2
;
C1 C2 C3
Start
(2 byte)
Semicolon
(1 byte)
(1 byte)
ID: 2 characters
(2 bytes)
01 to 64: Address number
0A to 0Z: Group ID
ZZ: All units (ID ALL)
:
Colon
(1 byte)
P1 P2 ... Pn
ETX
End
(1 byte)
Parameters
(undefined length)
Command
(3 bytes)
(Control and/or query commands)
ID designator
CAUTION
• It may not be possible to send or receive commands for about 10 to 60 seconds when the lamp is first turned on. If this
occurs, wait for 60 seconds, then try sending or receiving again.
• When sending multiple commands, be sure to wait for at least 0.5 second after receiving a response from the projector before
sending the next command.
• Additional time is sometimes required for response due to processing inside the projector. Set the time-out period for command response to 10 seconds or more.
• When using two or more units:
1) Set different IDs for each unit.
2) Designate only one unit as RESPONSE (ID ALL) ON and the rest as RESPONSE (ID ALL) OFF.
3) Each group should have only one RESPONSE (ID GROUP) ON and the rest should be RESPONSE (ID GROUP) OFF.
As of September 2012
SFD12M006-1
14/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Cable specifications
Projector
1
PC (DTE)
NC
NC
2
2
3
3
4
NC
NC
NC
NC
6
7
7
8
8
9
4
5
5
6
1
NC
NC
9
Control commands
*
Command : Parameter
Function
PON
POF
IIS:SD1
IIS:SD2
IIS:HD1
IIS:DVI
IIS:RG1
IIS:RG2
IIS:VID
LPM:0
LPM:1
LPM:2
LPM:3
LPM:4
LPM:5
LPM:6
LPM:7
LPM:8
LPM:9
LPM:10
LPM:11
LPM:12
LPM:13
OSH:0
OSH:1
OPP:0
OPP:1
OPP:2
OPP:3
OAS
VPM:NAT
VPM:STD
VPM:DYN
VPM:CIN
VPM:GRA
VPM:DIC
VXX:DLVI0=+0 0000
VXX:DLVI0=+0 0001
VXX:DLVI0=+0 0002
VXX:DLVI0=+0 0003
OTE:4
OTE:9
OTE:10
OTE: p1p2p3p 4
TSD:y1y2y3y4 m1m2d1d2w
TST:h1h2m1m2 s1s2
OOS:0
OOS:1
POWER (STANDBY)
INPUT SELECT
LAMP SELECT
SHUTTER
P IN P SELECT
Callback
Standby power on
Standby power off
SDI 1
SDI 2
HDMI
DVI
RGB 1
RGB 2
Video
Quad (four lamps)
Lamp 1 + 4
Lamp 2 + 3
Dual (two lamps)
Lamp 1 + 2 + 3
Lamp 1 + 2 + 4
Lamp 1 + 3 + 4
Lamp 2 + 3 + 4
Triple (three lamps)
Lamp 1
Lamp 2
Lamp 3
Lamp 4
Single lamp
Shutter off
Shutter on
Off
User 1
User 2
User 3
AUTO SETUP
PICTURE MODE
SYSTEM DAYLIGHT VIEW
COLOR TEMPERATURE
DATE
TIME
ON SCREEN
Natural
Standard
Dynamic
Cinema
Graphic
DICOM
Off
1
2
3
User 1
User 2
Default
3200 K – 9300 K (100 K steps)
Date setting
Time setting
On-screen display off
On-screen display on
PON
POF
IIS:SD1
IIS:SD2
IIS:HD1
IIS:DVI
IIS:RG1
IIS:RG2
IIS:VID
LPM:0
LPM:1
LPM:2
LPM:3
LPM:4
LPM:5
LPM:6
LPM:7
LPM:8
LPM:9
LPM:10
LPM:11
LPM:12
LPM:13
OSH:0
OSH:1
OPP:0
OPP:1
OPP:2
OPP:3
OAS
VPM:NAT
VPM:STD
VPM:DYN
VPM:CIN
VPM:GRA
VPM:DIC
VXX:DLVI0=+00000
VXX:DLVI0=+00001
VXX:DLVI0=+00002
VXX:DLVI0=+00003
OTE:4
OTE:9
OTE:10
OTE: p1p2p3p4
TSD:y1y2y3y4m1m2d1d2w
TST:h1h2m1m2s1s2
OOS:0
OOS:1
Do not send PON, POF, OSH, or OLP commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp
replacement cycle.
*
When a command that cannot be executed, the projector will send an ER401 command in reply.
As of September 2012
SFD12M006-1
15/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Status request commands
Command : Parameter
QPW
Function
Main power status
Temperature status
Callback
000
001
0
1
0
1
SD1
SD2
HD1
DVI
RG1
RG2
VID
0
1
p1p2p3p4p5
p1p2p3p4
p1p2p3p4
p1p2p3p4
p1p2p3p4
0
1
2
3
4
5
6
7
8
9
10
11
12
13
NAT
STD
DYN
CIN
GRA
DIC
DLVI0=+00000
DLVI0=+00001
DLVI0=+00002
DLVI0=+00003
0
1
2
3
p1p2p3p4/p5p6p7p8 * 1
QSH
Shutter function status
QFZ
Freeze function status
QIN
Input signal status
Date setting status
Time setting status
y1y2y3y4m1m2d1d2w
h1h2m1m2s1s2
QOS
On-screen display status
QST
Q$L:1
Q$L:2
Q$L:3
Q$L:4
QSL
Projector run time
Lamp 1 run time
Lamp 2 run time
Lamp 3 run time
Lamp 4 run time
Lamp operation mode status
QPM
Picture mode status
QVX:DLVI0
System daylight view status
QPP
P in P status
QTM:0
QTM:1
QTM:2
QGD
QGT
Description
Off
On
Off
On
Off
On
SDI 1
SDI 2
HDMI
DVI
RGB 1
RGB 2
Video
Off
On
00000h –99999h
0000h –9999h
0000h –9999h
0000h –9999h
0000h –9999h
Quad (four lamps)
Lamp 1 + 4
Lamp 2 + 3
Dual (two lamps)
Lamp 1 + 2 + 3
Lamp 1 + 2 + 4
Lamp 1 + 3 + 4
Lamp 2 + 3 + 4
Triple (three lamps)
Lamp 1
Lamp 2
Lamp 3
Lamp 4
Single lamp
Natural
Standard
Dynamic
Cinema
Graphic
DICOM
Off
1
2
3
Off
User 1
User 2
User 3
p0 = Intake air
p1 = Around lamp
p2 = Optics module
yyyymmdd (day of week) * 2
hhmmss * 3
*1 p1p2p3p4: Celsius (°C), p5p6p7p8: Fahrenheit (°F)
*2 Day of week: Monday = 1, Tuesday = 2, ... Sunday = 7
*3 Set the date and time to UTC (universal time coordinated).
*
When a wrong command is sent, the projector will send an ER401 or ER402 command in reply.
As of September 2012
SFD12M006-1
16/18
S
P
E
C
F
I
L
E
PT-DS20K
3-Chip DLP ™ Projector
Command example
To set the on-screen display off, send the command as shown below.
STX
Start
ADZZ ;
OOS
ID Address
:
Command
0
ETX
Parameter
End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
Notes on projector placement and operation
The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the
following precautions.
1. Never place objects on top of the projector while it is operating.
2. Make sure there is an unobstructed space of 500 mm (1 feet 8 inches) or more around the projector’s exhaust openings.
3. Do not stack projector units directly on top of one another. If two units must be stacked for backup use in ordinary projection, use a method as shown below and provide ample space between the
units to ensure that exhaust heat does not accumulate near the intake opening or around the units.
Dual stacked projection is not recommended.
4. Make sure that nothing blocks the projector’s air intake and exhaust openings. Also, install the projector so that cool or hot air from other air conditioning equipment does not flow directly toward the
projector’s air intake or exhaust openings.
5. Do not install the projector in an enclosed space. If it is necessary to install it in an enclosed
space, add a separate ventilation system. If ventilation is insufficient, hot air will accumulate at the
intake opening. This may cause the projector’s protective circuit to interrupt projector operation.
6. If the projector is installed in an enclosed space, ensure that the temperature of the air surrounding
the projector is between 0°C and 40°C (32°F and 104°F). Also make sure that the projector’s intake
and exhaust openings are not blocked. Even though the air surrounding the projector is 40°C
(104°F) or less, if hot exhaust air accumulates inside the space, it may cause the projector’s protective circuit to interrupt projector operation. Pay particular attention to the surrounding temperature
conditions when planning the installation.
7. If the projector is not to be set on the floor using adjuster legs, install it by using the five ceilingmount screw holes (screw diameter: M6, length of each screw hole in the projector: 30 mm (1-3/16
inches)). Provide a space of 5 mm (3/16 inches) or more between the projector and the mounting
surface by inserting metal spacers.
500 mm (1 ft 8 in) or more
500 mm (1 ft 8 in)
or more
100 mm
( 3-15/16 in)
or more
As of September 2012
SFD12M006-1
500 mm (1 ft 8 in)
or more
Do not stack projector
units directly on top of
one another.
17/18
S
P
E
C
F
I
L
E
3-Chip DLP ™ Projector
PT-DS20K
Direction of air intake and exhaust
Intake
Exhaust
Operating the projector continuously
1.
If the projector is to be operated continuously one week, use the quad-lamp optical system’s alternating
lamp operation (lamp relay) function. The projector cannot be operated continuously one week in quadlamp mode. Allow a minimum of two hours per day of non-operation time for each lamp if the projector
is to be operated continuously for more than one week.
2.
The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short
periods.
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Product availability differs depending on region and country. This product may be subject to export control regulations.
DLP and the DLP logo are trademarks of Texas Instruments.
PJLink is a registered trademark, or a trademark application has been filed, in Japan, the United States, and other countries and regions.
All other trademarks are the property of their respective trademark owners.
As of September 2012
SFD12M006-1
18/18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
