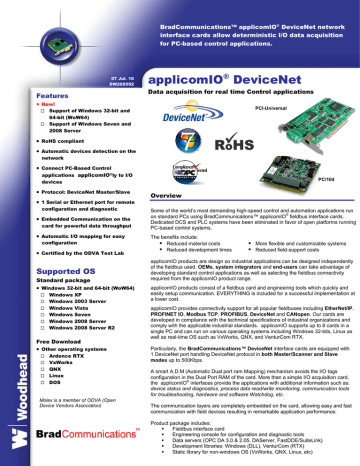

applicomIO DeviceNet ®
BradCommunications™ applicomIO® DeviceNet network
interface cards allow deterministic I/O data acquisition
for PC-based control applications.
07 Jul. 10
DW200592
Features
•
applicomIO® DeviceNet
Data acquisition for real time Control applications
New!
Support of Windows 32-bit and
64-bit (WoW64)
… Support of Windows Seven and
2008 Server
PCI-Universal
…
•
RoHS compliant
•
Automatic devices detection on the
network
•
Connect PC-Based Control
applications applicomIO®ly to I/O
devices
•
Protocol: DeviceNet Master/Slave
•
1 Serial or Ethernet port for remote
configuration and diagnostic
•
Embedded Communication on the
card for powerful data throughput
•
Automatic I/O mapping for easy
configuration
•
Certified by the ODVA Test Lab
Supported OS
Standard package
•
Windows 32-bit and 64-bit (WoW64)
Windows XP
… Windows 2003 Server
… Windows Vista
… Windows Seven
… Windows 2008 Server
… Windows 2008 Server R2
…
Free Download
•
Other operating systems
Ardence RTX
… VxWorks
… QNX
… Linux
… DOS
…
Molex is a member of ODVA (Open
Device Vendors Association)
PC/104
Overview
Some of the world’s most demanding high-speed control and automation applications run
on standard PCs using BradCommunications™ applicomIO® fieldbus interface cards.
Dedicated DCS and PLC systems have been eliminated in favor of open platforms running
PC-based control systems.
The benefits include:
ƒ Reduced material costs
ƒ Reduced development times
ƒ More flexible and customizable systems
ƒ Reduced field-support costs
applicomIO products are design so industrial applications can be designed independently
of the fieldbus used. OEMs, system integrators and end-users can take advantage of
developing standard control applications as well as selecting the fieldbus connectivity
required from the applicomIO product range.
applicomIO products consist of a fieldbus card and engineering tools which quickly and
easily setup communication. EVERYTHING is included for a successful implementation at
a lower cost.
applicomIO provides connectivity support for all popular fieldbuses including EtherNet/IP,
PROFINET IO, Modbus TCP, PROFIBUS, DeviceNet and CANopen. Our cards are
developed in compliance with the technical specifications of industrial organizations and
comply with the applicable industrial standards. applicomIO supports up to 8 cards in a
single PC and can run on various operating systems including Windows 32-bits, Linux as
well as real-time OS such as VxWorks, QNX, and VenturCom RTX.
Particularly, the BradCommunications™ DeviceNet interface cards are equipped with
1 DeviceNet port handling DeviceNet protocol in both Master/Scanner and Slave
modes up to 500Kbps.
A smart A.D.M (Automatic Dual port ram Mapping) mechanism avoids the I/O tags
configuration in the Dual Port RAM of the card. More than a simple I/O acquisition card,
the applicomIO® interfaces provide the applications with additional information such as:
device status and diagnostics, process data read/write monitoring, communication tools
for troubleshooting, hardware and software Watchdog, etc.
The communication layers are completely embedded on the card, allowing easy and fast
communication with field devices resulting in remarkable application performance.
Product package includes:
ƒ
Fieldbus interface card
ƒ
Engineering console for configuration and diagnostic tools
ƒ
Data servers (OPC DA 3.0 & 2.05, DAServer, FastDDE/SuiteLink)
ƒ
Development libraries: Windows (DLL), VenturCom (RTX)
ƒ
Static library for non-windows OS (VxWorks, QNX, Linux, etc)
applicomIO® DeviceNet
Software tools
Hardware specifications
®
The applicomIO Interface cards provide
effective software tools enabling fast
integration of industrial communication into
your applications. The console is common to
all fieldbuses of Woodhead offer as ProfibusDP, EtherNet/IP, Modbus/TCP and CANopen.
PCU-DVNIO
PCI Universal 3.3/5V,
PCI-X compatible
Bus interface
Processor
Memory
Interruption
PC104-DVNIO
PC/104 bus
AMD SC520
8 Mbytes SDRAM
Hardware Plug&Play
2, 3, 4, 5, 6, 7, 10, 11, 12, 14, 15
Hardware Plug&Play
From C8000 to DE000
(2 Kbytes used per card)
(8 Kbytes used per card)
168mm x 107mm (6.61" x 4.21") 95mm x 90mm (3.74" x 3.54")
6W (max. 1.2A)
5W (max. 0.8A)
DPRAM Address
Dimensions (L x W)
Consumption
Operating T°
Storage T°
0ºC (32º F) up to +70º C (149º F)
-40ºC (-40º F) up to +85ºC (185º F)
-40ºC (-40ºF) up to +80ºC (176ºF)
-40ºC (-40º F) up to +85ºC (185º F)
Opto-coupled discrete input
Voltage -> DC +10 to +30 or AC 24 V (50 to 60 Hz)
"WatchDog" output contact free from potential (floating)
(24V DC, 0.25 A)
EN55022 Class B, EN61000-6-2, EN61000-3-2, EN61000-3-3
YES
Discrete Input
- Configuration console Discrete Output
EMC Compliance
RoHS Compliance
1 DeviceNet port
DeviceNet standard Combiconstyle (5-pin female connector with
HE13 ( 2 x 5 pins)
screw and resistance terminator
included)
Phillips SJA 1000
Phillips 82C251 in conformity with DeviceNet specifications
125, 250, 500 Kbps
1 Status LED / 1 transmission LED
Connector type
- OPC Browser -
CAN Controller
CAN Transceiver
Speed
LED indicators
Port for remote configuration and diagnostic
Port Type
Connector type
LED indicators
Electrical interface
Speed
Ethernet port
BaseT - RJ45
4 LEDs - TX/RX/Link/100 Mbps
Ethernet IEEE 802.3
10/100 Mbps (auto-negotiation)
Asynchronous Serial port
HE13 (2 x 5 pins)
RS232
50 to 38400 bps
Protocol Specifications
DeviceNet
- Diagnostic and test tools -
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
Master/Slave modes run simultaneously
Devices supported: “Group 2 Only Server” and “U.C.M.M”
Manage up to 63 nodes
Node parameter online configuration
I/O Slave messaging: Strobe, Polling, Cyclic and Change of State
Explicit and I/O Peer to Peer messaging
I/O data image: up to 2 Kbytes
Integrated data consistency
applicomIO® access to variable types (bit, byte, word, double word)
Up to 255 Bytes by Slave
EDS Library
Ordering Information
Part Number
SAP
DRL-DVN-PCU
112003-0004
DRL-DVN-104
112005-0009
Product Description
®
BradCommunications™ applicomIO PCU-DVNIO
DeviceNet card, PCI-Universal bus, 3.3/5V
®
BradCommunications™ applicomIO PC104-DVNIO
DeviceNet card, PC/104 bus
