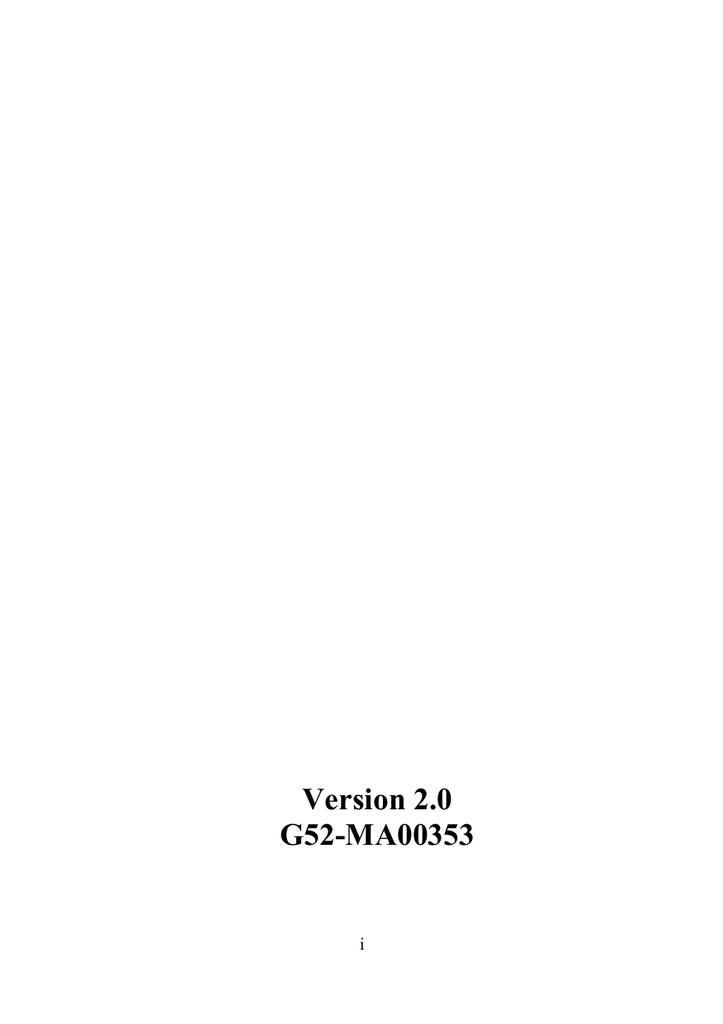

MSI G52-MA00353 Instruction manual

Version 2.0
G52-MA00353
i
Manual Rev: 2.0
Release Date: April 2001
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in
order to comply with the emission limits.
VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER
AU RESEAU.
Micro-Star International MS-6368
Tested to comply
with FCC Standard
For Home or Office Use
ii
Edition
April 2001
Copyright Notice
The material in this document is the intellectual property of MICROSTAR INTERNATIONAL. We take every care in the preparation of
this document, but no guarantee is given as to the correctness of its
contents. Our products are under continual improvement and we reserve
the right to make changes without notice.
Trademarks
All trademarks used in this manual are the property of their respective
owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
Revision History
Revision
2.0
Revision History
Add “Front Audio”
Change Realtek 8137 to 8100
Modify driver installation
iii
Date
April 2001
Safety Instructions
1.
2.
3.
4.
5.
Always read the safety instructions carefully.
Keep this User’s Manual for future reference.
Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly
110/220V before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or
module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause
electrical shock.
11. If any of the following situations arises, get the equipment checked by
a service personnel:
• The power cord or plug is damaged
• Liquid has penetrated into the equipment
• The equipment has been exposed to moisture
• The equipment has not work well or you can not get it work
according to User’s Manual.
• The equipment has dropped and damaged
• If the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C
(1400F), IT MAY DAMAGE THE EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
iv
Contents
Chapter 1. Introduction ............................................................... 1-1
Mainboard Specification ............................................................ 1-2
Mainboard Layout ..................................................................... 1-4
Quick Components Guide ......................................................... 1-5
Key Features ............................................................................ 1-6
MSI Special Features ................................................................ 1-7
T.O.P Tech™ ...................................................................... 1-7
PC Alert™ III ....................................................................... 1-8
Chapter 2. Hardware Setup ........................................................ 2-1
Central Processing Unit: CPU ................................................... 2-2
CPU Installation Procedures ............................................... 2-2
CPU Core Speed Derivation Procedure ................................ 2-3
Memory Installation ................................................................... 2-4
Module Installation Procedures ........................................... 2-5
Power Supply ............................................................................ 2-6
ATX 20-Pin Power Supply .................................................... 2-6
Back Panel ............................................................................... 2-7
Mouse Connector ................................................................ 2-7
Keyboard Connector ........................................................... 2-8
USB Connectors ................................................................. 2-8
Parallel Port Connector ....................................................... 2-9
Serial Port Connector: COM 1 & COM 2 ........................... 2-10
VGA DB 15 Pin Connector ................................................ 2-10
Joystick/Midi Connectors .................................................. 2-11
Audio Port Connectors ...................................................... 2-11
LAN Jack (RJ-45) .............................................................. 2-11
Floppy Disk Drive Connector: FDD1 .................................. 2-12
USB Front Panel Connector: USB2 ................................... 2-12
Connectors ............................................................................. 2-12
v
Hard Disk Connectors: IDE1 & IDE2 ................................. 2-13
Case Connector: JFP1 ...................................................... 2-14
Power Switch .................................................................... 2-14
Reset Switch .................................................................... 2-14
Power LED ........................................................................ 2-14
Speaker ............................................................................ 2-14
HDD LED .......................................................................... 2-15
Keylock ............................................................................ 2-15
Wake On Ring Connector: JMDM1 ................................... 2-16
Wake On LAN Connector: WOL1 ...................................... 2-16
Fan Power Connectors: CPUFAN/SYSFAN ....................... 2-17
CD-In Connector: CD_IN ................................................... 2-18
Aux Line-In Connector: AUX_IN ......................................... 2-18
Modem-In Connector: MODEM_IN .................................... 2-19
IrDA Infrared Module Connector: JIR1 ................................ 2-19
Front Panel Audio Connector: FRONT AUDIO ................... 2-20
Jumpers .................................................................................. 2-21
Clear CMOS Jumper: JBIOS ............................................. 2-21
BIOS Flash Jumper: JBIOS1 ............................................. 2-22
USB Keyboard Wake-up Jumpers: JKBUSB & J21 ........... 2-23
Slots ....................................................................................... 2-24
PCI Slots .......................................................................... 2-24
CNR (Communication Network Riser) Slot ........................ 2-24
ISA Slot (Optional) ............................................................ 2-24
PCI Interrupt Request Routing ........................................... 2-25
Chapter 3. AWARD® BIOS Setup ................................................ 3-1
Entering Setup .......................................................................... 3-2
Control Keys ............................................................................. 3-2
Getting Help .............................................................................. 3-3
The Main Menu ......................................................................... 3-4
vi
Standard CMOS Features ......................................................... 3-6
Advanced BIOS Features .......................................................... 3-9
Advanced Chipset Features .................................................... 3-13
Integrated Peripherals ............................................................. 3-18
Power Management Setup ...................................................... 3-23
PnP/PCI Configurations ........................................................... 3-29
PC Health Status .................................................................... 3-31
Frequency/Voltage Control ...................................................... 3-32
Load Fail-Safe/Optimized Defaults .......................................... 3-33
Set Supervisor/User Password ................................................ 3-35
Save & Exit Setup ................................................................... 3-37
Exit Without Saving ................................................................. 3-38
Chapter 4. Installing Drivers ....................................................... 4-1
Overview .................................................................................... 4-2
Driver Installation for Windows® 98SE ...................................... 4-3
Driver Installation for Windows® 2000 ....................................... 4-5
Driver Installation for Windows® ME .......................................... 4-7
Driver Installation for Windows® NT4.0 ...................................... 4-9
Realtek® 8100 Fast Ethernet Controller .................................. 4-11
Features ........................................................................... 4-11
Driver Installation ............................................................... 4-11
Glossary ............................................................................................ I
vii
Introduction
Chapter 1.
Introduction
The MS-6368 (v2.X) Micro-ATX mainboard is a high-performance
computer mainboard based on VIA Apollo PLE133 (ProMedia II) chipset and
designed for the Intel® CeleronTM or Pentium !!! (FC-PGA) processor for
inexpensive business/personal desktop markets.
The Apollo PLE133 chipset consists of the VT8601A North Bridge
controller and the VT82C686B South Bridge controller. The VT8601A
integrates rich AGP4X graphics capabilities for 2D/3D software and internet
multimedia applications. It supports Intel® Pentium !!!, Celeron™ and VIA
Cyrix® III running at a variety of FSB frequencies from 66 to 133 MHz; and
provides bandwidth and performance for internet and 3D graphics needs by
supporting advanced memory technologies PC133 SDRAM and VC133
RAM (Virtual Channel RAM) up to 1.0GB.
The VIA® VT82C686B Super I/O PCI integrated Peripheral Controller
(PSIPC) includes PCI-to-ISA bridge controller, 10/100 BaseT Ethernet
controller, AC’97 audio and MC’97 modem (for CNR slot). In addition, it
supports dual bus-master IDE with Ultra DMA 33/66/100, four USB ports,
system hardware monitoring and enhanced power management capabilities.
The Apollo PLE133 chipset allows the MS-6368 mainboard to meet
specific needs of internet multimedia and 3D graphics applications.
This chapter includes the following topics:
Mainboard Specifications
Mainboard Layout
Quick Components Guide
Key Features
MSI Special Features
1-1
1-2
1-4
1-5
1-6
1-7
Chapter 1
Mainboard Specification
CPU
! Support Socket 370 for Intel® Celeron™ /Pentium !!! (FC-PGA) processor
and VIA Cyrix® III processor
! Support CPU frequencies at 333/350/400/450/500/533/550/667/700/750/800/
850/933/950MHz, 1GHz and up to 1.1GHz
Chipset
! VIA® VT8601A chipset (510 BGA)
- FSB @133MHz
- Integrated Trident Blade 2D/3D video accelerator
- PCI advanced high performance memory controller
- Support PC100/133 SDRAM, VCM & ESDRAM technology
! VIA® VT686B chipset (352 BGA)
- Enhanced Power Management Features
- Integrated Super I/O (FDC, LPT, COM 1/2 and IR)
- Dual bus Master IDE Ultra DMA 33/66/100
- Integrated Hardware Soundblaster
- Direct Sound AC97 Audio
- ACPI
Clock Generator
! 66.6MHz, 100MHz, and 133MHz clocks are supported.
Main Memory
! Support four memory banks using 168-pin unbuffered DIMM
! Support a maximum memory size of 1GB (32M x 8)
! Support 3.3V SDRAM DIMM
Slots
! One CNR (Communication Network Riser) slot
! Three 32-bit Master PCI Bus slots
! Support 3.3V/5V PCI bus Interface
! One ISA slot (optional)
On-Board IDE
! An IDE controller on the VIA® VT82C686B chipset provides IDE HDD/
1-2
Introduction
CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation
modes
! Can connect up to four IDE devices
Audio
! Audio controller integrated in 686B chipset
! Software audio codec VT1611A
- Onboard Front Audio Pin Header
Network
! Realtek 8100 (optional)
On-Board Peripherals
! On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 2 serial ports (COM 1 + COM 2)
- 1 parallel port supporting SPP/EPP/ECP mode
- 4 USB ports (2 rear connectors/2 from USB front pin header)
- 1 IrDA connector for SIR/CIR/FIR/ASKIR/HPSIR
- 1 VGA port
- 1 Audio/Game port
BIOS
! The mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
! The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
! Micro-ATX Form Factor: 24.3cm (L) x 20.5cm (W)
Mounting
! 6 mounting holes
1-3
Chapter 1
JKBUSB
SOCKET 370
ATX
Power Supply
Top : mouse
Bottom :
keyboard
CPUFAN
Mainboard Layout
DIMM 1
Bottom:
COM Port &
VGA Port
DIMM 2
Top :
Parallel Port
86&$)
COM2
Realtek
8100
(Optional)
PCI Slot 1
FDD
BATT
+
IDE 2
CD_IN
AUX_IN
Bottom:
Line-Out
Line-In
Mic
IDE 1
MODEM_IN
Top :
Game Port
PCI Slot 2
VT82C
686B
Codec
JFP 1
PCI Slot 3
CNR
JMDM1
ISA Slot (Optional)
USB2
JIR1
JBIOS
SYSFAN
BIOS
WOL1
J21
Fron t Audio
JBIOS1
MS-6368 (v2.X) Micro-ATX VA Mainboard
1-4
Introduction
Quick Components Guide
Component
Function
Reference
DIMM 1~2
Installing memory modules
See p. 2-4~2-5
Socket 370
Installing CPU
See p. 2-2~2-3
CPUFAN
Connecting to CPUFAN
See p. 2-17
SYSFAN
Connecting to SYSFAN
See p. 2-17
ATX Power Supply Installing power supply
See p. 2-6
IDE1& IDE2
Connecting to IDE hard disk drive
See p.2-13
FDD1
Connecting to floppy disk drive
See p.2-12
USB2
Connecting to USB interfaces
See p. 2-12
PCI Slot 1~3
Installing expansion cards
See p. 2-24
ISA Slot
Installing ISA cards
See p. 2-24
CNR Slot
Installing expansion cards
See p. 2-24
JFP1
Connecting to the case
See p. 2-14
JMDM1
Connecting to a modem card
See p. 2-16
WOL1
Connecting to an LAN card
See p. 2-16
JIR1
Connecting to IrDA infrared module
See p. 2-19
JBIOS
Clearing CMOS data
See p. 2-21
JKBUSB & J21
Setting keyboard wake-up function
See p. 2-23
JBIOS1
Setting BIOS flash function
See p. 2-22
Front Audio
Connecting to an Audio connector
See p. 2-20
1-5
Chapter 1
Key Features
!
!
!
!
!
!
!
!
!
!
!
!
Microsoft® PC99 compliant
T.O.P TechTM - Thermal Overheat Protection Technology
PC AlertTM III system hardware monitor
CPU: Socket 370 for Intel® CeleronTM/Pentium !!! Processor
Micro-ATX Form Factor
Clock: 66.6/100/133MHz
Audio integrated in chipset
Memory: 2 SDRAM DIMMs
LAN Wake up Function
Modem (External/Internal) Ring Wake up Function
I/O: 2 serial ports (COM2 is the onboard pin header), 1 parallel port, 4
USB ports, 1 floppy port, 1 IrDA connector, 1 Audio/Game port, 1 VGA
port
Slot: 1 CNR slot, 3 PCI slots, 1 ISA slot (optional)
1-6
Introduction
MSI Special Features
T.O.P Tech™
The T.O.P TechTM is a extended sensing device that can 100% accurately detect the CPU’s temeprature. You can find out the temperature on BIOS
setup menu. The PC AlertTM also provides the information.
CPU temperaure on Setup menu
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
PC Health Status
CurrentCPUTemp.
CurrentSystemTemp.
Current CPUFAN Speed
CurrentSystemFanSpeed
Vcore
2.5V
3.3V
5V
12V
58°C/132°F
23°C/73°F
4200RPM
4560RPM
1.66V
2.41V
3.30V
5.02V
12.05V
ItemHelp
Menu Level !
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
1-7
Chapter 1
PC Alert™ III
The PC AlertTM III is a utility you can find in the CD-ROM. The utility
is just like your PC doctor that can detect the following PC hardware status
during real time operation:
* monitor CPU & system temperature
* monitor fan speed
* monitor system voltage
* monitor chassis intrusion
If one of the items above is abnormal, the program main screen will be immediately shown on the screen, with the abnormal item highlighted in red. This will
continue to be shown until user disables the warning.
Note: Items shown on PC Alert III vary depending on your system’s status.
1-8
Hardware Setup
2
Chapter 2.
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components and follow the installation procedures. For some components, if you
install them in the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components.
Static electricity may damage the components.
This chapter contains the following topics:
Central Processing Unit (CPU)
Memory Installation
Power Supply
Back Panel
Connectors
Jumpers
Slots
2-1
2-2
2-4
2-6
2-7
2-12
2-21
2-24
Chapter 2
Central Processing Unit: CPU
The mainboard supports Intel® CeleronTM and Pentium !!! processor.
The mainboard uses a CPU socket called Socket 370 for easy CPU
installation. Make sure the CPU has a Heat Sink and a cooling fan attached
on top to prevent overheating. If you do not find the Heat Sink and cooling
fan, contact your dealer to purchase and install them before turning on the
computer.
CPU Installation Procedures
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Sliding
Plate
2. Look for the gold arrow.
The gold arrow should point
towards the end of lever.
The CPU will only fit in the
correct orientation.
Gold Arrow
Close
Lever
3. Hold the CPU down firmly,
and then close the lever to
complete the installation.
!
WARNING!
Open Lever
Overheating will seriously damage the CPU
and system, always make sure the cooling fan can work
properly to protect the CPU from overheating.
2-2
Hardware Setup
CPU Core Speed Derivation Procedure
The mainboard can automatically set the CPU Host Bus Frequency Clock.
If
CPU Clock
Core/Bus ratio
then CPU core speed
=
=
=
=
=
100MHz
7
Host Clock x Core/Bus ratio
100MHz x 7
700MHz
2-3
Chapter 2
Memory Installation
DIMM2
DIMM1
The mainboard provides 2 slots for 168-pin, 3.3V SDRM DIMM with 4
memory banks. To operate properly, at least one DIMM module must be
installed.
The SDRAM Addressing & Size
DRAM
Tech.
16M
64M
64M
DRAM
DRAM
Density & Addressing
Width
1Mx16
ASYM
2Mx8
ASYM
4Mx4
ASYM
2Mx32
ASYM
2Mx32
ASYM
4Mx16
ASYM
4Mx16
ASYM
8Mx8
ASYM
16Mx4
ASYM
2Mx32
ASYM
4Mx16
ASYM
8Mx8
ASYM
16Mx4
ASYM
Address Size
Row
Column
11
11
11
11
12
11
13
13
13
12
13
13
13
8
9
10
9
8
10
8
9
10
8
8
9
10
2-4
MB/DIMM
Single no. Double no.
Side(S) pcs. Side(D) pcs.
8MBx4 16MBx8
16MBx8 32MBx16
32MB
64MB
32MBx2 64MBx4
16MBx2 32MBx4
32MB
64MB
32MB
64MB
64MB
128MB
128MB
256MB
16MB
32MB
32MB
64MB
64MB
128MB
128MB
256MB
Hardware Setup
Module Installation Procedures
You can install single sided or double sided 168-pin DIMMs into DIMM
slots according to your needs.
Single Sided DIMM
Double Sided DIMM
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
DRAM
VOLT
3. The plastic clips at sides of the DIMM slot will automatically
close.
2-5
Chapter 2
Power Supply
The mainboard supports ATX power supply for the power system.
Before connecting to the power supply, always make sure that all components
are installed properly and no damage will be caused.
ATX 20-Pin Power Supply
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the power supply connector is
installed in the right orientation and the pins are aligned. Then push down the
power supply connector firmly into the power connector on the mainboard.
11
1
20
10
ATX
Power Connector
PIN
SIGNAL
PIN
SIGNAL
1
2
3
4
5
6
7
8
9
10
3.3V
3.3V
GND
5V
GND
5V
GND
PW_OK
5V_SB
12V
11
12
13
14
15
16
17
18
19
20
3.3V
-12V
GND
PS_ON
GND
GND
GND
-5V
5V
5V
2-6
Hardware Setup
Back Panel
The Back Panel provides the following connectors:
Mouse
LAN
Keyboard USB
Parallel
COM 1
Midi/Joystick
VGA
L-out L-in MIC
Mouse Connector
The mainboard provides a standard PS/2® mouse mini DIN connector
for attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector.
Pin Definition
6
5
4
3
2
1
PS/2 Mouse (6-pin Female)
PIN
SIGNAL
DESCRIPTION
1
2
3
4
5
6
Mouse DATA
NC
GND
VCC
Mouse Clock
NC
Mouse DATA
No connection
Ground
+5V
Mouse clock
No connection
2-7
Chapter 2
Keyboard Connector
The mainboard provides a standard PS/2® keyboard mini DIN connector for attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into
this connector.
Pin Definition
6
5
4
3
2
1
PS/2 Keyboard (6-pin Female)
PIN
1
2
3
4
5
6
SIGNAL
Keyboard DATA
NC
GND
VCC
Keyboard Clock
NC
DESCRIPTION
Keyboard DATA
No connection
Ground
+5V
Keyboard clock
No connection
USB Connectors
The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
the connector.
USB Port Description
1 2 3 4
5 6 7 8
USB Ports
PIN
1
2
3
4
5
6
7
8
SIGNAL
VCC
-Data 0
+Data0
GND
VCC
-Data 1
+Data 1
GND
2-8
DESCRIPTION
+5V
Negative Data Channel 0
Positive Data Channel 0
Ground
+5V
Negative Data Channel 1
Positive Data Channel 1
Ground
Hardware Setup
Parallel Port Connector
The mainboard provides a 25-pin female centronic connector for LPT.
A parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.
13
1
25
14
Pin Definition
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
SIGNAL
STROBE
DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
ACK#
BUSY
PE
SELECT
AUTO FEED#
ERR#
INIT#
SLIN#
GND
GND
GND
GND
GND
GND
GND
GND
2-9
DESCRIPTION
Strobe
Data0
Data1
Data2
Data3
Data4
Data5
Data6
Data7
Acknowledge
Busy
Paper End
Select
Automatic Feed
Error
Initialize Printer
Select In
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground1
Chapter 2
Serial Port Connector: COM 1 & COM 2
The mainboard has one 9-pin male DIN connector serial port COM 1
and one 9-pin COM 2 pin header. You can attach a serial mouse or other serial
devices to the connectors.
1 2 3 4 5
6 7 8 9
9-Pin Male DIN Connectors
5
4
3
2
1
9
8
7
6
Pin Definition
PIN
SIGNAL
DESCRIPTION
1
2
3
4
5
6
7
8
9
DCD
SIN
SOUT
DTR
GND
DSR
RTS
CTS
RI
Data Carry Detect
Serial In or Receive Data
Serial Out or Transmit Data
Data Terminal Ready)
Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicate
COM 2
VGA DB 15 Pin Connector
The mainboard provides one DB 15-pin female connector to connect a
VGA monitor.
Pin Definition
Analog Video Display Connector (DB-15S)
5
1
15
11
DB 15-Pin Female Connector
PIN
SIGNAL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red
Green
Blue
Not used
Ground
Ground
Ground
Ground
Power
Ground
Not used
SDA
Horizontal Sync
Vertical Sync
SCL
2-10
Hardware Setup
Joystick/Midi Connectors
You can connect a joystick or game pad to this connector.
Audio Port Connectors
Line Out is to connect speakers or headphones. Line In is a connector
for external CD player, Tape player or other audio devices. Mic is used to
connect to a microphone.
Line
Out
Line
In
MIC
LAN Jack (RJ-45)
The mainboard provides one standard RJ-45 jack for connection to
Local Area Network (LAN). You can connect a network cable to the LAN jack.
Pin Definition
LAN RJ-45 Jack
PIN
SIGNAL
DESCRIPTION
1
TDP
Transmit Differential Pair
2
TDN
Transmit Differential Pair
3
RDP
Receive Differential Pair
4
NC
Not Used
5
NC
Not Used
6
RDN
Receive Differential Pair
7
NC
Not Used
8
NC
Not Used
2-11
Chapter 2
Connectors
The mainboard provides connectors to connect to FDD, IDE HDD, IDE
RAID HDD, case, modem, LAN, USB Ports, IR module and CPU/Power Supply/System FAN.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
2
1
33
34
FDD
USB Front Panel Connector: USB2
The mainboard provides one Front USB (Universal Serial Bus) pin
header that allows you to connect two optional USB ports for Front Panel.
2
10
1
9
USB2
Pin Definition
2-12
Pin
Description
Pin
Description
1
VCC/5VSB
2
GND
3
USBD0-
4
GND
5
USBD0+
6
USBD1+
7
GND
8
USBD1-
9
GND
10
VCC/5VSB
Hardware Setup
Hard Disk Connectors: IDE1 & IDE2
The mainboard uses an IDE controller on the VIA® VT82C686B chipset
that provides PIO mode 0-4, Bus Master, and Ultra DMA 33/66/100 modes. It
has two HDD connectors IDE1 (Primary) and IDE2 (Secondary). You can
connect up to four hard disk drives, CD-ROM or 120MB Floppy to IDE1 and
IDE2.
IDE1 (Primary IDE Connector)
- The first hard disk drive should always be connected to IDE1. You can
connect a Master and a Slave drive to IDE1.
IDE2 (Secondary IDE Connector)
- You can connect a Master and a Slave drive to IDE2.
1
2
Secondary IDE Connector
Primary IDE Connector
1
2
39 40
39 40
‚TIP:
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting instructions.
2-13
Chapter 2
Case Connector: JFP1
The case connector block JFP1 allows you to connect to the Power
Switch, Reset Switch, Keylock, Speaker, Power LED, and HDD LED on the
case.
Reset
Switch
15
Speaker
+
14
Power
Switch
Power
LED
Buzzer
(short pin)
+
HDD
LED
Keylock
JFP1
Power Switch
Connect to a 2-pin push button switch. Pressing this button can turn the
system power on or off.
Reset Switch
Reset switch is used to reboot the system rather than turning the power ON/
OFF. Avoid rebooting while the HDD is working. You can connect the
Reset switch from the system case to this pin.
Power LED
The Power LED is lit while the system power is on. Connect the Power LED
from the system case to this pin.
Speaker
Speaker from the system case is connected to this pin.
2-14
Hardware Setup
If on-board Buzzer is available, then:
Short pin 14-15:
On-board Buzzer Enabled.
Open pin 14-15:
On-board Buzzer Disabled.
HDD LED
HDD LED shows the activity of a hard disk drive. Avoid turning the power
off while the HDD is working. You can connect the HDD LED from the
system case to this pin.
Keylock
Keylock allows you to disable the keyboard for security purpose. You can
connect the keylock to this connector.
2-15
Chapter 2
Wake On Ring Connector: JMDM1
This connector allows you to connect to a modem card with Wake On
Ring function. The connector will power up the system when a signal is
received through the modem card.
MDM_WAKEUP
NC GND
NC 5VSB
1
JMDM1
Wake On LAN Connector: WOL1
This connector allows you to connect to a LAN card with Wake On
LAN function. You can wake up the computer via remote control through a
local area network.
5VSB
1
GND
MP_WAKEUP
WOL1
2-16
Hardware Setup
Fan Power Connectors: CPUFAN/SYSFAN
The CPUFAN (processor fan) and SYSFAN (system fan) support
system cooling fan with +12V. It supports three-pin head connector. When
connecting the wire to the connectors, always take note that the red wire is
the positive and should be connected to the +12V, the black wire is Ground
and should be connected to GND. If the mainboard has a System Hardware
Monitor chipset on-board, you must use a specially designed fan with speed
sensor to take advantage of the CPU fan control.
GND
+12V
SENSOR
CPUFAN
GND
+12V
SENSOR
SYSFAN
™Note:
1. Always consult the vendor for proper CPU cooling fan.
2. CPU Fan supports the fan control. You can install the PC Alert utility
that will automatically control the CPU Fan speed according to the
actual CPU temperature.
2-17
Chapter 2
CD-In Connector: CD_IN
The connector is for CD-ROM audio connector.
R
GND
L
CD_IN
Aux Line-In Connector: AUX_IN
The connector is for DVD add-on card with Line-in connector.
R
GND
L
AUX_IN
2-18
Hardware Setup
Modem-In Connector: MODEM_IN
The connector is for modem with internal audio connector.
Phone_In
GND
Mono_Out
MODEM_IN
IrDA Infrared Module Connector: JIR1
This connector allows you to connect an IrDA Infrared module. You
must configure the setting through the BIOS setup to use the IR function.
5
1
JIR1
Pin Definition
PIN
SIGNAL
1
2
3
4
5
VCC
NC
IRRX
GND
IRTX
2-19
Chapter 2
Front Panel Audio Connector: FRONT AUDIO
You can connect an optional audio connector to the Front Panel Audio
Header.
2
18
1
17
FRONT AUDIO
PIN
1
3
5
7
9
11
13
15
17
Description
Active Line Out (R)
GND (ALO)
GND (+12)
+12V (1A)
MIC
Front Line Out (R)
Front Line Out (L)
GND (FLO)
Line In (R)
PIN
2
4
6
8
10
12
14
16
18
2-20
Description
Active Line Out (L)
GND (ALO)
GND (+12)
(Cut)
GND (MIC)
Line Next (R)
Line Next (L)
(Cut)
Line In (L)
Hardware Setup
Jumpers
The motherboard provides the following jumpers for you to set the
computer’s function. This section describes how to change your motherboard’s
function through the use of jumpers.
Clear CMOS Jumper: JBIOS
There is a CMOS RAM on board that has a power supply from external
battery to keep the data of system configuration. With the CMOS RAM, the
system can automatically boot OS every time it is turned on. The battery has
long life time for at least 5 years. If you want to clear the system configuration
stored in the CMOS RAM, use the JBIOS (Clear CMOS Jumper ) to clear data.
Follow the instructions below to clear the data:
1
JBIOS
1
1
3
3
keep data
!
WARNING!
clear data
You can clear CMOS by shorting 2-3 pin while the
system is off. Then return to 1-2 pin position. Avoid
clearing the CMOS while the system is on; it will
damage the mainboard.
2-21
Chapter 2
BIOS Flash Jumper: JBIOS1
This jumper is used to lock or unlock the boot block area on BIOS.
When unlocked, the BIOS boot block area can be updated. When locked, the
BIOS boot block area can not be updated.
JBIOS1
BIOS Flash Unlocked
BIOS Flash Locked
(Write Protect)
2-22
Hardware Setup
USB Keyboard Wake-up Jumpers: JKBUSB & J21
The JKBUSB/J21 jumpers are used to set USB keyboard wake-up
function. (Please note JKBUSB is for USB rear ports and J21 is for USB front
pin header: USB2) To use the function, you should also go to BIOS to enable
the USB keyboard wake-up (power on) function.
1
JKBUSB
1
J21
1
3
1
5V Standby
Enable Keyboard Power On Function
3
VCC 5V (Default)
Disable Keyboard Power On Function
Note: To be able to use this function, you need a power supply that
provides enough power for this feature. (Power supply with 750mA 5V
Stand-by)
2-23
Chapter 2
Slots
The motherboard provides three 32-bit Master PCI Bus Slots, one CNR
and one optional ISA slot.
PCI Slots
CNR Slot
ISA Slot
PCI Slots
Three PCI slots allow you to install expansion cards to meet your needs.
When adding or removing expansion cards, make sure that you unplug the
power supply first. Meanwhile, read the documentation for the expansion card
to make any necessary hardware or software settings for the expansion card,
such as jumpers, switches or BIOS configuration.
CNR (Communication Network Riser) Slot
The CNR specification is an open industry-standard specification that
defines a hardware scalable Original Equipment Manufacturer (OEM) mainboard riser board and interface, which supports audio and modem only.
ISA Slot (Optional)
This slot allows you to install ISA expansion card.
2-24
Hardware Setup
PCI Interrupt Request Routing
The IRQ, abbreviation of interrupt request line and pronounced I-R-Q,
are hardware lines over which devices can send interrupt signals to the
microprocessor. The PCI/USB/AC97 IRQ pins are typically connected to the
PCI bus INTA#-INTD# pins as follows:
Order 1 Order 2 Order 3 Order 4
PCI Slot 1 INT A# INT B# INT C# INT D#
PCI Slot 2 INT B# INT C# INT D# INT A#
PCI Slot 3 INT C# INT D# INT A# INT B#
USB-1
INT D# INT A# INT B# INT C#
USB-2
INT D# INT A# INT B# INT C#
AC97
INT C# INT D# INT A# INT B#
PCI Slot 3 & AC97 codec shared.
PCI Slot 1~3: Bus Master.
2-25
AWARD® BIOS Setup
3
Chapter
3.
®
AWA R D
B I Setup
OS
®
AWARD
BIOS
Setup
The mainboard uses AWARD BIOS ROM that provides a Setup util®
ity for users to modify the basic system configuration. The information is
stored in a battery-backed CMOS RAM so it retains the Setup information
when the power is turned off.
This chapter provides you with the overview of the BIOS Setup program.
It contains the following topics:
Entering Setup
Control Keys
Getting Help
The Main Menu
Standard CMOS Feature
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe/Optimized Defaults
Set Supervisor/User Password
Save & Exit Setup
Exit Without Saving
3-1
3-2
3-2
3-3
3-4
3-6
3-9
3-13
3-18
3-23
3-29
3-31
3-32
3-33
3-35
3-37
3-38
Chapter 3
Entering Setup
Power on the computer and the system will start POST (Power On
Self Test) process. When the message below appears on the screen, press
<DEL> key to enter Setup.
Hit DEL if you want to run SETUP
If the message disappears before you respond and you still wish to
enter Setup, restart the system by turning it OFF and On or pressing the
RESET button. You may also restart the system by simultaneously pressing
<Ctrl>, <Alt>, and <Delete> keys.
Control Keys
<↑>
Move to the previous item
<↓>
Move to the next item
<←>
Move to the item in the left hand
<→>
Move to the item in the right hand
<Enter>
Select the item
<Esc>
Jumps to the Exit menu or returns to the main menu from a submenu
<+/PU>
Increase the numeric value or make changes
<-/PD>
Decrease the numeric value or make changes
<F1>
General help, only for Status Page Setup Menu and Option Page
<F5>
Restore the previous CMOS value from CMOS, only for Option Page
<F6>
Load the default CMOS value from Fail-Safe default table, only for
Setup Menu
Setup Menu
Option Page Setup Menu
<F7>
Load Optimized defaults
<F10>
Save all the CMOS changes and exit
3-2
AWARD® BIOS Setup
Getting Help
After entering the Setup utility, the first screen you see is the Main Menu.
Main Menu
The main menu displays the setup categories the BIOS supplies. You can use
the arrow keys ( ↑↓ ) to select the item. The on-line description for the selected
setup category is displayed on the bottom of the screen.
Sub-Menu
If you find a right pointer symbol appears to the
left of certain fields (as shown in the right view), 8 IDE Primary Master
that means a sub-menu containing additional op- 8 IDE Primary Slave
tions for the field can be launched from this field. 8 IDE Secondary Master
To enter the sub-menu, highlight the field and press 8 IDE Secondary Slave
<Enter>. Then you can use control keys to move
between and change the settings of the sub-menu. To return to the main menu,
press <Esc>.
General Help <F1>
The BIOS setup program provides a General Help screen. You can call up this
screen from any menu by simply pressing <F1>. The Help screen lists the
appropriate keys to use and the possible selections for the highlighted item.
Press <Esc> to exit the Help screen.
3-3
Chapter 3
The Main Menu
Once you enter AWARD® BIOS CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu displays eleven configurable
functions and two exit choices. Use arrow keys to move among the items
and press <Enter> to enter the sub-menu.
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
8Standard CMOS Features
8Frequency/Voltage Control
8Advanced BIOS Features
Load Fail-Safe Defaults
8Advanced Chipset Features
Load Optimized Defaults
8Integrated Peripherals
Set Supervisor Password
8Power Management Setup
Set User Password
8PnP/PCI Configurations
Save & Exit Setup
8PC Health Status
Exit Without Saving
ESC : Quit
F9 : Menu in BIOS
↑ ↓ ← → : Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type…
Standard CMOS Features
Use this menu for basic system configurations, such as time, date etc.
Advanced BIOS Features
Use this menu to setup the items of Award® special enhanced features.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize
your system’s performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
3-4
AWARD® BIOS Setup
Power Management Setup
Use this menu to specify your settings for power management.
PnP/PCI Configurations
This entry appears if your system supports PnP/PCI.
PC Health Status
This entry displays the current status of your PC.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the minimal/stable performance of your PC.
Load Optimized Defaults
Use this menu to load the default factory settings for BIOS for optimal
system performance.
Supervisor Password
Use this menu to set Supervisor Password.
User Password
Use this menu to set User Password.
Save & Exit Setup
Save changes to CMOS and exit setup.
Exit Without Saving
Abandon all changes and exit setup.
3-5
Chapter 3
Standard CMOS Features
The items inside Standard CMOS Features menu are divided into 13
categories. Each category includes none, one or more setup items. Use the
arrow keys to highlight the item you want to modify and use the <PgUp> or
<PgDn> keys to switch to the value you prefer.
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
Standard CMOS Features
Date (mm:dd:yy) :
Time (hh:mm:ss) :
Tue, Apr 10 2001
00:00:00
8 IDE Primary Master
8 IDE Primary Slave
8 IDE Secondary Master
8 IDE Secondary Slave
Menu Level 8
Change the day, month,
year and century
Drive A
Drive B
1.44 M, 3.5 in.
None
Video
Halt On
EGA/VGA
All, But Keyboard
Base Memory
Extended Memory
Total Memory
Item Help
640K
65472K
66112K
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults
F7:Optimized Defaults
Date
This allows you to set the system to the date that you want (usually the
current date). The format is <day><month> <date> <year>.
day
Day of the week, from Sun to Sat, determined by
BIOS. Read-only.
month
The month from Jan. through Dec.
date
The date from 1 to 31 can be keyed by numeric
function keys.
year
The year depends on the year of the BIOS.
Time
This allows you to set the system time that you want (usually the current
time). The time format is <hour> <minute> <second>.
3-6
AWARD® BIOS Setup
IDE Primary Master/Primary Slave/Secondary Master/Secondary Slave
Press PgUp/<+> or PgDn/<-> to select the hard disk drive type. The
specification of hard disk drive will show up on the right hand according to
your selection.
IDE Primary Master
IDE HDD Auto-Detection
Press Enter
IDE Primary Master
Access Mode
Auto
Auto
Capacity
15021MB
Cylinder
Head
Precomp
Landing Zone
Sector
291024
16
Access Mode
Capacity
Cylinder
Head
Precomp
Landing Zone
Sector
Item Help
Menu Level 88
To auto-detect the
HDD’s size, head...on
this channel
0
29103
63
The settings are Auto, CHS, LBA and Large.
The formatted size of the storage device.
Number of cylinders.
Number of heads.
Write precompensation.
Cylinder location of the landing zone.
Number of sectors.
Drive A/B
This item allows you to set the type of floppy drives installed. Available
options are None, 360K, 5.25 in., 1.2M, 5.25 in., 720K, 3.5 in., 1.44M, 3.5
in., 2.88M, 3.5 in.. The default value for Floppy Drive A is 1.44M, 3.5 in,
and for Floppy Drive B is None.
Video
The item sets the type of video adapter used for the primary monitor of the
system . Available options are EGA/VGA , CGA 40, CGA 80 and Mono.
3-7
Chapter 3
Default value is EGA/VGA.
Halt On
The item determines whether the system will stop if an error is detected at
boot. Available options are:
All Errors
No Errors
All, But Keyboard
All, But Diskette
All, But Disk/Key
The system stops when any error is detected.
The system doesn’t stop for any detected error.
The system doesn’t stop for a keyboard error.
The system doesn’t stop for a disk error.
The system doesn’t stop for either a disk or a
keyboard error.
3-8
AWARD® BIOS Setup
Advanced BIOS Features
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
Advanced BIOS Features
Anti-Virus Protection
CPU Internal Cache
External Cache
CPU L2 Cache ECC Checking
Processor Number Feature
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Gate A20 Option
Typematic Rate Setting
x Typematic Rate (Chars/Sec)
x Typematic Delay (Msec)
Security Option
OS Select for DRAM > 64MB
Video BIOS Shadow
C8000-CBFFF Shadow
CC000-CFFFF Shadow
D0000-D3FFF Shadow
D4000-D7FFF Shadow
D8000-DBFFF Shadow
DC000-DFFFF Shadow
Disabled
Enabled
Enabled
Enabled
Enabled
Disabled
Floppy
HDD-0
LS120
Enabled
Disabled
Enabled
On
Normal
Disabled
6
250
Setup
Non-OS2
Enabled
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Item Help
Menu Level 8
Allows you to choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled
and someone attempt to
write data into this
area, BIOS will show a
warning message on
screen and alarm beep.
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Anti-Virus Protection
The item is to set the Virus Warning feature for IDE Hard Disk boot sector
protection. If the function is enabled and any attempt to write data into this
area is made, BIOS will display a warning message on screen and beep.
Settings are Disabled and Enabled. Default value is Disabled.
CPU Internal Cache
The item allows you to turn on or off CPU’s internal (L1) cache. Settings are
Enabled (default) and Disabled.
External Cache
This allows you to turn on or off L2 (Level 2) cache memory for CPU.
3-9
Chapter 3
Settings are Enabled (default) and Disabled.
CPU L2 Cache ECC Checking
This allows you to enable or disable the ECC (Error-Correcting Code) feature
for error detection and correction when data passes through L2 cache
memory. Settings are Enabled and Disabled. Default value is Enabled.
Processor Number Feature
This feature is for Pentium® !!! only. When set to Enabled, the system will
check CPU Serial Number. Set to Disabled if you don’t want the system to
know the CPU Serial Number. Default value is Enabled.
Quick Power On Self Test
Setting the item to Enabled allows the system to shorten boot time since it
will skip some check items. Settings are Enabled and Disabled. Default
value is Disabled.
First/Second/Third Boot Device
The items allow you to set the sequence of boot devices where BIOS
attempts to load the disk operating system. The settings are:
HDD-0
The system will boot from the first HDD.
HDD-1
The system will boot from the second HDD.
HDD-2
The system will boot from the third HDD.
HDD-3
The system will boot from the fourth HDD.
Floppy
The system will boot from floppy drive.
ZIP100
The system will boot from ATAPI ZIP drive.
LS-120
The system will boot from LS-120 drive.
SCSI
The system will boot from the SCSI.
LAN
The system will boot from the Network drive.
CD-ROM
The system will boot from the CD-ROM.
Disabled
Disable this sequence.
Boot Other Device
Setting the option to Enabled allows the system to try to boot from other
device if the system fails to boot from the 1st/2nd/3rd boot device.
3-10
AWARD® BIOS Setup
Swap Floppy Drive
Setting to Enabled will swap floppy drives A: and B:. Default is Disabled.
Boot Up Floppy Seek
Setting to Enabled will make BIOS seek floppy drive A: before booting the
system. Setting options are Disabled and Enabled. Default is Enabled.
Boot Up NumLock Status
This item is to set the Num Lock status when the system is powered on.
Setting to On will turn on the Num Lock key when the system is powered on.
Setting to Off will allow end users to use the arrow keys on the numeric
keypad. Settings are On and Off. Default is On.
Gate A20 Option
This item is to set the Gate A20 status. A20 refers to the first 64KB of
extended memory. When the default value Fast is selected, the Gate A20 is
controlled by Port92 or chipset specific method resulting in faster system
performance. When Normal is selected, A20 is controlled by a keyboard
controller or chipset hardware.
Typematic Rate Setting
This item is used to enable or disable the typematic rate setting including
Typematic Rate & Typematic Delay.
Typematic Rate (Chars/Sec)
After Typematic Rate Setting is enabled, this item allows you to set the rate
(characters/second) at which the keys are accelerated. Setting options are 6,
8, 10, 12, 15, 20, 24 and 30.
Typematic Delay (Msec)
This item allows you to select the delay between when the key was first
pressed and when the acceleration begins. Setting options are 250, 500,
750 and 1000.
Security Option
This specifies the type of BIOS password protection that is implemented.
Setting options are described below:
3-11
Chapter 3
Option
Description
Setup (default) The password prompt appears only when end users try to
run Setup.
System
A password prompt appears every time when the computer is powered on or when end users try to run Setup.
OS Select for DRAM > 64MB
This allows you to run the OS/2® operating system with DRAM larger than
64MB. When you choose the default value Non-OS2, you cannot run the
OS/2® operating system with DRAM larger than 64MB. But it is possible if
you choose OS2. Default value is Non-OS2.
Video BIOS Shadow
This items sets if the Video BIOS will be copied to RAM and increase video
speed accordingly. Settings are Enabled (default) and Disabled.
C8000-CBFFF/CC000-CFFFF/D0000-D3FFF/D4000-D7FFF/D8000DBFFF/DC000-DFFFFShadow
These items specify whether the contents of the adapter ROM named in the
items will be copied into RAM to improve the performance of ROM firmware
for adapters. You need to know the address of each adapter ROM occupies
to shadow (copy) it into the correct area of RAM. Settings are Enabled and
Disabled (default).
3-12
AWARD® BIOS Setup
Advanced Chipset Features
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
Advanced Chipset Features
DRAM Timing By SPD
x SDRAM Cycle Length
x DRAM Clock
Memory Hole
P2C/C2P Concurrency
Fast R-W Turn Around
System BIOS Cacheable
Video RAM Cacheable
Frame Buffer Size
AGP Aperture Size
OnChip USB
USB Keyboard Support
OnChip Sound
OnChip Modem
CPU to PCI Write Buffer
PCI Dynamic Bursting
PCI Master 0 WS Write
PCI Delay Transaction
PCI#2 Access #1 Retry
AGP Master 1 WS Write
AGP Master 1 WS Read
Memory Parity/ECC Check
Enabled
3
Host CLK
Disabled
Enabled
Enabled
Disabled
Disabled
8M
64M
Enabled
Disabled
Auto
Auto
Enabled
Enabled
Enabled
Enabled
Enabled
Disabled
Disabled
Disabled
Item Help
Menu Level 8
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
™Note: Change these settings only if you are familiar with the chipset.
DRAM Timing by SPD
Selects whether DRAM timing is configured by reading the contents of the
SPD (Serial Presence Detect) device on the DRAM module. Setting to
Enabled makes both DRAM Cycle Length and DRAM Clock automatically
determined by BIOS according to the configurations on the SPD.
SDRAM Cycle Length
The option controls the CAS latency, which determines the timing delay
before SDRAM starts a read command after receiving it. Settings are 2 and
3 (clock cycles). 2 increases system performance while 3 provides more
stable system performance.
3-13
Chapter 3
DRAM Clock
The chipset supports synchronous and asynchronous mode between host
clock and DRAM clock frequency. The settings are:
Host CLK
The DRAM clock will be equal to the Host Clock.
HCLK-33M The DRAM clock will be equal to the Host Clock minus
33MHz. For example, if the Host Clock is 133MHz, the
DRAM clock will be 100MHz.
HCLK+33M The DRAM clock will be equal to the Host Clock plus
33MHz. For example, if the Host Clock is 100MHz, the
DRAM clock will be 133MHz.
Memory Hole
In order to improve performance, certain space in memory can be reserved
for ISA cards. This memory must be mapped into the memory space below
16MB. When this area is reserved, it cannot be cached. The settings are
Enabled and Disabled (default).
P2C/C2P Concurrency
This field enables or disables the PCI to CPU and CPU to PCI concurrency
feature, which allows synchronous data transmission from PCI to CPU and
vice versa. Selecting the default Enabled will increase system performance.
Fast R-W Turn Around
This is used to control the fast read/write turn around feature for DRAM
timing. Settings are Enabled and Disabled (default). Enabled improves
system performance while Disabled provides stability.
System BIOS Cacheable
System BIOS ROM at F000h-F0000h is always copied to RAM for faster
execution. Selecting Enabled allows the contents of F0000h RAM memory
segment to be written to and read from cache memory, resulting in better
system performance. However, if any program writes to this memory area, a
system error may result. The settings are Enabled and Disabled (default).
Video RAM Cacheable
The field allows the caching of video memory, resulting in increased system
3-14
AWARD® BIOS Setup
performance. Settings are Enabled and Disabled (default).
Frame Buffer Size
Frame Buffer is the video memory that stores data for video display (frame).
This field is used to determine the memory size for Frame Buffer. Larger
frame buffer size increases video performance. Settings are 2M, 4M and 8M
(default).
AGP Aperture Size
Selects the size of the Accelerated Graphics Port (AGP) aperture. Aperture
is a portion of the PCI memory address range dedicated for graphics memory
address space. Host cycles that hit the aperture range are forwarded to the
AGP without any translation. Options are 4M, 8M, 16M, 32M, 64M and
128M.
OnChip USB
This is used to enable or disable the USB ports. Settings are Enabled and
Disabled. The default is Enabled.
USB Keyboard Support
Set to Enabled if your need to use an USB keyboard in the operating system
that does not support or have any USB driver installed, such as DOS and
SCO Unix. Default is Disabled.
OnChip Sound
Auto allows the mainboard to detect whether an audio device is used. If the
device is detected, the onboard audio controller will be enabled; if not, the
controller is disabled. Disable the controller if you want to use other
controller cards to connect an audio device. Settings are Auto (default) and
Disabled.
OnChipModem
Auto allows the mainboard to detect whether a modem is used. If a modem is
detected, the onboard modem controller will be enabled; if not, the controller
is disabled. Disable the controller if you want to use other controller cards
to connect modems. Settings are Auto (default) and Disabled.
3-15
Chapter 3
CPU to PCI Write Buffer
When Enabled, CPU can write up to four words of data into the PCI write
buffer before the CPU must wait for PCI bus cycles to finish. When
Disabled, the CPU must wait after each write cycle until the PCI bus signals
that it is ready to receive more data.
PCI Dynamic Bursting
When Enabled, every write transaction goes to the write buffer. Then
burstable transactions burst on the PCI bus and nonburstable transactions
do not.
PCI Master 0 WS Write
When Enabled, writes to the PCI bus are executed with zero wait state.
Default is Enabled.
PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support delay
transactions cycles. Select Enabled to support compliance with PCI
specification version 2.1. Default is Enabled.
PCI #2 Access #1 Retry
When Disabled, PCI#2 will not be disconnected until access finishes
(default). When Enabled, PCI#2 will be disconnected if max retries are
attempted without success. Default is Enabled.
AGP Master 1 WS Write
When Enabled, writes to the AGP bus are executed with one wait state
inserted. Default is Disabled.
AGP Master 1 WS Read
When Enabled, one wait state is inserted in the AGP read cycle. Default is
Disabled.
Memory Parity/ECC Check
User can set the field to Enabled for memory checking if the type of DRAM
installed in your system is Parity or ECC (Error-Correcting Code) DRAM.
Default is Disabled.
3-16
AWARD® BIOS Setup
AGP Master 1 WS Write
When Enabled, writes to the AGP bus are executed with one wait state
inserted. Default is Disabled.
3-17
Chapter 3
Integrated Peripherals
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
Integrated Peripherals
x
x
x
x
OnChip IDE Channel0
OnChip IDE Channel1
IDE Prefetch Mode
Primary Master
PIO
Primary Slave
PIO
Secondary Master PIO
Secondary Slave PIO
Primary Master
UDMA
Primary Slave
UDMA
Secondary Master UDMA
Secondary Slave UDMA
Init Display First
Onboard Lan Device
IDE HDD Block Mode
Onboard FDD Controller
Onboard Serial Port 1
Onboard Serial Port 2
UART 2 Mode
IR Function Duplex
TX, RX inverting enable
Onboard Parallel Port
Onboard Parallel Mode
ECP Mode Use DMA
Parallel Port EPP Type
Onboard Legacy Audio
Sound Blaster
SB I/O Base Address
SB IRQ Select
SB DMA Select
MPU-401
MPU-401 I/O Address
Game Port (200-207H)
Enabled
Enabled
Enabled
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
AGP
Enabled
Enabled
Enabled
Auto
Auto
Standard
Half
No, Yes
378/IRQ7
Normal
3
EPP1.9
Enabled
Disabled
220H
IRQ 5
DMA 1
Disabled
330-333H
Enabled
Item Help
Menu Level 8
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
OnChip IDE Channel0/1
The integrated peripheral controller contains an IDE interface with support
for two IDE channels. Choose the default value Enabled to activate each
channel separately.
IDE Prefetch Mode
The onboard IDE drive interfaces supports prefetching, for faster drive
3-18
AWARD® BIOS Setup
accesses. Set to Disabled if your primary and/or secondary add-in IDE
interface does not support prefetching.
Primary/Secondary Master/Slave PIO
The four fields allow you to set a PIO (Programmed Input/Output) mode for
each of the four IDE devices that the onboard IDE interface supports.
Modes 0~4 provide increased performance. In Auto mode, BIOS automatically determines the best mode for each IDE device.
Primary/Secondary Master/Slave UDMA
Ultra DMA implementation is possible only if your IDE device supports it
and your operating environment contains a DMA driver. If both your hard
drive and software support Ultra DMA, select Auto (default) to enable BIOS
support.
Init Display First
This item specifies which VGA card is your primary graphics adapter.
Available options are PCI Slot and AGP. Default value is AGP.
Onboard Lan Device
This is used to enable or disable the onboard LAN controller. Settings are
Enabled (default) and Disabled.
IDE HDD Block Mode
This allows your hard disk controller to use the fast block mode to transfer
data to and from the hard disk drive. Block mode is also called block
transfer, multiple commands or multiple sector read/write. Enabled enables
IDE controller to use block mode; Disabled allows the controller to use
standard mode. Default is Enabled.
Onboard FDD Controller
This is to enable or disable the onboard Floppy controller. Set to Enabled if
you have a floppy disk drive installed on the mainboard and want to use it.
Onboard Serial Port 1/2
These items specify the base I/O port address and IRQ for the onboard
Serial Port 1 (COM 1)/Serial Port 2 (COM 2). Selecting to Auto allows BIOS
3-19
Chapter 3
to automatically determine the correct base I/O port address. Available
options are Auto, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3 and Disabled.
Default is Auto. If you have ISA add-on card, the suggested configuration
is as the following:
If the ISA add-on card has
COM4
COM3
COM2
COM1
(I/O:3F8H) (I/O:3F8H) (I/O:3E8H) (I/O:2E8H)
9
9
X
9
X
9
9
9
X
X
9
X
X
X
9
9
X
X
9
9
9
X
9
X
X
9
X
X
9
X
9
X
9
9
X
9
9
X
X
X
9
X
9
X
9
9
X
X
9
9
9
X
X
X
X
9
Onboard Serial port to be set at
PORT1
DISABLED
COM3
COM1
COM2
COM1
COM4
COM3
COM2
COM1
COM1
COM2
COM1
COM1
COM1
IRQ
ASSIGNED
X
4
4
3
4
3
4
3
4
4
3
4
4
4
PORT2
DISABLED
COM4
COM2
COM3
COM4
DISABLED
DISABLED
DISABLED
DISABLED
COM2
COM3
COM3
COM2
COM2
IRQ
ASSIGNED
X
3
3
4
3
X
X
X
X
3
4
4
3
3
UART 2 Mode
The item allows you to specify the operation mode for serial port “COM 2”.
Settings are:
Standard
HPSIR
ASKIR
RS-232C Serial Port
IrDA-compliant Serial Infrared Port
Amplitude Shift Keyed Infrared Port
IR Function Duplex
This field specifies a duplex value for the IR device connected to COM 2.
Full-Duplex mode permits simultaneous two-direction transmission. HalfDuplex mode permits transmission in one direction only at a time. Settings
are Half and Full. The default is Half .
3-20
AWARD® BIOS Setup
TX, RX inverting enable
This item allows you to enable the TX, RX inverting which depends on
different H/W requirement. This field is not recommended to change its
default setting for avoiding any error in your system. Settings are “No, Yes”
(default), “Yes, No”, “Yes, Yes” and “No, No.”
Onboard Parallel Port
This specifies the base I/O port address and IRQ of the onboard Parallel
Port. Settings are 378/IRQ7, 278/IRQ5, 3BC/IRQ7 and Disabled. Default
is 378/IRQ7. If you have an ISA add-on card, the suggested configuration
is as below:
If the ISA add-on card has
Onboard parallel port to be set as
LPT1
LPT2
LPT3
I/O:378H I/O:278H I/O:3BCH
9
9
9
9
9
X
9
X
9
X
9
9
9
X
X
X
9
X
X
X
9
X
X
X
PORT
ASSIGNED
Disabled
LPT3
LPT2
LPT1
LPT2
LPT1
LPT1
LPT1
IRQ
ASSIGNED
X
5
5
7
5
7
7
7
Note: If the onboard parallel port interrupt and ISA add-on card interrupt
are in conflict, the parallel port will not work properly. Please disable
one of the devices.
Onboard Parallel Mode
This item selects the operating mode for the parallel port: Normal, EPP, ECP
or ECP+EPP. Default is Normal.
ECP Mode Use DMA
This item specifies an DMA channel 1 or 3 for the Parallel Port when it is set
to ECP or ECP+EPPmode.
3-21
Chapter 3
Parallel Port EPP Type
The item selects the EPP version used by the parallel port if the port is set to
EPP or ECP+EPP mode. Settings are EPP1.7 and EPP1.9.
Onboard Legacy Audio
The item enables or disables the onboard audio features of the mainbaord
and the following audio options in the BIOS.
Sound Blaster
The item turns on/off the Sound Blaster feature of the board. If you want to
play the Sound Blaster compatible games, you need to set the field to
Enabled.
SB I/O Base Address
This item specifies the I/O Base Address for the Sound Blaster. Settings are
220H, 240H, 260H and 280H.
SB IRQ Select
This item specifies the IRQ for the Sound Blaster. Settings are IRQ 5, IRQ 7,
IRQ 9 and IRQ 10.
SB DMA Select
This item specifies the DMA channel for the Sound Blaster. Settings are
DMA 1, DMA 2, DMA 3 and DMA 0.
MPU-401
The field enables or disables the MPU-401 interface (the Yamaha Sound
Blaster mode).
MPU-401 I/O Address
This item selects the base I/O port address for the MPU-401 interface.
Settings are 330-333H, 300-303 and 310-313.
Game Port (200-207H)
The item enables or disables the Joystick/Game port.
3-22
AWARD® BIOS Setup
Power Management Setup
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
Power Management Setup
ACPI function
8Power Management
ACPI Suspend Type
PM Control by APM
Video Off Option
Video Off Method
MODEM Use IRQ
Soft-Off by PWRBTN
State After Power Failure
LED In Suspend
8Wake Up Events
Enabled
Press Enter
S1 (POS)
Yes
Suspend --> Off
V/H SYNC + Blank
3
Instant-Off
Auto
Blink
Press Enter
Item Help
Menu Level 8
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
ACPI Function
This item is to activate the ACPI (Advanced Configuration and Power
Management Interface) Function. If your operating system is ACPI-aware,
such as Windows 98SE/2000/ME, select Enabled. Settings are Enabled and
Disabled. Default is Enabled.
Power Management
Press <Enter> to enter the sub-menu for power management options.
3-23
Chapter 3
Power Management
Power Management
HDD Power Down
Doze Mode
Suspend Mode
User Define
Disable
Disable
Disable
Item Help
Menu Level 88
Power Management
This item is used to select the degree (or type) or power saving and is
related to these modes: Doze Mode, Suspend Mode and HDD Power Down.
There are three options for power management:
Min Saving Minimum Power Management. Doze Mode = 1 hour,
Suspend Mode = 1 hour, and HDD Power Down =
Disable.
Max Saving Maximum Power Management. Doze Mode = 10 sec,
Suspend Mode = 10 sec, and HDD Power Down =
Disable.
User Define Allows end users to configure each mode separately.
Each of the ranges are from 1 min. to 1 hour except for
HDD Power Down which ranges from 1 min. to 15 min.
Default value is User Define.
HDD Power Down
If HDD activity is not detected for the length of time specified in this field,
the hard disk drive will be powered down while all other devices remain
active. Settings are Disable and 1 through 15 Min.
Doze Mode
If system activity is not detected for the length of time specified in this field,
the CPU clock will run at slower speed while other devices still run at full
speed. Settings are Disable, 1 Min, 2 Min, 4 Min, 6 Min, 8 Min, 10 Min, 20
3-24
AWARD® BIOS Setup
Min, 30 Min, 40 Min and 1 Hour.
Suspend Mode
If system activity is not detected for the length of time specified in this field,
all devices except CPU will be shut off. Settings are Disable, 1 Min, 2 Min, 4
Min, 6 Min, 8 Min, 10 Min, 20 Min, 30 Min, 40 Min and 1 Hour.
ACPI Suspend Type
This item specifies the power saving modes for ACPI function. Options are:
S1 (POS)
S3 (STR)
The S1 sleep mode is a low power state. In this state,
no system context is lost (CPU or chipset) and hardware maintains all system context.
The S3 sleep mode is a lower power state where the
information of system cofiguration and open applications/files is saved to main memory that remains
powered while most other hardware components turn
off to save energy. The information stored in memory
will be used to restore the system when an “wake up”
event occurs.
Default value is S1 (POS).
PM Control by APM
Setting to Yes will activate an Advanced Power Management (APM) device
to enhance Max Saving mode and stop CPU internal clock. Settings are Yes
and No. Default is Yes.
Video Off Option
The settings are Always On, Suspend and All Modes. This option is for
choosing the setting in which the monitor will turn off.
Always On
Always turn on.
Suspend --> Off
During Suspend mode, the monitor will be
turned off.
All Modes --> Off
The monitor is turned off during Doze, Standby
or Suspend mode.
3-25
Chapter 3
Video Off Method
This determines the manner in which the monitor is blanked.
V/H SYNC+Blank
This selection will cause the system to turn
off the vertical and horizontal synchronization ports and write blanks to the video
buffer.
Blank Screen
This option only writes blanks to the video
buffer.
DPMS Support
Initial display power management signaling.
MODEM Use IRQ
Name the interrupt request (IRQ) line assigned to the modem (if any) on your
system. Activity of the selected IRQ always awakens the system. Settings
are 3, 4, 5, 7, 9, 10, 11 and NA.
Soft-Off by PWRBTN
This feature allows users to configure the power button as a normal poweron/-off button or a soft-off button. Settings are:
Instant-Off
The power button functions as a normal power-on/off button.
Delay 4 Sec.
Pressing the power button for more than 4 seconds
will place the system in a very low-power-usage
state (Soft-Off state), with only enough circuitry
receiving power to detect power button activity or
Wake Up On LAN/Ring activity.
Default is Instant-Off.
State After Power Failure
This item specifies whether your system will reboot after a power failure or
interrupts occurs. Available settings are:
Off
Leaves the computer in the power off state.
On
Reboots the computer.
Auto
BIOS automatically determines the best mode.
LED In Suspend
This item sets how the system uses Power LED on the case to indicate the
3-26
AWARD® BIOS Setup
suspend state. Settings are:
Blink
The Power LED blinks to indicate the suspend state.
Single
The Power LED remains the same color.
Dual
The Power LED changes its color to indicate the
suspend state.
Wake Up Events
Press <Enter> to enter the sub-menu and the following screen appears:
Wake Up Events
VGA
LPT & COM
HDD & FDD
PCI Master
Wake Up On LAN
PowerOn by PCI Card
Modem Ring Resume
RTC Alarm Resume
x Date (of Month)
x Resume Time (hh:mm:ss)
8IRQs Activity Monitoring
OFF
LPT/COM
ON
OFF
Disabled
Disabled
Disabled
Disabled
0
16 0 0
Press Enter
Item Help
Menu Level 88
VGA, LPT & COM, HDD & FDD, PCI Master, Wake Up On LAN, PowerOn
by PCI Card, Modem Ring Resume
These items specify whether the system will be awakened from power saving
modes when activity or input signal of the specified hardware peripheral or
component is detected.
Note: To use the function of Wake Up On LAN and Modem Ring Resume,
you need to install a LAN card/modem supporting power on function.
RTC Alarm Resume
This is to enable or disable the feature of booting up the system on a
scheduled time/date. Settings are Enabled and Disabled (default)
Date (of Month)
Specifies the date for RTC Alarm Resume. Settings are 0~31.
3-27
Chapter 3
Resume Time (hh:mm:ss)
Specifies the time for RTC Alarm Resume. Format is <hour><minute>
<second>.
IRQs Activity Monitoring
Press <Enter> to enter the sub-menu and the following screen appears:
IRQs Activity Monitoring
Primary INTR
IRQ3 (COM 2)
IRQ4 (COM 1)
IRQ5 (LPT 2)
IRQ6 (Floppy Disk)
IRQ7 (LPT 1)
IRQ8 (RTC Alarm)
IRQ9 (IRQ2 Redir)
IRQ10 (Reserved)
IRQ11 (Reserved)
IRQ12 (PS/2 Mouse)
IRQ13 (Coprocessor)
IRQ14 (Hard Disk)
IRQ15 (Reserved)
ON
Enabled
Enabled
Enabled
Enabled
Enabled
Disabled
Disabled
Disabled
Disabled
Enabled
Enabled
Enabled
Disabled
Item Help
Menu Level 888
Primary INTR
When this is set to ON, any event occurring will wake up the system which
has been powered down.
IRQ3~IRQ15
Enables or disables the monitoring of the specified IRQ line. If set to
Enabled, the activity of the specified IRQ line will prevent the system from
entering power saving modes or awaken it from power saving modes.
Note: IRQ (Interrupt Request) lines are system resources allocated to
I/O devices. When an I/O device needs to gain attention of the operating
system, it signals this by causing an IRQ to occur. After receiving the
signal, when the operating system is ready, the system will interrupt itself
and perform the service required by the I/O device.
3-28
AWARD® BIOS Setup
PnP/PCI Configurations
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
PnP/PCI Configurations
PNP OS Installed
Reset Configuration Data
Resources Controlled By
x IRQ Resources
x DMA Resources
PCI/VGA Palette Snoop
Assign IRQ For VGA
Assign IRQ For USB
No
Disabled
Auto (ESCD)
Press Enter
Press Enter
Disabled
Enabled
Enabled
Item Help
Menu Level 8
Select Yes if you are
using a Plug and Play
capable operation
system Select No if
you need the BIOS to
configure non-boot
devices
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
PNP OS Installed
When set to YES, BIOS will only initialize the PnP cards used for booting
(VGA, IDE, SCSI). The rest of the cards will be initialized by the PnP operating system like Windows® 95 or 98. When set to NO, BIOS will initialize all
the PnP cards. So, select Yes if the operating system is Plug & Play aware.
Reset Configuration Data
The ESCD (Extended System Configuration Data) is a method that the BIOS
uses to store resource information for both PNP and non PNP devices in a
bit string format. When Enabled, the system will rebuild ESCD and you will
see the message “ESCD Update Successfully” on boot up.
Resources Controlled By
If select Auto(ESCD), BIOS will automatically configure all the boot and PnP
(Plug & Play) compatible devices and assigns system resources like IRQ to
these devices. However, this feature means absolutely nothing unless you
are using a Plug and Play operating system such as Windows95/98. If you
3-29
Chapter 3
want to configure by yourself, select Manaul. Default is Auto(ESCD).
IRQ/DMA Resources
The items are adjustable only when Resources Controlled By is set to
Manual. Press <Enter> and you will enter the sub-menu of the items. IRQ
Resources & DMA Resources list IRQ 3/4/5/7/9/10/11/12/14/15 and DMA 0/
1/3/5/6/7 for users to set each IRQ/DMA a type depending on the type of
device using the IRQ/DMA. Settings are:
PCI/ISA PnP
For Plug & Play compatible devices designed for
PCI or ISA bus architecture.
Legacy ISA
For devices compliant with the PC AT bus
specification, requiring a specific interrupt.
PCI/VGA Palette Snoop
When set to Enabled, multiple VGA devices operating on different buses
can handle data from the CPU on each set of palette registers on every video
device. Bit 5 of the command register in the PCI device configuration space
is the VGA Palette Snoop bit (0 is disabled). For example, if there are two
VGA devices in the computer (one PCI and one ISA) and the:
VGA Palette Snoop
Bit Setting
Action
Disabled
Data read or written by the CPU is only directed to the
PCI VGA device’s palette registers.
Enabled
Data read or written by the CPU is directed to both the
PCI VGA device’s palette registers and the ISA VGA
device’s palette registers, permitting the palette
registers of both VGA devices to be identical.
The setting must be set to Enabled if any ISA adapter card installed in the
system requires VGA palette snooping. The Setup and BIOS default values
are Disabled.
Assign IRQ For VGA/USB
Set to Enabled allows BIOS to assign an IRQ to VGA card/USB device.
Choose Disabled if you want to release the IRQ. Default is Enabled.
3-30
AWARD® BIOS Setup
PC Health Status
This section is to monitor the current hardware status including CPU
temperature, CPU Fan speed, Vcore etc. This is available only if there is
hardware monitoring onboard.
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
PC Health Status
Current CPU Temp.
Current System Temp.
Current CPUFAN Speed
Current System Fan Speed
Vcore
2.5V
3.3V
5V
12V
58°C/132°F
23°C/73°F
4200RPM
4560RPM
1.66V
2.41V
3.30V
5.02V
12.05V
Item Help
Menu Level 8
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Current CPU Temp., Current System Temp., Current CPUFAN/System Fan
Speed, Vcore, 2.5/3.3/5/12V
These items display the current status of all of the monitored hardware
devices/components such as CPU voltages, temperatures and all fans’s
speed.
3-31
Chapter 3
Frequency/Voltage Control
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
Frequency/Voltage Control
Auto Detect DIMM/PCI Clk
Spread Spectrum
CPU Host/PCI Clock
Enabled
Disabled
Default
Item Help
Menu Level 8
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Auto Detect DIMM/PCI Clk
Use this item to enable or disable the feature of auto detecting the clock
frequency of the installed DRAM DIMMs and PCI cards. Settings are
Enabled (default) and Disabled.
Spread Spectrum
This item is used to enable or disable the clock generator’s Spread Spectrum
feature. When overclocking the processor, always set it to Disabled.
Settings are Enabled and Disabled (default).
CPU Host/PCI Clock
This item specifies the clock frequency of CPU host bus (FSB) and PCI bus
and provides a method for end users to overclock the processor
accordingly. If the item shows Default, the clock frequency will use the
default value for both the CPU host bus and PCI bus.
3-32
AWARD® BIOS Setup
Load Fail-Safe/Optimized Defaults
The two options on the main menu allow users to restore all of the BIOS
settings to the default Fail-Safe or Optimized values. The Optimized Defaults
are the default values set by the mainboard manufacturer specifically for the
optimal performance of the mainboard. The Fail-Safe Defaults are the default
values set by the BIOS vendor for the stable system performance.
When you select Load Fail-Safe Defaults, a message as below appears:
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
8Standard CMOS Features
8Frequency/Voltage Control
8Advanced BIOS Features
Load Fail-Safe Defaults
8Advanced Chipset Features
Load Optimized Defaults
8Integrated Peripherals
Set Supervisor Password
Fail-Safe Defaults
(Y/N)?
N
Set User
Password
8Power ManagementLoad
Setup
8PnP/PCI Configurations
Save & Exit Setup
8PC Health Status
Exit Without Saving
ESC : Quit
F9 : Menu in BIOS
↑ ↓ ← → : Select Item
F10 : Save & Exit Setup
Load Fail-Safe Defaults
Pressing Y loads the BIOS default values for the most stable, minimal system
performance.
3-33
Chapter 3
When you select Load Optimized Defaults, a message as below appears:
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
8Standard CMOS Features
8Frequency/Voltage Control
8Advanced BIOS Features
Load Fail-Safe Defaults
8Advanced Chipset Features
Load Optimized Defaults
8Integrated Peripherals
Set Supervisor Password
Optimized Defaults
(Y/N)?
N
Set User
Password
8Power ManagementLoad
Setup
8PnP/PCI Configurations
Save & Exit Setup
8PC Health Status
Exit Without Saving
ESC : Quit
F9 : Menu in BIOS
↑ ↓ ← → : Select Item
F10 : Save & Exit Setup
Load Optimized Defaults
Pressing Y loads the default factory settings for optimal system performance.
3-34
AWARD® BIOS Setup
Set Supervisor/User Password
When you select this function, a message as below will appear on the screen:
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
8Standard CMOS Features
8Frequency/Voltage Control
8Advanced BIOS Features
Load Fail-Safe Defaults
8Advanced Chipset Features
Load Optimized Defaults
8Integrated Peripherals
Set Supervisor Password
8Power Management Setup
Enter Password:
Set User Password
8PnP/PCI Configurations
Save & Exit Setup
8PC Health Status
Exit Without Saving
ESC : Quit
F9 : Menu in BIOS
↑ ↓ ← → : Select Item
F10 : Save & Exit Setup
Change/Set/Disable Password
Type the password, up to eight characters in length, and press <Enter>. The
password typed now will clear any previously set password from CMOS
memory. You will be prompted to confirm the password. Re-type the password
and press <Enter>. You may also press <Esc> to abort the selection and not
enter a password.
To clear a set password, just press <Enter> when you are prompted to enter the
password. A message will show up confirming the password will be disabled.
Once the password is disabled, the system will boot and you can enter Setup
without entering any password.
When a password has been set, you will be prompted to enter it every time you
try to enter Setup. This prevents an unauthorized person from changing any
part of your system configuration.
Additionally, when a password is enabled, you can also have BIOS to request
a password each time the system is booted. This would prevent unauthorized
3-35
Chapter 3
use of your computer. The setting to determine when the password prompt is
required is the Security Option of the Advanced BIOS Features menu. If the
Security Option is set to System, the password is required both at boot and at
entry to Setup. If set to Setup, password prompt only occurs when trying to
enter Setup.
About Supervisor Password & User Password:
Supervisor password : Can enter and change the settings of the
setup menus.
User password:
Can only enter but do not have the right to
change the settings of the setup menus
3-36
AWARD® BIOS Setup
Save & Exit Setup
When you want to quit the Setup menu, you can select this option to save the
changes and quit. A message as below will appear on the screen:
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
8Standard CMOS Features
8Frequency/Voltage Control
8Advanced BIOS Features
Load Fail-Safe Defaults
8Advanced Chipset Features
Load Optimized Defaults
8Integrated Peripherals
Set Supervisor Password
to CMOS and Exit
Y
Set(Y/N)?
User Password
8Power ManagementSAVE
Setup
8PnP/PCI Configurations
Save & Exit Setup
8PC Health Status
Exit Without Saving
ESC : Quit
F9 : Menu in BIOS
↑ ↓ ← → : Select Item
F10 : Save & Exit Setup
Save Data to CMOS
Typing Y will allow you to quit the Setup Utility and save the user setup
changes to RTC CMOS.
Typing N will return to the Setup Utility.
3-37
Chapter 3
Exit Without Saving
When you want to quit the Setup menu, you can select this option to abandon
the changes. A message as below will appear on the screen:
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
8Standard CMOS Features
8Frequency/Voltage Control
8Advanced BIOS Features
Load Fail-Safe Defaults
8Advanced Chipset Features
Load Optimized Defaults
8Integrated Peripherals
Set Supervisor Password
Without SavingSet
(Y/N)?
UserYPassword
8Power ManagementQuit
Setup
8PnP/PCI Configurations
Save & Exit Setup
8PC Health Status
Exit Without Saving
ESC : Quit
F9 : Menu in BIOS
↑ ↓ ← → : Select Item
F10 : Save & Exit Setup
Abandon All Datas
Typing Y will allow you to quit the Setup Utility without saving any changes to
RTC CMOS.
Typing N will return to the Setup Utility.
3-38
Installing Drivers
4
Chapter 4. Installing Drivers
Installing Drivers
The chapter describes how to install drivers for VIA chipset, AC97
audio, VGA and Realtek® 8100 fast ethernet controller, and the basic system
requirements for driver installation. To install the drivers correctly, you must
install VIA chipset driver before installing other drivers.
This chapter contains the following topics:
Overview
Driver Installation for Windows® 98SE
Driver Installation for Windows® 2000
Driver Installation for Windows® ME
Driver Installation for Windows® NT4.0
Realtek® 8100 Fast Ethernet Controller
4-1
4-2
4-3
4-5
4-7
4-9
4-11
Chapter 4
Overview
The MS-6368 (v2.X) is paired with the VIA® Apollo PLE133 chipset.
Highly advanced, the chipset combines 2D/3D engine with DVD hardware
acceleration, AC-97 audio support for SoundBlaster Pro and FM synthesis
legacy audio.
The mainboard comes with a Realtek® 8100 fast ethernet controller, so
you need to install the Realtek LAN driver to support the LAN function.
Audio Features
AC’97 audio support for SoundBlaster Pro
FM synthesis legacy audio
System Requirements
This section describes system requirements for the VIA & Realtek
LAN driver installation and usage.
Computer
Monitor
Operating system
CD-ROM
Chipset
Intel® Celeron™/Pentium® !!! (FC-PGA) processor or higher
VGA Support, minimum 640x480 resolution
DOS 5.0 or higher, Windows® 95/98, Windows®
NT3.51 or 4.0, OS/2®, Windows® 2000, or
Windows® ME
Double Speed or higher
VIA®VT8601A/VT82C686B chipset
4-2
Installing Drivers
Driver Installation for Windows® 98SE
Installing VIA® Chipset Driver
1. Insert the supplied CD disk into the CD-ROM drive.
2. The CD will auto-run and the setup screen will appear.
3. Click on Via Chipset Drivers and the screen will show VIA Service
Pack 4.XX.
4. Click Next and the screen will show a VIA Service Pack 1 README
dialog box.
5. Click Next and the screen will show four drivers: VIA Atapi Vendor
Support Driver, AGP VxD Driver, IRQ Routing Miniport Driver and
VIA INF Driver 1.XX. Select all four drivers and click on Next.
6. The setup program will request you to choose Install VIA Atapi
Vendor Support Driver. Select Install and click Next to continue.
7. Select Click to enable DMA Mode and click Next to continue.
8. The setup program will request you to choose Install VIA AGP VxD
in turbo mode, Install VIA AGP VxD in normal mode or Uninstall
VIA AGP VxD. Select Install VIA AGP VxD in turbo mode and click
on Next.
9. Select Install VIA IRQ Routing Miniport Driver and click on Next.
10. The setup program will request you to choose whether to restart the
computer or not. Please select “Yes, I want to restart my computer
now” and click Finish. The computer will restart and complete the
VIA Chipset Drivers installation.
Installing VIA® AC97 PCI Sound Driver
1. Make sure the supplied CD disk is in the CD-ROM drive.
2. Go to My Computer and double click on the CD-ROM icon. The
setup screen will appear again.
3. Click on VIA AC97 PCI Sound Drivers and the screen will show VIA
Audio Driver Setup Program 1.XX.
4. Click Next to proceed and the screen will show Install or Uninstall.
Select Install and then click on Next.
5. Click Finish to complete the AC97 Audio Driver Installation.
Installing VIA® PLE133 VGA Driver
1. Make sure the supplied CD disk is in the CD-ROM drive.
4-3
Chapter 4
2. Go to My Computer and double click on the CD-ROM icon. The
setup screen will appear again.
3. Click on VIA PLE/KLE133 VGA Driver and the screen will show Pro
Savage Driver Setup. Click Next.
4. The screen will show a Start Copying Files dialog box. Click Next.
5. The setup program will request you to choose whether to restart the
computer or not. Please select “Yes, I want to restart my computer
now” and click Finish. The computer will restart and finish the VIA
ProSavage Driver installation.
4-4
Installing Drivers
Driver Installation for Windows® 2000
Installing VIA® Chipset Driver
1. Insert the supplied CD disk into the CD-ROM drive.
2. The CD will auto-run and the setup screen will appear.
3. Click on Via Chipset Drivers and the screen will show VIA Service
Pack 4.XX.
4. Click Next and the screen will show a VIA Service Pack 1 README
dialog box.
5. Click Yes and the screen will show three drivers: VIA Bus Master
Ultra ATA Driver (Windows 2000), AGP VxD Driver and VIA INF
Driver 1.XX. Select all and click Next to proceed.
6. The screen will show a VIA Bus Master Ultra ATA Driver dialog
box. Select Install and then click on Next.
7. The screen will show a VIA GART AGP Driver 4.XX dialog box.
Select Install AGP 4X/133 driver and click Next.
8. There is a Read Only File Detected dialog box. Click Yes. A dialog
box Digital Signature Not Found will appear and ask “Do you want
to continue the installation of the VIA Bus Master Ultra ATA
Controller”. Click Yes to continue.
9. Select Yes and then click Finish to restart the system.
10. After restart, the system will find a new hardware device and the
Found New Hardware Wizard dialog box will appear. Click Next to
the next screen and a VIA BM Ultra DMA Channel device will be
found.
11. Click Next and the driver search result will be shown on the screen.
Click Next.
12. A dialog box Digital Signature Not Found will appear. Click Yes.
13. Click Finish and then click Yes to restart the system.
14. Repeat Step 10 through Step 13 again.
15. After restart, the VIA Chipset driver installation will be complete.
Installing VIA® AC97 PCI Sound Driver
1. Make sure the supplied CD disk is in the CD-ROM drive.
2. Go to My Computer and double click the CD-ROM icon. The setup
screen will appear again.
3. Click on VIA AC97 PCI Sound Drivers and the screen will show VIA
AC97 PCI Sound Drivers.
4-5
Chapter 4
4. Click Next to proceed and the screen will show Install or Uninstall.
Select Install and then click on Next.
5. A window Digital Signature Not Found will appear and ask “Do you
want to continue the installation of the VIA AC’97 Audio Controller
(WDM) Driver?” Click Yes to proceed.
6. Click Finish to complete setup.
Installing VIA® PLE133 VGA Driver
1. Make sure the supplied CD disk is in the CD-ROM drive.
2. Go to My Computer and double click on the CD-ROM icon. The
setup screen will appear again.
3. Click on VIA PLE/KLE133 VGA Driver and the screen will show Pro
Savage Driver Setup. Click Next.
4. The screen will show a Start Copying Files dialog box. Click Next.
5. A window Digital Signature Not Found will appear and ask “Do you
want to continue the installation of the S3 Graphics Inc. Pro Savage?”
Please click Yes to proceed.
6. Click Finish to restart your computer and complete setup.
One Touch Setup:
In Windows® 2000, you probably will see the One Touch Setup
button appear on the setup screen. Choosing the button will help
you install more than one driver into the system without going
through the installation process step by step and save a lot of time.
After clicking on One Touch Setup, a window will show up listing
what drivers will be installed. Install other drivers not included by
One Touch Setup manually if any.
4-6
Installing Drivers
Driver Installation for Windows® ME
Installing VIA® Chipset Driver
1. Insert the supplied CD disk into the CD-ROM drive.
2. The CD will auto-run and the setup screen will appear.
3. Click on Via Chipset Drivers and the screen will show VIA Service
Pack 4.XX.
4. Click Next and the screen will show a VIA Service Pack 1 README
dialog box.
5. Click Yes and the screen will show two drivers: AGP VxD Driver and
VIA INF Driver 1.XX. Select all and click Next to proceed.
6. The screen will show a VIA_GART AGP Driver 4.XX dialog box.
Select Install VIA AGP VxD in Turbo mode and click Next.
7. The setup program will request you to choose whether to restart the
computer or not. Please select “Yes, I want to restart my computer
now” and click Finish. The computer will restart and finish the VIA
Chipset Drivers installation.
Installing VIA® AC97 PCI Sound Driver
1. Make sure the supplied CD disk is in the CD-ROM drive.
2. Go to My Computer and double click the CD-ROM icon. The setup
screen will appear again.
3. Click on VIA AC97 PCI Sound Drivers.
4. Then restart the system manually to make it work.
Installing VIA® PLE/KLE133 VGA Driver
1. Make sure the supplied CD disk is in the CD-ROM drive.
2. Go to My Computer and double click on the CD-ROM icon. The
setup screen will appear again.
3. Click on VIA PLE/KLE133 VGA Driver and the screen will show Pro
Savage Driver Setup. Click Next.
4. The screen will show a Start Copying Files dialog box. Click Next.
5. The setup program will request you to choose whether to restart the
computer or not. Please select “Yes, I want to restart my computer
now” and click Finish. The computer will restart and finish the
ProSavage Driver installation.
4-7
Chapter 4
One Touch Setup:
In Windows® ME, you probably will see the One Touch Setup button
appear on the setup screen. Choosing the button will help you
install more than one driver into the system without going through
the installation process step by step and save a lot of time. After
clicking on One Touch Setup, a window will show up listing what
drivers will be installed. Install other drivers not included by One
Touch Setup manually if any.
4-8
Installing Drivers
Driver Installation for Windows® NT4.0
Note: Install Windows® NT4.0 Service Pack 6 or above before installing the
VIA drivers into Windows® NT.
Installing VIA® Chipset Driver
1. Insert the provided CD disk into the CD-ROM drive.
2. The CD will auto-run and the setup screen will appear.
3. Click on VIA Chipset Drivers and the screen will show VIA Service
Pack 4.XX.
4. Click Next and the screen will show the VIA Service Pack 1
README dialog box.
5. Click Yes to proceed and then select Install to enable (Ultra) DMA
for IDE Driver.
6. The Choose Destination Location dialog box appears. Click Next.
7. The Select Program Folder dialog box appears. Click Next.
8. Click on “Yes, I want to restart my computer” and then click Finish to
restart your computer and complete installation.
Installing VIA® AC97 PCI Sound Driver
1. Make sure the supplied CD disk is in the CD-ROM drive.
2. Go to My Computer and double click the CD-ROM icon. The setup
screen will appear again.
3. Click on VIA AC97 PCI Sound Drivers and the screen will show the
VIA PCI Audio Drivers setup screen.
4. The setup program will show Install or Uninstall. Select Install and
click on Next.
5. The setup program will show the following message on the screen:
Please choose “Add” from the next window
and add the following device:
VIA PCI Audio Controller
VIA MIDI External Port
Then click OK.
6. Follow the steps shown in Step 5 to finish the VIA AC97 PCI Audio
Drivers Installation.
7. A window will appear asking “Do you want to install the joystick
4-9
Chapter 4
driver for the Microsoft Sidewinder 3D Pro Joystick?” Please click No
to continue.
8. Please click Finish to restart your computer and complete installation.
Installing VIA® PLE/KLE133 VGA Driver
1. Make sure the supplied CD disk is in the CD-ROM drive.
2. Go to My Computer and double click on the CD-ROM icon. The
setup screen will appear again.
3. Click on VIA PLE/KLE133 VGA Driver and the screen will show Pro
Savage Driver Setup. Click Next.
4. The screen will show a Start Copying Files dialog box. Click Next.
5. Click Finish to restart your computer and complete installation.
4-10
Installing Drivers
Realtek® 8100 Fast Ethernet Controller
When your mainboard comes with the Realtek® 8100 LAN controller,
you must install the Realtek® LAN driver to support the LAN function. The
Realtek® 8100 is a sophisticated 32-bit PCI component, with enhanced
scatter-gather bus mastering capabilities. Its true 32-bit architecture enables
it to perform high speed data transfers on the PCI bus using four DMA
channels.
Features
IEEE 802.3/802.3u 10BASE-T and 100BASE-TX compatible
Glueless 32-bit PCI bus master interface
Backward software compatible to the 82557
Internal transmit and receive FIFOs (3 kbytes each)
Back-to-back transmit at 100 Mbps within minimum IFS
EEPROM support for configuration and customized feature
selection
Advanced configuration and Power Interface Specification,
Revision 1.0, and PCI Power Management Specification, Revision
1.0 compliant
Remote Wake Up (Magic Packet*) support in APM and ACPI
modes
ACPI “interesting” packet wake support in D0 to D3 low power
states
IEEE 802.3u Auto-Negotiation support for 10BASE-T and
100BASE-TX
Full or half duplex capable at 10 or 100 Mbps
IEEE 802.3x flow control support
Driver Installation
Installation for Windows® 98
In some operating systems like Windows® 98, the provided CD will
auto-run when you insert the CD disk into the CD-ROM drive. To install the
LAN driver, just click on the “Realtek Network Drivers” button on the
screen.
4-11
Chapter 4
Installation for Other O/S
To find out the installation procedures for other operating systems
such as Windows® 2000 & Linux, insert the provided CD disk into the CDROM drive. Run or type the path to:
CD-ROM drive:\Network\Realtek\8139\Help8139.exe
Then press spacebar to continue and installation of the LAN driver for
different operating systems is listed on the screen. Select the operating
system you need by using arrow keys and follow the installation procedures
provided.
4-12

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
