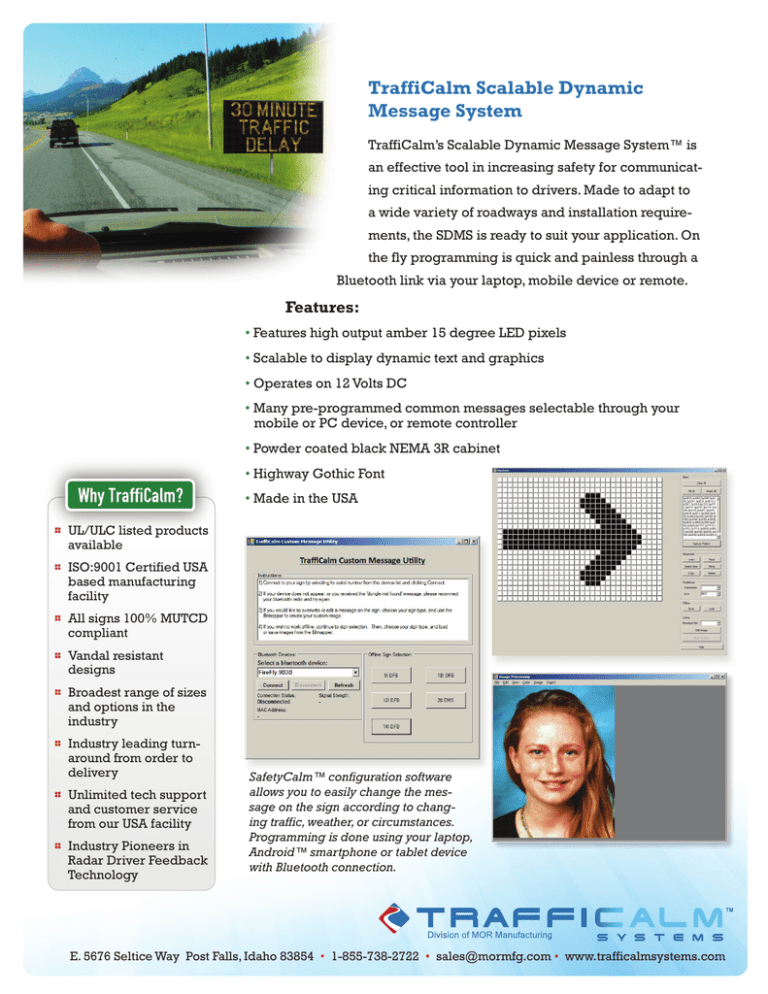

TraffiCalm Scalable Dynamic
Message System
TraffiCalm’s Scalable Dynamic Message System™ is
an effective tool in increasing safety for communicating critical information to drivers. Made to adapt to
a wide variety of roadways and installation requirements, the SDMS is ready to suit your application. On
the fly programming is quick and painless through a
Bluetooth link via your laptop, mobile device or remote.
Features:
• Features high output amber 15 degree LED pixels
• Scalable to display dynamic text and graphics
• Operates on 12 Volts DC
• Many pre-programmed common messages selectable through your
mobile or PC device, or remote controller
• Powder coated black NEMA 3R cabinet
• Highway Gothic Font
Why TraffiCalm?
• Made in the USA
UL/ULC listed products
• available
ISO:9001 Certified USA
• based
manufacturing
facility
All signs 100% MUTCD
• compliant
Vandal resistant
• designs
Broadest range of sizes
• and
options in the
industry
Industry leading turn• around
from order to
delivery
Unlimited tech support
• and
customer service
from our USA facility
Industry Pioneers in
• Radar
Driver Feedback
Technology
SafetyCalm™ configuration software
allows you to easily change the message on the sign according to changing traffic, weather, or circumstances.
Programming is done using your laptop,
Android™ smartphone or tablet device
with Bluetooth connection.
E. 5676 Seltice Way Post Falls, Idaho 83854 • 1-855-738-2722 • [email protected] • www.trafficalmsystems.com
TraffiCalm Scalable Dynamic Message System
Feature
Specifications
LED and Radar Components
Display Height
Scalable alphanumeric characters; highway gothic font and/or graphics
Text
Example: 3 lines at 8”, 2 lines at 13.25”, or 1 line at 28.5”; or scalable for custom height text
Graphics
Pixel editor WYSIWYG
Sign Face Color
Black with high contrasting amber LED’s
LED (Light Emitting Diode),
1/2 Cone Angle
Amber (590nM); ½ Angle 15°; Rated 100,000 hours; 20,000 CDA/ M^2, Auto Dimming employed
Amber LED on Axis Intensity
20,000 CDA/SQ meter
Sign Legibility
Viewable range: 2000 feet; legible range: up to 1,500 feet, depending on font size used
Speed Resolution and Range
Min 5 mph; Max 140 mph in 1 mph steps (min 8 kph, max 225 kph in 1.6 kph steps)
Materials and Construction
1/16” (.06”, 1.58mm) thick aluminum enclosure
Construction
1/4” high impact polycarbonate face with high-contrast mask; anti-glare graffiti and sunlight resistant
Black powder-coat
Electronics Enclosure Rating
Weatherproof; NEMA 3R
Electrical Specifications
Power Requirements (estimate)
600mW standby; 20W typical at night ; 90W by day (bright sun) and 180W over-bright (sun on face of display) (60” x 30”
sign used for reference)
Voltage Requirements
9V - 30VDC; 12VDC Nominal; (Battery protection at 11.5VDC and 10.8VDC, startup at 12.3VDC)
Operating Temperature
Internal components: -34°C to +74°C/-29°F to +165°F; Ambient Environment: -34°C to +60°C/-29°F to 140°F
Warranties
Sign: 3 years; Options/accessories: 2 years
SafetyCalm™ Configuration Software
Software
SafetyCalm™ software, license free
Programmable Display Features
Custom text and graphic messages created on your PC using supplied software and downloaded into sign via Bluetooth
interface
Schedules
Repeating daily: 9 events; repeating weekly: 9 events; non-repeating dated: 9 events; (27 events in one 24-hour period; 365
days per year while powered)
TraffiCalm product descriptions and specifications are subject to change without notice. All Rights Reserved
Communications
Bluetooth™ Class 1 connectivity (V2.1 +EDC) min at 30’ (FCC certified); RS232 port , or IR
App for Android Optional
Operating system: Windows XP, Windows Vista, Windows 7
System Requirements
Screen resolution: 1024 x 768 or better
Communications interfaces: Bluetooth Class 1 or 2 adapters (capabilities: V1.0, V1.2, V2.0, V2.1 + EDC)
Disk space: 16.5MB minimum
3M™ and Diamond Grade™ are trademarks of 3M. Android is a trademark of Google, Inc. TraffiCalm product descriptions and specifications are subject to change without notice. All Rights Reserved
