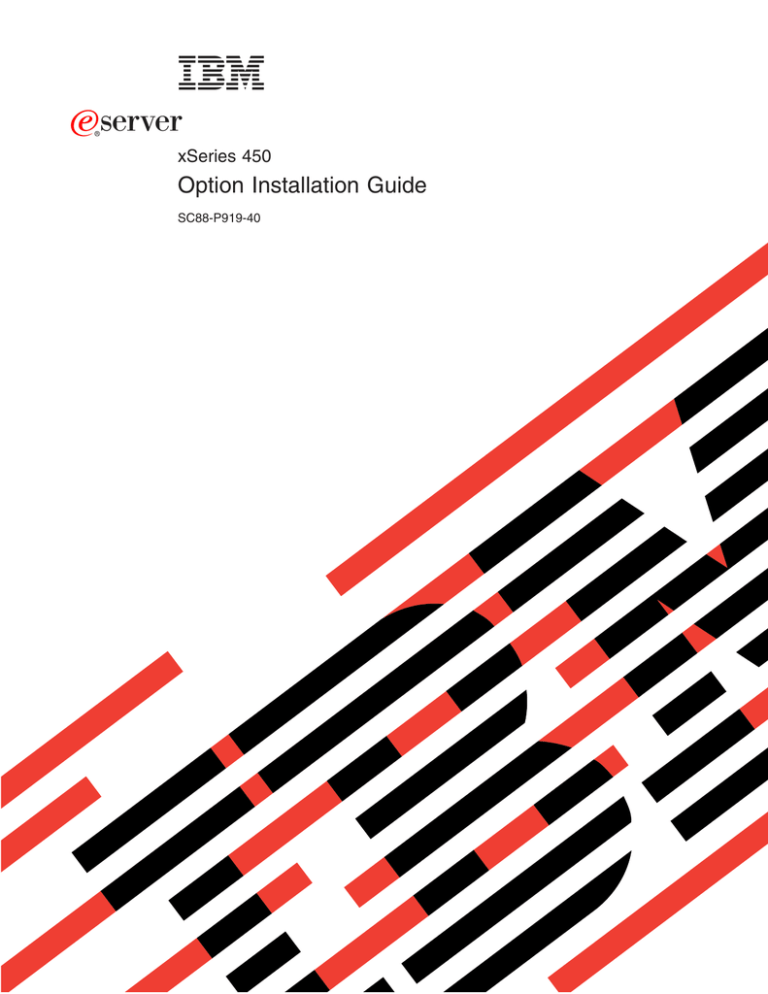

88p9194
ERserver
xSeries 450
Option Installation Guide
SC88-P919-40
ERserver
xSeries 450
Option Installation Guide
SC88-P919-40
Note: Before using this information and the product it supports, read the general information in “Notices”,
on page 45.
Third Edition (May 2003)
© Copyright International Business Machines Corporation 2003. All rights reserved.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.
Contents
Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Chapter 1. Introduction . . . . . . . . .
Related publications . . . . . . . . . .
Notices and statements used in this book . .
Major components of the xSeries 450 . . . .
Midplane board LEDs . . . . . . . . . .
Processor board internal connectors and LEDs
PCI-X board internal connectors and LEDs . .
Memory board internal connectors and LEDs .
Memory switch card LEDs . . . . . . . .
I/O-board internal connectors . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
2
3
5
5
7
7
8
9
Chapter 2. Installing options . . . . . . . . . . .
Installation guidelines . . . . . . . . . . . . . .
System reliability considerations . . . . . . . . .
Working inside a server with power on . . . . . . .
Handling static-sensitive devices . . . . . . . . .
Server power features . . . . . . . . . . . . . .
Turning on the server . . . . . . . . . . . . .
Turning off the server . . . . . . . . . . . . .
Opening the cover . . . . . . . . . . . . . . .
Removing and replacing the bezel . . . . . . . . .
Removing and replacing a hot-swap power supply . . . .
Installing an adapter . . . . . . . . . . . . . . .
Installing a hot-swap hard disk drive . . . . . . . . .
Installing a 1.44 MB diskette drive . . . . . . . . . .
Installing a CD-ROM or DVD-ROM drive . . . . . . .
Installing memory . . . . . . . . . . . . . . . .
Installing and replacing a microprocessor and power module
Replacing and troubleshooting fans . . . . . . . . .
Replacing fan 1 or 2 . . . . . . . . . . . . . .
Replacing fan 3 or 4 . . . . . . . . . . . . . .
Replacing the battery . . . . . . . . . . . . . .
Completing the installation. . . . . . . . . . . . .
Closing the cover . . . . . . . . . . . . . . .
Installing the server in a rack. . . . . . . . . . .
Connecting the cables . . . . . . . . . . . . .
Updating your server configuration. . . . . . . . .
Backing up and restoring the nonvolatile variables . . . .
Creating a backup copy of the nonvolatile EFI variables .
Restoring the nonvolatile EFI variables . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
11
11
11
11
12
12
12
13
14
14
16
17
20
21
22
23
26
32
32
33
35
36
37
37
37
38
39
39
39
Chapter 3. Input/output connectors
Gigabit Ethernet connectors . . . .
RXE Expansion Port connectors . .
RXE Management Port connector . .
SCSI connector . . . . . . . .
Serial connector . . . . . . . .
Universal Serial Bus connectors . .
Video connector . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
41
42
42
42
42
43
43
43
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Appendix. Notices . . . . . . . . . . . . . . . . . . . . . . . 45
© Copyright IBM Corp. 2003
iii
Edition notice . . . . . . . . . . . . . . . . . .
Trademarks . . . . . . . . . . . . . . . . . . .
Important notes. . . . . . . . . . . . . . . . . .
Product recycling and disposal . . . . . . . . . . . .
Electronic emission notices . . . . . . . . . . . . .
Federal Communications Commission (FCC) statement . .
Industry Canada Class A emission compliance statement .
Australia and New Zealand Class A statement . . . . .
United Kingdom telecommunications safety requirement. .
European Union EMC Directive conformance statement . .
Taiwanese Class A warning statement . . . . . . . .
Chinese Class A warning statement . . . . . . . . .
Japanese Voluntary Control Council for Interference (VCCI)
Power cords . . . . . . . . . . . . . . . . . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
statement
. . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
45
46
46
47
47
47
48
48
48
48
49
49
49
49
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
iv
xSeries 450: Option Installation Guide
Safety
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.
Antes de instalar este produto, leia as Informações sobre Segurança.
Antes de instalar este producto, lea la información de seguridad.
© Copyright IBM Corp. 2003
v
Läs säkerhetsinformationen innan du installerar den här produkten.
Statement 1:
DANGER
Electrical current from power, telephone, and communication cables is
hazardous.
To avoid a shock hazard:
v Do not connect or disconnect any cables or perform installation,
maintenance, or reconfiguration of this product during an electrical
storm.
v Connect all power cords to a properly wired and grounded electrical
outlet.
v Connect to properly wired outlets any equipment that will be attached to
this product.
v When possible, use one hand only to connect or disconnect signal
cables.
v Never turn on any equipment when there is evidence of fire, water, or
structural damage.
v Disconnect the attached power cords, telecommunications systems,
networks, and modems before you open the device covers, unless
instructed otherwise in the installation and configuration procedures.
v Connect and disconnect cables as described in the following table when
installing, moving, or opening covers on this product or attached
devices.
To Connect:
To Disconnect:
1. Turn everything OFF.
1. Turn everything OFF.
2. First, attach all cables to devices.
2. First, remove power cords from outlet.
3. Attach signal cables to connectors.
3. Remove signal cables from connectors.
4. Attach power cords to outlet.
4. Remove all cables from devices.
5. Turn device ON.
vi
xSeries 450: Option Installation Guide
Statement 2:
CAUTION:
When replacing the lithium battery, use only IBM Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer. If your system has
a module containing a lithium battery, replace it only with the same module
type made by the same manufacturer. The battery contains lithium and can
explode if not properly used, handled, or disposed of.
Do not:
v Throw or immerse into water
v Heat to more than 100°C (212°F)
v Repair or disassemble
Dispose of the battery as required by local ordinances or regulations.
Statement 3:
CAUTION:
When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or
transmitters) are installed, note the following:
v Do not remove the covers. Removing the covers of the laser product could
result in exposure to hazardous laser radiation. There are no serviceable
parts inside the device.
v Use of controls or adjustments or performance of procedures other than
those specified herein might result in hazardous radiation exposure.
DANGER
Some laser products contain an embedded Class 3A or Class 3B laser
diode. Note the following.
Laser radiation when open. Do not stare into the beam, do not view directly
with optical instruments, and avoid direct exposure to the beam.
Safety
vii
Statement 4:
≥ 18 kg (39.7 lb)
≥ 32 kg (70.5 lb)
≥ 55 kg (121.2 lb)
CAUTION:
Use safe practices when lifting.
Statement 5:
CAUTION:
The power control button on the device and the power switch on the power
supply do not turn off the electrical current supplied to the device. The device
also might have more than one power cord. To remove all electrical current
from the device, ensure that all power cords are disconnected from the power
source.
2
1
viii
xSeries 450: Option Installation Guide
Statement 8:
CAUTION:
Never remove the cover on a power supply or any part that has the following
label attached.
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no serviceable parts inside
these components. If you suspect a problem with one of these parts, contact
a service technician.
Statement 10:
CAUTION:
Do not place any object weighing more than 82 kg (180 lb) on top of
rack-mounted devices.
>82 kg (180 lb)
WARNING: Handling the cord on this product or cords associated with accessories
sold with this product, will expose you to lead, a chemical known to the State of
California to cause cancer, and birth defects or other reproductive harm. Wash
hands after handling.
ADVERTENCIA: El contacto con el cable de este producto o con cables de
accesorios que se venden junto con este producto, pueden exponerle al plomo, un
elemento químico que en el estado de California de los Estados Unidos está
considerado como un causante de cancer y de defectos congénitos, además de
otros riesgos reproductivos. Lávese las manos después de usar el producto.
Safety
ix
x
xSeries 450: Option Installation Guide
Chapter 1. Introduction
This Option Installation Guide contains instructions for installing, removing, and
connecting optional devices that your server supports.
The latest version of this publication is available from the IBM® Web site. Complete
the following steps to display a list of publications for your server:
1. From http://www.ibm.com, click Support & downloads.
2. Click Search technical support.
3. In the Enter PC machine type and model field, type 8688 and click Submit.
4. On the left side of the ″xSeries™ 450 8688 support″ page, click Online
publications.
5. From the Online publications by category menu, select the category of
publications you want to display.
Related publications
In addition to this Option Installation Guide, the following xSeries 450
documentation is provided with your server:
v User’s Guide
This publication is in Portable Document Format (PDF) on the IBM xSeries
Documentation CD. It contains general information about your server.
v Installation Guide
This printed publication contains instructions for setting up your server and basic
instructions for installing some options.
v Safety Information
This publication is in PDF on the IBM xSeries Documentation CD. It contains
translated caution and danger statements. Each caution and danger statement
that appears in the documentation has a number that you can use to locate the
corresponding statement in your language in the Safety Information book.
v Rack Installation Instructions
This printed publication contains instructions for installing your server in a rack.
v Hardware Maintenance Manual and Troubleshooting Guide
This publication is in PDF on the IBM xSeries Documentation CD. It contains
information to help you solve problems yourself, and it contains information for
service technicians.
Depending on your server model, additional publications might be included on the
IBM xSeries Documentation CD.
© Copyright IBM Corp. 2003
1
Notices and statements used in this book
The caution and danger statements that appear in this book are also in the
multilingual Safety Information book, which is on the IBM xSeries Documentation
CD. Each statement is numbered for reference to the corresponding statement in
the Safety Information book.
The following notices and statements are used in the documentation:
v Notes: These notices provide important tips, guidance, or advice.
v Important: These notices provide information or advice that might help you avoid
inconvenient or problem situations.
v Attention: These notices indicate potential damage to programs, devices, or
data. An attention notice is placed just before the instruction or situation in which
damage could occur.
v Caution: These statements indicate situations that can be potentially hazardous
to you. A caution statement is placed just before the description of a potentially
hazardous procedure step or situation.
v Danger: These statements indicate situations that can be potentially lethal or
extremely hazardous to you. A danger statement is placed just before the
description of a potentially lethal or extremely hazardous procedure step or
situation.
2
xSeries 450: Option Installation Guide
Major components of the xSeries 450
The orange color on components and labels in the server indicates hot-swap or
hot-plug components. You can install or remove these components while the server
is running, provided that the server is configured to support hot-swap and hot-plug
features.
The blue color on components and labels indicates touch points, where a
component can be gripped, a latch moved, and so on.
The following illustration shows the location of major components in your server.
Chapter 1. Introduction
3
Note: The illustrations in this document might differ slightly from your hardware.
DIMM
access
doors
DIMM
Microprocessor
Power
module
Microprocessor
baffle
Fan 4
VRM
Fan 3
Fan 2
Fan 1
:
E
T
O
N
R
O
F
R
E
P
O
R
P
,
W
LO
F
IR
A
E
C
LA
P
E
R
N
FA
,
W
LO
F
IR
A
S
E
T
U
IN
M
X
O
B
2
F
O
R
E
P
O
R
P
IN
H
IT
W
R
O
F
T
N
O
R
F
:
E
T
O
N
E
C
LA
P
E
R
Retention
bracket
N
FA
S
E
T
U
IN
M
X
O
B
2
F
O
IN
H
IT
W
T
N
O
R
F
Bezel
Hard disk
drive
Hot-swap
power supply
DVD-ROM
drive
4
xSeries 450: Option Installation Guide
Midplane board LEDs
The following illustration shows the LEDs on the midplane board.
I/O board error LED
Remote Supervisor Adapter error LED
PCI-X planer board error LED
Midplane board error LED
VRM error
LED
Processor board error LED
Memory board error LED
Processor board internal connectors and LEDs
The following illustrations show the internal connectors and LEDs on the processor
board.
Microprocessor 3 socket
Microprocessor 3
power module socket
Microprocessor 3
power module
cable connector
Microprocessor 1
power module socket
Microprocessor 1
power module
cable connector
Microprocessor 1 socket
Chapter 1. Introduction
5
Power good LED
Microprocessor 3
error LED
Microprocessor 3
power module
error LED
Microprocessor 1
power module
error LED
VRM error LED
Microprocessor 1
error LED
Reverse side
Microprocessor 4 socket
Microprocessor 4
error LED
Microprocessor 2 socket
Microprocessor 2
error LED
Microprocessor 4 power
module socket
Microprocessor 4 VRM
error LED
Microprocessor 4 power
module cable connector
Microprocessor 2 VRM
error LED
Microprocessor 2 power
module socket
Microprocessor 2 power
module cable connector
Microprocessor 4 error LED
Microprocessor 4 power
module error LED
Microprocessor 2 power
module error LED
Microprocessor 2 error LED
6
xSeries 450: Option Installation Guide
PCI-X board internal connectors and LEDs
The following illustration shows the internal connectors and LEDs on the PCI-X
board.
PCI-X slot 4
(100 MHz)
PCI-X slot 5
(133 MHz)
PCI-X slot 3
(100 MHz)
PCI-X slot 2
(66 MHz)
PCI-X slot 6
(133 MHz)
Attention LED
Power LED
PCI-X slot 1
(66 MHz)
Memory board internal connectors and LEDs
The following illustrations show the internal connectors and LEDs on the memory
board.
DIMM slots
VRM connectors
Chapter 1. Introduction
7
DIMM error LED
(14 places)
2.5 v VRM port 2
2.5 v VRM error LED
DIMM error LED
error LED
(14 places)
1.8 v VRM error LED
2.5 v VRM port 1
error LED
Memory switch card LEDs
The following illustration shows the LEDs on the memory switch card.
Reserved for
future use
8
xSeries 450: Option Installation Guide
I/O-board internal connectors
The following illustration shows the internal connectors on the I/O board.
Riser card
connector
SCSI B
connector
I/O VRM
Fan 4
connector
Fan 3
connector
Fans 1 and 2
connectors
Power/Reset
connector
SCSI A
connector
USB cable
connector
Media bays
connector
Chapter 1. Introduction
9
10
xSeries 450: Option Installation Guide
Chapter 2. Installing options
This chapter provides detailed instructions for installing hardware options in your
server.
Installation guidelines
Before you begin to install options in your server, read the following information:
v Read the safety information beginning on page v and the guidelines in “Handling
static-sensitive devices” on page 12. This information will help you work safely
with your server or options.
v Make sure that you have an adequate number of properly grounded electrical
outlets for your server, monitor, and any other devices that you will connect to the
server.
v Back up all important data before you make changes to disk drives.
v For a list of supported options for your server, go to
http://www.ibm.com/pc/us/compat/.
Note: Some preconfigured servers have a unique list of supported options. See the
software documentation provided with those servers for more information.
System reliability considerations
To help ensure proper cooling and system reliability, make sure that:
v Each of the drive bays has either a drive or a filler panel installed.
v There is space around the server to allow the cooling system to work properly.
v Cables for optional adapters are routed according to the instructions that are
provided with the adapters.
v All microprocessors have the same cache size and type, and the same clock
speed.
v For proper cooling, do not leave the cover open for more than 15 minutes.
v A failed fan is replaced within 48 hours.
v The top cover is closed during normal operation.
v Do not remove a defective power supply until a replacement is available.
v For redundant and hot-swappable operation, the power supplies are connected to
200-240 V ac.
Working inside a server with power on
Your server supports hot-swap devices and is designed to operate safely while
turned on with the cover removed. Follow these guidelines when you work inside a
server that is turned on:
v Avoid loose-fitting clothing on your forearms. Button long-sleeved shirts before
working inside the server; do not wear cuff links while you are working inside the
server.
v Do not allow your necktie or scarf to hang inside the server.
v Remove jewelry, such as bracelets, rings, necklaces, and loose-fitting wrist
watches.
v Remove items from your shirt pocket (such as pens or pencils) that could fall into
the server as you lean over it.
© Copyright IBM Corp. 2003
11
v Take care to avoid dropping any metallic objects, such as paper clips, hair pins,
or screws, into the server.
Handling static-sensitive devices
Attention: Static electricity can damage electronic devices and your system. To
avoid damage, keep static-sensitive devices in their static-protective package until
you are ready to install them.
To reduce the possibility of electrostatic discharge, observe the following
precautions:
v Limit your movement. Movement can cause static electricity to build up around
you.
Handle the device carefully, holding it by its edges or its frame.
Do not touch solder joints, pins, or exposed printed circuitry.
Do not leave the device where others can handle and damage it.
While the device is still in its anti-static package, touch it to an unpainted metal
part of the system unit for at least 2 seconds. This drains static electricity from
the package and from your body.
v Remove the device from its package and install it directly into the system unit
without setting down the device. If it is necessary to set down the device, place it
in to its static-protective package. Do not place the device on your system unit
cover or on a metal surface.
v Take additional care when handling devices during cold weather. Heating reduces
indoor humidity and increases static electricity.
v Wear a properly grounded wrist strap against your skin to help eliminate static
electricity from your body.
v
v
v
v
Server power features
When the server is connected to an ac power source but is not turned on, the
operating system does not run, and all core logic except for the service processor is
shut down; however, the server can respond to requests from the service processor,
such as a remote request to turn on the server. The power-on LED flashes to
indicate that the server is connected to ac power but is not turned on.
Turning on the server
Approximately 20 seconds after the server is connected to ac power, the
power-control button becomes active, and you can turn on the server and start the
operating system by pressing the power-control button. The server can also be
turned on in any of the following ways:
v If a power failure occurs while the server is turned on, the server will restart
automatically when power is restored.
v If ac power is present, the server can be turned on from the Remote Supervisor
Adapter user interface.
v The Wake on LAN® feature can turn on the server.
Notes:
1. The power supplies are hot-swappable and redundant only at 200-240 V ac.
2. Both power supplies must be connected to the power source for operation at
100-127 V ac.
3. During normal operation, both power supplies must be installed for proper
operation.
12
xSeries 450: Option Installation Guide
4. While the server is powering up, the power-on LED on the front of the server is
lit. When the server is connected to ac power but is not turned on, the power-on
LED on the front of the server flashes.
Turning off the server
When you turn off the server and leave it connected to ac power, the server can
respond to requests from the service processor, such as a remote request to turn
on the server. To remove all power from the server, you must disconnect it from the
power source.
Some operating systems require an orderly shutdown before you turn off the server.
See your operating-system documentation for information about shutting down the
operating system.
Statement 5:
CAUTION:
The power control button on the device and the power switch on the power
supply do not turn off the electrical current supplied to the device. The device
also might have more than one power cord. To remove all electrical current
from the device, ensure that all power cords are disconnected from the power
source.
2
1
The server can be turned off in any of the following ways:
v You can turn off the server from the operating system, if your operating system
supports this feature. After an orderly shutdown of the operating system, the
server will be turned off automatically.
v You can press the power-control button to start an orderly shutdown of the
operating system and turn off the server, if your operating system supports this
feature.
v If the operating system stops functioning, you can press and hold the
power-control button for more than 4 seconds to turn off the server.
v If the server is connected to an Advanced System Management interconnect
network, the server can be turned off from the Remote Supervisor Adapter user
interface.
Notes:
1. You might need to press and hold the power-control button for more than 4
seconds to cause an immediate shutdown of the server. You can use this
feature if the operating system stops functioning.
2. If you disconnect the server from the power source, wait approximately 15
seconds for the server to stop running before you open the cover. Watch for the
power-on LED on the front of the server to stop flashing.
Chapter 2. Installing options
13
Opening the cover
Complete the following steps to open the server cover:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Slide the server out from the rack.
Latch
N
:
E
T
O
O
F
R
P
O
R
P
R
E
A
IR
F
,
W
O
L
R
E
C
A
L
P
E
N
T
O
IN
M
E
,
W
O
L
F
T
U
IR
IN
A
X
O
R
B
2
F
O
E
P
O
R
P
T
N
H
IT
W
O
R
F
R
O
F
N
FA
:
E
S
R
L
P
E
C
A
E
N
FA
T
N
H
IT
W
O
R
F
IN
O
X
O
IN
M
B
2
F
U
S
E
T
3. Pull the release latch on the left side of the top cover to the right.
4. Using the finger hole in the release latch, open the left side of the cover; then,
open the right side of the cover.
Attention: For proper cooling and airflow, close the cover before turning on
the server. Operating the server for extended periods of time (over 15 minutes)
with the cover open might damage server components.
Removing and replacing the bezel
Complete the following steps to remove the bezel:
1. Press on the two tabs at the top edge of the bezel, and pull the top of the bezel
slightly away from the server.
14
xSeries 450: Option Installation Guide
2. Press on the two tabs at the bottom edge of the bezel, and pull the bezel off the
server. Store the bezel in a safe place.
4
P
C
I
B
o
a
rd
5
S
y
s
te
m
M
a
n
a
g
e
m
e
n
t
B
o
a
6
rd
U
p
p
e
r
C
E
O
I/
C
B
o
a
rd
C
o
L
1
r
n
e
o
w
m
o
m
C
U
E
R
C
F
N
u
m
b
e
rs
M
id
la
2
p
n
e
B
o
a
rd
3
L
ig
h
t-P
a
th
D
ia
g
n
o
s
tic
s
N
:
E
T
O
O
F
R
P
O
R
P
R
E
A
IR
F
L
,
W
O
E
R
P
L
C
A
:
N
R
H
P
R
,
W
O
S
E
L
F
T
U
IR
IN
A
X
O
M
E
B
2
F
IN
O
P
O
R
T
N
IT
W
O
F
O
R
F
FA
E
E
T
O
N
E
R
P
L
E
C
A
FA
W
N
H
T
IT
O
R
N
F
IN
IN
X
O
M
B
2
F
O
E
T
U
S
Complete the following steps to replace the bezel:
1. Align the four tabs on the bezel with the slots in the server chassis.
2. Press firmly against the front of the bezel until it snaps into place.
4
I
C
P
rd
a
o
B
5
m
te
s
y
S
t
n
e
m
e
g
a
n
a
M
rd
a
o
B
6
r
e
p
p
U
rd
a
o
B
C
E
C
O
I/
1
r
e
w
o
L
n
o
m
m
o
C
C
E
C
U
R
F
rs
e
b
m
u
N
2
e
n
la
p
id
M
rd
a
o
B
3
th
a
t-P
h
ig
L
s
tic
s
o
n
g
ia
D
:
E
T
O
N
R
O
F
R
E
P
O
R
P
,
W
O
L
F
IR
A
E
C
A
L
P
E
R
2
S
E
T
U
IN
M
,
W
O
L
F
IR
A
X
O
B
R
E
P
O
R
P
F
O
IN
H
IT
W
R
O
F
T
N
O
R
F
N
FA
:
E
T
O
N
E
C
A
L
P
E
R
N
FA
S
E
T
U
IN
M
X
O
B
2
F
O
IN
H
IT
W
T
N
O
R
F
15
Chapter 2. Installing options
Removing and replacing a hot-swap power supply
Your server comes with two hot-swap power supplies, which you can remove and
replace without turning off the server. The following illustration shows the locations
of the power supplies on the front of the server.
Power LEDs
Power supply 1
Power supply 2
Power-on LED
Power button
Reset button
Power-supply
latch
Handle
Before you remove or replace a power supply, review the following information.
Notes:
1. The power supplies are hot-swappable and redundant only at 200-240 V ac.
2. Both power supplies must be connected to the power source for operation at
100-127 V ac.
3. During normal operation, both power supplies must be installed for proper
operation and cooling.
If you install or remove a power supply, observe the following precautions.
Statement 8:
CAUTION:
Never remove the cover on a power supply or any part that has the following
label attached.
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no serviceable parts inside
these components. If you suspect a problem with one of these parts, contact
a service technician.
Complete the following steps to remove and replace a power supply:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Remove the front bezel (see “Removing and replacing the bezel” on page 14 for
instructions about removing the front bezel).
16
xSeries 450: Option Installation Guide
3. To remove the power supply from the server, press the latch; then, lift the
handle on the power supply to the open position and pull the power supply out
from the server.
4. Install the new power supply:
Power supply
Power-supply
latch
AC LED
DC LED
Power-supply handle
(in open position)
a. Place the handle on the power supply in the open position.
b. Slide the power supply into the chassis and press the handle to the closed
position.
5. Verify that the dc power LED and the ac power LED on the power supply are lit,
indicating that the power supply is operating properly.
6. Replace the front bezel on the server (see “Removing and replacing the bezel”
on page 14 for instructions).
Installing an adapter
The following notes describe the types of adapters that your server supports and
other information that you must consider when installing an adapter:
Attention: Before you remove or replace the Remote Supervisor Adapter or clear
the nonvolatile random access memory (NVRAM), be sure to make a backup copy
of the nonvolatile EFI variables. See “Backing up and restoring the nonvolatile
variables” on page 39 for more information.
v The following illustration shows the location and bus speeds of the PCI-X
expansion slots on the PCI-X board.
Chapter 2. Installing options
17
Note: The illustrations in this publication might differ slightly from your hardware.
PCI-X slot 4
(100 MHz)
PCI-X slot 5
(133 MHz)
PCI-X slot 3
(100 MHz)
PCI-X slot 2
(66 MHz)
PCI-X slot 6
(133 MHz)
Attention LED
Power LED
PCI-X slot 1
(66 MHz)
v Locate the documentation that comes with the adapter and follow those
instructions in addition to the instructions in this section. If you need to change
the switch settings or jumper settings on your adapter, follow the instructions that
come with the adapter.
v Video adapters are not supported.
v Some full-length adapters have extension handles or brackets installed. Before
installing the adapter, you must remove the extension handle or bracket.
v Your server supports six hot-plug 64-bit adapters in the expansion slots on the
PCI-X board, as shown in the following table.
Bus
Slot
Supported adapter speed (MHz)
A
1
66
A
2
66
B
3
100 (133 if slot 4 is empty)
B
4
100 (133 if slot 3 is empty)
C
5
133
D
6
133
v You can install both PCI and PCI-X adapters on the same bus. However, if you
install a PCI adapter and a PCI-X adapter on the same bus, the PCI-X features
of the PCI-X adapter will be disabled, and the adapter will function as a PCI
adapter.
v You can install PCI or PCI-X adapters of speeds faster than what is labeled for a
particular PCI-X bus. For example, if you install two 133 MHz adapters into slots
that are labeled as 100 MHz slots, the adapters will operate at 100 MHz.
v If you install a 33 MHz and a 66 MHz adapter on the same bus, the bus speed
will match that of the slowest adapter.
18
xSeries 450: Option Installation Guide
v If a single 133 MHz adapter is installed on PCI-X bus B (slots 3 and 4) and the
other slot on PCI-X bus B is empty, the adapter will operate at 133 MHz.
v Your server supports 3.3 V and universal adapters; it does not support 5.0 V
adapters.
v The system scans PCI-X slots to assign system resources. The system attempts
to start the first device found. The search order is: PCI-X slots 1, 2, 6, 5, 3, and
4. If an optional remote I/O enclosure is attached, the scan continues with PCI-X
slots 11, 12, 9, 10, 7, 8, 17, 18, 15, 16, 13, and 14.
Complete the following steps to install an adapter:
Attention: When you handle static-sensitive devices, take precautions to avoid
damage from static electricity. For details about handling these devices, see
“Handling static-sensitive devices” on page 12.
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Disable the PCI-X slot through your operating system before you insert or
remove a PCI or PCI-X adapter.
Note: Some operating systems do not support the enabling and disabling of a
PCI-X slot. If your operating system does not support this function, turn
off the server and peripheral devices, and disconnect the power cords
and all external devices from the back of the server before proceeding.
3. Open the top cover.
Tab
Adapter guide
Adapter
retention
latch
PCI-X
divider
Attention
LED
Power
LED
N
T
O
E
:
F
O
R
P
O
R
P
E
R
A
IR
F
L
,
W
O
R
E
P
L
:
FA
E
E
T
O
C
A
N
N
W
H
IN
O
O
R
T
P
N
IT
R
O
R
O
F
F
M
U
IR
IN
A
X
O
R
B
E
2
F
P
T
,
W
O
S
L
E
F
R
E
P
L
C
A
E
FA
W
O
R
N
F
IT
N
H
T
IN
O
IN
X
O
M
B
2
F
U
T
E
S
4. Follow the cabling instructions, if any, that come with the adapter. Route the
adapter cables before you install the adapter.
Chapter 2. Installing options
19
5. Follow the instructions that come with the adapter to set jumpers or switches, if
any.
6. Install the adapter:
a. If you are installing a full-length adapter, open the blue adapter guide by
lifting the front edge, as shown in the illustration.
b. Push the orange adapter-retention latch toward the rear of the server and
open the tab.
c. Remove the expansion-slot cover.
d. Carefully grasp the adapter by its top edge or upper corners, and align it
with the connector on the PCI-X board.
Note: Some long adapters have extension handles or brackets. Before
installing a long adapter, you must remove the extension handle or
bracket.
e. Press the adapter firmly into the adapter connector.
Attention: When you install an adapter, be sure the adapter is correctly
seated in the connector. Improperly seated adapters might cause damage to
the PCI-X board or to the adapter.
f. Push down on the blue adapter guide to keep the adapter steady.
g. Close the tab; then, push down on the blue adapter-retention latch until it
clicks into place, securing the adapter.
7. Connect the internal cables to the adapter.
8. If you disabled the slot in step 1, enable the slot.
9. If you have other options to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 36.
Installing a hot-swap hard disk drive
Complete the following steps to install or replace a hot-swap hard disk drive:
Attention:
v When you handle static-sensitive devices, take precautions to avoid damage
from static electricity. For details about handling these devices, see “Handling
static-sensitive devices” on page 12.
v Before you hot-swap a drive, make sure it is defective. If you partially or
completely remove a good drive instead of a defective one, your server might
lose valuable data.
1. Inspect the drive for any signs of damage.
2. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
3. Check the instructions that come with the drive for more information about
installing your drive.
20
xSeries 450: Option Installation Guide
4. Remove the filler panel or defective hard disk drive from the hard disk drive bay.
Filler panel
5. Install the new hard disk drive in the drive bay:
a. Ensure that the handle on the hard disk drive tray is in the open position.
b. Slide the drive into the bay until it stops.
c. Push the handle on the front of the hard disk drive closed.
d. Check the hard disk drive status LED to verify that the hard disk drive is
operating properly.
If the amber hard disk drive error LED for a drive is lit continuously, that
individual drive is faulty and needs to be replaced. If the green hard disk
drive activity LED is flashing, the drive is being accessed.
6. If you have other options to install or remove, do so now.
Installing a 1.44 MB diskette drive
The following notes describe the type of diskette drive that your server supports and
other information that you must consider when installing a diskette drive:
v
v
v
v
Your xSeries 450 server supports one diskette drive.
The diskette drive must be installed in the left drive bay.
The IDE drives installed in your server are not hot-swappable.
Your operating system must support a diskette drive.
Complete the following steps to install a diskette drive in your server:
1. Review the information in “Safety” on page v, and “Installation guidelines” on
page 11.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external devices from the back of the server.
3. Inspect the drive for any signs of damage.
Chapter 2. Installing options
21
4. Slide the drive into the left drive bay until it stops.
Removable
media bays
:
E
T
O
N
R
O
F
R
E
P
O
R
P
,
W
O
L
F
IR
A
E
C
A
L
P
E
R
IN
H
IT
W
S
E
T
U
IN
M
,
W
O
L
F
IR
A
X
O
B
2
F
O
R
E
P
O
R
P
T
N
O
R
F
R
O
F
N
FA
:
E
T
O
N
E
C
A
L
P
E
R
Filler
panel
N
FA
S
E
T
U
IN
M
X
O
B
2
F
O
IN
H
IT
W
T
N
O
R
F
Diskette
drive
Diskette drive
eject button
Tab
5. If you have other options to install or remove, do so now. Otherwise, connect
the power cords and turn on the server.
Complete the following steps to remove a diskette drive from your server:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external devices from the back of the server.
3. Push the drive-eject button to the right.
4. Using the tab, pull the diskette drive partially out of the server; then, grasp the
drive and remove it from the server.
5. If you have other options to install or remove, do so now. Otherwise, connect
the power cords and turn on the server.
Installing a CD-ROM or DVD-ROM drive
The following notes describe the types of CD-ROM or DVD-ROM drives that your
server supports and other information that you must consider when installing a
CD-ROM or DVD-ROM drive:
v Your xSeries 450 server supports up to two CD-ROM drives, or two DVD-ROM
drives, or a combination.
v If you have only one IDE device installed, it must be installed in the right
removable-media bay. CD-ROM or DVD-ROM drives can be installed in either
removable-media bay.
Complete the following steps to install a CD-ROM or DVD-ROM drive in your
server:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external devices from the back of the server.
22
xSeries 450: Option Installation Guide
3. Push the drive-eject button to the right.
4. Inspect the drive for any signs of damage.
5. Slide the CD-ROM or DVD-ROM drive into the drive bay until it stops.
Removable
media bays
:
E
T
O
N
R
O
F
R
E
P
O
R
P
,
W
O
L
F
IR
A
E
C
A
L
P
E
R
IN
H
IT
W
S
E
T
U
IN
M
,
W
O
L
F
IR
A
X
O
B
2
F
O
R
E
P
O
R
P
T
N
O
R
F
R
O
F
N
FA
:
E
T
O
N
E
C
A
L
P
E
R
N
FA
S
E
T
U
IN
M
X
O
B
2
F
O
IN
H
IT
W
T
N
O
R
F
CD-ROM
or DVD drive
CD-ROM drive
eject button
Tab
6. If you have other options to install or remove, do so now. Otherwise, connect
the power cords and turn on the server.
Complete the following steps to remove a CD-ROM or DVD-ROM drive in your
server:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external devices from the back of the server.
3. Push the drive-eject button to the right.
4. Using the tab, pull the CD-ROM or DVD-ROM drive partially out of the server;
then, grasp the drive and remove it from the server.
5. If you have other options to install or remove, do so now. Otherwise, connect
the power cords and turn on the server.
Installing memory
The following notes describe the types of dual inline memory modules (DIMMs) that
your server supports and other information that you must consider when installing
DIMMs:
v Your server supports 512 MB, 1 GB, and 2 GB DIMMs, for a maximum of 40 GB
of system memory. Your server supports up to twenty-eight 2.5 V, 184 pin,
PC2100, ECC DDR SDRAM, 133 MHZ DIMMs. Go to the ServerProven® list at
http://www.ibm.com/pc/compat/ for a list of memory modules you can use with
your server.
Chapter 2. Installing options
23
v Your server supports a maximum of only 20 DIMMs (10 per port) if any connector
contains a 2 GB DIMM. Your server supports a maximum of 28 DIMMs (14 per
port) if only 512 MB and 1 GB DIMMs are installed.
v Your server comes with a minimum of two 512 MB DIMMs, installed in slots 1
and 14. When installing additional DIMMs, you must install two DIMMS at a time,
in the order shown in the following table to maintain performance.
Table 1. DIMM installation sequence
Pair
DIMM connectors (Port 1)
Pair
DIMM connectors (Port 2)
1
1 and 14
2
15 and 28
3
4 and 11
4
18 and 25
5
2 and 13
6
16 and 27
7
5 and 10
8
19 and 24
9
3 and 12
10
17 and 26
11
6 and 9
12
20 and 23
13
7 and 8
14
21 and 22
Port 1
Port 2
DIMM error LEDs
are built into each handle
v Each DIMM in a pair must be of the same size and technology to ensure that the
server will operate properly.
v When using memory mirroring, you must install two pairs of DIMMs at a time.
The four DIMMs in each bank must be identical. The following table shows the
pairs that are in each bank. See Table 1 for the DIMM connector pair
assignments.
Table 2. Memory mirroring DIMM installation sequence
Bank
DIMM pairs
Bank
DIMM pairs
1
1 and 2
5
9 and 10
2
3 and 4
6
11 and 12
3
5 and 6
7
13 and 14
4
7 and 8
v When you install or remove DIMMs, the server configuration information
changes. When you restart the server, the system displays a message indicating
that the memory configuration has changed.
24
xSeries 450: Option Installation Guide
Complete the following steps to install a DIMM in your server:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cables; then, open the server cover.
Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 12.
3. Open the DIMM access door that covers the DIMM connector into which you
will be installing the DIMM.
4. Install the new DIMM:
a. Open the retaining clip on each end of the DIMM connector.
b. Touch the static-protective package containing the DIMM to any unpainted
metal surface on the server. Then, remove the DIMM from the package.
Attention: To avoid breaking the retaining clips or damaging the DIMM
connectors, open and close the clips gently.
c. Turn the DIMM so that the DIMM keys align correctly with the slot.
d. Insert the DIMM into the connector by aligning the edges of the DIMM with
the slots at the ends of the DIMM connector. Firmly press the DIMM straight
down into the connector by applying pressure on both ends of the DIMM
simultaneously. The retaining clips snap into the locked position when the
DIMM is firmly seated in the connector. If there is a gap between the DIMM
and the retaining clips, the DIMM has not been correctly inserted; open the
Chapter 2. Installing options
25
retaining clips, remove the DIMM, and then reinsert it.
DIMM slot 15
DIMM slot 28
DIMM slot 1
DIMM slot 14
5. Close the DIMM access door.
6. If you have other options to install or remove, do so now.
7. Close the server cover. See “Completing the installation” on page 36.
Installing and replacing a microprocessor and power module
The following notes describe the type of microprocessor that your server supports
and other information that you must consider when installing and replacing a
microprocessor:
v Your server supports up to four Intel® Itanium® 2 microprocessors.
v Read the documentation that comes with the microprocessor to determine
whether you need to update the server system abstraction layer/extensible
firmware interface (SAL/EFI) code. To download the most current level of
SAL/EFI code for the server, go to http://www.ibm.com/pc/support/ on the World
Wide Web.
v (Optional) Obtain an SMP-capable operating system. For a list of supported
operating systems, go to http://www.ibm.com/pc/us/compat/.
v You will need the following tools:
– 2.5-mm hex (Allen) wrench (provided with the microprocessor option)
– T15 Torx wrench (provided with the microprocessor option)
v To order additional microprocessor options, contact your IBM marketing
representative or authorized reseller.
v Populate the microprocessor sockets in numeric order. Install the first
microprocessor in microprocessor socket 1, the second microprocessor in
microprocessor socket 2, and so on.
v The following illustrations show the locations of the microprocessor connectors
on the processor board.
Note: The illustrations in this publication might differ slightly from your hardware.
26
xSeries 450: Option Installation Guide
Front side
Microprocessor 3
baffle
Microprocessor 3
power module socket
Microprocessor 3
power module
cable connector
Microprocessor 1
power module
Microprocessor 1
power module
cable connector
Microprocessor 1
Reverse side
Microprocessor 4 socket
Microprocessor 4 power
module socket
Microprocessor 4 power
module cable connector
Microprocessor 2 power
module socket
Microprocessor 2 power
module cable connector
Microprocessor 2 socket
Important: To ensure proper server operation after you install replacement or
additional microprocessors, install only microprocessors that have the same
cache size and type, and the same clock speed. For a list of microprocessors
supported by your server, go to the ServerProven list at
http://www.ibm.com/pc/us/compat/.
Complete the following steps in the prescribed order to install and replace a
microprocessor:
Attention: Failure to complete the following steps in the prescribed order might
cause damage to the microprocessor pins and cause the microprocessor to fail.
1. Read the safety information beginning on page v and “Installation guidelines”
on page 11.
2. Turn off the server and peripheral devices, and disconnect the power cords
and all external cables; then, open the cover.
3. Remove the memory-board assembly from the server:
Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 12.
a. Pull up on the levers to detach the memory-board assembly.
b. Carefully remove the memory-board assembly from the server and set it
aside.
Chapter 2. Installing options
27
:
E
T
O
N
R
O
F
R
E
P
O
R
P
,
W
O
L
F
IR
A
E
C
A
L
P
E
R
IN
H
IT
W
S
E
T
U
IN
M
,
W
O
L
F
IR
A
X
O
B
2
F
O
R
E
P
O
R
P
T
N
O
R
F
R
O
F
N
FA
:
E
T
O
N
E
C
A
L
P
E
R
N
FA
S
E
T
U
IN
M
X
O
B
2
F
O
IN
H
IT
W
T
N
O
R
F
4. Remove the shipping thumbscrews from the right side of the server.
5. Lift the retention bracket from the server.
Lift tabs
:
E
T
O
N
R
O
F
R
E
P
O
R
P
,
W
O
L
F
IR
A
E
C
A
L
P
E
R
S
E
T
U
IN
M
,
W
O
L
F
IR
A
X
O
B
2
F
O
IN
H
IT
W
R
E
P
O
R
P
T
N
O
R
F
R
O
F
N
FA
:
E
T
O
N
E
C
A
L
P
E
R
N
FA
S
E
T
U
IN
M
X
O
B
2
F
O
IN
H
IT
W
T
N
O
R
F
Shipping
thumbscrews
6. Remove the processor-board assembly from the server:
Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 12.
a. Press to unlock the levers securing the processor-board assembly and pull
up on the levers to release the processor-board assembly.
b. Slide the assembly toward the right side of the server.
c. Carefully remove the processor-board assembly from the server and place
it on a flat, level surface.
28
xSeries 450: Option Installation Guide
Levers
:
E
T
O
N
R
O
F
R
E
P
O
R
P
,
W
O
L
F
IR
A
E
C
A
L
P
E
R
IN
H
IT
W
S
E
T
U
IN
M
,
W
O
L
F
IR
A
X
O
B
2
F
O
R
E
P
O
R
P
T
N
O
R
F
R
O
F
N
FA
:
E
T
O
N
E
C
A
L
P
E
R
N
FA
S
E
T
U
IN
M
X
O
B
2
F
O
IN
H
IT
W
T
N
O
R
F
7. If you are installing a new microprocessor, go to step 8; otherwise, continue:
Attention: Failure to complete the instructions in the prescribed order might
cause damage to the microprocessor pins and cause the microprocessor to
fail.
Microprocessor
Power module
a. Using the T-handled Torx wrench provided with the microprocessor option,
completely loosen the power-module screws.
b. Slide the power module from the microprocessor and remove the power
module.
c. Completely loosen the heat-sink screws.
d. Use the hex wrench provided with the microprocessor option to open the
socket lock and remove the microprocessor.
8. Install the microprocessor and power module:
Chapter 2. Installing options
29
a. Remove the microprocessor baffle from the microprocessor socket. Keep
the microprocessor baffle for future use.
b. Remove the protective tape covering the microprocessor socket, if present.
Attention: Inserting the microprocessor in a locked connector might
damage the pins and cause the microprocessor to fail.
Power module
Microprocessor
Microprocessor
baffle
c. Ensure that the socket lock is in the fully open (unlocked) position to permit
plugging in the microprocessor. Use the hex wrench provided with the
microprocessor option to open the lock, if necessary.
30
xSeries 450: Option Installation Guide
Note: Examine the socket lock of an installed microprocessor to identify
the locking flag in the locked position.
Unlocked
Locked
Locking
flag
Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 12.
d. Touch the static-protective package containing the microprocessor to any
unpainted metal surface on the server. Then, remove the microprocessor
and power module from the package.
Attention:
1) Forcing the microprocessor socket lock clockwise beyond the closed
position might damage the socket locking mechanism. Before you
install a microprocessor in the socket, use the hex wrench provided
with the microprocessor option to close and open the socket lock to
observe the locking flag in the closed position. Also, note the resistance
of the locking mechanism in the closed position. When installing the
microprocessor, do not force the socket lock clockwise beyond the
closed position. If you need to see the microprocessor socket lock
clearly, shine a flashlight over the microprocessor connector.
2) Ensure that the microprocessor is aligned and seated correctly before
you proceed. To avoid bending the pins on the microprocessor, do not
use excessive force when pressing it into the socket.
e. Insert the microprocessor gently into the connector. The microprocessor
rests flat on the retention mechanism when properly seated.
f. Lock the socket lock, using the hex wrench provided with the
microprocessor option.
g. Tighten the heat-sink screws to secure the microprocessor, using the
T-handled Torx wrench provided with the microprocessor option.
h. Slide the power module gently into the microprocessor.
i. Tighten the power-module screws to secure the power module.
Chapter 2. Installing options
31
j. Plug the power-module cable into the power module and into the adjacent
power-module cable connector.
9. Carefully install the processor-board assembly and retention bracket.
10. Carefully install the memory-board assembly.
11. If you have other options to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 36.
Replacing and troubleshooting fans
Your xSeries 450 server has four hot-swap fan assemblies, two 150 mm x 51 mm
fans and two 150 mm x 38 mm fans. The two 150 mm x 51 mm fans (fan 1 and fan
2) are located toward the front of the server and are used to cool the memory board
and processor board. The two 150 mm x 38 mm fans (fan 3 and fan 4) are located
just behind the PCI-X board and are used to cool the power supplies, PCI-X slots,
and other components.
Note: The illustrations in this document might differ slightly from your hardware.
Fan 4
Latch release
N
T
O
E
:
F
O
R
P
O
R
P
E
Fan 2
R
A
IR
F
L
,
W
O
R
E
P
L
C
A
E
FA
W
O
R
N
F
IT
N
H
T
IN
O
IN
X
O
M
B
2
F
U
T
E
S
Fan 3
N
T
O
E
:
F
O
R
P
O
R
P
E
R
A
IR
F
L
,
W
O
R
E
P
L
C
A
E
FA
W
O
R
N
F
IT
N
H
T
IN
O
IN
X
O
M
B
2
F
U
T
E
S
Fan 1
Each fan has an LED to help you detect a problem. When the fan is operating
correctly, this LED is off. If a fan stops working, the Light Path Diagnostics feature
will light the System-error LED on the front of the server, indicating that there is a
problem and guide you to the defective fan. When this occurs, first identify the
defective fan; then, using the appropriate procedure, remove and replace the fan.
Replacing fan 1 or 2
As shown in the illustration, fans 1 and 2 are located on the right side of the server.
These fans are redundant, meaning that if one fails, the remaining fan will
temporarily speed up to properly cool the server components.
Attention:
32
All fans must be replaced within 48 hours of failing.
xSeries 450: Option Installation Guide
Complete the following steps to replace fan 1 or 2:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Remove the fan from the server:
a. Place your fingers into the two finger holes on the top of the fan and
squeeze them together.
Note: The illustrations in this document might differ slightly from your
hardware.
Fan 4
Latch release
N
T
O
E
:
F
O
R
P
O
R
P
E
Fan 2
R
A
IR
F
L
,
W
O
R
E
P
L
C
A
E
FA
W
O
R
N
F
IT
N
H
T
IN
O
IN
X
O
M
B
2
F
U
T
E
S
Fan 3
N
T
O
E
:
F
O
R
P
O
R
P
E
R
A
IR
F
L
,
W
O
R
E
P
L
C
A
E
FA
W
O
R
N
F
IT
N
H
T
IN
O
IN
X
O
M
B
2
F
U
T
E
S
Fan 1
b. Lift the fan out of the server.
3. Turn the new fan so that the LED on the top of the fan is to the right side of the
server.
4. Push the replacement fan assembly into the server until it clicks into place.
5. If you have other options to install or remove, do so now.
6. Close the server cover. See “Closing the cover” on page 37.
Replacing fan 3 or 4
As shown in the illustration, these two fans (fan 3 and fan 4) are located in front of
the PCI-X slots. These fans are redundant, meaning that if one fails, the remaining
fan will temporarily speed up to properly cool server components.
Attention:
All fans must be replaced within 48 hours of failing.
Complete the following steps to replace fan 3 or 4:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11.
2. Remove the fan from the server:
a. Press the latch release to the right and let the handle come up.
Chapter 2. Installing options
33
Note: The illustrations in this document might differ slightly from your
hardware.
Fan 4
Latch release
N
T
O
E
:
F
O
R
P
O
R
P
E
Fan 2
R
A
IR
F
L
,
W
O
R
E
P
L
C
A
E
FA
W
O
R
N
F
IT
N
H
T
IN
O
IN
X
O
M
B
2
F
U
T
E
S
Fan 3
N
T
O
E
:
F
O
R
P
O
R
P
E
R
A
IR
F
L
,
W
O
R
E
P
L
C
A
E
FA
W
O
R
N
F
IT
N
H
T
IN
O
IN
X
O
M
B
2
F
U
T
E
S
Fan 1
b. Grasp the handle and lift the fan out of the server.
3. Turn the new fan so that the latch release on the top of the fan is to the right
side of the server.
4. With the handle raised, push the replacement fan assembly into the server until
it clicks into place.
5. Push the handle down until it clicks into place under the latch release.
6. If you have other options to install or remove, do so now.
7. Close the server cover. See “Closing the cover” on page 37.
34
xSeries 450: Option Installation Guide
Replacing the battery
When replacing the battery you must replace it with a lithium battery of the same
type, from the same manufacturer. To avoid possible danger, read and follow the
safety statement below.
To order replacement batteries, call 1-800-772-2227 within the United States, and
1-800-465-7999 or 1-800-465-6666 within Canada. Outside the U.S. and Canada,
call your IBM reseller or IBM marketing representative.
Note: After you replace the battery, you must reconfigure your server and reset the
system date and time.
Statement 2:
CAUTION:
When replacing the lithium battery, use only IBM Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer. If your system has
a module containing a lithium battery, replace it only with the same module
type made by the same manufacturer. The battery contains lithium and can
explode if not properly used, handled, or disposed of.
Do not:
v Throw or immerse into water
v Heat to more than 100°C (212°F)
v Repair or disassemble
Dispose of the battery as required by local ordinances or regulations.
Complete the following steps to replace the battery:
1. Read the safety information beginning on page v and “Installation guidelines” on
page 11. Follow any special handling and installation instructions supplied with
the replacement battery.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cables from the server; then, open the cover (see “Opening the
cover” on page 14 for details).
3. Remove fans 3 and 4 from the server (see “Replacing fan 3 or 4” on page 33
for details).
Chapter 2. Installing options
35
4. Remove the battery:
a. Use one finger to press the top of the battery clip away from the battery.
b. Lift and remove the battery from the socket.
5. Insert the new battery:
a. Use one finger to press the top of the battery clip away from the battery.
b. Press the battery into the socket until it clicks into place. Make sure that the
battery clip holds the battery securely.
6. Install fans 3 and 4 in the server (see “Replacing fan 3 or 4” on page 33 for
details).
7. Close the server cover, and connect the cables.
8. Turn on the server.
9. Start the Configuration/Setup Utility program and set configuration parameters.
v Set the system date and time.
v Set the power-on password.
v Reconfigure your server.
Completing the installation
To complete your installation, close the server cover, install your server in a rack,
reconnect all cables that you disconnected earlier, and for certain options, run the
Configuration/Setup Utility program. Follow the instructions in this section.
Attention: For proper cooling and airflow, close the server cover before or shortly
after turning on the server. Operating the server for extended periods of time (over
15 minutes) with the server cover open might damage server components.
36
xSeries 450: Option Installation Guide
Closing the cover
Close the cover by first closing the right side; then, close the left side and press
down to latch the two halves of the cover in place.
:
E
T
O
N
R
O
F
R
E
P
O
R
P
,
W
O
L
F
IR
A
E
C
A
L
P
E
R
IN
H
IT
W
S
E
T
U
IN
M
,
W
O
L
F
IR
A
X
O
B
2
F
O
R
E
P
O
R
P
T
N
O
R
F
R
O
F
N
FA
:
E
T
O
N
E
C
A
L
P
E
R
N
FA
S
E
T
U
IN
M
X
O
B
2
F
O
IN
H
IT
W
T
N
O
R
F
Installing the server in a rack
Detailed cabling instructions, including the use of the cable management arm
(which comes with the server) are in the Rack Installation Instructions provided with
the server.
Connecting the cables
Notes:
1. You must turn off the server before connecting any cables to or disconnecting
any cables from the server.
2. See the documentation that comes with your external options for additional
cabling instructions. It might be easier for you to route any cables before you
connect the devices to the server.
3. If you have just plugged the power cords of the server into an electrical outlet,
you must wait 30 seconds before pressing the power-control button.
The following illustration shows the locations of the input and output connectors on
your server. See Chapter 3, “Input/output connectors”, on page 41 for descriptions
Chapter 2. Installing options
37
of the I/O connectors.
System power
connector (1)
RXE Expansion Port (B)
connector
System power
connector (2)
Serial connector
Remote
Supervisor
Adapter
connectors
Gigabit Ethernet
connectors
SCSI connector
RXE Management Port connector
USB 1 connector
USB 2 connector
RXE Expansion
Port (A) connector
Video connector
Updating your server configuration
When you start your server for the first time after you add or remove an internal
option or an external SCSI device, you might see a message telling you that the
configuration has changed. See the User’s Guide on the IBM xSeries
Documentation CD for more information about the Configuration/Setup Utility
program.
Some options have device drivers that you need to install. See the documentation
that comes with your option for information about installing any required device
drivers.
If your server comes with two microprocessors or if your server comes with one
microprocessor and you have installed one or more additional microprocessors,
your server can now operate as an SMP server. Therefore, you might need to
upgrade your operating system to support SMP. See the User’s Guide on the IBM
xSeries Documentation CD and your operating-system documentation for additional
information.
If you have a RAID configuration on your server using the integrated SCSI
controller and you have installed or removed a hard disk drive, you might need to
reconfigure your disk arrays. See the User’s Guide on the IBM xSeries
Documentation CD for more information about the LSI Logic Configuration Utility
program.
If you install a different type of RAID adapter in your server, use the configuration
method supplied with the RAID adapter to view or change SCSI settings for
attached devices.
The internal hard disk drives can connect only to the integrated SCSI controller with
RAID capabilities.
38
xSeries 450: Option Installation Guide
Backing up and restoring the nonvolatile variables
The Extensible Firmware Interface (EFI) in the xSeries 450 stores its variables with
nonvolatile attributes in NVRAM on the Remote Supervisor Adapter. Before you
remove or replace the Remote Supervisor Adapter or clear the NVRAM, be sure to
make a backup copy of the nonvolatile EFI variables. After you install a new
Remote Supervisor Adapter, you must restore the EFI variables previously stored in
NVRAM. The EFI variables stored in NVRAM on the Remote Supervisor Adapter
include the following:
v Console definitions
v Boot options / Drivers
v Boot order / Timeout
You can use the xSeries 450 Backup and Restore utilities to backup or restore the
nonvolatile EFI variables stored in NVRAM.
Creating a backup copy of the nonvolatile EFI variables
Complete the following steps to create a backup copy of the EFI variables:
1. Ensure that the formatted media where you plan to store the backup file is
installed.
2. Start the server.
3. Select EFI shell from the EFI Boot Manager startup options.
Note: If EFI shell is not a choice on the list, the server has a customized
startup configuration. Contact the System Administrator for further
instructions.
4. Change to the file system for the formatted media where you want to store the
backup copy.
5. Type the following EFI command to create a backup copy of the EFI variables:
backup filename
(Where filename is the name you want to assign to the backup copy, for
example, efibckup.001.)
6. Type one of the following EFI commands to verify that the backup file was
created successfully:
dir or Is
The backup procedure is now completed.
Restoring the nonvolatile EFI variables
Complete the following steps to restore the nonvolatile EFI variable settings:
1. Ensure that the formatted media that contains the backup copy of the EFI
variables is installed.
2. Start the server.
3. Select EFI shell from the EFI Boot Manager startup options.
Note: If EFI shell is not a choice on the list, the server has a customized
startup configuration. Contact the System Administrator for further
instructions.
4. Change to the file system that contains the backup copy of the EFI variables.
5. Type one of the following EFI commands to verify that the backup file was
created successfully:
Chapter 2. Installing options
39
dir or Is
6. Type the following EFI command to restore the EFI variables:
restore filename
(Where filename is the name you assigned to the backup copy.)
7. When the message ″Delete existing non-volatile efi variables? [y/n]″ appears,
type:
Y
8. Type the following EFI command to reset the system:
reset
The restore procedure is now completed.
40
xSeries 450: Option Installation Guide
Chapter 3. Input/output connectors
Your server has the following input/output connectors:
v Two Gigabit Ethernet (RJ-45)
v Two RXE Expansion Port
v One RXE Management Port
v One SCSI
v One serial
v Three Universal Serial Bus (USB)
v One video
The following illustration shows the locations of these connectors.
System power
connector (1)
RXE Expansion Port (B)
connector
System power
connector (2)
Serial connector
Remote
Supervisor
Adapter
connectors
and LEDs
Ethernet
LEDs
Gigabit Ethernet
connectors
SCSI connector
RXE Management Port connector
USB 1 connector
USB 2 connector
RXE Expansion
Port (A) connector
Video connector
The following sections describe these connectors.
Your server also has an additional Ethernet connector, an additional serial
connector, and an Advanced System Management (ASM) Interconnect connector.
See the Remote Supervisor Adapter documentation on the IBM xSeries
Documentation CD for more information.
© Copyright IBM Corp. 2003
41
Gigabit Ethernet connectors
The following illustration shows a Gigabit Ethernet connector.
8
1
Connect a Category 3, 4, or 5 unshielded twisted-pair cable to this connector. The
100BASE-TX and 1000BASE-T Fast Ethernet standards require Category 5 or
higher cabling.
See the User’s Guide on the IBM xSeries Documentation CD for more information
about the Ethernet controller.
RXE Expansion Port connectors
Use the RXE Expansion Port connectors to connect your server to a remote I/O
enclosure. The following illustration shows a RXE Expansion Port connector.
48
2
47
1
RXE Management Port connector
Use the RXE Management Port connector to connect your server to a remote I/O
enclosure. The following illustration shows a RXE Management Port connector.
1
8
SCSI connector
The integrated dual-channel Ultra320 small computer system interface (SCSI)
controller supports one internal and one external independent SCSI connector. The
internal connector is integrated on the I/O board. The external connector is on the
rear of the server. The following illustration shows an external SCSI connector.
42
34
1
68
35
xSeries 450: Option Installation Guide
Serial connector
Use a serial connector to connect a serial device. The following illustration shows a
serial connector.
5
1
6
9
Configure a serial console device to accept the following settings:
Baud rate
115,200
Data bit
8
Parity
None
Stop bits
1
Flow control
None
Universal Serial Bus connectors
Use a Universal Serial Bus (USB) connector to connect a USB device. USB
technology transfers data at up to 12 Mb per second (Mbps) with a maximum of
127 devices and a maximum signal distance of 5 meters (16 ft) per segment. Using
Plug and Play technology, USB devices are configured automatically. The following
illustration shows a USB connector.
1
4
Use a 4-pin cable to connect devices to USB 1, USB 2, and USB 3. If you plan to
attach more than three USB devices, you must use a hub to connect the devices.
Video connector
The integrated video controller provides the video connector. The connector is on
the rear of the server. The following illustration shows a video connector.
5
1
15
11
Chapter 3. Input/output connectors
43
44
xSeries 450: Option Installation Guide
Appendix. Notices
This information was developed for products and services offered in the U.S.A.
IBM may not offer the products, services, or features discussed in this document in
other countries. Consult your local IBM representative for information on the
products and services currently available in your area. Any reference to an IBM
product, program, or service is not intended to state or imply that only that IBM
product, program, or service may be used. Any functionally equivalent product,
program, or service that does not infringe any IBM intellectual property right may be
used instead. However, it is the user’s responsibility to evaluate and verify the
operation of any non-IBM product, program, or service.
IBM may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you any
license to these patents. You can send license inquiries, in writing, to:
IBM Director of Licensing
IBM Corporation
North Castle Drive
Armonk, NY 10504-1785
U.S.A.
INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. Some states do not allow disclaimer of express or
implied warranties in certain transactions, therefore, this statement may not apply to
you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. IBM may make improvements and/or
changes in the product(s) and/or the program(s) described in this publication at any
time without notice.
Any references in this information to non-IBM Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those
Web sites. The materials at those Web sites are not part of the materials for this
IBM product, and use of those Web sites is at your own risk.
IBM may use or distribute any of the information you supply in any way it believes
appropriate without incurring any obligation to you.
Edition notice
© COPYRIGHT INTERNATIONAL BUSINESS MACHINES CORPORATION, 2003.
All rights reserved.
Note to U.S. Government Users Restricted Rights — Use, duplication or disclosure
restricted by GSA ADP Schedule Contract with IBM Corp.
© Copyright IBM Corp. 2003
45
Trademarks
The following terms are trademarks of International Business Machines Corporation
in the United States, other countries, or both:
Active Memory
Active PCI
Active PCI-X
Alert on LAN
C2T Interconnect
Chipkill
EtherJet
e-business logo
Eserver
FlashCopy
IBM
IntelliStation
Light Path Diagnostics
Memory ProteXion
NetBAY
Netfinity
NetView
OS/2 WARP
Predictive Failure
Analysis
PS/2
ServeRAID
ServerGuide
ServerProven
TechConnect
Tivoli
Tivoli Enterprise
Update Connector
Wake on LAN
XA-32
XA-64
X-Architecture
XceL4
XpandOnDemand
xSeries
Lotus, Lotus Notes, SmartSuite, and Domino are trademarks of Lotus Development
Corporation and/or IBM Corporation in the United States, other countries, or both.
Intel, ActionMedia, Itanium, LANDesk, MMX, Pentium, and ProShare are
trademarks of Intel Corporation in the United States, other countries, or both.
Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in
the United States, other countries, or both.
UNIX is a registered trademark of The Open Group in the United States and other
countries.
Java and all Java-based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.
Linux is a registered trademark of Linus Torvalds.
Other company, product, or service names may be trademarks or service marks of
others.
Important notes
Processor speeds indicate the internal clock speed of the microprocessor; other
factors also affect application performance.
CD-ROM drive speeds list the variable read rate. Actual speeds vary and are often
less than the maximum possible.
46
xSeries 450: Option Installation Guide
When referring to processor storage, real and virtual storage, or channel volume,
KB stands for approximately 1000 bytes, MB stands for approximately 1 000 000
bytes, and GB stands for approximately 1 000 000 000 bytes.
When referring to hard disk drive capacity or communications volume, MB stands
for 1 000 000 bytes, and GB stands for 1 000 000 000 bytes. Total user-accessible
capacity may vary depending on operating environments.
Maximum internal hard disk drive capacities assume the replacement of any
standard hard disk drives and population of all hard disk drive bays with the largest
currently supported drives available from IBM.
Maximum memory may require replacement of the standard memory with an
optional memory module.
IBM makes no representation or warranties regarding non-IBM products and
services that are ServerProven, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose. These products are offered and
warranted solely by third parties.
IBM makes no representations or warranties with respect to non-IBM products.
Support (if any) for the non-IBM products is provided by the third party, not IBM.
Some software may differ from its retail version (if available), and may not include
user manuals or all program functionality.
Product recycling and disposal
This unit contains materials such as circuit boards, cables, electromagnetic
compatibility gaskets, and connectors which may contain lead and copper/beryllium
alloys that require special handling and disposal at end of life. Before this unit is
disposed of, these materials must be removed and recycled or discarded according
to applicable regulations. IBM offers product-return programs in several countries.
For country-specific instructions, refer to the following Web site:
http://www.ibm.com/ibm/environment/products/prp.shtml.
This product may contain a sealed lead acid, nickel cadmium, nickel metal
hydride, lithium, or lithium ion battery. Consult your user manual or service
manual for specific battery information. The battery must be recycled or
disposed of properly. Recycling facilities may not be available in your area.
For information on disposal of batteries, contact your local waste disposal
facility.
In the United States, IBM has established a collection process for reuse, recycling,
or proper disposal of used IBM sealed lead acid, nickel cadmium, nickel metal
hydride, and battery packs from IBM equipment. For information on proper disposal
of these batteries, contact IBM at 1-800-426-4333. Have the IBM part number listed
on the battery available prior to your call.
Electronic emission notices
Federal Communications Commission (FCC) statement
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
Appendix. Notices
47
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the
interference at his own expense.
Properly shielded and grounded cables and connectors must be used in order to
meet FCC emission limits. Properly shielded and grounded cables and connectors
must be used in order to meet FCC emission limits.IBM is not responsible for any
radio or television interference causedby using other than recommended cables and
connectors or by using other than recommended cables and connectors or by
unauthorized changes or modifications to this equipment. Unauthorized changes or
modifications could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada Class A emission compliance statement
This Class A digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
Australia and New Zealand Class A statement
Attention: This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures.
United Kingdom telecommunications safety requirement
Notice to Customers
This apparatus is approved under approval number NS/G/1234/J/100003 for indirect
connection to public telecommunication systems in the United Kingdom.
European Union EMC Directive conformance statement
This product is in conformity with the protection requirements of EU Council
Directive 89/336/EEC on the approximation of the laws of the Member States
relating to electromagnetic compatibility. IBM cannot accept responsibility for any
failure to satisfy the protection requirements resulting from a nonrecommended
modification of the product, including the fitting of non-IBM option cards.
This product has been tested and found to comply with the limits for Class A
Information Technology Equipment according to CISPR 22/European Standard EN
55022. The limits for Class A equipment were derived for commercial and industrial
environments to provide reasonable protection against interference with licensed
communication equipment.
48
xSeries 450: Option Installation Guide
Attention: This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures.
Taiwanese Class A warning statement
Chinese Class A warning statement
Japanese Voluntary Control Council for Interference (VCCI) statement
Power cords
For your safety, IBM provides a power cord with a grounded attachment plug to use
with this IBM product. To avoid electrical shock, always use the power cord and
plug with a properly grounded outlet.
IBM power cords used in the United States and Canada are listed by Underwriter’s
Laboratories (UL) and certified by the Canadian Standards Association (CSA).
For units intended to be operated at 115 volts: Use a UL-listed and CSA-certified
cord set consisting of a minimum 18 AWG, Type SVT or SJT, three-conductor cord,
a maximum of 15 feet in length and a parallel blade, grounding-type attachment
plug rated 15 amperes, 125 volts.
For units intended to be operated at 230 volts (U.S. use): Use a UL-listed and
CSA-certified cord set consisting of a minimum 18 AWG, Type SVT or SJT,
Appendix. Notices
49
three-conductor cord, a maximum of 15 feet in length and a tandem blade,
grounding-type attachment plug rated 15 amperes, 250 volts.
For units intended to be operated at 230 volts (outside the U.S.): Use a cord set
with a grounding-type attachment plug. The cord set should have the appropriate
safety approvals for the country in which the equipment will be installed.
IBM power cords for a specific country or region are usually available only in that
country or region.
50
IBM power cord part
number
Used in these countries and regions
02K0546
China
13F9940
Australia, Fiji, Kiribati, Nauru, New Zealand, Papua New Guinea
13F9979
Afghanistan, Albania, Algeria, Andorra, Angola, Armenia, Austria,
Azerbaijan, Belarus, Belgium, Benin, Bosnia and Herzegovina,
Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape
Verde, Central African Republic, Chad, Comoros, Congo
(Democratic Republic of), Congo (Republic of), Cote D’Ivoire
(Ivory Coast), Croatia (Republic of), Czech Republic, Dahomey,
Djibouti, Egypt, Equatorial Guinea, Eritrea, Estonia, Ethiopia,
Finland, France, French Guyana, French Polynesia, Germany,
Greece, Guadeloupe, Guinea, Guinea Bissau, Hungary, Iceland,
Indonesia, Iran, Kazakhstan, Kyrgyzstan, Laos (People’s
Democratic Republic of), Latvia, Lebanon, Lithuania, Luxembourg,
Macedonia (former Yugoslav Republic of), Madagascar, Mali,
Martinique, Mauritania, Mauritius, Mayotte, Moldova (Republic of),
Monaco, Mongolia, Morocco, Mozambique, Netherlands, New
Caledonia, Niger, Norway, Poland, Portugal, Reunion, Romania,
Russian Federation, Rwanda, Sao Tome and Principe, Saudi
Arabia, Senegal, Serbia, Slovakia, Slovenia (Republic of),
Somalia, Spain, Suriname, Sweden, Syrian Arab Republic,
Tajikistan, Tahiti, Togo, Tunisia, Turkey, Turkmenistan, Ukraine,
Upper Volta, Uzbekistan, Vanuatu, Vietnam, Wallis and Futuna,
Yugoslavia (Federal Republic of), Zaire
13F9997
Denmark
14F0015
Bangladesh, Lesotho, Maceo, Maldives, Namibia, Nepal,
Pakistan, Samoa, South Africa, Sri Lanka, Swaziland, Uganda
14F0033
Abu Dhabi, Bahrain, Botswana, Brunei Darussalam, Channel
Islands, China (Hong Kong S.A.R.), Cyprus, Dominica, Gambia,
Ghana, Grenada, Iraq, Ireland, Jordan, Kenya, Kuwait, Liberia,
Malawi, Malaysia, Malta, Myanmar (Burma), Nigeria, Oman,
Polynesia, Qatar, Saint Kitts and Nevis, Saint Lucia, Saint Vincent
and the Grenadines, Seychelles, Sierra Leone, Singapore, Sudan,
Tanzania (United Republic of), Trinidad and Tobago, United Arab
Emirates (Dubai), United Kingdom, Yemen, Zambia, Zimbabwe
14F0051
Liechtenstein, Switzerland
14F0069
Chile, Italy, Libyan Arab Jamahiriya
14F0087
Israel
xSeries 450: Option Installation Guide
IBM power cord part
number
Used in these countries and regions
1838574
Antigua and Barbuda, Aruba, Bahamas, Barbados, Belize,
Bermuda, Bolivia, Brazil, Caicos Islands, Canada, Cayman
Islands, Costa Rica, Colombia, Cuba, Dominican Republic,
Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras,
Jamaica, Japan, Mexico, Micronesia (Federal States of),
Netherlands Antilles, Nicaragua, Panama, Peru, Philippines,
Taiwan, United States of America, Venezuela
24P6858
Korea (Democratic People’s Republic of), Korea (Republic of)
34G0232
Japan
36L8880
Argentina, Paraguay, Uruguay
49P2078
India
49P2110
Brazil
6952300
Antigua and Barbuda, Aruba, Bahamas, Barbados, Belize,
Bermuda, Bolivia, Caicos Islands, Canada, Cayman Islands,
Colombia, Costa Rica, Cuba, Dominican Republic, Ecuador, El
Salvador, Guam, Guatemala, Haiti, Honduras, Jamaica, Mexico,
Micronesia (Federal States of), Netherlands Antilles, Nicaragua,
Panama, Peru, Philippines, Saudi Arabia, Thailand, Taiwan,
United States of America, Venezuela
Appendix. Notices
51
52
xSeries 450: Option Installation Guide
Index
A
external
cabling
adapter
boot options 19
considerations 19
expansion slot locations 19
hot-plug devices 19
installing 19
slot identification 17, 19
working with 17
attention notices 2
37
F
fan
assemblies 32
fans
replacing and troubleshooting
replacing fans 1 and 2 32
replacing fans 3 and 4 33
FCC Class A notice 47
32
B
battery replacement
35
G
Gigabit Ethernet connector
42
C
cabling
external 37
caution statements 2
Class A electronic emission notice
components
location of 3
configuration
hardware, cabling for 37
connector and port locations 41
connectors
adapter 17
DIMM 23
Gigabit Ethernet 42
microprocessor 26
RXE Expansion Port 42
RXE Management Port 42
serial 43
Ultra320 SCSI 42
USB 43
video 43
cooling 11
cover
close 37
removing 14
H
47
handling static-sensitive devices
hard disk drive
installing 20
hardware, major 3
hot-swap and hot-plug devices
power supplies 16
hot-swap power supply
installing 16
I
danger statements 2
DIMMs
considerations 25
order of installation 24
I/O connectors 41
important notices 2
installation
order, microprocessors 26
installing
adapters 19
battery 35
DIMMs 23
hard disk drive 20
hot-swap power supply 16
memory module 23
microprocessors 26
options 11
PCI adapters 17
internal connectors
memory board 7
PCI-X 7
processor board 5
E
M
D
electronic emission Class A notice
expansion slots
location 17
type 17
© Copyright IBM Corp. 2003
12
47
memory board
internal connectors 7
memory board illustration 23
memory switch card illustration
microprocessor
heat sink 26
8
53
microprocessor (continued)
installing 26
order of installation 26
power module 26
Web site 26
microprocessor board illustration
T
thermal material
heat sink 28
trademarks 46
turning off the server 13
turning on the server 12
26
N
U
notes 2
notes, important 46
notices
electronic emission 47
FCC, Class A 47
notices and statements 2
Ultra320 SCSI connector 42
United States electronic emission Class A notice
United States FCC Class A notice 47
USB connectors 43
V
O
video connector
option
installing 11
order of installation
memory modules 23
microprocessors 26
order of installation, microprocessors
W
26
P
PCI
bus identification 19
expansion slots 17
PCI-X
internal connectors 7
power cords 49
power supply
installing 16
operating requirements 16
power-control button shield 12
R
reliability, system 11
removing
memory-board assembly 26
microprocessor-board assembly 26
replacing
fans 1 and 2 32
fans 3 and 4 33
RXE Expansion Port connector 42
RXE Management Port connector 42
S
serial connector 43
slots
See expansion slots
Standby mode 12
starting the server 12
statements and notices
system
reliability 11
54
43
2
xSeries 450: Option Installation Guide
Web site
compatible options 23, 27
DIMM specifications 25
microprocessor information 27
working inside server with power on
11
47
Part Number: 88P9194
SC88-P919-40
(1P) P/N: 88P9194
Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!
