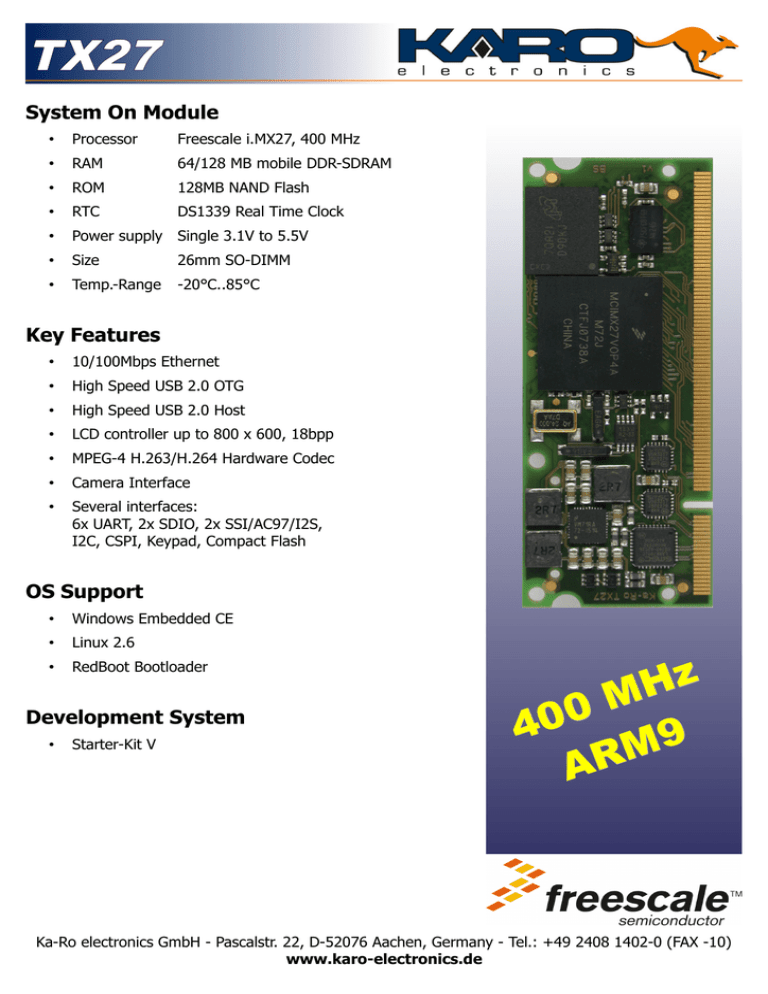

TX27
System On Module
•
Processor
Freescale i.MX27, 400 MHz
•
RAM
64/128 MB mobile DDR-SDRAM
•
ROM
128MB NAND Flash
•
RTC
DS1339 Real Time Clock
•
Power supply Single 3.1V to 5.5V
•
Size
26mm SO-DIMM
•
Temp.-Range
-20°C..85°C
Key Features
•
10/100Mbps Ethernet
•
High Speed USB 2.0 OTG
•
High Speed USB 2.0 Host
•
LCD controller up to 800 x 600, 18bpp
•
MPEG-4 H.263/H.264 Hardware Codec
•
Camera Interface
•
Several interfaces:
6x UART, 2x SDIO, 2x SSI/AC97/I2S,
I2C, CSPI, Keypad, Compact Flash
OS Support
•
Windows Embedded CE
•
Linux 2.6
•
RedBoot Bootloader
Development System
•
Starter-Kit V
z
H
M
0
40
9
M
AR
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX27
Board highlights:
•
•
•
•
•
Standard TX-DIMM interface
Universal 1.8V Interfaces:
world’s smallest i.MX computer on module
standard TX-DIMM pinout
low power consumption
easy to use
low cost
•
•
•
•
•
•
•
•
•
4-wire UART (x3)
up to 24-bit LCD Interface (depending on processor type)
Camera IF
I2C
SSI/AC97/I2S (x2)
16-bit Compact Flash & Memory Interface
4-wire SDIO (x2)
Keypad 5x5
CSPI
The TX27 is the first member of a module series, specially designed for
Freescales i.MX multimedia processors. TX modules are complete computers,
implemented on a board smaller than a credit card, and ready to be designed
into your embedded system. TX modules includes a Freescale® i.MX
processor, SDRAM and Flash memory. The integrated LCD-controller enables
direct connection of an LCD screen, and the standard PCMCIA interface
High-Speed communication interfaces incl. onboard PHY allows direct use of
permits simple extension and integration into a target system. The TX27 is
connectors/magnetics on the baseboard without the need for additional logic:
specifically targeted at embedded applications where size, high cpuperformance and low power consumption are critical factors.
•
10/100 Mbps Ethernet
•
High Speed USB 2.0 OTG
System on module
•
High Speed USB 2.0 Host
•
•
•
•
•
•
Freescale® i.MX27, 400 MHz
64/128 MByte mobile DDR-SDRAM (32bit)
128 MByte NAND Flash memory
DS1339 Real Time Clock
DIMM200-module (67,6mm x 26 mm x 4,2mm)
Operating temperature range -20°C..85°C
Power Supply
The TX27 accepts an input voltage from various sources:
•
•
•
i.MX27
1-cell Li-Ion/Polymer (3.1V to 4.2V)
5.0V USB supply or AC wall adapter
3.3V
Up to 1A output current 1.8V and 3.3V power supply outputs of the TX27 can
also be used on the baseboard.
Derived from the popular i.MX21 processor, the i.MX27 processor adds an
h.264 D1 hardware codec for high-resolution video processing, an Ethernet
10/100 MAC, security, plug-and-play connectivity and more power
management features.
CPU
ARM926EJ-S 400 MHz core
16 KB L1 I-Cache and D-Cache
16-channel DMA
Smart Speed switch
Ordering Information
Order Number
TX27/400/64S/128/E85
TX27/400/128S/128/E85
i.MX27
400MHz
400MHz
SDRAM
64MB
128MB
Flash
128MB
128MB
Temp.
-20°C..85°C
-20°C..85°C
2010-11-04
•
•
•
•
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX27
STARTER-KIT V
The Starter-Kit V is a ready-to-use development
system for building applications based on the TX
embedded processor boards.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DIMM200 TX socket
Two SD-card sockets
USB 2.0 OTG and USB 2.0 Host connector
D-SUB 15 VGA connector
40pin LCD flat cable header
3.5mm headphone connector
JTAG interface
SGTL5000 audio codec
TSC2007 touchscreen controller
RS232 on 10pin flat cable and SUB-D
header
All pins of the TX socket are connected to
daughter board slot for easy application
design-in
10/100 Mbit/s Ethernet
5VDC Power Supply by USB-OTG or power
jack.
100mm x 160mm
Schematics of the base board are included
for reference.
DISPLAY OPTION
The optional display comes with an FFC cable and
a small adapter PCB which can be plugged directly
onto the Starter-Kit 40pin LCD header.
•
•
•
•
5,7 inch TFT display
640 x 480 dots
White LED backlight
Touchsceen
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX27
PINOUT
PIN
Type
TX-STANDARD
i.MX27 Signal/Pad Name
Alternate
GPIO
Description
POWER SUPPLY
1-4
power VIN
-
Module power supply input (3.0V-5.5V)
5-7
power 1V8_OUT
-
1.8V buck regulator output, up to 1A
8
9-12
13
1V8
BOOTMODE
power 3V3_OUT
power VBACKUP
47K-PU
Boot mode select H: Boot from NAND / L: Boot from UART/USB
-
3.3V buck regulator output, up to 1A
-
DS1339 RTC backup power supply. Supply voltage must be held
between 1.3V and 3.7V for proper RTC operation. This pin can be
connected to a primary cell such as a lithium button cell. Additionally,
this pin can be connected to a rechargeable cell or a super cap when
used with the trickle charge feature.
Reset
14
2.8V
to
5.5V
15
PMIC_PWR_ON
-
1V8
#RESET_OUT
#RESET_OUT
16
2V8
#PMIC_RESET_IN
-
17
1V8
#RESET_IN
#RESET_IN
PB24
47K-PD
~14K-PU
This is an active high push button input which can be used to signal
PWR_ON and PWR_OFF events to the CPU by controlling the PMIC
ext_wakup signal and select contents of PMIC register 8H'88.
Connected to a GPIO.
Reset Output - active low output: can be caused by all reset source:
power on reset, system reset (RESET_IN), and watchdog reset.
Power On Reset—Active low input signal. Typically a push button
reset or driven by an open collector output. This signal is also driven
low by BATT_FLT. Please refer to the PMIC datasheet for details.
Leave unconnected, if not used.
Master Reset—External active low Schmitt trigger input signal. When
this signal goes active, all modules (except the reset module,
SDRAMC module, and the clock control module) are reset.
Ethernet
19
20
analog ETN_TXN
1V8
#ETN_LINKLED
-
Transmit Data Negative: 100Base-TX or 10Base-T differential transmit
output to magnetics.
-
Active low LINK ON indication: Active indicates that the link is on.
21
analog ETN_TXP
-
Transmit Data Positive: 100Base-TX or 10Base-T differential transmit
output to magnetics.
22
power ETN_3V3
-
+3.3V analog power supply output to magnetics
23
analog ETN_RXN
-
24
25
26
1V8
#ETN_ACTLED
analog ETN_RXP
GND
GND
Receive Data Negative: 100Base-TX or 10Base-T differential receive
input from magnetics.
Active low ACTIVITY indication: Active indicates that there is Carrier
sense (CRS) from the active PMD.
Receive Data Positive: 100Base-TX or 10Base-T differential receive
input from magnetics.
-
USB-HOST
27
3V3
USBH_VBUSEN
28
3V3
#USBH_OC
USBH1_RXDP
UART4_RXD
PB31
47K-PU
Active high external 5V supply enable. This pin is used to enable the
external VBUS power supply.
Active low over-current indicator input connected to a GPIO. This
signal can be used as an input only.
29
analog USBH_DM
-
D- pin of the USB cable
30
analog USBH_VBUS
-
VBUS pin of the USB cable. This pin is used for the VBUS comparator
inputs.
31
analog USBH_DP
-
D+ pin of the USB cable
32
GND
GND
-
USB-OTG
33
3V3
USBOTG_ID
-
34
3V3
USBOTG_VBUSEN
-
35
36
analog USBOTG_DM
3V3
#USBOTG_OC
ID pin of the USB cable. For an A-Device ID is grounded. For a BDevice ID is floated.
Active high external 5V supply enable. This pin is used to enable the
external VBUS power supply.
USBH1_TXDP
D- pin of the USB cable
UART4_CTS
PB29
47K-PU
Active low over-current indicator input connected to a GPIO. This
signal can be used as an input only.
37
analog USBOTG_DP
-
D+ pin of the USB cable
38
analog USBOTG_VBUS
-
VBUS pin of the USB cable. This pin is used for the VBUS comparator
inputs.
39
GND
GND
-
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX27
PIN
Type
TX-STANDARD
i.MX27 Signal/Pad Name
Alternate
GPIO
Description
I2C
40
1V8
I2C_DATA
I2C_DATA
PD17
I2C Data
41
1V8
I2C_CLK
I2C_CLK
PD18
I2C Clock
PWM
PWMO
OWIRE
RTCK
PWM
42
1V8
TOUT2
TOUT3
PE5
PWM Output. This signal is multiplexed with PC_SPKOUT of PCMCIA,
as well as TOUT2 and TOUT3 of the General Purpose Timer module
PE16
JTAG Return Clock used to enhance stability of JTAG debug interface
devices. This signal is multiplexed with 1-Wire; thus, utilizing 1-Wire
will render RTCK unusable and vice versa
PD28
Slave Select (Selectable polarity) signal
PD27
Slave Select (Selectable polarity) signal, multiplexed with
EXT_DMAGRANT
1-WIRE
43
1V8
CSPI – Configurable Serial Peripheral Interface
44
1V8
CSPI_SS0
CSPI1_SS0
45
1V8
CSPI_SS1
CSPI1_SS1
46
1V8
CSPI_MOSI
CSPI1_MOSI
PD31
Master Out/Slave In signal
47
1V8
CSPI_MISO
CSPI1_MISO
PD30
Master In/Slave Out signal
48
1V8
CSPI_SCLK
CSPI1_SCLK
PD29
Serial Clock signal
49
1V8
CSPI_RDY
CSPI1_RDY
PD25
Serial Data Ready signal, shared with Ext_DMAReq_B signal
50
GND
GND
PC21
SD Card Detect – connected to a GPIO
PE18
SD Data bidirectional signals—If the system designer does not want
to make use of the internal pull-up, via the Pull-up enable register, a
50 K–69 K external pull up resistor must be added.
EXT_DMAGRANT
EXT_DMAREQ_B
SD – Secure Digital Interface 1
51
1V8
SD1_CD
SSI1_RXD
52
1V8
SD1_D[0]
SD1_D[0]
53
1V8
SD1_D[1]
SD1_D[1]
PE19
54
1V8
SD1_D[2]
SD1_D[2]
PE20
55
1V8
SD1_D[3]
SD1_D[3]
CSPI3_SS
PE21
56
1V8
SD1_CMD
SD1_CMD
CSPI3_MOSI
PE22
SD Command bidirectional signal—If the system designer does not
want to make use of the internal
pull-up, via the Pull-up enable register, a 4. 7K–69 K external pull up
resistor must be added.
57
1V8
SD1_CLK
SD1_CLK
CSPI3_SCLK
PE23
SD Output Clock.
58
GND
GND
CSPI3_MISO
UART1
59
1V8
UART1_TXD
UART1_TXD
PE12
Transmit Data output signal
60
1V8
UART1_RXD
UART1_RXD
PE13
Receive Data input signal
61
1V8
UART1_RTS
UART1_RTS
PE15
Request to Send input signal
62
1V8
UART1_CTS
UART1_CTS
PE14
Clear to Send output signal
UART2
63
1V8
UART2_TXD
UART2_TXD
KP_COL6
PE6
Transmit Data output signal
64
1V8
UART2_RXD
UART2_RXD
KP_ROW6
PE7
Receive Data input signal
65
1V8
UART2_RTS
UART2_RTS
KP_ROW7
PE4
Request to Send input signal
66
1V8
UART2_CTS
UART2_CTS
KP_COL7
PE3
Clear to Send output signal
UART3
67
1V8
UART3_TXD
UART3_TXD
PE8
Transmit Data output signal
68
1V8
UART3_RXD
UART3_RXD
PE9
Receive Data input signal
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX27
PIN
Type
TX-STANDARD
i.MX27 Signal/Pad Name
69
1V8
UART3_RTS
70
1V8
UART3_CTS
71
GND
GND
Alternate
GPIO
Description
UART3_RTS
PE11
Request to Send input signal
UART3_CTS
PE10
Clear to Send output signal
KEYPAD
72
1V8
KP_COL[0]
KP_COL[0]
73
1V8
KP_COL[1]
KP_COL[1]
74
1V8
KP_COL[2]
KP_COL[2]
75
1V8
KP_COL[3]
KP_COL[3]
76
1V8
KP_COL[4]
KP_COL[4]
77
1V8
KP_ROW[0]
KP_ROW[0]
78
1V8
KP_ROW[1]
KP_ROW[1]
79
1V8
KP_ROW[2]
KP_ROW[2]
80
1V8
KP_ROW[3]
KP_ROW[3]
81
1V8
KP_ROW[4]
KP_ROW[4]
82
GND
GND
Keypad Column selection signals.
Keypad Row selection signals.
SSI - Serial Audio Port (Configurable to I2S Protocol and AC97)
83
1V8
SSI3_INT
SSI1_CLK
PC23
GPIO
84
1V8
SSI3_RXD
SSI3_RXD
SLCDC2_RS
PC29
Receive serial data
85
1V8
SSI3_TXD
SSI3_TXD
SLCDC2_CS
PC30
Transmit serial data
86
1V8
SSI3_CLK
SSI3_CLK
SLCDC2_CLK
PC31
Serial clock
87
1V8
SSI3_FS
SSI3_FS
SLCDC2_D0
PC28
Frame Sync
88
GND
GND
SSI - Serial Audio Port (Configurable to I2S Protocol and AC97)
89
1V8
SSI4_INT
SSI1_FS
PC20
GPIO
90
1V8
SSI4_RXD
SSI4_RXD
PC17
Receive serial data
91
1V8
SSI4_TXD
SSI4_TXD
PC18
Transmit serial data
92
1V8
SSI4_CLK
SSI4_CLK
PC19
Serial clock
93
1V8
SSI4_FS
SSI4_FS
PC16
Frame Sync
94
GND
GND
PC22
SD Card Detect - connected to a GPIO
PB4
SD Data bidirectional signals.
Secure Digital Interface 2
95
1V8
SD2_CD
SSI1_TXD
96
1V8
SD2_D[0]
SD2_D[0]
97
1V8
SD2_D[1]
SD2_D[1]
98
1V8
SD2_D[2]
SD2_D[2]
99
1V8
SD2_D[3]
SD2_D[3]
100
1V8
SD2_CMD
SD2_CMD
101
1V8
SD2_CLK
SD2_CLK
102
GND
GND
MSHC_DATA0
MSHC_DATA1
SLCDC1_CLK
MSHC_DATA2
SLDCD1_D0
MSHC_DATA3
SLCDC1_RS
MSHC_BS
SLCDC1_CS
MSHC_SCLK
PB5
PB6
PB7
PB8
SD Command bidirectional signal.
PB9
SD Output Clock signal.
CMOS Sensor Interface
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX27
PIN
Type
TX-STANDARD
i.MX27 Signal/Pad Name
103
1V8
CSI_D0
CSI_D0
104
1V8
CSI_D1
105
1V8
106
Alternate
GPIO
Description
UART6_TXD
PB10
Sensor port data
CSI_D1
UART6_RXD
PB11
Sensor port data
CSI_D2
CSI_D2
UART6_CTS
PB12
Sensor port data
1V8
CSI_D3
CSI_D3
UART6_RTS
PB13
Sensor port data
107
1V8
CSI_D4
CSI_D4
PB14
Sensor port data
108
1V8
CSI_D5
CSI_D5
PB17
Sensor port data
109
1V8
CSI_D6
CSI_D6
UART5_TXD
PB18
Sensor port data
110
1V8
CSI_D7
CSI_D7
UART5_RXD
PB19
Sensor port data
111
GND
GND
112
1V8
CSI_HSYNC
CSI_HSYNC
UART5_RTS
PB21
Sensor port horizontal sync
113
1V8
CSI_VSYNC
CSI_VSYNC
UART5_CTS
PB20
Sensor port vertical sync
114
1V8
CSI_PIXCLK
CSI_PIXCLK
PB16
Sensor port data latch clock
115
1V8
CSI_MCLK
CSI_MCLK
PB15
Sensor port master clock
116
GND
GND
PB28
GPIO (output only)
PA30
This signal is used to control the LCD bias voltage as contrast control
LCD Controller and Smart LCD Controller
USBH1_TXDM
UART4_TXD
SLCDC1_DAT3
117
1V8
LD [0]
118
1V8
LD [1]
CONTRAST
119
1V8
LD [2]
LD [0]
SLCDC1_DAT0
PA6
120
1V8
LD [3]
LD [1]
SLCDC1_DAT1
PA7
121
1V8
LD [4]
LD [2]
SLCDC1_DAT2
PA8
122
1V8
LD [5]
LD [3]
SLCDC1_DAT3
PA9
123
1V8
LD [6]
LD [4]
SLCDC1_DAT4
PA10
124
1V8
LD [7]
LD [5]
SLCDC1_DAT5
PA11
125
1V8
LD [8]
CLS
SLCDC1_RS
PA25
126
1V8
LD [9]
PS
SLCDC1_CS
PA26
127
1V8
LD [10]
LD [6]
SLCDC1_DAT6
PA12
128
1V8
LD [11]
LD [7]
SLCDC1_DAT7
PA13
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
Start signal output for gate driver. This signal is invert version of PS
(Sharp panel dedicated signal).
Control signal output for source driver (Sharp panel dedicated signal).
LCD
LCD
LCD
LCD
Data Bus—All LCD signals are driven low after reset and when
is off.
Data Bus—All LCD signals are driven low after reset and when
is off.
LCD Controller and Smart LCD Controller
129
GND
GND
130
1V8
LD [12]
LD [8]
SLCDC1_DAT8
PA14
131
1V8
LD [13]
LD [9]
SLCDC1_DAT9
PA15
132
1V8
LD [14]
LD [10]
133
1V8
LD [15]
LD [11]
134
1V8
LD [16]
REV
SLDCD1_D0
PA24
135
1V8
LD [17]
SPL_SPR
SLCDC1_CLK
PA27
136
1V8
LD [18]
LD [12]
137
1V8
LD [19]
LD [13]
138
1V8
LD [20]
LD [14]
139
1V8
LD [21]
LD [15]
SLCDC1_DAT10
SLCDC1_DAT2
SLCDC1_DAT11
SLCDC1_DAT3
SLCDC1_DAT12
SLCDC1_DAT4
SLCDC1_DAT13
SLCDC1_DAT5
SLCDC1_DAT14
SLCDC1_DAT6
SLCDC1_DAT15
SLCDC1_DAT7
PA16
PA17
PA18
PA19
PA20
PA21
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
LCD Data Bus—All LCD signals are driven low after reset and when
LCD is off.
Signal for common electrode driving signal preparation (Sharp panel
dedicated signal).
Sampling start signal for left and right scanning.
LCD
LCD
LCD
LCD
LCD
LCD
LCD
LCD
Data Bus—All
is off.
Data Bus—All
is off.
Data Bus—All
is off.
Data Bus—All
is off.
LCD signals are driven low after reset and when
LCD signals are driven low after reset and when
LCD signals are driven low after reset and when
LCD signals are driven low after reset and when
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX27
PIN
Type
TX-STANDARD
i.MX27 Signal/Pad Name
140
Alternate
1V8
LD [22]
LD [16]
141
1V8
LD [23]
LD [17]
142
GND
GND
143
1V8
HSYNC
PA28
Line Pulse or HSync
144
1V8
VSYNC
PA29
Frame Sync or Vsync—This signal also serves as the clock signal
output for gate; driver (dedicated signal SPS for Sharp panel HR-TFT)
145
1V8
OE_ACD
PA31
Alternate Crystal Direction/Output Enable
146
1V8
LSCLK
PA5
Shift Clock
147
GND
GND
PCMCIA signal, multiplexed with ATA ATA_DA2 signal; PF16
Ext_DMAGrant_B
GPIO
PA22
PA23
Description
LCD
LCD
LCD
LCD
Data Bus—All LCD signals are driven low after reset and when
is off.
Data Bus—All LCD signals are driven low after reset and when
is off.
External Bus/Chip Select (EMI)
148
1V8
PC_PWRON
PC_PWRON
PF16
149
1V8
PC_CD1_B
PC_CD1_B
PF20
150
1V8
PC_BVD1
PC_BVD1
PF12
151
1V8
PC_BVD2
PC_BVD2
PF11
152
1V8
PC_VS1
PC_VS1
PF14
153
1V8
PC_VS2
PC_VS2
PF13
154
1V8
IOIS16
IOIS16
PF9
155
1V8
PC_RW_B
PC_RW_B
PF8
156
1V8
PC_RST
PC_RST
PF10
157
1V8
PC_WAIT_B
PC_WAIT_B
PF18
158
1V8
PC_READY
PC_READY
PF17
159
1V8
PC_POE
PC_POE
PF7
160
GND
GND
161
1V8
CS [0]
CS [0]
162
1V8
CS [1]
CS [1]
163
1V8
CS [4]
CS [4]
164
1V8
ECB
ECB
PCMCIA card detect signal, multiplexed with ATA ATA_DIOR signal;
PF20
PCMCIA Battery voltage detect signal, multiplexed with ATA
ATA_DMARQ signal; PF12
PCMCIA Battery voltage detect signal, multiplexed with ATA
ATA_DMACK signalPF11
PCMCIA voltage sense signal, multiplexed with ATA ATA_DA1 signal;
PF14
PCMCIA voltage sense signal, multiplexed with ATA ATA_DA0 signal;
PF13
PCMCIA mode signal, multiplexed with ATA ATA_INTRQ signal; PF9
PCMCIA read write signal, multiplexed with ATA ATA_IORDY signal;
PF8
PCMCIA card reset signal, multiplexed with ATA ATA_RESET_B signal;
PF10
PCMCIA WAIT signal, multiplexed with ATA ATA_CS1 signal; PF18
PCMCIA READY/IRQ signal, multiplexed with ATA ATA_CS0 signal;
PF17
PCMCIA output enable signal, multiplexed with ATA ATA_BUFFER_EN
signal; PF7
Chip Select
CS5_DTACK
PF21
Active low input signal sent by flash device to the EIM whenever the
flash device must terminate an on-going burst sequence and initiate a
new (long first access) burst sequence.
External Bus/Chip Select (EMI)
165
1V8
EB0
EB0
166
1V8
EB1
EB1
167
1V8
OE
OE
168
1V8
LBA
LBA
169
1V8
RW
RW
170
1V8
BCLK
BCLK
171
GND
GND
172
1V8
A [0]
A [0]
173
1V8
A [1]
A [1]
174
1V8
A [2]
A [2]
175
1V8
A [3]
A [3]
176
1V8
A [4]
A [4]
Active low external enable byte signal that controls D [15:8], shared
with PCMCIA PC_REG.
Active low external enable byte signal that controls D [7:0], shared
with PCMCIA PC_IORD.
Memory Output Enable—Active low output enables external data bus,
shared with PCMCIA PC_IOWR.
Active low signal sent by flash device causing external burst device to
latch the starting burst address.
RW signal—Indicates whether external access is a read (high) or
write (low) cycle. This signal is also shared with the PCMCIA PC_WE.
Clock signal sent to external synchronous memories (such as burst
flash) during burst mode.
Address bus signals
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX27
PIN
Type
TX-STANDARD
i.MX27 Signal/Pad Name
177
Alternate
GPIO
Description
1V8
A [5]
A [5]
178
1V8
A [6]
A [6]
179
1V8
A [7]
A [7]
180
1V8
A [8]
A [8]
181
1V8
A [9]
A [9]
182
1V8
A [10]
A [10]
183
GND
GND
184
1V8
D[0]
D[0]
185
1V8
D[1]
D[1]
186
1V8
D[2]
D[2]
187
1V8
D[3]
D[3]
188
1V8
D[4]
D[4]
189
1V8
D[5]
D[5]
190
1V8
D[7]
D[7]
Be aware! D[7] and D[6] are out of order!
191
1V8
D[6]
D[6]
Be aware! D[7] and D[6] are out of order!
192
1V8
D[8]
D[8]
193
1V8
D[9]
D[9]
194
1V8
D[10]
D[10]
195
1V8
D[11]
D[11]
196
1V8
D[12]
D[12]
197
1V8
D[13]
D[13]
198
1V8
D[14]
D[14]
199
1V8
D[15]
D[15]
200
GND
GND
GND
Data Bus signals
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
