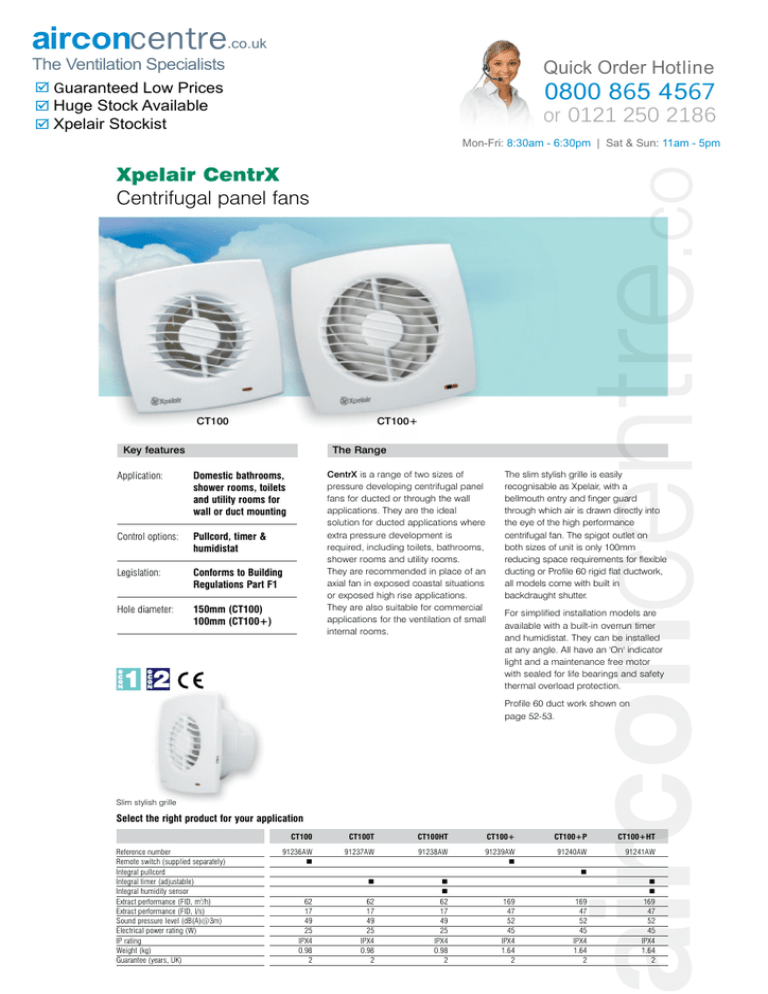

Xpelair CentrX
Centrifugal panel fans
CT100
CT100+
Key features
The Range
Application:
Domestic bathrooms,
shower rooms, toilets
and utility rooms for
wall or duct mounting
Control options:
Pullcord, timer &
humidistat
Legislation:
Conforms to Building
Regulations Part F1
Hole diameter:
150mm (CT100)
100mm (CT100+)
CentrX is a range of two sizes of
pressure developing centrifugal panel
fans for ducted or through the wall
applications. They are the ideal
solution for ducted applications where
extra pressure development is
required, including toilets, bathrooms,
shower rooms and utility rooms.
They are recommended in place of an
axial fan in exposed coastal situations
or exposed high rise applications.
They are also suitable for commercial
applications for the ventilation of small
internal rooms.
The slim stylish grille is easily
recognisable as Xpelair, with a
bellmouth entry and finger guard
through which air is drawn directly into
the eye of the high performance
centrifugal fan. The spigot outlet on
both sizes of unit is only 100mm
reducing space requirements for flexible
ducting or Profile 60 rigid flat ductwork,
all models come with built in
backdraught shutter.
For simplified installation models are
available with a built-in overrun timer
and humidistat. They can be installed
at any angle. All have an 'On' indicator
light and a maintenance free motor
with sealed for life bearings and safety
thermal overload protection.
Profile 60 duct work shown on
page 52-53.
Slim stylish grille
Select the right product for your application
Reference number
Remote switch (supplied separately)
Integral pullcord
Integral timer (adjustable)
Integral humidity sensor
Extract performance (FID, m3/h)
Extract performance (FID, l/s)
Sound pressure level (dB(A)@3m)
Electrical power rating (W)
IP rating
Weight (kg)
Guarantee (years, UK)
28
CT100
CT100T
CT100HT
CT100+
CT100+P
CT100+HT
91236AW
�
91237AW
91238AW
91239AW
�
91240AW
91241AW
62
17
49
25
IPX4
0.98
2
62
17
49
25
IPX4
0.98
2
169
47
52
45
IPX4
1.64
2
169
47
52
45
IPX4
1.64
2
�
�
�
62
17
49
25
IPX4
0.98
2
�
�
�
169
47
52
45
IPX4
1.64
2
airooncentre.co.uk
The Ventilation Specialists
Quick Order Hotline
0800 865 4567
þ Guaranteed Low Prices
þ Huge Stock Available
þ Xpelair Stockist
airconcentre.co.uk
or 0121 250 2186
The Ventilation Specialists
Mon-Fri: 8:30am - 6:30pm | Sat & Sun: 11am - 5pm
Models
CT100
Ref. 91236AW
• Centrifugal panel fan
• Can be installed at any angle
• Operated by remote switch or sensor.
In a bathroom usually a pullcord or wired to
the lighting circuit
• On indicator light
• Slim fascia with bellmouth and fingerguard
• 100mm duct spigot
• Maintenance free motor with sealed for life
bearings and safety thermal
overload protection
• Colour: White
CT100T
Ref. 91237AW
• Centrifugal panel fan with timer
• Connected to the room wiring circuit.
• Provides a preset timed overrun (3-15mins)
after the light has been switched off
• Can be installed at any angle.
• On indicator light.
• Slim fascia with bellmouth and fingerguard
• 100mm duct spigot
• Maintenance free motor with sealed for life
bearings and safety thermal
overload protection
• Colour: White
CT100HT
Ref. 91238AW
• Centrifugal panel fan with humidistat and timer
• Auto humidity control switches the fan on
with a rise in humidity above the preset level.
• Overrun timer (adjustable from 45s-15min)
ensures the absence of nuisance tripping
• Can be installed at any angle
• On indicator light
• Slim fascia with bellmouth and fingerguard
• 100mm duct spigot
• Maintenance free motor with sealed
for life bearings and safety thermal
overload protection
• Colour: White
CT100+
Ref. 91239AW
• High output centrifugal panel fan
• For larger bathrooms and utility rooms
• Can be installed at any angle
• Operated by proprietary remote switch
or sensor
• With bellmouth and fingerguard
• 100mm duct spigot
• Maintenance free motor with sealed
for life bearings and safety thermal
overload protection
• Colour: White
CT100+P
Ref. 91240AW
• Integral pullcord operation
• With bellmouth and fingerguard
• 100mm duct spigot
• Maintenance free motor with sealed
for life bearings and safety thermal
overload protection
• Colour: White
CT100+HT
Ref. 91241AW
• With integral humidistat
• Auto humidity control switches the fan
on with a rise in humidity above the
preset level.
• Overrun timer (adjustable from 45s-15min)
prevents nuisance tripping
• Can be installed at any angle
• With bellmouth and fingerguard
• 100mm duct spigot
• Maintenance free motor with sealed
for life bearings and safety thermal
overload protection
• Colour: White
Typical Specifications on page 162.
Wiring Diagrams on page 181.
Remote Sensor on page 56.
Controllers
Performance
Remote Humidistat XRH
Ref. 21856AW
• Stand alone humidistat switches fan On/Off
when RH reaches pre-set levels. Complete
with pullcord override switch
Remote Time Controller DT20B
Ref. 21850AW
• User adjustable run on timer (2-20mins)
Dimensions (mm)
CentrX 100 Range
CentrX 100+ Range
Installation and Accessories
Installation Accessories
Wall Mounting
Wall tube WD100
Ref. 89543AA
Telescopic wall vent kit VK10
Ref. 89120AW
Wall Mounting
Hole diameter:
Ducting size:
Ceiling mounting
with ducting
CT100 150mm
CT100+ 100mm
100mm
Hole diameter:
Ducting size:
CT100 150mm
CT100+ 100mm
100mm
Ceiling Mounting
Flexible ducting FD100
Ref. 89663AA
Ceiling mounting adaptor
Ref. 90066AA
Condensation trap XCT100
Ref. 89749AA
Weather cowl VC10
Ref. 89531AA
29
Xpelair CentrX | Centrifugal panel fans
Passive Infrared Sensor XPIRA
Ref. 21871AA
• Activates fan via body movement. Ideal for
infrequently used public spaces. Built in timer
to prevent nuisance tripping
