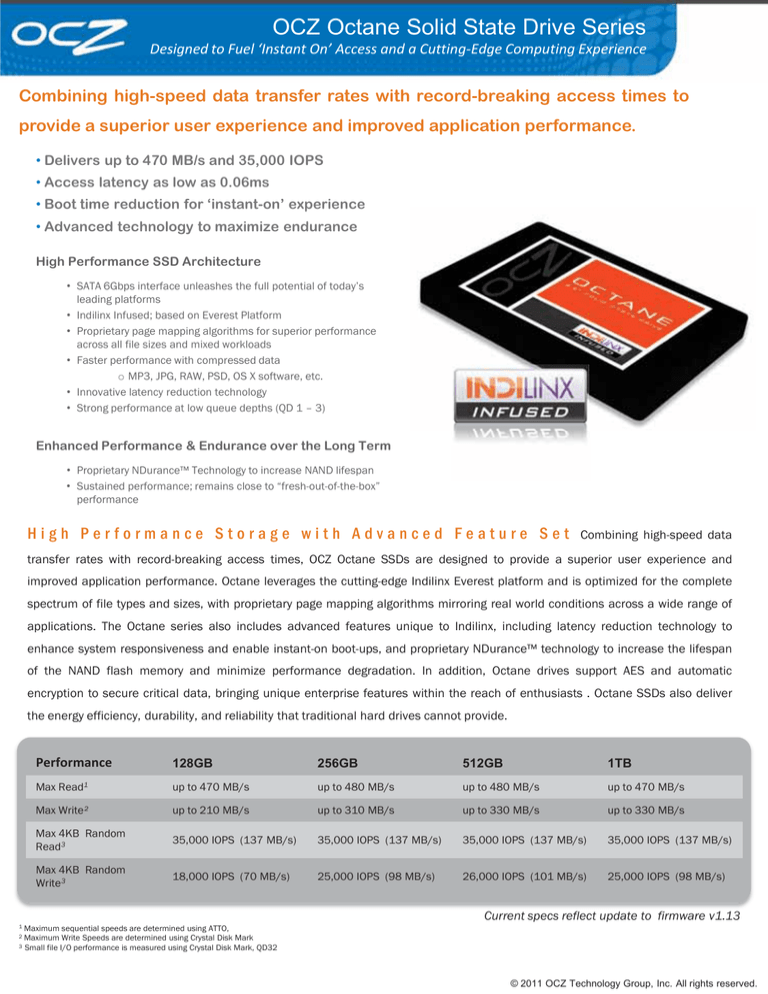

OCZ Octane Solid State Drive Series
Designed to Fuel ‘Instant On’ Access and a Cutting-Edge Computing Experience
Combining high-speed data transfer rates with record-breaking access times to
provide a superior user experience and improved application performance.
• Delivers up to 470 MB/s and 35,000 IOPS
• Access latency as low as 0.06ms
• Boot time reduction for ‘instant-on’ experience
• Advanced technology to maximize endurance
High Performance SSD Architecture
• SATA 6Gbps interface unleashes the full potential of today’s
leading platforms
• Indilinx Infused; based on Everest Platform
• Proprietary page mapping algorithms for superior performance
across all file sizes and mixed workloads
• Faster performance with compressed data
o MP3, JPG, RAW, PSD, OS X software, etc.
• Innovative latency reduction technology
• Strong performance at low queue depths (QD 1 – 3)
Enhanced Performance & Endurance over the Long Term
• Proprietary NDurance™ Technology to increase NAND lifespan
• Sustained performance; remains close to “fresh-out-of-the-box”
performance
High Performance Storage with Advanced Feature Set
Combining high-speed data
transfer rates with record-breaking access times, OCZ Octane SSDs are designed to provide a superior user experience and
improved application performance. Octane leverages the cutting-edge Indilinx Everest platform and is optimized for the complete
spectrum of file types and sizes, with proprietary page mapping algorithms mirroring real world conditions across a wide range of
applications. The Octane series also includes advanced features unique to Indilinx, including latency reduction technology to
enhance system responsiveness and enable instant-on boot-ups, and proprietary NDurance™ technology to increase the lifespan
of the NAND flash memory and minimize performance degradation. In addition, Octane drives support AES and automatic
encryption to secure critical data, bringing unique enterprise features within the reach of enthusiasts . Octane SSDs also deliver
the energy efficiency, durability, and reliability that traditional hard drives cannot provide.
Performance
128GB
256GB
512GB
1TB
Read1
up to 470 MB/s
up to 480 MB/s
up to 480 MB/s
up to 470 MB/s
Max Write²
up to 210 MB/s
up to 310 MB/s
up to 330 MB/s
up to 330 MB/s
Max 4KB Random
Read3
35,000 IOPS (137 MB/s)
35,000 IOPS (137 MB/s)
35,000 IOPS (137 MB/s)
35,000 IOPS (137 MB/s)
Max 4KB Random
Write3
18,000 IOPS (70 MB/s)
25,000 IOPS (98 MB/s)
26,000 IOPS (101 MB/s)
25,000 IOPS (98 MB/s)
Max
Current specs reflect update to firmware v1.13
Maximum sequential speeds are determined using ATTO,
Maximum Write Speeds are determined using Crystal Disk Mark
3 Small file I/O performance is measured using Crystal Disk Mark, QD32
1
2
© 2011 OCZ Technology Group, Inc. All rights reserved.
OCZ Octane Solid State Drive Series
Designed to Fuel ‘Instant On’ Access and a Cutting-Edge Computing Experience
SPECIFICATIONS
Physical
Usable Capacities (IDEMA)
128GB, 256GB, 512GB, 1TB
NAND Components
2Xnm Synchronous Multi-Level Cell (MLC)
Interface
SATA III / 6Gbps (backwards compatible with SATA II / 3Gbps)
Form Factor
2.5 Inch
NAND Controller
Indilinx Everest
DRAM Cache
Up to 512MB
Dimensions (L x W x H)
99.8 x 69.63 x 9.3 mm
Weight
83g
Reliability/Protection/Security
MTBF
1.25 million hours
Data Path Protection
BCH ECC corrects up to 78 random bits/1KB
Data Encryption
256-bit AES-compliant, ATA Security Mode Features
Product Health Monitoring
Self-Monitoring, Analysis and Reporting Technology (SMART) Support
Flash Endurance Management
Indilinx NDurance™ Technology
Environmental
Power Consumption
Idle: 1.15 W Active: 1.98 W
Operating Temperature
0°C ~ 70°C
Ambient Temperature
0°C ~ 55°C
Storage Temperature
-45°C ~ 85°C
Shock Resistance
1500G
Certifications
RoHS, CE, FCC, C-Tick, VCCI, BSMI
Compatibility
Serial ATA (SATA
Fully compliant with Serial ATA International Organization: Serial ATA Revision 3.0.
Fully compliant with ATA/ATAPI-8 Standard Native Command Queuing (NCQ)
Operating System
Windows XP 32-bit /64-bit; Windows Vista 32-bit / 64-bit; Windows 7 32-bit / 64-bit;
Linux; Mac OS X
Power Requirements
Standard SATA Power Connector
Additional Features
Performance Optimization
TRIM (requires OS support), dynamic and static wear-leveling, background garbage collection,
boot time reduction optimization
Other Performance Features
Industry-low latency: Read: 0.06ms; Write: 0.09ms, strong performance at lower queue depths
(QD1-QD3), optimized for 4K to 16K compressed files
Service & Support
3-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support
© 2011 OCZ Technology Group, Inc. All rights reserved.
OCZ Octane Solid State Drive Series
Designed to Fuel ‘Instant On’ Access and a Cutting-Edge Computing Experience
MECHANICAL SPECIFICATIONS
PACKAGING SPECIFICATIONS
Dimensions (L x W x H)
190.5mm x 114.3mm x 19.05mm
Weight
120g
ORDERING INFORMATION
PRODUCT
IDEMA CAPACITY
PART NUMBER
UPC
Octane 2.5” SSD
128GB
OCT1-25SAT3-128G
842024029182
Octane 2.5” SSD
256GB
OCT1-25SAT3-256G
842024029199
Octane 2.5” SSD
512GB
OCT1-25SAT3-512G
842024029205
Octane 2.5” SSD
1TB
OCT1-25SAT3-1T
842024029595
© 2011 OCZ Technology Group, Inc. All rights reserved.
