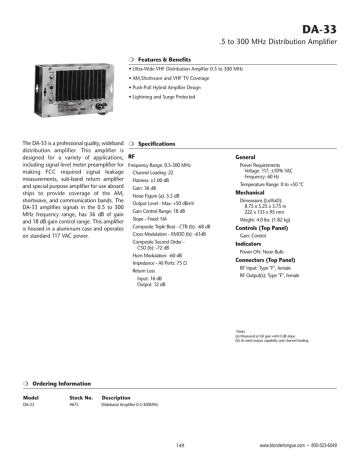

DA-33
.5 to 300 MHz Distribution Amplifier
❍ Features & Benefits
• Ultra-Wide VHF Distribution Amplfier 0.5 to 300 MHz
• AM,Shortwave and VHF TV Coverage
• Push-Pull Hybrid Amplfier Design
• Lightning and Surge Protected
The DA-33 is a professional quality, wideband ❍ Specifications
distribution amplifier. This amplifier is
designed for a variety of applications, RF
including signal level meter preamplifier for Frequency Range: 0.5-300 MHz
making FCC required signal leakage
Channel Loading: 22
measurements, sub-band return amplifier
Flatness: ±1.00 dB
and special purpose amplifier for use aboard
Gain: 36 dB
ships to provide coverage of the AM,
Noise Figure (a): 5.5 dB
shortwave, and communication bands. The
Output Level - Max: +50 dBmV
DA-33 amplifies signals in the 0.5 to 300
Gain Control Range: 18 dB
MHz frequency range, has 36 dB of gain
Slope - Fixed: NA
and 18 dB gain control range. This amplifier
Composite Triple Beat - CTB (b): -68 dB
is housed in a aluminum case and operates
Cross Modulation - XMOD (b): -61dB
on standard 117 VAC power.
Composite Second Order CSO (b): -72 dB
Hum Modulation: -60 dB
Impedance - All Ports: 75 Ω
Return Loss
Input: 16 dB
Output: 12 dB
General
Power Requirements
Voltage: 117, ±10% VAC
Frequency: 60 Hz
Temperature Range: 0 to +50 °C
Mechanical
Dimensions (LxWxD):
8.75 x 5.25 x 3.75 in
222 x 133 x 95 mm
Weight: 4.0 lbs. (1.82 kg)
Controls (Top Panel)
Gain: Control
Indicators
Power ON: Neon Bulb
Connectors (Top Panel)
RF Input: Type "F", female
RF Output(s): Type "F", female
Notes
(a) Measured at full gain with 0 dB slope.
(b) At rated output capability and channel loading.
❍ Ordering Information
Model
Stock No.
Description
DA-33
4675
Wideband Amplifier 0.5-300MHz
149
www.blondertongue.com • 800-523-6049
