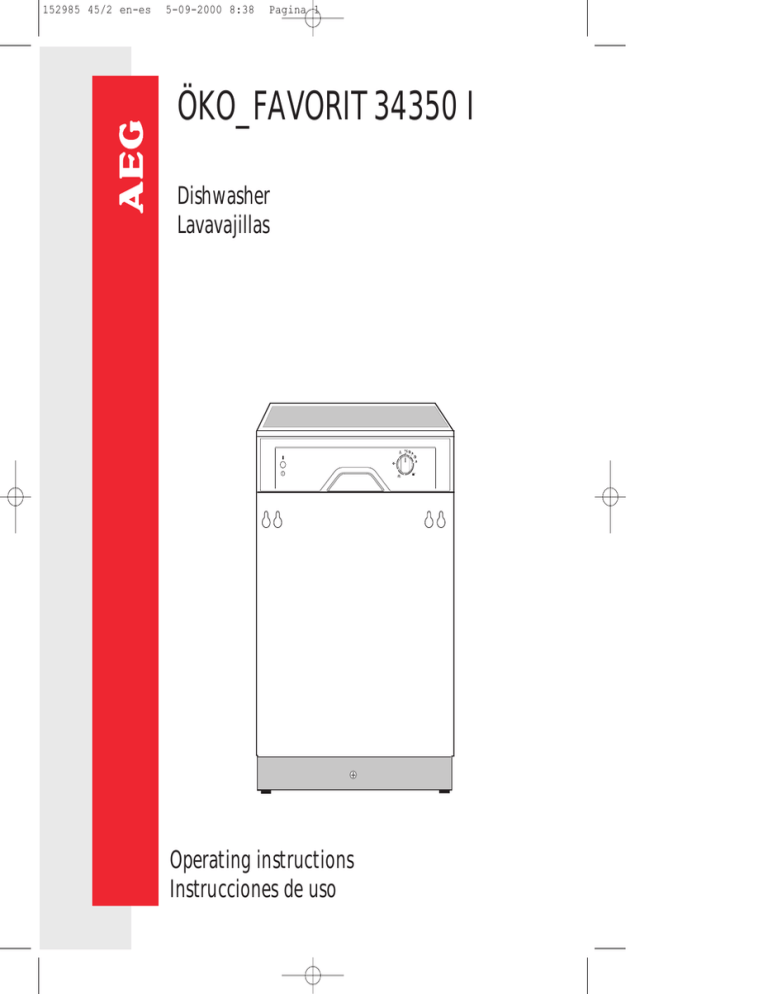

ÖKO_FAVORIT 34350 I
Dishwasher
Lavavajillas
Operating instructions
Instrucciones de uso
152985 45/2 en-es
5-09-2000 8:38
Pagina 2
Dear customer!
Please read these user instructions carefully.
Above all please observe the safety instructions on the first few pages
of these user instructions! Please keep these user instructions for later
reference. Pass them on to any subsequent owner of the appliance.
The warning triangle and/or specific words (Warning!, caution!,
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
This symbol or numbered instruction steps lead you step by step
through the operation of the appliance.
Next to this symbol you receive additional information and practical
tips on using the appliance.
Tips and instructions for the economical and environmentally
conscious use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see "What to do, when..."
section.
If these instructions are insufficient, please contact your nearest
customer service centre.
In the case of technical problems, our customer service organisation is
available to provide you with assistance at any time.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly...
2
152985 45/2 en-es
5-09-2000 8:38
Pagina 3
Contents
Safety instructions
4
Disposing of packaging and old machine
Disposing of the packaging
Disposing of your old machine
Economical and ecological dishwashing
6
6
6
7
Description of the appliance
The inside of the appliance
Control panel
Before using your dishwasher for the first time
Setting the water hardness range
Filling with special salt
The rinse aid
8
8
9
10
10
12
13
Loading cutlery and dishes
The lower basket
The upper basket
Cutlery basket
Use of detergent
Phoshate free detergents with enzymes
15
16
16
17
18
19
Washing programmes
20
Operating instructions
22
Maintenance and cleaning
Internal and external cleaning
Cleaning the filters
24
24
24
What do do, when...
26
Customer service
28
Technical data
29
Hints for test centres
30
Connection instructions
Connecting the water supply
Water outlet connection
Water protection system
Electrical connection
31
31
32
34
35
3
152985 45/2 en-es
5-09-2000 8:38
Pagina 4
Safety instructions
The safety of AEG electrical appliances conforms to accepted rules of
technology and the Appliance Safety Act. We as manufacturers, however, see
ourselves as being obliged to familiarise you with the following safety
instructions.
Using your dishwasher for its intended purpose
● Only use your dishwasher for machine washing of household crockery. If
your machine is misused or used for any purposes other than that
for which it is intended, the manufacturer cannot be held liable for any
damage caused.
●
For safety reasons, you should not convert or modify your dishwasher in
any way.
Before using your dishwasher for the first time
● Check your dishwasher for any transport damage. Never connect a
damaged machine. If your dishwasher is damaged, you should contact
your supplier.
●
Your dishwasher must be correctly installed and connected. Please read
the section on "Installation" to make sure you know all about this.
●
Before using your dishwasher for the first time, do not forget that the
nominal voltage and current type indicated on the rating plate of your
machine must be the same as the nominal voltage and current type at the
installation site. The necessary electrical fusing is also given on the rating
plate.
Child safety
● Packaging parts (e.g. foils, styrene foam) may be dangerous for
children,who could even be suffocated! You should therefore keep all
packaging well away from children.
4
●
Children may not recognise the dangers of improper use of electrical
appliances. You should therefore ensure proper supervision during
operation and not allow your children to play with your dishwasher.
●
Detergents may have a caustic effect on eyes, mouth and throat and may
even cause suffocation! Keep all detergents in a safe place out of
children’s reach.
152985 45/2 en-es
●
5-09-2000 8:38
Pagina 5
The water in your dishwasher should not be used for drinking. Detergent
residues may still be present in your machine. Make sure you do not
splash these caustic residues onto your skin or suffocate yourself! Keep
children well away from your dishwasher when its door is open.
Your dishwasher in day-to-day use
● Never operate your dishwasher if the electrical supply lead, supply or
drainhose, control panel, worktop or plinth are damaged.
●
If there is a fault, first turn the water tap off. Then switch off your
machine and pull the plug out of the socket. If there is a fixed
connection, switch off or unscrew the fuse(s).
●
Never pull the plug out of the socket by the cable - always hold the plug.
●
Dishwasher repairs should only be performed by trained personnel.
Improper repairs may seriously endanger the user. If your dishwasher
needs to be repaired, you should contact our service centre or your
retailer.
●
Never place any solvents in your dishwasher or you may cause an
explosion!
●
Do not rest or sit on the open door or the machine could tilt.
●
Before using special dishwasher salt, detergent or rinse-aid, make sure
that the manufacturer of these products expressly specifies their use in
domestic dishwashers.
●
Always turn off the water tap when your dishwasher is left unattended
for any length of time, e.g. when you are away on holiday.
●
Only transport the dishwasher in an upright position. Tipping it upside
down during transport could cause salty water to leak into the internal
compartment and lead to the formation of rust.
5
152985 45/2 en-es
5-09-2000 8:38
Pagina 6
Disposing of packaging and old machine
Disposing of the packaging
Our dishwashers require effective protective packaging in transit, though we
always confine ourselves to what is absolutely necessary.
Warning! Packaging parts (e.g. foils, styrene foam) may be
dangerous for children, who could even be suffocated! You
should therefore keep all packaging well away from children.
All packaging materials used are environmentally compatible and reusable.
The cardboard parts are produced from recycled paper, and the wood is
untreated.
The plastics are marked as follows:
>PE<
for polyethylene, e.g. packaging foils.
>PS<
for polystyrene, e.g. padding (essentially CFC-Free).
>POM< for polyoxymethylene, e.g. plastic clamps.
Give the packaging for reuse to your local recycling centre. Your municipal or
local authority will give you its address.
Disposing of your old machine
When your machine finally reaches the end of its life and you withdraw it
from service, you should render it unserviceable before having it disposed of.
Warning! Children at play could lock themselves in your
machine (and suffocate) or otherwise endanger their lives.
Therefore pull out the main plug and detach and discard the
electrical supply lead.
Disable the door lock so that the door no longer closes.
Marking of plastic parts for graded recycling: all plastic parts in your
machine are marked with internationally standardised abbreviations (e.g.
<PS> for polystyrene). When your machine is disposed of, this enables plastic
waste to be sorted into individual types for environmentally conscious
recycling.
Take your decommissioned machine to your local recycling centre or dealer,
who will take it back from you for a small handling charge.
6
152985 45/2 en-es
5-09-2000 8:38
Pagina 7
Economical and ecological dishwashing
●
Only connect the dishwasher to the hot water supply if your hot water is
not electrically heated.
●
Ensure that the water softener is correctly adjusted.
●
Do not pre-rinse under running water.
●
Select the wash programme to suit the nature and degree of the soiling
on the dishes.
●
Do not use more detergent, special salt or rinse aid than is recommended
in these operating instructions and by the manufacturer of the respective
product.
7
152985 45/2 en-es
5-09-2000 8:38
Pagina 8
Description of the appliance
The inside of the appliance
1
2
10
3
9
4
8
5
7
6
IN100
1. Water hardness adjustment
2. Upper basket stop
3. Upper spray arm
4. Salt container
5. Detergent dispenser
6. Control panel
7. Rinse aid dispenser
8. Filters
9. Lower spray arm
10. Upper basket
8
152985 45/2 en-es
5-09-2000 8:38
Pagina 9
Control panel
1
2
3
4
5
6
1. On/Off indicator light
2. On/Off pushbutton
3. Door handle
4. Programme marker
5. Programme selector dial
6. Programme sequence indicator
As the programme progresses, the knob turns, to show the phase in the
wash programme the appliance has reached.
Each phase is indicated with a symbol
Prewash/Rinse and Hold
Wash
Cold rinse
Hot rinse
Drying
9
152985 45/2 en-es
5-09-2000 8:38
Pagina 10
Before using your dishwasher for the first time
1. Ensure that the electrical and water connections comply with the
installation instructions.
2. Remove all packaging from inside the appliance.
3. Set the water softener.
4. Pour 0,5 l of water inside the salt container and then fill with salt.
5. Fill the rinse-aid dispenser.
Setting the water hardness range
The dishwasher is equipped with a water softener designed to remove
minerals and salts from the water supply, which would have a detrimental or
adverse effect on the operation of the appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in equivalent scales, German and French.
The softener should be adjusted according to the hardness of the water in
your area.
To ensure optimum regeneration of the water softener:
- the water softenening must be set to the local water hardness;
- the dishwasher salt container must always be filled with special salt.
Your local Water Authority can advise you on the hardness of the water in
your area.
The dishwasher is factory set at level 2.
If this level is not suitable for your area the softener should be adjusted.
Water hardness
Level
°dH
°TH
(german degrees) (french degrees)
1
2
3
4
5
10
0-4
5 - 11
12 - 22
23 - 39
40 - 50
0-8
9 - 20
21 - 40
41 - 70
71 - 90
Use
of salt
Water
softener
adjustment
Adjustment
on the
machine
NO
YES
YES
YES
YES
+
+
1
1
1
2
2
152985 45/2 en-es
5-09-2000 8:38
Pagina 11
Level 1
If your water is "level 1" it is already soft and therefore there is no need to
use salt.
Level 2
If your water hardness is "level 2", only regenerating salt will be necessary. It
is not necessary to set the water hardness level on the machine.
Levels 3 and 5 (water softener adjustment)
If your water is level 3 or 5, proceed as follows:
1. slide out the lower basket and unscrew
the cap of the salt container;
2. turn the two-position selector
anticlockwise from position - to
position + with the aid of a blunt
knife or a screwdriver.
AA01
Levels 4 and 5 (adjustment on the machine)
If your water is level 4 or 5, open the door
and turn the selector on the upper lefthand corner of the machine from position
1 to 2.
1 2
AA03
With a water hardness of level 5 both adjustments must be made.
11
152985 45/2 en-es
5-09-2000 8:38
Pagina 12
Filling with special salt
Caution! The packaging of dishwasher salt and detergents are often very
similar. The accidental filling of the salt compartment with detergent would
ruin the water softener. Each time you add salt, make sure the carton you
have in your hand really is salt.
Only use salt specifically designed for use in dishwashers.
All other types of salt not specifically designed for use in a
dishwasher, especially table salt, will damage the water softener.
Only fill with salt just before starting one of the complete
washing programmes (not the "Rinse and hold" programme).
This will prevent any grains of salt or salty water, which may
have been spilled, remaining on the bottom of the machine for
any period of time, which may cause corrosion.
To fill:
1. To fill with salt, unscrew the cap of
the salt container.
2. Pour 0,5 l of water inside the
container (this is necessary only
before filling with salt for the
first time).
LE
SA LT
SA LZ
SA L
SE
3. Using the funnel provided, pour in
the salt until the container is full.
Do not worry if water overflows
from the unit when filling with
salt, this is quite normal.
4. Replace the cap making sure that
there is no trace of salt on the
screw thread or on the gasket.
SR14
5. Screw on the cap tightly.
When this has been done, all that is required is to periodically top up the
container with salt.
12
152985 45/2 en-es
5-09-2000 8:38
Pagina 13
Salt refill indicator
The salt container will require topping up
periodically.
The salt cap has a refill indicator window in
the centre.
A green floater is clearly visible when there
is salt inside the container, and almost
disappears when the salt has finished,
reminding you to add salt.
SR11
The rinse-aid
The rinse-aid ensures brilliant crockery and also helps it to dry. It is
automatically dosed in during the hot rinsing cycle. The storage
compartment built in to the in side of the door can hold about 110 ml of
rinse-aid, which will be sufficient for between 16 and 40 dishwashing
programmes, according to the dosage setting.
Filling up the rinse-aid
1. Open the container by turning the
lid (A) anticlockwise.
2. Add the rinse aid until the
container is completely full. The
indicator (B) will be completely
dark.
Ensure that the lid is closed after every
refill.
A
BR01
Top up with rinse aid when the
indicator (B) becomes clear.
m
a
B
x 6 5 4 3
2 1
Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess
foaming during the next wash.
Attention! Do not put liquid detergent in
the rinse aid department.
BR03
13
152985 45/2 en-es
5-09-2000 8:38
Pagina 14
Adjusting the dose
The correct dosage of the rinse-aid
should be regulated on the basis of
the shine and drying results.
For this purpose, set the quantity of
liquid by means of the six-position
selector (C) located on the inside of
the filler opening (minimum quantity
is position 1, maximum quantity is
position 6).
Start from position 3.
14
m
a
BR02
x
6 5 4 3
2 1
Use the tip of a knife or a screwdriver
to rotate the selector. If drops of
water or white marks remain on the
crockery after it has been washed,
gradually increase the dosage. If the
crockery comes out with whitish,
sticky streaks, reduce the dosage.
C
152985 45/2 en-es
5-09-2000 8:38
Pagina 15
Loading cutlery and dishes
Sponges, household cloths and any object that can absorb water
may not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
●
Cutlery with wooden, horn, china or
mother of pearl handles.
●
Plastic items that are not heat resistant.
●
Older cutlery with cement that is not
temperature resistant.
●
Bonded cutlery items or dishes.
●
Pewter or copper items.
●
Lead crystal glass.
●
Steel items subject to rusting.
●
Wooden platters.
●
Items made from synthetic fibres.
are of limited suitability:
●
Only wash stoneware in the dishwasher
if it is specifically marked as being
dishwasher-safe by the manufacturer.
●
Glazed patterns may fade if machine
washed frequently.
●
Silver and aluminium parts have a
tendency to discolour during washing.
Left-overs, e.g. egg white, egg yolk and
mustard often cause discolouring and
staining on silver. Therefore always
clean left-overs from silver immediately,
if it is not to be washed straight after
use.
●
Some types of glass can become dull
after a large number of washes.
Attention!
When buying new dishes, ensure that they are dishwasher proof.
Before placing dishes in the machine, remove any scraps of food, to avoid
clogging the filters and consequently reducing the performance.
Do not load very small items which can fall through the baskets.
Open the door and slide out the baskets.
15
152985 45/2 en-es
5-09-2000 8:38
Pagina 16
The lower basket
The lower basket is designed to take saucepans, lids, plates, salad bowls,
cutlery etc.
Serving dishes and large lids should be arranged around the edge of the
basket, ensuring that the upper spray arm can turn freely.
UI57
UI12
The upper basket
The upper basket is designed for plates
(dessert plates, saucers, dinner plates up to
24 cm in diameter), salad bowls, cups and
glasses; these should be arranged as shown
in the pictures.
Glasses with long stems can be placed
upside-down in the raised cup-racks
Arrange items on and underneath the folddown cup racks so that water can reach all
surfaces.
US60
Light items (plastic bowls etc.) should be loaded in the upper basket and
arranged so they do not move.
Before closing the door, ensure that the spray arms can rotate freely.
After loading your machine always close the door, as an open door
can be a hazard.
16
152985 45/2 en-es
5-09-2000 8:38
Pagina 17
Cutlery basket
Long bladed knives stored in an upright position are a
potential hazard.
Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as
knives.
Cutlery should be placed in the removable cutlery basket with the handles
facing downwards. If the handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with the handles facing
downwards.
Mix spoons with other cutlery to prevent the from sticking together.
Silver cutlery tends to go black if mixed with steel cutlery. Place it in the
cutlery basket separate from the others.
Arrange spoons, dessert spoons, knives and other small items of cutlery in the
rack on the side of the cutlery basket.
UI08
17
152985 45/2 en-es
5-09-2000 8:38
Pagina 18
Use of detergent
Attention!
Only use detergents specifically designed for use in dishwashers.
If using powder detergents proceed
as follows:
1. Open the dispenser lid by pulling
the catch (D).
Min = 15 g
Max = 30 g D
2. Add the detergent. As all
detergents are not the same, please
pay attention to the dosage
instructions from the manufacturer
of your brand.
M
M IN
AX
3. Always close the lid.
DE17
4. If the programme has a prewash
add the required detergent over
the lid of the dispenser.
If using detergent in tablets proceed
as follows:
1. For all programmes; place 1 tablet
inside the detergent dispenser.
DE02
2. Always close the lid.
3. For all programmes with prewash;
place a portion of a further tablet
on the lid of the detergent
dispenser.
At the end of any washing programme the lid is always open, ready for the
next wash.
Since not all detergents are the same, you should also consult the
instructions on the packet.
18
152985 45/2 en-es
5-09-2000 8:38
Pagina 19
Remember that insufficient quantities of detergent will produce
poor washing results whereas an excessive amount of detergent
does not improve washing results and is also wasteful.
Using no more than correct amount of detergent also contributes to
reducing pollution.
Phosphate free detergents with enzymes
In these low-alkaline compact powders the environment unfriendly
components have been replaced by natural enzymes and other more
biodegradable substances.
These new compact powders are generally phosphate-free.
As phosphates have water softening properties, we suggest you to add salt
to the container even if the hardness of your water is as low as 4°dH (7°TH).
This will avoid deposits on crockery and the inner tub.
19
152985 45/2 en-es
5-09-2000 8:38
Pagina 20
Washing programmes
Starting
position of the
programmer
Required
pushbutton
Normal soil.
Crockery, cutlery,
pots and pans
A
On
Off
Economy
65°C
Light soil.
Crockery and cutlery
B
On
Off
Rinse
and Hold
Partial load to be
completed later in the day.
This programme does not
require detergent.
C
On
Off
Programmes
Normal
65°C
20
Type of soil
Type of load
152985 45/2 en-es
5-09-2000 8:38
Pagina 21
Approximate values *
Programme
duration in
minutes
Energy
consumption
in kWh
Water
consumption
in litres
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
75 ÷ 85
1.0
16
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
65 ÷ 75
1.0
13
8
0.1
8
Cycle description
1 cold rinse
(to avoid food scraps from sticking
to the dishes).
*
The times and consumption values are intended as a guide, and depend
on the pressure and temperature of the water and also by the variations
of the power supply.
21
152985 45/2 en-es
5-09-2000 8:38
Pagina 22
Operating instructions
1. Check the filters
Ensure they are clean and properly positioned (see "Maintenance and
cleaning").
2. Check that there is rinse aid and salt
3. Load the dishes
Remove any scraps of food.
Pull the lower basket out and arrange the saucepans, plates and
cutlery in it.
Pull the upper basket out and arrange the plates, saucers, glasses and
cups etc. in it.
Slide the baskets back into the machine.
4. Ensure that the spray arms can rotate freely.
5. Add the detergent
Consult the dosage instructions on the packet.
Close the detergent dispenser lid.
6. Set the programme
Close the dishwasher door
Turn the programme selector dial clockwise until the programme
marker on the knob is in line with the letter corresponding to the
programme you wish to select.
7. Start the programme
Turn the water tap on.
Depress the On/Off pushbutton. The On/Off indicator light will come
on and the machine will start.
22
152985 45/2 en-es
5-09-2000 8:38
Pagina 23
8. At the end of the washing programme
At the end of the washing programme the machine stops automatically.
The On/Off indicator light remains on until the On/Off pushbutton is
depressed.
Wait a few minutes before removing the dishes; in this way they will be
cooler and drying will be improved.
Empty the lower basket first and then upper one; this will avoid water
dripping from the upper basket the dishes in the lower one.
Caution!
In general it is not advisable to open the door while the machine
is working; if the door is opened however, a safety device ensures
that the machine stops.
Caution!
Opening the door could let very hot steam escape: you risk being
scalded! Open the door with great care.
Do not open the door during the hot phase: this may cause hot
water escape.
23
152985 45/2 en-es
5-09-2000 8:38
Pagina 24
Maintenance and cleaning
Internal and external cleaning
Do not under any circumstances use furniture care products or
aggressive cleaners.
If necessary, clean the controls only with a soft cloth and pure warm water.
The spray arms do not need cleaning.
Occasionally check the internal containers, door seal and water inlet for
soiling, clean if necessary.
We recommend every 3 months to run a 65°C wash programme without
dishes using detergent.
Cleaning the filters
The filters in the base of the washing compartment are to large extent
self-cleaning. Nevertheless the filters should be checked and cleaned
from time to time. Dirty filters will degrade the washing result.
1. Open the door, remove the
lower basket.
2. The dishwasher filter system
comprises a coarse/fine filter,
microfilter and a flat filter.
Unlock the filter system
using a handle on the
microfilter, and remove.
3. Turn the handle about 1/4 a
turn anticlockwise and
remove.
4. Take hold of the coarse/fine
filter (1) by the handle with
the hole and remove from
the microfilter (2).
5. Clean all filters thoroughly
under running water.
24
MA15
152985 45/2 en-es
5-09-2000 8:38
Pagina 25
6. Remove the flat filter (3)
from the base of the washing
compartment and clean both
faces thoroughly.
7. Put the flat filter back in the
base of the washing
compartment.
8. Place the coarse/fine filter in
the microfilter and press
together.
MA23
3
9. Put the filter combination in
place and lock by turning the
handle clockwise to the stop.
During this process ensure
that the flat filter does not
protrude above the base of
the washing compartment.
Under no circumstances may the dishwasher be used without
filters.
25
152985 45/2 en-es
5-09-2000 8:38
Pagina 26
What to do, when...
Before calling our Service Centre try to rectify minor faults on the
dishwasher with the aid of the instructions given here.
Should this information be of no assistance to you in a specific case, please
contact our Service Centre.
Malfunction
...the programme does
not start
Possible cause
The plug is not properly
inserted in the power
socket.
Remedy
Insert the plug.
There is no current at the
socket.
....the dishwasher does not
fill with water
....the dishwasher will not
drain
....the machine is noisy
....the door is difficult to
close
26
The door is not properly
closed.
Close the door.
The water tap is closed.
Open the water tap.
The mains water supply has
been cut off.
The inlet hose may be
squashed or bent.
Reposition correctly the
hose.
The drain hose may be
squashed or bent. The drain
hose extension is not
correct.
Reposition correctly the
drain hose. Follow the
instructions for connecting
to the waste.
The sink may be blocked.
Clear any blockages.
Dishes are rattling against
each other.
The spray arms are
knocking against the
dishes.
Load correctly crockery,
cutlery, pots and pans.
Refer to "Loading cutlery
and dishes"
The dishwasher is not level,
or not properly built-in.
Refer to "Installation"
instructions.
152985 45/2 en-es
5-09-2000 8:38
Pagina 27
...the wash results are not satisfactory
Visible lime deposits or white film on the dishes
● Check that the right level of the water softener is setted.
●
Check that there is salt.
The dishes are not quite dry
● The rinse aid has run out or too little is being used.
The dishes are not clean
● The baskets are too full.
●
The dishes have not been arranged properly.
●
The spray arms do not rotate because incorrect loading of the baskets.
●
The filters are clogged.
●
The filters are not in position.
●
Not enough detergent has been used or it is unsuitable.
●
The detergent is old or has gone hard.
●
The salt container cap is not properly closed.
●
The washing programme is too gentle.
27
152985 45/2 en-es
5-09-2000 8:38
Pagina 28
Customer service
In the section "What to do, when...", we have listed the most important faults
which you can rectify yourself. Should you still wish to call our Service
Centre for any of the specified faults or because the appliance is being
wrongly operated, the service engineer's visit cannot be made free of charge
even during the guarantee period.
Should you find no reference to a fault in the operating instructions, you
should call our Service Centre.
When making your call, quote the E-No. (product number) and F-No. (serial
number) indicated on the rating plate. It is located on the right inside edge
of the door.
Mod.
..
No.
Prod.
......
..
......
Ser.
No.
...
......
E- NR ...... F-NR ......
To keep these numbers handy, we recommend you enter them here.
E-No .................................
F-No .................................
Your specifying these details enables the Service Centre to make precise
identification of the spare part required so that the appliance can be repaired
at the service engineer's first visit without your having to pay extra costs for
repeated journeys by the service engineer.
28
152985 45/2 en-es
5-09-2000 8:38
Pagina 29
Technical data
Technical specifications
Dimensions
Width
Height
Max depth
Max depth with open door
Electrical connection
Motor rating during wash
Power of heating element
Overall power
Water supply pressure
Capacity
44.6 cm
81.8 - 87.8 cm
57.5 cm
111.4 cm
230 V - 50 Hz
200 W
2100 W
2300 W
Minimum
Maximum
50 kPa (0.5 bar)
800 kPa (8 bar)
8 place settings
This appliance complies with the following E.E.C. Directives:
- 73/23/CEE of 19/02/73 (Low Voltage Directive) and subsequent
modifications;
- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility
Directive) and subsequent modifications.
29
152985 45/2 en-es
5-09-2000 8:38
Pagina 30
Hints for test centres
Before starting any test it is necessary to fill completely with salt the salt
container and with rinse aid the rinse aid dispenser.
Test standard
EN 50242
Reference programme
- Normal 65°C
Load
8 standard place settings
Rinse aid selector
position 4
Detergent dosage
- 20 g in the dispenser
- 5 g on the dispenser lid
US62
Arrangement upper basket
30
UI57
Arrangement lower basket
152985 45/2 en-es
5-09-2000 8:38
Pagina 31
Connection instructions
Connecting the water supply
●
Your dishwasher can be connected to either a cold or hot water supply of
max. 60°C.
●
Never connect your dishwasher to open hot water appliances and
continuous flow heaters!
Nevertheless we advise you a cold water supply. A hot water supply is not
always efficient with very soiled crockery as it shortens the washing
programmes.
Avoid bends or kinks in the hose which could prevent or slow down the
water supply.
If the machine is connected to new pipes or pipes which have not been used
for a long time, you should run the water for a few minutes before
connecting the inlet hose. This will prevent deposits of sand or rust clogging
the inlet hose.
The water pressure must be within the limits given in the technical
specifications.
Your dishwasher has been built in accordance with the valid regulations
governing water-consuming appliances and is equipped with safety devices
which prevent used water from flowing back into the drinking water mains.
31
152985 45/2 en-es
5-09-2000 8:38
Pagina 32
Water outlet connection
The end of the drain hose can be connected as follows:
1. To the sink outlet siphon, securing it if necessary with a clip.
2. To a wall outlet provided with vent-hole, minimum internal diameter
4 cm.
min 4 cm
2
Ø
min 30 cm
max 100 cm
Ø
18
21
1
CS13
The waste connection must be at a height of between 30 cm (minimum) and
100 cm (maximum) from the floor.
It makes no difference which way the drain hose faces, either to the right or
left of the dishwasher.
Avoid bending or kinking the hose as this could prevent or slow down the
discharge of water.
32
152985 45/2 en-es
5-09-2000 8:38
Pagina 33
Extension hoses
The necessary extension hoses can be obtained from specialist shops or from
our technical assistance centres.
The extension hose must be no longer than 2 metres and its internal
diameter must be no smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used for connection to the
waste outlet must be no smaller than the diameter of the drain hose.
min 30 cm
max 100 cm
+ 2 m max
max 100 cm
Ø 18
Ø 21
Arrange the extension hose horizontally along the floor and allow it to rise
only where it is to be connected to the drain.
CS10
33
152985 45/2 en-es
5-09-2000 8:38
Pagina 34
Water protection system
To protect your dishwasher from water damage, it is equipped with a water
protection system.
Apart from an overflow protection, which prevents uncontrolled rising of
water in the appliance, it also features two additional devices:
●
in the bottom of the machine, this prevents any water leaks in the
machine.
●
in the water inlet hose, this comes into operation as a result of any
damage to the water inlet hose.
Electrical connection
Before plugging the appliance into the wall socket, make sure that:
1. The mains voltage corresponds to the voltage given in the technical
specifications.
2. The meter, fuses, mains power supply and wall socket can all take the
maximum load required.
Make sure that the socket and plug are compatible without having to use
any type of adaptor. If necessary, have the domestic wiring system socket
replaced.
Safety standards require the appliance to be earthed.
The Manufacturer accepts no liability for failure to observe the
above safety precautions.
34
152985 45/2 en-es
5-09-2000 8:39
Pagina 68
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
en
es
152985 45/2
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
