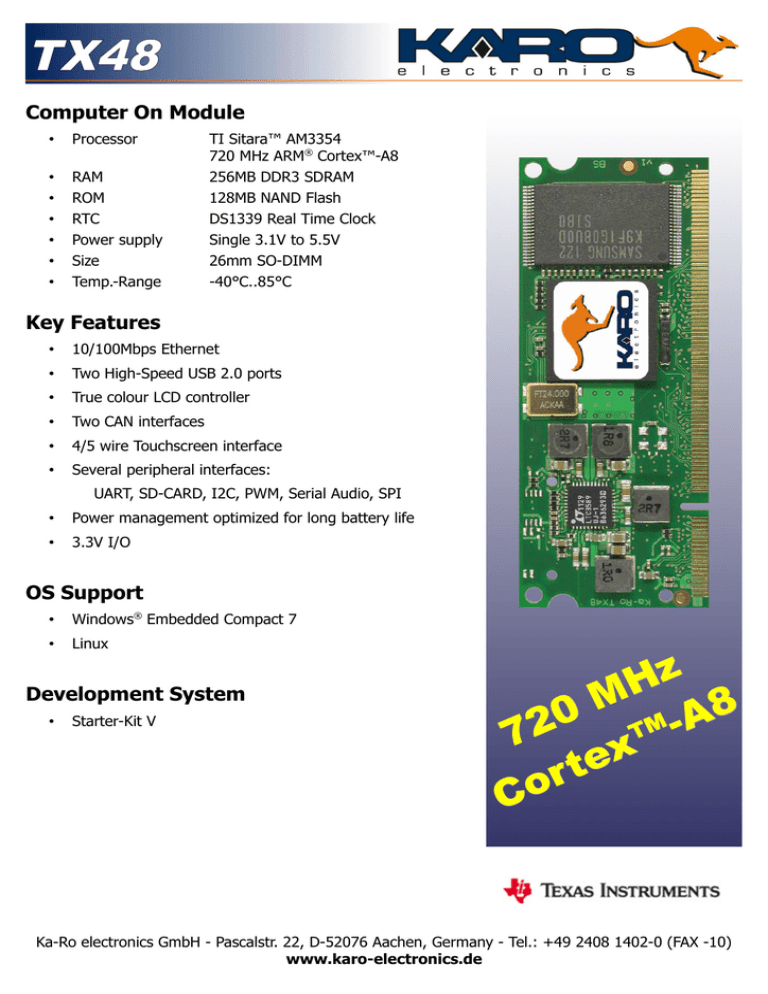

TX48
Computer On Module
•
Processor
•
•
•
•
•
•
RAM
ROM
RTC
Power supply
Size
Temp.-Range
TI Sitara™ AM3354
720 MHz ARM® Cortex™-A8
256MB DDR3 SDRAM
128MB NAND Flash
DS1339 Real Time Clock
Single 3.1V to 5.5V
26mm SO-DIMM
-40°C..85°C
Key Features
•
10/100Mbps Ethernet
•
Two High-Speed USB 2.0 ports
•
True colour LCD controller
•
Two CAN interfaces
•
4/5 wire Touchscreen interface
•
Several peripheral interfaces:
UART, SD-CARD, I2C, PWM, Serial Audio, SPI
•
Power management optimized for long battery life
•
3.3V I/O
OS Support
•
Windows® Embedded Compact 7
•
Linux
Development System
•
Starter-Kit V
z
H
M
8
0
A
72 x™e
t
r
Co
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
Board highlights:
•
•
•
•
Standard TX-DIMM pinout:
Lowest cost 720MHz Cortex™-A8
Industrial temperature range
Standard TX-DIMM pinout
as small as possible - only 26mm
•
•
•
•
•
4-wire UARTs (x3)
LCD
I2C / PWM
Serial Audio Interfaces (x2)
4-wire SD-Card/SDIO
TX modules are complete computers, implemented on a board smaller than a
credit card, and ready to be designed into your embedded system.
High-Speed communication interfaces incl. onboard Ethernet PHY / on-chip
USB PHY allows direct use of connectors/magnetics on the baseboard without
The TX-48 is pin compatible with all TX modules. This approach has the
the need for additional logic:
advantage of providing the developer with the potential for creating scalable
systems. All modules can be supplied with the same hardware reference
•
10/100 Mbps Ethernet
platform that supports both Linux and Microsoft Windows® Embedded.
•
480 Mbps USB OTG
•
480 Mbps USB Host
Computer on module
Additional interfaces like CAN, 4/5-wire resistive touch-screen, 2 UARTs are
•
TI Sitara™ AM3354 720 MHz ARM® Cortex™-A8
available on TX48 specific pins. Some interfaces are multiplexed with other
functions.
•
256 MByte DDR3 SDRAM (16bit)
•
•
•
128 MByte NAND Flash memory
DIMM200-module (67,6mm x 26 mm x 3,6mm)
Operating temperature range -40..85°C
Sitara™ AM335x Processor for Industrial Applications
The AM335x processors based on the ARM® Cortex™-A8 are enhanced with
image, graphics processing, peripherals and industrial interface options such
as EtherCAT.
AM335x processors are broad market application processors with image,
graphics processing, and peripherals.
Power Supply
The TX48 accepts an input voltage from various sources:
•
•
•
1-cell Li-Ion/Polymer (3.1V to 4.2V)
5.0V USB supply or AC wall adapter
3.3V
Read more in our TX-Guide:
www.karo-electronics.com/TX-Guide
The AM335x processor contains these
subsections:
• Microprocessor unit (MPU) subsystem based
on the ARM® Cortex™-A8 processor
• POWERVR® SGX Graphics Accelerator
Subsystem for 3D graphics acceleration to
support display and gaming effects.
• Programmable Real-time Unit (PRU) subsystem enables the user to create a variety of
digital resources beyond native peripherals of
the device. In addition, the PRU is separate
from the ARM core. This allows independent
operation and clocking to give the device
greater flexibility in complex system solutions.
• High performance interconnects provide highbandwidth data transfers for multiple initiators
to the internal and external memory controllers
and to on-chip peripherals. The device also
offers a comprehensive clock-management
scheme.
• The on-chip analog to digital converter (ADC)
can be coupled with the LCD controller to
provide an integrated touch screen solution. In
addition, the ADC can be used in combination
with the pulse width module to create a closed
loop motor control solution.
Ordering Information
Order Number
TX48/720/256S/128F/I
CPU
720MHz AM3354
SDRAM
256MB
Flash
128MB
Temp.
-40°C..85°C
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
2013-02-14
• Real-time Clock (RTC) provides a clock
reference on a separate power domain. This
enables battery backed clock reference.
TX48
STARTER-KIT V
The Starter-Kit V is a ready-to-use development
system for building applications based on the TX
embedded processor boards.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DIMM200 TX socket
Two SD-card sockets
USB 2.0 OTG and USB 2.0 Host connector
D-SUB 15 VGA connector
40pin LCD flat cable header
3.5mm headphone connector
JTAG interface
SGTL5000 audio codec
TSC2007 touchscreen controller
RS232 on 10pin flat cable and SUB-D
header
All pins of the TX socket are connected to
daughter board slot for easy application
design-in
10/100 Mbit/s Ethernet
5VDC Power Supply by USB-OTG or power
jack.
100mm x 160mm
Schematics of the base board are included
for reference.
DISPLAY OPTIONS
The optional display comes with an FFC cable and
a small adapter PCB which can be plugged directly
onto the Starter-Kit 40pin LCD header.
Option 1: 5,7“ VGA Resistive Touch
• 5,7 inch TFT display
• 640 x 480 dots
• White LED backlight
• Resistive Touchsceen
Option 2: 5,7“ VGA PolyTouch™
• 5,7 inch TFT display
• 640 x 480 dots
• White LED backlight
• Capacitive Touchsceen
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PINOUT
PIN
Marked yellow: Not connected
Type
Function
AM335x Pad Name
Alternate functions
GPIO
Description (refer to AM335x processor manuals for details)
POWER SUPPLY & RESET
1-4
power
VIN
Module power supply input (3.1V-5.5V)
5-7,
9-12
power
VOUT
3.3V power supply output (up to 1A)
8
3V3
BOOTMODE
10K-PU
VBACKUP
Boot mode select H: Boot from NAND / L: Boot from UART/USB
DS1339 RTC backup power supply. Supply voltage must be held
between 1.3V and 3.7V for proper RTC operation. This pin can be
connected to a primary cell such as a lithium button cell.
Additionally, this pin can be connected to a rechargeable cell or a
super cap when used with the trickle charge feature.
Connected to LTC3589 WAKE. Drive this pin pin LOW to turn off the
power supply, leave unconnected, if not used.
Refer to LTC3589 datasheet, page 29 for details.
LTC3589 IRQ is connected to AM335x pad EXTINTn
13
power
14
VIN
PMIC_PWR_BTN
15
3V3
#RESET_OUT
EMU1
16
VIN
#POR
PWRONRSTn
10K-PU
to VIN
Power On Reset—Active low input signal.
Leave unconnected, if not used.
17
3V3
#RESET_IN
WARMRSTn
68K-PU
nRESETIN_OUT warm reset signal. Refer to External Warm Reset
section of the AM335x Technical Reference Manual.
18
GND
GND
1M-PU
TO VIN
GPIO3_8
10K-PU to
ETN_3V3
Ethernet PHY reset – active low output signal. This pin is hard wired
to the onboard Ethernet PHY and provides a fixed function.
Ethernet
19
20
3V3
#ETN_LED2
21
analog ETN_TXP
22
power
23
analog ETN_RXN
24
25
26
Transmit Data Negative: 100Base-TX or 10Base-T differential
transmit output to magnetics.
Active low - output is driven active when the operating speed is
100Mbps. This LED will go inactive when the operating speed is
10Mbps or during line isolation.
Transmit Data Positive: 100Base-TX or 10Base-T differential transmit
output to magnetics.
analog ETN_TXN
3V3
ETN_3V3
+3.3V analog power supply output to magnetics
Receive Data Negative: 100Base-TX or 10Base-T differential receive
input from magnetics.
Active low - output is driven active whenever the device detects a
valid link, and blinks indicating activity.
Receive Data Positive: 100Base-TX or 10Base-T differential receive
input from magnetics.
#ETN_LED1
analog ETN_RXP
GND
GND
USB-HOST
27
3V3
USBH_VBUSEN
USB1_DRVVBUS
GPIO3_13
Active high external 5V supply enable. This pin is used to enable the
external VBUS power supply.
28
3V3
#USBH_OC
USB0_DRVVBUS
GPIO0_18
10K-PU
Active low over-current indicator input connected to a GPIO.
29
analog USBH_DM
USB1_DM
D- pin of the USB cable
30
analog USBH_VBUS
USB1_VBUS
VBUS pin of the USB cable. This pin is used for the VBUS
comparator inputs.
31
analog USBH_DP
USB1_DP
D+ pin of the USB cable
USB0_ID
ID pin of the USB cable. For an A-Device ID is grounded. For a BDevice ID is floated.
32
GND
GND
USB-OTG / 2nd CAN
33
34
35
36
3V3
3V3
USBOTG_ID
USBOTG_VBUSEN
analog USBOTG_DM
3V3
#USBOTG_OC
MMC0_CLK
MMC0_CMD
analog USBOTG_DP
USB0_DP
38
analog USBOTG_VBUS
USB0_VBUS
GND
GPIO2_30
USB0_DM
37
39
GPMC_A24
UART3_CTSN
UART2_RXD
DCAN1_TX
PR1_PRU0_PRU_R30_12
PR1_PRU0_PRU_R31_12
Active high external 5V supply enable. This pin is used to enable the
external VBUS power supply.
D- pin of the USB cable
GPMC_A25
UART3_RTSN
UART2_TXD
DCAN1_RX
PR1_PRU0_PRU_R30_13
PR1_PRU0_PRU_R31_13
GPIO2_31
10K-PU
Active low over-current indicator input connected to a GPIO.
D+ pin of the USB cable
GND
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
Type
Function
AM335x Pad Name
Alternate functions
GPIO
TIMER4
UART2_CTSN
ECAP2_IN_PWM2_OUT
GPIO3_5
1K-PU
Description (refer to AM335x processor manuals for details)
I2C
40
3V3
I2C_DATA
I2C0_SDA
The I2C port operates at speeds up to 400kHz.
Devices on the bus @ address:
41
3V3
I2C_CLK
I2C0_SCL
TIMER7
UART2_RTSN
ECAP1_IN_PWM1_OUT
GPIO3_6
1K-PU
MCASP0_ACLKX
EHRPWM0A
SPI1_SCLK
MMC0_SDCD
PR1_PRU0_PRU_R30_0
PR1_PRU0_PRU_R31_0
GPIO3_14
MMC0_DAT2
GPMC_A21
UART4_RTSN
TIMER6
UART1_DSRN
PR1_PRU0_PRU_R30_9
PR1_PRU0_PRU_R31_9
GPIO2_27
DS1339
LTC3589
1101 000x
0110 100x
PWM
42
3V3
PWM
PWM Output
1-WIRE
43
3V3
OWDAT
The AM335x has no 1-Wire controller – a GPIO is used here instead.
1-Wire bus requires an external pull-up resistor. The recommended
resistor is specified by the generic 1-Wire device used in a given
system.
CSPI – Configurable Serial Peripheral Interface
44
45
46
47
3V3
3V3
3V3
3V3
48
3V3
49
NC
50
GND
CSPI_SS
CSPI_SS
CSPI_MOSI
CSPI_MISO
CSPI_SCLK
SPI0_CS0
MMC2_SDWP
I2C1_SCL
EHRPWM0_SYNCI
PR1_UART0_TXD
PR1_EDIO_DATA_IN1
PR1_EDIO_DATA_OUT1
GPIO0_5
Slave Select signal
SPI0_CS1
UART3_RXD
ECAP1_IN_PWM1_OUT
MMC0_POW
XDMA_EVENT_INTR2
MMC0_SDCD
EMU4
GPIO0_6
Slave Select signal
SPI0_D0
UART2_TXD
I2C2_SCL
EHRPWM0B
PR1_UART0_RTS_N
PR1_EDIO_LATCH_IN
EMU3
GPIO0_3
Master Out/Slave In signal
SPI0_D1
MMC1_SDWP
I2C1_SDA
EHRPWM0_TRIPZONE_IN
PUT
PR1_UART0_RXD
PR1_EDIO_DATA_IN0
PR1_EDIO_DATA_OUT0
GPIO0_4
Master In/Slave Out signal
UART2_RXD
I2C2_SDA
EHRPWM0A
PR1_UART0_CTS_N
PR1_EDIO_SOF
EMU2
GPIO0_2
Serial Clock signal
SPI0_SCLK
not connected
GND
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
Type
Function
AM335x Pad Name
Alternate functions
GPIO
Description (refer to AM335x processor manuals for details)
SD – Secure Digital Interface 1
51
3V3
SD1_CD
MCASP0_FSX
52
3V3
SD1_D[0]
MII1_TX_CLK
53
3V3
SD1_D[1]
MII1_RX_CLK
54
3V3
SD1_D[2]
MII1_RXD3
55
3V3
SD1_D[3]
MII1_RXD2
56
3V3
SD1_CMD
GPMC_CSn2
57
3V3
SD1_CLK
GPMC_CSn1
58
GND
GND
EHRPWM0B
SPI1_D0
MMC1_SDCD
PR1_PRU0_PRU_R30_1
PR1_PRU0_PRU_R31_1
GMII1_TXCLK
UART2_RXD
RGMII1_TCLK
MMC0_DAT7
MMC1_DAT0
UART1_DCDN
MCASP0_ACLKX
GMII1_RXCLK
UART2_TXD
RGMII1_RCLK
MMC0_DAT6
MMC1_DAT1
UART1_DSRN
MCASP0_FSX
GMII1_RXD3
UART3_RXD
RGMII1_RD3
MMC0_DAT5
MMC1_DAT2
UART1_DTRN
MCASP0_AXR0
GMII1_RXD2
UART3_TXD
RGMII1_RD2
MMC0_DAT4
MMC1_DAT3
UART1_RIN
MCASP0_AXR1
GPMC_CSN2
GPMC_BE1N
MMC1_CMD
PR1_EDIO_DATA_IN7
PR1_EDIO_DATA_OUT7
PR1_PRU1_PRU_R30_13
PR1_PRU1_PRU_R31_13
GPMC_CSN1
GPMC_CLK
MMC1_CLK
PR1_EDIO_DATA_IN6
PR1_EDIO_DATA_OUT6
PR1_PRU1_PRU_R30_12
PR1_PRU1_PRU_R31_12
GPIO3_15
SD Card Detect
GPIO3_9
GPIO3_10
SD Data bidirectional signals
If the system designer does not want to make use of the internal
pull-up, via the Pull-up enable register, a 50 K–69 K external pull up
resistor must be added.
GPIO2_18
GPIO2_19
GPIO1_31
SD Command bidirectional signal
GPIO1_30
SD Output Clock.
GPIO1_11
Debug UART Transmit Data output signal
GPIO1_10
Debug UART Receive Data input signal
GPIO1_8
Debug UART RTS/CTS handshake input signal
GPIO1_9
Debug UART RTS/CTS handshake output signal
1st UART
59
3V3
TXD
UART0_TXD
60
3V3
RXD
UART0_RXD
61
3V3
RTS/CTS IN
UART0_CTSn
62
3V3
CTS/RTS OUT
UART0_RTSn
SPI1_CS1
DCAN0_RX
I2C2_SCL
ECAP1_IN_PWM1_OUT
PR1_PRU1_PRU_R30_15
PR1_PRU1_PRU_R31_15
SPI1_CS0
DCAN0_TX
I2C2_SDA
ECAP2_IN_PWM2_OUT
PR1_PRU1_PRU_R30_14
PR1_PRU1_PRU_R31_14
UART4_RXD
DCAN1_TX
I2C1_SDA
SPI1_D0
TIMER7
PR1_EDC_SYNC0_OUT
UART4_TXD
DCAN1_RX
I2C1_SCL
SPI1_D1
SPI1_CS0
PR1_EDC_SYNC1_OUT
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
Type
Function
AM335x Pad Name
Alternate functions
GPIO
Description (refer to AM335x processor manuals for details)
MMC2_SDWP
DCAN1_RX
I2C1_SCL
PR1_UART0_TXD
PR1_PRU0_PRU_R31_16
GPIO0_15
Application UART 1 Transmit Data output signal
GPIO0_14
Application UART 1 Receive Data input signal
GPIO0_12
Application UART 1 RTS/CTS handshake input signal
GPIO0_13
Application UART 1 RTS/CTS handshake output signal
GPIO3_4
Application UART 3 Transmit Data output signal
GPIO3_0
Application UART 3 Receive Data input signal
GPIO2_28
Application UART 3 RTS/CTS handshake input signal
GPIO2_29
Application UART 3 RTS/CTS handshake output signal
2nd UART
63
3V3
TXD
UART1_TXD
64
3V3
RXD
UART1_RXD
65
3V3
RTS/CTS IN
UART1_CTSn
66
3V3
CTS/RTS OUT
UART1_RTSn
MMC1_SDWP
DCAN1_TX
I2C1_SDA
PR1_UART0_RXD
PR1_PRU1_PRU_R31_16
TIMER6
DCAN0_TX
I2C2_SDA
SPI1_CS0
PR1_UART0_CTS_N
PR1_EDC_LATCH0_IN
TIMER5
DCAN0_RX
I2C2_SCL
SPI1_CS1
PR1_UART0_RTS_N
PR1_EDC_LATCH1_IN
3rd UART
67
3V3
TXD
MII1_RX_DV
68
3V3
RXD
MII1_COL
69
3V3
RTS/CTS IN
MMC0_DAT1
70
3V3
CTS/RTS OUT
MMC0_DAT0
71
GND
GND
GMII1_RXDV
LCD_MEMORY_CLK
RGMII1_RCTL
UART5_TXD
MCASP1_ACLKX
MMC2_DAT0
MCASP0_ACLKR
GMII1_COL
RMII2_REFCLK
SPI1_SCLK
UART5_RXD
MCASP1_AXR2
MMC2_DAT3
MCASP0_AXR2
MMC0_DAT1
GPMC_A22
UART5_CTSN
UART3_RXD
UART1_DTRN
PR1_PRU0_PRU_R30_10
PR1_PRU0_PRU_R31_10
MMC0_DAT0
GPMC_A23
UART5_RTSN
UART3_TXD
UART1_RIN
PR1_PRU0_PRU_R30_11
PR1_PRU0_PRU_R31_11
KEYPAD / 1st CAN
72
73
74
3V3
3V3
3V3
KP_COL[0]
KP_COL[1]
KP_COL[2]
MMC0_DAT3
GPMC_A20
UART4_CTSN
TIMER5
UART1_DCDN
PR1_PRU0_PRU_R30_8
PR1_PRU0_PRU_R31_8
GPIO2_26
MCASP0_AHCLKR
EHRPWM0_SYNCI
MCASP0_AXR2
SPI1_CS0
ECAP2_IN_PWM2_OUT
PR1_PRU0_PRU_R30_3
PR1_PRU0_PRU_R31_3
GPIO3_17
UART3_TXD
SPI1_CS1
PR1_ECAP0_ECAP_CAPIN
_APWM_O
SPI1_SCLK
MMC0_SDWP
XDMA_EVENT_INTR2
GPIO0_7
ECAP0_IN_PWM0_OUT
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
Type
Function
AM335x Pad Name
75
3V3
KP_COL[3]
GPMC_BEn1
76
3V3
TXCAN
MII1_TXD3
77
3V3
KP_ROW[0]
XDMA_EVENT_INTR0
78
3V3
KP_ROW[1]
XDMA_EVENT_INTR1
79
3V3
KP_ROW[2]
GPMC_CLK
80
3V3
KP_ROW[3]
GPMC_CSn3
81
3V3
RXCAN
MII1_TXD2
82
GND
GND
Alternate functions
GPMC_BE1N
GMII2_COL
GPMC_CSN6
MMC2_DAT3
GPMC_DIR
PR1_MII1_RXLINK
MCASP0_ACLKR
GMII1_TXD3
DCAN0_TX
RGMII1_TD3
UART4_RXD
MCASP1_FSX
MMC2_DAT1
MCASP0_FSR
TIMER4
CLKOUT1
SPI1_CS1
PR1_PRU1_PRU_R31_16
EMU2
TCLKIN
CLKOUT2
TIMER7
PR1_PRU0_PRU_R31_16
EMU3
LCD_MEMORY_CLK
GPMC_WAIT1
MMC2_CLK
PR1_MII1_CRS
PR1_MDIO_MDCLK
MCASP0_FSR
GPMC_CSN3
MMC2_CMD
PR1_MII0_CRS
PR1_MDIO_DATA
EMU4
GMII1_TXD2
DCAN0_RX
RGMII1_TD2
UART4_TXD
MCASP1_AXR0
MMC2_DAT2
MCASP0_AHCLKX
GPIO
Description (refer to AM335x processor manuals for details)
GPIO1_28
GPIO0_16
GPIO0_19
GPIO0_20
GPIO2_1
GPIO2_0
GPIO0_17
SSI 1 - Serial Audio Port 1
83
3V3
SSI1_INT
MCASP0_AXR0
84
3V3
SSI1_RXD
MCASP0_AXR1
85
3V3
SSI1_TXD
MCASP0_AHCLKX
86
3V3
SSI1_CLK
MCASP0_ACLKR
87
3V3
SSI1_FS
MCASP0_FSR
88
GND
GND
EHRPWM0_TRIPZONE_IN
PUT
SPI1_D1
GPIO3_16
MMC2_SDCD
PR1_PRU0_PRU_R30_2
PR1_PRU0_PRU_R31_2
MCASP0_AXR1
EQEP0_INDEX
MCASP1_AXR0
GPIO3_20 Serial Audio Interface 0
EMU3
PR1_PRU0_PRU_R30_6
PR1_PRU0_PRU_R31_6
MCASP0_AHCLKX
EQEP0_STROBE
MCASP0_AXR3
MCASP1_AXR1
GPIO3_21 Serial Audio Interface 0
EMU4
PR1_PRU0_PRU_R30_7
PR1_PRU0_PRU_R31_7
EQEP0A_IN
MCASP0_AXR2
MCASP1_ACLKX
GPIO3_18 Serial Audio Interface 0
MMC0_SDWP
PR1_PRU0_PRU_R30_4
PR1_PRU0_PRU_R31_4
MCASP0_FSR
EQEP0B_IN
MCASP0_AXR3
MCASP1_FSX
GPIO3_19 Serial Audio Interface 0
EMU2
PR1_PRU0_PRU_R30_5
PR1_PRU0_PRU_R31_5
serial data line 1
serial data line 0
serial bit clock
left/right clock
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
Type
Function
AM335x Pad Name
Alternate functions
GPIO
Description (refer to AM335x processor manuals for details)
SSI 2 - Serial Audio Port 2
89
NC
not connected
90
NC
not connected
91
NC
not connected
92
NC
not connected
93
NC
not connected
94
GND
GND
Secure Digital Interface 2
95
NC
not connected
96
NC
not connected
97
NC
not connected
98
NC
not connected
99
NC
not connected
100
NC
not connected
101
NC
not connected
102
GND
GND
CMOS Sensor Interface
103
NC
not connected
104
NC
not connected
105
NC
not connected
106
NC
not connected
107
NC
not connected
108
NC
not connected
109
NC
not connected
110
NC
111
GND
not connected
112
NC
not connected
113
NC
not connected
114
NC
not connected
115
NC
not connected
116
GND
GND
GND
LCD Controller and Smart LCD Controller
117
3V3
LD0
GPMC_AD8
118
3V3
LD1
GPMC_AD11
119
3V3
LD2
GPMC_AD14
LCD_DATA23
MMC1_DAT0
MMC2_DAT4
EHRPWM2A
PR1_MII_MT0_CLK
LCD_DATA20
MMC1_DAT3
MMC2_DAT7
EHRPWM0_SYNCO
PR1_MII0_TXD3
LCD_DATA17
MMC1_DAT6
MMC2_DAT2
EQEP2_INDEX
PR1_MII0_TXD0
PR1_PRU0_PRU_R31_14
GPIO0_22
LCD Data Bus
GPIO0_27
LCD Data Bus
GPIO1_14
LCD Data Bus
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
120
121
122
123
124
125
126
127
128
129
130
131
Type
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
GND
3V3
3V3
Function
LD3
LD4
LD5
LD6
LD7
LD8
LD9
LD10
LD11
AM335x Pad Name
Alternate functions
GPMC_A15
EHRPWM1B
MCASP0_AHCLKR
MCASP0_AXR2
PR1_MII0_RXD0
UART3_RTSN
GPIO
Description (refer to AM335x processor manuals for details)
GPIO2_17
LCD Data Bus
10K-PD
SYS_BOOT11
GPIO0_8
LCD Data Bus
10K-PD
SYS_BOOT12
GPIO0_9
LCD Data Bus
10K-PD
SYS_BOOT13
GPIO0_10
LCD Data Bus
10K-PU
SYS_BOOT14
GPIO0_11
LCD Data Bus
10K-PD
SYS_BOOT15
GPMC_AD9
LCD_DATA22
MMC1_DAT1
MMC2_DAT5
EHRPWM2B
PR1_MII0_COL
GPIO0_23
LCD Data Bus
GPMC_AD12
LCD_DATA19
MMC1_DAT4
MMC2_DAT0
EQEP2A_IN
PR1_MII0_TXD2
PR1_PRU0_PRU_R30_14
GPIO1_12
LCD Data Bus
LCD_DATA5
GPMC_A5
PR1_MII0_TXD0
EQEP2B_IN
PR1_PRU1_PRU_R30_5
PR1_PRU1_PRU_R31_5
GPIO2_11
LCD Data Bus
LCD_DATA11
LCD_DATA12
LCD_DATA13
LCD_DATA14
LCD_DATA15
LCD_DATA6
GPMC_A16
EQEP1A_IN
MCASP0_ACLKR
MCASP0_AXR2
PR1_MII0_RXLINK
UART4_CTSN
GPMC_A17
EQEP1B_IN
MCASP0_FSR
MCASP0_AXR3
PR1_MII0_RXER
UART4_RTSN
GPMC_A18
EQEP1_INDEX
MCASP0_AXR1
UART5_RXD
PR1_MII_MR0_CLK
UART5_CTSN
GPMC_A19
EQEP1_STROBE
MCASP0_AHCLKX
MCASP0_AXR3
PR1_MII0_RXDV
UART5_RTSN
GPMC_A6
PR1_EDIO_DATA_IN6
EQEP2_INDEX
PR1_EDIO_DATA_OUT6
PR1_PRU1_PRU_R30_6
PR1_PRU1_PRU_R31_6
10K-PD
GPIO2_12
10K-PU
SYS_BOOT5
LCD Data Bus
SYS_BOOT6
GND
LD12
LD13
LCD_DATA7
LCD_DATA8
GPMC_A7
PR1_EDIO_DATA_IN7
EQEP2_STROBE
PR1_EDIO_DATA_OUT7
PR1_PRU1_PRU_R30_7
PR1_PRU1_PRU_R31_7
GPMC_A12
EHRPWM1_TRIPZONE_IN
PUT
MCASP0_ACLKX
UART5_TXD
PR1_MII0_RXD3
UART2_CTSN
GPIO2_13
10K-PD
GPIO2_14
10K-PD
LCD Data Bus
SYS_BOOT7
LCD Data Bus
SYS_BOOT8
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
132
133
134
135
136
137
138
139
140
141
142
143
Type
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
3V3
GND
3V3
Function
LD14
LD15
LD16
LD17
LD18
LD19
LD20
LD21
LD22
LD23
AM335x Pad Name
LCD_DATA9
Alternate functions
GPMC_A13
EHRPWM0_SYNCO
MCASP0_FSX
UART5_RXD
PR1_MII0_RXD2
UART2_RTSN
GPMC_A14
EHRPWM1A
MCASP0_AXR0
PR1_MII0_RXD1
UART3_CTSN
GPIO
GPIO2_15
10K-PD
Description (refer to AM335x processor manuals for details)
LCD Data Bus
SYS_BOOT9
GPIO2_16
LCD Data Bus
10K-PD
SYS_BOOT10
GPMC_AD10
LCD_DATA21
MMC1_DAT2
MMC2_DAT6
EHRPWM2_TRIPZONE_IN
PUT
PR1_MII0_TXEN
GPIO0_26
LCD Data Bus
GPMC_AD13
LCD_DATA18
MMC1_DAT5
MMC2_DAT1
EQEP2B_IN
PR1_MII0_TXD1
PR1_PRU0_PRU_R30_15
GPIO1_13
LCD Data Bus
GPMC_AD15
LCD_DATA16
MMC1_DAT7
MMC2_DAT3
EQEP2_STROBE
PR1_ECAP0_ECAP_CAPIN
_APWM_O
PR1_PRU0_PRU_R31_15
GPIO1_15
LCD Data Bus
LCD_DATA0
GPMC_A0
PR1_MII_MT0_CLK
EHRPWM2A
PR1_PRU1_PRU_R30_0
PR1_PRU1_PRU_R31_0
GPIO2_6
LCD Data Bus
LCD_DATA10
LCD_DATA1
LCD_DATA2
LCD_DATA3
LCD_DATA4
GPMC_A1
PR1_MII0_TXEN
EHRPWM2B
PR1_PRU1_PRU_R30_1
PR1_PRU1_PRU_R31_1
GPMC_A2
PR1_MII0_TXD3
EHRPWM2_TRIPZONE_IN
PUT
PR1_PRU1_PRU_R30_2
PR1_PRU1_PRU_R31_2
GPMC_A3
PR1_MII0_TXD2
EHRPWM0_SYNCO
PR1_PRU1_PRU_R30_3
PR1_PRU1_PRU_R31_3
GPMC_A4
PR1_MII0_TXD1
EQEP2A_IN
PR1_PRU1_PRU_R30_4
PR1_PRU1_PRU_R31_4
10K-PD
GPIO2_7
20K-PU
GPIO2_8
10K-PD
GPIO2_9
10K-PD
GPIO2_10
10K-PU
SYS_BOOT0
LCD Data Bus
SYS_BOOT1 (10K-PD if BOOTMODE = L)
LCD Data Bus
SYS_BOOT2 (10K-PU if BOOTMODE = L)
LCD Data Bus
SYS_BOOT3 (10K-PU if BOOTMODE = L)
LCD Data Bus
SYS_BOOT4
GND
HSYNC
LCD_HSYNC
GPMC_A9
PR1_EDIO_DATA_IN3
PR1_EDIO_DATA_OUT3
PR1_PRU1_PRU_R30_9
PR1_PRU1_PRU_R31_9
GPIO2_23
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
144
145
Type
3V3
3V3
Function
VSYNC
OE_ACD
146
3V3
LSCLK
147
GND
GND
AM335x Pad Name
Alternate functions
GPIO
LCD_VSYNC
GPMC_A8
PR1_EDIO_DATA_IN2
PR1_EDIO_DATA_OUT2
PR1_PRU1_PRU_R30_8
PR1_PRU1_PRU_R31_8
GPIO2_22
LCD_AC_BIAS_EN
GPMC_A11
PR1_MII1_CRS
PR1_EDIO_DATA_IN5
PR1_EDIO_DATA_OUT5
PR1_PRU1_PRU_R30_11
PR1_PRU1_PRU_R31_11
GPIO2_25
LCD_PCLK
GPMC_A10
PR1_MII0_CRS
PR1_EDIO_DATA_IN4
PR1_EDIO_DATA_OUT4
PR1_PRU1_PRU_R30_10
PR1_PRU1_PRU_R31_10
GPIO2_24
Description (refer to AM335x processor manuals for details)
LCD Dotclock
Module Specific Signals
148
3V3
GPIO
GPMC_A1
149
3V3
GPIO
GPMC_A2
150
3V3
GPIO
GPMC_A3
151
3V3
GPIO
GPMC_A6
152
3V3
GPIO
GPMC_A11
153
3V3
GPIO
GPMC_A10
154
3V3
GPIO
GPMC_A5
155
3V3
GPIO
GPMC_A4
156
3V3
GPIO
GPMC_A0
GMII2_RXDV
RGMII2_RCTL
MMC2_DAT0
GPMC_A17
PR1_MII1_TXD3
EHRPWM0_SYNCO
GMII2_TXD3
RGMII2_TD3
MMC2_DAT1
GPMC_A18
PR1_MII1_TXD2
EHRPWM1A
GMII2_TXD2
RGMII2_TD2
MMC2_DAT2
GPMC_A19
PR1_MII1_TXD1
EHRPWM1B
GMII2_TXCLK
RGMII2_TCLK
MMC2_DAT4
GPMC_A22
PR1_MII1_RXD2
EQEP1_INDEX
GMII2_RXD0
RGMII2_RD0
RMII2_RXD0
GPMC_A27
PR1_MII1_RXER
MCASP0_AXR1
GMII2_RXD1
RGMII2_RD1
RMII2_RXD1
GPMC_A26
PR1_MII1_RXDV
MCASP0_AXR0
GMII2_TXD0
RGMII2_TD0
RMII2_TXD0
GPMC_A21
PR1_MII1_RXD3
EQEP1B_IN
GMII2_TXD1
RGMII2_TD1
RMII2_TXD1
GPMC_A20
PR1_MII1_TXD0
EQEP1A_IN
GMII2_TXEN
RGMII2_TCTL
RMII2_TXEN
GPMC_A16
PR1_MII_MT1_CLK
EHRPWM1_TRIPZONE_IN
PUT
GPIO1_17
GPIO1_18
GPIO1_19
GPIO1_22
GPIO1_27
GPIO1_26
GPIO1_21
GPIO1_20
GPIO1_16
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
Type
Function
AM335x Pad Name
157
3V3
GPIO
GPMC_A7
158
3V3
GPIO
GPMC_A8
GPIO
GPMC_A9
159
Alternate functions
GMII2_RXCLK
RGMII2_RCLK
MMC2_DAT5
GPMC_A23
PR1_MII1_RXD1
EQEP1_STROBE
GMII2_RXD3
RGMII2_RD3
MMC2_DAT6
GPMC_A24
PR1_MII1_RXD0
MCASP0_ACLKX
GMII2_RXD2
RGMII2_RD2
MMC2_DAT7
GPMC_A25
PR1_MII_MR1_CLK
MCASP0_FSX
GPIO
Description (refer to AM335x processor manuals for details)
GPIO1_23
GPIO1_24
GPIO1_25
160
GND
GND
161
NC
not connected
162
NC
not connected
163
NC
not connected
164
NC
not connected
165
NC
not connected
166
NC
not connected
167
NC
not connected
168
NC
not connected
169
NC
not connected
170
NC
not connected
171
GND
172
NC
not connected
173
NC
not connected
174
NC
not connected
175
NC
not connected
176
NC
not connected
177
NC
not connected
178
NC
not connected
179
3V3
Fixed function GPMI_CLE used for NAND flash
180
3V3
Fixed function GPMI_ALE used for NAND flash
181
3V3
Fixed function GPMI_WRN used for NAND flash
182
3V3
Fixed function GPMI_RDN used for NAND flash
183
GND
184
NC
GND
VSSA_ADC
Connected to GND onboard
not connected
185
analog XN
AIN0
186
analog XP
AIN1
187
analog YN
AIN2
188
analog YP
AIN3
189
analog WIPER
AIN4
Touscreen ADC input channels
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX48
PIN
Type
190
analog
AIN5
191
analog
AIN6
192
analog
AIN7
193
1V8
194
NC
not connected
195
NC
not connected
196
NC
197
Function
AM335x Pad Name
Alternate functions
GPIO
Description (refer to AM335x processor manuals for details)
General purpose measurements channels
EXT_WAKEUP
not connected
3V3
GPIO3_7
10K-PU to
ETN_3V3
EMU0
198
3V3
MDC
199
3V3
MDIO
200
GND
GND
MDIO_CLK
TIMER5
UART5_TXD
UART3_RTSN
MMC0_SDWP
MMC1_CLK
MMC2_CLK
MDIO_DATA
TIMER6
UART5_RXD
UART3_CTSN
MMC0_SDCD
MMC1_CMD
MMC2_CMD
Fixed function input used for Ethernet PHY Interrupt
GPIO0_1
Fixed function ENET_MDC used for Ethernet PHY
GPIO0_0
1K5-PU to
ETN_3V3
Fixed function ENET0_MDIO used for Ethernet PHY
GND
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
