112502
REVISIONS
DRAWING NO.
10,16 0,20
[0.400 0.007 ]
REV
THIRD ANGLE PROJ.
2.01 0.20
[0.079 0.007]
TYP(2)
5,08 0,20
[0.200 0.007 ]
DESCRIPTION
DATE
ECO
A
UPDATE DRAWING FORMAT
06/05/03
--
B
MODIFY MOUNTING POST
01/10/04
--
C
HEX NUT ANT LOCK WASHER REMOVED
19-Jan-10
2012
APPR
BM
12,83 0,20
[0.505 0.007 ]
5,08 0,20
[0.200 0.007 ]
0,89 0,20
[0.035 0.007 ]
TYP(2)
2,00 0,20
[0.079 0.007 ]
2,54 0,20
[0.100 0.007 ]
SCALE
3.000
RECOMMENDED PCB
MOUNTING HOLES DIMENSIONS
12,83 0,20
[0.505 0.007 ]
SCALE
2,48 0,20
[0.098 0.007 ]
3.000
RECOMMENDED
MOUNTING HOLE DIMENSIONS
14,40 0,30
[0.567 0.011 ]
0,50 0,30
[0.020 0.011 ]
0,60 0,20
[0.024 0.007 ]
DETAIL A
SCALE 8.000
1/2-28UNEF-2A THREAD
45 X0.50
2,20 0,30
[0.087 0.011 ]
15.60 0.30
[0.615 0.011]
8.60 0.30
[0.339 0.011]
4,00 0,30
[0.157 0.011 ]
NOTE:
1. MAX. PANEL THICKNESS = 5mm
4,10 0,30
[0.162 0.011 ]
8,60 0,03
[0.339 0.001 ]
2,54 0,30
[0.100 0.011 ]
5,08 0,30
[0.200 0.011 ]
5,08 0,30
[0.200 0.011 ]
12,00 0,03
[0.472 0.001 ]
SEE DETAIL A
34,90 0,30
[1.374 0.011 ]
10,16 0,30
[0.400 0.011 ]
35,50 0,30
[1.398 0.011 ]
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
.015 (0,381 mm)
.005 (0,127 mm)
1
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
DATE
BALAJI M
15-Jan-10
ENGINEER
DATE
BALAJI M
15-Jan-10
APPROVED
DATE
3
CONTACT PIN
PHOS. BRONZE
GOLD
1
2
INSULATOR
P.P.
NATURAL
1
1
BODY
ZINC DIECAST
NICKEL
1
NO.
DESCRIPTION
MATERIAL
FINISH
QTY

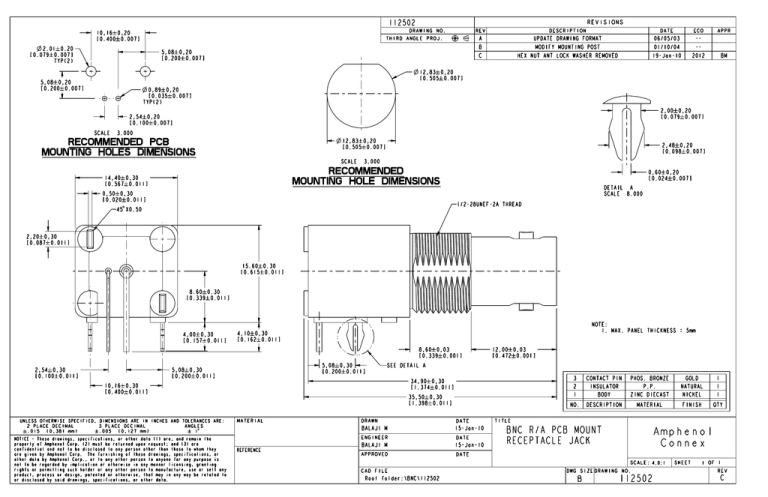

TITLE
BNC R/A PCB MOUNT
RECEPTACLE JACK
Amphenol
Connex
REFERENCE
SCALE:
CAD FILE
Root folder: \BNC\112502
DWG SIZE
B
4.0:1
DRAWING NO.
112502
SHEET
OF
1
1
REV
C
