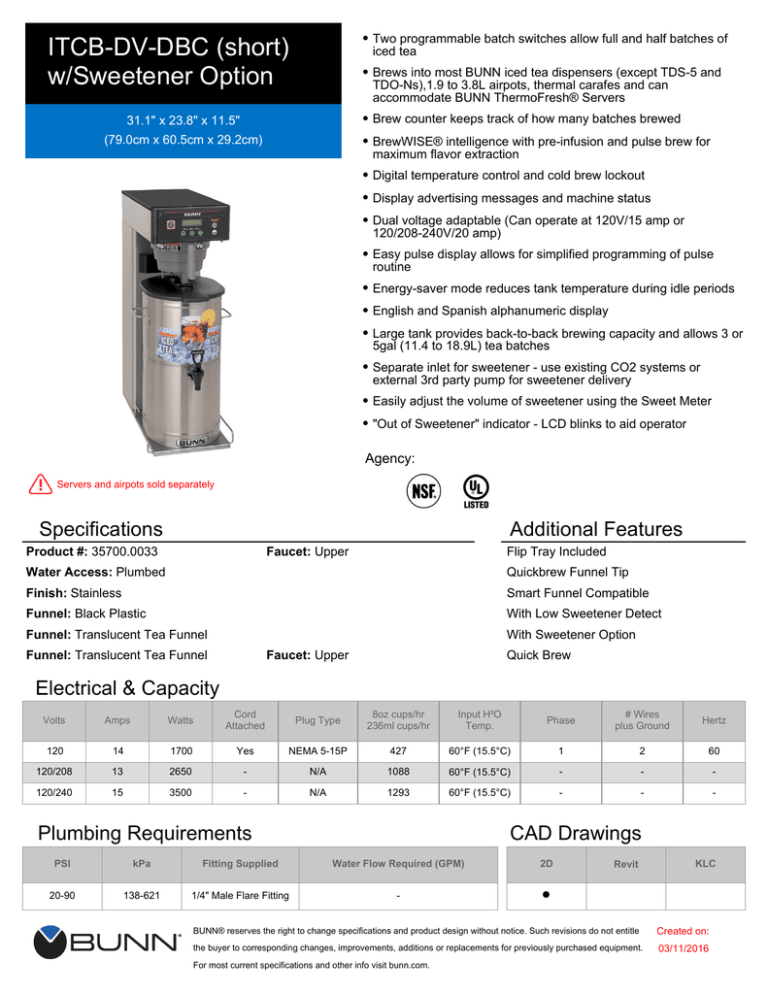

ITCB-DV-DBC (short) w/Sweetener Option

ITCB-DV-DBC (short) w/Sweetener Option
Two programmable batch switches allow full and half batches of
iced tea
ITCB-DV-DBC (short)
w/Sweetener Option
Brews into most BUNN iced tea dispensers (except TDS-5 and
TDO-Ns),1.9 to 3.8L airpots, thermal carafes and can
accommodate BUNN ThermoFresh® Servers
Brew counter keeps track of how many batches brewed
31.1" x 23.8" x 11.5"
(79.0cm x 60.5cm x 29.2cm)
BrewWISE® intelligence with pre-infusion and pulse brew for
maximum flavor extraction
Digital temperature control and cold brew lockout
Display advertising messages and machine status
Dual voltage adaptable (Can operate at 120V/15 amp or
120/208-240V/20 amp)
Easy pulse display allows for simplified programming of pulse
routine
Energy-saver mode reduces tank temperature during idle periods
English and Spanish alphanumeric display
Large tank provides back-to-back brewing capacity and allows 3 or
5gal (11.4 to 18.9L) tea batches
Separate inlet for sweetener - use existing CO2 systems or
external 3rd party pump for sweetener delivery
Easily adjust the volume of sweetener using the Sweet Meter
"Out of Sweetener" indicator - LCD blinks to aid operator
Agency:
Servers and airpots sold separately
Specifications
Additional Features
Product #: 35700.0033
Faucet: Upper
Flip Tray Included
Water Access: Plumbed
Quickbrew Funnel Tip
Finish: Stainless
Smart Funnel Compatible
Funnel: Black Plastic
With Low Sweetener Detect
Funnel: Translucent Tea Funnel
With Sweetener Option
Funnel: Translucent Tea Funnel
Faucet: Upper
Quick Brew
Electrical & Capacity
Volts
Amps
Watts
Cord
Attached
Plug Type
8oz cups/hr
236ml cups/hr
Input H²O
Temp.
Phase
# Wires
plus Ground
Hertz
120
14
1700
Yes
NEMA 5-15P
427
60°F (15.5°C)
1
2
60
120/208
13
2650
-
N/A
1088
60°F (15.5°C)
-
-
-
120/240
15
3500
-
N/A
1293
60°F (15.5°C)
-
-
-
Plumbing Requirements
CAD Drawings
PSI
kPa
Fitting Supplied
Water Flow Required (GPM)
2D
20-90
138-621
1/4" Male Flare Fitting
-
•
Revit
KLC
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
03/11/2016
For most current specifications and other info visit bunn.com.
Unit
Shipping
Width
Height
Depth
Width
Height
Depth
Weight
Volume
English
11.5 in.
31.1 in.
23.8 in.
-
-
-
46.200 lbs
-
Metric
29.2 cm
79.0 cm
60.5 cm
-
-
-
20.956 kgs
-
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
03/11/2016
For most current specifications and other info visit bunn.com.
Related Products & Accessories:ITCB-DV-DBC (short) w/Sweetener Option(35700.0033)
FUNNEL ASSY,SMOKETEA(TU3/T3)
Product #: 03021.0004
WATER FILTER,
EQHP-10
Product #: 39000.0004
FUNNEL ASSY,BLKCENTER OUTLET
FILTERS TEA/SYS2
500PK/1 50/CL
Product #: 03021.0008
Product #: 20100.0000
WATER FILTER, EQHPTEA
Product #: 39000.0007
CARTRIDGE,
EQHP-10CRTG
Product #: 39000.1004
FILTERS, GOURMET 500
500/1 50/CL
Product #: 20138.1000
POUCHPACK FUNL AY,
TEA SMK S-T
Product #: 35282.0002
CARTRIDGE, EQHPTEACRTG
Product #: 39000.1007
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
03/11/2016
For most current specifications and other info visit bunn.com.
Serving & Holding Options: ITCB-DV-DBC (short) w/Sweetener Option(35700.0033)
TF SERVER, DSG2 1G
BLK CD
Product #:42700.0004
TF SERVER, 1.5G/5.7L
MECH
Product #:44050.0000
AIRPOT, 2.5L SST LA 6/
CASE
Product #:32125.0100
TDO-4, RESERVOIR,
BREW THRU
Product #:34100.0002
TF SERVER, DSG2 1.5G
BLK CD
Product #:42750.0010
TDO-4, W/BREW THRU
LID & LIFT HANDLE
Product #:34100.0020
AIRPOT, 3.0L SST LA
SINGLE PK
TF SERVER, 1G/3.8L
MECH
Product #:44000.0000
AIRPOT, 2.5L GL PB
SINGLE PK
Product #:13041.0001
AIRPOT, 3.0L SST LA 6/
CASE
TF SERVER, 1.5G/5.7L
MECH BLK
Product #:44050.0001
AIRPOT, 2.5L GL PB 6/
CASE
Product #:13041.0101
TDS-3, 3 GAL
TF SERVER, 1G/3.8L
MECH BLK
Product #:44000.0001
AIRPOT, 2.5L SST LA
SINGLE PK
Product #:32125.0000
TDO-4, RESERVOIR
Product #:32130.0000
Product #:32130.0100
Product #:33000.0000
Product #:34100.0000
THERMAL CARAFE, BLK
1.9L 12PK
THERMAL CARAFE, BLK
1.9L 1PK
THERMAL CARAFE,ORN
1.9L 12PK
THERMAL CARAFE,ORN
1.9L 1PK
Product #:36029.0000
Product #:36029.0001
Product #:36252.0000
Product #:36252.0001
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
03/11/2016
For most current specifications and other info visit bunn.com.
Serving & Holding Options: ITCB-DV-DBC (short) w/Sweetener Option(35700.0033)
AIRPOT, 3.8L SST LA
SINGLE PK
Product #:36725.0000
CARAFE,SST 1.9L SHRT
ORN 12/
Product #:40163.0101
TF SERVER, DSG2 1G
CD
Product #:42700.0003
AIRPOT, 3.8L SST LA 6/
CASE
CARAFE,SST 1.9L SHRT
BLK 1/
CARAFE,SST 1.9L SHRT
ORN 1/
CARAFE,SST 1.9L SHRT
BLK 12/
Product #:36725.0100
Product #:40163.0000
Product #:40163.0001
Product #:40163.0100
TF SERVER, DSG2 1.5G
SST
TF SERVER, DSG2 1.5G
BLK
Product #:42750.0000
Product #:42750.0001
TF SERVER, DSG2
1G/3.8L
Product #:42700.0000
TF SERVER, DSG2
1G/3.8L BLK
Product #:42700.0001
TF SERVER, DSG2 1.5G
CD
Product #:42750.0003
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
03/11/2016
For most current specifications and other info visit bunn.com.
