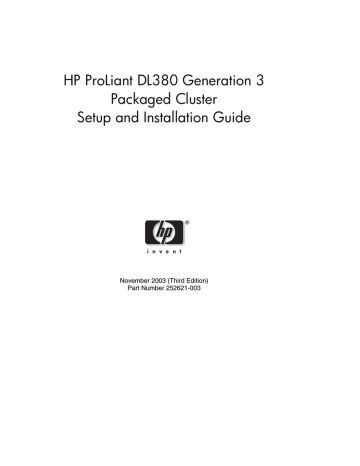

HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
November 2003 (Third Edition)
Part Number 252621-003
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: a-frnt
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:49 PM
Contents
About This Guide
Audience Assumptions........................................................................................................v
Important Safety Information ..............................................................................................v
Symbols on Equipment .......................................................................................................v
Rack Stability ................................................................................................................... vii
Symbols in Text................................................................................................................ vii
Related Documents.......................................................................................................... viii
Getting Help .................................................................................................................... viii
Technical Support ..................................................................................................... viii
HP Website ................................................................................................................. ix
Authorized Reseller .................................................................................................... ix
Reader’s Comments .......................................................................................................... ix
Chapter 1
Packaged Cluster Components
ProLiant DL380 G3 Server ............................................................................................. 1-1
MSA500 System.............................................................................................................. 1-1
Configuration Fixture ...................................................................................................... 1-2
Configuration Fixture Disposal................................................................................. 1-3
Packaged Cluster Cabling................................................................................................ 1-3
Software Components ..................................................................................................... 1-4
Chapter 2
Setup Preparations
Required Materials .......................................................................................................... 2-1
Selecting an Appropriate Site.......................................................................................... 2-2
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: a-frnt
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:49 PM
iii
Contents
Chapter 3
Component and LED Identification
ProLiant DL380 Generation 3 Server ..............................................................................3-1
MSA500 System ..............................................................................................................3-7
Chapter 4
Setup in the Configuration Fixture
Installing Hardware Options .....................................................................................4-2
Cabling the System in the Configuration Fixture......................................................4-3
Powering On and Configuring the Packaged Cluster................................................4-5
Powering Down and Preparing for Transfer .............................................................4-6
Chapter 5
Setup and Installation in a Rack
Rack Planning Resources ..........................................................................................5-2
Installing the Storage System in the Rack.................................................................5-2
Installing the Servers in the Rack............................................................................5-11
Installing Hardware Options ...................................................................................5-17
Cabling the System in a Rack..................................................................................5-17
Powering On and Configuring the Packaged Cluster..............................................5-21
Index
iv
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: a-frnt
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:49 PM
About This Guide
This guide provides step-by-step instructions for the setup and installation of the
packaged cluster. It complements the server and storage system documentation.
Audience Assumptions
This guide is for the person who installs, administers, and troubleshoots servers. HP
assumes you are qualified in the servicing of computer equipment and trained in
recognizing hazards in products with hazardous energy levels.
Important Safety Information
Before installing this product, read the Important Safety Information document
included with the server.
Symbols on Equipment
The following symbols may be placed on equipment to indicate the presence of
potentially hazardous conditions:
WARNING: This symbol, in conjunction with any of the following symbols,
indicates the presence of a potential hazard. The potential for injury exists if
warnings are not observed. Consult your documentation for specific details.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: a-frnt
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:49 PM
v
About This Guide
This symbol indicates the presence of hazardous energy circuits or electric
shock hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure. Refer all maintenance, upgrades, and servicing to
qualified personnel.
This symbol indicates the presence of electric shock hazards. The area
contains no user or field serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure
This symbol on an RJ-45 receptacle indicates a network interface connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not plug telephone or telecommunications connectors into this
receptacle.
This symbol indicates the presence of a hot surface or hot component. If this
surface is contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the
surface to cool before touching.
These symbols, on power supplies or systems, indicate that the
equipment is supplied by multiple sources of power.
WARNING: To reduce the risk of injury from electric shock,
remove all power cords to completely disconnect power from the
system.
This symbol indicates that the component exceeds the recommended
weight for one individual to handle safely.
Weight in kg
Weight in lb
vi
WARNING: To reduce the risk of personal injury or damage to the
equipment, observe local occupational health and safety requirements
and guidelines for manual material handling.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: a-frnt
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:49 PM
About This Guide
Rack Stability
WARNING: To reduce the risk of personal injury or damage to the equipment,
be sure that:
•
The leveling jacks are extended to the floor.
•
The full weight of the rack rests on the leveling jacks.
•
The stabilizing feet are attached to the rack if it is a single-rack installation.
•
The racks are coupled together in multiple-rack installations.
•
Only one component is extended at a time. A rack may become unstable if
more than one component is extended for any reason.
Symbols in Text
These symbols may be found in the text of this guide. They have the following
meanings.
WARNING: Text set off in this manner indicates that failure to follow directions
in the warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents essential information to explain a concept
or complete a task.
NOTE: Text set off in this manner presents additional information to emphasize or supplement
important points of the main text.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: a-frnt
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:49 PM
vii
About This Guide
Related Documents
In addition to this guide, the following information sources are available:
•
Documentation CD included with this product
•
Installation white papers at http://www.hp.com/servers/proliant/highavailability
•
Technical support resources at http://www.hp.com/support
Getting Help
If you have a problem and have exhausted the information in this guide, you can get
further information and other help in the following locations.
Technical Support
In North America, call the HP Technical Support Phone Center at 1-800-652-6672.
This service is available 24 hours a day, 7 days a week. For continuous quality
improvement, calls may be recorded or monitored. Outside North America, call the
nearest HP Technical Support Phone Center. Telephone numbers for worldwide
Technical Support Centers are listed on the HP website, http://www.hp.com.
Be sure to have the following information available before you call HP:
viii
•
Technical support registration number (if applicable)
•
Product serial number
•
Product model name and number
•
Applicable error messages
•
Add-on boards or hardware
•
Third-party hardware or software
•
Operating system type and revision level
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: a-frnt
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:49 PM
About This Guide
HP Website
The HP website has information on this product as well as the latest drivers and flash
ROM images. You can access the HP website at http://www.hp.com.
Authorized Reseller
For the name of your nearest authorized reseller:
•
In the United States, call 1-800-345-1518.
•
In Canada, call 1-800-263-5868.
•
Elsewhere, see the HP website for locations and telephone numbers.
Reader’s Comments
HP welcomes your comments on this guide. Please send your comments and
suggestions by e-mail to [email protected]
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: a-frnt
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:49 PM
ix
1
Packaged Cluster Components
The HP ProLiant DL380 Generation 3 (G3) Packaged Cluster consists of two
ProLiant DL380 G3 servers and an HP StorageWorks Modular Smart Array 500
(MSA500) system in a sturdy, recyclable configuration fixture.
ProLiant DL380 G3 Server
For detailed information on the server components, refer to the server user guide.
MSA500 System
For detailed information, refer to the storage system documentation.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: b-ch1 Packaged Cluster Components
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:51 PM
1-1
Packaged Cluster Components
Configuration Fixture
The packaged cluster ships in a two-piece configuration fixture (1) that can be used
to configure the packaged cluster. The configuration fixture allows for ease of
transfer to another location after it has been configured. The server fixture (2) holds
the two ProLiant DL380 G3 servers. The storage system fixture (3) holds the
MSA500 system.
1-2
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: b-ch1 Packaged Cluster Components
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:51 PM
Packaged Cluster Components
Configuration Fixture Disposal
The server fixture and the storage fixture are environmentally safe and recyclable.
The configuration fixture should be recycled in accordance with your local recycling
center guidelines. The metal inserts in the fixture compose 0.0406 percent of the total
volume of the fixture. Removal of the inserts might be required before recycling.
Packaged Cluster Cabling
The packaged cluster includes two external VHDCI SCSI cables, an Ethernet
crossover cable, and power cables. The cable ends are labeled for ease of installation.
HP recommends that you use an optional keyboard, video, and mouse (KVM)
switchbox.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: b-ch1 Packaged Cluster Components
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:51 PM
1-3
Packaged Cluster Components
Software Components
The ProLiant DL380 G3 Packaged Cluster supports Microsoft® Windows®, Novell
NetWare, and Linux-based operating systems. For the latest information on
supported operating systems, refer to the HP website,
ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf
1-4
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: b-ch1 Packaged Cluster Components
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:51 PM
2
Setup Preparations
Required Materials
Before setting up your packaged cluster, locate the following materials included in
the shipping box:
•
ProLiant DL380 G3 servers
•
MSA500 system
•
Power cords and cables
•
Rack-mounting hardware and rack templates (not used with the configuration
fixture)
•
HP SmartStart CD
•
Hardware documentation and software packs
Locate the following materials ordered as options or purchased separately:
•
Hard drives
•
Server hardware options and documentation (optional)
•
Storage system hardware options and documentation (optional)
•
Keyboard, video, mouse (KVM) switchbox (optional)
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: c-ch2 Setup Preparations
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:55 PM
2-1
Setup Preparations
•
Keyboard, monitor, and mouse (need two of each if not using a switchbox)
•
Operating system and clustering software
Additional information for some operating systems is available at
http://www.hp.com/servers/proliant/highavailability.
Selecting an Appropriate Site
Select an installation site that meets the following requirements:
•
Space
•
Temperature
•
Power
•
Rack
•
Grounding
•
Airflow
Detailed installation site requirements are described in the server user guide on the
Documentation CD.
2-2
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: c-ch2 Setup Preparations
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:55 PM
3
Component and LED Identification
ProLiant DL380 Generation 3 Server
Table 3-1: Front Panel Components
Item
Description
1
Hard drive bays
2
Bay for tape drive or hard drive and tape drive blank
3
Diskette drive
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
3-1
Component and LED Identification
4
CD-ROM drive
Table 3-2: Front Panel LEDs and Buttons
Item
1
Description
Status
Internal health
LED
Green = Normal
Amber = System degraded. Refer to system
board LEDs to identify component in
degraded state
Red = System critical. Refer to system board
LEDs to identify component in critical state
2
External health
LED
(power supply)
Green = Normal
Amber = Power redundancy failure
Red = Critical power supply failure
3
NIC 1 link/activity
LED
Green = Network link
4
NIC 2 link/activity
LED
Flashing = Network link and activity
Off = No link to network. If power is off, view
the rear panel RJ-45 LEDs for status
continued
3-2
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
Component and LED Identification
Table 3-2: Front Panel LEDs and Buttons continued
Item
5
Description
Status
UID LED button
Blue = Activated
Flashing = System remotely managed
Off = Deactivated
6
Power
On/Standby
button/system
power LED
Green = System on
Amber = System shut down, but power still
applied
Off = Power cord not attached or power
supply failure
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
3-3
Component and LED Identification
Table 3-3: Rear Panel Components
Item
3-4
Description
Connector Color
1
Hot-plug PCI-X expansion slot 3 (bus 6) 64-bit/100-MHz 3.3V
N/A
2
Hot-plug PCI-X expansion slot 2 (bus 6) 64-bit/100-MHz 3.3V
N/A
3
Non-hot-plug PCI-X expansion slot 1 (bus 3) 64-bit/133-MHz 3.3V
N/A
4
Serial connector
Teal
5
iLO connector
N/A
6
Mouse connector
Green
7
Power cord connector
N/A
8
Keyboard connector
Purple
9
NIC 1 connector
N/A
10
NIC 2 connector
N/A
11
USB connectors
Black
12
Video connector
Blue
13
VHDCI SCSI connector (port 1)
N/A
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
Component and LED Identification
Table 3-4: Rear Panel LEDs and Buttons
Item
1
2
Description
LED Color
Status
PCI Hot Plug fault LED (slot
3)
Amber
On = Expansion board failed
PCI Hot Plug power LED
(slot 3)
Green
Off = Normal
On = Power is applied to the slot
Flashing = Power is cycling
Off = Power is not applied to the slot
3
4
PCI Hot Plug fault LED (slot
2)
Amber
PCI Hot Plug power LED
(slot 2)
Green
On = Expansion board failed
Off = Normal
On = Power is applied to the slot
Flashing = Power is cycling
Off = Power is not applied to the slot
5
RJ-45 link LED
Green
On = Linked to network
Off = Not linked to network
continued
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
3-5
Component and LED Identification
Table 3-4: Rear Panel LEDs and Buttons continued
Item
6
Description
LED Color
Status
RJ-45 activity LED
Green
On or flashing = Network activity
Off = No network activity
7
UID LED button
Blue
On = Activated
Flashing = System remotely managed
Off = Deactivated
8
Power supply LED
Green
On = Power turned on and power supply
functioning properly
Off = One or more of the following
conditions exists:
3-6
•
AC power unavailable
•
Power supply failed
•
Power supply in standby mode
•
Power supply exceeded current limit
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
Component and LED Identification
MSA500 System
Table 3-5: Front Panel Components
Item
Description
1
Bezel blank (bay for optional redundant controller)
2
Service port (for HP service technicians only)
3
Hot-plug HP StorageWorks Modular Smart Array 500 Controller
4
Controller display
5
Power On/Standby button
6
Enclosure LEDs
7
Hot-plug SCSI hard drives
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
3-7
Component and LED Identification
Table 3-6: Enclosure LEDs
Item
1
LED Description
Status
Shared Storage
Module
Flashing green = Module is operating
normally
Green/Off = Module is not operating
normally
2
System power
Green = System power is on
Off = System is in standby mode or power
is removed from the system
3
Fault
Amber = Fault detected in a subsystem
Off = No faults detected
3-8
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
Component and LED Identification
Table 3-7: Rear Panel Components
Item
Description
1
Interconnect blanks (required for proper airflow)
2
Power supply/blower assembly
3
AC power connectors
4
Two-port Shared Storage Module
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
3-9
Component and LED Identification
Table 3-8: Two-port Shared Storage Module LEDs
Item
3-10
LED Description
1
Power
2
SCSI host port A
3
SCSI host port B
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: d-ch3 Component Identification
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 12:58 PM
4
Setup in the Configuration Fixture
Perform the following procedures to set up the packaged cluster in the configuration
fixture. This setup procedure assumes the cluster will be configured in the fixture and
then transferred to another location.
WARNING: Do not stack clusters while in their configuration fixtures. The
stack can become unstable and might tip over.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: e-ch4 Setup in the Configuration Fixture
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:03 PM
4-1
Setup in the Configuration Fixture
Installing Hardware Options
NOTE: Detailed option installation instructions are available with the options and are also in
the server user guide and the storage system user guide on the Documentation CD.
1. If internal server options (memory, processors, fans, and expansion boards) need
to be installed:
a. Remove the servers from the server fixture.
WARNING: To reduce the risk of personal injury or damage to the equipment,
the server must be completely removed from the server fixture to install the
internal server options. At least two people are required to lift the servers
during installation or removal.
b. Install the internal server options.
c. Replace the servers in the server fixture.
2. Install the external server options.
3. Install the external storage system options.
4-2
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: e-ch4 Setup in the Configuration Fixture
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:03 PM
Setup in the Configuration Fixture
Cabling the System in the Configuration Fixture
NOTE: The server fixture should be placed on top of the storage fixture for ease in cabling the
packaged cluster.
1. Connect the VHDCI SCSI cables labeled A and B from the storage system to the
servers.
NOTE: Save the protective covers on the cable connectors for use when the packaged cluster
is repacked.
2. If you are configuring a Microsoft® or Linux operating system, connect the
Ethernet crossover cable between the servers. Use the same RJ-45 connector (1),
NIC 1, on each server.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: e-ch4 Setup in the Configuration Fixture
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:03 PM
4-3
Setup in the Configuration Fixture
3. Connect the peripheral devices, such as the keyboard, mouse, and monitor. For
information on peripheral device connections, refer to “Component and LED
Identification” in Chapter 3.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do no plug telephone or telecommunications connectors into
RJ-45 connectors.
IMPORTANT: If the Remote Insight Lights-Out Edition II (RILOE II) board is installed in
the server, be sure that you attach the video cable to the video connector on the rear of
the RILOE II board. The standard video connector on the server rear panel is not used
when the RILOE II board is installed. For more information, refer to the HP Remote Insight
Lights-Out Edition II User Guide on the Documentation CD.
NOTE: If you are using a KVM switchbox, refer to the switchbox documentation for
detailed instructions.
4. Connect the power cords to the servers and storage system.
5. Connect the power cords to the AC power source.
WARNING: To reduce the risk of electric shock or damage to the
equipment:
•
Do not disable the power cord grounding plug. The ground plug is an
important safety feature.
•
Plug the power cord into a grounded (earthed) electric outlet that is
easily accessible at all times.
•
Unplug the power cord from the power supply to disconnect power to
the equipment.
Do not route the power cord where it can be walked on or pinched by items
placed against it. Pay particular attention to the plug, electric outlet, and
the point where the cord extends from the server.
4-4
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: e-ch4 Setup in the Configuration Fixture
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:03 PM
Setup in the Configuration Fixture
Powering On and Configuring the Packaged Cluster
1. Power on the storage system and wait for the controllers to initialize.
IMPORTANT: You must power on the MSA500 system before powering on the servers.
After powering on, wait until the storage system startup complete message displays. It
might take up to two minutes for the system to completely power up.
2. Power on one server.
IMPORTANT: Do not use the Option ROM Configuration for Arrays (ORCA) utility to
configure the MSA500 system. The Array Configuration Utility must be used.
While the server boots, the ROM-Based Setup Utility (RBSU) and the ORCA
utility are automatically configured to prepare the server for the operating system
installation. To configure these utilities manually:
— Press the F8 key when prompted during the array controller initialization to
configure the array controller using ORCA. The array controller defaults to
RAID 0 with one drive installed and RAID 1 with more than one drive
installed.
— Press the F9 key when prompted during the boot process to change the server
settings, such as the settings for language and operating system, using RBSU.
The system is set up by default for the English language and a Microsoft®
Windows® 2000 installation.
For more information on the automatic configuration, refer to the HP ROMBased Setup Utility User Guide located on the Documentation CD.
3. Insert the SmartStart CD into the CD-ROM drive and reboot the server. Follow
the on-screen instructions to begin the operating system installation process.
For more information on installing the operating system, refer to the SmartStart
installation poster included in the ProLiant Essentials Foundation Pack, the
operating system documentation, or go to
http://www.hp.com/servers/proliant/highavailability for additional information on
some operating systems.
For the latest information on supported operating systems, refer to the HP
website, ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf.
4. Repeat steps 2 and 3 for the second server.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: e-ch4 Setup in the Configuration Fixture
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:03 PM
4-5
Setup in the Configuration Fixture
5. Set up and verify the MSA500 system and cluster operations.
Powering Down and Preparing for Transfer
1. Shut down the operating system on each server and power off each server.
2. Power off the storage system.
3. Remove the power cords and return them to the original boxes.
4. Disconnect the VHDCI SCSI cables and the Ethernet crossover cable from the
servers.
5. Disconnect all other cables from the servers.
6. Replace the protective covers on the ends of the VHDCI SCSI cables.
7. Secure the VHDCI SCSI cables and the Ethernet crossover cable for transfer.
8. Repack the shipping components in their original configuration. Refer to the
exploded view diagram and pictures on the packaged cluster poster as a guideline
for repacking.
Configuration is complete. The packaged cluster is ready for transfer.
4-6
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: e-ch4 Setup in the Configuration Fixture
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:03 PM
5
Setup and Installation in a Rack
Perform the following procedures to set up the packaged cluster in a rack.
WARNING: To reduce the risk of personal injury or damage to the equipment,
at least two people are required to lift the components during installation or
removal.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-1
Setup and Installation in a Rack
Rack Planning Resources
The rack resource kit ships with all HP branded or Compaq branded 9000-, 10,000-,
and H9-series racks. For more information on the content of each resource, refer to
the rack resource kit documentation.
If you intend to deploy and configure multiple servers in a single rack, refer to the
white paper on high-density deployment at the HP website,
http://www.hp.com/products/servers/platforms.
Installing the Storage System in the Rack
The rack-mounting hardware kit provides the required components for quick
deployment in Compaq branded, HP branded, and most square- and round-hole
third-party racks. The adjustable feature of the rack rails enables installation in racks
with depths of 69.90 to 73.81 cm (27.52 to 29.06 inches).
If you are installing the MSA500 system in an M-Series rack, contact an authorized
reseller to obtain an M-Series Rack Rail option kit.
5-2
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
1. Locate the following materials necessary for installing the storage system.
Table 5-1: Rack-Mounting Hardware and Template
Item
Description
1
Rack rail (left)
2
Rack rail (right)
3
Pins for round-hole rack conversion
4
4U rack template
IMPORTANT: Install the storage system in the rack, leaving enough space above to install
the servers. The following procedure details installation in a square-hole rack. For installation
procedures concerning round-hole racks, refer to the HP StorageWorks Modular Smart Array
500 System User Guide on the Documentation CD.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-3
Setup and Installation in a Rack
2. Use the instructions provided on the rack template to mark the rack for rail
locations.
WARNING: The storage system weight, as assembled for shipping, exceeds
22.7 kg (50 lb). Install the storage system in the lowest available position in the
rack.
IMPORTANT: Unless you are converting the rails for use in round-hole racks, do not remove
the pins from the ends of the rack rails. These load-bearing pins are designed to fit through the
holes without being removed.
NOTE: Identify the left (L) and right (R) rack rails by markings stamped into the sheet metal.
5-4
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
3. Insert the front end of the left rack rail into the inside front of the rack. Be sure
that the pins extend through the holes marked during the rack template
procedure.
IMPORTANT: Be sure that the scissor-type locking latches engage when the ends of the rail
seat into the rack uprights.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-5
Setup and Installation in a Rack
4. Slide the back end of the left rack rail into the inside rear of the rack. Be sure that
the pins extend through the holes marked during the rack template procedure.
IMPORTANT: Be sure that the scissor-type locking latches engage when the ends of the rail
seat into the rack uprights.
5. Repeat steps 3 and 4 for the right rack rail.
5-6
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
6. Remove the hook-and-loop fasteners (1) securing the VHDCI SCSI cables and
the Ethernet crossover cable to the storage fixture.
7. Disconnect and remove the VHDCI SCSI cables from the storage system.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-7
Setup and Installation in a Rack
8. Loosen the thumbscrews that secure the storage system and slide the storage
system from the storage system fixture.
5-8
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
9. Align the storage system with the rails and slide it into the rack.
WARNING: The storage system weight, as assembled for shipping, exceeds
22.7 kg (50 lb). To reduce the risk of personal injury or damage to the
equipment, at least two people are required to lift the storage system during
removal or installation. Install the storage system in the lowest available
position in the rack.
WARNING: Always use at least two people to lift an enclosure into the rack. If
the enclosure is being loaded into the rack above chest level, a third person
must assist with aligning the enclosure with the rails while the other two
people support the weight of the enclosure.
CAUTION: To prevent storage system damage and ease insertion, support the
weight of the storage system and keep it level when sliding the storage system into
the rack.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-9
Setup and Installation in a Rack
10. Secure the storage system to the rack.
IMPORTANT: Tightening of the shipping bracket is only necessary if the rack is to be shipped
with the MSA500 system installed.
5-10
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
11. Use the shipping bracket to secure the system in the rack for shipping:
a. Loosen the thumbscrew on the shipping bracket.
b. Slide the shipping bracket forward until it engages the storage system
chassis.
c. Tighten the thumbscrew.
Installing the Servers in the Rack
Follow the steps in this section if you are installing the servers into a rack with square
holes. If you are installing the servers into a rack with round holes, order the
appropriate rack installation option kit, and then refer to the installation instructions
that ship with the option kit for more information.
NOTE: The steps in this section work on most third-party racks with square holes. If they do
not work with the rack you are using, order the option kit for racks with round holes.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-11
Setup and Installation in a Rack
1. Locate the following materials necessary for installing the servers.
Table 5-2: Rack-Mounting Hardware and Template
5-12
Item
Description
1
Server rails
2
Left and right standard rack rail assemblies
3
Cable management arm
4
Rack template
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
2. Mark the rack.
CAUTION: Always plan the rack installation so that the heaviest item is on the
bottom of the rack. Install the heaviest item first, and continue to populate the rack
from the bottom to the top.
3. Loosen the thumbscrews that secure the servers and slide the servers from the
server fixture.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-13
Setup and Installation in a Rack
4. Secure each server rail to the server.
5. Secure the left and right standard rack rails to the appropriate side of the rack.
NOTE: Figures show one server already installed in the rack.
5-14
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
6. Extend the slides from the standard rack rails, and then slide the server rails into
the slides.
WARNING: To reduce the risk of personal injury or equipment damage, be
sure that the rack is adequately stabilized before sliding the server rails into
the rack rails.
CAUTION: Be sure to keep the server parallel to the floor when sliding the server
rails into the rack rails. Tilting the server up or down could result in damage to the
rails.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-15
Setup and Installation in a Rack
7. Press the rail-release latches and slide the server into the rack.
WARNING: To reduce the risk of personal injury, be careful when pressing the
server rail-release latches and sliding the server into the rack. The sliding rails
could pinch your fingers.
8. Secure the server to the rack.
9. Repeat steps 1 through 8 for the second server.
5-16
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
Installing Hardware Options
IMPORTANT: If your system was previously configured, skip to “Cabling the System in
a Rack.”
NOTE: Detailed option installation instructions are available with the options and are also in
the server user guide and the storage system user guide on the Documentation CD.
1. Install the server options.
2. Install the storage system options.
Cabling the System in a Rack
NOTE: It is recommended, for ease of cabling, to install one cable management arm on a
server and route the cables before installing the second cable management arm.
1. Secure the cable management arm bracket to the server.
NOTE: Cable management arm is removed for clarity.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-17
Setup and Installation in a Rack
2. Secure the cable management bracket to the rail.
3. Connect the VHDCI SCSI cables labeled A and B from the storage system to the
servers.
5-18
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
4. If you are configuring a Microsoft® or Linux operating system, connect the
Ethernet crossover cable between the servers. Use the same RJ-45 connector (1),
NIC 1, on each server.
5. Connect peripheral devices, such as the keyboard, mouse, and monitor. For
information on peripheral device connections, refer to “Component and LED
Identification” in Chapter 3.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not plug telephone or telecommunications connectors into
RJ-45 connectors.
IMPORTANT: If the RILOE II board is installed in the server, be sure that you attach the video
cable to the video connector on the rear of the RILOE II board. The standard video connector
on the server rear panel is not used when the RILOE II board is installed. For more
information, refer to the HP Remote Insight Lights-Out Edition II User Guide on the
Documentation CD.
NOTE: If you are using a KVM switchbox, refer to the switchbox documentation for detailed
instructions.
6. Connect the power cords to the servers and storage system.
IMPORTANT: Do not power on the servers or the storage system until instructed to
power on.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-19
Setup and Installation in a Rack
7. Route the cables and secure to the cable management arm.
8. Connect the power cords to the AC power source.
WARNING: To reduce the risk of electric shock or damage to the equipment:
5-20
•
Do not disable the power cord grounding plug. The ground plug is an
important safety feature.
•
Plug the power cord into a grounded (earthed) electric outlet that is easily
accessible at all times.
•
Unplug the power cord from the power supply to disconnect power to the
equipment.
•
Do not route the power cord where it can be walked on or pinched by items
placed against it. Pay particular attention to the plug, electric outlet, and the
point where the cord extends from the server.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Setup and Installation in a Rack
Powering On and Configuring the Packaged Cluster
1. Power on the storage system and wait for the controllers to initialize.
IMPORTANT: You must power on the MSA500 system before powering on the servers.
After powering on, wait until the storage system startup complete message displays. It
might take up to two minutes for the system to completely power up.
2. Power on one server.
IMPORTANT: Do not use the Option ROM Configuration for Arrays (ORCA) utility to
configure the MSA500 system. The Array Configuration Utility must be used.
IMPORTANT: If your system was previously configured, power on the second server.
The installation process is complete.
While the server boots, the ROM-Based Setup Utility (RBSU) and the ORCA
utility are automatically configured to prepare the server for the operating system
installation. To configure these utilities manually:
— Press the F8 key when prompted during the array controller initialization to
configure the array controller using ORCA. The array controller defaults to
RAID 0 with one drive installed and RAID 1 with more than one drive
installed.
— Press the F9 key when prompted during the boot process to change the
server settings, such as the settings for language and operating system, using
RBSU. The system is set up by default for the English language and a
Microsoft® Windows® 2000 installation.
For more information on the automatic configuration, refer to the HP ROMBased Setup Utility User Guide located on the Documentation CD.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
5-21
Setup and Installation in a Rack
3. Insert the SmartStart CD into the CD-ROM drive and reboot the server. Follow
the on-screen instructions to begin the operating system installation process.
For more information on installing the operating system, refer to the SmartStart
installation poster included in the ProLiant Essentials Foundation Pack, the
operating system documentation, or go to
http://www.hp.com/servers/proliant/highavailability for additional information on
some operating systems.
For the latest information on supported operating systems, refer to the HP
website, ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf.
4. Repeat steps 2 and 3 for the second server.
5. Set up and verify the MSA500 system and cluster operations.
The installation is complete.
5-22
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: f-ch5 Setup and Installation in a Rack
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:02 PM
Index
A
K
Array Configuration Utility 4-5, 5-21
authorized reseller ix
KVM switchbox 4-4, 5-19
M
C
M-Series rack 5-2
cable
Ethernet crossover 4-3
packaged cluster 1-3
protective covers 4-3
SCSI 4-3
cable management arm 5-17
configuration fixture
disposal 1-3
use 1-2
O
optimum environment 2-2
option installation
servers 4-2, 5-17
storage system 4-2, 5-17
ORCA (Option ROM Configuration for
Arrays) 4-5, 5-21
E
P
Ethernet crossover cable 4-3, 4-6
packaged cluster
cables 1-3
configuration fixture setup 4-1
rack setup 5-1
setup procedures 4-1, 5-1
transfer preparations 4-6
power off system 4-6
ProLiant Essentials Foundation Pack 4-5,
5-22
H
help resources viii
HP website ix
I
installing
servers 5-11
storage system 5-2
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL
Writer: Woody Jernigan File Name: x-index
Codename: Sopwith Part Number: 252621-003 Last Saved On: 9/17/03 1:05 PM
Index-1
Index
R
rack
M-Series 5-2
populating 5-13
third-party 5-2
rack-mounting hardware
servers 5-12
storage system 5-3
RAID 4-5, 5-21
RBSU (ROM-Based Setup Utility) 4-5,
5-21
S
scissor-type latches 5-6
SCSI cable 4-3
servers
front panel components 3-1
front panel LEDs 3-2
installing 5-11
option installation 4-2, 5-17
rack-mounting 5-15
rack-mounting hardware 5-12
rear panel components 3-4
rear panel LEDs 3-5
SmartStart 4-5, 5-22
Index-2
storage system
enclosure LEDs 3-8
front panel components 3-7
installing 5-2
locking latches 5-6
option installation 4-2, 5-17
power on 4-5
rack rail pins 5-4
rack-mounting 5-9
rack-mounting hardware 5-3
rear panel components 3-9
shipping bracket 5-10
two-port shared storage module
LEDs 3-10
supported operating systems 1-4
symbols in text vii
T
technical support viii
telephone numbers viii, ix
W
website
high density deployment white
paper 5-2
HP ix
installation white papers viii
operating system white papers 2-2
supported operating systems 1-4
technical support resources viii
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
