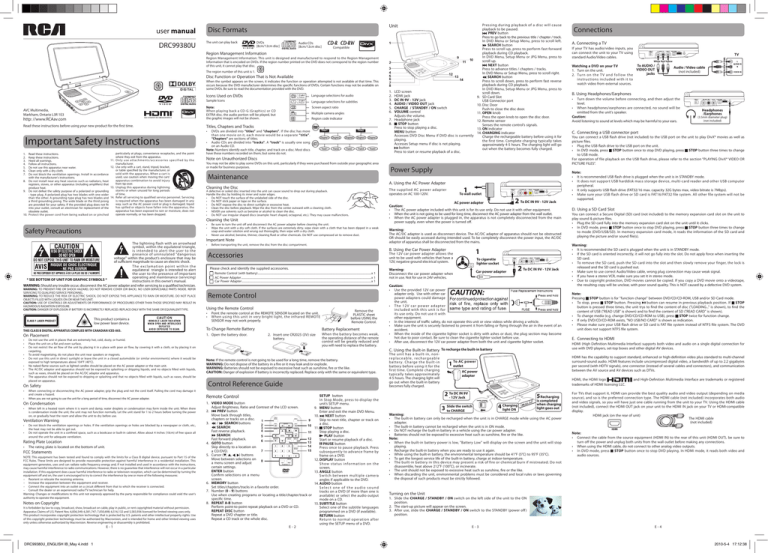

DRC99380U Product Manual

DRC99380U Product Manual
DRC99380U
Unit
Disc Formats
user manual
The unit can play back
DVDs
[8cm/12cm disc]
Audio CDs
[8cm/12cm disc]
Compatible
Region Management Information
The region number of this unit is 1.
Disc Function or Operation That is Not Available
When the symbol appears on the screen, it indicates the function or operation attempted is not available at that time. This
occurs because the DVD manufacturer determines the specific functions of DVDs. Certain functions may not be available on
some DVDs. Be sure to read the documentation provided with the DVD.
Icons Used on DVDs
Language selections for audio
Sample lcons
Language selections for subtitles
Multiple camera angles
http: //www.RCAav.com
Note:
When playing back a CD-G (Graphics) or CD
EXTRA disc, the audio portion will be played, but
the graphic images will not be shown.
Read these instructions before using your new product for the first time.
Titles, Chapters and Tracks
AVC Multimedia,
Markham, Ontario L3R 1E3
Screen aspect ratio
Region code indicator
1
Title1
DVDs are divided into “titles” and “chapters”. If the disc has more
than one movie on it, each movie would be a separate “title”.
“Chapters” are sections of titles.
• Audio CDs are divided into “tracks”. A “track” is usually one song
on an Audio CD.
Note: Numbers identify each title, chapter, and track on a disc. Most discs
have these numbers recorded on them, but some do not.
•
Important Safety Instructions
1.
2. 3. 4. 5. 6. 7. Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block the ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of a polarized or grounding
- type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessor ies specified by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as the AC power cord or plug is damaged, liquid
has spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Chapter1
Track1
Title2
Chapter2
Track2
Chapter3
Track3
Chapter1
Track4
Chapter2
Track5
You may not be able to play some DVDs on this unit, particularly if they were purchased from outside your geographic area
or made for business purposes.
Maintenance
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT PLACE
OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in
hazardous radiation exposure.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.
This product contains a
low power laser device.
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
On Placement
•
•
•
•
•
•
•
•
Be sure to turn the unit off and disconnect the AC power adapter before cleaning the unit.
Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has been dipped in a weak
soap-and-water solution and wrung out thoroughly, then wipe with a dry cloth.
Never use alcohol, benzine, thinner, cleaning fluid or other chemicals. Do NOT use compressed air to remove dust.
Do not use the unit in places that are extremely hot, cold, dusty, or humid.
Place the unit on a flat and even surface.
Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth, or by placing it on
carpeting.
To avoid magnetizing, do not place the unit near speakers or magnets.
Do not use this unit in direct sunlight or leave the unit in a closed automobile (or similar environments) where it would be
exposed to high temperatures above 104°F (40°C).
No naked flame sources such as lighted candles should be placed on the AC power adapter or the main unit.
The AC/DC adaptor and apparatus should not be exposed to splashing or dripping liquids, and no objects filled with liquids,
such as vases, should be placed on the AC/DC adaptor and apparatus.
The apparatus should not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, should be
placed on apparatus.
On Safety
When connecting or disconnecting the AC power adapter, grip the plug and not the cord itself. Pulling the cord may damage it
and create a hazard.
• When you are not going to use the unit for a long period of time, disconnect the AC power adapter.
Important Note
•
Before transporting the unit, remove the disc from the disc compartment.
AC Power Adapter...........................................................................................................................................................................................x 1
Car Power Adapter..........................................................................................................................................................................................x 1
Remote Control
Using the Remote Control
• Point the remote control at the REMOTE SENSOR located on the unit.
• When using this unit in very bright light, the infrared REMOTE
SENSOR may not work properly.
To Change Remote Battery
Remove the
PLASTIC sheet
before using the
Remote Control.
Battery Replacement
2. Insert one CR2025 (3V) size
battery.
When the battery becomes weak,
the operating distance of the remote
control will be greatly reduced and
you will need to replace the battery.
Note: If the remote control is not going to be used for a long time, remove the battery.
WARNING: Do not dispose of the battery in a fire or it may leak and/or explode.
WARNING: Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Control Reference Guide
Warning:
The AC/DC adaptor is used as disconnect device. The AC/DC adaptor of apparatus should not be obstructed
OR should be easily accessed during intended used. To be completely disconnect the power input, the AC/DC
adaptor of apparatus shall be disconnected from the mains.
On Condensation
•
When left in a heated room where it is warm and damp, water droplets or condensation may form inside the unit. When there
is condensation inside the unit, the unit may not function normally. Let the unit stand for 1 to 2 hours before turning the power
on, or gradually heat the room and allow the unit to dry before use.
Ventilation Warning
•
•
Do not block the ventilation openings or holes. If the ventilation openings or holes are blocked by a newspaper or cloth, etc.,
the heat may not be able to get out.
Do not operate the unit in a confined space, such as a bookcase or built-in cabinet. Allow about 4 inches (10cm) of free space all
around the unit for adequate ventilation.
Rating Plate Location
VIDEO
MODE
MENU
PREV
SEARCH
GOTO
NEXT
STOP
PAUSE
ANGLE
DISPLAY
PLAY
ENTER
MEMORY
2
3
5
6
SUBTITLE/
RETURN
FCC Statements
4
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Notes on Copyright
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission.
Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132 and 5,583,936 licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use
of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
E-1
DRC99380U_ENGLISH IB_May 4.indd 1
1. VIDEO MODE button
Adjust Brightness, Ratio and Contrast of the LCD screen.
2.
PREV button
Move back through titles,
chapters or tracks on a disc.
9
1
3.
/
SEARCH buttons
2
10
SEARCH:
3
4
Fast reverse playback.
11
SEARCH:
5
12
Fast forward playback.
M
6
13
4. GOTO button
14
Skip directly to a location on
15
7
a CD/DVD.
5. Cursor ( , , , ) buttons
Move between selections on
8
a menu screen and adjust
certain settings.
ENTER button
Confirm selections on a menu
screen.
6. MEMORY button
Set titles/chapters/tracks in a favorite order.
7. Number (0 - 9) buttons
Use when creating programs or locating a title/chapter/track or
specific time.
8. REPEAT A-B button
Perform point-to-point repeat playback on a DVD or CD.
REPEAT DISC button
Repeat a DVD chapter or title.
Repeat a CD track or the whole disc.
AUDIO
• The rating plate is located on the bottom of unit.
1
7
8
9
0
SETUP
A-B
DISC
REPEAT
E-2
SETUP button
In Stop Mode, press to display the
unit’s SETUP menu.
9. MENU button
Enter and exit the main DVD Menu.
10.
NEXT button
Skip to next title, chapter or track on
a disc.
11. STOP button
Stop playing a disc.
PLAY button
Start or resume playback of a disc.
PAUSE button
Press once to pause playback. Press
subsequently to advance frame by
frame on a DVD.
12.DISPLAY button
S h ow s t at u s i n fo r m at i o n o n t h e
screen.
13.ANGLE button
Switch between multiple camera
angles if applicable to the DVD.
14.AUDIO button
Select one of the audio sound
tracks on a DVD (if more than one is
available) or select the audio output
mode on a CD.
15.SUBTITLE button
Select one of the subtitle languages
programmed on a DVD (if available).
RETURN button
Return to normal operation after
using the SETUP menu of a DVD.
To cigarette
lighter socket
Warning:
Disconnect the car power adapter when
not in use. Not for use in 24V vehicles.
Car power adapter
2 To DC IN 9V - 12V Jack
Caution:
• Use the provided 12V car power
adapter only. Use with other car
power adapters could damage
the unit.
• T h e 1 2 V c a r p o w e r a d a p t e r
included with this unit is for
its use only. Do not use it with
other equipment.
• In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is securely fastened to prevent it from falling or flying through the air in the event of an
accident.
• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become
hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
• After use, disconnect the 12V car power adapter from both the unit and cigarette lighter socket.
C. Using the Built-in Battery To recharge the built-in battery
The unit has a built-in, nonreplaceable, rechargeable
batter y. Charge the built-in
battery before using it for the
first time. Complete charging
typically takes approximately
4-5 hours. The charging light will
go out when the built-in battery
becomes fully charged.
•
Remote Control
2
To DC IN 9V - 12V Jack
AC power adapter
Caution:
• The AC power adapter included with this unit is for its use only. Do not use it with other equipment.
• When the unit is not going to be used for long time, disconnect the AC power adapter from the wall outlet.
• When the AC power adapter is plugged in, the apparatus is not completely disconnected from the main
power supply, even when the power is turned off.
The 12V car power adapter allows the
unit to be used with vehicles that have a
12V, negative ground electrical system.
Please check and identify the supplied accessories.
Remote Control (with battery)...................................................................................................................................................................x 1
1. Open the battery door.
To wall outlet
B. Using the Car Power Adapter
Accessories
1
The supplied AC power adapter
operates on AC 100-120V.
A defective or soiled disc inserted into the unit can cause sound to drop out during playback.
Handle the disc by holding its inner and outer edges.
• Do NOT touch the surface of the unlabeled side of the disc.
• Do NOT stick paper or tape on the surface.
• Do NOT expose the disc to direct sunlight or excessive heat.
• Clean the disc before playback. Wipe the disc from the center outward with a cleaning cloth.
• NEVER use solvents such as benzine or alcohol to clean the disc.
• Do NOT use irregular shaped discs (example: heart shaped, octagonal, etc.). They may cause malfunctions.
•
Power Supply
A. Using the AC Power Adapter
Cleaning the Disc
•
•
The lightning flash with an arrowhead
symbol, within the equilateral triangle,
is intended to aler t the user to the
presence of uninsulated "dangerous
voltage" within the product's enclosure that may be
of sufficient magnitude to cause an electric shock.
T h e e xc l a m a t i o n p o i n t w i t h i n t h e
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
* SEE BOTTOM OF UNIT FOR GRAPHIC SYMBOLS *
instructions in this owner’s manual.
WARNING: Should any trouble occur, disconnect the AC power adapter and refer servicing to a qualified technician.
Note on Unauthorized Discs
Cleaning the Unit
Safety Precautions
1.
2.
3.
4.
5.
6.
7.
8.
Pressing during playback of a disc will cause
playback to be paused.
PREV button
Press to go back to the previous title / chapter / track.
In DVD Menu or Setup Menu, press to scroll left.
SEARCH button
Press to scroll up, press to perform fast forward
playback during CD playback.
In DVD Menu, Setup Menu or JPG Menu, press to
scroll up.
NEXT button
Press to advance titles / chapters / tracks.
In DVD Menu or Setup Menu, press to scroll right.
SEARCH button
Press to scroll down, press to perform fast reverse
playback during CD playback.
In DVD Menu, Setup Menu or JPG Menu, press to
LCD screen
scroll down.
HDMI jack
9. SD Card Slot
DC IN 9V - 12V jack
USB Connector port
AUDIO / VIDEO OUT jack
10.Disc Door
CHARGE / STANDBY / ON switch
Push to close the disc door.
VOLUME control
11.OPEN knob
Adjusts the volume.
Press the open knob to open the disc door.
Headphone jack
12.Remote sensor
STOP button
Senses the remote control's signals.
Press to stop playing a disc.
13.ON indicator
MENU button
14.CHARGING indicator
Accesses DVD Disc Menu if DVD disc is currently Charge the rechargeable battery before using it for
playing.
the first time. Complete charging typically takes
Accesses Setup menu if disc is not playing.
approximately 4-5 hours. The charging light will go
button
out when the battery becomes fully charged.
Press to start or resume playback of a disc.
AC power
adapter
If your TV has audio/video inputs, you
can connect the unit to your TV using
standard Audio/Video cables.
TV
White Red Yellow
To AUDIO /
Watching a DVD on your TV
VIDEO OUT
1. Turn on the unit.
jacks
2. Tu r n o n t h e T V a n d fo l l ow t h e
instructions included with it to
watch video from external sources.
Audio / Video cable
(not included)
B. Using Headphones/Earphones
• Turn down the volume before connecting, and then adjust the
level.
• When headphones/earphones are connected, no sound will be
emitted from the unit's speaker.
Caution:
Avoid listening to sound at levels which may be harmful to your ears.
Headphones
/Earphones
(3.5mm diameter plug)
(not included)
C. Connecting a USB connector port
You can connect a USB flash drive (not included) to the USB port on the unit to play DivX® movies as well as
picture files.
• Plug the USB flash drive to the USB port on the unit.
• In DVD mode, press STOP button once to stop DVD playing, press STOP button three times to change
to USB mode.
For operation of file playback on the USB flash drive, please refer to the section “PLAYING DivX® VIDEO OR
PICTURE FILES”.
Note:
• It is recommended USB flash drive is plugged when the unit is in STANDBY mode.
• It does not support USB harddisk mass storage device, multi-card reader and other USB computer
peripheral.
• It only supports USB flash drive (FAT32/16 max. capacity 32G bytes max, video bitrate is 7Mbps).
• Make sure your USB flash drive or SD card is FAT16/FAT32 file system. All other file system will not be
supported.
D. Using a SD Card Slot
You can connect a Secure Digital (SD) card (not included) to the memory expansion card slot on the unit to
play sound & picture files.
• Plug the SD card fully into the memory expansion card slot on the unit until it clicks.
• In DVD mode, press STOP button once to stop DVD playing, press STOP button three times to change
to mode (DVD/USB/SD). In memory expansion card mode, it reads the information of the SD card and
playing the picture and/or sound file(s).
Warning:
• It is recommended the SD card is plugged when the unit is in STANDBY mode.
• If the SD card is oriented incorrectly, it will not go fully into the slot. Do not apply force when inserting the
SD card.
• To remove the SD card, push the SD card into the slot and then slowly remove your finger, the lock is
released and the SD card is pushed out.
• Make sure to use correct Audio/Video cable, wrong plug connection may cause weak signal.
• If you have a stereo VCR, make sure you set it in stereo mode.
• Due to copyright protection, DVD movies cannot be copied. If you copy a DVD movie onto a videotape,
the resulting copy will be unclear, with poor sound quality. This is NOT caused by a defective DVD system.
Note:
Pressing STOP button is for "function change" between DVD/CD/CD-ROM, USB and/or SD Card mode.
• To stop, press STOP button. Pressing
button can resume in previous playback position. If STOP
button is pressed three times, the unit trys to find the content of disc ("LOADING..." is shown), to find the
content of USB ("READ USB" is shown) and to find the content of SD ("READ CARD" is shown).
• To change media (e.g. change DVD/CD/CD-ROM to USB), press STOP twice for function change.
• If only DVD/CD/CD-ROM exists, "NO USB/NO CARD" is shown as indication.
• Please make sure your USB flash drive or SD card is FAT file system instead of NTFS file system. The DVD
unit does not support NTFS file system.
E. Connecting to HDMI
HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for
use with DVD players, set-top boxes and other digital AV devices.
HDMI, the HDMI logo
trademarks of HDMI licensing LLC.
5 Recharging
the switch
3 Slide
to CHARGE
A. Connecting a TV
HDMI has the capability to support standard, enhanced or high-definition video plus standard to multi-channel
surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes
per second (with HDTV signals), one connector (instead of several cables and connectors), and communication
between the AV source and AV devices such as DTVs.
AC power
1 To
outlet
DC IN 9V
2 To
- 12V Jack
Connections
White Red Yellow
Region Management Information: This unit is designed and manufactured to respond to the Region Management
Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number
of this unit, it cannot play that disc.
4 Charging
light ON
is completed
when charging
light goes out
Warning:
• The built-in battery can only be recharged when the unit is in CHARGE mode while using the AC power
adapter.
• The built-in battery cannot be recharged when the unit is in ON mode.
• Do NOT recharge the built-in battery in a vehicle using the car power adapter.
• Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
Note:
• When the built-in battery power is low, "Battery Low" will display on the screen and the unit will stop
playing.
• Recharge the built-in battery when you are ready to use it again.
• While using the built-in battery, the environmental temperature should be 41°F (5°C) to 95°F (35°C).
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not
disassemble, heat above 212oF (100oC), or incinerate.
• The unit should not be exposed to excessive heat such as sunshine, fire or the like.
• When discarding the unit, environmental problems must be considered and local rules or laws governing
the disposal of such products must be strictly followed.
and High-Definition Multimedia Interface are trademarks or registered
For TVs that support it, HDMI can provide the best quality audio and video output (depending on media
source), and so is the preferred connection type. The HDMI cable (not included) incorporates both audio
and video signals, so you will have just one cable running from the unit to your TV. Using the HDMI cable
(not included), connect the HDMI OUT jack on your unit to the HDMI IN jack on your TV or HDMI-compatible
display.
HDMI jack (on the rear of unit)
The HDMI cable
(not included)
Note:
• Connect the cable from the source equipment (HDMI IN) to the rear of this unit (HDMI OUT), be sure to
turn off the power and unplug both units from the wall outlet before making any connections.
• When using the HDMI cable, do not connect to other analog video outputs.
• In DVD mode, press STOP button once to stop DVD playing. In HDMI mode, it reads both video and
audio sources.
Turning on the Unit
1. Slide the CHARGE / STANDBY / ON switch on the left side of the unit to the ON
position.
2. The start-up picture will appear on the screen.
3. After use, slide the CHARGE / STANDBY / ON switch to the STANDBY (power off )
position.
E-3
E-4
2010-5-4 17:12:38
Playing a Disc (Basic Playback)
Repeat Playback
This owner’s manual explains the basic instructions for operating this unit. Some DVDs are produced in a
manner that allows specific or limited operation during playback. Therefore, this unit may not respond to
all operating commands. THIS IS NOT A DEFECT. Please refer to the instructions accompanying the specific
DVD in question for more information about the options available on that DVD.
“
” may appear on the screen during operation. A “
” means the desired operation is not permitted
by the unit or disc.
Playing a Disc
You can play a specific DVD title or chapter repeatedly (title repeat, chapter repeat, A-B repeat).
This unit can play DivX® and picture files recorded on CD-R/CD-RW discs, USB flash drive and SD card.
1. While the DVD is playing, press the REPEAT DISC button until the “ Repeat Chapter ” indicator displays on
the screen. The current chapter is played repeatedly.
To play video files on this product you must first convert them to DivX format using the DivX Plus Player
on your PC or MAC. This application can be downloaded at www.divx.com. Please do so, and then install
on your PC or MAC.
Repeating a Chapter
Repeating a Title
2. While the DVD is playing, press the REPEAT DISC button until the “ Repeat Title ” indicator displays on the
screen. The current title is played repeatedly.
Slide the CHARGE / STANDBY / ON switch on the left side of the unit to the ON position.
See Customizing the function settings before proceeding to step 2.
Press the OPEN knob to open the disc door.
Hold the disc by its sides and carefully place it onto the spindle with the label side facing up, pushing
gently until you hear a “click”.
4. Close the disc door. It takes a short while for your unit to load the disc. After loading, the unit will
automatically bring you to the main menu of the DVD or start playing the DVD.
5. If the unit does not automatically start playing the DVD, press the  PLAY button on the remote control
or
button on the unit.
To Resume Normal Playback
Pausing Playback (Still Mode)
2. While the CD is playing, press the REPEAT DISC button until the “ Repeat all ” indicator displays on the
screen. The whole disc is played repeatedly.
1.
2.
3.
Press the PAUSE button. To resume normal playback, press the
PLAY button on the remote control or
button on the unit.
For a DVD, each time you press the PAUSE button on the remote control, the picture advances one frame.
Stopping Playback
Press the STOP button at the location where you want to interrupt playback. To resume playback at the
position where the disc was stopped, press the PLAY button on the remote control or button on the unit.
If you press the STOP button twice, the unit’s memory will be cleared and pressing the PLAY button on the
remote control or button on the unit will reset the DVD to the beginning.
Fast Forward / Fast Reverse
1. Press the SEARCH
or
SEARCH button when a disc is
playing. Each time you press the SEARCH
or
 SEARCH
button, the playback speed changes in the following
sequence:
x2
x4
x8
x20
x2
x4
x8
x20
2. Press the
PLAY button on the remote control or press the
button on the unit when you reach the
desired point to resume normal playback.
Note:
• The DVD player mutes sound and subtitles during reverse and forward scan of DVDs.
• The fast playback speed may differ depending on the disc.
3. While the DVD is playing, press the REPEAT DISC button until the “ Repeat all ” indicator displays on the
screen.
You can play a single CD track or the whole disc repeatedly.
Repeating a Single Track
1. While the CD is playing, press the REPEAT DISC button until the “ Repeat single ” indicator displays on the
screen. The current track is played repeatedly.
Repeating the Whole Disc
Audio Selection
On some DVDs, the sound is recorded in two or more formats. Follow the directions below to select the preferred
language and sound system.
1. While a disc is playing, press the AUDIO button to show the current
[ 1 ENGLISH
D5.1CH ]
audio format number.
2. Press the AUDIO button repeatedly to select the desired audio format.
Note:
• If only one audio format is recorded on the DVD, the number does not change.
• Some DVDs allow you to change audio selections using the disc menu only. If this is the case, press the
MENU button and choose the appropriate language on the disc menu.
• You can select different audio channels ( Left, Right, Mono or Stereo) on an Audio CD by pressing the
AUDIO button repeatedly.
Subtitle Selection
1. While a DVD is playing, press the SUBTITLE button to display the
[ 1 ENGLISH ]
current language setting, as shown in the example.
2. Press the SUBTITLE button repeatedly to select the desired subtitle language. You can turn subtitles off by
pressing the SUBTITLE button repeatedly until the “ OFF ” is displayed.
Note:
• Some DVDs are set to display subtitles automatically, and you cannot turn them off even if you set the
subtitle function to off.
• During some scenes, the subtitles may not appear immediately after you select your desired scene.
• The number of subtitle languages recorded differs depending on the disc. If only one language is recorded,
the language does not change.
• This function can only be used for discs on which subtitles have been recorded in multiple languages.
• Some DVDs allow you to change subtitles using the disc menu only. If this is the case, press the MENU
button and choose the appropriate subtitle on the disc menu.
Angle Selection
Some DVDs contain scenes that have been shot from a number
of different angles. For these discs, the same scene can be viewed
from each of these different angles.
1. While you are playing a DVD with different angles recorded,
press the ANGLE button to view the number of current angles
available.
2. Press the ANGLE button repeatedly to change the scene to the
next recorded angle.
• After approx. two seconds, playback will continue
from the new angle selected.
• If no button is pressed within 10 seconds, playback
continues without changing the current angle.
Note:
This function can only be used for discs on which scenes
shot from multiple angles have been recorded.
Display Function
While the disc is playing, press the DISPLAY button
repeatedly to display information on operation status.
Elapsed Time:
Elapsed time from the beginning of the chapter/title
which is currently playing.
Remaining Time:
Remaining time of the chapter/title which is currently
playing.
Adjust the LCD Screen
You can adjust Brightness, Ratio and Contrast of the LCD screen.
1. Press the VIDEO MODE button.
2. Press the / button to select Brightness, Ratio or Contrast.
3. Press the / button to change the setting.
4. Press the VIDEO MODE button to exit the menu.
E-5
DRC99380U_ENGLISH IB_May 4.indd 2
1. Press the SETUP button on the remote control or MENU button on the
unit in stop mode (when disc is not playing).
2. Press the / button to select TV System Menu.
3. Press the / button to select the option, then press the button.
4. Press the / button to adjust the settings, then press the ENTER
button to confirm.
5. Repeat steps 3 and 4 to adjust other options.
6. Press the SETUP or RETURN button to exit the menu.
TV System
Default
View DivX(R) VOD
Screen Saver
Default
It takes 3-5 seconds to reset the DVD settings to the factory default.
Playing DivX® Video/ Picture Files
If playing DivX video or picture files from a USB drive or SD card, see note
below.
1. Press the OPEN knob to open the disc door.
2. Place a DivX® / picture file disc onto the tray with label side up.
3. Close the disc door.
4. A selection menu will appear on the screen.
5. Press or button to select the
picture or
video icon, and then
press ENTER.
View DivX(R) VOD
DivX® Registration
DivX® registration code allows you to rent and purchase movies using the DivX® VOD service from the internet.
This menu setting will display the registration code of your unit as follows:
ENTER
YOU MUST REGISTER YOUR DEVICE TO PLAY
DIVX PROTECTED VIDEOS.
To Resume Normal Playback
3. While the CD is playing, press the REPEAT DISC button until the “ Off ” indicator displays on the screen.
Repeating a Specific Section
You can play a specific section repeatedly.
1. While the disc is playing, press the REPEAT A-B button at the beginning of the section (“ Repeat A- ” is
displayed) you want to play repeatedly.
2. Press the REPEAT A-B button again at the end of the section (“ Repeat A-B ” is displayed).
3. The unit will immediately begin replaying your selection.
To Resume Normal Playback
4. While the disc is playing, press the REPEAT A-B button until the “ Repeat A-B Off ” indicator displays on
the screen (the repeat indicator disappears from the screen for a CD). The system will return to normal
playback.
Note:
• Some discs may not permit A-B repeat operation.
• You cannot set the A-B repeat function for a segment that includes multiple camera angles.
• You can specify a segment only within the current title or track.
• There may be a slight difference between point A and the location where playback actually resumes
depending on the disc.
Skip (Forward / Reverse)
• Press the
NEXT button to advance titles, chapters/tracks.
• Press the
PREV button to go back to current or previous titles, chapters/tracks.
• For an Audio CD, use the number buttons on the remote control to go directly to the desired track number.
System Setup
Playing DivX® Video or Picture files
If picture mode is selected, use below to nevigate the menu:
/ : selects a file
/ : page up or down
RETURN : returns to previous menu
ENTER : plays your selected file
Note:
• For playing files on USB flash drive or SD card, you should plug in the USB flash drive or SD card when the
unit is in STANDBY mode. then follow step 5.
• You can press the
button to interrupt playback, and press the
PLAY button to resume playback.
• You also can use the GOTO button or use the numbered buttons to enter a photo number and quickly select
any image.
• During playback, press ANGLE button repeatedly to rotate the picture.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device
that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into
DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Videoon-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup
menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX
VOD.
DivX Certifed® to play DivX® video, including premium content.
Customizing the Function Settings
Locating a Desired Section
If you know the chapter/title number for the chapter/title that you want to play, you can locate it by directly
selecting that number.
1. Press the GOTO button.
2. Press the / button to highlight chapter/title number, then press the corresponding number buttons for
the chapter/title you want (for example: 02, 08, 10 or 15). Press the ENTER button to confirm.
3. Playback starts from the selected chapter/title.
Note:
• If the chapter/title number entered is not permitted. Repeat steps 1 and 2 to re-enter the correct number.
• Some discs may not respond to this process.
• This method of locating a chapter/title is available only on a DVD that contains chapter/title numbers.
Locating a Specific Time
You can move to a specific location by entering its corresponding time (hours, minutes, seconds).
1. Press the GOTO button.
2. Press the corresponding number buttons (5 digits: X:XX:XX,
for example:
0 30 05, 1 08 23, 1 22 56) for the setting point you want.
3. Playback starts from the selected section.
Note:
• If the time entered is not permitted by the DVD, "
" will display. You should re-enter the correct time.
• Some discs may not respond to this process.
• Some scenes may not be located as precisely as you specified.
• This method for accessing specific locations is available only within the current title of the DVD.
Programmable Memory
You can combine your favorite titles/chapters/tracks and play
them in the order you determine.
1. Press the MEMORY button and a program screen appears.
2. Select the items in the order you want by pressing the
number buttons. Each time you press the Cursor buttons ( ,
, , ), the space is highlighted. Highlight where you want
to enter, then press the corresponding number buttons.
3. Press the Cursor buttons ( , , , ) to move the
highlighted bar to , then press the
PLAY or ENTER
button. The DVD player starts memory playback.
4. To resume normal playback from memory playback
a) Press the MEMORY button.
b) Press the Cursor buttons ( , , , ) to move the
highlighted bar to “Clear”, then press the ENTER button.
All the input programs will be cleared.
c) Press the PLAY button to resume normal playback.
Note:
• I f the title or chapter numbers you entered is not
permitted by the DVD, after you press the ENTER button,
it will restore to [- -]. You should re-enter correct numbers.
• Some discs may not permit memory playback operation.
• If you select repeat during memory playback, the DVD
player repeats the current memory playback.
• If you press the MEMORY button while the display
appears on the TV screen, the display disappears.
• The programmed selections will be cleared when you
open the disc tray or turn off the DVD player.
E-6
e.g. DVD
e.g. CD
1. Press the SETUP button on the remote control or MENU button on the
unit in stop mode (when disc is not playing).
2. Press the button to select Language Menu.
3. Press the / button to select the option, then press the button.
4. Press the / button to select your preferred language, then press the
ENTER button to confirm.
5. Repeat steps 3 and 4 to adjust other options.
6. Press the SETUP or RETURN button to exit the menu.
Registration service at http://vod.divx.com
Follow the instructions and download the movie from your computer onto a CD-R/RW or DVD+R/-R or
DVD+RW/-RW for playback on the unit.
Note:
• This registration code is for DivX® Video-On-Demand only. Do not apply this code for other applications or
websites.
• If you have already registered this product, selecting the View DivX(R) VOD setting will allow you to deregister
(deactivate) the product for DivX playback - we recommend you DO NOT deregister the product.
Screen Saver
To turn on or off the screen saver (screen protection to prevent image burn).
Note:
When you leave the unit in DVD stop mode for approxiamtely 5 minutes, the screen saver of the unit
automatically appears if you set the Screen Saver to On mode. To turn off the screen saver, press the
PLAY
button.
Sound System
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can
reproduce from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for twochannel listening. An additional Dolby Digital decoder is required for reproduction of the discrete multi-channel
soundtracks available on many DVDs.
Language
Player Menu
Subtitle
Audio
Disc Menu Lang
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Troubleshooting Guide
Note:
• Some DVDs may not play in the audio language you selected. A prior language may be programmed on the disc.
• Some DVDs may be set to display subtitles in a language other than the one you selected. A prior subtitle
language may be programmed on the disc.
• Some DVDs allow you to change subtitle selections using the disc menu only. If this is the case, press the
MENU button and choose the appropriate subtitle language from the selection on the disc menu.
• Some DVDs may not include your pre-selected language. In this case,
the DVD player automatically displays disc menus consistent with the
disc's initial language setting.
Video
Video Setup
REGISTER AT HTTP://VOD.DIVX.COM
Dolby Digital
Language Setup
Locating a Specific Chapter / Title
REGISTRATION CODE:
Symptom
Cause (and remedy)
No power.
• Ensure the AC power adapter is connected.
• The unit is not turned on.
The remote
control does
not function.
• Make sure the infrared remote sensor is not blocked.
• Make sure the plastic sheet has been removed from the remote control.
• Point the remote directly at the infrared remote sensor on the unit.
• Replace the battery in the remote control with a new one.
No sound or
only a very
low-level
sound is
heard.
• The volume control is located on the side of the unit – please try adjusting this.
• The system is in pause mode. Press the
button to return to normal play mode.
• The unit is in fast-forward or fast-reverse mode. Press the
PLAY button on remote control
to return to normal play mode.
• Make sure the AUDIO/VIDEO output connections are correct.
• The DTS DVD cannot be decoded to have speaker output.
• The unit is too hot; shut off the unit for 30 minutes to cool it down.
No picture.
• The region number of the disc doesn't match the region
number of this unit.
The picture is
not clear.
• Clean the disc.
• The disc is scratched.
• Adjust the LCD's brightness and contrast using the VIDEO MODE button on the remote control.
TV Display
1. Press the SETUP button on the remote control or MENU button on the
HDMI Res.
JPEG Interval
unit in stop mode (when disc is not playing).
2. Press the / button to select Video Menu.
3. Press the / button to select the option, then press the button.
4. Press the / button to adjust the setting, then press the ENTER
button to confirm.
5. Repeat steps 3 and 4 to adjust other options.
6. Press the SETUP or RETURN button to exit the menu.
TV Display
Depending on the format of the DVD disc, you can choose the picture format (aspect Cut off when a widescreen video image
ratio) best suited the format of your TV screen.
is played.
4 : 3PS
• When wide-screen video is played, this mode clips the right and left sides of the
image so that it can be viewed on a conventional screen.
• Some wide-screen DVDs that do not permit Pan Scan mode playback are automatically
played in letterbox mode (black bands that appear at the top and bottom of the
screen).
4 : 3PS
4 : 3LB
• When wide-screen video is played in this mode on a conventional screen, black bands
appear at the top and bottom of the screen.
16 : 9
• This is the correct mode for playing wide-screen videos on the unit screen or other
external wide-screens.
Note:
• The displayable picture size is preset on the DVD. Therefore the playback picture of
some DVDs may not conform to the picture size selected.
• When you play DVDs recorded in the 4:3 aspect ratio, the playback picture will always
appear in the 4:3 aspect ratio regardless of the TV display setting.
• Select 16:9 to conform the LCD screen on the unit. Always be sure that your TV display
conforms to the actual TV in use if you connect the unit to a TV.
Severe hum or • The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.
noise is heard. • Clean the disc.
The disc does
not play.
4 : 3LB
16 : 9
•
•
•
•
•
There is no disc inside (“No Disc” appears on the screen).
Insert the disc correctly with the playback side facing down.
Clean the disc.
A non-NTSC disc has been inserted. The unit and disc region number are incompatible.
Condensation may have formed inside the unit due to a sudden change in temperature.
Wait about an hour for it to clear and try again.
No sound is
• Check the connection between this unit and the HDMI IN jack of other equipment.
input from the • See if your TV supports this 480p/576p/720p/1080i DVD system.
HDMI IN.
• Make sure your TV supports HDCP (High Bandwidth Digital Content Protection).
Specifications and external appearance are subject to change without notice.
Need More Help?
HDMI Res. (Resolution)
You can set the HDMI Res. (Resolution) to be Auto, 480p, 720p, 1080i or 1080p, according to the connected TV.
Note:
• Select the HDMI resolution according to the performance of the connected TV.
• If the Video out is not set to HDMI, you cannot select the HDMI Res.
Please visit online help at http://www.RCAav.com
JPEG Interval
To set the JPEG Interval for slide show playback. Select Off to disable the slide show feature.
Off: Plays back one file at a time.
5 seconds Plays back images in the form of a slide show at 5 seconds interval.
10 seconds Plays back images in the form of a slide show at 10 seconds interval.
15 seconds Plays back images in the form of a slide show at 15 seconds interval.
E-7
Printed in China
E-8
811-938091W040
2010-5-4 17:12:40
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
