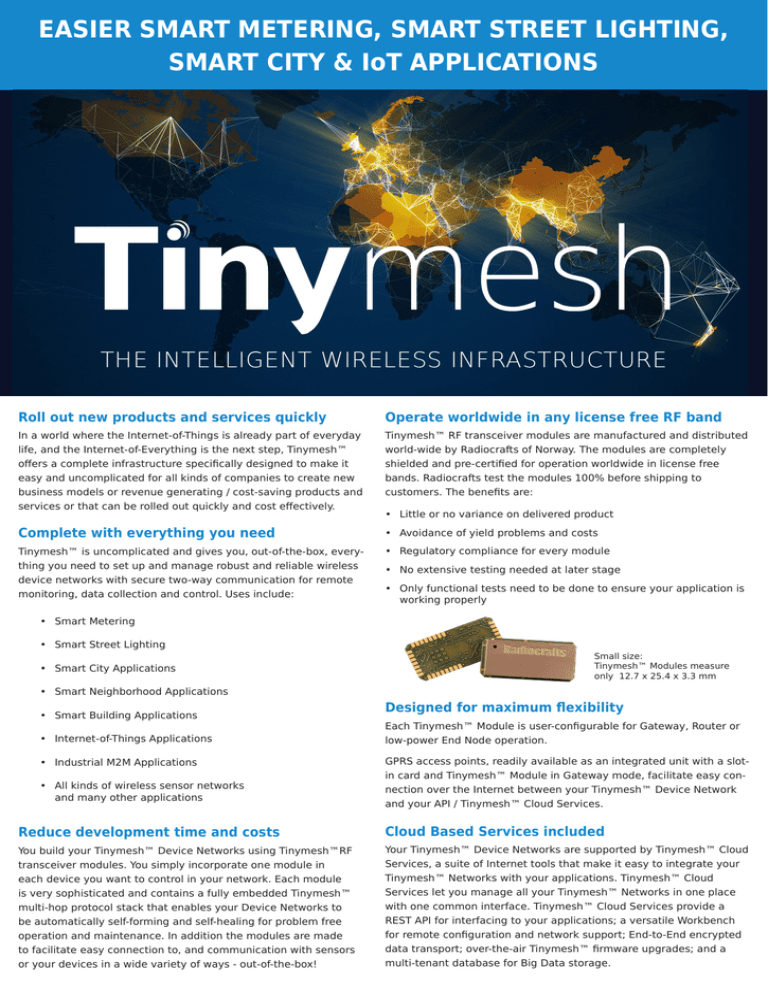

TinyMesh Brochure 2015
EASIER SMART METERING, SMART STREET LIGHTING,
SMART CITY & IoT APPLICATIONS
THE INTELLIGENT WIRELESS INFRASTRUCTURE
Roll out new products and services quickly
Operate worldwide in any license free RF band
In a world where the Internet-of-Things is already part of everyday
life, and the Internet-of-Everything is the next step, Tinymesh™
offers a complete infrastructure specifically designed to make it
easy and uncomplicated for all kinds of companies to create new
business models or revenue generating / cost-saving products and
services or that can be rolled out quickly and cost effectively.
Tinymesh™ RF transceiver modules are manufactured and distributed
world-wide by Radiocrafts of Norway. The modules are completely
shielded and pre-certified for operation worldwide in license free
bands. Radiocrafts test the modules 100% before shipping to
customers. The benefits are:
Complete with everything you need
• Avoidance of yield problems and costs
Tinymesh™ is uncomplicated and gives you, out-of-the-box, everything you need to set up and manage robust and reliable wireless
device networks with secure two-way communication for remote
monitoring, data collection and control. Uses include:
• Regulatory compliance for every module
• Little or no variance on delivered product
• No extensive testing needed at later stage
• Only functional tests need to be done to ensure your application is
working properly
• Smart Metering
• Smart Street Lighting
• Smart City Applications
• Smart Neighborhood Applications
• Smart Building Applications
• Internet-of-Things Applications
• Industrial M2M Applications
• All kinds of wireless sensor networks
and many other applications
Small size:
Tinymesh™ Modules measure
only 12.7 x 25.4 x 3.3 mm
Designed for maximum flexibility
Each Tinymesh™ Module is user-configurable for Gateway, Router or
low-power End Node operation.
GPRS access points, readily available as an integrated unit with a slotin card and Tinymesh™ Module in Gateway mode, facilitate easy connection over the Internet between your Tinymesh™ Device Network
and your API / Tinymesh™ Cloud Services.
Reduce development time and costs
Cloud Based Services included
You build your Tinymesh™ Device Networks using Tinymesh™RF
transceiver modules. You simply incorporate one module in
each device you want to control in your network. Each module
is very sophisticated and contains a fully embedded Tinymesh™
multi-hop protocol stack that enables your Device Networks to
be automatically self-forming and self-healing for problem free
operation and maintenance. In addition the modules are made
to facilitate easy connection to, and communication with sensors
or your devices in a wide variety of ways - out-of-the-box!
Your Tinymesh™ Device Networks are supported by Tinymesh™ Cloud
Services, a suite of Internet tools that make it easy to integrate your
Tinymesh™ Networks with your applications. Tinymesh™ Cloud
Services let you manage all your Tinymesh™ Networks in one place
with one common interface. Tinymesh™ Cloud Services provide a
REST API for interfacing to your applications; a versatile Workbench
for remote configuration and network support; End-to-End encrypted
data transport; over-the-air Tinymesh™ firmware upgrades; and a
multi-tenant database for Big Data storage.
The World’s Most Complete & Flexible Solution
Easier Smart Metering, Smart Street Lighting, Smart City & IoT Applications
Out in the field, Tinymesh™ makes it easy and uncomplicated for
you to connect to all your devices using Tinymesh™ Modules that do
not need additional micro-controllers. Back in your office or control
center Tinymesh™ makes it easy and uncomplicated for you to
connect your business application to all your devices deployed out
in the field so you can monitor them, control them and harvest data
from them by using Tinymesh™ Cloud Services. Tinymesh™ makes
it easy and uncomplicated for you and all your devices to communicate using the built-in powerful multi-hop wireless mesh network
capabilities of the Tinymesh™ Protocol Stack that is embedded in
every Tinymesh™ Module and is designed to operate anywhere in
the world using license-free ISM bands.
Tinymesh™ API
Customer Application
Tinymesh™
Connect - Communicate - Control
DEVICE 1
CLOUD SERVICES
GATEWAY
DEVICE 2
ROUTER
ROUTER
DEVICE 1
DEVICE 2
DEVICE 3
Tinymesh™
WORKBENCH
END NODE
DEVICE 3
Each Tinymesh™ Device Network can control just a few or several thousand devices with multiple gateway support, indoors or outdoors.
Tinymesh™Cloud Services
Tinymesh™API
Tinymesh™Workbench
Tinymesh™Device Networks
Manage all your Tinymesh™
Devices & Networks in one place
with one common interface.
Connects your business application to your Tinymesh™
Devices & Networks.
For development, testing, configuration and support of your
Tinymesh™ Devices & Networks.
Self-forming and self-healing multihop device networks built with
Tinymesh™ RF Transceiver Modules.
Multi-hop Mesh Protocol Stack and much more
Ultra Narrow Band option for extra power
Each Tinymesh™ Module’s firmware includes the Tinymesh™ multihop protocol stack embedded. This is a full-function, secure and robust multi-hop wireless mesh protocol stack, for remote data collection and two-way control. It also includes features that eliminate the
need for an additional micro-controller. With Tinymesh™ you get:
Open up the full potential of your Device Networks by using powerful Tinymesh™ Ultra Narrow Band Modules, just one of many options
available in the complete range of Modules (see last page).
• Bi-directional wireless communication
• Self-forming and self-healing
• Flexible input/output control
• Analog, digital, PWM, pulse counter and serial ports
• Individual, Group or Broadcast addressing
• Transparent serial or packet mode communication
• AES 128 encryption
• Configurable sleep mode and End Device operation
Designed for the shortest in-design time
Required electrical connections are reduced to a minimum for
easiest in-design and shortest time to market. For the minimum
configuration all you need are:
1. VCC and GND
2. Single-pin antenna interface
A Tinymesh™ demo kit with USB connectivity and PC Tools for
configuration and communication is available for evaluation and development work. The kit provides out-of-the-box operation, enabling
rapid evaluation and shortest in-design time.
Tinymesh™ RF Transceiver Modules with Powerful Standard Features
I/O features
No additional micro-controller needed
• Configurable digital input and output and analog inputs
Tinymesh™ enabled devices can be directly connected and controlled by the Tinymesh™ Module with no additional micro-controller
or firmware needed.
• Dimming control (0-100% PWM)
• Transparent Wire Replacement or packet communication
• Serial Port with bit rates to 230,400 bps, full software and
hardware handshake
• Pulse counter with configurable de-bounce timing, sampling
intervals, trigger hysteresis and detection feedback output
• Time generated, input level triggered and event triggered status
messages
• Serial Data Streaming support with block counter function
• Locater Function for asset tracking applications
• Polled or triggered alerts
• Input and Output configurations settable through network
commands
Tinymesh™ Modules have built-in network configurable I/O capabilities that include analog, digital, serial port, pulse counting and
dimming functions.
GPIO 0
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
PULSE CNT
—
—
—
—
—
—
—
—
—
HW features
• Selectable Gateway, Router or low power End Node
configuration
• Signal Strength LED and Network connection LED outputs for
simplified field installation
• 256 byte serial data input buffer for MODBUS RTU
compatibility
• Two-wire UART interface for easy RS 232/422/485 wire
replacement
• Small size (12.7 x 25.4 x 3.3mm), shielded and optimized for
SMD mounting
• No external components
• Wide supply voltage range, 2.0 - 3.9V
• Connects to existing or new hardware without external MCU or
additional firmware
• Built in temperature and voltage sensors
RF/Stack features
• Embedded Tinymesh™ networking protocol with bi-directional RF
data transfer
• Self-forming, self-healing and self-optimizing mesh network
• AES 128 encryption
• “Walk-by” mode for low power data logging and metering
applications
• Group, Broadcast or Individual addressing modes
• Clustered Node Detection and Network Congestion
Avoidance (CND/NCA™)
• RF Jamming Detection and Alarm, with alarm output and network
alarm messaging
• Network Busy Detection for ad hoc networks with multiple,
roaming Gateway Devices
|
VCC
|
GND
—
—
—
—
—
—
—
—
CTS
RTS
TXD
RXD
CONFIG
CONNECT LED
RSSI LED
RESET
Cost leader with lowest Total Cost of Ownership
The Tinymesh™ Stack embedded in every Tinymesh™ Module is a
set of general purpose low power RF protocols for intelligent
applications that require easy installation and reliable data
collection and control.
• Fully embedded
• Retransmission
• Self-forming
• Out-of-the-box operation
• Self-healing
• RF frequency selection
• Acknowledge
• Internet Cloud Support
Tinymesh™ RF modules are designed for operation in the
license-free ISM bands at 169-2450 MHz’s.
The compact Tinymesh™ Modules are easy to integrate and use, for
shortest possible time-to-market and lowest total cost of ownership
(TCO) for the end product.
Innovative technology for a greener planet
Tiny Mesh AS was awarded the prestigious “Innovator of the Year”
award in 2014, and previously nominated for the Rosing Smart IT
Prize awarded by The Norwegian Computer Society. In the Smart IT
category the jury emphasizes work where technology is an import
prerequisite for energy efficiency or optimization of energy consumption, enabling improvement of existing processes or creating
new or more sustainable businesses and processes.
Focus on your core business and profitability
The powerful Tinymesh™ Device Network command structure and
the versatile connection options allows Tinymesh™ users to focus
on their core business, while relying on Tinymesh™ for secure and
reliable connectivity in real-life environments.
Tinymesh™- a new paradigm making it easy to connect the unconnected
Tinymesh™ products and services are designed and developed by Tiny Mesh AS of Norway. Tinymesh™ solutions are unique and
designed to be complete and better and do more with less, with the end-user and the real-world always in mind. Tinymesh™
solutions are uncomplicated “out-of-the-box” solutions, with low total cost of ownership, that make it easy and uncomplicated for
all kinds of companies to create new products, services and business models by making it easier than ever before to connect,
communicate with and control all kinds of meters, sensors, actuators, assets, devices, tags and other things - anywhere in the world.
Max TX
power
LP
HP
UNB-HP
Sensitivity
1.2 / 100
Kbit/s
LP
HP
UNB-HP
Supply
voltage
LP
HP
UNB-HP
RX/TX
Current
LP
HP
UNB-HP
SLEEP
Current
LP
HP
UNB-HP
Temp.
Range
LP
HP
UNB-HP
424 - 447
458-468
17
13
173
239
1.2 - 100
0.3 - 100
0.3 - 100
0.3 - 100
11
27
14 / 27
14 / 27
-110 / -97
-118 / -102
-118 / -102
-118 / -102
2.0 - 3.6
2.8 - 3.6
2.8 - 3.6
2.8 - 3.6
24 / 35
31 / 407
31 / 318+63
31/297+72
0.3
0.6
0.6
0.6
-40 to +85
-30 to +85
-30 to +85
-30 to +85
865 - 867
865 - 867
868 - 870
868 - 870
865 - 870
865 - 927
902 - 927
902 - 927
2400 - 2483
2400 - 2483
15
15
18
18
94
83
50
50
83
83
1.2 - 100
1.2 - 100
1.2 - 100
1.2 - 100
0.3 - 100
1.2 - 100
1.2 - 250
1.2 - 250
1.2 - 100
1.2 - 100
11
27
11
27
14 / 27
11
11
27
1
18
-110 / -97
-109 / -96
-110 / -97
-109 / -96
-118 / -102
-110 / -97
-110 / -97
-109 / -96
-105 / -89
-108 / -91
2.0 - 3.6
2.7 - 3.3
2.0 - 3.6
2.7 - 3.3
2.8 - 3.6
2.0 - 3.6
2.0 - 3.6
2.7 - 3.3
2.0 - 3.6
2.0 - 3.6
24 / 37
24 / 560
24 / 37
24 / 560
31 / 297+72
24 / 37
24 / 37
24 / 560
25 / 27
30 / 155
0.3
3.4
0.3
3.4
0.6
0.3
0.3
3.4
0.4
1.3
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-30 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-20 to +85
-30 to +85
MHz
LP
HP
UNB-HP
169
RC2500-TM
RC2500HP-TM
Kbit/s
Data Rate
RC1760HP-TM
433 - 434
RC119x-TM
RC119xHP-TM
dBm
LP
HP
UNB-HP
RC1740HP-TM
RC1181TM
dBm
Channels
RC1701HP-TM
RC1180-TM
RC1180HP-TM
RC1780HP-TM
Volt
LP
HP
UNB-HP
RC117x-TM
RC117xHP-TM
mA
Frequency
RC114x-TM
uA
Parameter
LP
HP
UNB-HP
oC
Module „
Unit
Tinymesh™ RF Module Selector - Quick Reference Chart
The use of RF frequencies, data rates, maximum allowed RF power and duty-cycles are limited by national regulations.
License Free Band Selector / Requirements:
Use module:
Conformity with EU R&TTE directive (EN 300 220, EN 301 489, EN 60950)
RC1140/80(HP)-TM
Conformity with regulations for operation under FCC CFR 47 part 15
RC1190-TM
Compliance with G.S.R.564(E) (G.S.R.168(E))
RC1170(HP)-TM
Compliance with EN 300 328 (Europe), FCC CFR 47 part 15 (US) and ARIB STD-T66 (Japan)
RC2500(HP)-TM
Compliance to IEEE 802.15.4.g PHY mode 0 encoding when configured for RF Data Rate 8
RC117x-TM & RC117xHP-TM
For Narrow Band applications meeting EN 300 220-2 requirements
RC17XXHP-TM
Perfect for Smart Metering
A Tinymesh™ Module can interface directly to the
serial port of existing energy meters, allowing
meters to go online with minimal effort. Transparent mode operation allows direct transition from
wired MODBUS to wireless mesh without rewriting
a single line of code.
Perfect as an AMI Backbone
Tinymesh™ may be used as a wireless MODBUS
replacement or as a multi-hop backbone for pointto-point wireless devices such as Wireless M-bus.
Specialized Tinymesh™ Modules allow you to piggy
back Wireless M-bus and a Tinymesh™ self-forming and self-healing Device Network with two-way
communication, thus giving you the best of both
worlds with the minimum of development time and
costs. Used in conjunction with Tinymesh™ Cloud
Services it provides a very potent solution.
+
Head Office: Tiny Mesh AS
Løkkegata 15, 1532 Moss, Norway
Registered No.: NO 996 380 831 VAT
Tel.: (+47) 922 68 419
E-mail: [email protected]
Homepage: tiny-mesh.com
Perfect for Smart Street Lighting
Tinymesh™ is ideal for street lighting applications when large numbers of
message hops, connection redundancy and multi-Gateway support is
required for reliable operation. Together with the built-in configurable I/O and
PWM dimming, Tinymesh™ provides a fully embedded control and monitoring
solution. Set light dimming as a percentage value to the PWM output. Control
on and off switching with a digital output. Monitor power level and tamper
attempts directly with alarm-triggered inputs. Observe temperature and
operational voltage with the integration ready Tinymesh™ Module.
Perfect for simple surveillance
A rule of thumb states 50% of hotel mini-bars are not used, so a simple door
switch connected to the triggered input of a Tinymesh™ Module allows hotels
to save valuable time when checking mini-bars. No more wasted time to check
unused mini-bars; no more lost revenue due to undetected pilferage or
non-reported usage.
Perfect for sophisticated monitoring
Intelligent building management requires real-time data about indoor and
outdoor environmental conditions. Using a specially developed Room Sensor,
room temperature, air humidity, carbon dioxide concentrations, noise level,
light intensity and proximity movement can be continuously monitored. All
signals are handled directly by a single Tinymesh™ Module.
India: Tinymesh Radiocrafts India LLP
Tel.: +91 - 9711053588
E-mail: [email protected]
Homepage: tmrcindia.com
E A S I E R & S M A RT E R
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
