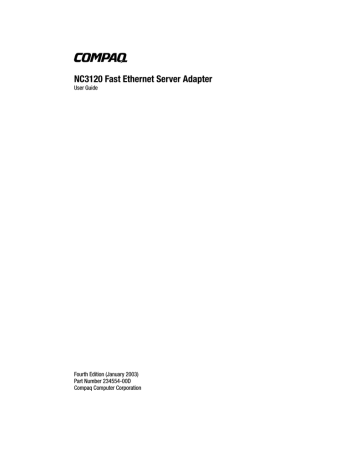

NC3120 Fast Ethernet Server Adapter
User Guide
Fourth Edition (January 2003)
Part Number 234554-00D
Compaq Computer Corporation
Notice
© 2001, 2003 Compaq Information Technologies Group, L.P.
Compaq, the Compaq logo, and ProLiant are registered in U.S. Patent and Trademark Office.
Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States and
other countries.
Intel is a trademark of Intel Corporation in the United States and other countries.
The Open Group and UNIX are trademarks of The Open Group in the United States and other countries.
All other product names mentioned herein may be trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information
in this document is provided “as is” without warranty of any kind and is subject to change without notice.
The warranties for Compaq products are set forth in the express limited warranty statements accompanying
such products. Nothing herein should be construed as constituting an additional warranty.
Compaq NC3120 Fast Ethernet Server Adapter User Guide
Fourth Edition (January 2003)
Part Number 234554-00D
Contents
About This Guide
Symbols in Text .......................................................................................................... v
Compaq Technician Notes ......................................................................................... vi
Where to Go for Additional Help............................................................................... vi
Compaq Customer Support ....................................................................................... vii
Compaq Website................................................................................................ vii
PaqFax Number ................................................................................................. vii
Calling the Compaq Support Line .................................................................... viii
Chapter 1
Introduction
Overview.................................................................................................................. 1-1
Hardware Overview ................................................................................................. 1-1
LED Indicators.................................................................................................. 1-2
UTP Category 3 or Category 5 Cable ............................................................... 1-2
Chapter 2
Installing the Adapter
Electrostatic Discharge Precautions ......................................................................... 2-1
Installing the Adapter in a Server............................................................................. 2-2
Connecting the Network Cable ................................................................................ 2-3
Appendix A
Regulatory Compliance Notices
Federal Communications Commission Notice........................................................ A-1
Modifications ................................................................................................... A-1
Declaring of Conformity for Products Marked with the FCC Logo – United
States Only....................................................................................................... A-1
Canadian Notice...................................................................................................... A-2
Avis Canadien.................................................................................................. A-2
European Union Notice........................................................................................... A-2
China Taiwan Notice .............................................................................................. A-3
Japanese Notice....................................................................................................... A-3
Appendix B
Electrostatic Discharge
Grounding Methods ................................................................................................ B-1
iv Compaq NC3120 Fast Ethernet Server Adapter User Guide
Appendix C
Specifications
NC3120 Fast Ethernet Server Adapter Specifications ............................................ C-1
UTP Cable Specifications ....................................................................................... C-2
10BASE-T ....................................................................................................... C-2
100BASE-T ..................................................................................................... C-2
RJ-45 Pinouts and Crossover Function ................................................................... C-2
10/100 Straight-Through Pinouts..................................................................... C-2
10/100 Crossover Pinouts ................................................................................ C-3
About This Guide
This user guide can be used for reference when installing the Compaq NC3120 Fast Ethernet
Server Adapter.
WARNING: To reduce the risk of personal injury from electrical shock and hazardous energy
levels, only authorized service technicians should attempt to repair this equipment. Improper
repairs could create conditions that are hazardous.
IMPORTANT: The installation of options and servicing of this product shall be performed by individuals
who are knowledgeable of the procedures, precautions, and hazards associated with equipment
containing hazardous energy circuits.
Symbols in Text
These symbols may be found in the text of this guide. They have the following meanings.
WARNING: Text set off in this manner indicates that failure to follow directions in the warning
could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents clarifying information or specific instructions.
NOTE: Text set off in this manner presents commentary, sidelights, or interesting points of information.
vi Compaq NC3120 Fast Ethernet Server Adapter User Guide
Compaq Technician Notes
WARNING: Only authorized technicians trained by Compaq should attempt to repair this
equipment. All troubleshooting and repair procedures are detailed to allow only
subassembly/module level repair. Because of the complexity of the individual boards and
subassemblies, no one should attempt to make repairs at the component level or to make
modifications to any printed wiring board. Improper repairs can create a safety hazard. Any
indications of component replacement or printed wiring board modifications may void any
warranty.
WARNING: To reduce the risk of personal injury from electrical shock and hazardous energy
levels, do not exceed the level of repair specified in these procedures. Because of the
complexity of the individual boards and subassemblies, do not attempt to make repairs at the
component level or to make modifications to any printed wiring board. Improper repairs could
create conditions that are hazardous.
WARNING: To reduce the risk of electric shock or damage to the equipment:
■ If the system has multiple power supplies, disconnect power from the system by
unplugging all power cords from the power supplies.
■ Do not disable the power cord grounding plug. The grounding plug is an important safety
feature.
■ Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at
all times.
CAUTION: To properly ventilate your system, you must provide at least 12 inches (30.5 cm) of
clearance at the front and back of the computer.
CAUTION: The computer is designed to be electrically grounded. To ensure proper operation,
plug the AC power cord into a properly grounded AC outlet only.
Where to Go for Additional Help
For additional information, refer to the README files in the \DIAGS directory on the Compaq
Software and Documentation CD. To view these files, insert the Software and Documentation
CD, switch to the \DIAGS directory on that drive, and enter:
SETUP /README
About This Guide
Compaq Customer Support
You can reach Compaq automated support services 24 hours a day, every day at no charge. The
services provide the most up-to-date information about Compaq products. You can access
installation instructions, troubleshooting information, and general product information from the
Compaq website.
For comprehensive online support, refer to:
http://www.compaq.com
For international information, refer to:
http://www.compaq.com/corporate/overview/world_offices.html
Compaq Website
For Compaq Web-based support services, visit:
http://www.compaq.com/support
Navigate to a specific product and then look for support information from this list of support
resources.
For a complete list of available SoftPaq files, navigate to:
http://www.compaq.com/support/files/allsp.html
Send email to:
[email protected]
PaqFax Number
The Compaq fax-on-demand retrieval system provides product-specific information. To use the
fax system, you must be in North America and you must have a fax machine or fax modem to
receive the automated fax transmittals. Call 1-800-345-1518, option 1, and request a product
catalog. After you receive the catalog, you can order the documents through the Compaq faxon-demand retrieval system.
vii
viii
Compaq NC3120 Fast Ethernet Server Adapter User Guide
Calling the Compaq Support Line
When you call the Compaq Support line, you must be at your server with your software running
and the product documentation at hand. The Compaq technician may ask for the following
information:
■
Your address and telephone number
■
The name and model number of the Compaq product you are calling about
■
The serial number of your Compaq product
■
The names and version numbers of the software you are using to operate the Compaq
product
■
The name and version number of the operating system you are using
■
The system type (manufacturer and model number)
■
The expansion boards or add-in cards in your server
■
The amount of memory in your server
North America
The Compaq Customer Support department for North America can be reached at
1-800-652-6672 (1-800-OKCOMPAQ). For continuous quality improvement, calls may be
monitored or recorded.
Europe, the Middle East, and Africa
In Europe, the Middle East, and Africa, contact your local Compaq authorized service provider.
Details of your local Compaq authorized service provider can be obtained from your Compaq
authorized reseller, dealer, or from the Compaq website at:
http:// www.compaq.com
Worldwide Access
Compaq has technical support centers worldwide. Many of the centers are staffed by technicians
who speak the local languages. For a list of Compaq support centers, go to:
http://www.compaq.com
From the Compaq Worldwide home page, select your country and click Go to find the nearest
Compaq office.
Chapter
1
Introduction
Overview
For the latest functionality, features, and operating system support for the NC3120 Server
Adapter, see the networking page at
compaq.com
Hardware Overview
The NC3120 Server Adapter has three diagnostic LED indicators that show if there is a problem
with the connector, cable, or hub.
Figure 1-1. Compaq NC3120 Server Adapter
1-2
Compaq NC3120 Fast Ethernet Server Adapter User Guide
LED Indicators
The following table describes the NC3120 Sever Adapter LED indicators.
Table 1-1
LED Operations for the NC3120 Server Adapter
LED
Display
Description
LNK
On
Link to the adapter is established. The adapter is receiving power and the cable
connection is secure.
Off
There is no link to the adapter. The adapter is not receiving power or the cable
connection is faulty.
On or
flashing
The adapter is sending or receiving network data. The frequency of the flashes
varies with the amount of network traffic. The adapter is receiving power and
the cable connection is secure.
Off
No network data is being sent or received. The adapter is not receiving power or
the cable connection is faulty.
On
The adapter is sending or receiving data at 100 Mb/s.
Off
The adapter is sending or receiving data at 10 Mb/s.
ACT
100 Mb/s
UTP Category 3 or Category 5 Cable
The NC3120 Server Adapter can use existing Category 3 (or better) cable to deliver 10 Mb/s
operation, and Category 5 (or better) cable to deliver 100 Mb/s operation.
For information about connecting cables, see “Connecting the Network Cable” in Chapter 2.
IMPORTANT: If you are using the NC3120 Server Adapter in a residential environment, you must use a
Category 5 (or better) cable. For more information on 100Base-TX wiring requirements and limitations,
see the text files on the Compaq Software and Documentation CD.
Chapter
2
Installing the Adapter
This chapter describes installation precautions and explains how to install the adapter. It also
describes how to connect the network cable.
WARNING: To avoid the risk of personal injury or damage to the equipment, consult the safety
information and user documentation provided with your equipment before attempting the
installation of the adapter.
Many computers are capable of producing energy levels that are considered hazardous. Users
should not remove enclosures, nor should they bypass the interlocks provided for removal of
these hazardous conditions.
Installation of this adapter should be performed by individuals who are both qualified in the
servicing of computer equipment and trained in the hazards associated with products capable
of producing hazardous energy levels.
NOTE: Before removing the cover of your server, refer to the Compaq documentation for the proper
methods for installing a PCI card and avoiding electric shock hazards.
Electrostatic Discharge Precautions
A discharge of static electricity from a finger or other conductor can damage components on the
adapter. This can make the adapter inoperable. In addition to the following information, see
Appendix B for more precautions.
To prevent electrostatic damage, observe the following precautions:
■
Always properly ground yourself when touching a static-sensitive component or assembly.
■
Avoid hand contact by transporting and storing parts in static-safe containers.
■
Keep electrostatic-sensitive parts in their containers until they arrive at static-free
locations.
■
Place parts on a grounded surface before removing them from their containers.
■
Avoid touching pins, leads or circuitry.
2-2 Compaq NC3120 Fast Ethernet Server Adapter User Guide
Installing the Adapter in a Server
Refer to the documentation provided with your server for the specific steps necessary to safely
install a PCI card in your server.
Figure 2-1. Installing the adapter in a server
1. If the server is not PCI Hot Plug compliant, power down the server and unplug the power
cord.
2. Remove the server cover and the cover bracket from a PCI slot.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the internal system
components to cool before touching them.
CAUTION: If the device is not PCI Hot Plug compliant, power down the device and unplug the
power cord rom the power outlet before removing the device cover. Failure to do so may
damage the adapter or computer.
3. Firmly seat the adapter in a PCI slot and secure the adapter bracket.
4. Replace the server cover and plug in the power cord.
Installing the Adapter
Connecting the Network Cable
Network connections for the NC3120 Server Adapter can employ existing UTP Category 5
(or better) cable for 100 Mb/s transmissions, and UTP Category 3 (or better) cable for 10 Mb/s
transmissions.
2-3
Appendix
A
Regulatory Compliance Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
■
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device
that are not expressly approved by Compaq Computer Corporation may void the user’s authority
to operate the equipment.
Declaring of Conformity for Products Marked with the FCC Logo –
United States Only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
A-2 Compaq NC3120 Fast Ethernet Server Adapter User Guide
For questions regarding your product, contact:
Compaq Computer Corporation
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
or call 1-800-652-6672 (1-800-OK COMPAQ). (For continuous quality improvement, calls may
be recorded or monitored.)
For questions regarding this FCC declaration, contact:
Compaq Computer Corporation
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
or call (281) 514-3333.
To identify this product, refer to the Part, Series, or Model number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union Notice
Products with the C0E Marking comply with both the EMC Directive (89/336/EEC) and the
Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms (in
brackets are the equivalent international standards):
■
EN55022 (CISPR 22) – Electromagnetic Interference
■
EN55024 (IEC61000-4-2,3,4,5,6,8,11) – Electromagnetic Immunity
■
EN61000-3-2 (IEC61000-3-2) – Power Line Harmonics
■
EN61000-3-3 (IEC61000-3-3) – Power Line Flicker
■
EN60950 (IEC950) – Product Safety
Regulatory Compliance Notices A-3
China Taiwan Notice
Japanese Notice
Appendix
B
Electrostatic Discharge
To prevent damage to the system, be aware of the precautions you need to follow when setting
up the system or handling parts. A discharge of static electricity from a finger or other conductor
may damage system boards or other static-sensitive devices. This type of damage may reduce
the life expectancy of the device.
To prevent electrostatic damage, observe the following precautions:
■
Avoid hand contact by transporting and storing products in static-safe containers.
■
Keep electrostatic-sensitive parts in their containers until they arrive at static-free
workstations.
■
Place parts on a grounded surface before removing them from their containers.
■
Avoid touching pins, leads, or circuitry.
■
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when
handling or installing electrostatic-sensitive parts:
■
Use a wrist strap connected by a ground cord to a grounded workstation or computer
chassis. Wrist straps are flexible straps with a minimum of 1 megohm ±10 percent
resistance in the ground cords. To provide proper ground, wear the strap snug against the
skin.
■
Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both
feet when standing on conductive floors or dissipating floor mats.
■
Use conductive field service tools.
■
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have a Compaq
authorized reseller install the part.
NOTE: For more information on static electricity or assistance with product installation, contact your
Compaq authorized reseller.
Appendix
C
Specifications
NC3120 Fast Ethernet Server Adapter Specifications
Table C-1
NC3120 Fast Ethernet Server Adapter Specifications
Specification
Description
Network Controller Chipset
Intel 82558 MAC
Data Transfer Method
32-bit/33MHz PCI (Bus Master DMA)
Standards Supported (Varies by OS)
IEEE 802.3u, 802.3ad (static configuration mode only), 802.3x,
802.1p, 802.1Q
Dimensions
5.4 x 4.8 inches (L x W), 13.7 cm x 12.2 cm (including bracket)
Connector and Distances
One RJ-45, 100 meters (328 feet)
Interrupts Supported
Automatically configured
Temperature Range
Operating: 10° C to 55° C / 50° F to 131° F
Storage: -20° C to 65° C / -4° F to 149° F
Relative Humidity
Operating: 10% to 90%
Storage: 5% to 95%
Agency Approvals
■ FCC Class B
■ EN55024
■ CISPR 22 Class B
■ UL
■ EN60950
■ Canada UL
■ EN 55022 Class B
■ ICES-003 Class B
Power Requirement
470 mA @ 5V DC max
Data Transmission Rate
10/100 (Full- and Half-duplex)
C-2 Compaq NC3120 Fast Ethernet Server Adapter User Guide
UTP Cable Specifications
To connect to the network, the NC3120 adapter uses the following cable.
10BASE-T
■
Category 3 (or better) UTP twisted-pair
■
22-26 AWG, 100Ω at 1MHz
■
EIA/TIA 568a or EIA/TIA 568b
100BASE-T
■
Category 5 (or better) UTP twisted pair
■
22-26 AWG, 100Ω at 1MHz
■
EIA/TIA 568a or EIA/TIA 568b
RJ-45 Pinouts and Crossover Function
The Ethernet standard also specifies that each segment implement a crossover function to
connect the transmitter of one device to the receiver of a device at the other end, and vice-versa.
The crossover function may be implemented internally at the hub or switch, or externally
through the twisted-pair media.
10/100 Straight-Through Pinouts
If the crossover function is implemented internally, the port is labeled MDI-X (Medium
Dependent Interface–Crossover). When an MDI-X port is connected to an MDI port, the
twisted-pair media should be wired straight-through using the physical pinouts indicated in
Table C-2.
Table C-2
10/100 Pinouts Using Internal, Straight-Through Crossover
Pin
Function
Color Match
Function
Pin
1
TD+
White/Orange
TD+
1
2
TD-
Orange/White
TD-
2
3
RD+
White/Green
RD+
3
4
Blue/White
4
5
White/Blue
5
6
RD-
Green/White
RD-
6
7
White/Brown
7
8
Brown/White
8
Specifications C-3
Figure C-1 shows the straight-through 10/100 connector wiring to be used when the crossover
function is implemented on the hub or switch.
Figure C-1. 10/100 straight-through wiring for RJ-45 connector
10/100 Crossover Pinouts
When the crossover function is not provided within the hub or switch, you must implement the
crossover through the twisted-pair media using the physical pinouts indicated in Table C-3.
Table C-3
10/100 Pinouts Using External Crossover
Pin
Function
Color Match
Function
Pin
1
TD+
White/Orange
RD+
3
2
TD-
Orange/White
RD-
6
3
RD+
White/Green
TD+
1
TD-
2
4
Blue/White
5
White/Blue
6
RD-
Green/White
7
White/Brown
8
Brown/White
Figure C-2 shows the correct 10/100 wiring to use when the crossover function is implemented
externally in the twisted-pair cabling.
1
2
3
4
5
6
7
8
Figure C-2. 10/100 external crossover for RJ-45 connector
White/Orange
Orange/White
White/Green
Green/White
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
