Security Target: cible2007_02en

Security Target: cible2007_02en

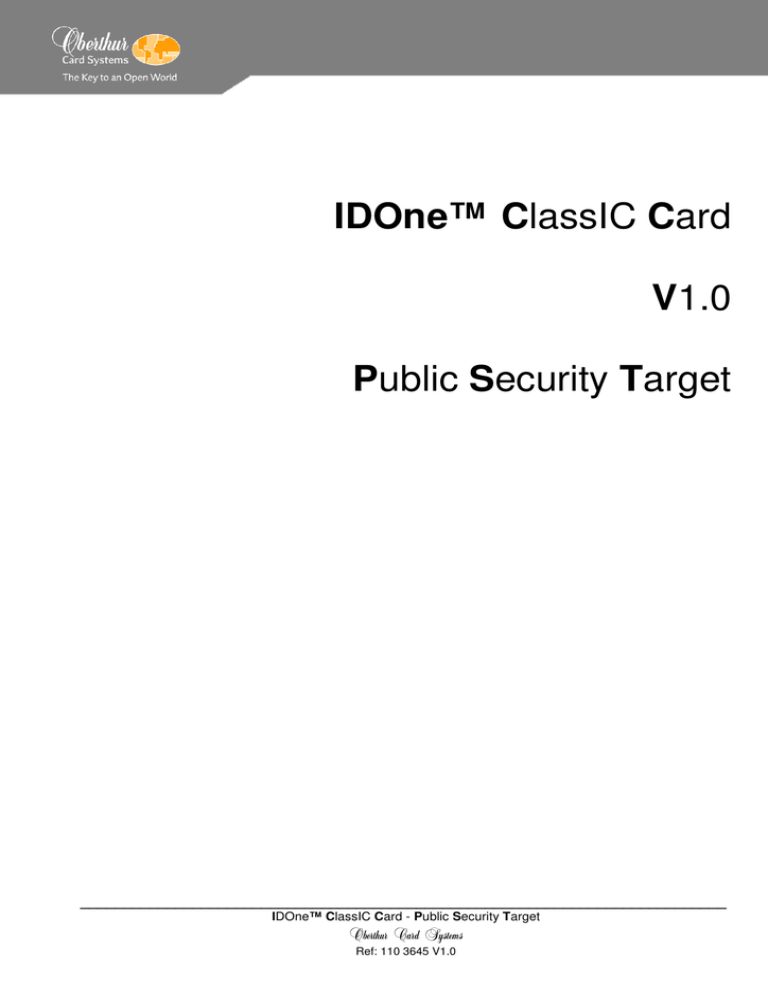

IDOne™ ClassIC Card
V1.0
Public Security Target
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
TABLE DES MATIERES
1
2
3
4
5
ST INTRODUCTION ...........................................................................................................................................4
1.1
ST IDENTIFICATION ...................................................................................................................................4
1.2
ST OVERVIEW ............................................................................................................................................4
1.3
CC CONFORMANCE ..................................................................................................................................4
1.4
REFERENCES.............................................................................................................................................5
TOE DESCRIPTION ...........................................................................................................................................7
2.1
PRODUCT TYPE .........................................................................................................................................7
2.2
TOE DESCRIPTION ....................................................................................................................................7
2.2.1
SSCD functions.....................................................................................................................................7
2.2.2
Card description....................................................................................................................................8
2.2.3
Files and BSOs .....................................................................................................................................8
2.2.4
Access conditions .................................................................................................................................9
2.2.5
Secure Messaging ................................................................................................................................9
2.3
SMART CARD PRODUCTS LIFE-CYCLE ................................................................................................10
2.4 TOE INTENDED USAGE ..........................................................................................................................11
TOE SECURITY ENVIRONMENT ....................................................................................................................11
3.1
SUBJECTS ....................................................................................................................................................11
3.2
ASSETS........................................................................................................................................................11
3.3
ASSUMPTIONS .........................................................................................................................................14
3.4
THREATS...................................................................................................................................................14
3.5
ORGANIZATIONAL SECURITY POLICIES ..............................................................................................15
SECURITY OBJECTIVES ................................................................................................................................16
4.1
SECURITY OBJECTIVES FOR THE TOE ...........................................................................................................16
4.2
SECURITY OBJECTIVES FOR THE ENVIRONMENT.............................................................................................18
IT SECURITY REQUIREMENTS......................................................................................................................19
5.1
TOE IT SECURITY FUNCTIONAL REQUIREMENTS ..............................................................................19
5.1.1
FCS: CRYPTOGRAPHIC SUPPORT.................................................................................................19
5.1.1.1
5.1.1.2
5.1.2
5.1.2.1
5.1.2.2
5.1.2.3
5.1.2.4
5.1.2.5
5.1.2.6
5.1.2.7
5.1.2.8
FCS_CKM cryptographic key management ................................................................................................... 19
FCS_ COP Cryptographic operation .............................................................................................................. 20
FDP : USER DATA PROTECTION ....................................................................................................21
FDP_ACC Access Control Policy................................................................................................................... 21
FDP_ACF access control function ................................................................................................................. 22
FDP_ETC : Export to outside TSF control.................................................................................................... 27
FDP_ITC Import From outside TSF control.................................................................................................... 27
FDP_RIP Residual information protection...................................................................................................... 28
FDP_SDI Stored data integrity ....................................................................................................................... 28
FDP_UCT Inter-TSF user data confidentiality transfer protection .................................................................. 29
FDP_UIT Inter-TSF user data integrity transfer protection............................................................................. 29
5.1.3
FIA: IDENTIFICATION AND AUTHENTICATION ..............................................................................30
5.1.4
FMT: SECURITY MANAGEMENT .....................................................................................................31
5.1.5
FPT: PROTECTION OF THE TSF .....................................................................................................33
5.1.6
FTP: TRUSTED PATH / CHANNEL ...................................................................................................34
5.1.3.1
5.1.3.2
5.1.3.3
5.1.3.4
5.1.4.1
5.1.4.2
5.1.4.3
5.1.4.4
5.1.5.1
5.1.5.2
5.1.5.3
5.1.5.4
5.1.5.5
FIA_AFL Authentication failure....................................................................................................................... 30
FIA_ATD User attribute definition................................................................................................................... 30
FIA_UAU User authentication ........................................................................................................................ 30
FIA_UID User Identification............................................................................................................................ 31
FMT_MOF Management of functions in TSF ................................................................................................. 31
FMT_MSA Management of security attributes ............................................................................................... 31
FMT_MTD Management of TSF data ............................................................................................................ 32
FMT_SMR Security management rotes ......................................................................................................... 32
FPT_AMT Underlying Abstract machine test ................................................................................................. 33
FPT_EMSEC TOE Emanation ....................................................................................................................... 33
FPT_FLS Failure secure ................................................................................................................................ 33
FPT_PHP TSF physical Protection ................................................................................................................ 33
FPT_TST TSF self test .................................................................................................................................. 34
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
5.1.6.1
5.1.6.2
FTP_ITC Inter-TSF trusted channel ............................................................................................................... 34
FTP _TRP Trusted path ................................................................................................................................. 35
5.3.1.1
5.3.1.2
5.3.1.3
5.3.1.4
5.3.1.5
5.3.1.6
Cryptographic key generation (FCS_CKM.1) ................................................................................................. 37
Cryptographic key destruction (FCS_CKM.4) ................................................................................................ 37
Cryptographic operation (FCS_COP.1).......................................................................................................... 37
Subset access control (FDP_ACC.1) ............................................................................................................. 37
Basic data exchange confidentiality (FDP_UCT.1) ........................................................................................ 37
Inter-TSF trusted channel (FTP_ITC.1).......................................................................................................... 37
5.2
TOE SECURITY ASSURANCE REQUIREMENTS ...................................................................................35
5.2.1
CONFIGURATION MANAGEMENT (ACM) .......................................................................................35
5.2.2
DELIVERY AND OPERATION (ADO) ................................................................................................35
5.2.3
DEVELOPMENT (ADV) ......................................................................................................................36
5.2.4
GUIDANCE DOCUMENTS (AGD) .....................................................................................................36
5.2.5
LIFE CYCLE SUPPORT (ALC) ..........................................................................................................36
5.2.6
TESTS (ATE) ......................................................................................................................................36
5.2.7
VULNERABILITY ASSESSMENT (AVA)............................................................................................36
5.3
SECURITY REQUIREMENTS FOR THE IT ENVIRONMENT ..................................................................36
5.3.1
Signature key generation (SSCD Type1) ...........................................................................................37
5.3.2
Certification generation application (CGA) .........................................................................................38
5.3.3
Signature creation application (SCA)..................................................................................................38
5.3.2.1
5.3.2.2
5.3.2.3
5.3.2.4
5.3.3.1
5.3.3.2
5.3.3.3
5.3.3.4
Cryptographic key distribution (FCS_CKM.2)................................................................................................. 38
Cryptographic key access (FCS_CKM.3)....................................................................................................... 38
Data exchange integrity (FDP_UIT.1) ............................................................................................................ 38
Inter-TSF trusted channel (FTP_ITC.1).......................................................................................................... 38
Cryptographic operation (FCS_COP.1).......................................................................................................... 38
Data exchange integrity (FDP_UIT.1) ............................................................................................................ 38
Inter-TSF trusted channel (FTP_ITC.1).......................................................................................................... 39
Trusted path (FTP_TRP.1)............................................................................................................................. 39
5.4
SECURITY REQUIREMENTS FOR THE NON-IT ENVIRONMENT.........................................................39
TOE SUMMARY SPECIFICATION..................................................................................................................40
6.1
SECURITY FUNCTIONS ..................................................................................................................................40
7 PROTECTION PROFILE CLAIMS ...................................................................................................................41
8 ACRONYMS......................................................................................................................................................41
6
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
1.1
ST IDENTIFICATION
Title:
IDOne ClassIC Card – Public Security Target
Reference:
-
Microcontroller: Philips Smart MX P5CT072 VOP
This Security Target deals with the evaluation of the application software, as well as the composition with the
evaluation of the Integrated Circuit (IC). It claims two SSCD Protection Profiles [SSCD2] and [SSCD3].
This security target refers to the micro-controller MX P5CT072 security target [STIC] that is compliant to BSI 0002
Protection Profile [BSI-0002].
IDOne ClassIC product is derived from CNS product. The differences between both products are:
- Increase in RSA key length: 1024 up to 2048 bits
- RSA CRT key generation algorithm.
The RSA CRT algorithm is already present on the platform not used by CNS applet but is used by IAS applet in
the same platform.
So with this product we can sign using RSA key from 1024 up to 2048 with 256 bits as step with one of the
two algorithms RSA CRT or RSA SFM.
1.2
ST OVERVIEW
The TOE is a signature-creation device according to Directive 1999/93/EC [1999/93/EC] of the European
parliament and of the council of 13 December 1999 on a Community framework for electronic signatures.
The context of this ST is the Secure Signature Creation Device following the Protection Profiles ([SSCD1],
[SSCD2] and [SSCD3]) developed by CEN/ISSS. These PPs are a translation of the annex concerning the
Secure Signature Creation Device of the European directive [1999/93/EC].
The main objectives of this security target are:
- To describe the Target of Evaluation (TOE). This ST focuses on the Secure Signature Creation Device,
designed to be embedded in a Smart card integrated circuit.
- To describe the security environment of the TOE including the assets to be protected and the threats to
be countered by the TOE and by its environment.
- To describe the security objectives of the TOE and its supporting environment.
- To specify the security requirements which includes the TOE security functional requirements and the
TOE security assurance requirements.
- To specify the TOE summary specification, which includes the TOE security functions specifications and
the assurance measures.
- To give a rationale to this ST.
The assurance level for this product and its documentation is EAL4 augmented with:
- ADV_IMP.2: Implementation of the TSF
- AVA_MSU.3: Analysis of insecure states,
- AVA VLA.4: Highly resistant,
The strength level for the TOE security functional requirements is "SOF high" (Strength Of Functions high).
1.3
CC CONFORMANCE
This ST is built on [SSCD2] and [SSCD3] and is conformant to these PP.
This ST is CC V2.3 conformant with Part2 extended due to additional functional components as stated in [SSCD2]
and [SSCD3].
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
1.4
REFERENCES
[CC-1]
Common Criteria for Information Technology Security
Evaluation Part 1: Introduction and general model
CCIMB-2005-08-001, version 2.3, 2005
[CC-2]
Common Criteria for Information Technology Security
Evaluation Part 2: Security Functional Requirements
CCIMB-2005-08-002, version 2.3, 2005
[CC-3]
Common Criteria for Information Technology Security
Evaluation Part 3: Security Assurance Requirements
CCIMB-2005-08-003, version 2.3, 2005
[CEM]
Common Methodology for Information Technology Security
Evaluation Methodology
CCIMB-2005-08-004, version 2.3, 2005
[CWA]
CEN/ISSS WS/E-Sign Expert Group F - Workshop Agreement CWA14169
Secure Signature-Creation Devices "EAL 4+"
[CWA-ALGO]
CEN/ISSS WS/E-Sign Expert Group F - Algorithms and Parameters for
Secure Electronic Signatures
[1999/93/EC]
Directive 1999/93/EC of the European parliament and of the council of the 13
December on a Community framework for electronic signatures
[SSCD1]
Secure Signature-Creation device Protection Profile Type 1 v1.05, EAL4+
BSI -PP-0004-2002 April 2002
[SSCD2]
Secure Signature-Creation device Protection Profile Type 2 v1.04, EAL4+
BSI -PP-0005-2002 April 2002
[SSCD3]
Secure Signature-Creation device Protection Profile Type 3 v1.05, EAL4+
BSI -PP-0006-2002 April 2002
[BSI-0002]
Smartcard IC Platform Protection Profile v 1.0
BSI-PP-0002-2001 Jul 2001
[STIC]
Security Target Lite BSI-DSZ-CC-0348. Evaluation of the Philips P5CT072V0P Secure
Smart Card Controller, version 1.2, 2006.
[CNS]
CNS – Carta Nazionale dei Servici – Functional Specification –1.1.2
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
[JCAPI]
[JCRE]
[JCVM]
[GP]
"Java Card 2.2.1 - Application Programming Interfaces", October 21 2003, Sun
Microsystems
"Java Card 2.2.1-JCRE", October 21 2003, Sun Microsystems
"Java Card 2.2.1-Virtual Machine Specifications", October 21 2003, Sun Microsystems
"Global Platform Card Specification", version 2.1.1’ March, 2003, Global Platform
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
This part of the ST describes the TOE as an aid to the understanding of its security requirements and addresses
the product type, the intended usage and the general features of the TOE.
2.1
PRODUCT TYPE
The Target of Evaluation (TOE) is the Secure Signature Creation Device (SSCD) defined by:
The underlying Integrated Circuit;
The Operating System embedding the Java Virtual Machine (JVM);
The SSCD Application.
The Figure below gives a description of the TOE and its boundaries.
HI
Authentication Data
User
Authentication
Personalisation
SCA (DTBS/SDO)
Signature-Creation
SSCD (Type 1)
SCD Import
CGA (Init./SVD
into certificate)
SVD Export
SSCD
Application
SCD/SVD Generation
OS Java Card
Integrated Circuit
Figure 1 Secure Signature Creation Device (card) and its boundaries
2.2
2.2.1
TOE DESCRIPTION
SSCD functions
The SSCD Application provides the following functions:
Generation of SCD and SVD – The TOE ensures the secrecy of the SCD
Import of the SCD
Export of SVD
Signature Creation
Pin Authentication of the Signatory: the TOE holds the RAD that is used to verify the VAD provided by the user.
Implementation of a trusted path to a human interface device
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
The TOE destroys the SCD if it is no longer used for signature generation. In usage phase, the TOE allows the
creation of a new SCD/SVD pair. The previous SCD must be destroyed before the creation of a new SCD/SVD
pair.
The TOE implements the SSCD of type 2 and type 3, and all functions concerning the SSCD to create electronic
signatures in a secure way.
2.2.2
Card description
The Card is composed of:
– An Operating System based on Java Card technology [JCRE][JCVM][JCAPI] and Global Platform technology
[GP]. His main responsibilities are:
-
To provide interface between the Integrated Circuit and the applet
-
To provide to the applet, basic services to access to memories and all needed cryptographic operations
-
To ensure global management of the card (loading, installation and deletion of applets) and monitor the
security of the card (data integrity and physical attacks counter-measures).
The loading mechanism is blocked after the applet loading. Therefore no loading can be initiated after
this applet loading.
-
The applet is a high security product which provides the following services:
-
A highly secure and configurable framework to store sensitive and user data, based on ISO7816-4 and
ISO7816-9;
-
secure messaging, based on ISO7816-4 ;
-
dynamic management of access control rules ;
-
dynamic management of confidentiality/integrity (Secure Messaging conditions) settings ;
-
onboard RSA key pair generation (up to 2048 bits), compliant with ISO7816-8 ;
-
import of Private (SCD) RSA keys
-
export of Public (SVD) RSA keys
-
Triple DES based authentication, encryption and decryption, compliant with ISO7816-4 and ISO7816-8;
-
PIN authentication;
-
RSA digital signature, compliant with ISO7816-8
2.2.3
Files and BSOs
In this applet, we consider three kinds of objects:
- Files,
- BSO (Base Security Object) and
- SEO (Security Environment Objects)
– Files:
The applet file system of is based on three categories of basic file components:
-
The root of the file system, the Master File (MF),
Directory files, denoted as dedicated files (DF),
Generic data files, denoted as Elementary files (EF).
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
The Master File (MF) is the root of the file system and is always the initial entry point to the file system. After a
reset of the card, the MF is selected.
The Dedicated Files (DFs) are similar to Folders in traditional file systems. DFs can contain Elementary Files
(EFs), and/or other DFs. The MF can be considered to be a special DF that contains all the files.
The Elementary File (EF) is used for data storage. For this reason EFs are also referred to as data files. File
access is similar to traditional file systems. To access a file (for reading, writing, or any other operation), it has
to be selected.
Note that the public key SVD is stored in a file.
– BSO:
A Base Security Object (BSO) is a container for secret/sensitive data, including SCD and Reference
Authentication Data. All BSOs are stored in folders DF.
We distinguish three kinds of BSO:
- Authentication BSO (called also TEST BSO):
- PINs,
- External Authentication keys; These BSO have the following type:
o 3DES-EXT AUTH for 3DES Keys,
o RSA KPUB EXP-EXT AUTH (exponent component) and RSA KPUB MOD-EXT AUTH
(modulus component) for RSA Keys:
- Logical BSO: used to build Boolean expression (AND/OR) of authentication data. Example:
PIN1 AND (EXT AUTH2 OR PIN2)
A PIN or an External Authentication Keys may have three different states, defined in their attribute
“Status”:
- Non Satisfied: Not verified
- Satisfied: Verified
- Blocked: a blocked authentication data is always Non Satisfied
-
Cryptographic BSO (called also PSO BSO):
- In this TOE, we consider only BSO corresponding to SCD; they are used for signature creation. Their
type is RSA KPRI EXP-SIGN for the private exponent component and RSA KPRI MOD-SIGN for
Modulus component
-
Secure Messaging BSO:
These BSO contain keys to be used for Secure Messaging. We distinguish:
- Keys for Encryption/Decryption, of type
- Keys for Signature (MAC computation) and Verification (MAC verification), of type
–
SEO:
An SEO (Security Object Environment) is a set of references to the security objects (BSO) that will be used for
security operation commands. It has three components: Confidentiality (CON), Digital Signature (DS) and TEST.
The DS component is used to reference the SCD to be used for digital signature.
2.2.4
Access conditions
Access Conditions are attached to a file (EF, DF or MF), or to other card objects (BSO). They tell in which status
the card has to be in order to allow a specific operation on a specific object. Possible values of access conditions
are:
- ALWAYS: operation always allowed
- NEVER: operation never allowed
- BSO ID: reference (ID) of a authentication BSO.
2.2.5
Secure Messaging
The Secure Messaging (SM) is used to protect the communication between the interface device (IFD) and the
smart card. There are two ways to communicate data in SM format:
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
-
SM_ENC: APDU commands with enciphered data (data confidentiality)
SM_SIG: APDU commands with cryptographic checksum (data authentication and integrity)
It is possible to use a combination of the two (ENC followed by SIG). Indeed, it is recommended for security
reasons to use SM_ENC only in conjunction with SM_SIG.
Secure Messaging are dynamically defined relatively to objects and operations. These conditions are called
Secure Messaging conditions, and they define for
- NO SM: no secure messaging is required
- BSO ID: reference (identifier) to a BSO containing a secure messaging key.
Example: For signature creation, the corresponding key SCD has 4 Secure Messaging conditions:
- ENC_USE_IN: determine if encryption is required for incoming command
- SIG_USE_IN: determine if signature (MAC) is required for incoming command
- ENC_USE_OUT: determine if encryption is required for outgoing command
- SIG_USE_OUT: determine if signature (MAC) is required for outgoing command
2.3
SMART CARD PRODUCTS LIFE-CYCLE
The Smart card product life cycle is split up into 7 phases where the following authorities are involved:
Smart card software
development
The smart card embedded software developer is in charge of the smart
card embedded software development and the specification of IC prepersonalisation requirements.
Phase 2
IC Development
The IC designer designs the integrated circuit, develops IC firmware if
applicable, provides information, software or tools to the smart card
software developer, and receives the software from the developer,
through trusted delivery and verification procedures.
From the IC design, IC firmware and smart card embedded software, he
constructs the smart card IC database, necessary for the IC photomask
fabrication.
Phase 3
IC manufacturing and
Testing
The IC manufacturer is responsible for producing the IC through three
main steps: IC manufacturing, testing, and IC pre-personalisation.
Phase 4
IC packaging and
Testing
The IC packaging manufacturer is responsible for the IC packaging and
testing.
Phase 5
Smart card product
finishing process
The smart card product manufacturer is responsible for the smart card
product finishing process and testing, and the smart card prepersonalisation
Phase 6
Smart card
Personalisation
The Personaliser is responsible for the smart card personalisation and
final tests.
Phase 7
Smart card end-usage
The smart card issuer is responsible for the smart card product delivery to
the smart card end-user, and for the end of life process.
Phase 1
Phases 1 to 3 are included in the evaluation perimeter.
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
2.4
TOE INTENDED USAGE
The TOE intended usage is the Creation of Secure Signatures.
This section describes the security aspects of the environment in which the TOE is to be used. It describes the
assets to be protected, the threats, the organisational security policies and the assumptions.
3.1
Subjects
Subject
S.User
S.Admin
S.Signatory
S.OFFCARD
(Threat agent)
3.2
Definition
End user of the TOE which can be identified as S.Admin or S.Signatory.
User who is in charge to perform the TOE initialisation, TOE personalisation or other
TOE administrative functions.
User who holds the TOE and uses it on his own behalf or on behalf of the
natural or legal person or entity he represents.
Attacker. A human or a process acting on his behalf being located outside the TOE.
The main goal of the S.OFFCARD attacker is to access Application sensitive
information. The attacker has a high level potential attack and knows no secret.
Assets
The assets of the TOE are those defined in [SSCD2] and [SSCD3]:
1. SCD: private key used to perform an electronic signature operation. Confidentiality of the SCD must be
maintained.
2. SVD: public key linked to the SCD and used to perform an electronic signature verification. Integrity of the
SVD when it is exported must be maintained.
3. DTBS and DTBS-representation: set of data, or its representation which is intended to be signed. Their
integrity must be maintained.
4. VAD: PIN code entered by the End User to perform a signature operation. Confidentiality and authenticity
of the VAD as needed by the authentication method employed.
5. RAD: Reference Pass Phrase code used to identify and authenticate the End User. Integrity and
confidentiality of RAD must be maintained. The specification references also RAD as a PIN even it is an
alphanumeric code.
6. Signature-creation function of the SSCD using the SCD: The quality of the function must be maintained so
that it can participate to the legal validity of electronic signatures.
7. Electronic signature: Unforgeabilty of electronic signatures must be assured.
We detail below the representation of the Asset data in this applet:
Note on Secure Messaging conditions naming:
Conditions for Secure Messaging are named as follow:
-
For outgoing commands, the condition name has the format ENC_<OPER>_OUT and
SIG_<OPER>_OUT
-
For incoming commands, two formats are possible for the condition name:
ENC_<OPER> and SIG_<OPER>,
Or ENC_<OPER>_IN and SIG_<OPER>_IN.
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
<OPER> indicates an operation: USE, CHANGE, UNBLOCK, APPEND, UPDATE, UPDATE/APPEND,
READ.
Asset data
SCD
SCD is stored as a BSO
(Basic Security Object) of
type:
RSA KPRI EXP-SIGN for
the private exponent
component
And
RSA KPRI MOD-SIGN for
Modulus component
Attribute
Status
AC_GENKEYPAIR
Access condition for SCD/SVD generation
AC_USE
Access condition for digital signature creation. It
must reference the PIN BSO corresponding to the
RAD.
ENC_USE_IN and
SIG_USE_IN
Secure Messaging conditions to be satisfied by the
incoming signature command
ENC_ USE_OUT and
SIG_ USE_OUT
Secure Messaging conditions to apply to send the
digital signature
AC_CHANGE
Access condition for modifying (import) a new key
ENC_CHANGE and
SIG_CHANGE
Secure Messaging conditions to be satisfied by the
incoming change command
SVD
SVD is stored as two AC_READ
records in a record file.
A record for the public
exponent and a record for SIG_READ_OUT and
ENC_READ_OUT
the Modulus.
AC_USE
Access conditions to be satisfied for reading a SVD
record
Secure Messaging conditions to apply to send the
SVD value
Access condition to be satisfied for verifying a PIN
Secure Messaging to be satisfied by the incoming
ENC_USE_IN and SIG_USE_IN
PIN
verify PIN command
(these attributes refer to all
Access condition to be satisfied for modifying a PIN
PINs including RAD)
AC_CHANGE
value
- PINs are stored as BSO ENC_CHANGE and
Secure Messaging to be satisfied by the incoming
of type PIN,
SIG_CHANGE
Change Reference Data command
AC_UNBLOCK
Access condition to be satisfied for unblocking a PIN
ENC_UNBLOCK and
SIG_UNBLOCK
Secure Messaging to be satisfied by the incoming
unblock PIN command
Table 1 Applet Attributes (1)
The RAD (SCD.AC_USE) is restricted to be defined as a PIN. Other access conditions (like AC_GENKEYPAIR
for example) are not concerned by this restriction: they are Boolean expressions of PINs and external
authentication keys.
On the other hand, to protect the Asset data during communication between the TOE and the terminal, TOE uses
Secure Messaging with specific keys (of type 3DES –SM Auth and 3DES –SM Cipher). These keys are specified
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
as attributes (called Secure Messaging conditions) for the Asset data (example: ENC_USE_IN is an attribute of
PIN and protects the VAD for confidentiality during its transmission into the card).
We complete the Asset Data by adding the External Authentication keys and the Secure Messaging Keys as Data
to be managed by the TOE. We add also the Dedicated Files because the creation and update of BSO (SCD,
RAD,…) are controlled by access conditions and Secure Messaging conditions associated to the Dedicated File
containing the BSO.
Data
DF
(Dedicated File: Folder
containing the BSO)
Attribute
status
AC_CREATE
Access condition to create a file (to contain SVD)
AC_APPEND
Access condition to satisfy for create a new BSO
(SCD, RAD and other BSOs)
AC_UPDATE
Access condition to satisfy for updating an existing
BSO (SCD, RAD and other BSOs)
ENC_UPDATE/APPEND and
SIG_UPDATE/APPEND
Secure Messaging conditions to be satisfied by the
incoming append or update command
AC_USE
Access condition to be satisfied for verifying an
external authentication key
ENC_USE_IN and SIG_USE_IN
Secure Messaging to be satisfied by the incoming
external authenticate command
External Authentication
AC_CHANGE
Keys
Access condition to be satisfied for modifying a
authentication key value
ENC_CHANGE and
SIG_CHANGE
Secure Messaging to be satisfied by the incoming
external authenticate command
AC_UNBLOCK
Access condition to be satisfied for unblocking an
authentication key
ENC_UNBLOCK and
SIG_UNBLOCK
Secure Messaging to be satisfied by the incoming
unblock authenticate key command
AC_CHANGE
Access condition to be satisfied for modifying the key
value
ENC_CHANGE and
Secure Messaging Keys SIG_CHANGE
Secure Messaging to be satisfied by the incoming
CHANGE KEY DATA command
AC_UNBLOCK
Access condition to be satisfied for unblocking a SIG
secure messaging key
ENC_UNBLOCK and
SIG_UNBLOCK
Secure Messaging to be satisfied by the incoming
unblock secure messaging key command
Table 2 Applet Attributes (2)
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
Life Cycle Definition:
The TSF data “LIFECYCLE” represents the current application state.
The application may have three different states:
- SELECTABLE: In this state, the application is ready for personalisation. The card is under the control of
the Administrator.
- PESONALIZED: In this state, the card is under control of the Card Holder or Administrator.
- BLOCKED: The application is blocked.
3.3
ASSUMPTIONS
A.CGA Trustworthy certification-generation application
The CGA protects the authenticity of the signatory’s name and the SVD in the qualified certificate by an advanced
signature of the CSP.
A.SCA Trustworthy signature-creation application
The signatory uses only a trustworthy SCA. The SCA generates and sends the DTBS-representation of data the
signatory wishes to sign in a form appropriate for signing by the TOE.
A.SCD_Generate Trustworthy SCD/SVD generation
If a party other than the signatory generates the SCD/SVD-pair of a signatory, then
(a) this party will use a SSCD for SCD/SVD-generation,
(b) confidentiality of the SCD will be guaranteed until the SCD is under the sole control of the signatory
and
(c) the SCD will not be used for signature-creation until the SCD is under the sole control of the signatory.
(d) The generation of the SCD/SVD is invoked by authorised users only
(e) The SSCD Type1 ensures the authenticity of the SVD it has created an exported
3.4
THREATS
T.Hack_Phys Physical attacks through the TOE interfaces
An attacker interacts with the TOE interfaces to exploit vulnerabilities, resulting in arbitrary security compromises.
This threat addresses all the assets.
T.SCD_Divulg Storing ,copying, and releasing of the signature-creation data
An attacker can store, copy the SCD outside the TOE. An attacker can release the SCD during generation,
storage and use for signature-creation in the TOE.
T.SCD_Derive Derive the signature-creation data
An attacker derives the SCD from public known data, such as SVD corresponding to the SCD or signatures
created by means of the SCD or any other data communicated outside the TOE, which is a threat against the
secrecy of the SCD.
T.Sig_Forgery Forgery of the electronic signature
An attacker forges the signed data object maybe together with its electronic signature created by the TOE and the
violation of the integrity of the signed data object is not detectable by the signatory or by third parties. The
signature generated by the TOE is subject to deliberate attacks by experts possessing a high attack potential with
advanced knowledge of security principles and concepts employed by the TOE.
T.Sig_Repud Repudiation of signatures
If an attacker can successfully threaten any of the assets, then the non-repudiation of the electronic signature is
compromised. The signatory is able to deny having signed data using the SCD in the TOE under his control even
if the signature is successfully verified with the SVD contained in his un-revoked certificate.
T.SVD_Forgery Forgery of the signature-verification data
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
An attacker forges the SVD presented by the TOE. This result in loss of SVD integrity in the certificate of the
signatory.
T.DTBS_Forgery Forgery of the DTBS-representation
An attacker modifies the DTBS-representation sent by the SCA. Thus the DTBS-representation used by the TOE
for signing does not match the DTBS the signatory intends to sign.
T.SigF_Misuse Misuse of the signature-creation function of the TOE
An attacker misuses the signature-creation function of the TOE to create SDO for data the signatory has not
decided to sign. The TOE is subject to deliberate attacks by experts possessing a high attack potential with
advanced knowledge of security principles and concepts employed by the TOE.
IC Threats: (see [STIC])
T.Leak-Inherent
Inherent Information Leakage
T.Phys-Probing
Physical Probing of the IC
T.Malfunction
Malfunction due to Environmental Stress
T.Phys-Manipulation Physical Manipulation
T.Leak-Forced
Forced Information Leakage
T.Abuse-Func
Abuse of Functionality
T.RND
Deficiency of Random Numbers
3.5
ORGANIZATIONAL SECURITY POLICIES
P.CSP_QCert Qualified certificate
The CSP uses a trustworthy CGA to generate the qualified certificate for the SVD generated by the SSCD. The
qualified certificates contains at least the elements defined in Annex I of the Directive, i.e., inter alia the name of
the signatory and the SVD matching the SCD implemented in the TOE under sole control of the signatory. The
CSP ensures that the use of the TOE is evident with signatures through the certificate or other publicly available
information.
P.QSign Qualified electronic signatures
The signatory uses a signature-creation system to sign data with qualified electronic signatures. The DTBS are
presented to the signatory by the SCA. The qualified electronic signature is based on a qualified certificate and is
created by a SSCD.
P.Sigy_SSCD TOE as secure signature-creation device
The TOE stores the SCD used for signature creation under sole control of the signatory. The SCD used for
signature generation can practically occur only once.
The following policies are taken from the IC security target [STIC]:
P.Add-Components The TOE shall provide the following security functionality:
- Triple DES encryption and decryption
- Area based Memory Access Control
- Memory separation for different software parts (including IC Dedicated software and Smartcard
Embedded Software)
- Special Function Register Access Control
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
-
Protection of configuration data. The TOE prevents modification of configuration data – including
configuration data for TSF – after TOE delivery. This can be used to enable or disable specific blocks on
the TOE.
P.Process-TOE
Protection during IC Development and Production
The IC Manufacturer must ensure that the development and production of the Smartcard Integrated Circuit
(Phase 2 up to IC Delivery – phase 3) is secure so that no information is unintentionally made available for the
operational phase of the IC.
P.Plat-Appl
Usage of Hardware Platform
The Smartcard Embedded Software is designed so that the requirements from the following documents are met:
(i) IC guidance documents such as the hardware data sheet, and the hardware application notes, and (ii) findings
of the IC evaluation reports relevant for the Smartcard Embedded Software.
Application Note:
This policy was defined as an assumption in [STIC].
P.Resp-Appl
Treatment of User Data
All User Data are owned by Smartcard Embedded Software. Therefore, it must be assumed that security relevant
User Data (especially cryptographic keys) are treated by the Smartcard Embedded Software as defined for the
specific application context.
Application Note:
This policy was defined as an assumption in [STIC].
P.Check-Init The Embedded software shall provide a function to check initialisation data. These data are
injected by the IC Manufacturer into EEPROM to provide the possibility for TOE identification and traceability.
Application Note:
This policy was defined as an assumption in [STIC].
P.Key-Function
Usage of Key-dependent Functions
Key-dependent functions (if any) shall be implemented in the Smartcard Embedded Software in a way that they
are not susceptible to leakage attacks (as described under T.Leak-Inherent and T.Leak-Forced).
Application Note:
This policy was defined as an assumption in [STIC].
P.Process-Card
Protection during Packaging, Finishing and Personalisation
Application Note:
This policy was defined as an assumption in [STIC].
4.1
Security Objectives for the TOE
OT.EMSEC_Design Provide physical emanations security
Design and build the TOE in such a way as to control the production of intelligible emanations within specified
limits.
OT.Lifecycle_Security Lifecycle security
The TOE shall detect flaws during the initialisation, personalisation and operational usage. The TOE shall provide
safe destruction techniques for the SCD in case of re-import or re-generation.
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
OT.SCD_Secrecy Secrecy of the signature-creation data
The secrecy of the SCD (used for signature generation) is reasonably assured against attacks with a high attack
potential.
OT.SCD_SVD_Corresp Correspondence between SVD and SCD
The TOE shall ensure the correspondence between the SVD and the SCD. The TOE shall verify on demand the
correspondence between the SCD stored in the TOE and the SVD if it has been sent to the TOE.
OT.SVD_Auth_TOE TOE ensures authenticity of the SVD
The TOE provides means to enable the CGA to verify the authenticity SVD that has been exported by that TOE.
OT.Tamper_ID Tamper detection
The TOE provides system features that detect physical tampering of a system component, and use those features
to limit security breaches.
OT.Tamper_Resistance Tamper resistance
The TOE prevents or resists physical tampering with specified system devices and components.
OT.Init SCD/SVD generation
The TOE provides security features to ensure that the generation of the SCD and the SVD is invoked by
authorised users only.
OT.SCD_Unique Uniqueness of the signature-creation data
The TOE shall ensure the cryptographic quality of the SCD/SVD pair for the qualified electronic signature. The
SCD used for signature generation can practically occur only once and cannot be reconstructed from the SVD. In
that context ‘practically occur once’ means that the probability of equal SCDs is negligible low.
OT.SCD_Transfer Secure transfer of SCD between SSCD
The TOE shall ensure the confidentiality of the SCD transferred between SSCDs.
OT.DTBS_Integrity_TOE Verification of the DTBS-representation integrity
The TOE shall verify that the DTBS-representation received from the SCA has not been altered in transit between
the SCA and the TOE. The TOE itself shall ensure that the DTBS representation is not altered by the TOE as
well. Note, that this does not conflict with the signature-creation process where the DTBS itself could be hashed
by the TOE.
OT.Sigy_SigF Signature generation function for the legitimate signatory only
The TOE provides the signature generation function for the legitimate signatory only and protects the SCD against
the use of others. The TOE shall resist attacks with high attack potential.
OT.Sig_Secure Cryptographic security of the electronic signature
The TOE generates electronic signatures that cannot be forged without knowledge of the SCD through robust
encryption techniques. The SCD cannot be reconstructed using the electronic signatures. The electronic
signatures shall be resistant against these attacks, even when executed with a high attack potential.
IC Objectives:
We took all IC objectives present in [STIC]. A more complete description of the IC objectives is available in [STIC].
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
O.Leak-Inherent
Protection against Inherent Information Leakage
O.Phys-Probing
Protection against Physical Probing
O.Malfunction
Protection against Malfunctions
O.Phys-Manipulation
Protection against Physical Manipulation
O.Leak-Forced
Protection against Forced Information Leakage
O.Abuse-Func
Protection against Abuse of Functionality
O.Identification
The IC must provide means to store Initialisation Data and Pre-personalisation Data in its non-volatile memory.
The Initialisation Data (or parts of them) are used for TOE identification.
O.RND
The IC will ensure the cryptographic quality of random number generation. For instance random numbers shall
not be predictable and shall have a sufficient entropy.
O.HW_DES3
Triple DES Functionality
O.MEM_ACCESS
Area based Memory Access Control
O.SFR_ACCESS
Special Function Register Access Control
O.MF_FW
MIFARE Firewall
The IC shall provide separation between the “MIFARE Operating System” IC Dedicated Support Software and the
Smartcard Embedded Software. The separation shall comprise software execution and data.
O.CONFIG
Protection of configuration data
The TOE prevents modification of configuration data – including configuration data for TSF – after TOE delivery.
More specifically it shall be ensured that the configuration values determined during the test phase are fixed after
TOE delivery.
4.2
Security Objectives for the Environment
OE.SCD_SVD_Corresp Correspondence between SVD and SCD
The SSCD Type1 shall ensure the correspondence between the SVD and the SCD. The SSVD Type1 shall verify
the correspondence between the SCD sent to the TOE and the SVD sent to the CGA or TOE.
OE.SCD_Transfer Secure transfer of SCD between SSCD
The SSCD Type1 shall ensure the confidentiality of the SCD transferred to the TOE. The SSCD Type1 shall
prevent the export of a SCD that already has been used for signature generation by the SSCD Type2. The SCD
shall be deleted from the SSCD Type1 whenever it is exported into the TOE.
OE.SCD_Unique Uniqueness of the signature-creation data
The SSCD Type1 shall ensure the cryptographic quality of the SCD/SVD pair for the qualified electronic signature.
The SCD used for signature generation can practically occur only once and cannot be reconstructed from the
SVD. In that context ‘practically occur once’ means that the probability of equal SCDs is negligible low.
OE.CGA_QCert Generation of qualified certificates
The CGA generates qualified certificates which include inter alia
(a) the name of the signatory controlling the TOE,
(b) the SVD matching the SCD implemented in the TOE under sole control of the signatory,
(c) the advanced signature of the CSP.
OE.SVD_Auth_CGA CGA verifies the authenticity of the SVD
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
The CGA verifies that the SSCD is the sender of the received SVD and the integrity of the received SVD. The
CGA verifies the correspondence between the SCD in the SSCD of the signatory and the SVD in the qualified
certificate.
OE.HI_VAD Protection of the VAD
If an external device provides the human interface for user authentication, this device will ensure confidentiality
and integrity of the VAD as needed by the authentication method employed.
OE.SCA_Data_Intend Data intended to be signed
The SCA
(a) generates the DTBS-representation of the data that has been presented as DTBS and which the
signatory intends to sign in a form which is appropriate for signing by the TOE,
(b) sends the DTBS-representation to the TOE and enables verification of the integrity of the DTBSrepresentation by the TOE
(c) attaches the signature produced by the TOE to the data or provides it separately.
The following environment objectives are taken from the IC security target [STIC]:
OE.Plat-Appl
Usage of Hardware Platform (development phase)
TO ENSURE THAT THE TOE IS USED IN A SECURE MANNER THE SMARTCARD
EMBEDDED SOFTWARE SHALL BE DESIGNED SO THAT THE REQUIREMENTS FROM
THE FOLLOWING DOCUMENTS ARE MET: (I) HARDWARE DATA SHEET FOR THE TOE,
(II) TOE APPLICATION NOTES, AND (III) FINDINGS OF THE TOE EVALUATION REPORTS
RELEVANT FOR THE SMARTCARD EMBEDDED SOFTWARE.
OE.Resp-Appl
Treatment of User Data (development phase)
Security relevant User Data (especially cryptographic keys) are treated by the Smartcard Embedded Software as
required by the security needs of the specific application context.
OE.Process-TOE
Protection during IC Development and Production
OE.Process-Card
Protection during Packaging, Finishing and Personalisation
O.Check-Init
The Embedded software shall provide a function to check initialisation data.
Application Note:
This objective was defined as objective for environment in [STIC].
We present in this section the SFR of the TOE. SFR concerning IC are presented in [STIC]. We do not copy them
in this section.
5.1
TOE IT SECURITY FUNCTIONAL REQUIREMENTS
5.1.1
FCS: CRYPTOGRAPHIC SUPPORT
5.1.1.1
FCS_CKM cryptographic key management
FCS_CKM.1 Cryptographic key generation
FCS CKM.1/RSA-SFM
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[RSA key generation named RSA SFM] and specified cryptographic key sizes [1024 bits or 1280 bits or 1536
bits, or 1792 bits or 2048 bits] that meet the following [ANSI X9.31]
FCS CKM.1/RSA-CRT
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[RSA CRT key generation] and specified cryptographic key sizes [1024 bits or 1280 bits or 1536 bits, or 1792
bits or 2048 bits] that meet the following [ANSI X9.31]
FCS_CKM.4 Cryptographic key destruction
FCS_CKM.4.1
The TSF shall destroy cryptographic keys in case of regeneration of a new SCD or in case of re-importation of
the SCD in accordance with a specified cryptographic key destruction method [overwriting the buffer containing
the key] that meets the following: [no standard].
Application note:
The cryptographic key SCD will be destroyed on demand of the Signatory or Administrator. The
destruction of the SCD is mandatory before the SCD/SVD pair is re-generated or re-imported by the TOE.
The re-import and re-generation are the unique way to ask for the destruction of SCD.
FCS_CKM.4.1/External Authentication Keys
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[overwriting the buffer containing the key] that meets the following: [no standard].
Application note:
The destruction of the previous External Authentication keys is mandatory when they are updated.
FCS_CKM.4.1/Secure Messaging Keys
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[overwriting the buffer containing the key] that meets the following: [no standard].
Application note:
The destruction of the previous Secure Messaging keys is mandatory when they are updated.
5.1.1.2
FCS_ COP Cryptographic operation
FCS_COP.1 Cryptographic operation
FCS_COP.1.1/ CORRESP
The TSF shall perform [SCD/SVD correspondence verification] in accordance with a specified cryptographic
algorithm [RSA key computation] and cryptographic key sizes [1024 bits or 1280 bits or 1536 bits or 1792 bits
or 2048 bits] that meet the following: [PKCS#1].
FCS_COP.1.1/ SIGNING
The TSF shall perform [Digital signature-generation] in accordance with a specified cryptographic algorithm
[RSA using Private Key] and cryptographic key sizes [1024 bits or 1280 bits or 1536 bits or 1792 bits or 2048
bits] that meet the following: [padding PKCS #1 V1.5 Block Type 1].
DATA).
Application Note:
The bigger RSA Private key that can be imported by this applet is 2048 bits (using the command PUT
FCS_COP.1.1/ Secure Messaging Signature
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
The TSF shall perform [Secure Messaging Signature] in accordance with a specified cryptographic algorithm
[Triple DES MAC3] and cryptographic key sizes [128 and 192 bits] that meet the following: [FIPS PUB 46-3 and
CNS].
Application Note:
This algorithm is used during:
Secure Messaging: for computation of signature (SIG OUT) of outgoing APDU
commands and verification of signature (SIG IN) of received APDU commands
Application Note:
The IC implements the 3DES algorithm required in the requirement above (see FCS_COP in the IC SFR
section of [STIC]).
FCS_COP.1.1/ 3DES External Authentication
The TSF shall perform [3DES External Authentication] in accordance with a specified cryptographic algorithm
[Triple DES MAC3] and cryptographic key sizes [128 and 192 bits] that meet the following: [FIPS PUB 46-3 and
CNS].
Application Note: This algorithm is used during:
External Authentication: to verify the challenge sent by the terminal
Application Note:
The IC implements the 3DES algorithm required in the requirement above (see FCS_COP in the IC SFR
section of [STIC]).
FCS_COP.1.1/ Secure Messaging Encryption/Decryption
The TSF shall perform [Secure Messaging Encryption/Decryption] in accordance with a specified cryptographic
algorithm [Triple DES CBC encryption/decryption] and cryptographic key sizes [128 and 129 bits] that meet
the following: [FIPS PUB 46-3 and CNS].
Application Note: This algorithm is used during:
Secure Messaging: for encryption of data (ENC OUT) for outgoing APDU commands and
decryption of data (ENC IN) for received APDU commands
Application Note:
The IC implements the 3DES algorithm required in the requirement above (see FCS_COP in the IC SFR
section of [STIC]).
FCS_COP.1.1/ RSA External Authentication
The TSF shall perform [RSA External Authentication] in accordance with a specified cryptographic algorithm
[RSA using Public Key] and cryptographic key sizes [1024 bits or 1280 bits or 1536 bits or 1792 bits or 2048
bits] that meet the following: [PKCS #1].
Application Note: This algorithm is used during RSA External Authentication to verify the challenge sent
by the terminal. The bigger RSA Public key that can be imported by the applet is 2048 bits (using the
command PUT DATA).
5.1.2
FDP : USER DATA PROTECTION
FDP_ACC Access Control Policy
FDP ACC.1 Subset access control
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
FDP_ACC.1.1/SVD transfer SFP
The TSF shall enforce the [SVD transfer SFP] on [export of SVD by User].
Application note:
FDP_ACC.1/SVD Transfer SFP will be required only, if the TOE is to import the SVD from a SSCD Type1
so it will be exported to the CGA for certification.
FDP_ACC.1.1/Initialisation SFP
The TSF shall enforce the [Initialisation SFP] on [Generation of SCD/SVD pair by User].
FDP_ACC.1.1/SCD Import SFP
The TSF shall enforce the [SCD Import SFP] on [Import of SCD by User].
FDP_ACC.1.1/ Personalisation SFP
The TSF shall enforce the [Personalisation SFP] on [Creation of PIN RAD by Administrator].
FDP_ACC.1.1/Signature-creation SFP
The TSF shall enforce the [Signature-creation SFP] on
1. [Sending of DTBS representation by SCA]
2. [Signing of DTBS-representation by Signatory].
FDP_ACC.1.1/ PIN SFP
The TSF shall enforce the [PIN SFP] on
1. [create of PINs (different from RAD) by Administrator and Signatory]
2. [update and unblock of PINs (including RAD) by Administrator and Signatory]
Application note:
RAD creation is not covered by this requirement because it is already covered by Personalisation SFP.
FDP_ACC.1.1/ External Authentication Keys SFP
The TSF shall enforce the [External Authentication Keys SFP] on [create, update and unblock of External
Authentication Keys by Administrator and Signatory].
FDP_ACC.1.1/ Secure Messaging keys SFP
The TSF shall enforce the [Secure Messaging keys SFP] on [create, update and unblock of Secure
Messaging Keys by Administrator].
5.1.2.2
FDP_ACF access control function
FDP_ACF.1 Security attribute based access control
Correspondence between attributes defined in SSCD Type 2 and Type 3 and applet attributes:
The security attributes for the subjects, TOE components and related status are:
SSCD Attribute
General Attribute
USER
ROLE
Signature-creation attribute
SCD
operational
Name:
Associated
to:
Status:
se
nt
by
Name:
Applet Attribute
Explanation
ROLE
Administrator, Signatory
SCD operational
SCD
SCD.AC_USE
SCD
No, Yes
Not Satisfied (No),
Satisfied (Yes)
In this applet , “SCD operational”
corresponds to the access condition
SCD.AC_USE. Its status is “Yes” if and
only if the access condition is satisfied.
sent by an
authorised SCA
MAC (computed with
SCD.SIG_USE)
“sent by an authorised SCA”
corresponds to the MAC associated to
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
Associated
to:
Status:
DTBS
DTBS
No, Yes
Not Verified (No),
Verified (Yes)
SCD/SVD management (TYPE 2)
Initialisation attribute (SSCD Type 2)
SCD/SVD
Name:
management
Associated
to:
Status:
USER
Authorised, Not
Authorised
DF .AC_APPEND
DF .AC_UPDAT E
SCD.AC_CHANG E
USER
Satisfied (Authorised),
Not Satisfied (Not
Authorised)
the message; SCA is authenticated by
verifying this MAC using secure
messaging (in SIG mode) with the Key
SCD.SIG_USE.
In this applet, there are three ways to
import an SCD:
- create and define the SCD object
- update the SCD value and its
attributes
- update the SCD value.
These operations correspond
respectively to the applet commands
PUT DAT A O CI (c r eation m ode) ,
PUT DAT A O CI ( update m ode)
and CHANG E KEY DAT A.
And they are respectively protected by
the access conditions
DF .AC_APPEND,
DF .AC_UPDAT E and
SCD.AC_CHANG E.
Note: DF .AC_APPEND,
DF .AC_UPDAT E,
SCD.AC_CHANG E are viewed as
attributes of USER since they are used
to authenticate the USER.
Secure SCD Import allowed
Name:
Associated
to:
Status:
Secure SCD Import MAC (computed with
allowed
DF.SIG_UPDATE/APPEND
or SCD.SIG_CHANGE)
SCD
SCD
No, Yes
Not Verified (No),
Verified (Yes)
SCD/SVD
management
Initialisation attribute (SSCD Type 3)
SCD/SVD
Name:
management
USER
Associated
to:
Status:
Authorised, Not
Authorised
SCD.AC_GENKEYPAIR
USER
Satisfied (Authorised),
Not Satisfied (Not
Authorised)
“Secure SCD Import allowed”
corresponds to the device
authentication during secure
messaging (in SIG mode). The secure
messaging key to use depends on the
issued applet command for SCD
import:
- DF.SIG_UPDATE/APPEND for
PUT DAT A O CI (c r eation
m ode) and PUT DAT A O CI
( update m ode)
- SCD.SIG_CHANGE for CHANG E
KEY DAT A.
In this applet, “SCD/SVD
management” corresponds to the
access condition
SCD.AC_GENKEYPAIR. Key
generation is authorised if and only if
the access condition is satisfied.
Note: The SCD.AC_GENKEYPAIR is
viewed as an attribute of USER since it
is used to authenticate the USER.
Table 3 Correspondence between attributes defined in SSCD Type 2 and Type 3 and applet attributes
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
SVD transfer SF P
F DP_ACF .1.1/ SVD transfer SF P
The TSF shall enforce the [ SVD transfer SF P] to objects based on [General attribute]
F DP_ACF .1.2/ SVD transfer SF P
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
The user with the security attribute "role" set to "Administrator” or to "Signatory" is allowed to
export SVD.
F DP_ACF .1.3/ SVD transfer SF P
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules:
[Proprietary information removed]
F DP_ACF .1.4/ SVD transfer SF P
The TSF shall explicitly deny access of subjects to objects based on the rule: [n on e]
Application note:
FDP_ACF.1/SVD Transfer SFP will be required only, if the TOE holds the SVD and the SVD is exported
to the CGA for certification.
Initialisation SF P
F DP_ACF .1.1/Initialisation SF P
The TSF shall enforce the [Initialisation SF P] to objects based on [General attribute] and [Initialisation
attribute].
F DP_ACF .1.2/ Initialisation SF P
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
The user with the security attribute "role" set to "Administrator" or set to "Signatory" and with the
security attribute "SCD / SVD management" set to " authorised" is allowed to generate SCD/SVD
pair.
F DP_ACF .1.3/ Initialisation SF P
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
F DP_ACF .1.4/ Initialisation SF P
The TSF shall explicitly deny access of subjects to objects based on the rule:
The user with the security attribute "role" set to "Administrator" or set to "Signatory" and with the
security attribute "SCD / SVD management" set to "not authorised" is not allowed to generate
SCD/SVD pair.
[Proprietary information removed]
SCD Import SFP
FDP_ACF.1.1/ SCD Import SFP
The TSF shall enforce the [SCD Import SFP] to objects based on [General attribute] and [Initialisation attribute
group].
FDP_ACF.1.2/ SCD Import SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
The user with the security attribute "role" set to "Administrator" or set to "Signatory" and with the
security attribute "SCD / SVD management" set to "authorised" is allowed to import SCD if the
security attribute "secure SCD import allowed" is set to "yes".
FDP_ACF.1.3/ SCD Import SFP
The TSF shall explicitly Authorise access of subjects to objects based on the following additional rules:
[Proprietary information removed]
FDP_ACF.1.4/ SCD Import SFP
The TSF shall explicitly deny access of subjects to objects based on the rule:
a) The user with the security attribute "role" set to "Administrator" or to "Signatory" and with the
security attribute "SCD / SVD management" set to "not authorised" is not allowed to import
SCD if the security attribute "secure SCD import allowed" is set to "yes".
b) The user with the security attribute "role" set to "Administrator" or to "Signatory" and with the
security attribute "SCD / SVD management" set to "authorised" is not allowed to import SCD if
the security attribute "secure SCD import allowed" is set to "no".
Personalisation SFP
FDP_ACF.1.1/ Personalisation SFP
The TSF shall enforce the [Personalisation SFP] to objects based on [General attribute]
FDP_ACF.1.2/ Personalisation SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
User with the security attribute "role" set to "Administrator" is allowed to create the RAD
[Proprietary information removed]
FDP_ACF.1.3/ Personalisation SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ Personalisation SFP
The TSF shall explicitly deny access of subjects to objects based on the rule: [none]
Application Note:
The “Personalisation SFP” controls creation operation on a specific PIN that is the RAD.
In this requirement, DF is the folder where PIN has to be created.
PIN SFP
The “Personalisation SFP” controls creation operation on a specific PIN that is the RAD. The “PIN FSP” concerns:
- All other PINs (except RAD) of the application and all their related operations (creation, update, unblock and
use).
- The RAD for the other operations except creation (already covered by Personalisation SFP)
FDP_ACF.1.1/ PIN SFP
The TSF shall enforce the [PIN SFP] to objects based on
Subjects: Signatory, Administrator
Objects: PINs
Attributes: see Table 1 Applet Attributes (1)
FDP_ACF.1.2/ PIN SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
User with the security attribute "role" set to "Administrator" or set to "Signatory" is allowed to
create the PINs.
[Proprietary information removed]
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
FDP_ACF.1.3/ PIN SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ PIN SFP
The TSF shall explicitly deny access of subjects to objects based on the rule: [none]
Application Note:
- In this requirement, DF is the folder containing the PIN.
Signature Creation SFP
FDP_ACF.1.1/ Signature-creation SFP
The TSF shall enforce the [Signature-creation SFP] to objects based on [General attribute] and [Signaturecreation attribute].
FDP_ACF.1.2/ Signature-creation SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
User with the security attribute "role" set to "Signatory" is allowed to create electronic signatures for
DTBS sent by an authorized SCA with SCD by the Signatory which security attribute "SCD
operational" is set to "yes".
[Proprietary information removed]
FDP ACF.1.3/ Signature-creation SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules:
- Signature creation is only allowed in “Personalised State” life cycle
FDP_ACF.1.4/Signature-creation SFP
The TSF shall explicitly deny access of subjects to objects based on the rule:
a) User with the security attribute "role" set to "Signatory" is not allowed to create electronic
signatures for DTBS which is not sent by an authorized SCA with SCD by the Signatory which
security attribute "SCD operational" is set to "yes".
b) User with the security attribute "role" set to "Signatory" is not allowed to create electronic
signatures for DTBS sent by an authorized SCA with SCD by the Signatory which security
attribute "SCD operational" is set to "no".
External Authentication Keys SFP
FDP_ACF.1.1/ External Authentication Keys SFP
The TSF shall enforce the [External Authentication Keys SFP] to objects based on
Subjects: Signatory, Administrator
Objects: External Authentication Keys
Attributes: see Table 2 Applet Attributes (2)
FDP_ACF.1.2/ External Authentication Keys SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
User with the security attribute "role" set to "Administrator" or set to "Signatory" is allowed to
create the External Authentication Keys.
[Proprietary information removed]
FDP_ACF.1.3/ External Authentication Keys SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ External Authentication Keys SFP
The TSF shall explicitly deny access of subjects to objects based on the rule: [none]
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
Secure Messaging Keys SFP
FDP_ACF.1.1/ Secure Messaging Keys SFP
The TSF shall enforce the [Secure Messaging Keys SFP] to objects based on Personalisation SFP
Subjects: Signatory, Administrator
Objects: Secure Messaging Keys
Attributes: see Table 2 Applet Attributes (2)
FDP_ACF.1.2/ Secure Messaging Keys SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
[Proprietary information removed]
FDP_ACF.1.3/ Secure Messaging Keys SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ Secure Messaging Keys SFP
The TSF shall explicitly deny access of subjects to objects based on the rule: [none]
5.1.2.3
FDP_ETC : Export to outside TSF control
FDP_ETC.1: Export of user data without security attributes
FDP_ETC.1.1/ SVD transfer
The TSF shall enforce the [SVD transfer SFP] when exporting user data, controlled under the SFP(s), outside of
the TSC.
FDP_ETC.1.2/ SVD transfer
The TSF shall export the user data without the user data'
s associated security attributes.
Application note:
FDP_ETC.1/SVD Transfer SFP will be required only, if the TOE holds the SVD and the SVD is exported to
the CGA for certification.
5.1.2.4
FDP_ITC Import From outside TSF control
FDP_ITC.1: Import of user data without security attributes
FDP_ITC.1.1/SCD
The TSF shall enforce the [SCD Import SFP] when importing user data, controlled under the SFP, from outside of
the TSC.
FDP_ITC.1.2/SCD
The TSF shall ignore any security attributes associated with the user data when imported from outside the TSC.
FDP_ITC.1.3/SCD
The TSF shall enforce the following rules when importing user data controlled under the SFP from outside the TSC:
[SCD shall be sent by an Authorised SSCD].
Application note:
A SSCD of Type 1 is authorised to send SCD to a SSCD of Type 2, if it is designated to generate the SCD
for this SSCD of Type 2 and to export the SCD for import into this SSCD of Type 2. Authorised SSCD of
Type 1 are able to establish a trusted channel to the SSCD of Type 2 for SCD transfer as required by
FTP_ITC.1.3/SCD export.
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
FDP_ITC.1.1/DTBS
The TSF shall enforce the [Signature-creation SFP] when importing user data, controlled under the SFP, from
outside of the TSC.
FDP_ITC.1.2/DTBS
The TSF shall ignore any security attributes associated with the user data when imported from outside the TSC.
FDP_ITC.1.3/DTBS
The TSF shall enforce the following rules when importing user data controlled under the SFP from outside the TSC:
[DTBS-representation shall be sent by an Authorised SCA].
Application note:
A SCA is authorised to send the DTBS-representation if it is actually used by the Signatory to create an
electronic signature and able to establish a trusted channel to the SSCD as required by FTP_ITC.1.3/SCA
DTBS.
FDP_ITC.1.1/External Authentication keys
The TSF shall enforce the [External Authentication keys SFP] when importing user data, controlled under the
SFP, from outside of the TSC.
FDP_ITC.1.2/ External Authentication keys
The TSF shall ignore any security attributes associated with the user data when imported from outside the TSC.
FDP_ITC.1.3/ External Authentication keys
The TSF shall enforce the following rules when importing user data controlled under the SFP from outside the TSC:
[none].
FDP_ITC.1.1/ Secure Messaging keys
The TSF shall enforce the [Secure Messaging keys Import SFP] when importing user data, controlled under the
SFP, from outside of the TSC.
FDP_ITC.1.2/ Secure Messaging keys
The TSF shall ignore any security attributes associated with the user data when imported from outside the TSC.
FDP_ITC.1.3/ Secure Messaging keys
The TSF shall enforce the following rules when importing user data controlled under the SFP from outside the TSC:
[none].
5.1.2.5
FDP_RIP Residual information protection
FDP_RIP.1: Subset residual information protection
FDP_RIP.1.1
The TSF shall ensure that any previous information content of a resource is made unavailable upon the [deallocation of the resource from] the following objects: [SCD, VAD, and RAD].
5.1.2.6
FDP_SDI Stored data integrity
FDP_SDI2 Stored data integrity monitoring
Persistent data
The following data persistently stored by TOE have the user data attribute "integrity checked persistent stored data"
SCD
RAD
SVD (if persistently stored by TOE)
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
FDP_SDI.2.1/Persistent
The TSF shall monitor user data stored within the TSC for [integrity error] on all objects, based on the following
attributes: [integrity checked persistent stored data].
FDP_SDI.2.2/Persistent
Upon detection of a data integrity error, the TSF shall :
[ 1. prohibit the use of the altered data
2. inform the Signatory about integrity error.]
DTBS-representation
The Protection Profiles SSCD TYPE 2 and TYPE3 specify that the DTBS representation temporarily stored by
TOE have the user data attribute "integrity checked stored data".
The requirements FDP_SDI.2.1/DTBS and FDP_SDI.2.2/DTBS are not application to our TOE since the DTBS
(the message to be signed) is not stored by the TOE.
5.1.2.7
FDP_UCT Inter-TSF user data confidentiality transfer protection
FDP_UCT.1 Basic data exchange confidentiality
FDP_UCT.1.1/ Receiver
The TSF shall enforce the [SCD Import SFP] to be able to [receive] objects in a manner protected from
unauthorised disclosure.
Application Note: [Proprietary information removed]
5.1.2.8
FDP_UIT Inter-TSF user data integrity transfer protection
FDP_UIT.1: Data exchange integrity
SVD transfer
FDP_UIT.1.1/ SVD transfer
The TSF shall enforce the [SVD transfer SFP] to be able to [transmit] user data in a manner protected from
[modification and insertion] errors.
FDP_UIT.1.2/ SVD transfer
The TSF shall be able to determine on receipt of user data, whether [modification and insertion] has occurred.
Application Note: [Proprietary information removed]
Receiver
FDP_UIT.1.1/ TOE DTBS
The TSF shall enforce the [Signature-creation SFP] to be able to [receive] the DTBS-representation in a manner
protected from [modification, deletion and insertion] errors.
FDP_UIT.1.2/ TOE DTBS
The TSF shall be able to determine on receipt of user data, whether [modification, deletion and insertion] has
occurred.
Application Note: [Proprietary information removed]
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
5.1.3
FIA: IDENTIFICATION AND AUTHENTICATION
5.1.3.1
FIA_AFL Authentication failure
FIA_AFL.1 Authentication failure handling
FIA_AFL is specific to the RAD. We define a new requirement “FIA AFL.1.1/General” applicable for all
authentication data ( External Authentication keys, Secure Messaging Key for Signature/Verification). These
different authentication data may be used to control access to different operations (examples: DF .AC_APPEND
DF .AC_UPDAT E, SCD.AC_CHANG E, SCD.AC_GENKEYPAIR…).
FIA AFL.1.1
The TSF shall detect when [number N] unsuccessful authentication attempts occur related to [consecutive
failed authentication attempts].
FIA AFL.1.2
When the defined number of unsuccessful authentication attempts has been met or surpassed, the TSF shall
[block RAD].
Application Note:
The Authentication Try Limit N, defined during personalisation, must verify 1 ≤ N ≤ 3.
FIA AFL.1.1/General
The TSF shall detect when [number N] unsuccessful authentication attempts occur related to [consecutive
failed authentication attempts].
FIA AFL.1.2/General
When the defined number of unsuccessful authentication attempts has been met or surpassed, the TSF shall
[block the corresponding authentication data External Authentication keys, Secure Messaging Key for
Signature/Verification].
Application Note:
The Authentication Try Limit N, defined during personalisation, must verify 1 ≤ N ≤ 3.
5.1.3.2
FIA_ATD User attribute definition
FIA ATD.1 User attribute definition
FIA ATD.1.1
The TSF shall maintain the following list of security attributes belonging to individual users [RAD]
5.1.3.3
FIA_UAU User authentication
FIA UAU.1 Timing of authentication
FIA UAU.1.1
The TSF shall allow
[Identification of the user by means of TSF required by FIA_UID.1]
[Establishing a trusted channel between the TOE and a SSCD of type 1 by means of TSF required by
FTP_ITC.1ISCD import]
[Establishing a trusted path between local user and the TOE by means of TSF required by
FTP_TRP.1/TOE]
[Establishing a trusted channel between the SCA and the TOE by means of TSF required by
FTP_ITC.1/DTBS import]
on behalf of the user to be performed before the user is authenticated.
FIA_UAU.1.2
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
The TSF shall require each user to be successfully authenticated before allowing any other TSF-mediated actions
on behalf of that user.
Application note:
"Local user" mentioned in component FIA_UAU.1.1 is the user using the trusted path provided between the SGA
in the TOE environment and the TOE as indicated by FTP_TRP.1/SCA and FTP TRP.1/TOE.
5.1.3.4
FIA_UID User Identification
FIA_UID.1Timing of identification
FIA UID.1.1
The TSF shall allow
[Establishing a trusted channel between the TOE and a SSCD of type 1 by means of TSF required by
FTP_ITC.1/SCD import]
[Establishing a trusted path between local user and the TOE by means of TSF required by
FTP_TRP.1/TOE]
[Establishing a trusted channel between the SCA and the TOE by means of TSF required by
FTP_ITC.1/DTBS import]
on behalf of the user to be performed before the user is identified.
FIA_UID.1.2
The TSF shall require each user to be successfully identified before allowing any other TSF-mediated actions on
behalf of that user.
5.1.4
FMT: SECURITY MANAGEMENT
5.1.4.1
FMT_MOF Management of functions in TSF
FMT_MOF.1 Management of security functions behaviour
FMT_MOF.1.1
The TSF shall restrict the ability to [enable] the [signature-creation function] to [Signatory].
5.1.4.2
FMT_MSA Management of security attributes
FMT_MSA.1 Management of security attributes
FMT_MSA.1.1/ Administrator-Initialisation
The TSF shall enforce the [Initialisation SFP] to restrict the ability to [modify] the security attributes [SCD / SVD
management] to [Administrator].
Application Note:
[Proprietary information removed]
FMT_MSA.1.1/ Administrator - Import
The TSF shall enforce the [SCD Import SFP] to restrict the ability to [modify] the security attributes [SCD / SVD
management] to [Administrator].
Application Note:
[Proprietary information removed]
FMT_MSA.1.1/ Signatory
The TSF shall enforce the [Signature-creation SFP] to restrict the ability to [modify] the security attributes [SCD
operational] to [Signatory].
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
Application Note:
[Proprietary information removed]
FMT_MSA.1.1/ External Authentication Keys
The TSF shall enforce the [External Authentication Keys SFP] to restrict the ability to [modify] the security
attributes [related to External Authentication Keys (see Table 2 Applet Attributes (2))] to [Administrator]
FMT_MSA.1.1/Secure Messaging Keys
The TSF shall enforce the [Secure Messaging Keys SFP] to restrict the ability to [modify] the security attributes
[related to Secure Messaging Keys (see Table 2 Applet Attributes (2))] to [Administrator].
Application Note:
This requirement deals with Secure Messaging Keys used for operations on the SCD and the RAD.
FMT_MSA.2 Secure security attributes
FMT_MSA.2.1
The TSF shall ensure that only secure values are accepted for security attributes.
FMT MSA.3 Static attribute initialisation
FMT_MSA.3.1
The TSF shall enforce the [Initialisation SFP] and [Signature-creation SFP] and [SCD Import SFP] and
[External Authentication Keys SFP] and [Secure Messaging Keys SFP] to provide [restrictive] default values
for security attributes that are used to enforce the SFP.
Refinement:
[Proprietary information removed]
FMT_MSA.3.2
The TSF shall allow the [Administrator or Signatory] to specify alternative initial values to override the default
values when an object or information is created.
5.1.4.3
FMT_MTD Management of TSF data
FMT_MTD.1 Management of TSF data
FMT_MTD.1.1/ Signatory
The TSF shall restrict the ability to [modify] the [RAD] to [Signatory].
Application Note: [Proprietary information removed]
5.1.4.4
FMT_SMR Security management rotes
FMT_SMR.1 Security roles
FMT_SMR.1.1
The TSF shall maintain the roles [Administrator] and [Signatory].
FMT SMR.1.2
The TSF shall be able to associate users with roles.
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
5.1.5
FPT: PROTECTION OF THE TSF
5.1.5.1
FPT_AMT Underlying Abstract machine test
FPT_AMT.1 Underlying Abstract machine test
FPT_AMT.1.1
The TSF shall run a suite of tests [during initial start-up] to demonstrate the correct operation of the security
assumptions provided by the abstract machine that underlies the TSF.
Refinement:
In this Security Target (ST), the underlying abstract machine test is the Integrated Circuit (IC).
5.1.5.2
FPT_EMSEC TOE Emanation
FPT EMSEC.1.1 TOE Emanation
FPT_EMSEC.1.1
The TOE shall not emit [Side channel emission] in excess of [limits specified by the state-of-the-art attacks
on smart card IC] enabling access to [RAD and SCD].
FPT_EMSEC.1.2
The TSF shall ensure [all users] are unable to use the following interface [external contacts emanations] to
gain access to [RAD and SCD].
5.1.5.3
FPT_FLS Failure secure
FPT_FLS.1 Failure with preservation of secure state
FPT_FLS.1.1
The TSF shall preserve a secure state when the following types of failures occur :[power shortage, over
voltage, over and under clock frequency, integrity errors].
5.1.5.4
FPT_PHP TSF physical Protection
FPT_PHP.1 Passive detection of physical attack
FPT_PHP.1.1
The TSF shall provide unambiguous detection of physical tampering that might compromise the TSF.
FPT_PHP.1.2
The TSF shall provide the capability to determine whether physical tampering with the TSF'
s devices or TSF'
s
elements has occurred.
FPT_PHP.3 Resistance to physical attack
FPT_PHP.3.1
The TSF shall resist [physical manipulation and physical probing] to the [integrated circuit] by responding
automatically such that the TSP is not violated
Application Note:
This requirement is connected to the IC FPT_PHP.3 [STIC]. The IC detects physical attacks and reacts to
these attacks by resetting the card or raising an exception. In these two cases, IC notifies the attack to the
software.
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
5.1.5.5
FPT_TST TSF self test
FPT_TST.1 TSF testing
FPT_TST.1.1
The TSF shall run a suite of self-tests [during initial start-up] to demonstrate the correct operation of the TSF.
FPT_TST.1.2
The TSF shall provide authorised users with the capability to verify the integrity of TSF data.
FPT_TST.1.3
The TSF shall provide authorised users with the capability to verify the integrity of stored TSF executable code.
5.1.6
FTP: TRUSTED PATH / CHANNEL
5.1.6.1
FTP_ITC Inter-TSF trusted channel
FTP ITC.1 Inter-TSF trusted Channel
FTP_ITC.1.1/ SCD import
The TSF shall provide a communication channel between itself and a remote SCD import trusted IT product that is
logically distinct from other communication channels and provides assured identification of its end points and
protection of the channel data from modification or disclosure.
FTP_ITC.1.2/ SCD import
The TSF shall permit [the remote trusted IT product] to initiate communication via the trusted channel.
FTP_ITC.1.3/ SCD import
The TSF shall initiate communication via the trusted channel for [SCD import]
Refinement:
The mentioned remote trusted IT product is a SSCD of type 1.
Application Note: [Proprietary information removed]
FTP_ITC.1.1/ SVD transfer
The TSF shall provide a communication channel between itself and a remote trusted IT product CGA that is logically
distinct from other communication channels and provides assured identification of its end points and protection of the
channel data from modification or disclosure.
FTP_ITC.1.2/ SVD transfer
The TSF shall permit [the remote trusted IT product] to initiate communication via the trusted channel.
FTP_ITC.1.3/ SVD transfer
The TSF or the CGA shall initiate communication via the trusted channel for [export SVD]
Application Note:
Key to be used for secure messaging is specified in the SM condition SVD.SIG_READ_OUT.
Application note (from [SSCD2]):
FTP_ITC.1/SVD Transfer will be required only, if the TOE is to import the SVD from a SSCD Type1 so it
will be exported to the CGA for certification.
Application note (from this Security Target):
In this security target, SVD is exported but never imported. Thus only “FTP_ITC.1.1/ SVD transfer” from
[SSCD3] is applicable. In [SSCD2], “FTP_ITC.1.1/ SVD transfer” concerns import and export of SVD. The
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
part concerning the SVD export has exactly the same text than the requirement included in this Security
Target.
FTP_ITC.1.1/ DTBS import
The TSF shall provide a communication channel between itself and a remote trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of the
channel data from modification or disclosure.
FTP_ITC.1.2/ DTBS import
The TSF shall permit [the remote trusted IT product] to initiate communication via the trusted channel.
FTP_ITC.1.3 DTBS import
The TSF shall initiate communication via the trusted channel for [signing DTBS-representation]
Refinement: The mentioned remote trusted IT product is a SCA.
Application Note: [Proprietary information removed]
5.1.6.2
FTP _TRP Trusted path
FTP_TRP.1 Trusted path
FTP_TRP.1.1/TOE
The TSF shall provide a communication path between itself and [local] users that is logically distinct from other
communication paths and provides assured identification of its end points and protection of the communicated
data from modification or disclosure.
FTP_TRP.1.2/TOE
The TSF shall permit [local users] to initiate communication via the trusted path.
FTP_TRP.1.3/TOE
The TSF shall require the use of the trusted path for [initial user authentication].
Application Note: [Proprietary information removed]
5.2
TOE SECURITY ASSURANCE REQUIREMENTS
The Assurance requirements is EAL4 augmented by components:
ADV_IMP.2 Implementation of the TSF,
AVA_MSU.3: Analysis of insecure states,
AVA VLA.4: Highly resistant.
5.2.1
CONFIGURATION MANAGEMENT (ACM)
EAL4 augmented claimed level requires the following ACM class components:
ACM AUT.1 Partial CM automation
ACM_CAP.4 Generation support and acceptance procedures
ACM_SCP.2 Problem tracking CM coverage
Refer to CC Part 3 for description.
5.2.2
DELIVERY AND OPERATION (ADO)
EAL4 augmented claimed level requires the following ADO class components:
ADO DEL.2 Detection of modification
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
ADO_IGS.1 Installation, generation, and start-up procedures
Refer to CC Part 3 for description.
5.2.3
DEVELOPMENT (ADV)
EAL4 augmented claimed level requires the following ADV class components:
ADV_FSP.2 Fully defined external interfaces
ADV_HLD.2 Security enforcing high-level design
ADV_IMP.2 Implementation of the TSF
ADV_LLD.1 Descriptive low-level design
ADV_RCR.1 Informal correspondence demonstration
ADV_SPM.1 Informal TOE security policy model
Refer to CC Part 3 for description.
5.2.4
GUIDANCE DOCUMENTS (AGD)
EAL4 augmented claimed level requires the following AGD class components:
AGD ADM.1 Administrator guidance
AGD_USR.1 User guidance
Refer to CC Part 3 for description.
5.2.5
LIFE CYCLE SUPPORT (ALC)
EAL4 augmented claimed level requires the following ALC class components:
ALC_DVS.1 Identification of security measures
ALC_LCD.1 Developer defined life-cycle model
ALC_TAT.1 Well-defined development tools
Refer to CC Part 3 for description.
5.2.6
TESTS (ATE)
EAL4 augmented claimed level requires the following ATE class components:
ATE_COV.2 Analysis of coverage
ATE_DPT.1 Testing: high-level design
ATE_FUN.1 Functional testing
ATE_IND.2 Independent testing- sample
Refer to CC Part 3 for description.
5.2.7
VULNERABILITY ASSESSMENT (AVA)
EAL4 augmented claimed level requires the following AVA class components:
AVA_MSU.3 Analysis and testing of insecure states
AVA_SOF.1 Strength of TOE security function evaluation
AVA VLA.4 Highly resistant
Refer to CC Part 3 for description.
5.3
SECURITY REQUIREMENTS FOR THE IT ENVIRONMENT
This section describes the IT security requirements that are to be met by the IT environment of the TOE. The IT
environment of the TOE is composed of the Certification Generation Application (CGA) and the Signature
Creation Application (SCA).
These requirements are as stated in [SSCD2] & [SSCD3].
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
5.3.1
Signature key generation (SSCD Type1)
5.3.1.1
Cryptographic key generation (FCS_CKM.1)
FCS_CKM.1.1
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[RSA key generation] and specified cryptographic key sizes [1024 bits or 1280 bits or 1536 bits or 1792 bits
and 2048 bits] that meet the following: [no standard].
5.3.1.2
Cryptographic key destruction (FCS_CKM.4)
FCS_CKM.4.1/Type1
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[physical irreversible destruction of the stored key] that meets the following: [no standard].
Application notes:
The cryptographic key SCD will be destroyed automatically after export .
5.3.1.3
Cryptographic operation (FCS_COP.1)
FCS_COP.1.1/ CORRESP
The TSF shall perform [SCD / SVD correspondence verification] in accordance with a specified cryptographic
algorithm [RSA key computation] and cryptographic key sizes [1024 bits or 1280 bits or 1536 bits or 1792 bits
and 2048 bits] that meet the following: [PKCS#1].
5.3.1.4
Subset access control (FDP_ACC.1)
FDP_ACC.1.1/SCD Export SFP
The TSF shall enforce the [SCD Export SFP] on [export of SCD by Administrator].
5.3.1.5
Basic data exchange confidentiality (FDP_UCT.1)
FDP_UCT.1.1/ Sender
The TSF shall enforce the [SCD Export SFP] to be able to [transmit] objects in a manner protected from
unauthorised disclosure.
5.3.1.6
Inter-TSF trusted channel (FTP_ITC.1)
FTP_ITC.1.1/SCD Export
The TSF shall provide a communication channel between itself and a remote trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/SCD Export
The TSF shall permit [the remote trusted IT product] to initiate communication via the trusted channel.
FTP_ITC.1.3/ SCD Export
The TSF or the SSCD Type2 shall initiate communication via the trusted channel for [SCD export].
Refinement:
The mentioned TSF is the SSCD Type 2
Application note:
If the TOE exports the SVD to a SSCD Type2 and the SSCD Type 2 holds the SVD then the trusted
channel between the TOE and the SSCD type 2 will be required .
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
5.3.2
Certification generation application (CGA)
5.3.2.1
Cryptographic key distribution (FCS_CKM.2)
FCS_CKM.2.1/ CGA
The TSF shall distribute cryptographic keys in accordance with a specified cryptographic key distribution method
[qualified certificate] that meets the following: [Triple DES 128 bits or 192 bits].
5.3.2.2
Cryptographic key access (FCS_CKM.3)
FCS_CKM.3.1/ CGA
The TSF shall perform [import the SVD] in accordance with a specified cryptographic key access method [import
through a secure channel] that meets the following: [no standard].
5.3.2.3
Data exchange integrity (FDP_UIT.1)
FDP_UIT.1.1/SVD Import
The TSF shall enforce the [SVD import SFP] to be able to [receive] user data in a manner protected from
[modification and insertion] errors.
FDP_UIT.1.2/SVD Import
The TSF shall be able to determine on receipt of user data, whether [modification and insertion] has occurred.
5.3.2.4
Inter-TSF trusted channel (FTP_ITC.1)
FTP_ITC.1.1/SVD Import
The TSF shall provide a communication channel between itself and a remote trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/SVD Import
The TSF shall permit [the TSF] to initiate communication via the trusted channel.
FTP_ITC.1.3/SVD Import
The TSF or the remote trusted IT product or the TOE shall initiate communication via the trusted channel for
import SVD.
5.3.3
Signature creation application (SCA)
5.3.3.1
Cryptographic operation (FCS_COP.1)
FCS_COP.1.1/SCA Hash
The TSF shall perform [hashing the DTBS] in accordance with a specified cryptographic algorithm [SHA-1] and
cryptographic key sizes [none] that meet the following: [FIPS 180-1].
5.3.3.2
Data exchange integrity (FDP_UIT.1)
FDP_UIT.1.1/SCA DTBS
The TSF shall enforce the [Signature-creation SFP] to be able to [transmit] user data in a manner protected
from [modification, deletion and insertion] errors.
FDP_UIT.1.2/SCA DTBS
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
The TSF shall be able to determine on receipt of user data, whether [modification, deletion and insertion] has
occurred.
5.3.3.3
Inter-TSF trusted channel (FTP_ITC.1)
FTP_ITC.1.1/ SCA DTBS
The TSF shall provide a communication channel between itself and a remote trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/ SCA DTBS
The TSF shall permit [the TSF] to initiate communication via the trusted channel.
FTP_ITC.1.3/SCA DTBS
The TSF or the remote trusted IT product shall initiate communication via the trusted channel for [signing DTBSrepresentation by means of the SSCD].
Refinement:
The mentioned TSF is the SCA
5.3.3.4
Trusted path (FTP_TRP.1)
The trusted path between the TOE and the SCA will be required only if the human interface for user
authentication is not provided by the TOE itself but by the SCA.
FTP_TRP.1.1/ SCA
The TSF shall provide a communication path between itself and [local] users that is logically distinct from other
communication paths and provides assured identification of its end points and protection of the communicated
data from modification or disclosure.
FTP_TRP.1.2/ SCA
The TSF shall permit [the TSF] to initiate communication via the trusted path.
FTP_TRP.1.3/ SCA
The TSF shall require the use of the trusted path for [initial user authentication by RAD].
Refinement:
The mentioned TSF is the SCA
5.4
SECURITY REQUIREMENTS FOR THE NON-IT ENVIRONMENT
R.Administrator_Guide Application of Administrator Guidance
The implementation of the requirements of the Directive, ANNEX II "Requirements for certification serviceproviders issuing qualified certificates", literal (e), stipulates employees of the CSP or other relevant entities to
follow the administrator guidance provided for the TOE. Appropriate supervision of the CSP or other relevant
entities shall ensure the ongoing compliance.
R.Sigy_Guide Application of User Guidance
The SCP implementation of the requirements of the Directive, ANNEX II "Requirements for certification serviceproviders issuing qualified certificates", literal (k), stipulates the signatory to follow the user guidance provided for
the TOE.
R.Sigy_Name Signatory's name in the Qualified Certificate
The CSP shall verify the identity of the person to which a qualified certificate is issued according to the Directive
[1], ANNEX II "Requirements for certification-service-providers issuing qualified certificates", literal (d). The CSP
shall verify that this person holds the SSCD, which implements the SCD corresponding to the SVD to be included
in the qualified certificate.
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
RE.Process-Card
Protection during Packaging, Finishing and Personalisation
The Card Manufacturer (Phase 4 up to the end of Phase 6) shall use adequate security measures to maintain
confidentiality and integrity of the TOE and of its manufacturing and test data (to prevent any possible copy,
modification, retention, theft or unauthorised use).
6.1
Security Functions
SF.KEYGEN - Key generation
The TOE generates the RSA key pair SCD/SVD of size 1024 bits or 1280 bits or 1536 bits or 1792 bits and 2048
bits. This function is claimed SOF-HIGH because the RSA key generation is based on random generation.
SF.SIG - Signature creation
The TOE signs with an RSA private key, a data (DTBS) imported from outside.
SF.USER_AUTH – User Authentication
This function ensures the user authentication. Several authentication mechanisms are available:
- PIN comparison
- External Authentication using Challenge/response protocol with 3DES keys (128 or 192 bits) and MAC
retail algorithm (MAC3)
- External Authentication using Challenge/response protocol with Public RSA keys (1024 bits or 1280 bits
or 1536 bits or 1792 bits and 2048 bits)
This function is claimed SOF-HIGH:
o For the authentication based on PIN and
o The external authentication that is based on random generation
SF.PIN – PIN Management
This function manages operations related to PIN. It enforces access control on PIN related operations, based on
access condition and secure messaging conditions.
SF.KEY – Key Management
This function manages operations related to keys. It enforces access control on key related operations, based on
access condition and secure messaging conditions.
SF.SM – Secure Messaging
The TOE provides security services related to information exchanged between the TOE and external users.
It ensures:
- The integrity and/or confidentiality of received sensitive data
- and the integrity and/or confidentiality of transmitted sensitive data
This function is claimed SOF-HIGH for the mode MAC that is based on random generation.
SF.TEST - Self test
During start-up sequence, if any of the following events occurs, the card mutes itself:
- Blocked random generator
- Incorrect operation of the cryptographic module
This function is automatically executed at the start-up of the smart card.
SF.INTEGRITY - Data Integrity
The TOE checks the integrity of the cryptographic key SCD and the RAD (PIN). It is based on checksum
computation and verification.
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Ffffffffffffffffffffffffffffffffff
SF.PHYS - Physical attack: notification and resistance
This function provides ability for the software to react to physical attacks notified by the IC.
IC Security Functions:
We give here the security functions of the IC. In this description, the term TOE means IC.
The complete description is available in [STIC].
F.RNG: Random Number Generator
The random number generator continuously produces random numbers with a length of one byte.
F.HW-DES: Triple-DES Co-processor
F.OPC: Control of Operating Conditions
F.PHY: Protection against Physical Manipulation
F.LOG: Logical Protection
F.COMP: Protection of Mode Control
F.MEM ACC: Memory Access Control
F.SFR ACC: Special Function Register Access Control
Strength level for the TOE security functions:
IC Security Target [STIC] made a SOF claim “high” (SOF-HIGH) for all IC functions that are realised by
probabilistic or permutational mechanisms: F.RNG, F.LOG, F.HW_DES.
!"
#!$
%
The PP [SSCD2] and [SSCD3] are claimed.
&
CC
CGA
DTBS
EAL
HI
I/0
OS
PDA
PIN
PP
SCA
SCD
SDO
SOF
SSCD
SVD
TOE
CRT
Common Criteria
Certification Generation Application
Data to be Signed
Evaluation Assurance Level
Human Interface HW Hardware
Input/Output
Operating System
Personal Digital Assistant
Personal Identification Number
Protection Profile
Signature-Creation Application
Signature-Creation Data
Signed Data Object
Strength of Function
Secure Signature-Creation Device
Signature-Verification Data
Target of Evaluation
Chinese Reminder Theorem
___________________________________________________________________________
IDOne™ ClassIC Card - Public Security Target
Ref: 110 3645 V1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
