D2STUSTV050309
TV exciters/transmitters
Preliminary version

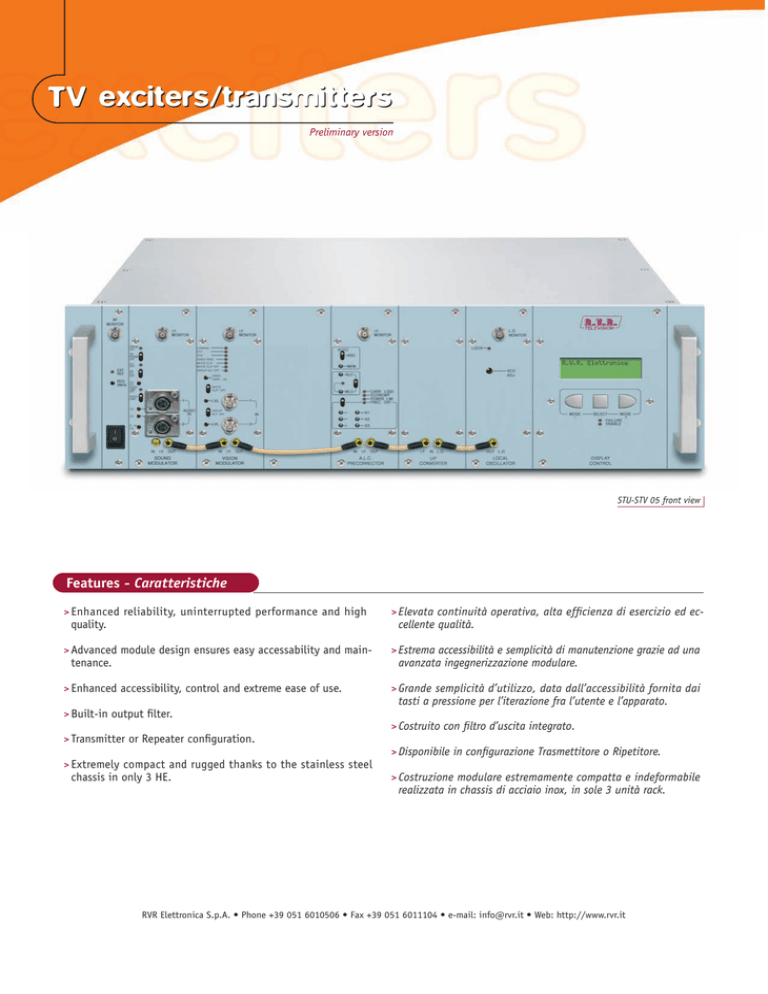

STU-STV 05 front view
Features - Caratteristiche
>Enhanced reliability, uninterrupted performance and high quality.
>Elevata continuità operativa, alta efficienza di esercizio ed ec cellente qualità.
>Advanced module design ensures easy accessability and main tenance.
>Enhanced accessibility, control and extreme ease of use.
>Built-in output filter.
>Transmitter or Repeater configuration.
>Estrema accessibilità e semplicità di manutenzione grazie ad una avanzata ingegnerizzazione modulare.
>Grande semplicità d’utilizzo, data dall’accessibilità fornita dai tasti a pressione per l’iterazione fra l’utente e l’apparato.
>Costruito con filtro d’uscita integrato.
>Disponibile in configurazione Trasmettitore o Ripetitore.
>Extremely compact and rugged thanks to the stainless steel chassis in only 3 HE.
>Costruzione modulare estremamente compatta e indeformabile realizzata in chassis di acciaio inox, in sole 3 unità rack.
RVR Elettronica S.p.A. • Phone +39 051 6010506 • Fax +39 051 6011104 • e-mail: [email protected] • Web: http://www.rvr.it
TV exciters/transmitters
Technical specifications
Parameters
Values
GENERALS STV-05 - Bd III (170-230 Mhz)
Frequency Range
STU-05 - Bd IV & V (470-860 Mhz)
Mains voltage
220 V ac + 10% -15%
Mains frequency
47/63 Hz
Temperature range
0 to +45°C
Relative humidity
95% not condensing
Altitude
up to 2.500 meters
Power consumption
350 W
RF SECTION SPECIFICATIONS Output power
5W peak sync
Vision/Sound power ratio
10/1 single sound or 20/1/0.2 dual sound
Standard
All standards
Modulation class
C3F, F3E
Sound transmission
FM single-sound ( IRT or NICAM 728 )
Harmonic and spurious emission
≤ 1 mW
IMD products in band
≤ 60 dB
Frequency stability
± 100 Hz / 1 month ± 1 Hz / month
External reference frequency
5 MHz/10 MHz 0.2 ÷ 1.0 V / 50 Ω
Offset capability
10/25 Hz steps up to ± 25 kHz
TRANSMISSION CHARACTERISTICS Sideband spectrum response
according to the standard
Amplitude-frequency response
according to the standard
Group delay variation
≤ ± 35 ns (without receiver precorrection and sound trap in TV demod.)
Non linearity distortion (mod. 10 to 75%)
≤ 5%
Differential gain (mod. 10 to 75%)
≤ 5%
Differential phase (mod. 10 to 75%)
≤ ± 3 degrees
Incidental carrier phase modulation
± 3 degrees
Signal to hum (peak value) ratio
≥ -48 dB (f < 10 kHz)
Signal to random noise
≥ -56 dB (unweighted 0.2 to 5 MHz)
Blanking level variation
≤ 2%
2T k factor
≤ 2%
ICPM (picture range)
≤ 2 degrees
Intercarrier S/N ratio
≥ 46 dB (referred to ±50 kHz deviation)
VISION
Video input
2 with aut. Switchover (BNC conn. 75 Ω)
Colour systems
PAL / SECAM / NTSC
Nominal input level
1 Vpp ± 6dB into 75 Ω
Return loss
≤ 34 dB
DC restoration
clamped to the blanking level without affecting the burst
White limiter
at 90% picture signal without affecting the chrominance
SOUND
Sound input
2 with autom. Switchover (video master)
Nominal input level
0 dBm ± 12dB (± 50kHz dev.)
Input impedance
600 Ω balanced
Pre-emphasis
50 μs (75 μs on request)
METERING Peak sync output power
Reflected power
Power supply status
Temperature
PROTECTION CIRCUIT VSWR
Overtemperature
Overcurrent
REMOTE CONTROL
Parallel interface
Start, Stop, Alarm, Interlock
Serial interface
RS 232
MECHANICAL SPECIFICATIONS
Dimensions
1325 H (3 U) x 482 (19”) W x 500 (23,62”) D mm.
Weight
about 17 kg
All pictures are RVR’s property and they are only indicative and not binding. The pictures can be modified without notice.
These are general specifications. They show typical values and are subject to change without notice.
RVR Elettronica S.p.A.
Via del Fonditore, 2/2c
Zona Industriale Roveri • 40138 Bologna • Italy
Phone: +39 051 6010506 • Fax: +39 051 6011104
e-mail: [email protected] • web: http://www.rvr.it
Revision: 03/09
ISO 9001:2000 certified since 2000
