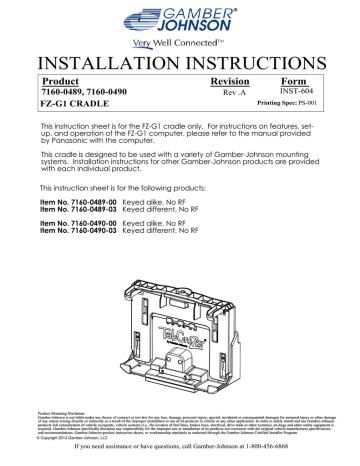

INSTALLATION INSTRUCTIONS
Product
7160-0489, 7160-0490
FZ-G1 CRADLE
Revision
Rev .A
Form
INST-604
Printing Spec: PS-001
This instruction sheet is for the FZ-G1 cradle only. For instructions on features, setup, and operation of the FZ-G1 computer, please refer to the manual provided
by Panasonic with the computer.
This cradle is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided
with each individual product.
This instruction sheet is for the following products:
Item No. 7160-0489-00 Keyed alike, No RF
Item No. 7160-0489-03 Keyed different, No RF
Item No. 7160-0490-00 Keyed alike, No RF
Item No. 7160-0490-03 Keyed different, No RF
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2012 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
CF-53 DOCKING STATION FEATURE IDENTIFICATON
Top Hooks
Button Latch
(Keyed alike,
or Keyed different)
Slide Plate
Base
Guide Block
(Can be removed for
use with FZ-G1 that has
an extended battery or
card slot attachment)
Alignment Tabs
4X Mounting Studs
(1/4-20unc for model 7160-0486)
(M6-1.0 for model 7160-0490)
INSERTING THE COMPUTER INTO THE CRADLE
Figure 1
1. With the slide plate in the open
position, insert the bottom of the
computer into the cradle. Make sure
the guide tabs are lined up with the
pockets on the back side of the
computer.
Rotate the top of the comptuter under
the top hooks until the computer is
resting on the two vertical walls sticking
out from the slide plate.
(see Figues 1, 2 & 3)
Verital Walls
Guide Block
Guide tabs
Figure 2
(Note: If your FZ-G1 computer has an
extended battery or card slot
attachment on the back side, you will
need to remove the guide block from
the face of the dock before inserting
the computer.)
3. Push downward on the slide plate
to latch the cradle. (See Figure 4)
4. (Optional) The key lock can now
be used for security purposes.
Figure 3
TO REMOVE THE COMPUTER
1. Unlock if locked.
3. Press the Latch Button. The slide
plate is spring loaded and should raise
with your hand when you release the
button.
4. Rotate the top of the computer out
of the dock to remove.
Figure 4
