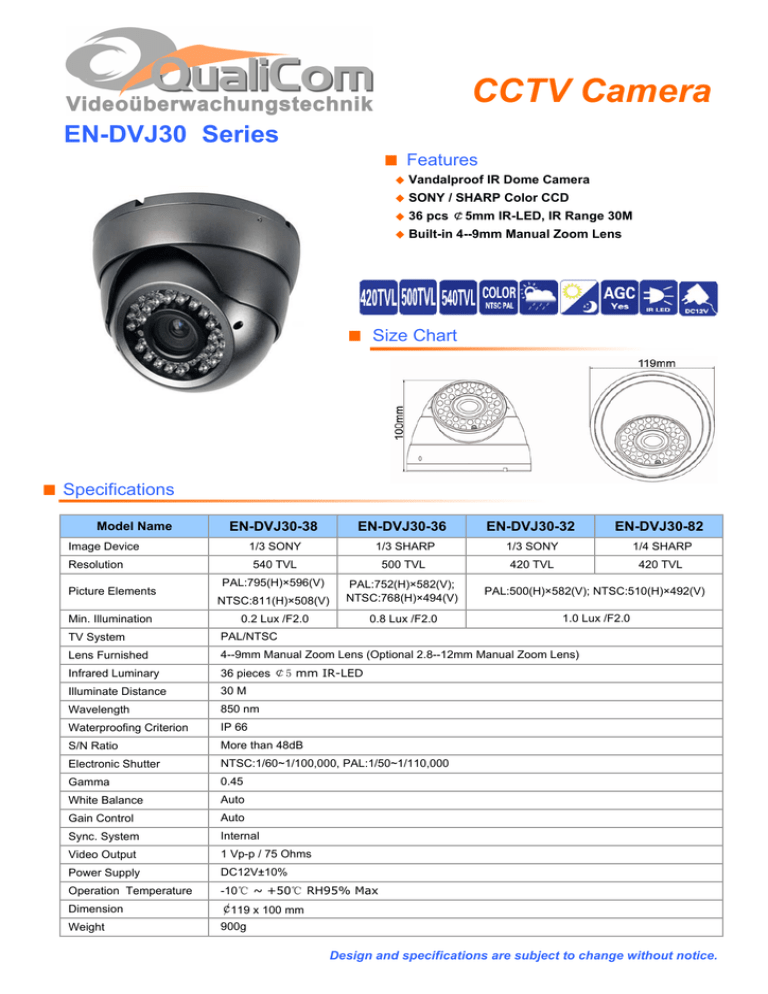

CCTV Camera
EN-DVJ30 Series
■ Features
◆
Vandalproof IR Dome Camera
◆
SONY / SHARP Color CCD
◆
36 pcs ¢5mm IR-LED, IR Range 30M
◆
Built-in 4--9mm Manual Zoom Lens
■ Size Chart
■ Specifications
Model Name
EN-DVJ30-38
EN-DVJ30-36
EN-DVJ30-32
EN-DVJ30-82
1/3 SONY
1/3 SHARP
1/3 SONY
1/4 SHARP
540 TVL
500 TVL
420 TVL
420 TVL
PAL:795(H)×596(V)
NTSC:811(H)×508(V)
PAL:752(H)×582(V);
NTSC:768(H)×494(V)
PAL:500(H)×582(V); NTSC:510(H)×492(V)
0.2 Lux /F2.0
0.8 Lux /F2.0
1.0 Lux /F2.0
Image Device
Resolution
Picture Elements
Min. Illumination
TV System
PAL/NTSC
Lens Furnished
4--9mm Manual Zoom Lens (Optional 2.8--12mm Manual Zoom Lens)
Infrared Luminary
36 pieces ¢5 mm IR-LED
Illuminate Distance
30 M
Wavelength
850 nm
Waterproofing Criterion
IP 66
S/N Ratio
More than 48dB
Electronic Shutter
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma
0.45
White Balance
Auto
Gain Control
Auto
Sync. System
Internal
Video Output
1 Vp-p / 75 Ohms
Power Supply
DC12V±10%
Operation Temperature
-10℃ ~ +50℃ RH95% Max
Dimension
¢119 x 100 mm
Weight
900g
Design and specifications are subject to change without notice.
