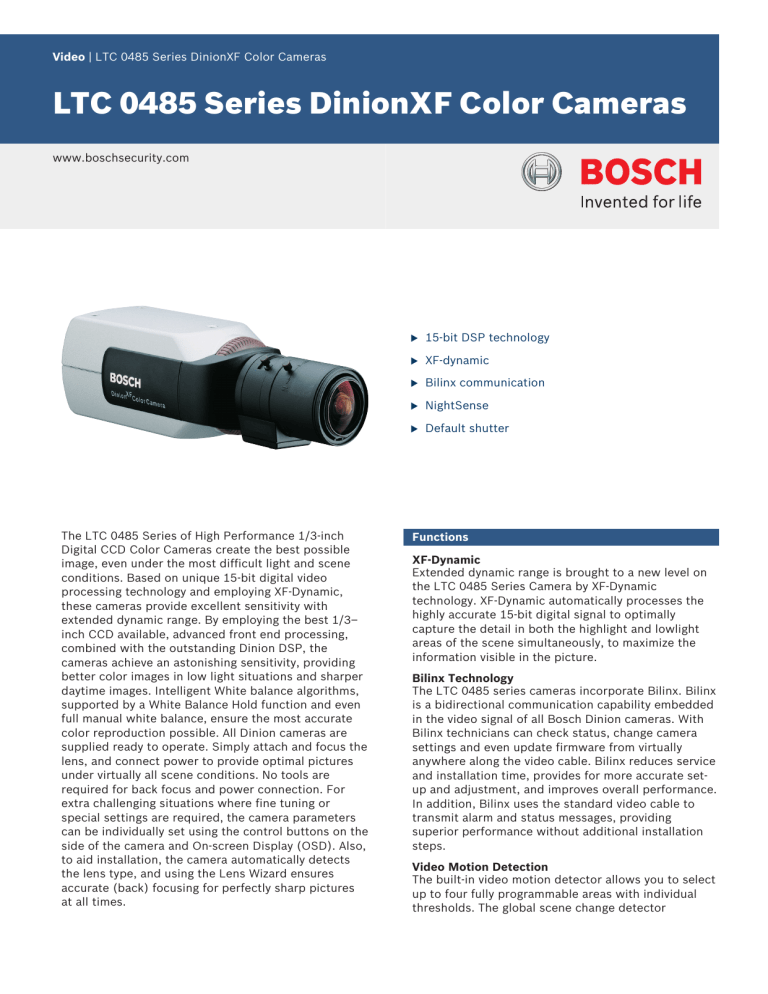

Video | LTC 0485 Series DinionXF Color Cameras
LTC 0485 Series DinionXF Color Cameras
The LTC 0485 Series of High Performance 1/3-inch
Digital CCD Color Cameras create the best possible
image, even under the most difficult light and scene
conditions. Based on unique 15-bit digital video
processing technology and employing XF-Dynamic,
these cameras provide excellent sensitivity with
extended dynamic range. By employing the best 1/3–
inch CCD available, advanced front end processing,
combined with the outstanding Dinion DSP, the
cameras achieve an astonishing sensitivity, providing
better color images in low light situations and sharper
daytime images. Intelligent White balance algorithms,
supported by a White Balance Hold function and even
full manual white balance, ensure the most accurate
color reproduction possible. All Dinion cameras are
supplied ready to operate. Simply attach and focus the
lens, and connect power to provide optimal pictures
under virtually all scene conditions. No tools are
required for back focus and power connection. For
extra challenging situations where fine tuning or
special settings are required, the camera parameters
can be individually set using the control buttons on the
side of the camera and On-screen Display (OSD). Also,
to aid installation, the camera automatically detects
the lens type, and using the Lens Wizard ensures
accurate (back) focusing for perfectly sharp pictures
at all times.
15-bit DSP technology
Bilinx communication
Default shutter
Extended dynamic range is brought to a new level on
the LTC 0485 Series Camera by XF-Dynamic
technology. XF-Dynamic automatically processes the
highly accurate 15-bit digital signal to optimally
capture the detail in both the highlight and lowlight
areas of the scene simultaneously, to maximize the
information visible in the picture.
Bilinx Technology
The LTC 0485 series cameras incorporate Bilinx. Bilinx
is a bidirectional communication capability embedded
in the video signal of all Bosch Dinion cameras. With
Bilinx technicians can check status, change camera
settings and even update firmware from virtually
anywhere along the video cable. Bilinx reduces service
and installation time, provides for more accurate setup and adjustment, and improves overall performance.
In addition, Bilinx uses the standard video cable to
transmit alarm and status messages, providing
superior performance without additional installation
Video Motion Detection
The built-in video motion detector allows you to select
up to four fully programmable areas with individual
thresholds. The global scene change detector
2 | LTC 0485 Series DinionXF Color Cameras
minimizes false alarms caused by sudden lighting
condition changes, such as switching on or off the
indoor or security lighting. When motion is detected
alarms may be displayed in the video signal, the output
relay can be closed in addition to alarm message
transmission on Bilinx.
Auto Black
The automatic black level feature, enhances contrast
by removing veiling glare from the picture or when
contrast is reduced by fog or mist.
Default Shutter
When viewing moving objects a fast shutter speed is
required. When using a fast shutter speed the lens
opening or gain control needs to be increased to
maintain the video signal. The camera sensitivity is
limited by the fast shutter speed. The default shutter
setting of the LTC 0485 offers the best of all worlds,
fast shutter speed as long as there is sufficient light,
however as the light level falls, when other
adjustments have been exhausted, the shutter reverts
to the standard setting maintaining the cameras
excellent sensitivity.
EN50130-4 Alarm Systems, Part 4
Camera with .5 kg (1.1 lbs) lens according to
LTC 0485/11 and LTC 0485/51: EN60065
LTC 0485/21 and LTC 0485/61: UL6500, cUL CAN/CSA E60065-00
Declaration of Conformity
Declaration of Conformity
Installation/configuration notes
Back Light Compensation (BLC)
Offering a fully programmable BLC area of interest,
and a variable BLC level, the camera can be easily set
up for even the most challenging entrance
Lens Wizard
The LTC 0485 Series automatically detects the type of
lens installed. The Lens Wizard will focus the lens at
the maximum lens opening, to ensure that focus is
maintained throughout the entire 24–hour day/night
cycle. No special tools or filters are required.
Programmable Modes
The camera supports 3 independent operating modes.
The 3 modes are preprogrammed for typical
applications, but are fully programmable for individual
situations. Switching between modes is easy via Bilinx
or the external alarm input.
The LTC 0485 cameras feature NightSense. With
NightSense the sensitivity is increased by 9 dB in
monochrome mode. NighSense can be automatically
activated in low light situations, or remotely using
By increasing the integration time on the CCD up to 10
times, the effective sensitivity is dramatically
enhanced, especially useful where there is no artificial
lighting and you rely on the moon, stars and scattered
Certifications and approvals
Electro Magnetic Compatibility
EN55022 class B, FCC class B part 15
Dimensions in mm (inches)
Parts included
LTC 0485 Series DinionXF Color Camera
Spare male 4–pin lens connector
Lens not included
Technical specifications
Model No.
Voltage Range
LTC 0485/11
12–28 VAC
45–65 Hz
11–36 VDC
LTC 0485/21
12–28 VAC
45–65 Hz
11–36 VDC
LTC 0485/51
85–265 VAC
45–65 Hz
LTC 0485/61
85–265 VAC
45–65 Hz
Interline transfer CCD, 1/3-inch format
3 | LTC 0485 Series DinionXF Color Cameras
Active Pixels
752 H x 582 V
768 H x 492 V
(3200 k)
Camera ID
16 character editable string, position selectable
Lens Types
Manual, DC- and Video-iris auto-detect with
override DC-iris drive: max. 50 mA continuous
Video-iris: 11.5 ± 0.5 VDC, max. 50 mA
Remote Control
Bi-directional coaxial communication
1) F1.2, 89% reflection, SensUp Off
Sensitivity (Full
2.4 lux (0.24 fc)
50 IRE1)
0.59 lux / 0.24 lux (NightSense)
(0.059 fc / 0.024 fc (NightSense))
(H x W x L)
59 x 67 x 122 mm (2.28 x 2.6 x 4.8 in.) without
0.24 lux / 0.10 lux (NightSense)
(0.024 fc / 0.01 fc (NightSense))
450 g (0.99 lbs) without lens
Illumination with
Sens Up
0.024 lux / 0.010 lux (NightSense)
(0.0024 fc / 0.0010 fc (NightSense))
Tripod Mount
Bottom (isolated) and top 1/4-in. 20 UNC
Lens Mount
Cand CS
540 TVL
OSD with softkey operation
> 50 dB
Video Output
1 Vpp, 75 Ohm
Y/C Output
Y: 1 Vpp / C: 0.3 Vpp
Internal, line lock, HV-lock and genlock (Burst
lock) selectable
Electronic Shutter
Auto (1/60 (1/50) to 1/500000), fixed,
flickerless, default
Sensitivity up
Off, automatic continuous up to 10x
1/3-inch, high performance, 540 TVL, PAL, DSP, 12 –
28 VAC/11 – 36 VDC, 50 Hz
Auto Black
On, off selectable
Order number LTC0485/11
32x dynamic range enhancement
Dynamic Noise
Auto, off selectable
Sharpness enhancement level selectable
Off, area and level selectable
Auto (maximum level selectable to 28 dB) or
fixed level selectable
White Balance
ATW (2500–10000 K), AWB hold, manual WB
LTC 0485/61 DinionXFColor Camera
4 area, sensitivity selectable
Order number LTC0485/61
Alarm Output
VMD or Bilinx
Alarm Input (TTL)
Profile switching, +5 V nominal, +40 VDC max.
LTC 3364/21 Varifocal Lens IR corrected
Alarm Output
Max. 30 VAC or +40 VDC, max. 0.5 A
continuous, 10 VA
75 Ohm or High Impedance selectable
Up to 1000 m (3000 ft) coax without external
amplifiers (automatic set-up in combination with
coaxial communication)
Operating Temperature
-20 °C to +50 °C(-4 °F to +122 °F)
Storage Temperature
-25 °C to +70 °C(-13 °F to +158 °F)
Operating Humidity
20% to 93% Relative humidity
Storage Humidity
Up to 98% Relative humidity
Ordering information
LTC 0485/11 DinionXF Color Camera
LTC 0485/21 DinionXF Color Camera
1/3-inch, high performance, 540 TVL, NTSC, DSP, 12 –
28 VAC/11 – 36VDC, 60 Hz
Order number LTC0485/21
LTC 0485/51 DinionXF Color Camera
1/3-inch, high performance, 540 TVL, PAL, DSP, 85 –
268 VAC, 50 Hz
Order number LTC0485/51
1/3-inch, high performance, 540 TVL, NTSC, DSP, 85 –
265 VAC, 60 Hz
1/3-inch, 2.8 – 6 mm, DC-iris, CS-mount F1.4-200, 4pin
Order number LTC3364/21
LTC 3364/31 Varifocal Lens
1/3-inch, 3.5 – 8 mm, DC-iris, CS-mount F/1.4-200, 4pin
Order number LTC3364/31
4 | LTC 0485 Series DinionXF Color Cameras
LTC 3384/21 Zoom Lens
1/3-inch, 6 – 60 mm, DC-iris, CS-mount F1.4-360, 4-pin
Order number LTC3384/21
TC120PS Power Supply Unit
Order number TC120PS
TC220PS Power Supply Unit
Order number TC220PS
TC220PSX‑24 Power Supply Unit
Order number TC220PSX-24
TC1334 Power Supply Unit
Order number TC1334
Software Options
VP‑CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB Adaptor
Order number VP-CFGSFT
