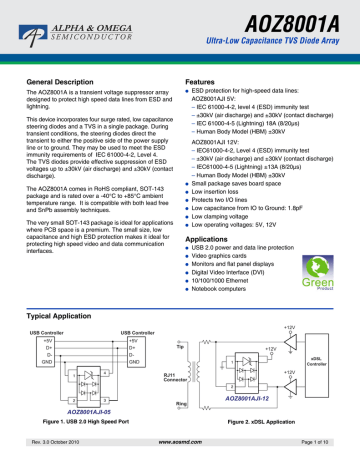

AOZ8001A Ultra-Low Capacitance TVS Diode Array General Description

AOZ8001A Ultra-Low Capacitance TVS Diode Array  General Description
AOZ8001A
Ultra-Low Capacitance TVS Diode Array
General Description
Features
The AOZ8001A is a transient voltage suppressor array
designed to protect high speed data lines from ESD and
lightning.
●
This device incorporates four surge rated, low capacitance
steering diodes and a TVS in a single package. During
transient conditions, the steering diodes direct the
transient to either the positive side of the power supply
line or to ground. They may be used to meet the ESD
immunity requirements of IEC 61000-4-2, Level 4.
The TVS diodes provide effective suppression of ESD
voltages up to ±30kV (air discharge) and ±30kV (contact
discharge).
●
The AOZ8001A comes in RoHS compliant, SOT-143
package and is rated over a -40°C to +85°C ambient
temperature range. It is compatible with both lead free
and SnPb assembly techniques.
●
●
●
●
The very small SOT-143 package is ideal for applications
where PCB space is a premium. The small size, low
capacitance and high ESD protection makes it ideal for
protecting high speed video and data communication
interfaces.
●
ESD protection for high-speed data lines:
AOZ8001AJI 5V:
– IEC 61000-4-2, level 4 (ESD) immunity test
– ±30kV (air discharge) and ±30kV (contact discharge)
– IEC 61000-4-5 (Lightning) 18A (8/20µs)
– Human Body Model (HBM) ±30kV
AOZ8001AJI 12V:
– IEC61000-4-2, Level 4 (ESD) immunity test
– ±30kV (air discharge) and ±30kV (contact discharge)
– IEC61000-4-5 (Lightning) ±13A (8/20µs)
– Human Body Model (HBM) ±30kV
Small package saves board space
Low insertion loss
Protects two I/O lines
Low capacitance from IO to Ground: 1.8pF
Low clamping voltage
Low operating voltages: 5V, 12V
Applications
●
●
●
●
●
●
USB 2.0 power and data line protection
Video graphics cards
Monitors and flat panel displays
Digital Video Interface (DVI)
10/100/1000 Ethernet
Notebook computers
Typical Application
+12V
USB Controller
USB Controller
+5V
D+
DGND
+5V
D+
DGND
1
4
Tip
+12V
xDSL
Controller
1
+12V
RJ11
Connector
2
2
3
Ring
AOZ8001AJI-12
AOZ8001AJI-05
Figure 1. USB 2.0 High Speed Port
Rev. 3.0 October 2010
Figure 2. xDSL Application
www.aosmd.com
Page 1 of 10
AOZ8001A
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
AOZ8001AJI-05
-40°C to +85°C
SOT-143
RoHS Compliant
Green Product
AOZ8001AJI-12
-40°C to +85°C
SOT-143
RoHS Compliant
Green Product
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/web/quality/rohs_compliant.jsp for additional information.
Pin Configuration
VN
1
CH1
2
4
VP
3
CH2
SOT-143
(Top View)
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter
Rating
Storage Temperature (TS)
-65°C to +150°C
Maximum Transient Rating
Device
HBM(1)
ESD (Contact)(2)
ESD (Air)(2)
Surge (8/20µs)
AOZ8001AJI-05
±30kV
±30kV
±30kV
±18A
AOZ8001AJI-12
±30kV
±30KV
±30kV
±13A
Notes:
1. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100pF, RDischarge = 1.5kΩ.
2. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330Ω.
Maximum Operating Ratings
Parameter
Rating
Junction Temperature (TJ)
Rev. 3.0 October 2010
-40°C to +125°C
www.aosmd.com
Page 2 of 10
AOZ8001A
Electrical Characteristics
TA = 25°C unless otherwise specified.
Symbol
IPP
Parameter
Reverse Peak Pulse Current
I
VCL(5)(7)
Clamping Voltage @ IPP
VRWM(3)
Working Peak Reverse Voltage
IR
VBR(4)
Diagram
IF
Maximum Reverse Leakage Current @ VRWM
Breakdown Voltage
VCL VBR VRWM
IF
Forward Current
VF
Forward Voltage
PPK
Peak Power Dissipation
CJ(6)
I/O–GND Capacitance @ VR = 0 and f = 1MHz
V
IR VF
IT
IPP
Device
Device
Marking
VRWM (V)
Max.
VBR (V)
Typ. @
1mA
IR (µA)
Max.
VF (V)
Typ.
VCL Max.
IPP = 1A
IPP = 5A
IPP = 12A
CJ (pF)
Typ.
CJ (pF)
Max.
AOZ8001AJI-05
AD
5.5
8.5
1.0
0.85
12.50
15.00
16.00
1.80
2.50
AOZ8001AJI-12
AD
12.5
15.0
1.0
0.85
16.00
18.00
19.00
1.80
2.50
Notes:
3. The working peak reverse voltage, VRWM, should be equal to or greater than the DC or continuous peak operating
voltage level.
4. VBR is measured at the pulse test current IT.
5. Measurements performed with no external capacitor on VP (pin 4 floating).
6. Measurements performed with VP biased to 3.3 Volts (pin 4 @ 3.3V).
7. Measurements performed using a 100ns Transmission Line Pulse (TLP) system.
Rev. 3.0 October 2010
www.aosmd.com
Page 3 of 10
AOZ8001A
Typical Performance Characteristics
Typical Variation of CIN vs VR
1.0
0.8
5V
0.6
12V
0.4
0.2
0.0
0
1
2
3
4
5
6
7
(tperiod = 100ns, tr = 1ns)
20
Clamping Voltage, VCL (V)
1.2
Normalized Input Capacitance (pF)
Clamping Voltage vs. Peak Pulse Current
(VP = 3.3V, f = 1MHz, T = 25 oC)
8
9
16
5V
14
12
10
8
6
4
2
0
10
12V
18
0
Forward Voltage vs. Forward Current
5
Insertion Loss (dB)
Forward Voltage (V)
15
0
4
2
-5
-10
-15
-20
0
0
2
4
6
8
10
12
-25
14
1
10
Forward Current (A)
1000
1000
I/O – I/O Insertion Loss (S21) vs. Frequency
5
0
Insertion Loss (dB)
-20
-40
-60
-80
-100
-120
100
Frequency (MHz)
Crosstalk (I/O–I/O) vs. Frequency
0
Insertion Loss (dB)
10
I/O – Gnd Insertion Loss (S21) vs. Frequency
(tperiod = 100ns, tr = 1ns)
6
5
Peak Pulse Current, IPP (A)
Input Voltage (V)
1
10
100
1000
10000
-10
-15
-20
-25
1
10
100
1000
1000
Frequency (MHz)
Frequency (MHz)
Rev. 3.0 October 2010
-5
www.aosmd.com
Page 4 of 10
AOZ8001A
Application Information
The AOZ8001A TVS is design to protect two data lines
from fast damaging transient over-voltage by clamping it
to a reference. When the transient on a protected data
line exceed the reference voltage the steering diode is
forward bias thus, conducting the harmful ESD transient
away from the sensitive circuitry under protection.
PCB Layout Guidelines
Printed circuit board layout is the key to achieving the
highest level of surge immunity on power and data lines.
The location of the protection devices on the PCB is the
simplest and most important design rule to follow. The
AOZ8001A devices should be located as close as possible to the noise source. The placement of the AOZ8001A
devices should be used on all data and power lines that
enter or exit the PCB at the I/O connector. In most
systems, surge pulses occur on data and power lines
that enter the PCB through the I/O connector. Placing
the AOZ8001A devices as close as possible to the noise
source ensures that a surge voltage will be clamped
before the pulse can be coupled into adjacent PCB
traces. In addition, the PCB should use the shortest
possible traces. A short trace length equates to low
impedance, which ensures that the surge energy will be
dissipated by the AOZ8001A device. Long signal traces
will act as antennas to receive energy from fields that are
produced by the ESD pulse. By keeping line lengths as
short as possible, the efficiency of the line to act as an
antenna for ESD related fields is reduced. Minimize interconnecting line lengths by placing devices with the most
interconnect as close together as possible. The protection circuits should shunt the surge voltage to either the
reference or chassis ground. Shunting the surge voltage
directly to the IC’s signal ground can cause ground
bounce. The clamping performance of TVS diodes on a
single ground PCB can be improved by minimizing the
impedance with relatively short and wide ground traces.
The PCB layout and IC package parasitic inductances
can cause significant overshoot to the TVS’s clamping
voltage. The inductance of the PCB can be reduced by
Rev. 3.0 October 2010
using short trace lengths and multiple layers with
separate ground and power planes. One effective
method to minimize loop problems is to incorporate a
ground plane in the PCB design. The AOZ8001A ultralow capacitance TVS is designed to protect four high
speed data transmission lines from transient over-voltages by clamping them to a fixed reference. The low
inductance and construction minimizes voltage overshoot during high current surges. When the voltage on
the protected line exceeds the reference voltage the
internal steering diodes are forward biased, conducting
the transient
current away from the sensitive circuitry.
Good circuit board layout is critical for the suppression
of ESD induced transients. The following guidelines are
recommended:
1. Place the TVS near the IO terminals or connectors to
restrict transient coupling.
2. Fill unused portions of the PCB with ground plane.
3. Minimize the path length between the TVS and the
protected line.
4. Minimize all conductive loops including power and
ground loops.
5. The ESD transient return path to ground should be
kept as short as possible.
6. Never run critical signals near board edges.
7. Use ground planes whenever possible.
8. Avoid running critical signal traces (clocks, resets,
etc.) near PCB edges.
9. Separate chassis ground traces from components
and signal traces by at least 4mm.
10. Keep the chassis ground trace length-to-width ratio
<5:1 to minimize inductance.
11. Protect all external connections with TVS diodes.
www.aosmd.com
Page 5 of 10
AOZ8001A
AOZ8001A
VCC
4
1
3
2
VCC
Reset
Clock
SIM
I/O
GND
3
2
VCC
1
4
AOZ8001A
SIM Card Port Connection
AOZ8001A
TPBIASx
4
3
TPAx+
TPAx-
IEEE 1394
PHY
1
4
2
IEEE 1394
Connector
3
TPBx+
TPBx-
GND
1
2
AOZ8001A
IEEE1394 Port Connection
Rev. 3.0 October 2010
www.aosmd.com
Page 6 of 10
AOZ8001A
AOZ8001A
4
3
TRD0+
TRD0-
1
2
AOZ8001A
4
3
TRD1+
TRD1-
1
Ethernet
Controller
2
AOZ8001A
4
RJ45
Connector
3
TRD2+
TRD2-
1
2
AOZ8001A
4
3
TRD3+
TRD3-
1
2
10/100 Ethernet Port Connection
Rev. 3.0 October 2010
www.aosmd.com
Page 7 of 10
AOZ8001A
Package Dimensions, SOT143-4L
D
e
c
S
L1
E
E1
e1
b2
θ
b
A
A1
RECOMMENDED LAND PATTERN
1.92
0.70
0.60
1.90
0.70
1.05
0.76
UNIT: mm
Dimensions in millimeters
Symbols
A
A1
b
Min.
0.890
0.013
0.370
b2
c
D
E
E1
e
e1
L1
S
θ
0.760
0.085
2.800
2.100
1.200
Nom.
—
—
—
Max.
1.120
0.100
0.510
—
0.940
—
0.180
—
3.040
—— 2.640
—
1.400
1.920 BSC
0.200 BSC
0.550 REF
0.450
—
0.600
0°
—
8°
Dimensions in inches
Symbols
A
A1
b
Min.
0.035
0.001
0.015
b2
c
D
E
E1
e
e1
L1
S
θ
0.030
0.003
0.110
0.083
0.047
Nom.
—
—
—
Max.
0.044
0.004
0.020
—
0.037
—
0.007
—
0.120
—— 0.104
—
0.055
0.076 BSC
0.008 BSC
0.022 REF
0.018
—
0.024
0°
—
8°
Notes:
1. All dimensions are in millimeters.
2. Tolerances are 0.10mm unless otherwise specified.
3. Package body sizes exclude mold flash and gate burrs.
4. Controlling dimension is millimeter, converted inch dimensions are not necessarily exact.
Rev. 3.0 October 2010
www.aosmd.com
Page 8 of 10
AOZ8001A
Tape and Reel Dimensions, SOT143-4L
Tape
P2
E1
D1
P1
D0
K0
E2
E
B0
A0
P0
T
Feeding Direction
UNIT: mm
Package
A0
B0
K0
SOT-143
3.10
±0.10
2.69
±0.10
1.30
±0.10
D0
D1
E
1.00
8.00
1.50
±0.10 +0.25/-0.00 +0.30/-0.10
Reel
E1
E2
P0
P1
P2
T
1.75
±0.10
3.50
±0.05
4.00
±0.10
4.00
±0.10
2.00
±0.05
0.254
±0.013
W1
S
K
R
M
N
J
H
UNIT: mm
Tape Size
Reel Size
M
N
8mm
ø177.8
ø177.8
Max.
55.0
Min.
W1
H
8.4
13.0
+1.50 / -0.0 +0.5 / -0.2
S
K
R
J
1.5
Min
10.1
Min.
12.7
4.0
±0.1
Leader/Trailer and Orientation
Trailer Tape
300mm min.
Rev. 3.0 October 2010
Components Tape
Orientation in Pocket
www.aosmd.com
Leader Tape
500mm min.
Page 9 of 10
AOZ8001A
Part Marking
AOZ8001AJI
(SOT-143)
Top Marking
ADOA
Part Number Code
Assembly Location Code
Option Code
Bottom Marking
YWLT
Year & Week Code
Assembly Lot Code
This datasheet contains preliminary data; supplementary data may be published at a later date.
Alpha & Omega Semiconductor reserves the right to make changes at any time without notice.
LIFE SUPPORT POLICY
ALPHA & OMEGA SEMICONDUCTOR PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body or (b) support or sustain life, and (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of
the user.
Rev. 3.0 October 2010
2. A critical component in any component of a life
support, device, or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
www.aosmd.com
Page 10 of 10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
