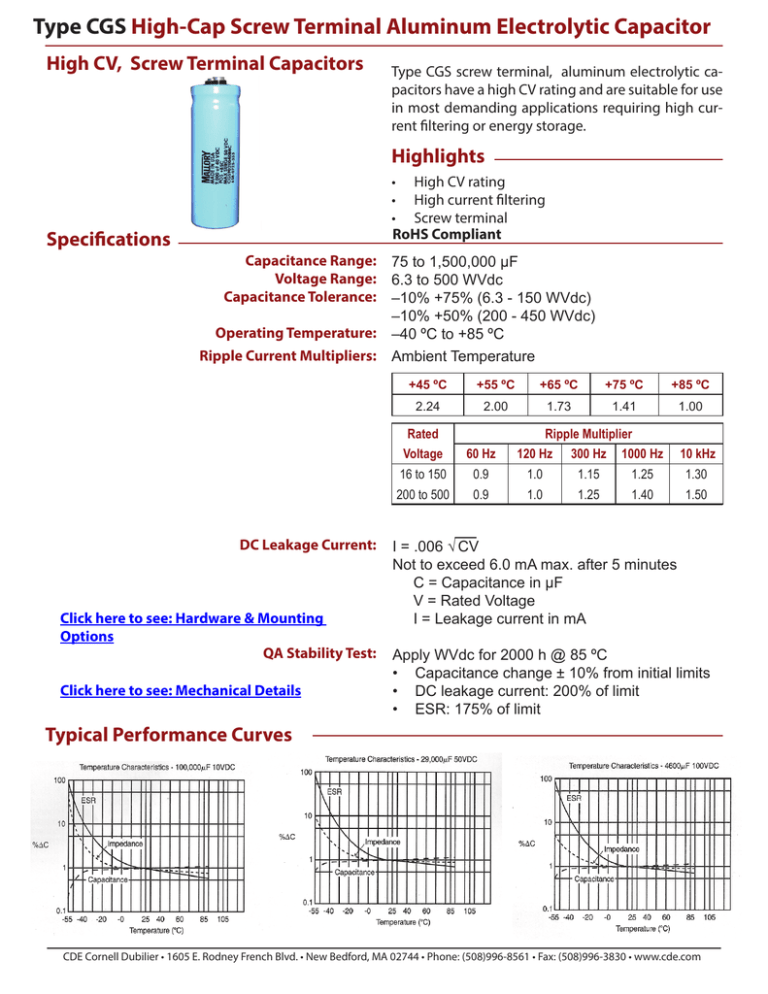

Type CGS High-Cap Screw Terminal Aluminum Electrolytic Capacitor
High CV, Screw Terminal Capacitors
Type CGS screw terminal, aluminum electrolytic capacitors have a high CV rating and are suitable for use
in most demanding applications requiring high current filtering or energy storage.
Highlights
• High CV rating
• High current filtering
• Screw terminal
RoHS Compliant
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature:
Ripple Current Multipliers:
75 to 1,500,000 µF
6.3 to 500 WVdc
–10% +75% (6.3 - 150 WVdc)
–10% +50% (200 - 450 WVdc)
–40 ºC to +85 ºC
Ambient Temperature
+45 ºC
+55 ºC
+65 ºC
+75 ºC
+85 ºC
2.24
2.00
1.73
1.41
1.00
Rated
DC Leakage Current:
Click here to see: Hardware & Mounting
Options
QA Stability Test:
Click here to see: Mechanical Details
Ripple Multiplier
Voltage
60 Hz
120 Hz
300 Hz
1000 Hz
10 kHz
16 to 150
0.9
1.0
1.15
1.25
1.30
200 to 500
0.9
1.0
1.25
1.40
1.50
I = .006 √ CV
Not to exceed 6.0 mA max. after 5 minutes
C = Capacitance in µF
V = Rated Voltage
I = Leakage current in mA
Apply WVdc for 2000 h @ 85 ºC
• Capacitance change ± 10% from initial limits
• DC leakage current: 200% of limit
• ESR: 175% of limit
Typical Performance Curves
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS High-Cap Screw Terminal Aluminum Electrolytic Capacitor
Ratings
Cap
(µF)
73,000
95,000
140,000
190,000
210,000
230,000
300,000
310,000
480,000
500,000
670,000
900,000
1,000,000
1,100,000
49,000
71,000
92,000
140,000
190,000
200,000
220,000
290,000
440,000
470,000
650,000
710,000
870,000
980,000
1,000,000
7,200
12,000
14,000
18,000
20,000
26,000
33,000
43,000
44,000
62,000
81,000
94,000
110,000
120,000
170,000
180,000
200,000
250,000
390,000
410,000
580,000
630,000
780,000
880,000
920,000
5,500
8,900
10,000
10,000
Max
Typical Ripple
Catalog
ESR
120 Hz
Part Number
120 Hz +85 ºC
Dia.
Length
(Ω) (A) RMS (Inches) (Inches)
6.3 WVdc ( 8 Vdc Surge )
CGS733U6R3R2L 0.023
8.0
1.375
1.625
CGS953U6R3R3C 0.014
10.4
1.375
3.125
CGS144U6R3R4C 0.011
11.2
1.375
4.125
CGS194U6R3V3C 0.013
12.6
2.000
3.125
CGS214U6R3R5L 0.011
10.9
1.375
5.625
CGS234U6R3U4C 0.009
13.1
1.750
4.125
CGS304U6R3V4C 0.010
14.7
2.000
4.125
CGS314U6R3V5L 0.007
16.9
2.000
5.625
CGS484U6R3W4C 0.007
19.6
2.500
4.125
CGS504U6R3W5L 0.005
22.9
2.500
5.625
CGS674U6R3X4C 0.006
20.7
3.000
4.125
CGS904U6R3X5C 0.005
23.5
3.000
5.125
CGS105U6R3X5L 0.005
24.5
3.000
5.625
CGS115U6R3X5R 0.004
24.7
3.000
5.875
7.5 WVdc ( 9 Vdc Surge )
CGS493U7R5R2C 0.030
6.7
1.375
2.125
CGS713U7R5R2L 0.023
7.9
1.375
2.625
CGS923U7R5R3C 0.019
8.8
1.375
3.125
CGS144U7R5R4C 0.014
10.3
1.375
4.125
CGS194U7R5V3C 0.013
12.5
2.000
3.125
CGS204U7R5R5L 0.012
10.8
1.375
5.625
CGS224U7R5U4C 0.010
13.1
1.750
4.125
CGS294U7R5V4C 0.010
14.6
2.000
4.125
CGS444U7R5V5L 0.007
16.8
2.000
5.625
CGS474U7R5W4C 0.007
19.5
2.500
4.125
CGS654U7R5W5L 0.005
24.4
3.000
4.125
CGS714U7R5W5L 0.005
22.8
2.500
5.625
CGS874U7R5X5C 0.005
23.4
3.000
5.125
CGS984U7R5X5L 0.005
24.4
3.000
5.625
CGS105U7R5X5R 0.004
24.7
3.000
5.875
10 WVdc ( 12 Vdc Surge )
CGS722U010R2C 0.035
4.5
1.375
2.125
CGS123U010R2C 0.034
4.6
1.375
2.125
CGS143U010R2C 0.030
4.9
1.375
2.125
CGS183U010R2C 0.078
3.1
1.375
2.125
CGS203U010R2L
0.025
5.9
1.375
2.625
CGS263U010R3C 0.020
7.0
1.375
3.125
CGS333U010R3C 0.018
7.4
1.375
3.125
CGS433U010R2C 0.030
6.7
1.375
2.125
CGS443U010V2C 0.013
9.4
2.000
2.125
CGS623U010R2L
0.023
7.9
1.375
2.625
CGS813U010R3C 0.019
8.8
1.375
3.125
CGS943U010V4C 0.007
16.3
2.000
4.125
CGS114U010W3L 0.008
16.7
2.500
3.625
CGS124U010R4C 0.014
10.3
1.375
4.125
CGS174U010V3C 0.013
12.5
2.000
3.125
CGS184U010R5L
0.012
10.8
1.375
5.625
CGS204U010U4C 0.010
13.1
1.750
4.125
CGS254U010V4C 0.010
14.6
2.000
4.125
CGS394U010V5L
0.007
16.8
2.000
5.625
CGS414U010W4C 0.007
19.5
2.500
4.125
CGS584U010W5L 0.006
20.6
2.500
5.625
CGS634U010W5L 0.005
22.8
2.500
5.625
CGS784U010X5C 0.005
23.4
3.000
5.125
CGS884U010X5L
0.050
24.4
3.000
5.625
CGS924U010X5R 0.005
24.7
3.000
5.875
16 WVdc ( 20 Vdc Surge )
CGS552U016R2C 0.037
4.4
1.375
2.125
CGS892U016R2C 0.034
4.6
1.375
2.125
CGS103U016R2C 0.033
4.7
1.375
2.125
CGS103U016R3C 0.024
6.4
1.375
3.125
Typical Max Ripple
Cap
Catalog
ESR
Part Number
120 Hz
+85 ºC
(Ω)
(A) RMS
(µF)
12,000
15,000
15,000
17,000
19,000
21,000
22,000
24,000
25,000
25,000
33,000
33,000
34,000
34,000
35,000
38,000
38,000
120 Hz
16 WVdc ( 20 Vdc Surge )
CGS123U016R2C
0.031
4.8
CGS153U016R2L
0.026
5.6
CGS153U016R4C
0.061
4.5
CGS173U016R3C
0.022
6.7
CGS193U016R3C
0.021
6.8
CGS213U016R3L
0.037
5.5
CGS233U016V3C
0.027
7.6
CGS243U016R3C
0.032
5.6
CGS253U016R4C
0.016
8.8
CGS253U016V2C
0.031
6.1
CGS333U016R4C
0.020
7.9
CGS333U016V2C
0.028
6.5
CGS343U016R4C
0.020
9.8
CGS343U016V4C
0.016
8.8
CGS353U016R2C
0.030
6.7
CGS383U016R3C
0.019
9.4
CGS383U016V3C
0.021
8.6
Dia.
Length
(Inches) (Inches)
1.375
1.375
1.375
1.375
1.375
1.375
2.000
1.375
1.375
2.000
1.375
2.000
1.375
2.000
1.375
1.375
2.000
2.125
2.625
4.125
3.125
3.125
3.625
3.125
3.125
4.125
2.125
4.125
2.125
4.125
4.125
2.125
3.125
3.125
49,000 CGS493U016R2L
50,000 CGS503U016V3C
0.023
0.011
7.9
11.7
1.375
2.000
2.625
3.125
55,000
55,000
62,000
66,000
66,000
68,000
70,000
77,000
80,000
83,000
90,000
91,000
0.015
0.018
0.019
0.012
0.017
0.017
0.008
0.015
0.009
0.015
0.014
0.009
10.2
9.6
8.8
11.6
10.8
9.5
15.2
11.8
18.9
12.9
10.3
14.7
1.375
2.000
1.375
1.375
2.000
2.000
2.000
2.000
3.000
2.000
1.375
2.000
3.625
3.625
3.125
4.125
4.125
3.125
4.125
4.625
4.125
5.625
4.125
4.125
CGS104U016X5C
0.007
22.5
CGS114U016W4C
0.010
16
CGS124U016V4C
0.007
20.1
CGS134U016R5L
0.010
12.6
CGS134U016V3C
0.011
12.5
CGS134U016W4L
0.009
17.6
CGS154U016X5L
0.007
19.3
CGS164U016U4C
0.010
13.1
CGS174U016V4C
0.004
23.5
CGS184U016X4L
0.006
24.3
CGS194U016V4C
0.007
19.5
CGS214U016X5R
0.005
29.2
CGS224U016X4C
0.005
25.2
CGS264U016V5L
0.003
29.8
CGS294U016V5L
0.005
21.1
CGS314U016W4C
0.005
22.7
CGS474U016W5L
0.004
30.4
CGS624U016X5C
0.004
32.3
CGS644U016X5L
0.002
44.9
CGS644UFX5L3PD
0.002
30.0
CGS704U016X5L
0.003
35.0
CGS744U016X5R
0.003
35.8
CGS984U016X8L
0.007
23.8
20 WVdc ( 22 Vdc Surge )
CGS254U020X3L
0.006
29.0
CGS504U020X5L
0.004
37.0
CGS105UGX8L6PD
0.003
41.0
CGS105UGX8L6PH
0.003
41.0
CGS105U020X5R
0.003
40.0
CGS155U020X8L
0.003
41.0
3.000
2.500
3.000
1.375
2.000
2.500
3.000
1.750
2.000
3.000
2.000
3.000
3.000
2.000
2.000
2.500
2.500
3.000
3.000
3.000
3.000
3.000
3.000
5.125
4.125
3.625
5.625
3.125
4.625
5.625
4.125
4.125
4.625
4.125
5.875
4.125
5.625
5.625
4.125
5.625
5.125
5.625
5.625
5.625
5.875
8.625
3.000
3.000
3.000
3.000
3.000
3.000
3.625
5.625
8.625
8.625
5.875
8.625
100,000
110,000
120,000
130,000
130,000
130,000
150,000
160,000
170,000
180,000
190,000
210,000
220,000
260,000
290,000
310,000
470,000
620,000
640,000
640,000
700,000
740,000
980,000
250,000
500,000
1,000,000
1,000,000
1,000,000
1,500,000
CGS553U016R3L
CGS553U016V3L
CGS623U016R3C
CGS663U016R4C
CGS663U016V4C
CGS683U016V3C
CGS703U016V4C
CGS773U016V4L
CGS803U016X4C
CGS833U016V5L
CGS903U016R4C
CGS913U016V4C
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS High-Cap Screw Terminal Aluminum Electrolytic Capacitor
3,000
4,700
5,600
6,000
6,800
8,200
8,900
10,000
12,000
12,000
13,000
14,000
14,000
16,000
18,000
18,000
20,000
20,000
20,000
22,000
22,000
28,000
29,000
30,000
31,000
32,000
33,000
40,000
41,000
43,000
43,000
47,000
50,000
50,000
57,000
58,000
65,000
68,000
70,000
82,000
85,000
90,000
92,000
95,000
100,000
100,000
100,000
110,000
110,000
120,000
120,000
120,000
180,000
190,000
200,000
204,000
270,000
25 WVdc
CGS302U025R2C
CGS472U025R2C
CGS562U025R3C
CGS602U025R2C
CGS682U025R2C
CGS822U025R4C
CGS892U025R3C
CGS103U025R3C
CGS123U025V3C
CGS123U025R3C
CGS133U025R4C
CGS143U025U3C
CGS143U025V2C
CGS163U025R4C
CGS183U025R4C
CGS183U025V4C
CGS203U025R3C
CGS203U025R5C
CGS203U025V3C
CGS223U025R2C
CGS223U025V2C
CGS283U025V3C
CGS293U025V4C
CGS303U025W3C
CGS313U025R2L
CGS323U025V4C
CGS333U025V3C
CGS403U025R3C
CGS413U025V4C
CGS433U025R4C
CGS433U025X4C
CGS473U025V4C
CGS503U025V5L
CGS503U025W3L
CGS573U025X5C
CGS583U025R4C
CGS653U025W4C
CGS683U025V4C
CGS703U025X4C
CGS823U025V3C
CGS853U025R5L
CGS903U025W5L
CGS923U025X5C
CGS953U025X4C
CGS104U025U4C
CGS104U025V5L
CGS104U025X3L
CGS114U025X5C
CGS114U025X5L
CGS124U025V4C
CGS124U025X4C
CGS124U050X5L
CGS184U025X4C
CGS194U025V5L
CGS204U025W4C
CGS2043U025X8L
CGS274U025X5L
Typical
ESR
120 Hz
(Ω)
( 30 Vdc
0.235
0.101
0.026
0.035
0.096
0.019
0.024
0.024
0.024
0.023
0.082
0.046
0.037
0.017
0.017
0.052
0.023
0.014
0.024
0.032
0.043
0.028
0.018
0.029
0.024
0.018
0.018
0.020
0.020
0.022
0.021
0.022
0.018
0.010
0.017
0.014
0.009
0.006
0.010
0.011
0.011
0.007
0.008
0.011
0.010
0.005
0.011
0.008
0.009
0.008
0.010
0.007
0.004
0.006
0.005
0.006
0.003
270,000
300,000
310,000
400,000
450,000
480,000
740,000
CGS274UHX5L3PD
CGS304U025W5L
CGS314U025W5L
CGS404U025X5C
CGS454U025X5L
CGS484U025X5R
CGS744U025X8L
0.003
0.005
0.004
0.004
0.003
0.003
0.002
Cap
(µF)
Catalog
Part Number
Max
Ripple
120 Hz
+85 ºC
Dia.
Length
(A) RMS (Inches) (Inches)
Surge )
1.8
1.375
2.125
2.7
1.375
2.125
6.1
1.375
3.125
4.5
1.375
2.125
2.8
1.375
2.125
8.1
1.375
4.125
6.4
1.375
3.125
6.4
1.375
3.125
8.1
2.000
3.125
6.6
1.375
3.125
3.9
1.375
4.125
5.3
1.750
3.125
5.6
2.000
2.125
8.5
1.375
4.125
8.6
1.375
4.125
6.1
2.000
4.125
6.5
1.375
3.125
10.3
1.375
5.125
8.0
2.000
3.125
6.4
1.375
2.125
5.2
2.000
2.125
7.5
2.000
3.125
10.5
2.000
4.125
8.4
2.500
3.125
7.6
1.375
2.625
10.3
2.000
4.125
9.3
2.000
3.125
8.4
1.375
3.125
9.8
2.000
4.125
8.5
1.375
4.125
12.2
3.000
4.125
9.5
2.000
4.125
11.7
2.000
5.625
14.9
2.500
3.625
14.6
3.000
5.125
10.0
1.375
4.125
16.5
2.500
4.125
17.9
2.000
4.125
18.1
3.000
4.125
15.5
2.000
3.125
12.2
1.375
5.625
21.4
2.500
5.625
21.6
3.000
5.125
16.9
3.000
4.125
12.7
1.750
4.125
22.8
2.000
5.625
16.0
3.000
3.625
20.7
3.000
5.125
20.9
3.000
5.625
15.5
2.000
4.125
17.9
3.000
4.125
21.6
3.000
5.625
30.3
3.000
4.125
20.4
2.000
5.625
22.0
2.500
4.125
29.9
3.000
8.625
36.6
3.000
5.625
30.0
26.2
29.6
31.6
34.3
35.0
48.3
3.000
2.500
2.500
3.000
3.000
3.000
3.000
5.625
5.625
5.625
5.125
5.625
5.875
8.625
Cap
(µF)
4,500
5,000
8,000
9,200
12,000
13,000
15,000
20,000
30,000
33,000
44,000
50,000
55,000
78,000
100,000
4,400
8,200
10,000
12,000
21,000
21,000
30,000
31,000
60,000
70,000
2,200
2,700
3,500
4,200
4,700
5,100
6,000
6,200
7,500
9,000
9,300
11,000
12,000
12,000
13,000
13,000
17,000
17,000
17,000
18,000
20,000
22,000
23,000
23,000
32,000
33,000
34,000
35,000
40,000
40,000
40,000
43,000
47,000
47,000
Typical Max Ripple
ESR
120 Hz
120 Hz
+85 ºC
Dia.
Length
(Ω)
(A) RMS (Inches) (Inches)
30 WVdc ( 40 Vdc Surge )
CGS452U030R2C 0.037
4.4
1.375
2.125
CGS502U030R2C 0.037
4.5
1.375
2.125
CGS802U030R3C 0.024
6.4
1.375
3.125
CGS922U030R3C 0.024
6.4
1.375
3.125
CGS123U030R4C 0.018
8.4
1.375
4.125
CGS133U030R4C 0.018
8.4
1.375
4.125
CGS153U030R4L 0.016
9.3
1.375
4.625
CGS203U030R5L 0.013
11.0
1.375
5.625
CGS303U030V4C 0.019
10.0
2.000
4.125
CGS333U030V4C 0.020
9.8
2.000
4.125
CGS443U030W3C 0.015
11.7
2.500
3.125
CGS503U030V5L 0.016
12.7
2.000
5.625
CGS553U030W4C 0.009
16.3
2.500
4.125
CGS783U030X4C 0.011
16.8
3.000
4.125
CGS104U030X5L 0.008
22.4
3.000
5.625
Catalog
Part Number
35 WVdc ( 45 Vdc Surge )
CGS442U035R2C 0.145
2.2
CGS822U035R3C 0.024
6.4
CGS103U035V2C 0.038
5.5
CGS123U035R4C 0.018
8.4
CGS213U035R3C 0.023
6.4
CGS213U035V3C 0.029
7.3
CGS303U035W3C 0.028
8.6
CGS313U035V4C 0.021
9.6
CGS603U035X5C 0.010
19.7
CGS703U035X4C 0.012
16.6
40 WVdc ( 50 Vdc Surge )
CGS222U040R2C 0.044
4.1
CGS272U040R2C 0.042
4.2
CGS352U040R2C 0.038
4.4
CGS422U040R3C 0.028
6.0
CGS472U040R2C 0.036
4.5
CGS512U040R3C 0.026
6.1
CGS602U040R3C 0.025
6.2
CGS622U040R4C 0.020
7.9
CGS752U040R4C 0.019
8.1
CGS902U040R4C 0.019
8.2
CGS932U040V3C 0.024
8.1
CGS113U040V3C 0.024
8.0
CGS123U040R4C 0.049
5.0
CGS123U040V2C 0.067
4.2
CGS133U040R2C 0.033
6.0
CGS133U040V4C 0.017
10.5
CGS173U040R3C 0.025
6.1
CGS173U040V3C 0.029
7.4
CGS173U040V4C 0.018
10.4
CGS183U040R2L 0.025
7.1
CGS203U040V5L 0.014
13.6
CGS223U040V3C 0.031
7.1
CGS233U040R3C 0.021
7.9
CGS233U040V4C 0.020
9.9
CGS323U040V4C 0.021
9.5
CGS333U040V4C 0.021
9.7
CGS343U040R4C 0.015
9.4
CGS353U040V5L 0.015
12.8
CGS403U040V3C 0.014
9.9
CGS403U040W4C 0.010
16.3
CGS403U040X4C 0.010
18.1
CGS433U040X5C 0.020
13.8
CGS473U040V3C 0.014
11.0
CGS473U040W4C 0.010
15.8
1.375
1.375
2.000
1.375
1.375
2.000
2.500
2.000
3.000
3.000
2.125
3.125
2.125
4.125
3.125
3.125
3.125
4.125
5.125
4.125
1.375
1.375
1.375
1.375
1.375
1.370
1.375
1.375
1.375
1.375
2.000
2.000
1.375
2.000
1.375
2.000
1.375
2.000
2.000
1.375
2.000
2.000
1.375
2.000
2.000
2.000
1.375
2.000
2.000
2.500
3.000
3.000
2.000
2.500
2.125
2.125
2.125
3.125
2.125
3.125
3.125
4.125
4.125
4.125
3.125
3.125
4.125
2.125
2.125
4.125
3.125
3.125
4.125
2.625
5.625
3.125
3.125
4.125
4.125
4.125
4.125
5.625
3.125
4.125
4.125
5.125
3.125
4.125
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS High-Cap Screw Terminal Aluminum Electrolytic Capacitor
Cap
(µF)
49,000
53,000
55,000
61,000
68,000
71,000
78,000
110,000
120,000
150,000
150,000
180,000
230,000
260,000
280,000
430,000
1,600
2,200
2,900
3,000
3,300
4,100
4,300
4,900
5,000
5,700
6,100
6,500
6,700
6,800
7,500
8,000
9,600
9,600
10,000
10,000
12,000
13,000
13,000
13,000
14,000
14,500
15,000
17,000
18,000
20,000
20,000
20,000
24,000
25,000
25,000
25,000
27,000
28,000
30,000
31,000
33,000
35,000
37,000
41,000
43,000
45,000
Typical Max Ripple
ESR
120 Hz
120 Hz
+85 ºC
Dia.
Length
(Ω)
(A) RMS (Inches) (Inches)
40 WVdc ( 50 Vdc Surge )
CGS493U040R5L
0.013
11.0
1.375
5.625
CGS533U040X5C
0.008
21.5
3.000
5.125
CGS553U040W5L
0.011
16.9
2.500
5.625
CGS613U040U4C
0.011
11.4
1.750
4.125
CGS683U040X4C
0.012
16.0
3.000
4.125
CGS713U040V4C
0.010
14.0
2.000
4.125
CGS783U040X6L
0.009
22.7
3.000
6.625
CGS114U040V5L
0.007
18.6
2.000
5.625
CGS124U040W4C 0.006
20.0
2.500
4.125
CGS154U040X5L
0.003
36.6
3.000
5.625
Catalog
Part Number
CGS154ULX5L3PD
CGS184U040W5L
CGS234U040X5C
CGS264U040X5L
CGS284U040X5R
CGS434U040X8L
50 WVdc
CGS162U050R2C
CGS222U050R2C
CGS292U050R3C
CGS302U050R2C
CGS332U050R2C
CGS412U050R3C
CGS432U050R4C
CGS492U050R3L
CGS502U050R3C
CGS572U050R3C
CGS612U050R4C
CGS652U050V3C
CGS672U050R3L
CGS682U050R3C
CGS752U050R4C
CGS802U050V2C
CGS962U050R2C
CGS962U050V4C
CGS103U050R4C
CGS103U050V2C
CGS123U050R5L
CGS133U050R2L
CGS133U050R3C
CGS133U050V3C
CGS143U050V5L
CGS1452U050V3C
CGS153U050V4C
CGS173U050R3C
CGS183U050V3C
CGS203U050R4C
CGS203U050V4C
CGS203U050V5L
CGS243U050W3C
CGS253U050R4C
CGS253U050U4C
CGS253U050W4C
CGS273U050V4C
CGS283U050V5C
CGS303U050V5L
CGS313U050W4C
CGS333U050W4C
CGS353U050V3C
CGS373U050R5L
CGS413U050X4L
CGS433U050X5C
CGS453U050U4C
0.003
30.0
0.005
27.0
0.004
29.5
0.004
32.1
0.004
32.7
0.003
45.6
( 65 Vdc Surge )
0.048
3.9
0.044
4.1
0.03
5.7
0.04
4.3
0.182
2.0
0.022
7.6
0.022
7.6
0.023
7.0
0.026
6.1
0.096
3.2
0.02
7.9
0.025
7.9
0.022
7.2
0.024
6.4
0.019
8.1
0.043
5.2
0.036
5.6
0.018
10.3
0.017
8.5
0.049
4.9
0.014
10.7
0.027
6.7
0.031
6.2
0.029
7.3
0.031
7.1
0.022
7.3
0.019
10.0
0.022
7.5
0.034
6.8
0.019
8.2
0.021
9.5
0.014
13.2
0.014
12.1
0.016
8.9
0.021
9.8
0.024
10.2
0.022
9.3
0.018
11.4
0.016
12.4
0.028
9.6
0.025
10.0
0.016
10.5
0.012
11.8
0.009
19.2
0.023
12.7
0.012
11.0
3.000
2.500
3.000
3.000
3.000
3.000
5.625
5.625
5.125
5.625
5.875
8.625
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
2.000
1.375
1.375
1.375
2.000
1.375
2.000
1.375
2.000
1.375
1.375
1.375
2.000
2.000
2.000
2.000
1.375
2.000
1.375
2.000
2.000
2.500
1.375
1.750
2.500
2.000
2.000
2.000
2.500
2.500
2.000
1.375
3.000
3.000
1.750
2.125
2.125
3.125
2.125
2.125
3.125
4.125
3.625
3.125
3.125
4.125
3.125
3.625
3.125
4.125
2.125
2.125
4.125
4.125
2.125
5.625
2.625
3.125
3.125
5.625
3.125
4.125
3.125
3.125
4.125
4.125
5.625
3.125
4.125
4.125
4.125
4.125
5.125
5.625
4.125
4.125
3.125
5.625
4.625
5.125
4.125
Cap
(µF)
48,000
50,000
51,000
53,000
56,000
60,000
68,000
70,000
79,000
82,000
87,000
100,000
120,000
120,000
130,000
190,000
210,000
320,000
6,100
8,900
12,000
14,000
19,000
20,000
28,000
36,000
55,000
60,000
89,000
91,000
120,000
140,000
150,000
210,000
820
1,500
2,100
2,200
2,300
2,500
2,900
3,300
4,200
4,800
4,800
5,000
5,600
6,300
7,000
7,100
7,300
7,500
9,000
10,000
10,000
10,000
12,000
12,000
13,000
Typical Max Ripple
ESR
120 Hz
120 Hz
+85 ºC
Dia.
Length
(Ω)
(A) RMS (Inches) (Inches)
50 WVdc (65 Vdc Surge )
CGS483U050X4C
0.012
16.2
3.0
4.125
CGS503U050W5L
0.008
20.4
2.5
5.625
CGS513U050X5R
0.010
18.4
3.0
5.875
CGS533U050V4C
0.011
13.3
2.0
4.125
CGS563U050X3L
0.005
23.1
3.0
3.625
CGS603U050X5C
0.010
19.8
3.0
5.125
CGS683U050X4C
0.017
15.0
3.0
4.125
CGS703U050X5L
0.016
15.7
3.0
5.625
CGS793U050V5L
0.008
17.7
2.0
5.625
CGS823U050X4C
0.004
29.2
3.0
4.125
CGS873U050W4C
0.007
19.1
2.5
4.125
CGS104U050X8L
0.007
29.3
3.0
8.625
CGS124U050X5L
0.003
36.6
3.0
5.625
CGS124UNX5L3PD 0.003
30.0
3.0
5.625
CGS134U050W5L
0.005
25.8
2.5
5.625
CGS194U050X5L
0.004
31.0
3.0
5.625
CGS214U050X5R
0.004
31.6
3.0
5.875
CGS324U050X8L
0.006
30.7
3.0
8.625
63 WVdc ( 75 Vdc Surge )
CGS612U063R2C
0.043
5.0
1.375
2.125
CGS892U063R2L
0.032
6.0
1.375
2.625
CGS123U063R3C
0.027
6.7
1.375
3.125
CGS143U063R4C
0.019
8.1
1.375
4.125
CGS193U063V3C
0.021
9.2
2.000
3.125
CGS203U063R5L
0.015
9.3
1.375
5.625
CGS283U063U4C
0.014
10.3
1.750
4.125
CGS363U063V4C
0.014
11.5
2.000
4.125
CGS553U063V5L
0.010
14.6
2.000
5.625
CGS603U063W4C
0.010
15.6
2.500
4.125
CGS893U063W5L
0.010
18.0
2.500
5.625
CGS913U063W5L
0.007
20.0
2.500
5.625
CGS124U063X5C
0.007
21.3
3.000
5.125
CGS144U063X5L
0.007
23.2
3.000
5.625
CGS154U063X5R
0.007
23.7
3.000
5.875
CGS214U063X8L
0.012
21.3
3.000
8.625
75 WVdc ( 95 Vdc Surge )
CGS821U075R2C
0.591
1.1
1.375
2.125
CGS152U075R3C
0.041
4.9
1.375
3.125
CGS212U075R3C
0.036
5.3
1.375
3.125
CGS222U075R2C
0.041
4.2
1.375
2.125
CGS232U075R4C
0.028
6.6
1.375
4.125
CGS252U075R4C
0.096
3.2
1.375
4.125
CGS292U075R3C
0.032
5.6
1.375
3.125
CGS332U075R3C
0.120
2.9
1.375
3.125
CGS422U075R4C
0.023
7.4
1.375
4.125
CGS482U075R3C
0.031
6.7
1.375
3.125
CGS482U075V3C
0.030
7.2
2.000
3.125
CGS502U075R2C
0.058
4.4
1.375
2.125
CGS562U075R4C
0.021
7.8
1.375
4.125
CGS632U075R5L
0.017
9.8
1.375
5.625
CGS702U075R2L
0.044
5.3
1.375
2.625
CGS712U075V4C
0.022
9.5
2.000
4.125
CGS732U075V3C
0.078
4.5
2.000
3.125
CGS752U075V5L
0.017
12.3
2.000
5.625
CGS902U075R3C
0.036
5.9
1.375
3.125
CGS103U075R3C
0.029
5.8
1.375
3.125
CGS103U075V3C
0.041
6.2
2.000
3.125
CGS103U075V4C
0.024
9.0
2.000
4.125
CGS123U075R4C
0.021
7.6
1.375
4.125
CGS123U075V4C
0.026
8.7
2.000
4.125
CGS133U075R4C
0.026
7.2
1.375
4.125
Catalog
Part Number
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS High-Cap Screw Terminal Aluminum Electrolytic Capacitor
Cap
(µF)
15,000
17,000
17,000
18,000
18,000
19,000
23,000
25,000
25,000
25,000
26,000
26,000
27,000
27,000
33,000
37,000
37,000
41,000
45,000
55,000
68,000
68,000
90,000
100,000
110,000
140,000
850
1,200
1,700
2,400
3,100
3,100
4,000
4,000
4,500
5,900
6,000
8,600
9,000
10,000
12,000
13,000
15,000
15,000
15,000
16,000
18,000
28,000
30,000
33,000
39,000
45,000
46,000
60,000
68,000
74,000
96,000
400
720
Typical Max Ripple
Catalog
ESR
120 Hz
Part Number
120 Hz
+85 ºC
Dia.
Length
(Ω)
(A) RMS (Inches) (Inches)
75 WVdc (95 Vdc Surge )
CGS153U075V5L
0.018
11.9
2.000
5.625
CGS173U075W4C 0.033
8.8
2.500
4.125
CGS173U075X4C 0.033
9.8
3.000
4.125
CGS183U075V3C 0.023
8.9
2.000
3.125
CGS183U075V4C 0.009
14.5
2.000
4.125
CGS193U075R5L 0.019
7.8
1.375
5.625
CGS233U075U4C 0.017
9.8
1.750
4.125
CGS253U075X4C 0.039
9.0
3.000
4.125
CGS253U075W5L 0.024
11.7
2.500
5.625
CGS253U075X4C 0.014
15.0
3.000
4.125
CGS263U075V4C 0.028
10.3
2.000
4.125
CGS263U075X5R 0.037
10.6
3.000
5.875
CGS273U075V4C 0.016
11.0
2.000
4.125
CGS273U075X3L
0.019
12.5
3.000
3.625
CGS333U075X4C 0.019
12.7
3.000
4.125
CGS373U075V5L
0.011
16.4
2.000
5.625
CGS373U075X5L
0.010
19.7
3.000
5.625
CGS413U075V5L
0.011
14.6
2.000
5.625
CGS453U075W4C 0.012
14.7
2.500
4.125
CGS553U075X8L
0.008
27.4
3.000
8.625
CGS683U075W5L 0.008
20.0
2.500
5.625
CGS683U075X5L
0.005
30.0
3.000
5.625
CGS903U075X5C 0.008
21.3
3.000
5.125
CGS104U075X5L
0.007
23.2
3.000
5.625
CGS114U075X5R 0.007
23.7
3.000
5.875
CGS144U075X8L
0.012
21.3
3.000
8.625
100 WVdc (125 Vdc Surge )
CGS851U100R2C 0.120
2.5
1.375
2.125
CGS122U100R3C 0.062
3.5
1.375
3.125
CGS172U100R3C 0.069
3.8
1.375
3.125
CGS242U100R4C 0.050
5.0
1.375
4.125
CGS312U100R2C 0.068
4.0
1.375
2.125
CGS312U100R5C 0.036
6.4
1.375
5.125
CGS402U100R4C 0.031
6.2
1.375
4.125
CGS402U100V4C 0.036
7.3
2.000
4.125
CGS452U100R2L 0.051
4.8
1.375
2.625
CGS592U100R3C 0.042
5.4
1.375
3.125
CGS602U100V4C 0.033
7.6
2.000
4.125
CGS862U100R4C 0.029
6.5
1.375
4.125
CGS902U100V5L
0.024
10.2
2.000
5.625
CGS103U100W4C 0.040
8.0
2.500
4.125
CGS123U100V3C 0.026
7.7
2.000
3.125
CGS133U100R5L 0.024
7.2
1.375
5.625
CGS153U100V4C 0.036
7.3
2.000
4.125
CGS153U100W5L 0.043
8.6
2.500
5.625
CGS153U100X4C 0.051
7.9
3.000
4.125
CGS163U100U4C 0.019
8.9
1.750
4.125
CGS183U100V4C 0.018
10.5
2.000
4.125
CGS283U100V5L
0.012
14.0
2.000
4.625
CGS303U100W4C 0.011
15.2
2.500
4.125
CGS333U100X8L
0.009
25.0
3.000
8.625
CGS393U100X5R 0.011
15.8
3.000
5.875
CGS453U100W5L 0.010
18.1
3.000
4.125
CGS463U100W5L 0.008
20.1
2.500
5.625
CGS603U100X5C 0.009
20.6
3.000
5.125
CGS683U100X5L
0.008
22.5
3.000
5.625
CGS743U100X5R 0.007
23.3
3.000
5.875
CGS963U100X8L
0.013
20.9
3.000
8.625
150 WVdc (175 Vdc Surge )
CGS401U150R2C 0.137
2.3
1.375
2.125
CGS721U150R3C 0.063
3.5
1.375
3.125
Typical Max Ripple
Cap
(µF)
Catalog
ESR
Part Number
120 Hz
120 Hz
+85 ºC
(Ω)
(A) RMS
Dia.
Length
(Inches)(Inches)
950
1,100
1,100
1,600
2,100
2,400
3,100
3,300
3,500
4,400
4,700
4,800
5,300
5,700
6,200
6,700
7,700
8,700
10,000
10,000
11,000
12,000
12,000
17,000
22,000
25,000
26,000
43,000
150 WVdc (175 Vdc
CGS951U150R3C
0.087
CGS112U150R2C
0.102
CGS112U150R4C
0.064
CGS162U150R2L
0.071
CGS212U150R3C
0.074
CGS242U150V3C
0.117
CGS312U150R4C
0.038
CGS332U150V5C
0.032
CGS352U150V5L
0.031
CGS442U150V3C
0.032
CGS472U150R5L
0.026
CGS482U150W4L
0.030
CGS532U150U4C
0.023
CGS572U150X4C
0.037
CGS622U150W5L
0.025
CGS672U150U4C
0.022
CGS772U150X5C
0.029
CGS872U150X5R
0.027
CGS103U150V5L
0.015
CGS103U150X5C
0.034
CGS113U150W4C 0.017
CGS123U150V5L
0.014
CGS123U150X5L
0.013
CGS173U150W5L
0.020
CGS223U150X5C
0.015
CGS253U150X5L
0.012
CGS263U150X5R
0.011
CGS433U150X8L
0.014
Surge )
3.4
3.2
4.4
3.8
4.3
3.7
5.8
8.4
11.4
7.0
7.9
9.5
8.3
9.3
11.4
9.4
11.3
12.5
12.7
10.4
12.1
16.5
17.8
12.7
15.6
18.4
19.1
19.9
1.375
1.375
1.375
1.375
1.375
2.000
1.375
2.000
2.000
2.000
1.375
2.500
1.750
3.000
2.500
2.000
3.000
3.000
2.000
3.000
2.500
2.000
3.000
2.500
3.000
3.000
3.000
3.000
3.125
2.125
4.125
2.625
3.125
3.125
4.125
5.125
5.625
3.125
5.625
4.625
4.125
4.125
5.625
4.125
5.125
5.875
5.625
5.125
4.125
5.625
5.625
5.625
5.125
5.625
5.875
8.625
590
800
1,000
1,000
1,200
1,400
1,500
1,600
2,000
2,200
2,200
2,700
3,100
3,300
3,300
3,400
3,600
4,000
4,000
4,000
4,600
4,700
4,800
5,000
5,200
5,400
5,500
6,200
7,200
7,400
7,700
7,800
9,400
12,000
200 WVdc (250 Vdc
CGS591T200R3C
0.151
CGS801T200R2C
0.102
CGS102T200R4C
0.113
CGS102T200V2C
0.097
CGS122T200R2L
0.071
CGS142T200V3C
0.081
CGS152T200R3C
0.054
CGS162T200V3C
0.074
CGS202T200V4C
0.057
CGS222T200R4C
0.038
CGS222T200V4C
0.054
CGS272T200V4C
0.048
CGS312T200V3C
0.032
CGS332T200R5L
0.026
CGS332T200W4C
0.060
CGS342T200W4C
0.076
CGS362T200V4C
0.042
CGS402T200U4C
0.023
CGS402T200V3C
0.062
CGS402T200W4C
0.055
CGS462T200X4C
0.047
CGS472T200V4C
0.021
CGS482T200V4C
0.042
CGS502T200W5C
0.036
CGS522T200V5L
0.021
CGS542T200X4L
0.021
CGS552T200X4C
0.027
CGS622T200X4C
0.039
CGS722T200V5L
0.019
CGS742T200X5L
0.018
CGS772T200X5L
0.018
CGS782T200W4C
0.017
CGS942T200X4C
0.021
CGS123T200W5L
0.013
Surge )
2.6
2.7
3.2
3.6
3.5
4.4
4.3
4.6
5.8
5.8
6.0
6.4
7.0
7.9
6.5
5.8
6.7
8.3
5.0
6.8
8.2
9.4
6.8
9.2
11.0
12.6
10.9
9.0
11.5
15.0
15.0
12.1
12.1
16.0
1.375
1.375
1.375
2.000
1.375
2.000
1.375
2.000
2.000
1.375
2.000
2.000
2.000
1.375
2.500
2.500
2.000
1.750
2.000
2.500
3.000
2.000
2.000
2.500
2.000
3.000
3.000
3.000
2.000
3.000
3.000
2.500
3.000
2.500
3.125
2.125
4.125
2.125
2.625
3.125
3.125
3.125
4.12
4.125
4.125
4.125
3.125
5.625
4.125
4.125
4.125
4.125
3.125
4.125
4.125
5.625
4.125
5.125
5.625
4.625
4.125
4.125
5.625
5.625
5.625
4.125
4.125
5.625
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS High-Cap Screw Terminal Aluminum Electrolytic Capacitor
Cap
(µF)
14,000
16,000
18,000
18,000
19,000
25,000
30,000
200
250
470
550
620
720
900
1,000
1,200
1,200
1,700
1,700
1,700
1,900
1,900
2,500
2,600
2,800
2,900
2,900
2,900
3,100
3,700
4,100
4,100
4,200
5,600
6,000
6,000
6,000
7,200
7,400
9,000
9,200
10,000
10,000
12,000
13,000
14,000
15,000
19,000
22,000
430
620
810
1,200
1,500
1,600
1,800
2,000
2,500
3,500
Typical Max Ripple
ESR
120 Hz
120 Hz
+85 ºC
Dia.
Length
(Ω)
(A) RMS (Inches) (Inches)
200 WVdc (250 Vdc Surge )
CGS143T200X5L
0.015
16.1
3
5.625
CGS163T200X5C 0.015
15.6
3
5.125
CGS183T200X5L
0.012
18.4
3
5.625
CGS183T200X5L
0.016
15.9
3
5.625
CGS193T200X5R 0.011
19.1
3
5.875
CGS253T200X8L
0.015
19.9
3
8.625
CGS303T200X8L
0.011
22.7
3
8.625
250 WVdc (300 Vdc Surge )
CGS201T250R2C 0.241
1.7
1.375
2.125
CGS251T250R2C 0.278
1.6
1.375
2.125
CGS471T250R3C 0.439
1.5
1.375
3.125
CGS551T250R4C 0.098
3.6
1.375
4.125
CGS621T250R2C 0.137
2.3
1.375
2.125
CGS721T250R4C 0.110
3.4
1.375
4.125
CGS901T250R2L 0.095
3.0
1.375
2.625
CGS102T250R5L 0.078
4.6
1.375
5.625
CGS122T250R3C 0.073
3.7
1.375
3.125
CGS122T250V3C 0.080
4.4
2.000
3.125
CGS172T250R4C 0.050
5.0
1.375
4.125
CGS172T250V2L
0.070
4.4
2.000
2.625
CGS172T250V4C 0.057
5.8
2.000
4.125
CGS192T250V5L
0.105
4.9
2.000
5.625
CGS192T250W4C 0.078
6.6
2.500
4.125
CGS252T250V5L
0.041
7.8
2.000
5.625
CGS262T250R5L 0.035
6.9
1.375
5.625
CGS282T250V4C 0.046
6.5
2.000
4.125
CGS292T250V3L
0.041
6.5
2.000
3.625
CGS292T250W4L 0.043
8.0
2.500
4.625
CGS292T250X4C 0.050
8.0
3.000
4.125
CGS312T250U4C 0.030
7.3
1.750
4.125
CGS372T250V4C 0.027
8.4
2.000
4.125
CGS412T250V4L
0.029
8.5
2.000
4.625
CGS412T250V5L
0.021
10.7
2.000
5.625
CGS422T250W5L 0.023
11.9
2.500
5.625
CGS562T250V5L
0.019
11.3
2.000
5.625
CGS602T250V5L
0.022
10.1
2.000
5.625
CGS602T250W4C 0.022
10.6
2.500
4.125
CGS602T250X5L
0.047
9.2
3.000
5.625
CGS722T250X4C 0.023
11.7
3.000
4.125
CGS742T250X3L
0.026
10.5
3.000
3.625
CGS902T250W5L 0.016
10.4
2.500
5.625
CGS922T250W5L 0.015
14.6
2.500
5.625
CGS103T250X4L
0.020
13.0
3.000
4.625
CGS103T250X5L
0.016
15.6
3.000
5.625
CGS123T250X5C 0.017
14.6
3.000
5.125
CGS133T250X5L
0.017
14.0
3.000
5.625
CGS143T250X5L
0.013
17.3
3.000
5.625
CGS153T250X5R 0.013
17.9
3.000
5.875
CGS193T250X8L
0.016
18.8
3.000
8.625
CGS223T250X8L
0.010
23.8
3.000
8.625
300 WVdc (350 Vdc Surge )
CGS431T300R2C 0.228
1.8
1.375
2.125
CGS621T300R2L 0.158
2.3
1.375
2.625
CGS811T300R3C 0.122
2.9
1.375
3.125
CGS122T300R4C 0.083
3.9
1.375
4.125
CGS152T300W4C 0.107
4.9
2.500
4.125
CGS162T300V3C 0.067
4.8
2.000
3.125
CGS182T300R5L 0.057
5.4
1.375
5.625
CGS202T300U4C 0.053
5.5
1.750
4.125
CGS252T300V4C 0.044
6.6
2.000
4.125
CGS352T300X5L
0.066
7.8
3.000
5.625
Catalog
Part Number
Typical Max Ripple
Cap
(µF)
Catalog
ESR
Part Number
120 Hz
120 Hz
+85 ºC
(Ω)
(A) RMS
Dia.
Length
(Inches) (Inches)
3,800
4,000
4,100
6,000
6,200
6,300
8,300
9,400
10,000
15,000
300 WVdc ( 350 Vdc Surge )
CGS382T300V5L 0.030
9.0
CGS402T300X5L 0.058
8.3
CGS412T300W4C 0.027
9.6
CGS602T300X8L 0.022
15.9
CGS622T300W5L 0.029
10.6
CGS632T300W5L 0.018
13.3
CGS832T300X5C 0.022
13.1
CGS942T300X5L 0.019
14.4
CGS103T300X5R 0.018
14.9
CGS153T300X8L 0.015
19.8
2.000
3.000
2.500
3.000
3.000
2.500
3.000
3.000
3.000
3.000
5.625
5.625
4.125
8.625
4.125
5.625
5.125
5.625
5.875
8.625
130
250
330
380
480
620
650
800
920
1,000
1,000
1,000
1,300
1,300
1,400
1,500
1,500
1,600
1,900
2,100
2,200
2,400
2,400
2,700
2,900
3,000
3,200
3,300
3,300
3,400
3,800
4,000
4,200
4,800
6,300
6,400
7,200
7,300
7,900
10,000
12,000
350 WVdc ( 400 Vdc Surge )
CGS131T350R2C 0.683
1.0
CGS251T350R3C 0.478
1.4
CGS331T350R2C 0.297
1.6
CGS381T350R4C 0.318
2.0
CGS481T350R2L 0.206
2.0
CGS621T350R3C 0.158
2.5
CGS651T350V3C 0.212
2.7
CGS801T350V4C 0.170
3.4
CGS921T350R4C 0.108
3.4
CGS102T350R4C 0.111
3.3
CGS102T350V2L 0.145
3.0
CGS102T350V4C 0.140
3.7
CGS132T350V3C 0.085
4.3
CGS132T350V5L 0.108
4.8
CGS142T350R5L 0.074
4.7
CGS152T350U4C 0.068
4.9
CGS152T350W4C 0.123
4.5
CGS162T350V4C 0.099
5.2
CGS192T350V4C 0.056
5.9
CGS212T350X4C 0.067
5.4
CGS222T350W5L 0.063
7.2
CGS242T350V4L 0.061
5.8
CGS242T350V5L 0.040
7.9
CGS272T350W3L 0.058
6.3
CGS292T350V5L 0.037
8.0
CGS302T350X5R 0.048
9.3
CGS322T350W4C 0.039
8.0
CGS332T350V5L 0.038
8.1
CGS332T350X5L 0.044
9.5
CGS342T350X5L 0.043
9.6
CGS382T350W4L 0.042
8.1
CGS402T350X3L 0.045
8.0
CGS422T350X4C 0.035
9.4
CGS482T350W5L 0.026
11.1
CGS632T350X5L 0.025
12.7
CGS642T350X5C 0.025
12.2
CGS722T350X5L 0.022
13.3
CGS732T350X5L 0.022
11.7
CGS792T350X5R 0.020
13.9
CGS103T350X8L 0.021
16.6
CGS123T350X8L 0.017
18.4
1.375
1.375
1.375
1.375
1.375
1.375
2.000
2.000
1.375
1.375
2.000
2.000
2.000
2.000
1.375
1.750
2.500
2.000
2.000
3.000
2.500
2.000
2.000
2.000
2.000
3.000
2.500
2.000
3.000
3.000
2.500
3.000
3.000
2.500
3.000
3.000
3.000
3.000
3.000
3.000
3.000
2.125
3.125
2.125
4.125
2.625
3.125
3.125
4.125
4.125
4.125
2.625
4.125
3.125
5.625
5.625
4.125
4.125
4.125
4.125
4.125
5.625
4.625
5.625
3.625
5.625
5.875
4.125
5.625
5.625
5.625
4.625
3.625
4.125
5.625
5.625
5.125
5.625
5.625
5.875
8.625
8.625
290
420
550
780
810
1,100
1,200
1,300
400 WVdc ( 450 Vdc Surge )
CGS291T400R2C 0.320
1.5
CGS421T400R2L 0.222
2.0
CGS551T400R3C 0.170
2.4
CGS781T400V4C 0.114
4.1
CGS811T400R4C 0.116
3.3
CGS112T400V3C 0.091
4.1
CGS122T400R5L 0.079
4.6
CGS132T400U4C 0.073
4.7
1.375
1.375
1.375
2.000
1.375
2.000
1.375
1.750
2.125
2.625
3.125
4.125
4.125
3.125
5.625
4.125
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS High-Cap Screw Terminal Aluminum Electrolytic Capacitor
Typical Max Ripple
Typical Max Ripple
Cap
Catalog
ESR
120 Hz
Part Number
120 Hz
+85 ºC
(Ω)
(A) RMS
(µF)
Dia.
Length
(Inches) (Inches)
Cap
Catalog
ESR
Part Number
120 Hz
+85 ºC
(Ω)
(A) RMS
(µF)
120 Hz
Dia.
Length
(Inches) (Inches)
450 WVdc ( 525 Vdc Surge )
400 WVdc ( 450 Vdc Surge )
2,500 CGS252T450X3L
0.058
7.0
3.0
3.625
3,100 CGS312T450W5L
0.043
7.2
2.5
5.625
4.125
3,300 CGS332T450X5L
0.031
11.4
3.0
5.625
3.0
4.125
3,500 CGS352T450W5L
0.042
8.8
3.0
4.125
10.8
2.5
5.625
3,600 CGS362T450W5L
0.035
9.7
2.5
5.625
0.026
11.9
3.0
5.125
3,600 CGS362T450X4L
0.041
9.2
3.0
4.625
6,400 CGS642T400X5L
0.024
13.0
3.0
5.625
4,600 CGS462T450X5L
0.032
9.6
3.0
5.625
7,000 CGS702T400X5R
0.022
13.5
3.0
5.875
4,700 CGS472T450X5C
0.031
10.9
3.0
5.125
11,000 CGS113T400X8L
0.015
19.8
3.0
8.265
5,300 CGS532T450X5L
0.028
12.0
3.0
5.625
5,800 CGS582T450X5R
0.026
12.4
3.0
5.875
7,700 CGS772T450X8L
0.020
16.7
3.0
8.625
9,000 CGS902T450X8L
0.017
18.2
3.0
8.625
1,700 CGS172T400V4C
0.060
5.7
2.0
4.125
2,600 CGS262T400V5L
0.040
7.8
2.0
5.625
2,800 CGS282T400W4C
0.042
7.8
2.5
4,200 CGS422T400W5L
0.035
9.6
4,300 CGS432T400W5L
0.028
5,700 CGS572T400X5C
450 WVdc ( 525 Vdc Surge )
75 CGS750T450R2C
0.835
0.9
1.375
2.125
100 CGS101T450R2C
0.737
1.0
1.375
2.125
140 CGS141T450R3C
0.496
1.4
1.375
3.125
170 CGS171T450R3C
0.456
1.5
1.375
3.125
160 CGS161T500R2C
0.610
1.1
1.375
2.125
210 CGS211T450R4C
0.332
1.9
1.375
4.125
240 CGS241T500R2L
0.422
1.4
1.375
2.625
240 CGS241T450R2C
0.416
1.3
1.375
2.125
240 CGS241T500U2C
0.416
1.6
1.750
2.125
250 CGS251T450R4C
0.308
2.0
1.375
4.125
310 CGS311T500R3C
0.323
1.8
1.375
3.125
320 CGS321T450V3C
0.253
2.5
2.000
3.125
310 CGS311T500V2C
0.322
2.0
2.000
2.125
350 CGS351T450R2L
0.288
1.7
1.375
2.625
361 CGS361T500U2L
0.282
2.1
1.750
2.625
350 CGS351T450R5C
0.226
3.2
1.375
5.125
380 CGS381T500R3L
0.262
2.1
1.375
3.625
400 CGS401T450R5L
0.198
2.9
1.375
5.625
450 CGS451T500R4C
0.220
2.4
1.375
4.125
450 CGS451T450V3C
0.188
2.9
2.000
3.125
460 CGS461T500V2L
0.225
2.6
2.000
2.625
460 CGS461T450R3C
0.221
2.1
1.375
3.125
530 CGS531T500R4L
0.190
2.7
1.375
4.625
480 CGS481T450V4C
0.171
3.4
2.000
4.125
600 CGS601T500R5C
0.167
3.0
1.375
5.125
620 CGS621T450V2L
0.201
2.6
2.000
2.625
620 CGS621T500U3L
0.164
3.2
1.750
3.625
650 CGS651T450V4C
0.154
3.7
2.000
4.125
680 CGS681T450R4C
0.151
2.9
1.375
4.125
620 CGS621T500V3C
0.165
3.2
2.000
3.125
800 CGS801T450V4L
0.108
4.4
2.000
4.625
670 CGS671T500R5L
0.150
3.5
1.375
5.625
930 CGS931T450V3C
0.116
3.7
2.000
3.125
750 CGS751T500U4C
0.136
3.6
1.750
4.125
970 CGS971T450V4C
0.096
4.5
2.000
4.125
790 CGS791T500V3L
0.131
3.8
2.000
3.625
1,000 CGS102T450R5L
0.103
4.0
1.375
5.625
880 CGS881T500U4L
0.116
4.1
1.750
4.625
1,000 CGS102T450V3L
0.100
4.1
2.000
3.625
950 CGS951T500V4C
0.108
4.4
2.000
4.125
1,000 CGS102T450W4C
0.082
5.5
2.500
4.125
1000 CGS102T500U5C
0.101
4.6
1.750
5.125
1,100 CGS112T450U4C
0.094
4.1
1.750
4.125
1000 CGS102T500W3C
0.101
4.7
2.500
3.125
1,100 CGS112T450X4C
0.076
6.5
3.000
4.125
1100 CGS112T500U5L
0.089
5.1
1.750
5.625
1,400 CGS142T450V4C
0.076
5.0
2.000
4.125
1100 CGS112T500V4L
0.092
5.0
2.000
4.625
1,400 CGS142T450V4L
0.069
5.5
2.000
4.625
1300 CGS132T500V5C
0.081
5.6
2.000
5.125
1,400 CGS142T450V5L
0.059
6.5
2.000
5.625
1300 CGS132T500W3L
0.080
5.6
2.500
3.625
1,400 CGS142T450W5C
0.060
7.1
2.500
5.125
1500 CGS152T500V5L
0.072
6.1
2.000
5.625
1,500 CGS152T450X4C
0.059
7.4
3.000
4.125
1600 CGS162T500W4C
0.066
6.5
2.500
4.125
1,500 CGS152T450X5C
0.057
8.1
3.000
5.125
1800 CGS182T500W4L
0.057
7.3
2.500
4.625
1,700 CGS172T450W3L
0.063
6.0
2.500
3.625
1900 CGS192T500X3L
0.057
7.5
3.000
3.625
1,800 CGS182T450V5L
0.054
5.4
2.000
5.625
2100 CGS212T500W5C
0.049
8.2
2.500
5.125
1,800 CGS182T450X5R
0.048
9.3
3.000
5.875
2300 CGS232T500X4C
0.047
8.7
3.000
4.125
1,900 CGS192T450X5L
0.052
7.6
3.000
5.625
2400 CGS242T500W5L
0.044
9.0
2.500
5.625
2,000 CGS202T450X5C
0.045
9.1
3.000
5.125
2700 CGS272T500Y3L
0.041
9.8
3.500
3.625
2,200 CGS222T450V5L
0.051
6.9
2.000
5.625
2800 CGS282T500X4L
0.040
9.8
3.000
4.625
2,200 CGS222T450X4C
0.045
8.4
3.000
4.125
3200 CGS322T500X5C
0.035
20.3
3.000
5.125
2,300 CGS232T450W4C
0.052
7.0
2.500
4.125
3300 CGS332T500Y4C
0.034
11.2
3.500
4.125
2,400 CGS242T450W4C
0.048
7.2
2.500
4.125
3500 CGS352T500X5L
0.030
12.1
3.000
5.625
2,400 CGS242T450W4L
0.055
7.1
2.500
4.625
4400 CGS442T500Y5C
0.025
14.1
3.500
5.125
2,400 CGS242T450X5L
0.038
10.3
3.000
5.625
4800 CGS482T500Y5L
0.023
15.2
3.500
5.625
6000 CGS602T500X8L
0.018
18.7
3.000
8.625
8300 CGS832T500Y8L
0.014
23.1
3.500
8.625
500 WVdc ( 550 Vdc Surge )
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS High-Cap Screw Terminal Aluminum Electrolytic Capacitor
Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information contained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representation regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be required.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Cornell Dubilier:
CGS632U075R5L CGS422U075R4C CGS292U050R3C CGS413U025V4C CGS171T450R3C CGS473U025V4C
CGS173U040V3C CGS352U150V5L CGS473U040W4C CGS293U025V4C CGS422U040R3C CGS253U016R4C
CGS253U050W4C CGS712U075V4C CGS902T450X8L CGS902T250W5L CGS183U010R2C CGS183U050V3C
CGS183U025R4C CGS242T450X5L CGS872U150X5R CGS124U016X3L CGS333U040V4C CGS333U025V3C
CGS683U016V3C CGS552T200X4C CGS172U100R3C CGS602U100V4C CGS602T250X5L CGS433U050X5C3PH
CGS422T350X4C CGS252U075R4C CGS452U030R2C CGS222T350W5L CGS283U025V3C CGS222T200V4C
CGS542T200X4L CGS243U016R3C CGS302U050R2C CGS402U100V4C CGS332T200W4C CGS403U040W4C
CGS332T350X5L CGS332T450X5L CGS152T450X4C CGS432U050R4C CGS802U030R3C CGS102T350V4C
CGS553U030W4C CGS102T450W4C CGS913U016V4C CGS222U040R2C CGS222U050R2C CGS211T450R4C
CGS251T350R3C CGS201T250R2C CGS114U025X5C CGS342T350X5L CGS342T200W4C CGS551T250R4C
CGS182T450X5R CGS373U075X5L CGS652U050V3C CGS482U075V3C CGS412T250V4L CGS104U016X5C
CGS153U100X4C CGS104U030X5L CGS442T300X5L CGS203U075X5C CGS401T300R4C CGS252T250V5L
CGS383U016V3C CGS353U040V5L CGS902U040R4C CGS153U100V4C CGS153U100W5L CGS173U075X4C
CGS173U040V4C CGS173U016R3C CGS962U050V4C CGS253U075W5L CGS272T200V4C CGS892U016R2C
CGS101T450R2C CGS123U150X5L CGS253U075X4C CGS750T450R2C CGS742T200X5L CGS103U100W4C
CGS141T450R3C CGS104U050X8L CGS772T200X5L CGS323U040V4C CGS323U025V4C CGS214U016X5R
CGS142T450W5C CGS152T450X5C CGS352U040R2C CGS353U050V3C
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
