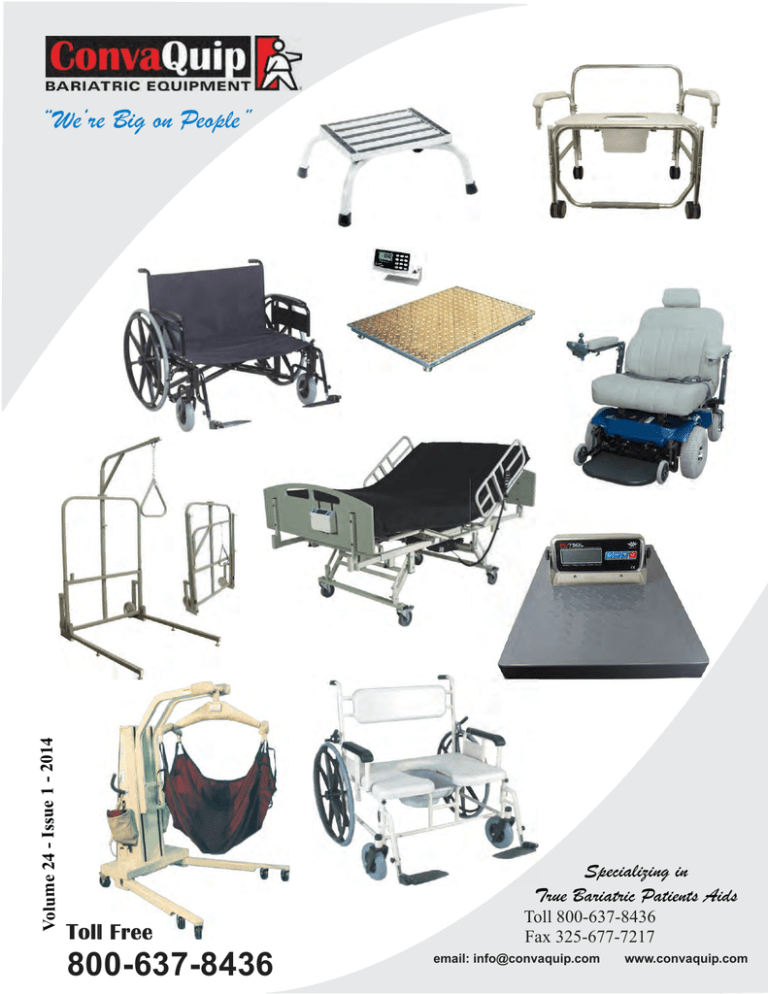

800-637-8436 “We’re Big on People” Toll Free Specializing in

800-637-8436 “We’re Big on People” Toll Free Specializing in
Volume 24 - Issue 1 - 2014
“We’re Big on People”
Specializing in
True Bariatric Patients Aids
Toll Free
800-637-8436
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Bariatric Bedside Commodes
“We’re Big on People”
and Accessories
Certified from 850 - 1500 lbs.
(depending on item)
Rubber Tips
Part# 20
Set of 4
Made in China
Commode Features:
* Constructed of anodized aluminum tubing
* Extra deep bucket to prevent splashing
* “Tube in a Tube” construction
* All can be used for 3 in 1 use
Bedside Commodes
Model Series 724, 730, 736
• Seat Widths: 24”, 30”, 36”
• Seat Depth: 17.75”
• Seat to Floor Heights: 21”
(Model 724T: 24” )
Limited Lifetime
Warranty
on Frame
724
Accessories
Pail w/Lid - Part# 770 Each
White Armrest - Part# 775 Pair
Roller w/ Bail - Part# 780 Each
Rubber Tips - P/N# 20 Set of 4
Toilet Seat w/Lid - Part# HC-1 Ea.
724LAM
724RAM
724WOA
724T
Part# 770
Tall Pail w/ Lid
and Handle
730
1500PC
Part# 1500
Short Pail w/ Lid
736
Comfortpan Bed Pan
The only Bariatric Bed Pan on the market!
Made in the USA
·1200 lbs capacity.
unless otherwise stated
·Unique and revolutionary design prevents spills!
·Flexible non-stick contoured seat.
Specializing in
·15" long x 14 1/4" wide, 3" deep.
True Bariatric Patients Aids
·Clean with soap and water or autoclave.
Toll 800-637-8436
·Color - Blue
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 1
Bariatric Drop Arm Commodes
“We’re Big on People”
Certified from 800 - 1500 lbs.
(depending on item)
Rubber Tips
Part# 20
Set of 4
Made in China
Drop Arm Commodes
Model Series 724DAU,730DAU,736DAU
724DAL,724,DAR,or 736DAU-E
• Weight Limit: 850 - 1500 pounds
• Seat Widths: 24”, 26", 30”, 36”
• Seat Depth: 17.75” - 22.5”
• Seat to Floor Heights: 18.5” - 21”
• Arms: Removable drop down arms or
Swing Away
724DAU
Accessories
Pail w/Lid - Part# 770 Each
White Armrest - Part# 775 Pair
Roller w/ Bail - Part# 780 Each
Rubber Tips - P/N# 20 Set of 4
Toilet Seat w/Lid - Part# HC-1 Ea.
724DAR
724DAL
Tall Pail w/ Lid and Handle
Part# 770
730DAU
Model 726DAU-E or 736DAU-E
Bariatric Drop Arm Commode
Specifications:
Seat Width: - 26” or 36”
Seat Depth: - 20.75” or 21”
Seat Height: - 18.5”
Actual Wt: - 36 or 40 lbs.
Weight limit: - 800 or 1000 lbs.
Packed: One per Carton
(Removable Back)
Ships via UPS or Fedex Grd
Dimensional Weight applies
Made in China
736DAU
Part# 1500PC
Short Pail
w/ Lid
736DAU-E
Made in the USA
unless otherwise stated
Specializing in
True Bariatric Patients Aids
726DAU-E
Check our website for more details and specifications
www.convaquip.com
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 2
Bariatric Bath Seats
“We’re Big on People”
Certified to 850 lbs.
Limited Lifetime
Warranty
on Frame
Limited Lifetime
Warranty
On Frame
Model 1720 Series Bath Seats are designed to fit the contour of a standard bathtub. Vinyl grips on the tubing prevent from
marring the tub. Tub must be 22” wide. This measurement must be taken at the center of the tub, inside wall to inside wall, and
measure halfway down the wall and across to the other side of the bathtub. Model 1720 Series Bath Seats are designed for
bathtub use. If you desire to use in a shower stall, you must insert the bath seat into a floor stand to prevent the bath seat from
turning over.
Model
Series
Seat
Height
Seat
Width
Seat
Depth
Actual
Weight
Weight
Capacity
Pack
1720
18.5”
20”
15.25”
15 lbs.
850 lbs.
One
1720 X
18.5”
20”
20”
18 lbs.
850 lbs.
One
Shipping
Method
Fedex
Ground
Fedex
Ground
Bath Tub use only
Not designed for
shower stall use
Made in the USA
unless otherwise stated
Specializing in
True Bariatric Patients Aids
Shown Nested
1721 / 1721X
Check our website for more details and specifications
www.convaquip.com
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 3
“We’re Big on People”
Certified from 500 - 850 lbs.
(depending on item)
Limited Lifetime
Warranty
on Frame
Bariatric Shower Stools
1701 / 1701B
1701
• Comfortable, blow-molded seat with integrated
handles for additional support..
• Height adjustable from 15.25" to 21.25".
• Seat Dimensions - 12" D x 20" W.
• Outside Leg width 17” - 17.5” depending on
seat height
• Suction-cup feet secure bench in bathtub.
• Dual cross brace for extra stability with extremely
durable welds.
• High-strength, aluminum frame to prevent rusting.
• Completely assembled.
• Weight without back - 5.5 lbs.
• Weight with back - 8.0 lbs.
Made in China
1701B
1700 or 1700X Series
• Weight Limit: 850 pounds
1700 XD
Specifications
Seat Height:
21.25”
Back Height:
9”
Overall Height:
29.5”
Seat Dimensions:
20” X 20”
Foot Print
Without back:
21” x 21”
With back:
21” x 23”
Actual Weight
Without back:
16 lbs.
With back:
17 lbs.
Capacity
850 lbs.
Packed:
One per carton
Shipping Method:
Fedex Grd.
1700 XFB
Limited Lifetime
Warranty
on Frame
Made in the USA
unless otherwise stated
1700 XF
1700 XDB
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 4
Bariatric Tub Transfer Benches
“We’re Big on People”
Certified from 500 - 850 lbs.
(depending on item)
1730FL
FL / 1730
1730XFL
XFL
Limited Lifetime
Warranty
on Frame
Model 1730 Series Tub Transfer Benches
are designed to fit standard bathtubs. Vinyl grips
on tubing prevent marring tub. “Tube in a Tube”
construction for added strength. Tub must be
22” wide at center of tub. Take this
measurement halfway down the wall and
measure inside wall to inside wall dimension.
Perineal openings are 8”W x 10”L on 1730
Series and 9”W x 11”L on 1730X Series.
Outside legs adjust from 18.5” to 20.5”.
Although this item is universal, order R or L for
bathroom configuration when possible.
1730R / 1730XDR
Model
Series
Seat
Height
Seat
Width
Seat
Depth
Actual
Weight
Weight
Capacity
Packed
1730
18.5”
44”
15.25”
30 lbs.
850 lbs.
One
1730 X
18.5”
44”
20”
40 lbs.
850 lbs.
One
Shipping
Method
Fedex
Ground
Fedex
Ground
Tub Transfer Bench
Model 1731
• Weight Limit:500 pounds
• Heavy Duty molded seat and back
• High strength aluminum design
• Some assembly required
• Seat Dimensions:
• 16.25”D x 27”W
Made in the USA
• Warranty: Lifetime on frame
unless otherwise stated
Made in China
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 5
“We’re Big on People”
Bariatric Canes,
Crutches & Side Stepper
835/840/845/850 Tips
Part# 20
Made in China
Certified from 350 to 1000 lbs.
(depending on item)
Limited Lifetime
Warranty
on Frame
835-700
835-1000
850
Range:
29”-38”
Model 500R-1000
Overall Range:
46” - 54”
Underarm Pad
To Grip: 15.5” - 20”
Approx User height:
5’2” - 5’11”
Range:
32.75”-35.75”
Single Point
Adjustable
Single Point
Custom Fitted
Side Stepper
Cap 700 lbs.
Made in China
Capacity 1000 lbs.
Capacity 500 lbs.
Made in China
Model 500T-1000
Overall Range:
52” - 60”
Underarm Pad
To Grip: 17” - 21.5”
Approx User height:
5’11” - 6’6”
840-350
Range:
32.5”-35.5”
840-350T
840-700
845
Range:
36”-39”
Made in China
Capacity 1000 lbs.
Model 500 XTA
Overall Range:
61” - 71”
Underarm Pad
To Grip: 21” - 27”
Approx User height:
6’7” - 7’7”
Forearm Crutch Measurement Form
X
Y
X = ________ inches
(Top Cuff to top of handle)
Quad
Adjustable
Quad
Adjustable
Quad
Custom Fitted
Cap. 700 lbs.
Made in China
Cap. 350 lbs.
Cap. 500 lbs.
Model 600A
Y = ______ inches
(Floor to top of handle)
Circumference of Forearm
_______inches
Wrist to point of Elbow (backside)
_______inches
Wrist to fold of Elbow (inside)
_______inches
Patient Weight:
________ lbs.
Patient Height:
_____ ft.
______ in.
Company Name: _________ _____________________
Phone#
_____________________________________
Ordered by: ________ ___________________
Check our website for more details and specifications
www.convaquip.com
The Model 600A is a custom
crutch with no adjustments.
Measurements are crucial
when ordering. Use existing
crutch when possible to
determine measurements.
Capacity 1000 lbs.
600A Tips
Made in the USA
Pair
unless otherwise stated
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 6
“We’re Big on People”
Bariatric Walkers
Certified from 750 - 850 lbs.
(depending on item)
Limited Lifetime
Warranty
on Frame
Rubber Tips
Part# 19
Set of 4
Made in China
820
820S
Model 824
Glide Brakes
820T
Model 826
Glides
Model 821
Long Leg Kit
Model 823
Wheel Kit
Accessories are Made in China
Model
820S
820
820T
Height
Adjustment
Approx.
User
Width
between Grips
Overall
Width Top
Outside
Overall
Inside Width
Width Bottom of Rear legs
Outside
at Bottom
Depth
at Top
Depth
at Bottom
Actual
Weight
Capacity
Shipping
Method
27” - 30” 4’6” - 5’
22”
24.25”
28”
22.5”
14.5”
22”
9 lbs.
850 lbs. Fedex Grd.
5’3” -6’
22”
24.25”
28”
23”
14.5”
22”
10 lbs.
850 lbs. Fedex Grd.
39” - 42” 6’2” -6’5”
22”
24.25”
29.25”
23.5”
14.5”
22”
11 lbs.
850 lbs. Fedex Grd.
33” - 36”
Limited Lifetime
Warranty
on Frame
Folding Bariatric Walker
Model 830F
• Weight Limit: 750 pounds
• Shown with optional
wheel kit (Model 833F)
• Height: 32” - 40”
• Approximate User:
5’2” - 6’3”
Made in China
Made in the USA
unless otherwise stated
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 7
“We’re Big on People”
Bariatric Rollators
Certified from 400 to 1000 lbs.
(depending on item)
Folds Easily
Standard Features:
4216BL
Dimensions:
Locking Hand Brakes
Extra Wide Seat
Built-in Seat Pad
Front Wire Basket
Removable Back
Foldable
8” Wheels
Capacity 600 lbs.
Seat Height - 21.75"
Seat Width - 23" (between grips)
Basket - 7"h x 10.25"d x 17"w
Grip Height - 30.25" - 36"
Folded - 12”
Foot Print - 27"w x 30"d
Back Rest - 10.25"
Overall Height - 32”
4216RD
Colors: Blue or Red
Model 82400F
Specifications
82700
82400
Seat Width: 18"
Seat Depth: 14”
Seat Height: 22”
Width(between handles): 23"
Height adjustable: 30.5"-39.5”
Overall width : 26”
Actual Wgt: 20 lbs.
Shipping Wt: 30 lbs.
Weight limit: 400 lbs.
Color:
Blue
82400F
(Shown with Optional Basket)
Model
82400
82700
Height
30” - 36”
30” - 35”
Width O.D. Between Grips Seat Height Actual Weight
17” - 22”
22”
20 lbs.
23” - 29”
20” - 25”
22”
26” - 32”
25 lbs.
Capacity
500 lbs.
1000 lbs.
# of Casters
Four
Four
All Rollators are
Made in China
Shown Folded
Specializing in
True Bariatric Patients Aids
Optional Tank and
IV Holder
Optional Platform Attachments
Check our website for more details and specifications
www.convaquip.com
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 8
Bariatric Transport
Shower Chairs
“We’re Big on People”
Certified from 650 - 750 lbs.
(depending on item)
1326P
Limited Lifetime
Warranty
on Frame
1326D
Width
between Arms
Seat Depth
Seat Height
Overall
Dimensions
1326 Series
26”
16”
21”
35.5”x 29”x 21”
1328 Series
28”
20”
21”
35.5”x 31 x 25”
Model
H
H
W
W
D
D
1326
Actual
Weight
Packed
Capacity
Shipping
Method
8” x 10”
26 lbs. - 28 lbs.
One
650 lbs.
Fedex Grd.
9.5 x 11”
38 lbs. - 40 lbs.
One
750 lbs.
Fedex Grd.
Perineal
Opening
Constructed with 1” Anodized Aluminum tubing and a 7/8” inner liner for double wall tubing throughout for double strength. Anodized
Aluminum and stainless steel fasteners prevents rusting. Easy Lock and Unlock braking system on back casters. Fits over 19” commodes.
Back is angled for easy pushing and pulling. Contoured arms and vinyl heel rest standard. We have added 4 additional inches of seat depth to
the 1328 Series and an over-sized Perineal Opening to compliment the extra wide shower chair. Caster installation is required before use.
Model 1328 Series available with swing away and/or removable arms for easy transfer. Optional Safety Belt is available and fits any chair.
1328 XD
1328 XF
1328 XD-DAU
1328 XF-DAU
New Removable Back
Allows Fedex Ground Shipping
Made in the USA
unless otherwise stated
1328 XDP-DAU
1328 XDP
Limited Lifetime Warranty on Frame
Check our website for more details and specifications
www.convaquip.com
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 9
Bariatric Transport
Shower Chairs
“We’re Big on People”
Certified to 750 lbs.
1328P Series
Seat Belt Part# 80
ConvaQuip is proud to offer our newest Bariatric Shower Commode Chair. This is now available in 3 seat widths; 24”, 26” and 28”. This will
minimize transfers for toiletry and bathing. One transfer from the bed to shower commode chair reduces the risk of injury to both the staff and the
patient. The 24” wheels and 8” casters make the chair much easier for the care giver to push and maneuver. Features include a rigid corrosion
resistant frame for durability and powder coat finish. Other features include removable arms, attendant mount rear locks, integral rear antitippers and removable footrests. Front opening allows for hygiene access and seat height allows positioning over a conventional toilet.
Model
1324P-24
1326P-24
1328P-24
Rear
Wheels
Front
Casters
Overall
Height
Overall
Width/
Length
w/Riggings
Seat
Depth
24”
8”
x
2”
42.5”
32”/46”
34”/46”
36”/46”
20”
Width
between
Arms
24”
26”
28”
Back
Height
Seat
Height
18”
22”
Actual Shipping
Perineal
Opening Capacity Weight Method
9.75” W
x
750 lbs.
16” L
Truck
70 lbs.
77 lbs. Ship Wgt.
84 lbs. 120 lbs.
> Minimize patient transfers for bathing and toileting
> Open back rest for patient comfort
> Hygiene access at front edge of seat
> Attendant mount wheel locks
> Removable arms for unobstructed transfer
> Constructed of corrosion resistant materials
> Patient weight capacity 750 pounds
Made in the USA
unless otherwise stated
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 10
Bariatric Wheelchairs
and Recliners
“We’re Big on People”
Certified from 600 to 850 lbs.
(depending on item)
Model 926L and 928L
Two Seat widths: 26” & 28”
Seat depth 18"
NEW
Removable arms
18.5” to 19.5" seat to floor height
Durable black nylon upholstery
Weight capacity - 600 pounds
Model 926XL, 928XL & 930XL
Series 900 XL
• Weight Limit: 700 pounds
• Seat Widths: 26”, 28”, 30”
• Seat Depth: 20”
Series 900 V
• Weight Limit: 850 pounds
• Seat Widths: 26”, 28”, 30”, 32”, 34”
• Seat Depths: 20”, 22”
• Seat to Floor Heights: 15”, 16”, 17”, 18”
• Back Style: Adjustable height 16”, 17”, 18”
• Dual square cross braces for patient support
• Super hemi seat to floor height available
Model 900WCX Recliner
• Weight Limit: 850 pounds
• Seat Widths: 26”, 28”, 30”, 32”, 34”
• Seat Depths: 20”, 22”
• Seat to Floor Heights:
15”, 16”, 17”, 18”
• Back Style: 16” 17” 18” available
on Deluxe frame
• Dual square cross braces for
patient support
• Super hemi seat to floor
height available
• Power-assist reclining
back, 36” high
Model
900R
Model
900WCX
Patient Room Recliner
Model 900R
• Weight Limit: 850 pounds
• Seat Width: 29.25”
• Seat Depth: 19”
• Seat to Floor Height: 20.5”
• Back Style: 32” high, reclines to 40°
• Locking caster wheels
• Attendant-operated recline
• High-density cushioned seat and back
for user comfort
• Leg rest articulates as back reclines
• Colors: Burgundy, Navy, Brown, Gray
Burgundy
Navy
Model 900WC
WC Recliner
• Weight Limit: 700 pounds
• Seat Widths:
20”, 22”, 24”, 26”, 28”,
30”, 32” and 34”
• Seat Depths: 18”, 20”, 22”
Brown
Check our website for more details and specifications
www.convaquip.com
Gray
Made in the USA
unless otherwise stated
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 11
“We’re Big on People”
Bariatric Power
Wheelchairs & Scooter
Certified from 550 - 675 lbs.
(depending on item)
HOSS and HOSS, JR. Excel with . . .
Style & choice - 3 rich “Mirror-Glaze™” Through &
Through automotive colors, 4 different seat colors, including
2 luxurious soft fabrics.
HOSS , Jr.
Easy chair access - just step on the footrest.
All day comfort - Orthopedic contoured Com-ForBack™seat and arms are width, depth, height & angle
adjustable to fit your needs. 50oRecline Admiral Seat. SS is
available in Com-For-Back™, Admiral & Rehab Cane Seat.
600 lb. Capacity
Body Color Choices
HOSS
Ocean Blue
Candy Apple Red
Midnight Black
Seat Color Choices - Vinyl
Tan
Gray
Charcoal
Seat Color Choices - Velvet
Hoss shown with optional
50 degree Recline Admiral Seat
and adjustable headrest extension
675 lb. Capacity
Black
Gray
Red
Better indoor maneuverability and stability - Patented 3/4
midi-drive short 27" turning radius is much easier to drive in
your home than comparable rear wheel drive chairs. Hoss'
3/4 design is more stable than center drive bariatric chairs
that tip easily when reaching or stopping. 8 stability. o
All day outdoor power & range -NewYork made, (13/4 HP
Total) high torque motors drive maximum efficiency, inline
(no maintenance) sealed gear drive.Advanced, easy to drive,
(150/600
180/675) amp modular controller saves energy while
delivering maximum power for range up to (18/6.75 - 20/6)
miles. Hoss 675/Hoss 600 can climb tortuous, 140yd, 7-9 o
hills 20/24 times with a 600lb./675lb. rider
Model XT-550
• Weight Limit: 550 pounds
• Overall Length: 48”
• Overall Width: 24" (30" with armrests)
• Maximum Speed: 4 mph forward
• Seat Dimensions: 17" D, 21" W, 18" H
• Battery Charger Off Board Standard
• Tires - Front: 9" gray pneumatic
Rear: 10" gray pneumatic
• Seat Height: 18"-19"-20"
Limited Lifetime
• Front Basket Standard
• Mirror Standard
Warranty
• Ground Clearance: 4"
on Frame
• Colors: Red, Blue and
Hunter Green
Made in the USA
unless otherwise stated
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 12
“We’re Big on People”
Bariatric Scales
Certified from 750 - 1000 lbs.
(depending on item)
Model 3200P-R Bariatric Scale
• Weight Limit: 1000 pounds
• Four stainless load cells embedded
in welded frame for maximum
shock and abuse resistance.
• Molded display enclosure with
rubber gasket for water resistance.
• Large 1" high graphics digital display
for easy viewing
• Push button functions for automatic
and keyboard tare, zero, net/gross, and
multiple units conversion (lb, kg)
• Model 3200R wheelchair ramp is standard
Certified to 1000 lbs.
Made in the USA
Platform Size - 36” x 40” x 1-7/8” high
Model PD-750L Bariatric Scale
• Weight Limit: 750 pounds
The My Weigh PD-750L is designed for personal and
commercial use. Uses bluetooth technology which allows you to
have a wireless indicator. Also designed with a large heavy duty
design non slip platform (18" x 14").
NEW
The PD-750L has a Capacity of 750lbs with a resolution of
0.2lbs. Besides Pounds, the PD-750L can weigh in Kilograms
and Stones. All of this wrapped around My Weighs 30 year
manufacturer's warranty.
Capacity:
750lb - 330kg
Readability: 0.2lb - 0.1kg
Linearity:
+/- 0.2lb - 0.1kg
Units: Pounds, Kilograms, Stones
Auto Off:
Programable (you can adjust this feature)
Operation Temp: 10°C-30°C / 50°F-90°F
Display:
0.6" backlit LCD
Dimensions: 18"W x 14"D x 4"H
Power:
AC Adaptor (included) or AA Batteries (Optional)
Warranty:
Lifetime/30 year Worldwide Warranty
Origin:
China
Check our website for more details and specifications
www.convaquip.com
"Features"
Power adapter (included)
6 AA batteries (not included)
Display0.6" backlit LCD
Indicator Size8.625" x 3.75" x 1.5"
InterfaceUSB (cable included)
Platform Size18" x 14" x 4"
Weighing Modes3
Hold:None
Tare:Yes
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 13
Bariatric Step Stools
“We’re Big on People”
Certified to 1000 lbs.
Bariatric Safety Step Stools
Universal
Light weight
tubular aluminum, 8”High
11" by 14" platform
Commercial
Light weight,
tubular aluminum, 8” High
14" by 19" platform
Lo-Comm
Light weight, tubular
aluminum, 5" High
11" by 19" platform
Tubular Aluminum
• Weight Limit: 1000 pounds
All-Aluminum Welded Construction
Anti-Tip Wide Base Prevents Tipping
Unique Self-Leveling Structure
Non-Slip Rubber Leg Tips
Made in the U.S.A.
Small Folding
Folding
7" High Folds to 3" Thick,
11" x 14" platform with
unique double-locking safety legs
8" High Folds to 3" Thick,
14" x 19" platform with
unique double-locking safety legs
With Handle
Light weight,
tubular aluminum
15" by 19" platform
5”, 8” & 9” Heights
Industrial
Light weight,
tubular aluminum
15" by 19" platform
8”, 10”, 12” & 15”
Heights
All Stools are
Made in China
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 14
Bariatric Chairs
“We’re Big on People”
(Made in the USA)
Certified from 750 - 1000 lbs.
Stylish, economical, and
comfortable, These Wooden
chairs are built to last. They are
constructed of one inch thick
solid oak with a beautiful,
durable, state-of-the-art finish.
They are California TB 117
compliant. Assembly is a breeze
with the use of slide brackets, as
no tools are required.
(depending on item)
Model 711-28SB
Sled Base Armchair,
30" wide seat
Specifications:
Capacity - 800 lbs.
Fire Rating: Cal TB 117
Wood: Light or Medium Oak
Material: Vinyl
Colors: Blue, Wine, Green, Cream
Warranty - One year
Material
Color
Choices
Model 711-28SL
Standard Leg Armchair,
30" wide seat
Wood
Choices
Blue
Wine
Green
The 711-283 Series offers three seat widths with a
professional quality look at an affordable price. It comes
with a 5-year manufacturer's warranty against defects and
offers a sturdy design with sophisticated lines. The frame is
made of Light Oak wood. The vinyl has Anti-Microbial &
Anti-Bacterial Protection. Vinyl Color Shown: Marina Blue.
FEATURES:
Weight Capacity: 1000 lbs
Chair Weight: 70lbs
Warranty: 5-Year Frame
See website for color options
Cal133
Dimensions
Overall Width: 28" - 34" - 44”
Overall Depth: 31”
Overall Height: 38”
Seat Width: 24" - 30" - 40"
(between arms)
Seat Depth: 22.5”
Arm Height: 25.5”
Seat Height: 20”
Ships Via: Truck
NEW
Check our website for more details and specifications
www.convaquip.com
Cream
Light Oak
Medium Oak
Model 1400P Utility Chair
• Weight Limit: 750 pounds
• Seat Widths: 20”
• Seat Depth: 20”
• Seat to Floor Height: 19” or 21”
• Casters: 2 locking,
2 non-locking
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 15
Bariatric Lifts
and Trapeze
“We’re Big on People”
Certified from 700 - 1000 lbs.
(depending on item)
Model 1000F Bariatric Trapeze
• Weight Limit: 1000 pounds
• Compact, Easy to maneuver
with built-in wheels
• All-Steel construction
• Total Height:
73”
• Total Width:
41”
• Total Depth:
68”
• Boom Length:
36”
• Boom swivels from 0 degrees
to 180 degrees
Made in China
Model 9700 Bariatric Lift
Limited Lifetime
Warranty
on Frame
• Weight Limit: 700 pounds
• Electric Full Body Lift includes
• 2 batteries
• 1 sling
• 1 battery charger
• Safety padded hanger and beam
• Non-arcing beam
• Storage Saddle bags
• Remote control
• Battery Indicator
• Swivel Hanger with safety latches
Certified to 700 lbs.
Model 9750 Bariatric Lift
• Weight Limit: 1000 pounds
Certified to 1000 lbs.
• Fully electric lift operation.
• Pendant hand control and integral
thumb switch control for lift operation
• Manually adjustable retractable
base legs for safety and stability
during transfer
Made in the USA
• Size 5XL sling included
unless otherwise stated
• Optional Weighing scales available
• Four point sling suspension bar
Specializing in
• Two quick change batteries and
True Bariatric Patients Aids
charger included
• Rear locking casters
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 16
Bariatric Patient
Lift
“We’re Big on People”
Certified to 600 lbs.
NEW
ConvaLift CL600E Bariatric Patient Lift is designed to provide the perfect combination of
patient safety, weight capacity and maneuverability. This lift meet the special needs of the
bariatric patient in hospitals, nursing homes and long-term care facilities. It is easy to
operate for caregivers and patients are reassured by the stability and overall comfort of lift.
HCPCS - E0635
FEATURES:
ConvaLift Model CL600E Bariatric Patient Lift has 600 lb safe working load
Includes XX-Bariatric Full Body Mesh Sling (Capacity 600 lbs), Battery Pack and Charger
Compact profile allows for lifting from the floor
Heavy duty 6 point multi tilt spreader bar
Weight limit warning system
Emergency manual lowering device
Foot pedal base opening for wheelchair and commode access
Low base height provides maximum stability and fits under lower beds
Optional - Extra Wall Mounted Charger & Battery Pack Optional (Model CL600E-D)
Made in the China and distributed by ConvaQuip Ind., Inc.
Specifications:
Dimensions
Weight Capacity 600lb
Spreader Bar Maximum Height - 71”
Spreader Bar Minimum Height - 22”
Base Closed External Width - 26.5"
Base Closed Internal Width - 21.75"
Base Open External Width - 43”
Base Open Internal Width - 38”
Base Height Clearance - 5" or 6”
Mast Height - 48”
Overall Length - 50”
Unit Net Weight - 137lb
Lockable Castors - Yes
Check our website for more details and specifications
www.convaquip.com
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 17
Bariatric
Lift Stands
“We’re Big on People”
Certified to 550 lbs.
Model STS-550 Sit to Stand
Patient Lifter
Battery-powered non-hydraulic sit-to-stand
patient let care givers bring the patient to a
standing position lifts smoothly and
effortlessly.
5 Year Warranty - Durable Construction
· "H" - Handle Bar System provides easy
gripping with no forced wrist motion
· Digital Scale Option saves time; adds
convenience
· Removable Battery Pack assures that lift is
always charged. Long life/heavyduty
· Control Switches: Thumb controls or
remote control allow user-friendly
maneuverability and control
· Safety Retention Clips provide extra safety
even if slack occurs
· Safety Padding protects the resident,
prevents skin tears. Easy-clean vinyl
· Foot Board is height-adjustable and
removable for gait training and weightbearing exercises
· Compact Base Adjustable Base permits
easy movement around objects even in
small bathrooms
· Low Battery Indicator signals visually
when battery is low
· Ambulating Pole Attachment Option
Attaches to "H" bar and lifts parallel to
better assist the resident to standing
position
· Shin Rest pivots and adjusts to different
heights for added safety and comfort
Made in the USA
Specifications:
Weight Capacity …………………..…..550 lbs.
Width (Base Closed / Open)………..25 / 46 in.
Overall Length ….………………….....41 in.
Wheel Base Height w/ 3 in. Casters ………..4.5 in.
Wheel Base Height w/ 4 in. Casters ………..5.6 in.
Beam Hook Height……………………..…41 / 73 in.
Electrical ...……...……………...…………...12V DC
Check our website for more details and specifications
www.convaquip.com
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 18
Bariatric
Lift Stands
“We’re Big on People”
Certified to 600 lbs.
NEW
The Model STS600E Sit to Stand Series is the ultimate solution for worry free patient transfers between bed,
chair or commode. The right choice for facilities seeking to significantly cut injury risk associated with
antiquated manual patient lifting practices. Standard and bariatric models available both very competitively
priced. Combined with the unique specially designed Apex sling a new level of comfort and safety is achieved.
These Sit to Stand lifts are an equally affordable option for residential use and the STS600E has set the
standard for value. Do not attempt to use stand assist lifts unless the patient exhibits control over the upper
body, strength to grasp the handles, ability to bear some weight and flexibility in knees, hips and ankles.
Specifications
Dimensions
Weight capacity
600lb
Spreader bar maximum height 68"
Spreader bar minimum height 33"
Base closed external width
25.5"
Base closed internal width
20.75"
Base open external width
37"
Base open internal width
32.5"
Base height
4.5"
Mast height
40"
Overall length
40"
Unit net weight
122lb
Lockable castors
Yes
· 600 Lb. safe working loads
· Includes Battery Pack and Battery Charger
· Includes Padded Deluxe Bariatric Sling – 600 Lb.
Capacity
· Low bases
· Fully adjustable knee pad
· Removable foot platform
· Has double the lifting speed
· Optional buttock support strap and knee pad strap
· Eliminate under arm discomfort by using an Optional
Sani sling hook up
· Optional – Extra Battery and Battery Pack (Model
STS600E-D)
Made in the China and distributed by ConvaQuip Ind., Inc.
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 19
Bariatric Gurney,
Stretcher & Chair
“We’re Big on People”
Certified from 650 to 1000 lbs.
(depending on item)
Certified to 1000 lbs.
Bariatric Transport Stretcher
Model 1190
Weight Limit: 1000 pounds
• Patient Surface: Width 35”, Length 80”
• Overall width 40"
• Deck Height: 29.5”
• Back Style: Foot pedal control hydraulic
fowler back rest
• 3-Position, drop down side rails
• 4" high-density litter pad included
• Four-wheel central lock and brake
Bariatric Trauma/ER Stretcher
Model 1600 - Weight Limit: 1000 pounds
• Fully electric operation
• Pull/push handles, self-storing
• Litter Size:
• Fold-down side rails
• Width 37”(between side rails) • Approximately 12 cycles
• Overall 39” x 43”
between battery charges
• Length 80”
• All surface 8” casters
• Litter Height: 20” – 28”
• Four-wheel central locking
• Fowler rest at 55 degrees
brakes
• Knee gatch
• Low shear fabric mattress cover
Extra Care™ Bariatric Transport Chair
Model 900EC
• Weight Limit: 850 pounds
• Fully electric operation with pendant control
• Seat Width: 29.5” x Seat Depth: 22”
• Seat to Floor Height: 24” to top of seat cushion
• Back Style: Reclining
• In stretcher or flat position,
surface is height adjustable 24.5” to 32.5"
• Approximately 12 cycles between battery charges
• 8"-diameter all-surface casters, for ease of
transporting
• One-touch chair to stretcher position
• Four-wheel central lock and brake
• Leg rests elevate independently
• Arms: Drop down side rails
• Low shear fabric standard
Specializing in
True Bariatric
Patient Aids
Made in the USA
unless otherwise stated
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
Check our website for more details and specifications
www.convaquip.com
email: [email protected]
www.convaquip.com
Page 20
Bariatric
Electric Beds
“We’re Big on People”
Certified from 650 - 1000 lbs.
(depending on item)
Model 5500 Series
Mattress not included
Model 5500 Series
• Weight Limit: 750-1000 pounds
• Deck Size:
• Widths - 48” or expandable 39”, 48” or
39”, 48”, 54”
• Deck Length - 80"
• Deck Height: Adjustable 15” - 29”
• Fully electric with battery back-up
• 3-Function or 5-Function
• Split frame or transport frame
• Over-bed trapeze optional
• Weighing scales optional
• Over-bed Trapeze Optional
(Shown with optional over-bed trapeze)
Model 5600 Series Home Care Bed
• Weight Limit: 650 pounds
Deck Size:
• Widths - 39” or 48” x Length - 84”
• Deck Height: Adjustable 15.75” - 32.5”
• 3-Function, fully electric operation
• Optional portable battery pack for emergency operation
• Functions: High/low, fowler back rest, leg lift
• Headboard, footboard and side rails are standard
• Split frame construction for ease of delivery and set-up
• Quick connect cables for easy assembly
• Frame connector pins tethered to frame to prevent loss
Legacy XL Alternating
Mattress System w/Pump
Model 5600
Battery Pack
Optional
Model APM-48
• Weight Limit: 650 pounds
• Dimensions: 48” x 80”
• Output of 16 liters per minute
• On/Off Switch
• Includes pump, mattress and cover
pressure
• Cell in Cell Technology
• Low Pressure audible alarm
• CPR valve provides fast release of air
from mattress
• Waterproof design
Check our website for more details and specifications
www.convaquip.com
Made in the USA
unless otherwise stated
Made in China
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Page 21
“We’re Big on People”
TERMS AND POLICIES
ORDERING: Order any Model or Part number specifying product name and
quantity. Orders will not be invoiced to Medicare, Medicaid or any other Insurance
Company. All orders require a hard copy Purchase Order and Number before order
will be processed. All payments must be in U.S. Dollars.
SHIPPING: All shipments are FOB origin unless otherwise approved by management.
All shipments will be shipped the most economical method unless purchaser requests
otherwise and absorbs additional freight charges.
CREDIT/RETURNS: All returns must be pre-approved in advance by ConvaQuip and Return
Authorization form must be returned with product to insure proper credit. Customer is responsible
for freight when returning product. Restock Fee for all items is 25%. Used or altered items will not
receive any credit. ConvaQuip reserves the right to refuse a refund after 60 days.
FREIGHT DAMAGE: The carrier who delivers our merchandise to you is responsible for loss and
damages. Acceptance of the shipment by you is acknowledgment that all items were delivered in good
condition. It is the responsibility of the receiver to open and inspect all packages. Failure to find and report
concealed damages and reporting it immediately will result in a loss to the receiver. All claims for loss or damage
must be filed immediately with the “FREIGHT CARRIER”. Then notify us as well. We will
Specifications and Pricing
mark our records accordingly.
Subject to Change WHEN RETURNING AN ITEM, SHIP TO:
(Must have approved Return Authorization Form)
ConvaQuip Ind., Inc.
500 C.R. 239
Abilene, TX 79601
ConvaQuip reserves the
right to correct a price in the
event of any pricing errors
LIMITED WARRANTY
This Limited Warranty is extended to the original purchaser/user and cannot be transferred. All ConvaQuip products are warranted
for minimum of One Year and up to Lifetime depending on the item against defects and workmanship. Parts and labor are
warranted for 90 days.
Warranty Policy: Defective products or parts will be repaired or replaced, at ConvaQuip's discretion by ConvaQuip or its appointed
agent. The warranty does not cover damaged caused by shipping, misuse or negligence, nor does it cover defects or damages by use of
parts or service by unauthorized persons. All freight charges for the returned products are the responsibility of the customer,
including warranty work.
Warranty does not cover products damaged in shipping. It is the responsibility of the customer to inspect the delivery upon arrival.
Should damages exist, report it immediately to the carrier. The carrier will be responsible for repairing or replacing the product.
Failure to report these damages upon delivery could result in a loss to customer. All warranty work will require Model and Serial
number.
WARRANTY EXCLUSIONS: Any products or services not paid in full according to the agreed terms of payment will make
said Warranty Null and Void until all monies owed are paid in full, including any incurred expenses for collection of debt.
Warranty will not be reinstated until all monies have been paid in full for products, services and collection fees. Please be
advised that all collections involving a third party for hire, will result in a report to Dun and Bradstreet. Accordingly, no
product, no parts or services will be sold to said customer until account is in good standing.
ConvaQuip
Industries, Inc.
P.O. Box 3417 Abilene, TX 79604
Toll 800-637-8436
Fax 325-677-7217
PRESORTED
STANDARD
U.S. POSTAGE
PAID
Permit No.
Specializing in
True Bariatric Patients Aids
Toll 800-637-8436
Fax 325-677-7217
email: [email protected]
www.convaquip.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
