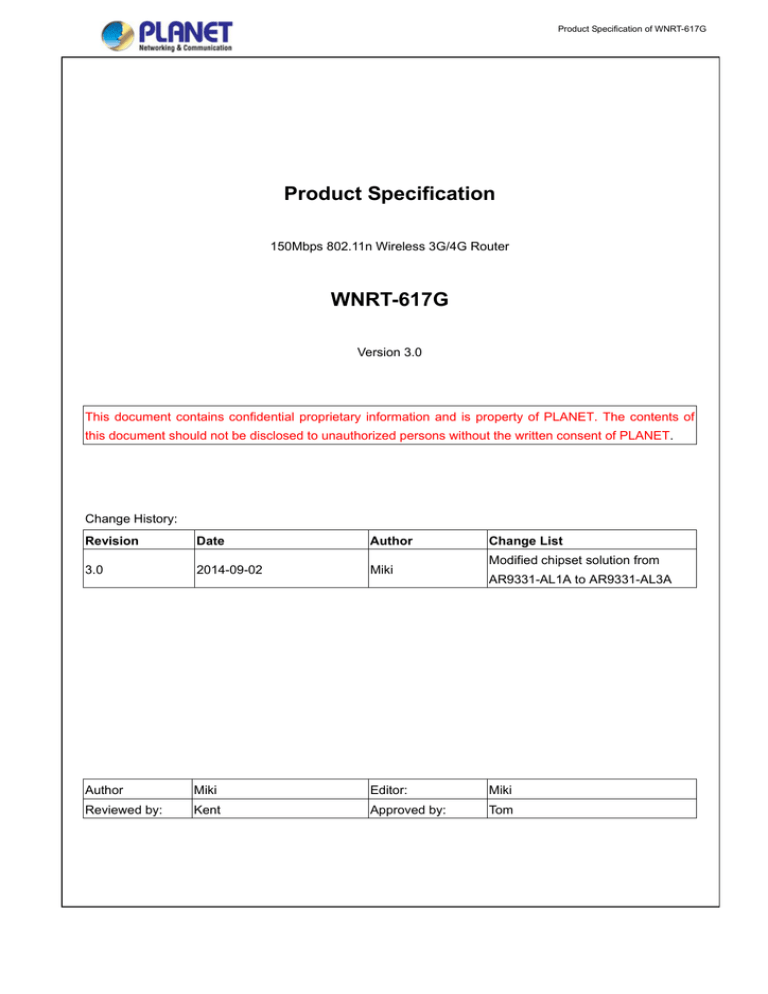

Product Specification of WNRT-617G
Product Specification
150Mbps 802.11n Wireless 3G/4G Router
WNRT-617G
Version 3.0
This document contains confidential proprietary information and is property of PLANET. The contents of
this document should not be disclosed to unauthorized persons without the written consent of PLANET.
Change History:
Revision
Date
Author
Change List
3.0
2014-09-02
Miki
Author
Miki
Editor:
Miki
Reviewed by:
Kent
Approved by:
Tom
Modified chipset solution from
AR9331-AL1A to AR9331-AL3A
Product Specification of WNRT-617G
1. PRODUCT DESCRIPTION
3G/4G Broadband Sharing
To provide super-fast and cost-effective wireless solution for home and SOHO users, PLANET upgrades
the current wireless 3G router “WNRT-617G” to 4G LTE. With the 4G LTE, users can immediately
experience 25X Internet download speed than that of the earlier 3G mobile network. You just need to
attach the 4G LTE USB modem card to the USB port of the WNRT-617G and enjoy real-time HD video
streaming, on-line gaming and other Internet activities. The 4G LTE mobile connection is also backward
compatible with 3G UMTS / HSPA / EVDO mobile network.
Network Failover Makes You Stay Online
The WNRT-617G has 3G/4G and WAN connection failover characteristics, which can automatically hand
over to the redundant stable WAN connection to keep users always online without missing any fascinating
moments. The WNRT-617G provides a more flexible and easier way for users to create an instant wireless
network sharing service via 3G/4G modem whenever at Home, Hotspot or in public places like
transportation, outdoor event, etc.
Wireless Coverage Plus !
With one 5dBi high-gain antenna attached, the WNRT-617G provides stronger signal quality and more
excellent performance than normal wireless routers especially when in the long range or poor environment
condition for further wireless coverage range. With the detachable RP-SMA connector design, the
WNRT-617G allows users to manually upgrade higher gain antenna for greater wireless distances and
coverage range across home and building. Besides essential wireless sharing for Wi-Fi clients, the
WNRT-617G provides WDS (Wireless Distribution System) bridge mode to facilitate wireless network
deployments and range expansion. It provides more flexibility for users while establishing wireless network.
Wide-ranging Wireless Security Support
To secure the wireless communication, the WNRT-617G supports not only 64/128/152-Bit WEP, but also
up-to-date encryptions including WPA-PSK / WPA2-PSK with TKIP/AES, wireless MAC filtering and SSID
broadcast control to consolidate the wireless network security and prevent unauthorized wireless
connection.
Easily-secure Wireless Connection
In order to simplify security settings for home and SOHO network, the WNRT-617G supports Wi-Fi
Protected Setup (WPS), which has two connections: PBC and PIN. By just pressing the WPS button or
keying in the PIN code, the secure connection between the WNRT-617G and wireless clients will be built
immediately, offering a convenient and fast method for users.
Filename:
PS-WNRT-617Gv3_v3.0.doc
Page 2 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G
Advanced Firewall Security
To protect user’s network from external attacks, the WNRT-617G provides dual firewall mechanisms – NAT
and SPI. The NAT function allows multiple users to have access to Internet via a single legal IP, and the
SPI (Stateful Packet Inspection) firewall protects intranet PCs from unauthorized access and prevents
possible DoS attacks from the Internet. As to firewall, the WNRT-617G provides flexible IP-based access
control, schedulable MAC access control and URL block to prevent possible hacker attack.
Full-functioned Router
As a robust broadband router, the WNRT-617G supports various Internet connection protocols and auto
detect function to establish Internet service when the ISPs use different connection types. It also provides
Virtual Server and DMZ functions for LAN PC to act as an application server and offer certain service to
the clients in the LAN. The WNRT-617G allows users to set up trigger ports of special applications and
utilize Internet services smoothly. Moreover, IP-based ingress and egress bandwidth control optimizes
time-critical applications such as VoIP or video conference not to be interrupted or lagged due to P2P file
downloaded by other clients in the same network environment.
Easy to Set Up
Users can easily configure the wireless router according to the Quick Setup wizard on the web
configuration page. Just click the wizard and set up step by step. You can easily get on the wireless
network and enjoy high-speed Internet transmission in your home or office.
2. PRODUCT FEATURES

IEEE Compliant Wireless & Wired LAN

Compliant with IEEE 802.11n wireless technology capable of up to 150Mbps data rate

Backward compatible with 802.11b/g standard

Equipped with four LAN ports (10/100Mbps) and one WAN port (10/100Mbps), auto
MDI/MDI-X supported

3G / 4G Mobile Internet Connection

Dual Network Interfaces: WAN port for cable / wired DSL service and 3G / 4G mobile
connection


Compatible with 4G LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO Mobile Network
Fixed-Network Broadband Router

Internet types: Dynamic IP / Static IP / PPPoE / Telstra Big Pond / L2TP / PPTP

Supports Static Routing, WDS, UPnP and Dynamic DNS
Filename:
PS-WNRT-617Gv3_v3.0.doc
Page 3 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G

Secure Network Connection

Supports Wi-Fi Protected Setup (WPS)

Advanced Security: 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK with TKIP/AES
Encryption, and 802.1x Authentication



Supports NAT firewall features, with SPI function to protect against DoS attacks

IP / Protocol-based access control and MAC filtering
Advanced Networking Function for Specific Application

Supports multiple sessions IPSec, L2TP and PPTP VPN pass-through

Supports virtual server, ALG, DMZ and UPnP for various networking applications

Supports DHCP server
Easy Installation and Management

Web-based UI for quick setup and easy configuration

Remote management allows configuration from a remote site

System status monitoring includes DHCP Client and System Log
3. PRODUCT SPECIFICATION
3.1 MAIN COMPONENT
Chipset:
Atheros AR9331-AL3A
RAM :
16MB
Flash :
2MB
3.2 FUNCTIONAL SPECIFICATIONS
Product
WNRT-617G
150Mbps 802.11n Wireless 3G/4G Router
Hardware Specifications
Interfaces
Antennas
WAN port: 1 x 10/100Mbps auto MDI/MDI-X RJ45 port
LAN port: 4 x 10/100Mbps auto MDI/MDI-X RJ45 ports
USB port: 1 x USB 2.0 port
- 1 x Detachable RP-SMA Connector
Gain:
- 1 x 5dBi SMA antenna included in the package
Orientation:
Power Button
WPS / Reset Button
LED Indicators
Material
Filename:
PS-WNRT-617Gv3_v3.0.doc
Omni-directional
Power On/Off button on rear panel
WPS / Reset button on front panel
Press the button for at least 5 seconds to reset to factory default setting
PWR, SYS, WLAN, LAN x 4, WAN, 3G/4G, WPS with green light
Plastic
Page 4 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G
Dimensions (W x D x H)
Weight
Power Requirements
174 x 110 x 23 mm
200g
9V DC, 0.85A
Wireless Interface Specifications
Standard
Compliant with IEEE 802.11b/g/n
Frequency Band
2.4~2.4835GHz
Extend Frequency
DSSS
Modulation Type
Data Transmission Rates
Transmission Distance
Channel
DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/
64-QAM)
802.11n: 135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic)
802.11g: 54/48/36/24/18/12/9/6Mbps (Dynamic)
802.11b: 11/5.5/2/1Mbps (Dynamic)
Indoor up to 100m
Outdoor up to 300m (It is limited to the environment)
America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)
RF Power
≦20 dBm (EIRP)
Receive Sensitivity
130M: [email protected]% PER
108M: [email protected]% PER
54M: [email protected]% PER
11M: [email protected]% PER
6M: [email protected]% PER
1M: [email protected]% PER
Software Features
Wireless Mode
AP, WDS (AP+Bridge)
WEP (64/128/152-bit) encryption security
Encryption Security
WPA-PSK / WPA2-PSK (TKIP/AES)
WPA / WPA2 (TKIP/AES)
WPA / WPA2 enterprise mode (802.1x authentication)
Provides wireless LAN ACL (Access Control List) filtering
Wireless Security
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)
Enable/ Disable SSID Broadcast
Supports WMM (Wi-Fi multimedia): 802.11e Wireless QoS
Wireless Advanced
Features
Wireless Isolation: Enables to isolate each connected wireless client from
communicating with each other
Supports Wireless Roaming (mobility feature)
Provides Wireless Statistics
Router Features
Internet Connection Type
Filename:
PS-WNRT-617Gv3_v3.0.doc
Shares data and Internet access for users by supporting the following
Page 5 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G
protocols:
- PPPoE / Russia PPPoE
- Dynamic IP
- Static IP
- Telstra Big Pond
- PPTP / Russia PPTP
- L2TP / Russia L2TP
NAT firewall with SPI (Stateful Packet Inspection)
NAT with ALG (Application Layer Gateway)
Built-in NAT server supporting Virtual Server, and DMZ
Firewall
Built-in firewall with IP address filtering, Domain Name filtering, and MAC
address filtering
Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filtering and
DoS protection
Routing Protocol
Static Routing
VPN Pass-through
PPTP, L2TP, IPSec
LAN
System Management
Built-in DHCP server supporting static IP address distribution
Supports UPnP, Dynamic DNS
Supports Flow Statistics
IP & MAC Binding
IP / Protocol-based Bandwidth Control
Session Number: Max. 5210
Web-based (HTTP) management interface
Remote management
SNTP time synchronize
Easy firmware upgrade
System Log supports auto mail and saves to local host
Standards Conformance
IEEE Standards
Other Protocols and
Standards
IEEE 802.11n (1T1R, up to 150Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Environment & Certification
Temperature
Operating: 0 ~ 40 degrees C
Storage: -40 ~ 70 degrees C
Humidity
Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)
Filename:
PS-WNRT-617Gv3_v3.0.doc
Page 6 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G
3.3 Compatible MObile network:
4G LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO
3.4 Physical Specification
Dimension
174 x 110 x 23 mm (W x D x H)
Weight
200g
Front Panel
WPS/Reset Button
ACTIVE
TIME
WPS
Press and hold the button less than 5 seconds for WPS configuration
Reset
Press and hold the button more than 8 seconds to the factory default setting
LED definition
LED
COLOR
PWR
Green
SYS
Green
WLAN
Green
LAN 1-4
Green
Filename:
PS-WNRT-617Gv3_v3.0.doc
STATE
FUNCTION
On
Device power on
Off
Device power off
On
Device is initializing
Slow Flash
The device is working properly
Quick Flash
Press and hold the reset button longer than 5 seconds
Flash
The Wireless function is enabled.
Off
The Wireless function is disabled.
On
Link is established
Flash
Packets are transmitting or receiving
Page 7 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G
WAN
Green
3G/4G
Green
Off
LAN port is not connected
On
Link is established
Flash
Packets are transmitting or receiving
Off
WAN port is not connected
On
Flash
Off
The USB 3G/4G dongle is connected.
Slow Flash
WPS
Green
On
Quick Flash
Data is received or sent through the 3G/4G dongle.
No device is linked to the USB port.
A wireless device is connecting to the network by WPS
function. This process will last for about 2 minutes.
A wireless device has been successfully added to the
network by WPS function.
A wireless device failed to be added to the network by
WPS function.
Rear Panel
H/W Interface definition
Interface
POWER
Function
The Power socket is where you will connect the power adapter.
Please use the power adapter provided with WNRT-617G.
ON/OFF
The button of the power.
WAN
Connect to the DSL/cable Modem, or Ethernet
1,2,3,4 (LAN)
Connect to the user’s PC or network devices
USB
Connect to the USB 3G/4G modem
Antenna
Filename:
PS-WNRT-617Gv3_v3.0.doc
RP-SMA (Female) type antenna connector with built-in 5dBi detachable
antenna
Page 8 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G
3.5 Environmental Specification
Temperature
Operating: 0 ~ 40 degree C
Storage: -40 ~ 70 degree C
Humidity
Operating: 10 ~ 90% (Non-Condensing)
Storage: 5 ~ 90% (Non-Condensing)
3.6 ELECTRICAL SPECIFICATION
Input Voltage:
9V DC
Power Consumption:
7.3W (max, maybe vary from different 3G/4G Modem)
Power Adapter:
Power Input
100~240V/50-60Hz Switching Power Supply
Power Output
9VDC / 0.85A
Regulator
CE, RoHS
3.7 Regulatory Compliance
CE, FCC, Compliant with RoHS
3.8 BASIC PACKAGING

WNRT-617G x 1

5dBi Antenna x 1

Power Adapter x 1

Quick Installation Guide x 1

Ethernet Cable x 1
3.9 PACKAGING INFORMATION
Dimension:
260 x 180 x 70 mm (W x D x H)
Weight:
540g (gross weight)
20pcs in one carton
Filename:
PS-WNRT-617Gv3_v3.0.doc
Page 9 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G
APPENDIX B: Default Settings
System
Firmware Version
3.13.12 Build 140811 Rel.60384n
Hardware Version
WNRT-617G v3 00000000
System Time
1/1/1970
Time Zone
(GMT) Greenwich Mean Time, Dublin, London
IP Address
192.168.1.1
Subnet Mask
255.255.255.0
DHCP Server
Enable
Host Name
WNRT-617G
Internet Access
3G Only
Basic Settings
SSID
WNRT-617G
Region
United States
Band
11bgn mixed
Channel
Auto
Channel List
USA: 1~11, Total: 11
Europe: 1~13, Total: 13
China: 1~13, Total: 13
India: 1~13, Total: 13
Channel Width
Auto
Enable Wireless Radio
Enable
Enable SSID Broadcast
Enable
Enable WDS Bridging
Disable
Security
WPA/WPA2 – Personal/ AES/ Password = [PIN code]
Advanced Settings
Beacon Interval
100
RTS Threshold
2346
Fragmentation Threshold
2346
DTIM Interval
1
Enable WMM
Enable
Enable Short GI
Enable
Enable AP Isolation
Disable
3G
Filename:
PS-WNRT-617Gv3_v3.0.doc
Page 10 of 11
Printed on 09/02/2014
Product Specification of WNRT-617G
Location
USA
Mobile ISP
AT&T
Connection Mode
Connect Automatically
Authentication Type
Auto
Dial Number
*99#
APN
broadband
MTU Size (in bytes):
1480
Filename:
PS-WNRT-617Gv3_v3.0.doc
Page 11 of 11
Printed on 09/02/2014
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
