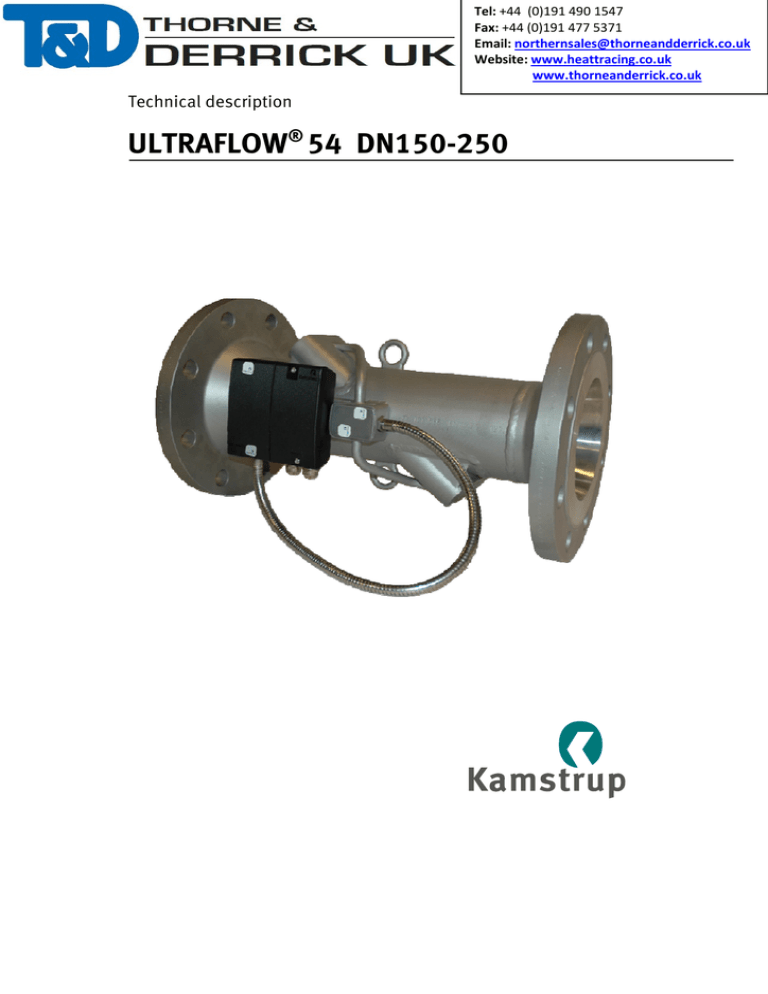

Technical description
ULTRAFLOW® 54 DN150-250
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
2
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Contents
1
General description ........................................................................................................ 5
2
Data ............................................................................................................................... 6
2.1
2.2
2.3
2.4
Electrical data ........................................................................................................................................ 6
Mechanical data .................................................................................................................................... 6
Flow data ............................................................................................................................................... 7
Material ................................................................................................................................................. 7
3
Type overview ................................................................................................................. 8
4
Ordering details.............................................................................................................. 9
4.1
Type numbers of ULTRAFLOW® 54 for MULTICAL®.................................................................................... 9
4.2
Type numbers of separate ULTRAFLOW® 54 ............................................................................................ 9
4.2.1 Ordering details of separate ULTRAFLOW® 54 .................................................................................. 10
4.2.2 Type numbers of output and supply modules .................................................................................. 10
4.2.3 Programming variants of pulse figures and pulse durations ............................................................. 11
4.3
Accessories ......................................................................................................................................... 12
4.3.1 Cables............................................................................................................................................ 13
5
Dimensioned sketches .................................................................................................. 14
6
Pressure loss ................................................................................................................ 16
7
Installation ................................................................................................................... 17
7.1
Installation angle of ULTRAFLOW® 54 ................................................................................................... 18
7.1.1 Mounting ULTRAFLOW® 54 in lifting ring.......................................................................................... 18
7.2
Mounting of ULTRAFLOW® 54 electronics box ....................................................................................... 19
7.2.1 Orientation of flow sensor electronics box ...................................................................................... 20
7.3
Straight inlet ........................................................................................................................................ 21
7.4
Operating pressure .............................................................................................................................. 21
7.5
Connection to calculator ...................................................................................................................... 22
7.5.1 ULTRAFLOW® 54 and MULTICAL®, galvanically coupled ................................................................... 22
7.5.2 ULTRAFLOW® 54 and MULTICAL®, galvanically separated ................................................................ 22
7.6
Connection of power supply ................................................................................................................. 24
7.6.1 Battery supply ................................................................................................................................ 24
7.6.2 Mains supply modules ................................................................................................................... 24
7.6.3 Mains supply cable ........................................................................................................................ 25
7.6.4 Danish regulations for the connection of mains operated meters..................................................... 25
7.6.5 Cable connections .......................................................................................................................... 26
7.6.6 Change of supply unit ..................................................................................................................... 26
7.7
Example of connection of ULTRAFLOW® 54 for MULTICAL® .................................................................... 27
7.8
Calculator with two flow sensors .......................................................................................................... 28
7.9
Testing the function ............................................................................................................................. 28
8
Functional description .................................................................................................. 29
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
Ultrasound combined with piezo ceramics ........................................................................................... 29
Principles ............................................................................................................................................ 29
Transient time method ......................................................................................................................... 29
Signal paths ........................................................................................................................................ 31
Measuring sequences .......................................................................................................................... 31
Function .............................................................................................................................................. 32
Guidelines for dimensioning ULTRAFLOW® ........................................................................................... 33
Pulse output ........................................................................................................................................ 34
5512-876 GB/04-2012/Rev. F1
3
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
8.8.1 Galvanically coupled...................................................................................................................... 34
8.8.2 Galvanically separated................................................................................................................... 35
8.9
Pulse emission ................................................................................................................................... 37
8.10
Accuracy........................................................................................................................................ 37
8.11
Power consumption ....................................................................................................................... 38
8.12
Interface plug/serial data............................................................................................................... 38
8.13
Test mode ..................................................................................................................................... 39
8.14
Externally controlled start/stop ...................................................................................................... 39
8.15
Calibration procedure using serial data and externally controlled start/stop .................................. 40
9
Calibrating ULTRAFLOW® .............................................................................................. 41
9.1
Test instructions for ULTRAFLOW 54, DN150-250 ............................................................................... 41
9.1.1 Installation angle for ULTRAFLOW® ................................................................................................. 41
9.1.2 Technical data ............................................................................................................................... 41
9.1.3 Connection .................................................................................................................................... 42
9.2
Sealing ............................................................................................................................................... 43
9.3
Optimization in connection with calibration......................................................................................... 44
9.4
PULSE TESTER ..................................................................................................................................... 45
9.4.1 Technical data of PULSE TESTER ..................................................................................................... 45
9.4.2 Hold-function ................................................................................................................................ 47
9.4.3 Push-button functions ................................................................................................................... 47
9.4.4 Use of PULSE TESTER ..................................................................................................................... 47
9.4.5 Spare parts .................................................................................................................................... 48
9.4.6 Battery replacement ...................................................................................................................... 48
10 METERTOOL ................................................................................................................. 49
10.1
10.2
10.2.1
10.2.2
10.3
10.3.1
10.3.2
10.3.3
10.3.4
10.4
10.4.1
10.4.2
10.4.3
10.4.4
10.4.5
10.4.6
10.5
Introduction .................................................................................................................................. 49
System Requirements for PC .......................................................................................................... 49
Interface .................................................................................................................................... 49
Installation ................................................................................................................................ 51
METERTOOL for ULTRAFLOW® X4 .................................................................................................... 52
Files .......................................................................................................................................... 52
Utilities ..................................................................................................................................... 52
Windows ................................................................................................................................... 52
Help .......................................................................................................................................... 53
Application .................................................................................................................................... 53
COM-port selection .................................................................................................................... 53
Flow meter adjustment .............................................................................................................. 54
Programming of standard flow curve .......................................................................................... 54
Pulse Divider ............................................................................................................................. 55
Meter type ................................................................................................................................. 57
Help .......................................................................................................................................... 57
Update .......................................................................................................................................... 58
11 Troubleshooting........................................................................................................... 59
12 Approvals..................................................................................................................... 60
12.1
12.2
12.3
Measuring Instruments Directive .................................................................................................... 60
CE-Marking .................................................................................................................................... 60
Declaration of conformity ............................................................................................................... 61
13 Disposal....................................................................................................................... 62
14 Documents ................................................................................................................... 63
4
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
1
General description
ULTRAFLOW® 54 DN150-250 is a static flow sensor based on the ultrasonic measuring principle. It is primarily
used as a volume flow sensor for energy meters such as MULTICAL®. ULTRAFLOW® 54 DN150-250 has been
designed for use in heating and cooling installations where water is the heat-bearing medium.
ULTRAFLOW® 54 DN150-250 employs ultrasonic measuring techniques and microprocessor technology. All
calculating and flow measuring circuits are collected on one single board, thus providing a compact and rational
design and, in addition, exceptionally high measuring accuracy and reliability is obtained.
The volume is measured using bidirectional ultrasonic technique based on the transit time method, with proven
long-term stability and accuracy. Four ultrasonic transducers are used to send sound signals both against and
with the flow. The ultrasonic signal travelling with the flow reaches the opposite transducer first. The time
difference between the two signals can be converted into flow velocity and thereby also volume.
A three-wire signal cable is used to connect ULTRAFLOW® 54 DN150-250 to the Kamstrup MULTICAL® calculator.
The cable supplies the flow sensor and also transfers the signal from sensor to calculator. A signal corresponding
to the flow – or more correctly, a number of pulses proportional to the water volume flowing through – is
transmitted.
ULTRAFLOW® 54 DN150-250 is available with internal supply, e.g. if the distance between MULTICAL® and
ULTRAFLOW® is 10 meters or more. If ULTRAFLOW® 54 DN150-250 is used for other equipment (e.g. other brands
of calculators), the sensor must be fitted with a galvanically separated output module and a supply of its own.
5512-876 GB/04-2012/Rev. F1
5
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
2
Data
ULTRAFLOW®54 DN150-250
2.1
Electrical data
Supply voltage
3.6 V ± 0.1 V
Supply, galvanically coupled output
module (Y=1)
Powered by MULTICAL®
Supply, galvanically separated output
module (Y=2) 1)
Mains supply
Power consumption
Backup
Supply, galvanically separated output
module (Y=3)
Battery
Replacement interval
Mains supply
Power consumption
Backup
230 VAC +15/-30%, 50 Hz
24 VAC ±50%, 50 Hz
<1W
Integral SuperCap eliminates interruptions due to short-term power failures
3.65 VDC, D-cell lithium
6-years @ tBAT< 30°C
230 VAC +15/-30%, 50 Hz
24 VAC ±50%, 50 Hz
<1W
Integral SuperCap eliminates interruptions due to short-term power failures
Signal cable length, from flow sensor
electronics box with galvanically
coupled output module (Y=1)
Max. 10 m (powered by calculator)
Signal cable length, from flow sensor
electronics box with galvanically
separated output module (Y=2 and 3)
Depending on calculator (use of own supply in ULTRAFLOW®).
See paragraph 7.5.2 for applications with MULTICAL®
EMC data
Fulfil DS/EN 1434:2007 class C, MID E1 and E2
2.2
Mechanical data
Metrological class
2 or 3
Environmental class
Fulfils DS/EN 1434 class C
Ambient temperature
5…55°C (indoors)
Protection class
IP67
Humidity
93% RH non-condensing
Mechanical environment
MID M1 and M2
Temperature of medium
2…150°C (Heat-, heat/cooling meters) At medium temperatures above 90°C (Tmed > 90°C)
or medium temperature more than 5°C below
2…50°C (Cooling meters)
ambient temperature (Tmed < Tamb - 5°C), the
electronics box must be wall mounted or
mounted via the enclosed distance piece.
Storage temp. empty
sensor
-25…70°C, 60°C if battery mounted/enclosed
Pressure stage
PN25
1)
6
When installed properly. See paragraph 7.2
It is possible to use battery supply in combination with output module (Y=2), e.g. for temporary supply of flow sensors installed at
construction sites.
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
2.3
Flow data
Nom. flow qp
[m³/h]
1)
2)
Nom. diameter Pulse figures 1)
[mm]
[imp/l]
Dynamic range
qi:qp
qs:qp
Flow @ 125 Hz 2) ∆p @ qp Min. Cutoff
[m³/h]
[bar]
[l/h]
150
DN150
1
1:100
2:1
450
0.02
250
DN150
0.6
1:100
2:1
750
0.055
400
DN150
0.4
1:100
2:1
1125
0.04
400
DN200
0.4
1:100
2:1
1125
0.01
400
DN250
0.4
1:100
2:1
1125
0.01
600
DN200
0.25
1:100
2:1
1800
0.022
600
DN250
0.25
1:100
2:1
1800
0.022
1000
DN250
0.15
1:100
2:1
3000
0.015
®
Standard pulse figure. Appears from ULTRAFLOW label. For other pulse figures see paragraph 4.
Saturation flow. Max. pulse frequency, 128 Hz, is maintained at higher flow rates.
300
500
800
800
800
1200
1200
2000
Table 1
2.4
Material
Wetted parts
Housing
Stainless steel, W.no. 1.4307
Transducer holder Stainless steel, W.no. 1.4308
Transducer
Titanium
Gaskets
Fibre
Electronics box
Base, cover
Thermoplastic, PC 10% GF
Fitting hardware, Thermoplastic, PPS 40% GF
distance piece for
electronics box
Signal cable (optional for separate ULTRAFLOW® 54)
Silicone cable (3x0.5 mm2)
Power supply cable 24/230 VAC (optional)
Cable with PVC-mantle (2x0.75 mm²)
5512-876 GB/04-2012/Rev. F1
7
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
3
Type overview
Nom. flow qp
[m³/h]
150
250
400
600
1000
Overall lengths
DN150x500 mm
DN150x500 mm
DN150x500 mm DN200x500 mm DN250x600 mm
DN200x500 mm DN250x600 mm
DN250x600 mm
Flange EN 1092, PN25
Table 2
8
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
4
Ordering details
4.1
Type numbers of ULTRAFLOW® 54 for MULTICAL®
The table below shows a list of type numbers for ULTRAFLOW® 54 ordered with MULTICAL®
qp
qi
qs
Connection PN Length Pulse figure
Material
CCC
[m³/h] [m³/h] [m³/h]
[imp/l]
[mm]
[bar] [mm]
flow sensor case
FCCN -XXX
150
1.5
300
DN150
25
500
1
447 (489) Stainless steel
FDCN -XXX
250
2.5
500
DN150
25
500
0.6
481
Stainless steel
FECN -XXX
400
4
800
DN150
25
500
0.4
491
Stainless steel
FECP -XXX
400
4
800
DN200
25
500
0.4
491
Stainless steel
FECR -XXX
400
4
800
DN250
25
600
0.4
491
Stainless steel
FFCP -XXX *) 600
6
1200
DN200
25
500
0.25
492
Stainless steel
FFCR -XXX *) 600
6
1200
DN250
25
600
0.25
492
Stainless steel
FGCR -XXX *) 1000
10
2000
DN250
25
600
0.15
493
Stainless steel
Type number
65-565-565-565-565-565-565-565-5-
XXX, code re marking and final assembly.
*) Cannot be delivered with MID approval
Table 3
4.2
Type numbers of separate ULTRAFLOW® 54
qp
[m³/h]
-YZ -XXX
150
-YZ -XXX
250
-YZ -XXX
400
-YZ -XXX
400
-YZ -XXX
400
-YZ -XXX *) 600
-YZ -XXX *) 600
-YZ -XXX *) 1000
Type number
65-565-565-565-565-565-565-565-5-
FCCN
FDCN
FECN
FECP
FECR
FFCP
FFCR
FGCR
qi
qs
[m³/h] [m³/h]
1.5
300
2.5
500
4
800
4
800
4
800
6
1200
6
1200
10
2000
Connection
[mm]
DN150
DN150
DN150
DN200
DN250
DN200
DN250
DN250
PN Length
Material
[bar] [mm] flow sensor case
25
500
Stainless steel
25
500
Stainless steel
25
500
Stainless steel
25
500
Stainless steel
25
600
Stainless steel
25
500
Stainless steel
25
600
Stainless steel
25
600
Stainless steel
XXX, code re marking and final assembly.
*) Cannot be delivered with MID approval
Table 4
5512-876 GB/04-2012/Rev. F1
9
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
4.2.1
Ordering details of separate ULTRAFLOW® 54
Type number composition of separate ULTRAFLOW® 54
ULTRAFLOW ® 54. Type no: 65-5
- XX
XX - Y
Z - XXX
Dynamic range and flow
Connection and overall length
Output module
Supply module
Final assembly and marking
In addition to the basic variants listed above in Table 3, you must select output module (Y), supply module (Z) as
well as pulse figure programming (CC) and pulse duration (E).
The variant with galvanically coupled output module (Y=1) is solely for use together with MULTICAL®.
The variant with galvanically separated output module (Y=2 or 3) is used in the following situations:
1)
More than 10 m cable length between MULTICAL® and ULTRAFLOW® is required.
2)
As flow sensor no. 2 in connection with MULTICAL®. If two flow sensors are used together with
MULTICAL®, one must include a galvanically separated output module (Y=2 or 3). For further details see
paragraph 7.8 Calculator with two flow sensors.
3)
Together with other equipment/foreign calculators.
Please note: Flow info cannot be read if output module with galvanic separation is used.
4.2.2
Type numbers of output and supply modules
Type number overview of output modules (Y) and supply modules (Z) for separate ULTRAFLOW® 54.
Y
1
2
3
Output module
Galvanically coupled module
Galvanically separated module
Galvanically separated module
Corresponding supply module
Z
0
2
7
8
Supply module
No supply
Battery, D-cell
230 VAC supply module
24 VAC supply module
Corresponding output module
1, 2, 3
3
2, 3
2, 3
0 (powered by MULTICAL®)
0, 7, 8
0, 2, 7, 8
Table 5. Output modules (Y) and supply modules (Z).
10
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
4.2.3
Programming variants of pulse figures and pulse durations
Overview of programming variants as to pulse figures (CC) and pulse durations (E) for separate ULTRAFLOW®
qp
[m³/h]
150
150
150
150
150
150
150
Pulse figure
[imp/l] [l/pulse] CC
1
33
10
34
25
64
100
35
250
65
1000
36
2500
66
250
250
250
250
250
250
250
0.6
400
400
400
400
400
0.4
600
600
600
600
600
0.25
1000
1000
1000
1000
1000
1000
0.15
(0.25)
Pulse duration
[ms] (E=1) [ms] (E=4) [ms] (E=5) [ms] (E=6)
3.9
20
20
20
50
100
20
50
100
20
50
100
20
50
100
Default
43
34
64
35
65
36
66
3.9
-
20
20
20
20
20
20
50
50
50
50
100
100
100
100
Default
10
25
100
250
1000
2500
63
35
65
36
66
3.9
-
20
20
20
20
50
50
50
50
100
100
100
Default
100
250
1000
2500
14
35
65
36
66
3.9
-
20
20
20
20
50
50
50
50
100
100
Default
100
250
1000
2500
4
100
250
1000
2500
54
14
35
65
36
66
3.9
3.9
-
20
20
20
20
50
50
50
50
100
100
Default
*)
*) Spare part for ULTRAFLOW® type 65-S/R/T. Configured 65-5-FGCR. No flow info.
Table 6. Pulse figures (CC) and pulse durations (E).
5512-876 GB/04-2012/Rev. F1
11
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
4.3
Accessories
Please note that not all article numbers mentioned in the table can be directly ordered, some must be ordered via
our service department.
Description
65-000-000-2000
D-cell lithium battery with two-pole connector
3026-477 1)
Fitting for D-cell battery
Enclosed if battery
supply or “No supply” is
selected
1650-157 1)
Plug for cable connection
Enclosed if battery
supply or “No supply” is
selected
1)
(when ordering ULTRAFLOW®)
Obligatory when changing from mains supply module to battery supply.
Note
Article number
Description
65-000-000-7000 2)
230 VAC supply module
65-000-000-8000 2)
24 VAC supply module
5000-290
Cable between supply module and output module
Enclosed if supply
module is selected
5000-286
24/230 V AC power cable
Optional
2)
(when ordering ULTRAFLOW®)
Including 5000-290.
Note
Article number
Description
5550-1061
Output module (Y=1), galvanically coupled
5550-1062
Output module (Y=2), galvanically separated
5550-1219
12
Note
Article number
(when ordering ULTRAFLOW®)
Output module (Y=3), galvanically separated,
“Low power”
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Article number
Note
Description
(when ordering ULTRAFLOW®)
Default for ULTRAFLOW®
ordered with MULTICAL®
5000-333
2.5 m silicone cable (3-wire)
5000-259
5 m silicone cable (3-wire)
Optional
5000-270
10 m silicone cable (3-wire)
Optional
3026-207
Mounting fitting for electronics box
Enclosed (mounted)
6561-332
Short distance piece (article)
3026-507
Long distance piece
Enclosed
1051-006
Collar band for short and long distance piece
Enclosed
1150-140
Gasket, DN150 PN25 (1 pc)
Enclosed (2 pcs.)
1150-139
Gasket, DN200 PN25 (1 pc)
Enclosed (2 pcs.)
1150-141
Gasket, DN250 PN25 (1 pc)
Enclosed (2 pcs.)
4.3.1
Optional for separate
ULTRAFLOW®
Cables
ULTRAFLOW® 54 DN150-250, when ordered with MULTICAL®, is delivered with 2.5 m signal cable, optionally 5 or
10 m. The cable is mounted in the ULTRAFLOW® 54 electronics box and in MULTICAL® 6xx. When ULTRAFLOW® 54
is ordered with MULTICAL® 8xx, the calculator is delivered separately. Hence the cable is only mounted in the
ULTRAFLOW® 54 electronics box.
ULTRAFLOW® 54 DN150-250, when ordered as a separate flow sensor, is optionally available with signal cable in
lengths of 2.5, 5 or 10 m. The cable is mounted in the ULTRAFLOW® 54 electronics box.
If 24/230 VAC supply module is selected, the sensor is optionally available with power supply cable. The cable is
mounted in the sensor's electronics box from the factory.
5512-876 GB/04-2012/Rev. F1
13
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
5
Dimensioned sketches
All measurements are in mm, unless otherwise stated.
Figure 1
Flange EN 1092-1, PN25
Nom.
diameter
Nom. flow qp
L
D
k
B1
[m³/h]
Quantity Thread
d2
C
[kg]]
DN150
150 & 250
500
300
250
119
8
M24
26
650
37
DN150
400
500
300
250
140
8
M24
26
625
36
DN200
400 & 600
500
360
310
166
12
M24
26
570
49
DN250
400 & 600
600
425
370
166
12
M27
30
570
79
DN250
1000
600
425
370
194
12
M27
30
500
75
Table 7
14
Steel tube Approx.
weight
length
Bolts
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Figure 2
Nom. diameter
Nom. flow qp
E
[m³/h]
DN150
150 & 250
282
DN150
400
303
DN200
400 & 600
329
DN250
400 & 600
329
DN250
1000
357
Table 8
5512-876 GB/04-2012/Rev. F1
15
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
6
Pressure loss
Pressure loss in a flow sensor is stated as max. pressure loss at qp.
According to EN 1434 max. pressure loss must not exceed 0.25 bar unless the energy meter includes a flow
controller or functions as pressure reducing equipment.
The pressure loss in a meter increases with the square of the flow and can be stated as:
Q = kv × ∆p
where:
Q = volume flow rate [m³/h]
kv = volume flow rate at 1 bar pressure loss
∆p = pressure loss [bar]
Graph
A
B
C
D
Nom. flow qp
[m³/h]
150 & 250
400
400 & 600
1000
Nom. diameter
[mm]
DN150
DN150
DN200 & DN250
DN250
Q at 0.25 bar
[m³/h]
530
1000
2020
4080
kv
1060
2000
4040
8160
Table 9. Pressure loss table.
®
∆p ULTRAFLOW 54 DN150-250
A
B
C
D
∆ p [bar]
1
0,1
0,01
100
1000
Flow [m³/h]
Diagram 1. Pressure loss graphs.
16
5512-876 GB/04-2012/Rev. F1
10000
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
7
Installation
Prior to installation of the flow sensor, the system should be flushed.
Correct flow sensor position (flow or return) appears from the front label of MULTICAL®. The flow direction is
indicated by an arrow on the side of the flow sensor.
Please note: ULTRAFLOW® 54 may be lifted in the lifting rings only.
Pressure stage of ULTRAFLOW® 54: PN25
Temperature of medium, ULTRAFLOW® 54: 2…150°C/2…50°C. See marking on label.
Mechanical environment: M1 and M2 (fixed installation with minimum vibration and fixed installation with
considerable or high vibration level respectively). See marking on label.
Electromagnetic environment: E1 and E2 (housing/light industry and industry respectively). See marking on label.
The meter’s signal cables must be drawn at min. 25 cm distance to other installations.
Climatic environment: Must be installed in environments with non-condensing humidity as well as in closed
locations (indoors).
The ambient temperature must be within 5…55°C.
Maintenance and repair: The flow sensor is verified separately and can, therefore, be separated from the
calculator. It is permitted to replace the supply and change the supply type. For battery supply a lithium battery
with connector from Kamstrup A/S must be used. Lithium batteries must be correctly handled and disposed of
(see Kamstrup document 5510-408, ”Lithium batteries - Handling and disposal”). Other repairs require
subsequent re-verification in an accredited laboratory.
If ULTRAFLOW® 54 is connected via a galvanically coupled output module, the flow sensor may be connected to a
Kamstrup MULTICAL® calculator only.
If other calculator types are connected, ULTRAFLOW® 54 must be fitted with a galvanically separated output
module and a power supply of its own.
Note: Please make sure that pulse figures of flow sensor and calculator are identical.
The steel tube between flow sensor housing and electronics box may not be disassembled.
At medium temperatures above 90°C (Tmed > 90°C) or medium temperature more than 5°C below ambient
temperature (Tmed < Tamb - 5°C) the flow sensor's electronics box must be mounted via the enclosed distance piece.
Alternatively, the electronics box can be wall mounted at a distance of minimum 170 mm from the sensor.
In order to prevent cavitation the back pressure at ULTRAFLOW® must be min. 1.5 bar at qp and min. 2.5 bar at qs.
This applies to temperatures up to approx. 80oC.
When the installation has been completed, water flow can be turned on. The valve on the inlet side must be
opened first.
5512-876 GB/04-2012/Rev. F1
17
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
7.1
Installation angle of ULTRAFLOW® 54
ULTRAFLOW® can be installed horizontally,
vertically, or at an angle.
ULTRAFLOW® 54 is normally installed
horizontally, with the lifting rings oriented
vertically. The ultrasound paths in the flow
sensor tube will thus be vertical, which is
optimal in connection with possible
stratification of the medium.
Figure 3
7.1.1
Mounting ULTRAFLOW® 54 in lifting ring
ULTRAFLOW® 54 can be mounted hanging from one of the two lifting rings depending on required flow direction.
The enclosed distance piece can be used to secure optimal position of the electronics box. (See paragraph 7.2)
Figure 4
18
Figure 5
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
7.2
Mounting of ULTRAFLOW® 54 electronics box
At medium temperature below 90°C (Tmed < 90°C) and at medium temperature less than
5°C below ambient temperature (Tmed > Tamb - 5°C) the electronics box can be mounted
directly on the flow sensor housing via the factory mounted fitting.
If the flow sensor is vertically mounted, the cable connections of the electronics box will
be horizontally oriented. This is permitted. If the cable connections should preferably
point downwards, the electronics box can be mounted via the enclosed distance piece,
which moves the box approx. 170 mm away from the flow sensor housing. Alternatively,
a shorter distance piece, which only moves the box approx. 45 mm away from the flow
sensor housing, can be used. The short distance piece must be ordered separately
(6561-332).
Figure 6
At medium temperature above 90°C (Tmed > 90°C) the temperature is too high for the
electronics box to be mounted directly on the flow sensor housing.
Therefore, the electronics box must be mounted via the enclosed distance piece. The
cable connections must always point downwards. (See paragraph 7.2.1)
Alternatively, the electronics box can be wall mounted as long as the distance to flow
sensor housing and pipe installation is minimum 170 mm.
Figure 7
It can also be an advantage to use the enclosed distance piece if the flow sensor
housing is insulated and the electronics box must be removed from the insulation.
If the required position of the electronics box differs from standard position, the
distance piece can be mounted with the enclosed collar band around the flow sensor
housing. However, please note that the cable connections must always point
downwards. (See paragraph 7.2.1)
At medium temperature more than 5°C below ambient temperature (Tmed < Tamb - 5°C)
(typically in cooling installations) it is important to take action to avoid condensation
in the electronics box.
Therefore, the electronics box must be mounted via the enclosed distance piece.
The cable connections must always point downwards. (See paragraph 7.2.1).
Figure 8
Alternatively, the electronics box can be wall mounted as long as the distance to flow sensor housing and pipe
installation is minimum 170 mm.
Furthermore, when mounting the electronics box please make sure that the cable connections on the box are at a
higher level than the cable connection on the flow sensor housing.
By vertical mounting of ULTRAFLOW® 54 in a riser this can be secured by mounting the distance piece by means of
the collar band as shown in Figure 8.
5512-876 GB/04-2012/Rev. F1
19
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
If ULTRAFLOW® 54 is mounted horizontally, the electronics box can be mounted on the distance piece by means of
the collar band. The distance piece can then be turned upwards until the cable connections on the electronics box
are in a higher position than the cable connection on the flow sensor housing. See Figure 9.
Alternatively, the electronics box can be wall mounted at a suitable distance to the installation (minimum 170
mm).
Figure 9
7.2.1
Orientation of flow sensor electronics box
Mounting the electronics box, the cable connections must always be horizontally or downwards oriented in order
to avoid the risk of water and condensation being led into the electronics box via the cables.
This is especially important in humid environments, when ULTRAFLOW® 54 is used as cooling sensor or if the
medium temperature can become more than 5°C lower than the ambient temperature (Tmed < Tamb - 5°C).
Furthermore, steel tube and wires must in general hang freely downwards after the cable connections to form a
drip nose for drainage of water and condensation.
Max. 90°
Max. 90°
Figure 10
20
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
7.3
Straight inlet
ULTRAFLOW® 54 requires neither straight inlet nor outlet in order to fulfil the Measuring Instruments Directive
(MID) 2004/22/EC and EN 1434:2007. A straight inlet section will only be necessary in case of heavy flow
disturbances before the meter. We recommend following the guidelines of CEN CR 13582.
Optimal position can be obtained by taking the below-mentioned installation methods into consideration:
A Recommended flow sensor position
B Recommended flow sensor position
C Unacceptable position due to risk of
air build-up
D Acceptable in closed systems.
Unacceptable position in open systems
due to risk of air build-up in the
system.
E A flow sensor should not be placed
immediately after a valve, except for
block valves (ball valve type),
which must be fully open when not
used for blocking
F A flow sensor must never be placed
on the inlet side of a pump
Figure 11
G A flow sensor should not be placed after
a two-level double bend
For general information concerning installation see CEN report DS/CEN/CR 13582, Heat meter installation.
Instructions in selection, installation and use of heat meters.
7.4
Operating pressure
In order to prevent cavitation the back pressure at ULTRAFLOW® 54 must be min. 1.5 bar at qp and min. 2.5 bar at
qs. This applies to temperatures up to approx. 80°C.
For further information on operating pressure see paragraph 8.7
5512-876 GB/04-2012/Rev. F1
21
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
7.5
7.5.1
Connection to calculator
ULTRAFLOW® 54 and MULTICAL®, galvanically coupled
If ULTRAFLOW® 54 and MULTICAL® are connected via output module (Y=1), ULTRAFLOW® is galvanically coupled
with the MULTICAL® calculator and is powered by this via the three-wire signal cable (cable length up to 10 m).
Battery life time in e.g. MULTICAL® 602 is approximately 10 years depending on data communication to the
calculator.
See paragraph 8.8.1 for electrical data on output module (Y=1).
Note: It is not permitted to mount a supply module or battery in ULTRAFLOW® 54 with output module (Y=1).
ULTRAFLOW® 54
11
9
10
→ MULTICAL®
11
→
9
→
10
→
GND
+3,6 V
(Blue)
(Red)
(Yellow)
Table 10
7.5.2
ULTRAFLOW® 54 and MULTICAL®, galvanically separated
If ULTRAFLOW® 54 and MULTICAL® are connected via output module (Y=2 or 3) ULTRAFLOW® 54 is galvanically
separated from MULTICAL®.
See paragraph 8.8.2 for electrical data on output module (Y=2 and 3).
Note: Flow info cannot be read.
Diagram 2. Three-wire connection, MULTICAL® 602/801 via output module (Y=2). Cable length up to 25 metres.
Diagram 3. Three-wire connection, MULTICAL® 602/801 via output module (Y=3). Cable length up to 25 metres.
22
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Diagram 4. Two-wire connection, MULTICAL® 801 via output module (Y=2). Cable length up to 100 metres.
Diagram 5. Two-wire connection, MULTICAL® 602-D via output module
(Y=2) and external 24 VDC supply. Cable length up to 100 metres.
If long signal cables are used, installation requires careful consideration. Due to EMC there must be a distance of
min. 25 cm between signal cables and all other cables.
5512-876 GB/04-2012/Rev. F1
23
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
7.6
Connection of power supply
If ULTRAFLOW® 54 is mounted with a galvanically coupled output module and connected to MULTICAL®, the flow
sensor is supplied by the calculator. Therefore, the flow sensor must not be fitted with a supply of its own.
ULTRAFLOW® 54 may be connected to other calculators via the galvanically separated output module only, and the
flow sensor must, therefore, be fitted with a supply module or battery.
Supply module and battery are connected to the two-pole connector on the output module.
7.6.1
Battery supply
ULTRAFLOW® 54 is fitted with a D-cell lithium battery with connector. The battery plug is connected to the output
module.
Optimal battery lifetime is obtained by keeping the battery temperature below 30°C, e.g. by wall mounting the
electronics box.
The voltage of a lithium battery is almost constant throughout the lifetime of the battery (approx. 3.65 V).
Therefore, it is not possible to determine the remaining capacity of the battery by measuring the voltage.
The battery cannot and must not be charged and must not be short-circuited.
The battery supply may only be replaced by a corresponding lithium battery with connector from Kamstrup A/S.
Used batteries must be handed in for approved destruction, e.g. at Kamstrup A/S. (See Kamstrup document 5510408, ”Lithium batteries - Handling and disposal”).
7.6.2
Mains supply modules
The mains supply modules are protection class II and are connected to the output module via a small two-wire
cable with plugs. The modules are powered via a two-wire mains supply cable (without earth connection) through
the cable connector of the electronics box. Use supply cable with an outer diameter of 4.5-10 mm and ensure
correct stripping of insulation as well as correct tightening of cable connection (see paragraph 7.6.5).
Max. permitted fuse: 6 A
230 VAC
This PCB module is galvanically separated from the mains supply and
is suitable for direct 230 V mains installation. The module includes a
double-chamber safety transformer, which fulfils double-isolation
requirements when the cover is mounted on the electronics box. Power
consumption is less than 1 VA/1 W.
National regulations for electric installations must be observed. The
230 VAC module can be connected/disconnected by the district
heating station’s personnel, whereas the fixed 230 V installation to the
main electrical panel must be carried out by an authorized electrician.
Diagram 6
24 VAC
This PCB module is galvanically separated from the 24 VAC mains
supply and is both suitable for industrial installations with joint 24 VAC
supply and individual installations, which are supplied by a separate
230/24 V safety transformer in the main electrical panel. The module
includes a double-chamber safety transformer, which fulfils doubleisolation requirements when the cover is mounted on the electronics
box. Power consumption is less than 1 VA/1 W.
National regulations for electric installations must be observed. The 24
VAC module can be connected/disconnected by the district heating
station’s personnel, whereas the fixed 230/24 V installation in the
main electrical panel must only be carried out by an authorized electrician.
Note: This module cannot be supplied by 24 VDC (direct current).
24
5512-876 GB/04-2012/Rev. F1
Diagram 7
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
230/24 V safety transformer
The 24 VAC module is especially suited for installation together with a
230/24 V safety transformer, e.g. type 66-99-403, which can be
installed in the main electrical panel before the safety relay. When the
transformer is used, the total power consumption of the meter incl.
the 230/24 V transformer will not exceed 1.7 W.
Figure 12
7.6.3
Mains supply cable
ULTRAFLOW® 54 is available with mains supply cable H05 VV-F for either 24 V or 230 V (l=1.5 m):
Figure 13. Mains cable (2x0.75 mm²), max. 6 A fuse.
”H05 VV-F” is the designation of a strong PVC mantle, which withstands max. 70°C. Therefore, the mains cable
must be installed with sufficient distance to hot pipes etc.
7.6.4
Danish regulations for the connection of mains operated meters
Installation of mains connected equipment for registration of consumption (www.sik.dk, SIK electric installation
notification 27/09, February 2009).
The consumption of energy and resources (electricity, heat, gas and water) of the individual consumer is to an
increasing extent registered by electronic meters, and often equipment for remote reading and remote control of
both electronic and non-electronic meters is used.
General regulations for carrying out installations must be observed. However, the following modifications are
permitted:
•
If meter or equipment for remote reading or remote control is double-isolated it is not necessary to run the
protective conductor to the connection point. This also applies if the connection point is a plug socket
provided that it is placed in a canning which is sealable or can be opened with key or tool only.
If meter or equipment used for remote reading and remote control is connected to a safety transformer mounted in
the panel and direct connected to the branch conductor, no on-off-switch or separate overcurrent protection in
either primary or secondary circuit is required, provided that the following conditions are fulfilled:
•
The safety transformer must either be inherently short-circuit-proof or fail-safe
•
The conductor of the primary circuit must either be short-circuit-protected by the overcurrent protection of
the branch conductor or short-circuit safely run.
•
The conductor of the secondary circuit must have a cross section of at least 0.5 mm² and a current value
which exceeds the absolute maximum current deliverable by the transformer
•
It must be possible to separate the secondary circuit, either by separators, or it must appear from the
installation instructions that the secondary circuit can be disconnected at the transformer’s terminals
5512-876 GB/04-2012/Rev. F1
25
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
General information
Work on the fixed installation, including any intervention in the group panel, must be carried out by an authorized
electrician.
It is not required that service work on equipment comprised by this message as well as connection and disconnection of the equipment outside the panel is carried out by an authorized electrician. These tasks can also be
carried out by persons or companies, who professionally produce, repair or maintain equipment if only the person
carrying out the work has the necessary expert knowledge.
7.6.5
Cable connections
Cable dimension in connections: 4.5…10 mm.
Tightening torque: 4 Nm
Please note: If ULTRAFLOW® 54 is mounted with a galvanically coupled output module, or if a galvanically
separated output module is used in combination with battery supply the unused cable connection must be sealed
off as shown in Figure 14.
7.6.6
Change of supply unit
The supply unit of ULTRAFLOW® 54 can be changed from mains supply to battery or visa versa as the needs of the
supply company change. Thus, it can be an advantage to temporary change mains supplied meters to battery
supplied meters e.g. in case of buildings under construction where the mains supply can be unstable or
periodically missing.
Please note that the supply type of some ULTRAFLOW® sensors appears from the label. If the original supply type
is changed, it will no longer be in accordance with the label.
26
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
7.7
Example of connection of ULTRAFLOW® 54 for MULTICAL®
ULTRAFLOW® 54 with galvanically coupled output module
(Y=1), powered by MULTICAL®. See paragraph 7.5.1 for
electrical wiring.
Note: Installed plug in the unused rightmost connector of the
electronics box.
Figure 14
ULTRAFLOW® 54 with galvanically separated output module
(Y=2) and 230 VAC supply of its own. See paragraph 7.5.2 for
electrical wiring.
Figure 15
5512-876 GB/04-2012/Rev. F1
27
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
7.8
Calculator with two flow sensors
MULTICAL 602/801 can be used in various applications with two flow sensors, e.g. leak surveillance or open
systems. When two ULTRAFLOW are direct connected to one MULTICAL, a close electric coupling between the
two pipes ought to be carried out as a main rule. If the two pipes are installed in a heat exchanger, close to the
flow sensors, however, the heat exchanger will provide the necessary electric coupling.
• Forward and return pipes are closely electrically coupled
• No welded joints occur
In installations where the electric coupling cannot be carried out, or where welding in the pipe system can occur,
one ULTRAFLOW must be mounted with a galvanically separated output module and also a supply of its own.
• Forward and return pipes are not necessarily closely coupled
• Electric welding *) can occur
*)
Electric welding must always be carried out with the earth pole closest to the welding point. Damage to meters
due to welding is not comprised by Kamstrup’s factory guarantee.
7.9
Testing the function
Carry out an operational check when the complete meter (flow sensor and calculator) has been installed and
connected. Open thermo regulators and cocks to establish water flow through the installation. Activate the top
key of the calculator and check that the displayed values for temperatures and water flow are credible values.
28
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
8
8.1
Functional description
Ultrasound combined with piezo ceramics
Flow sensor manufacturers have been working on alternative techniques to replace the mechanical principle.
Research and development at Kamstrup has proven that ultrasonic measuring is the most viable solution.
Combined with microprocessor technology and piezo ceramics, ultrasonic measuring is not only accurate but also
reliable.
8.2
Principles
The thickness of a piezo ceramic element changes when exposed to an electric field (voltage). When the element
is influenced mechanically, a corresponding electric charge is generated. In this way the piezo ceramic element
can function either as sender or receiver or both.
Within ultrasonic flow measuring there are two main principles: the transit time method and the Doppler method.
The Doppler method is based on the frequency change which occurs when sound is reflected by a moving particle.
This is very similar to the effect you experience when a car drives by. The sound (the frequency) decreases when
the car passes by.
8.3
Transient time method
The transit time method used in ULTRAFLOW® utilizes the fact that it takes an ultrasonic signal emitted in the
opposite direction of the flow longer to travel from sender to receiver than a signal sent in the same direction as
the flow.
The transient time difference of a flow sensor is very small (nanoseconds). Therefore, the time difference is
measured as a phase difference between the two 1 MHz sound signals in order to obtain the necessary accuracy.
PHASE DIFFERENSE
T
Upstream
SIGNAL
Downstream
t
Diagram 8
5512-876 GB/04-2012/Rev. F1
29
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
In principle, the flow is determined by measuring the flow velocity and multiplying it by the area of the measuring
pipe:
Q=F×A
where:
Q is the flow
F is the flow velocity
A Is the area of the measuring pipe
The area and the length, which the signal travels in the sensor, are well-known factors. The length which the signal
travels can be expressed by L = T × V , which can also be written as:
T=
L
V
where:
L is the measuring distance
V is the sound propagation velocity
T is the time
The time can be expressed as the difference between the signal sent with the flow and the signal sent against the
flow.
1 1
∆T = L ×  − 
 V1 V2 
In connection with ultrasonic flow sensors the velocities
V1 and V2 can be stated as:
V1 = C − F and V2 = C + F respectively
where:
C is the velocity of sound in water
Using the above formula you get:
∆T = L ×
1
1
−
C−F C+F
which can also be written as:
∆T = L ×
As
(C + F ) − (C − F )
(C − F ) × (C + F )
⇒ ∆T = L ×
2F
C −F2
2
C 2 〉〉 F 2 it is reasonable to omit F 2 and the formula is reduced as follows:
F=
∆T × C 2
L×2
In order to minimize the influence from variations of the velocity of sound in water, the velocity is measured via a
number of absolute time measurements between the two transducers. These measurements are subsequently
converted in the built-in ASIC into the current velocity of sound which is used in connection with flow calculations.
30
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
8.4
Signal paths
Figure 16. qp 150…1000 m³/h, two paths. Two parallel sound paths at a slant in the measuring pipe.
8.5
Measuring sequences
During a flow measurement ULTRAFLOW® runs through a number of sequences, which are repeated at fixed
intervals. Deviations only occur when the meter is in test mode and when the supply is connected during
initialization/start-up.
The difference between the main routines in normal mode and fast/test mode is the frequency of the
measurements on which pulse emission is based.
It may take up to 16 seconds to obtain correct function after a power-down.
5512-876 GB/04-2012/Rev. F1
31
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
8.6
Function
In the meter’s working range from min. cut off to saturation flow there is linear connection between the flow rate
and the number of pulses being emitted. The below diagram shows an example of the connection between flow
and pulse frequency for ULTRAFLOW® qp 150 m³/h.
Flow-frequency (qp 150 m³/h)
140
120
Frequency [Hz]
100
80
60
40
20
0
-50
50
150
250
Flow [m³/h]
Min. Cutoff
350
450
Saturation flow (125 Hz)
Diagram 9
If the flow is lower than min. cut off or negative, ULTRAFLOW® sends no pulses. At flows exceeding the flow
corresponding to pulse emission at max. pulse frequency of 128 Hz, the max. pulse frequency will be maintained.
(See Diagram 9).
Table 11 shows the flows of the different flow sizes/pulse figures at max. pulse frequency of 128 Hz.
qp
[m³/h]
150
250
400
600
1000
Pulse figure Flow @ 128 Hz
[imp/l]
[m³/h]
1
461
0.6
768
0.4
1152
0.25
1843
0.15
3072
Table 11
According to DS/EN 1434 the upper flow limit qs is the highest flow at which the flow sensor may operate for short
periods of time (<1h/day, <200 h/year), without exceeding max. permissible error. ULTRAFLOW® has no functional
limitations as to the duration of the period, during which the sensor operates above qp.
Please note, however, that high flow velocities may cause cavitation, especially at low static pressure.
32
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
8.7
Guidelines for dimensioning ULTRAFLOW®
In connection with installations it has proved practical to work with higher pressures than those mentioned below:
Nominal flow qp
[m³/h]
150
250
400 (DN150)
400
600
1000
Recommended back
pressure
[bar]
1
1.5
1.5
1
1.5
1.5
Max. flow qs
Remommended back
pressure
[bar]
2
2.5
2.5
2
2.5
2.5
[m³/h]
300
500
800
800
1200
2000
Table 12
The purpose of recommended back pressure is to avoid measuring errors as a result of cavitation or air in the
water.
It is not necessarily cavitation in the sensor itself, but also bubbles from cavitating pumps and regulating valves
mounted before the sensor. It can take some time until such bubbles have been dissolved in the water.
Furthermore, water can include air dissolved in the water. The amount of air which can be dissolved in water
depends on pressure and temperature. This means that air bubbles can be formed due to falling pressure, e.g.
caused by a velocity rise in a contraction or above the sensor.
The risk of these factors affecting accuracy is reduced by maintaining a fair pressure in the installation.
In relation to above table, the steam pressure at current temperature must also be considered. Table 12 Applies to
temperatures up to approx. 80° C. Furthermore, it must be considered that the above-mentioned pressure is the
pressure at the sensor, and that the pressure is lower after a contraction than before one (among other things
cones). This means that the pressure, when measured elsewhere, might be different from the pressure at the
sensor.
This can be explained by combining the continuity equation and Bernoulli’s equation. The total energy from the
flow will be the same at any cross section. It can be reduced to: P + ½ρv2 = constant.
Steam pressure
6
5
[bar]
4
3
2
1
0
80
90
100
110
120
130
140
150
[°C]
Diagram 10
Dimensioning a flow sensor you must take the above into consideration, especially if the sensor is used within the
scope of EN 1434 between qp and qs, and in case of heavy contractions of the pipe.
5512-876 GB/04-2012/Rev. F1
33
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
8.8
8.8.1
Pulse output
Galvanically coupled
Galvanically coupled output module (Y=1). ULTRAFLOW® is powered by MULTICAL®. Note: ULTRAFLOW® must not
be mounted with a supply.
Cable length ULTRAFLOW® to MULTICAL®
Type
Push-Pull
Output impedance
~10 kΩ
Max. 10 m
Concerning pulse figures and pulse durations see paragraph 4.2.3
Diagram 11. Block diagram of galvanically coupled output module (Y=1) in ULTRAFLOW® 54.
Figure 17. Galvanically coupled output module (Y=1).
34
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
8.8.2
Galvanically separated
Galvanically separated output module (Y=2). ULTRAFLOW® is powered by the built-in supply module (Z=7 or 8).
Cable length to ULTRAFLOW® depends on calculator.
To calculator:
Type:
Open collector.
Connection:
Can be connected as two-wire or as three-wire via the built-in 56.2 kΩ pull-up.
Module Y=2
Max input voltage
Max input current
ON condition
OFF condition
OC and OD
6V
0,1 mA
U ≤ 0,3 V @ 0,1 mA
R ≥ 6 MΩ
(OB) Kam
30 V
12 mA
UCE ≤ 2,5 V @ 12 mA
R ≥ 6 MΩ
Table 13
Concerning pulse figures and pulse durations, see paragraph 4.2.3
Diagram 12. Block diagram of galvanically separated output module (Y=2) in ULTRAFLOW® 54.
Figure 18. Galvanically separated output module (Y=2).
5512-876 GB/04-2012/Rev. F1
35
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Galvanically separated output module (Y=3). ULTRAFLOW® is powered by the built-in supply (Z=2, 7 or 8).
Cable length to ULTRAFLOW® depends on calculator.
To calculator:
Type:
Open collector.
Connection:
Three-wire via the built-in 39.2 kΩ pull-up.
Module Y=3
Max input voltage
Max input current
ON condition
OFF condition
OC and OD
6V
0,1 mA
U ≤ 0,3 V @ 0,1 mA
R ≥ 6 MΩ
Table 14
Concerning pulse figures and pulse durations, see paragraph 4.2.3
Diagram 13. Block diagram of galvanically separated output module (Y=3) in ULTRAFLOW® 54.
Figure 19. Galvanically separated output module (Y=3). Note the omitted
components in the encircled area compared to output module (Y=2).
36
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
8.9
Pulse emission
Pulses are emitted at intervals of 1 sec. The number of pulses to be emitted is calculated every second. Pulses are
emitted in bursts with a pulse duration of 2…5 ms and pauses depending on current pulse frequency. The duration
of the pauses between the individual bursts is approx. 30 ms.
The transmitted pulse signal is the average determination of a series of flow measurements. This means that there
will be a transient phenomenon until correct flow signal has been obtained during start-up. Furthermore, this
brings about a pulse tail of up to 8 sec. in case of sudden hold.
8.10 Accuracy
ULTRAFLOW® 54 has been developed as a volume flow rate sensor for energy meters according to DS/EN 1434.
The permitted tolerances of DS/EN 1434 for flow sensors with a dynamic range of 1:100 (qi:qp) are shown in the
diagram below (Diagram 14). The tolerances are defined for class 2 and class 3 with following formulas:
Class 2:
Class 3:
2 + 0.02 ×
3 + 0.05 ×
qp
but max. 5%
q
qp
but max. 5%
q
DS/EN 1434 defines following dynamic ranges (qi:qp): 1:10, 1:25, 1:50, 1:100 and 1:250.
In connection with accuracies the range from qp to qs is defined as max. flow short-term, where tolerances are
adhered to. There are no requirements as to the relation between qp and qs. See Table 1 for information on qs for
ULTRAFLOW®.
To render probable that the sensors meet the tolerance requirements, DS/EN 1434-5 specifies calibration
requirements in connection with verification of sensors. It is required that flow sensors are tested at following 3
points:
qi…1.1 x qi, 0.1 x qp..0.11 x qp and 0.9 x qp…qp
During test the water temperature must be 50°C ±5°C.
Further requirements are that the tolerance of the equipment used to perform the test must be less than 1/5 MPE
(Max. Permissible Error) to permit the acceptance limit to be equal to MPE. If the equipment does not observe 1/5
MPE, the acceptance limit must be reduced by the tolerance of the equipment.
ULTRAFLOW® 54 will typically do better than half of the permitted tolerance according to DS/EN 1434 cl. 2.
5512-876 GB/04-2012/Rev. F1
37
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Flow sensor tolerances qi:qp 1:100 (qp 150 m³/h)
6
5
Tolerances [%]
4
EN1434 cl.3
3
EN1434 cl.2
½ EN1434 cl.2
2
1
0
1
qi
10
0,1x qp
100
qp
qs
1000
Flow [m³/h]
Diagram 14
8.11 Power consumption
The power consumption of ULTRAFLOW® is as follows:
Max. average
50 µA
Max. current
7 mA (max. 40 ms)
8.12 Interface plug/serial data
ULTRAFLOW® 54 is fitted with a four-pole connector under the cover. The cover is supplied with a factory seal, and
in connection with verified sensors it will be a laboratory seal (legal seal). Thus, it is not possible to access the
connector without breaking the seal.
The connector is used for:
•
Meter programming, including adjustment of correction curve by means of METERTOOL
•
Bringing the sensor into test mode
•
Reading accumulated water quantity in connection with calibration
•
External control of start/stop in connection with calibration
The interface connector is constructed as shown in Figure 20.
38
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Meter interface
Pin 1 Vcc
Pin 2 Gnd
Pin 3 Pulse out
Pin 4 Access control
Figure 20
8.13 Test mode
To minimize the time spent on calibration, ULTRAFLOW® 54 can be switched into test mode. When ULTRAFLOW® 54
is in test mode (verification mode), the measuring routines only take one fourth of the time they take in normal
mode.
ULTRAFLOW® 54 is put into test mode by connecting pin 4 of the internal connector to frame (Figure 20) and subsequently connect the supply. After approx. 1 sec. the sensor goes into test mode and the connection between pin
4 and frame is disconnected.
Test mode is ended by disconnecting the supply to the sensor.
Please note: An ULTRAFLOW® 54 in test mode uses approx. 3 times as much power as in normal mode. However,
this does not influence the total battery lifetime of the energy meter.
8.14 Externally controlled start/stop
In connection with calibration by means of serial data, e.g. in connection with NOWA, ULTRAFLOW® 54 can in
verification mode (see paragraph 8.13) be monitored by an external signal. This is done by grounding pin 4 of the
internal connector when starting the test and removing it when the test has been completed. The volume of water
that has been accumulated during the test can be read serially.
The accumulation is based on the same data as those used for calculating the number of pulses to be emitted.
In addition to accumulating water volume during the test, the sensor corrects for the excess quantity in connection
with start, as well as the quantity lacking in connection with stop. These deviations are due to the fact that the
sensor measures flow at fixed intervals as illustrated by Figure 21 below.
Figure 21
5512-876 GB/04-2012/Rev. F1
39
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
The excess quantity of water in connection with start is the water volume that passes through the sensor during
the time tb1 before the first accumulation V1 within the test period. In the same way the lacking quantity is the
water volume passing through the sensor during the time
t e1 from the last accumulation Vn until stop.
The volume accumulated during the test can be stated as:
V 1 × tb 2
Vn × te1
+ V 2... + Vn +
te1 + te 2
b1 + tb 2
∑t
8.15 Calibration procedure using serial data and externally controlled start/stop
The routine for calibrating ULTRAFLOW® 54 using serial data is outlined below.
Figure 22
The sensor must be in test mode (see paragraph 8.13). Calibration is started by grounding pin 4 of the internal
connector (see Figure 22) and at the same time starting the test. This might e.g. take place at the same time as the
master meter is started or the diverter of the weight is changed. Now ULTRAFLOW® accumulates water volume until
pin 4 is disconnected to terminate the test. Subsequently, the volume accumulated during the test can be read in
consideration of start and stop. From the test has been completed and until the accumulated quantity of water can
be read, min. 2 sec. must pass (Tread). Communication with ULTRAFLOW® during test is not allowed.
Pulse emission stops when pin 4 is disconnected. The read water quantity and the number of emitted pulses may
differ as the pulse emission is monitored in intervals of 1 second.
40
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Calibrating ULTRAFLOW®
9
Calibration can be based on:
•
Pulses in standard mode
•
Pulses in test mode
•
Pulses using PULSE TESTER type 66-99-279
•
Serial data with the sensor in test mode
Test instructions for ULTRAFLOW 54, DN150-250
9.1
Installation angle for ULTRAFLOW®
9.1.1
ULTRAFLOW® 54 DN150-250
ULTRAFLOW® can be installed
horizontally, vertically, or at an angle.
Figure 23
9.1.2
Technical data
Supply:
3.6 VDC ±0.1 V
Pulse duration:
2…100 ms (depending on programming)
Pulse figure:
Depends on programming. Appears from type label.
Start-up:
It takes 16 seconds from start-up until true flow reading has been obtained and calibration
can start.
5512-876 GB/04-2012/Rev. F1
41
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
9.1.3
Connection
Galvanically coupled output module (Y=1).
Type:
Push-Pull
Output impedance
~ 10 kWΩ
Figure 24
Galvanically separated output module (Y=2).
Open collector. Two-wire or three-wire via the
built-in pull-up of 56.2 kΩ
Module Y=2
Max input voltage
Max input current
ON condition
OFF condition
OC and OD
6V
0,1 mA
U ≤ 0,3 V @ 0,1 mA
R ≥ 6 MΩ
(OB) Kam
30 V
12 mA
UCE ≤ 2,5 V @ 12 mA
R ≥ 6 MΩ
Figure 25
Table 15
Galvanically separated output module (Y=3).
Open collector. Three-wire via the
built-in pull-up of 39.2 kΩ
Module Y=3
Max input voltage
Max input current
ON condition
OFF condition
OC and OD
6V
0,1 mA
U ≤ 0,3 V @ 0,1 mA
R ≥ 6 MΩ
Table 16
Figure 26
42
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
9.2
Sealing
ULTRAFLOW® is factory sealed. Verified sensors will be supplied with security seals (S) and a year mark (D).
If the seal of a verified sensor is broken, the sensor must be verified before being installed in a location
demanding verification.
MID-sealing of ULTRAFLOW 54 is shown below.
Please note: Sealing requirements may vary due to national regulations.
S
S
S
I
S
S
S
I
S
S
T
D
D
Security seal or module D/F label (Depending on type label)
S
Security seal. Covering screws
T
Type label (as void label or with security seal D)
I
Installation seal (wire and seal or sealing label)
Figure 27. MID-sealing.
5512-876 GB/04-2012/Rev. F1
43
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
9.3
Optimization in connection with calibration
To make a rational test of ULTRAFLOW® it is important that results obtained in connection with tests can be
reproduced. This is also very important if the tested sensors are to be adjusted.
Experience has shown that ULTRAFLOW® operates with standard deviations of 0.3…0.4% at qi and 0.2…0.3% at qp.
This is standard deviations for 300…500 pulses at qi, 3000…5000 at qp , and flying start/stop.
In connection with optimization of calibration the following sub-components can be considered:
Pressure: Optimal working pressure is 4…6 bar of static pressure. This minimizes the risk of air and cavitation.
Temperature: Calibration temperature according to DS/EN 1434-5 is 50°C ±5°C.
Water quality: No requirements
Installation - mechanical conditions:
To avoid flow disturbances the inlet pipes and distance pieces must have the same nominal diameter as the
sensors. There should be min. 5 x DN between the sensors. In connection with calibration, a code of practice for
distance pieces has been made on the basis of many years' experience:
The lengths of the distance pieces must be 10 x DN.
With bends etc. there should be a min. distance of 10 x DN. If tests are made at low flow with a bypass at right
angles to the pipe, it will be an advantage to mount an absorber of pressure fluctuations due to the perpendicular
inlet. This can be a flexible tube on the bypass. In addition, it will be an advantage to mount a flow straightener
before the first distance piece. Flow disturbances such as pulsations, e.g. pump fluctuations must be minimized.
Installation - electrical conditions:
To avoid external disturbances and achieve an electrical interface like MULTICAL® we recommend the use of a
PULSE TESTER.
44
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
9.4
PULSE TESTER
During a calibration process it is often practical to use a PULSE TESTER type no. 66-99-279 that has the following
functions:
Galvanically separated pulse outputs
Integral supply for ULTRAFLOW
LCD-display with counter
Externally controlled ”Hold” function
Can be mounted directly on a MULTICAL base
9.4.1
Technical data of PULSE TESTER
Pulse inputs (M1/M2)
Counter inputs
Max. frequency: 128 Hz
Active signal
Amplitude: 2.5 - 5 Vpp
Pulse duration
>1 ms
Passive signal
Internal pull-up 680 kΩ
Internal supply
3.65 V lithium battery
Please note: Depending on the connecting base used there are one or two pulse inputs/outputs.
Figure 28
1
Flow sensor with transistor output
The transmitter is normally an optocoupler with FET or transistor output to be connected to terminals 10
and 11 for water meter M1 or terminals 69 and 11 for water meter M2.
The leak current of the transistor must not exceed 1 µA in off-state, and UCE in on-state must not exceed 0.5
VDC.
2
Flow sensor with relay or reed-switch output
The transmitter is a reed-switch, which is normally mounted on vane wheel and Woltmann meters, or the
relay output of e.g. MID-meters. This type of transmitter should not be used as the quick pulse input may
cause bounce problems.
5512-876 GB/04-2012/Rev. F1
45
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
3
Flow sensor with active pulse output, powered by the pulse tester
This connection is used together with either Kamstrup’s ULTRAFLOW or Kamstrup’s electronic pick-up for
vane wheel meters.
Connection (M1)
9: Red (9A)
10: Yellow (10A)
11: Blue (11A)
Connection (M2)
9: Red (9A)
69: Yellow (10A)
11: Blue (11A)
Table 17
4
Flow sensor with active output and integral supply
Flow sensors with active signal output are connected as shown in Figure 29. The signal level must be
between 3.5 V and 5 V. Higher signal levels can be connected via a passive voltage divider, e.g. of 47 kΩ/
10 kΩ at a signal level of 24 V.
Pulse outputs (M1/M2)
Two-wire connection:
Voltage
<24 V
Load
>1.5 kΩ
Three wire connection:
Voltage
5...30 V
Load
>5 kΩ
Figure 29
The outputs are galvanically separated and protected against overvoltage and reversed polarity.
Max. counter capacity before overflow is 9,999,999 counts
46
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
9.4.2
Hold-function
When the Hold input is activated (high level applied to input), counting stops at the counted pulse figure.
When the Hold signal is removed (low level applied to input), counting restarts.
The counters can also be reset by pressing the right key on the front panel (Reset).
Hold input
Galvanically isolated
Input protection
Against reversed polarity
“Open input”
Count (see Figure 30)
Figure 30
9.4.3
Push-button functions
Figure 31
The left push-button shifts between readings/counts of the two flow sensor inputs. In the display, M1 and M2
respectively indicate the currently displayed flow sensor inputs/counters.
Figure 32
The right push-button resets both counters (M1 and M2).
9.4.4
Use of PULSE TESTER
The PULSE TESTER can be used as follows:
Standing start/stop of flow sensor using the integral pulse counters.
Standing start/stop of flow sensor using the pulse outputs for external test equipment.
Flying start/stop of flow sensor using the integral counters controlled by external equipment (Sample &
Hold).
Flying start/stop of flow sensor using the pulse outputs controlled by external equipment (Sample & Hold).
5512-876 GB/04-2012/Rev. F1
47
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
9.4.5
Spare parts
Description
Type No.
Battery D-cell
66-00-200-100
Cable retainer (secures the battery)
1650-099
2-pole plug (female)
1643-185
3-pole plug (female)
1643-187
PCB (66-R)
5550-517
Table 18
9.4.6
Battery replacement
If the PULSE TESTER is used continuously we recommend that the battery be replaced once a year.
Connect the battery to the terminals marked ”Batt”, the red wire to + and the black one to -.
Current consumption:
Power consumption with no sensors connected
400 µA
Max. power consumption with two ULTRAFLOW® connected
1.5 mA
Note: If the base unit is fitted with battery or externally supplied, the PULSE TESTER’s integral supply must be
disconnected (the plug must be removed).
48
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
10 METERTOOL
10.1 Introduction
METERTOOL is a collection of programs for servicing Kamstrup heat meters.
”METERTOOL for ULTRAFLOW® X4” is Windows®-based software. In combination with a PC and interface the
software makes it possible to adjust ULTRAFLOW® X4.
METERTOOL has been developed to provide laboratories a simple and effective access to programming/adjusting
ULTRAFLOW® X4. Furthermore, it is used for programming the Pulse Divider incl. printing of label for same.
10.2 System Requirements for PC
METERTOOL requires minimum Windows XP SP3, Windows Vista or Windows 7 (32- or 64-bits) or newer as well as
Microsoft Internet Explorer 5.01.
Minimum requirements:
Pentium 4 or equivalent (Atom processor/netbooks/mini PC’s are not supported)
2 GB RAM
10 GB HD
Display resolution 1024 x 768
USB as well as CD-ROM drive
Printer installed
Administrator rights to the PC are required in order to install and use the program.
The programs must be installed under the login to be subsequently used for the programs.
10.2.1 Interface
The following interfaces can be used:
ULTRAFLOW® 54
®
type 66-99-141 USB port for connection to PC and four-pole plug for flow sensor
ULTRAFLOW 14/24
type 66-99-002 Adapter for connecting ULTRAFLOW® 14/24 (mounted on 66-99-141)
Pulse Divider
type 66-99-140 COM port for connection to PC and eight-pole plug for Pulse Divider
In order to print a label for the Pulse Divider a printer must be installed and connected.
NOTE: The supply to ULTRAFLOW® and/or Pulse Divider, if any, must be disconnected during programming. The
sensors are powered via the connected programming interface.
The USB Interface includes a converter box which secures galvanic separation of the supply to the flow sensor.
In order to mount the plug in the flow sensor, the sealing cover must be removed. If the sensor is used where
verification is required, an authorised laboratory must re-verify and reseal the sensor before it is remounted. The
location of laboratory labels and year marks appear from Figure 27.
5512-876 GB/04-2012/Rev. F1
49
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Figure 33. Location of the four-pole plug in ULTRAFLOW® 54.
Figure 34. Location of the four-pole plug incl. ULTRAFLOW® 14
adapter in ULTRAFLOW® 14/24 (MULTICAL® 61/62).
50
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
Figure 35. Location of the four-pole plug in ULTRAFLOW® 54 DN150…250.
10.2.2 Installation
Check that system requirements are fulfilled.
Close other open programs before starting the installation.
Insert the CD in the drive and follow the program’s directions during the installation.
NOTE: The files used for installation must be saved on a CD or in a local folder in the PC. Installation is not
possible using files from a USB-stick or an external drive.
If the installation program does not start automatically, the installation can be started by typing
“D:\CD\launch.exe” under "Run" in the Start menu (provided that the drive specification of the CD is “D”).
When the installation has been completed, the icon “KAMSTRUP METERTOOL” will appear from the Start menu and
as a link on the desktop. Click on the new icon “KAMSTRUP METERTOOL” for the list of ”METERTOOL” programs
selected during installation to be displayed. Double-click on “METERTOOL UFx4” in order to start the program
METERTOOL for ULTRAFLOW® X4.
5512-876 GB/04-2012/Rev. F1
51
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
10.3 METERTOOL for ULTRAFLOW® X4
The menu structure of METERTOOL for ULTRAFLOW® X4 is as follows:
10.3.1 Files
The menu ”Files” includes:
Select Com-Port:
Setup of COM port for interface of
flow sensor/Pulse Divider.
Exit:
Terminates METERTOOL.
Force Database Update:
Online-update of flow sensor database.
10.3.2 Utilities
The menu ”Utilities” includes:
Flow Meter Adjustment:
Reading and correction of flow curve.
Program Flow Meter:
Programming standard flow curve for
flow sensor.
Pulse Divider:
Programming Pulse Divider.
Pulse Configuration
DN150…250:
To be used by specially trained
personnel only.
Meter Type:
Information on flow sensor and equipment.
10.3.3 Windows
The function makes it possible to change between the open dialog boxes of the program.
52
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
10.3.4 Help
About: Includes program numbers and revisions of the
various components of the installed version.
10.4 Application
Flow sensor adjustment.
Before adjusting a sensor you must make sure that the sensor operates satisfactorily in the flow rig in question.
See paragraph 9 Calibrating ULTRAFLOW®
If it is necessary to adjust the sensor more than a few percent, the sensor is probably defective, or has a different
error, and should not be adjusted.
10.4.1 COM-port selection
Open ”Select Com Port”:
Select a COM-port for ULTRAFLOW® X4.
The USB driver must be installed before connecting the interface.
The related COM port will not appear from the list until the USB
interface has been connected.
Select COM port for Pulse Divider.
Activate ”OK” in order to save the selected ports.
5512-876 GB/04-2012/Rev. F1
53
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
10.4.2 Flow meter adjustment
Open ”Flow Meter Adjustment”:
”Read from Meter”: Reads data from the connected flow sensor.
Flow curve number - 5945357 - and meter dimensions appear from the heading. This number
will also appear from the meter’s label.
The field “Flow Curve” shows the values of the sensor in question compared to the standard
curve. These values are also shown in the form of a graph.
The required correction of qi, 0.1xqp and qp can be entered into the field ”Flow Curve
Correction”.
”Write to Meter”:
Writes the correction to the connected flow sensor.
After the adjustment the flow sensor is ready for renewed test.
10.4.3 Programming of standard flow curve
Open ”Flow Meter Adjustment”:
The 59xxxxx no. appears from
the sensor's type label.
”Read from database”:
Enters the selected standard flow curve into the program.
”Write to Meter”:
Programs the flow sensor with the entered standard flow curve.
The flow sensor is now ready for test.
54
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
10.4.4 Pulse Divider
Setup and programming of Pulse Divider. A Pulse Divider is used for adapting flow signals to calculators, e.g. if a
“foreign” calculator is connected to Kamstrup ULTRAFLOW® and the codings (number of pulses CCC or pulse
duration) do not correspond.
Open ”Pulse Divider”:
”Read”:
Reads the current coding of the Pulse Divider.
”Write”:
Programs the Pulse Divider with the entered data.
”Label type”:
Makes it possible to select position on Kamstrup label sheet.
”Print”:
Prints Pulse Divider Label on the standard printer selected in the PC.
”Close”:
Terminates Pulse Divider.
ULTRAFLOW®
qp
[m³/h]
0,6
1.5
2.5
3
3.5
6
10
10
15
25
25
40
60
100
150
250
400
600
1000
Pulse Divider
Pulse fig. Pulse fig. Divider Pulse fig. Divider Pulse fig. Divider Pulse fig. Divider
[imp/l]
[l/imp]
[l/imp]
[l/imp]
[l/imp]
300
1
300
2,5
750
100
1
100
2,5
250
10
1000
60
1
60
2,5
150
10
600
50
1
50
2,5
125
10
500
50
2.5
125
10
500
25
1250
25
10
250
25
625
25
10
250
25
625
15
10
150
25
375
10
10
100
25
250
100
1000
250
2500
10
10
100
25
250
100
1000
250
2500
6
10
60
25
150
100
600
250
1500
5
25
125
100
500
250
1250
2.5
100
250
250
625
1.5
100
150
250
375
1
100
100
250
250
1000
1000
2500
2500
0.6
100
60
250
150
1000
600
2500
1500
0.4
250
100
1000
400
2500
1000
0.25
1000
250
2500
625
0.25
1000
250
2500
625
Table 19. Pulse division table (pulse duration divided pulses std. 100 ms).
5512-876 GB/04-2012/Rev. F1
55
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
ULTRAFLOW®
qp
[m³/h]
0.6
1.5
2.5
3
3.5
6
10
10
15
25
25
40
60
100
150
250
400
600
1000
Pulse figure
[imp/l]
300
100
60
50
50
25
25
15
10
10
6
5
2,5
1,5
1
0.6
0.4
0.25
0.25
Pulse Divider & 11EVL
(pulse duration 50 ms)
Pulse figure
Divider
[l/Pulse]
1
300
1
100
1
60
1
50
1
50
1
25
1
25
1
15
10
100
10
100
10
60
10
50
10
25
10
15
100
100
100
60
100
40
100
25
100
25
Pulse Divider & 11 EVL
(pulse duration 100 ms)
Pulse figure
Divider
[l/Pulse]
2.5
750
2.5
250
2.5
150
2.5
125
2.5
125
25
625
25
625
25
375
25
250
25
250
25
150
25
125
250
625
250
375
250
250
250
150
250
100
2500
625
2500
625
Table 20. Pulse division table for use together with Kamstrup EVL.
For other variants, please see installation guide for Pulse Divider No. 5511-727.
56
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
10.4.5 Meter type
Open ”Meter type”:
”Read”:
Reads flow sensor information.
10.4.6 Help
Open ”About”:
Displays:
Revision numbers.
5512-876 GB/04-2012/Rev. F1
57
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
10.5 Update
The program includes a database comprising data of the variants released at the time the program was produced.
Open ”Force Database Update”.
The METERTOOL database is updated by connecting the PC to the
Internet and activating ”Force Database Update”. The program now
connects to a Kamstrup server and downloads the newest database.
After update the following message appears:
The database has been updated, please open METERTOOL UFx4
again.
58
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
11 Troubleshooting
Before sending in the sensor for repair, please use the error detection table below to help you clarify the possible
cause of the problem.
Symptom
No update of display values
Possible cause
No power supply
Proposal for correction
Replace battery or check mains supply
No display function (blank
display)
No accumulation of m³
No power supply and backup
Replace back-up cell. Replace battery or
check mains supply
No volume pulses
Incorrect connection
Flow sensor inverted
Air in sensor/cavitation
Erroneous m³ accumulation
Flow sensor error
Erroneous programming
Air in sensor/cavitation
Flow sensor error
Check flow sensor connection.
(Check with PULSE TESTER, if necessary)
Check flow sensor direction
Check installation angle. Check if there is air
in the system or cavitation from valves and
pumps. If possible, try to increase the static
pressure.
Replace flow sensor/send sensor for repair
Check accordance between pulse figures of
calculator and flow sensor
Check installation angle. Check if there is air
in the system or cavitation from valves and
pumps. Increase the static pressure, if
possible
Replace flow sensor/Send sensor for repair
5512-876 GB/04-2012/Rev. F1
59
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
12 Approvals
12.1 Measuring Instruments Directive
ULTRAFLOW® 54 is available with CE-marking according to MID (2004/22/EC). The certificates have the following
numbers:
B-Module:
DK-0200-MI004-008
D-Module:
DK-0200-MIQA-001
Please contact Kamstrup A/S for further details on type approval and verification.
12.2 CE-Marking
ULTRAFLOW® 54 is marked according to the following directives:
EMC-directive
2004/108/EC
LV-directive
2006/95/EC (when fitted with 230 VAC supply module)
PE-directive
97/23/EC (DN150…DN250) category II
60
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
12.3 Declaration of conformity
5512-876 GB/04-2012/Rev. F1
61
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
13 Disposal
Kamstrup A/S holds an environmental certification according to ISO 14001, and as part of Kamstrup’s
environment policy only materials which can be recovered environmentally correctly are used to the greatest
possible extent.
Kamstrup A/S has climate accounts (Carbon footprint) for all meter types.
As from August 2005 Kamstrup's heat meters are marked according to EU
Directive 2002/96/EEC and the standard EN 50419.
The purpose of the marking is to inform our customers that the heat meter
cannot be disposed of as ordinary waste.
• Disposal by Kamstrup A/S
Kamstrup accepts worn-out meters for environmentally correct disposal according to previous agreement. The
disposal is free of charge to our customers, except for the cost of transportation to Kamstrup.
• The customer sends for disposal
The meters must not be disassembled prior to dispatch. The complete meter is handed in for approved
national/local disposal. Enclose a copy of this page in order to inform the recipient of the contents.
Please note that the lithium cells are extremely inflammable if they are not handled correctly. Lithium cells and
meters including lithium cells must, therefore, be forwarded as dangerous goods. See Kamstrup document 5510408, ”Lithium batteries - Handling and disposal”.
Meter part
Lithium cell (D-cell)
Signal cable for flow sensor
Supply cable
Electronics box, base
Electronics box, cover
Mounting fitting
Distance piece for electronics box
Material
Lithium and thionyl chloride > UN
3091 < D-cell: 4.9 g lithium
Coppered epoxy laminate,
components soldered on
Copper with silicone mantle
Copper with PVC mantle
Thermoplastic, PC 10% GF
Thermoplastic, PC 10% GF
Recommended disposal
Approved deposit of
lithium cells
PCB scrap for concentration
of metals
Cable recycling
Cable recycling
Plastic recycling
Plastic recycling
Thermoplastic, PPS 40% GF
Plastic recycling
ULTRAFLOW® sensor case
Transducer holder
Transducer
Packing
Stainless steel, W.no. 1.4307
Stainless steel, W.no. 1.4308
Titanium
Recycled cardboard and EPS
Metal recycling
Metal recycling
Metal recycling
Cardboard and EPS recycling (Resy)
PCB
Please send any questions you may have regarding environmental matters to:
Kamstrup A/S
Att.: Quality and environmental
dept.
Fax: +45 89 93 10 01
[email protected]
62
5512-876 GB/04-2012/Rev. F1
ULTRAFLOW® 54 DN150-250
TECHNICAL DESCRIPTION
14 Documents
Danish
English
German
Russian
Technical description
5512-875
5512-876
5512-877
5512-878
Data sheet
5810-834
5810-835
5810-836
5810-837
Installation instructions
5512-886
5512-887
5512-888
5512-889
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email: [email protected]
Website: www.heattracing.co.uk
www.thorneanderrick.co.uk
5512-876 GB/04-2012/Rev. F1
63
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
