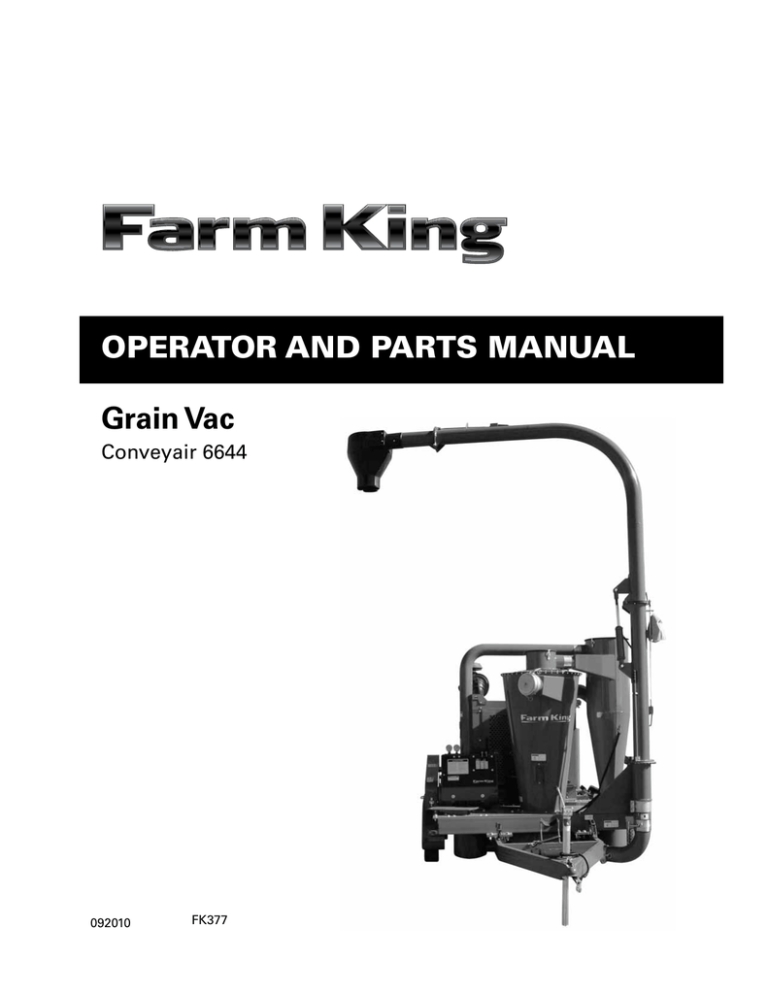

Operator and Parts Manual
Grain Vac
Conveyair 6644
092010
FK377
Table of Contents - 6644 Grain Vac
Table of Contents
Introduction..................................................................................................................................5
Safety.............................................................................................................................................6
• Operation Safety...............................................................................................................7
• Safety Decal Locations.....................................................................................................8
• Transport Safety..............................................................................................................10
• BPS and Receiver Tank Screens.....................................................................................10
• Oil Level...........................................................................................................................10
Operation.................................................................................................................................... 11
• Boom Swivel................................................................................................................... 11
• Airlock Rotation...............................................................................................................12
• Break In............................................................................................................................12
• Set Airlock Speed............................................................................................................13
• Short Distance Transfer...................................................................................................14
• Long Distance Transfer...................................................................................................15
• Clean-up...........................................................................................................................15
• Filing Bins and Temporary Storage...............................................................................16
Accessories..................................................................................................................................17
Lubrication..................................................................................................................................18
• Fluids and Lubricants.....................................................................................................18
• Greasing..........................................................................................................................19
• Service Record................................................................................................................21
Maintenance...............................................................................................................................22
• Airlock Tips......................................................................................................................23
• Reservoir Breather..........................................................................................................24
• Clamp #GV26042 Installation Instructions....................................................................24
• Air Pump Reservoir.........................................................................................................25
• BPS (Blower Protection System)...................................................................................25
• Hydraulic Safety . ...........................................................................................................26
• Bolt Torque.......................................................................................................................27
• Hydraulic Fitting Torque..................................................................................................28
• Hydraulic Hose Drawing.................................................................................................29
Troubleshooting..........................................................................................................................30
3
Table of Contents - 6644 Grain Vac
Storage........................................................................................................................................32
Parts.............................................................................................................................................34
• Receiver Tank and Dust Collector Drawing...................................................................34
• Receiver Tank and Dust Collector Parts List..................................................................35
• Airlock and Blower Assemby Drawing..........................................................................36
• Airlock and Blower Assembly Parts List........................................................................37
• Boom and Cyclone Drawing..........................................................................................38
• Boom and Cyclone Parts List.........................................................................................39
• Cleanup and Full Bin Nozzles Drawing.........................................................................40
• Cleanup and Full Bin Nozzles Parts List........................................................................41
• Steel Flex Hose and Couplers Drawing........................................................................42
• Steel Flex Hose and Couplers Parts List.......................................................................43
• Cleanup Hose and Couplers Drawing...........................................................................44
• Cleanup Hose and Couplers Parts List..........................................................................45
Warranty Policy...........................................................................................................................46
Manufacturer’s statement: for technical reasons Buhler Industries Inc. reserves the right to modify
machinery design and specifications provided herein without any preliminary notice.
Information provided herein is of descriptive nature. Performance quality may depend on soil fertility,
applied agricultural techniques, weather conditions and other factors.
4
Introduction - 6644 Grain Vac
Introduction
Congratulations, you have selected a Farm King Grain Vac which is designed and engineered to
help you make farming Easier, Healthier and Safer.
Our knowledgeable engineering and production staff have built both performance and durability
into each Farm King Grain Vac. Our grain vacs have been sold to farmers in Canada, Europe, the
USA, Australia and the Middle East.
To get the maximum benefit from your Farm King Grain Vac please read the owner’s manual
carefully.
We recommend that you study this manual from beginning to end BEFORE operating your new
Farm King Grain Vac. We have tried to keep it brief and to the point. It is important that you pay
special attention to the safety cautions in this book and on your equipment.
All implements with moving parts are potentially hazardous. There is no substitute for a cautious,
safe-minded operator who recognizes the potential hazards and follows reasonable safety
practices. The manufacturer has designed this implement to be used with all its safety equipment
properly attached to minimize the chance of accidents.
Please ensure that you reference the Cummins Diesel Manual, Twin Disc Clutch Manual and
Dexter Manual to ensure safe and correct operation of all aspects of this implement.
5
Safety - 6644 Grain Vac
Safety
All implements with moving parts are potentially hazardous. There is no substitute for a cautious,
safe-minded operator who recognizes the potential hazards and follows reasonable safety
practices. The manufacturer has designed this implement to be used with all its safety equipment
properly attached to minimize the chance of accidents.
Before You Start
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
The alert symbol is used throughout this manual. It indicates attention is required and identifies
hazards. Follow the recommended precautions.
The safety alert symbol means…
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Understand Signal Words
Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The
appropriate signal word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury. This signal word is to be limited to the most extreme situations typically for machine
components which, for functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury, and includes hazards that are exposed when guards are removed. It may also be
used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
If you have questions not answered in this manual or require additional copies or the manual is
damaged, please ­contact your dealer or the manufacturer directly.
Important Safety Information
Working with unfamiliar equipment can lead to careless injuries. Read this manual before
assembly or operating to acquaint yourself with the machine. It is the owner’s ­responsibility, if this
machine is used by any person other than yourself, is loaned or rented, to make certain that the
operator, prior to ­operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
CAUTION
6
Do not modify the equipment in any way. Unauthorized
modifications may impair the function and/or safety and
could affect the life of the equipment.
Safety - 6644 Grain Vac
Operation Safety
• Wear appropriate ear protection.
• Never wear ill-fitting, baggy or frayed clothing when working around or on any of the drive
system components.
• Always know where all overhead electrical wires are located and stay away from them.
• Do not allow riders.
• Install and secure all guards and shields before starting or operating.
• Keep hands, feet, hair and clothing away from moving parts.
• Place all controls in neutral, stop engine, block tires, remove ignition key and wait for all
moving parts to stop before servicing, adjusting, repairing or unplugging.
• Place all machine controls in neutral before starting.
• Never operate the Grain Vac and power unit inside a closed building.
• Clear area of bystanders, especially small children, before starting.
• Stay away from PTO clutch shaft, intake nozzle and discharge when engaging PTO clutch.
• Keep all hydraulic lines, fittings and couplers tight and free of leaks.
• Clean reflector and lights before transporting.
• Use proper lighting when transporting.
• Stay away from overhead electrical wires when operating boom or when moving.
• Do not remove receiver inspection window while engine is running.
• Do not remove elbow from airlock outlet when engine is running.
• Stay clear of truck loading boom when raising or folding it.
• Review safety instructions with all operators annually.
7
Safety - 6644 Grain Vac
Safety Decal Locations
Decals with “CAUTION”, “DANGER”, “WARNING”, and other information appear on your machine
for your safety. Read the information carefully and replace the decals that are no longer legible.
D
B
A
C
E
DANGER
ELECTROCUTION HAZARD
To prevent serious injury from electrocution:
Stay away from overhead electrical wires
when operating the discharge boom.
Electrocution can occur without direct contact.
68 056
Control Panel ”A“
Warning
ROTATING PART HAZARD
To prevent serious injury or
death from rotating parts:
1. Close and secure guard
before operating.
2. Shut-off engine and wait for
moving parts to stop before
opening to adjust, service,
lubricate or unplug.
3. Keep hands, feet, clothing and
hair away from moving parts.
Guard ”B“
8
Safety - 6644 Grain Vac
Caution
EMPTY DUST CANISTER
FREQUENTLY
AS PER OPERATORS MANUAL
Dust Canister ”C“
Warning
Rotating Airlock Hazard
To prevent serious injury or
death from airlock blades:
1. Do not place hands in tank
when airlock is turning.
2. Shut-off engine and wait for
moving parts to stop before
opening door to adjust, service
or unplug.
Receiver Tank ”D“
Warning
Rotating Airlock Hazard
To prevent serious injury or
death from airlock blades:
1. Do not place hands in tank
when airlock is turning.
2. Shut-off engine and wait for
moving parts to stop before
opening door to adjust, service
or unplug.
Dust Canister ”D“
Back Frame ”E“
Warning
Do not place intake tube near feet when standing
on top of grain. Sufficient material can be removed
to draw the operator and intake tube into the grain.
Submersion in grain can cause suffocation.
“F” Airlock behind frame
Bin Nozzle ”F“
Bin Nozzle ”G“
9
Safety - 6644 Grain Vac
Transport
The Farm King Grain Vac is designed to be easily moved from location to location. When
transporting, follow this procedure:
•
•
•
•
The towing vehicle must have a class IV Hitch.
Do not allow anyone to ride on the grain vac during transport.
Do not exceed 60mph (100 km/h). Reduce speed on rough roads and surfaces.
Use a retainer on ball and socket hitch, and install a safety chain before transporting (make
sure the locking jaws are pinned securely in position).
• Always use proper lighting and braking system on towing vehicle when transporting. The
towing vehicle must be connected to the vac's wiring harness so that the braking system,
brake and signal lights are operational.
• Stay away from overhead electrical wires. Electrocution can occur without direct contact.
• Make sure all components and accessories are retracted and securely stowed before moving.
BPS and Receiver Tank Screens
Before moving grain or other materials ensure both BPS screen and main receiver tank screen are
installed in machine properly at all times. (see: location on drawing, page 14)
Oil Level
Check the oil level in the blower reservoir. Add correct oil as required.
10
Operation - 6644 Grain Vac
Operation
Boom Swivel
1. Unlatch boom transport clamp, flip up the
boom lock and swing boom back until it
clears the transport step.
2. Remove cover from vertical boom joint.
3. Set speed control at rear of control panel
between 1 and 2 to raise boom.
4. Use hydraulic boom lever (Up to raise,
down to lower). Carefully raise boom high
enough to allow cyclone assembly (at end
of boom) to swivel into position.
5. S
ecure cyclone into position, using
overcenter clamp.
6. Now lift boom all the way into working
position.
7. Secure boom with Over Centre Clamp.
8. Attach
suction line to the receiver tank
intake coupler. Close camlock couplers.
WARNING
All bystanders should stay well clear of boom when raising
or lowering it.
DANGER
Stay atleast 5 m (15 ft.) away from overhead power lines
when moving the boom. Electrocution can occur without
direct contact.
11
Operation - 6644 Grain Vac
Airlock Rotation
WARNING
Do not run the airlock in the reverse direction. Damage may
occur to the hydraulic motor.
For Best Performance:
1. Working area should be reasonably level
and dry.
2. The Farm King Grain Vac should be located
so the intake line is as straight and as short
as possible.
3. When using the Farm King Grain Vac to
load trucks, make sure there is adequate
room for the receiving vehicle to get under
the discharge cyclone.
Check the rotation of the airlock. Coupler
should turn as indicated by arrow.
Breaking In
Your machine has been operated for a short time at the factory to assure good performance. It can
however not be considered broken in. It normally takes 5 to 10 hours of operation for all parts to
be polished by the grain stream and for the machine to come up to full capacity.
We recommend the following checks during the break in period:
After operating for 1/2 hour
1. Check for overheated bearing. Lubricate or adjust as required*.
2. Check for oil leaks. Tighten or replace part and oil as required*
3. Retorque all hardware - Wheel bolts and fasteners.
4. Check belt tension and adjust as required*.
WARNING
High pressure fluids can penetrate the skin and cause
infection and toxic reaction.
5. C
heck the oil levels in the blower reservoirs. If low, add oil as required. Check for leaks and
correct if problem persists*.
* Check maintenance section for proper procedures. (Also see page 26 for hydraulic safety)
12
Operation - 6644 Grain Vac
After operating for 2 to 10 hours
1. Perform the same checks and inspections as done at 1/2 hour.
2. After the 10 hour inspection, go to normal service and maintenance procedures.
Set Airlock Speed
Material
Airlock Speed (RPM)
For maximum performance adjust speed most
suitable for material moved.
Barley
50 - 60
Canola
45 - 60
Material consistency varies widely in the
field. Airlock speed is also affected by suction
and discharge length. To obtain maximum
performance, try different airlock speed, using
above guide.
Corn
45 - 60
Flax
35 - 55
Wheat
45 - 60
Oats
45 - 60
A rule of thumb is the larger and heavier the
kernel, the faster the airlock should turn.
Tip - with light oats, or other light grains, slow
PTO speed down to 900 or 950 RPM.
Adjusting Speed
Using a stop watch, the airlock can be set by
counting the number of turns the coupler
makes. Coupler is visible through the three
slots in the deck of the machine (photo right).
One turn per second equals 60 RPM.
Adjust airlock RPM by moving the airlock speed
lever on your control panel towards
# 10 to increase speed, toward # 1 to slow
down. Move lever slowly, a small movement
will make a significant change in airlock speed.
13
Operation - 6644 Grain Vac
Short Distance Transfer
Insert bin nozzle.
Connect hose from receiver intake to bin
nozzle. Set the air slide on the full bin nozzle
all the way open and push the nozzle into the
material to be moved.
WARNING
Airslide (Full bin nozzle)
Do not cover airslide with grain.
The line of the grain can be horizontal, angled
or vertical depending on conditions.
Adjust the airslide on the full bin nozzle so
that the material moves across the sight glass
window of the receiver tank to approximately
half way (no more than 2/3) up the window. If
the machine starts to surge, slowly open slide
till surging stops.
Sight
Glass
NOTE: Should the material stop moving and completely cover the sight glass window in the
receiver tank, the machine will quickly plug. Immediately open the air slide fully, on the full bin
nozzle, to allow the machine to clear itself. Remove the nozzle from the grain and forward and
reverse the airlock several times to empty the tank. Then ensure the airlock is turning counter
clockwise and resume operation as normal. Otherwise follow the next 6 steps:
IMPORTANT: If the machine still does not clear
itself do the following:
• Stop machine by slowly reducing engine
RPM to an idle, then disengage PTO
clutch. Remove dust pail which will allow
any material in the bottom of Blower
Protection Cyclone (BPS) to run out.
• Remove nozzle from grain source
• Start the machine and allow the Receiver
tank to empty itself. Then stop machine
again
• Remove the top on the BPS and clean out
any material in the top of the cyclone and
in the pipe between the receiver tank and
the BPS.
• Replace the Dust pail and the Top on the
BPS.
• Start machine, (RECHECK AIRLOCK
SPEED, page 14) and reset the air slide as
per start up instructions.
NOTE: Airlock should not turn faster than
65 RPM or slower than 30 RPM.
14
Operation - 6644 Grain Vac
Long Distance Transfer
WARNING
Do not use P.V.C. or other plastic tubing for long distance
application. The build-up of static electricity could lead to
an explosion.
Auxiliary airslide. Located on the airline
between the receiver tank and the air pump.
If discharge length is more than 40 ft. (12 m)
or if blower gets too hot to the touch, open the
airslide approximately 1/4" - 1/2" (6 - 12 mm)
for every 100 ft. (30 m) discharge. Open further
if blower still gets hot.
Opening the airslide too far will affect capacity
as adversely as not opening it at all.
Auxiliary
Airslide
Top Loading (push only)
Feed grain below opening
to second cyclone
For top loading, remove top cover of large
cyclone. To avoid feedback be sure grain enters
below opening to BPS (smaller) cyclone.
Long Distance Suction
For sucking grain more than thirty feet, use
straight piping where possible!
Remember: The straighter the suction line the
greater the capacity of the grain vac.
Clean-up
When the machine needs not to be at full
capacity, e.g. when cleaning bins, the engine
can be throttled down.
Steel Flex Hose
The rougher walls of the steel flex hose and the
poly intake hose provide more resistance than
smooth pipe. Capacity may be lowered by 20%
to 40% compared to straight piping.
Use Poly hose for clean-up only.
For regular cleanup use a combination of steel
flex line, straight piping and poly hose. This
will give you the needed flexibility to easily get
into corners and around obstructions without
sacrificing too much capacity.
Poly
Intake Hose
NOTE: Do not dent, stretch or overbend steel
flex line excessively.
Do not store poly hose in sunshine, avoid
sharp obstructions that could cut or puncture
the hose.
15
Operation - 6644 Grain Vac
Seed Drill Clean Out
When using the seed drill clean out kit, operate
the engine at idle only to reduce suction
air flow. The receiver tank can be used as a
holding tank by stopping the airlock until the
seed can be discharged into a truck or storage
Cleanup of Spills and Ground Stored Grain
Multiple Bins (Parallel)
Extreme caution should be exercised when
cleaning spills or grain stored on dirt. Sand
and dirt may cause excessive wear to blower,
and life expectancy of the unit can be reduced
significantly.
Filling Bins and Temporary Storage
Rear discharge option required.
When discharging into bins, remove the airlock
discharge elbow and couple the machine to
stationary or movable piping.
For best performance, review recommended
installation schematics. Use OEM parts
to insure good sealing and maximum
performance.
Multiple Bins (Series)
Contact your dealer for more information.
Silos over 100 feet tall can be filled with your
Farm King Grain Vac!
Bin Cyclone
30º Elbow
Compression Clamp
Top Bin Bracket
60º Elbow
Bin Bracket
Tubing
Quick Coupler
approx. 4ft. (1.2m)
From Grain Vac
Bin Fill System
16
Accessories - 6644 Grain Vac
Accessories
1. Horizontal Pipe Section.
-- Steel or aluminum. Matched to Farm
King Grain Vac.
2. V
ertical Pipe Section. Specs as above.
Sections may be welded or coupled
together with 3-bolt clamp.
3. B
in Top Cyclone. Cyclones come equipped
with a rain cap and can also double as
aeration vents.
Cam Lock Couplers
or temporary installations, use the
F
lightweight poly cyclone and attach with
quick couplers.
4. 9
0 degree long radius elbow. Weld in place
or secure with 3-bolt clamp.
5. 6" Female quick couplers.
6. D
elivery from the grain vac to bin. Use a
combination of short stainless lined steel
flex and long radius 90 degree elbow.
7. Side wall bin brackets.
8. Angle top mount bracket.
Cyclone Extension Boot
9. 3 Bolt clamp.
10. See parts list for standard hose and other
parts.
9 1 8 3
4
9
7
Seed Drill Clean out Kit
2
7
5
6
Bin Accessories
17
Lubrication - 6644 Grain Vac
Lubrication
Fluids and Lubricants
Reference the Cummins Diesel Manual, Twin Disc Clutch Manual and Dexter Axle Manual for
lubrication requirements of those components.
Grease
Use any SAE multi -purpose high temperature grease with extreme pressure (EP) performances
and containing at least 1.5% molybdenum disulfide or SAE Multi-Purpose Lithium Base Grease.
Use cold temperature grease during the winter.
Oil
Only use Blower Oil HD Synthetic Gear & Bearing Oil. Do not blend with other oil. Available
through your nearest Farm King Dealer.
• Part # GV14220
-- Capacity drive end 850 ml/28.7 fl. oz US
-- Capacity gear end 1000 ml/33.8 fl oz US
• Hydraulic Oil Reservoirs: Self Contained Hyd.
-- AW32 Hydraulic oil equal to or exceeding
-- SAE “SF” specifications.
-- Capacity - (31 qt. US)
Cleaning agent
• WD40 or equivalent.
1. Stop engine and remove ignition key.
CAUTION
2. B
efore applying pressure to a hydraulic system, make
sure all lines, fittings and couplers are tight and in
good condition.
3. Relieve pressure from hydraulic circuit before servicing.
18
Lubrication - 6644 Grain Vac
Greasing
1. U
se only a manual grease gun for all greasing. Air powered grease guns may damage the seal
on bearings, leading to early bearing failure.
Important
Do not over grease, it can damage bearing seals.
2. Wipe grease fitting with a clean cloth before greasing, to avoid injecting dirt and grit.
3. Replace and repair broken fittings immediately.
Caution
Machine is shown with guard open for illustrative
purposes only. Do not operate machine with guard open.
19
Lubrication - 6644 Grain Vac
8 Hours or Daily
100 Hours or 6 Months
Check air pump oil levels in reservoirs, front
and rear (2 locations). Add as required
Change the oil in air pump reservoirs,
front and rear.
NOTE:
Check when the oil is cold and the
machine is level.
NOTE:
Change every 30 hours if operating in
very dusty conditions
50 Hours
200 Hours or Annually
Clean oil reservoir breather caps (2 locations)
Repack wheel bearings (4 locations)
Grease as Required
Boom elbow clamps. Use winter friendly
white lithium grease
20
Lubrication - 6644 Grain Vac
Service Record
See Lubrication and Maintenance sections for details of service. Copy this page to continue record.
4 - Check
Action: L - Lubricate
C - Change
R - Repack
CL - Clean
Hours
Serviced
By
Maintenance
8 Hours or Daily
4 Belt Tension
4 Air Pump Oil Level
in Reservoir (2)
4 & CL - System Filter
L - Boom Grease Nipples
50 Hours
CL - O
il Reservoir.
Breather Caps (2)
100 Hours or 6 Months
C - Oil in Air Pump
Reservoir Front & Rear
Annually or 12,000 Miles
R -Wheel Bearings (4) *
CL - Machine
NOTE: Reference the Cummins Diesel Manual, Twin Disc Clutch Manual and Dexter Manual
for service and maintenance requirements.
* Refer to Dexter Manual
21
Maintenance - 6644 Grain Vac
Maintenance
1. Place PTO clutch and hydraulic controls in neutral and shut-off engine.
2. Unlatch belt shield cover and open cover.
3. Loosen lower tensioner clamp.
4. Raise tensioner pulley to achieve correct tension then tighten lower tensioner clamp.
5. P
lace a straight edge across the faces of the two pulleys. Maximum allowable misalignment
is 1/16" (2 mm) on any of the pulley edges. Adjust as required.
6. Be sure the belt tension is correct.*
7. Close and latch belt cover.
caution
Machine is shown with guard open for illustrative purposes
only. Do not operate machine with guard open.
BELT TENSION
Belt should be tensioned to 8 lbs at 5/8"
deflection, dead center between the
sheaves.
Check belt tension after initial one (1)
to two (2) hours of operation and daily
thereafter.
Belt tension testers are available at
most belt service centres.
22
Maintenance - 6644 Grain Vac
Airlock Tips
Check Airlock Tips clearance when there is a noticeable drop in capacity of the grain vac.
If clearance exceeds 0.015" (0.38mm) adjust as shown below.
Checking clearance:
1. Disengage PTO clutch and shut off engine. Wait for all moving parts to stop.
2. Remove hydraulic lines from the airlock drive motor to allow rotation of the airlock.
caution
High pressure fluids can penetrate the skin and cause
infection and toxic reaction.
3. O
pen the inspection door on the receiver tank. Use a feeler gauge to check the clearance
between the tips and the shell.
Airlock Tip Adjustment
1. Remove the connector on the air line between the BPS and the receiver tank.
2. Attach an overhead hoist to the receiver tank.
3. R
emove the eight bolts securing the receiver tank to the airlock mount plate. Remove the
receiver tank from the frame.
4. Position tip next to top of shell.
5. Loosen slightly the 5 bolts attaching the tip to the blade of the airlock.
6. M
ove the tip until you have 0.006" (0.15 mm) clearance between tip end and clockwise side
of shell.
7. Tighten the bolts and torque to 20-25 ft. lbs. (34-40 Nm).
caution
Rotating Airlock Hazard
To prevent serious injury or death
from airlock blades:
1. Do not place hands in tank
when airlock is turning.
2. Shut-off engine and wait for moving parts to stop before
opening door to adjust, service or unplug.
23
Maintenance - 6644 Grain Vac
8. R
otate the rotor clockwise to ensure that there is no contact between the tips, end plates and the shell. Adjust if there is contact.
9. M
ark the tip with a felt pen as done and proceed with remaining tips till all have been
adjusted.
10. Replace receiver tank and check that all connections are airtight.
........................................................................................
Blower Serial Number
Reservoir Breather
Clean every 50 hours
Clean breathers allow the pressure in the oil
reservoir to equalize with the outside as the
temperature changes.
1. R
emove breather from the top of the
reservoirs.
2. Soak/Wash in a good grade of solvent.
3. Dry with an air hose and re-install.
Clamp #GV26042 Installation Instructions
Remove burrs, dirt, grease from pipe ends.
10 O’Clock
2 O’Clock
4"
1. Measure and mark both ends of the pipe at a distance that is half the length of the coupling.
2. S
lide coupling over one pipe until it meets your mark, Insert next pipe section until pipes butt.
Avoid disturbing gasket or inner sleeve.
3. P
artially tighten the center bolt first, then uniformly alternate tightening all the bolts
to 65 lbs torque.
4. Tighten until top of flange is touching and there is approx. 3/16" of space at bottom of flange.
5. Make sure gasket joint and inner sleeve joint are at proper locations. (10 o’clock - 2 o’clock)
24
Maintenance - 6644 Grain Vac
Air Pump Reservoir
Change oil every 100 hours, more often if
conditions are very dusty
1. Place small pan under the drain plug and
remove plug. Drain for 10 minutes.
Breather hole
2. Re-install and tighten the drain plug.
3. R
emove breather and add oil through the
breather hole. Fill to center of the sight
glass and re-install breather.
Sight glass
4. Repeat on other reservoir.
• Overfilling causes heating from the oil churning
• Underfilling causes heating from lack of lubrication
caution
BPS
(Blower Protection System)
The air which is sucked from the receiver tank
and drawn toward the air-pump contains dust
which is harmful to the pump. This dust is
trapped by the BPS system and collected in
the dust canister. The amount of dust collected
depends on the amount of dust and fines in the
grain being moved.
Remove and empty dust canister regularly.
Do not allow to overfill. When canister is three
quarters full it should be considered full!
Dust Canister
NOTE:
If machine is allowed to overfill (plug):
• R
emove screen on top of BPS and clean if
required and reinstall.
• Empty canister and also allow any grain
which may have accumulated in BPS to
run out.
BPS Lid
Refer to unplugging instructions
under Operation.
caution
Do not strike the screen with any hard object as damage to
the screen will diminish its effectiveness.
25
Maintenance - 6644 Grain Vac
Hydraulic Safety
1. Make sure that all components in the hydraulic system are kept in good condition.
2. Replace any worn, cut, abraded, flattened or crimped hoses and metal lines.
3. B
efore applying pressure to the system, make sure all components are tight and that lines,
hoses and couplings are not damaged.
4. W
ear proper hand and eye protection when searching for a high pressure hydraulic leak. Use a
piece of wood or cardboard as a backstop instead of hands to isolate and identify leak.
5. If injured by a concentrated high pressure stream of hydraulic fluid, seek attention
immediately. Serious infection or toxic reaction can develop from hydraulic fluid piercing the
skin surface.
26
caution
Do not use tape, clamps or cement to repair hydraulic
lines. The hydraulic system operates under high pressure,
creating a hazardous unsafe condition when such repairs
fail suddenly.
warning
High pressure fluids can penetrate the skin and cause
infection and toxic reaction.
Maintenance - 6644 Grain Vac
Bolt Torque
Check tightness of bolts periodically, using bolt torque chart as a guide. Always replace hardware
with the same strength bolt.
English Torque Specifications
Bolt dia.
“A”
SAE-2 SAE-5 SAE-8
Bolt Torque*
SAE 2
SAE 5
SAE 8
N.m (lb-ft) N.m (lb-ft) N.m (lb-ft)
1/4"
8 (6)
12 (9)
17 (12)
5/16"
13 (10)
25 (19)
36 (27)
3/8"
27 (20)
45 (33)
63 (45)
7/16"
41 (30)
72 (53)
100 (75)
1/2"
61 (45)
110 (80)
155 (115)
9/16"
95 (70)
155 (115)
220 (165)
5/8"
128 (95)
215 (160)
305 (220)
3/4"
225 (165)
390 (290)
540 (400)
7/8"
230 (170)
570 (420)
880 (650)
1"
345 (225)
850 (630)
1320 (920)
A
Metric Torque Specifications
Bolt dia.
Bolt Torque*
8.8
10.9
N.m (lb-ft)
N.m (lb-ft)
M3
.5 (.4)
1.8 (1.3)
M4
3 (2.2)
4.5 (3.3)
M5
6 (4)
9 (7)
M6
10 (7)
15 (11)
M8
25 (18)
35 (26)
M10
50 (37)
70 (52)
“A”
M12
90 (66)
125 (92)
M14
140 (103)
200 (148)
M15
225 (166)
310 (228)
M20
435 (321)
610 (450)
M24
750 (553)
1050 (774)
A
8.8
10.9
* Torque value for bolts and capscrews are identified by their head markings.
Torque values indicated above are valid for non-greased or non oiled threads and heads unless
otherwise specified. Do not grease or oil bolts or capscrews unless otherwise specified in this
manual. When using locking elements, increase torque values by 5%.
27
Maintenance - 6644 Grain Vac
Hydraulic Fitting Torque
Tighten Flare Tube Fittings*
1. Check flare and flare seat for defects that might cause leakage.
2. Align tube with fitting before tightening.
3. Lubricate connection and hand tighten swivel nut.
4. T
o prevent twisting the tube(s), use two wrenches. Place one wrench on the connector body
and with the second tighten the swivel nut to the torque shown.
Tube size
O.D.
Nut size
across
flats
Torque
value*
Recommended turns to
tighten (after
finger tightening)
in.
in.
N.m
(lb-ft)
Flats
Turns
3/16
7/16
8 (6)
1
1/6
1/4
9/16
12 (9)
1
1/6
5/16
5/8
16 (12)
1
1/6
3/8
11/16
24 (18)
1
1/6
1/2
7/8
46 (34)
1
1/6
5/8
1
62 (46)
1
1/6
3/4
1–1/4
102 (75)
3/4
1/8
7/8
1–3/8
122 (90)
3/4
1/8
* The torque values shown are based on lubricated connections as in reassembly.
28
Maintenance - 6644 Grain Vac
Hydraulic Hose Drawing
Boom
Cylinder
Boom
Hydraulic Valve
Hydraulic
Oil Tank
Control
Panel
Filter
Hydraulic
Motor
Hydraulic
Pump
29
Troubleshooting - 6644 Grain Vac
Troubleshooting
The heart and lungs of the Grain Vac are the airlock and the blower (air pump). Both components
must be operating at their recommended speed to obtain maximum efficiency from the machine.
The blower is driven by a belt and pulley system from the drive system attached to the engine. The
airlock is driven by a hydraulic motor that is attached to the diesel engine.
If you encounter a problem that is difficult to solve, even after having read through this trouble
shooting section, please call your local dealer or the factory. Before you call, please have this
Operators Manual and the serial numbers from your Grain Vac ready.
In North America call (204) 822-4467
Problem
Low capacity
Excessive grain
damage.
Cause
Solution
Belts are slipping.
Tighten belts.
Airlock runs too fast.
Slow down airlock speed until grain builds
up to the level of inspection door.
Improper air intake.
Adjust air intake.
Improper use of nozzle.
Use full bin nozzle for larger piles and full
bins. Use cleanup nozzle with flair for cleanup
only. Do not submerge airslide in grain.
Air leaks - Intake.
Check for worn coupler levers or missing coupler gaskets.
Air leaks - Machine.
Check BPS, receiver section, and airlock gaskets.
Check pressure and vacuum relief valve.
Check clamps on airline between receiver tank
and BPS and between BPS and blower.
Improper piping.
Keep suction lines as short as possible.
Minimize bends.
Use straight length of pipe wherever possible.
Use the poly hose for clean up only!
Airlock tip clearance
high.
Adjust airlock tips.
Airlock end plate
clearance
If rotor to end plate clearance is more than 0.015",
consult the dealer or factory.
Too much air intake.
Adjust air intake nozzle.
Blower running too fast. Throttle down engine.
Damaged tubing or
flexline.
Repair or replace.
Insufficient grain supply. Reposition nozzle.
30
Troubleshooting - 6644 Grain Vac
Problem
Pulsation
BPS plugs
Airlock not
turning at all.
Hydraulic oil
heating up
excessively.
Excessive wear
on air lines.
Cause
Solution
Insufficient air at intake.
Open slide until grain flow becomes even.
Airlock turning too fast.
Adjust airlock speed until grain is at
level of the inspection door.
Improper piping.
Replace steel flex or poly hose with
rigid tubing wherever possible.
Suction line too small.
Use proper line size.
Engine running too slow. Increase engine RPM to recommended speed.
Belts are slipping.
Tighten belt.
Excessive airlock
tip clearance.
Adjust airlock tips.
Airlock turning
too slow.
Adjust airlock speed until grain is at the proper
level on the inspection door.
Obstruction in suction.
Shut down machine and clear line obstruction.
Airlock turning
too slowly.
Increase airlock speed until grain is at the
proper level on the inspection window.
Airlock turning too fast.
Decrease airlock speed until the grain is at
the proper level on the inspection door.
Airlock not turning.
Check for and remove obstruction in airlock
Flow control valve
wrong.
Reset flow control.
Obstruction in airlock.
Shift Forward/Reverse lever from FORWARD
to REVERSE and back to FORWARD. Repeat
if obstruction does not clear up. If obstruction
does not clear up, shut off engine, open inspection door and remove cause of obstruction.
Low oil level.
Add oil.
Improper piping.
Minimize bends.
Too much air flow.
Adjust airslides and airlock speed.
Insufficient grain supply. Reposition intake nozzle. Open grain supply doors.
Excessive engine speed. Operate at proper recommended engine speed.
NOTE: Also reference the Cummins Diesel Manual, Twin Disc Clutch Manual and Dexter Manual
for proper troubleshooting instructions.
31
Storage - 6644 Grain Vac
Storage
Prior to storage we recommend that you
thoroughly inspect your Grain Vac.
1. Replace any worn or damaged
components.
2. W
ash and clean the machine. After
cleaning, run machine at low idle for 2-3
minutes to dry the internal components.
Inject
Cleaning
Agent
Here
3. W
hile machine is running at an idle, open
the cleaning port and inject a cleaning
agent such as WD40 for 45 - 60 seconds.
This will coat the inside of the air pump to
help prevent rusting.
4. L
ubricate all grease points. Make sure
all grease cavities have been filled with
grease to remove any water residue.
5. R
etract and stow all components and
accessories and install cover over the
boom pivot. (Keeps out dirt and small
animals).
6. Inspect all hydraulic hoses, couplers,
fittings and lines. Tighten any loose fittings.
Replace any hose that is badly cut, nicked,
abraded or is separating from the fitting.
7. Inspect, clean or empty the BPS.
8. Check the fluid level in the air pump oil
reservoirs. Add oil as required.
9. Touch up all paint nicks and scratches to
help prevent rusting.
10. For storage, select an area which is dry and
level. Make sure unit is firmly blocked and
will not tip or sink into a soft area. Place a
plank under jack for added support.
NOTE: Reference the Cummins Diesel Manual, Twin Disc Clutch Manual and Dexter Manual for
proper storage instructions.
32
Parts - 6644 Grain Vac
Receiver Tank and Dust Collector Drawing
20a
20b
24
34
25
Parts - 6644 Grain Vac
Item No.
Part No.
1
GV19504
Dust Cyclone Top Plate
1
2
GV19514
Screen, Blower Protection System
1
3
GV36860
Dust Cyclone
1
4
GV15525
Ring, Pail Seal
1
5
GV19512
Dust Cyclone Pail
1
6
GV26011
5" Seal Clamp
2
7
GV36850
Top Loading Receiver Tank Without Coupler
1
7a
GV15632
Receiver Tank Top Plate
1
8
GV64510
Pail Gasket, 825 - 045 - 4' Required
1
9
GV26052
Female Coupler
1
10
GV64001
Foam Gasket -1/4" x 1" - 3' Required
1
11
GV15520
Window Receiver
1
12
GV64504
Foam Gasket - 6' Required
1
13
GV10627
Airlock - See Page 36
1
14
GV36870
Airline Blower Inlet
1
15
GV26119
Vacuum Relief Valve
1
16
GV14400
Blower Complete w/ Oil Filter - See Page 36
1
17
GV45630
2 Piece Airline Blower Output - See Page 36
1
18
GV64030
Gasket Blower, 5.3 1/8
1
19
GV64501
Blower Gasket, 1/16 Rubber
2
20a
GV64500
Rubber Channel, 1/4 x 3/8 - 5' Required
20b
GV64500
Rubber Channel, 1/4 x 3/8 - 4' Required
21
GV64503
Foam Gasket - 5' Required
1/4" Flat Washer & Lock Nut
2
23
GV26013
Pressure Relief Valve
1
24
GV15651
Screen Main Receiver Tank (Anti-Plug)
1
24
GV15653
Screen Handle, Factory Installed
1
22
Description
Quantity
35
Parts - 6644 Grain Vac
Airlock and Blower Assembly Drawing
26
36
27
Parts - 6644 Grain Vac
Item No.
Part No.
Description
Quantity
GV10627
Airlock Assembly, Complete w/ Motor
1
1
GV10630
Wiper
1
2
GV10631
3
4
GV10632
5
6
GV20011
Retainer Wiper
1
Bolt, 1/4" x 1-1/2" Complete w/ Flat/L Washer & Nut
3
Flex Tip Wiper
1
Bolt, 1/4" x 1-1/2" Complete w/ Flat/L Washer & Nut
2
Chain Coupler Cover (To mid 1997)
1
7
GV20007
Chain Coupler Sprocket (To mid 1997)
1
8
GV20010
Chain - Chain Coupler (To mid 1997)
1
9
GV10021
Chain Coupler Sprocket - Splined (To mid 1997)
1
9A
GV10513
Coupler Weldment (Mid 1997 models and up)
1
10
GV20006
Woodruff Key
1
11
GV22228
Hydraulic Motor - White
1
12
GV10017
Bracket for Mounting Airlock Motor
1
13
GV10637
Airlock, Less Motor
1
GV14400
Blower Complete With Breather Vents
1
14
GV45603
Flange Airlock Inlet
1
15
GV26044
Reducer 6" to 5"
1
16
GV26011
Seal Clamp. 5"
1
18
GV64030
Gasket, 5" x 3-1/8"
1
19
GV64501
Gasket, 1/16" Rubber
2
20
GV14400A
Blower Less Breathers
1
21
GV22136
Galvanized Steel Nipple, 3/4" x 2-1/2"
2
22
GV22044
Galvanized Coupler Nipple, 3/4"
2
23
GV22149
Galvanized Hexagon Bushing, 3/4" x 2-1/2"
2
24
GV14431
Breather Vent
2
25
GV20015
O-Ring
1
26
GV26013
Pressure Relief Valve
1
27
GV45650
Silencer
1
37
Parts - 6644 Grain Vac
Boom and Cyclone Drawing
28
29
See pg. 25
for installation
instruction.
38
Parts - 6644 Grain Vac
Item No.
Part No.
Description
Quantity
1
GV36500
Boom Mount Assembly
1
2
GV29690
Bottom Boom Standard
1
GV29691
Bottom Boom for High Boom
1
3
GV43688
Discharge Swivel
1
4
GV29698
Upper Boom
1
5
GV29630
Boom Extension
1
6
GV31046
Poly Cyclone Shell
1
7
GV31039
Cyclone Thimble Assembly
1
8
GV45695
Elbow Airlock Outlet
1
9
GV45603
Airlock Outlet Flange
1
10
GV29507
Threaded Rod Boom Clamp
2
11
GV56051
1/2" Coupler Nut
2
12
GV56003
1/2" Jam Nut
4
13
GV64033
Boom Gasket
2
14
GV27032
Boom Handle 32"
1
15
GV29508
Boom Hingle Pin
1
16
GV29535
Boom Extension Hinge Pin
1
17
GV29643
Boom Bearing Washer
1
18
GV20015
O-Ring
1
19
GV29540
Boom Lock
1
20
GV26042
2 Bolt Compression Clamp
2
21
GV60032
Boom Handle Clamp
1
22
GV22502
HYD Cylinder (2508 ASE c/w Pins)
1
23
GV31007
Cyclone Steer Liner Long
1
24
GV31010
Cyclone Poly Liner Long
1
25
GV60033
Cyclone Extension Boot
1
26
GV60030
Boom Cover
1
27
GV20019
Grease Fitting - 1/4 x 28
3
28
GV31004
Poly Cyclone Assembly
1
29
GV31038
Cyclone Liner Kit
1
39
Parts - 6644 Grain Vac
Cleanup and Full Bin Nozzles Drawing
40
Parts - 6644 Grain Vac
Item No.
Part No.
Description
Quantity
GV43030
Cleanup Assembly Complete
1
1
GV60021
Shoulder Strap
1
2
GV60008
Handle Grip
1
Nylon Nut 3/8"
2
Male Coupler
1
Carriage Bolt, 1/4" x 3/4" Complete w/ Flat Washer
4
Rotary Elbow Weldment
1
3
4
GV26006
5
8
GV43525
9
GV26011
10
Seal Clamp
1
Wing Nut & Flat Washer, 3/8"
2
13
GV43004
Bottom Slide Assembly
2
14
GV43003
Top Slide
2
16
GV60009
Rigid Caster
2
Carriage Bolt, 1/4" x 3/4". Complete w/ Washer & Nut
1
GV43060
Spacer Pipe Intake Flare
1
Machine Bolt, 1/4" x 3", Flat Lock Washer & Nut
1
17
18
19
20
GV43129
Bored Intake Flare
1
21
GV26063
Quick Release T-Bolt Clamp
1
22
GV43031
Aluminum Tube
1
GV43082
Intake Flare Assembly, 16 to 20 (T-bolt clamp not included)
1
GV43610
Full Bin Nozzle Assembly
1
Wing Nut And Flat Washer, 3/8"
2
10
11
GV26051
Male Coupler
11
12
GV43608
Handle
1
13
GV43004
Bottom Slide Assembly
2
14
GV43003
Top Slide
2
15
GV43609
Tube
1
41
Parts - 6644 Grain Vac
Steel Flex Hose and Couplers Drawing
7
9
4c
4a
6
42
5
8
2
3
4b
4
2
3
1
Parts - 6644 Grain Vac
Item No.
Part #
GV43047
Description
Steel Flex Hose Assembly - Includes 1-9
Quantity
1
1
GV26051
Male Coupler
1
2
GV56030
Lock Nut, 1/4" NC x 3/4"
8
3
GV56027
Carriage Bolt, 1/4" NC x 3/4"
8
4
GV43048
Steel Flex Hose, 10 ft.
1
4a
GV43050
Tubing
1
4b
GV26073
Steel Flex Poly Lock, 10 ft.
1
4c
GV26047
Hose End Reducer
1
5
GV26086
Cam Lever
2
6
GV26085
Finger Ring
2
7
GV26082
Cam Lever Pin
2
8
GV26052
Female Coupler Assembly - Includes 5-7
1
9
GV64029
Coupler Gasket
1
43
Parts - 6644 Grain Vac
Cleanup Hose and Couplers Drawing
10
8
44
9
7
6
2
5
4
3
2
1
Parts - 6644 Grain Vac
Item No.
Part No.
GV43034
Description
Complete Hose Assembly - 4" x 14', 4" Female x 5" Male
Quantity
1
1
GV26006
Male Coupler, 5"
1
2
GV56027
Carriage Bolt, 1/4" NC X 3/4", Lock Nut & Washer
8
3
GV26028
Reducer, 5" - 4"
1
4
GV26112
Poly Hose, 4" x 14'
5
GV43035
Tube
1
6
GV26005
Female Coupler, 4" - Includes 7 - 9
1
GV43056
Complete Hose Assembly - 5" x 14', 5" Female x 6" Male
1
1
GV26051
Male Coupler, 6"
1
2
GV56027
Carriage Bolt, 1/4" NC x 3/4", Lock Nut & Washer
8
3
GV26044
Reducer, 6" - 5"
1
4
GV26113
Poly Hose, 5" x 14'
5
GV43029
Tube
1
6
GV26007
Female Coupler, 5" - Includes 7 - 9
1
GV43019
Complete Hose Assembly - 6" x 14', 6" Female x 6" Male
1
1
GV26051
Male Coupler, 6"
1
2
GV56027
Carriage Bolt, 1/4" NC x 3/4", Lock Nut & Washer
8
4
GV26120
Poly Hose, 6" x 14'
5
GV43050
Tube
2
6
GV26052
Female Coupler, 6" - Includes 7 - 9
1
GV43079
Complete Hose Assembly - 5" x 14', 5" Female x 5" Male
1
1
GV26006
Male Coupler, 5"
1
2
GV56027
Carriage Bolt, 1/4" NC x 3/4", Lock Nut & Washer
8
14 ft.
14 ft.
14 ft.
4
GV26113
Poly Hose, 5" x 14'
5
GV43029
Tube
14 ft.
2
6
GV26007
Female Coupler, 5" - Includes 7 - 9
1
Coupler Parts
7
GV26086
Cam Lever, For 4" & 5"
2
8
GV26085
Finger Ring
2
9
GV26081
Pin Cam Lever, For 4" & 5"
2
9
GV26082
Pin Cam Lever, For 6"
2
10
GV64027
Coupler Gasket, For 4"
2
10
GV64028
Coupler Gasket, For 5"
2
10
GV64029
Coupler Gasket, For 6"
2
45
Warranty - 6644 Grain Vac
Warranty Policy
Buhler Industries Ltd. (hereafter referred to as “Buhler”) products are warranted for a period of twenty-four (24)
months from the date of delivery to the original purchaser, to be free from defects in material and workmanship
when used under correct, normal agricultural use and proper applications.
Buhler’s obligation under the warranty shall be limited to the repair or exchange (at Buhler’s option) of any part
which proves to be defective as provided.
The buyer shall be responsible for all expenses incurred as a result of repairs, labour, parts, transportation or any
other work unless a Buhler dealer has authorized such expenses in advance. It is the responsibility of the dealer to
get approval from Buhler before authorizing warranty work being done. Buhler reserves the right to either inspect the
product at the buyer’s location or have the defective part returned to the factory for inspection.
The above warranty does not extend to goods damaged or subject to accidents, abuse or misuse after shipment
from Buhler’s factory, nor to goods altered or repaired without authorization from Buhler.
Buhler makes no Express Warranty other than those which are specifically described. Anydescription of goods,
including any reference to specifications in catalogues, circulaires, and other written material published, is for the
sole purpose of identifying goods and shall conform to such descriptions. Any sample or model is for illustration
purposes only, and does not create an Express Warranty that the goods conform to the sample or model.The dealer
is solely responsible for determining the suitability of goods sold.
BUHLER MAKES NO WARRANTY OF
MERCHANTABILITY OF FITNESS FOR A
PARTICULAR PURPOSE.
This warranty is expressly in lieu of all other warranties expressed or implied. Buhler will in no event, be liable for
any incidental or consequential damages, nor for any sum in excess of the price received for the goods for which
liability is claimed.
Claims for warranty must be made on Buhler Warranty Claim Forms within 10 days of the failure occurrence.
Warranty Authorization numbers are available from the factory and must be indicated on the Warranty Claim Form
for all claims over a total dollar value of $100.00.
The labour rate for warranty work where applicable will be credited at a rate determined by Buhler.
IMPORTANT: Components or accessories, including blower, airlock, flex, hose and hose accessories that come
in contact with material being moved, carry no warranty for wear. Warranty is void when unit is used for moving
material other than cereal grains, grass seeds or pulse crops. With respect to vendor warranty items such as
Cummins engines and TwinDisc clutch which shall be warranted by their manufacturer, or local representative
thereof.
46
www.farm-king.com
301 Mountain Street South
Morden, Manitoba Canada R6M 1X7
Ph.: 204.822.4467 | Fax: 204.822.6348
Toll Free: 888.524.1004
E-mail: [email protected]
www.farm-king.com
Equipment shown is subject to change without notice.
©2010 Buhler Trading Inc. Printed in Canada. TSX:BUI
a division of Buhler Industries Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
