732-101

732-101
Pub. 42004-425ADS
GAI-TRONICS® CORPORATION
A HUB BEL L C OMP ANY

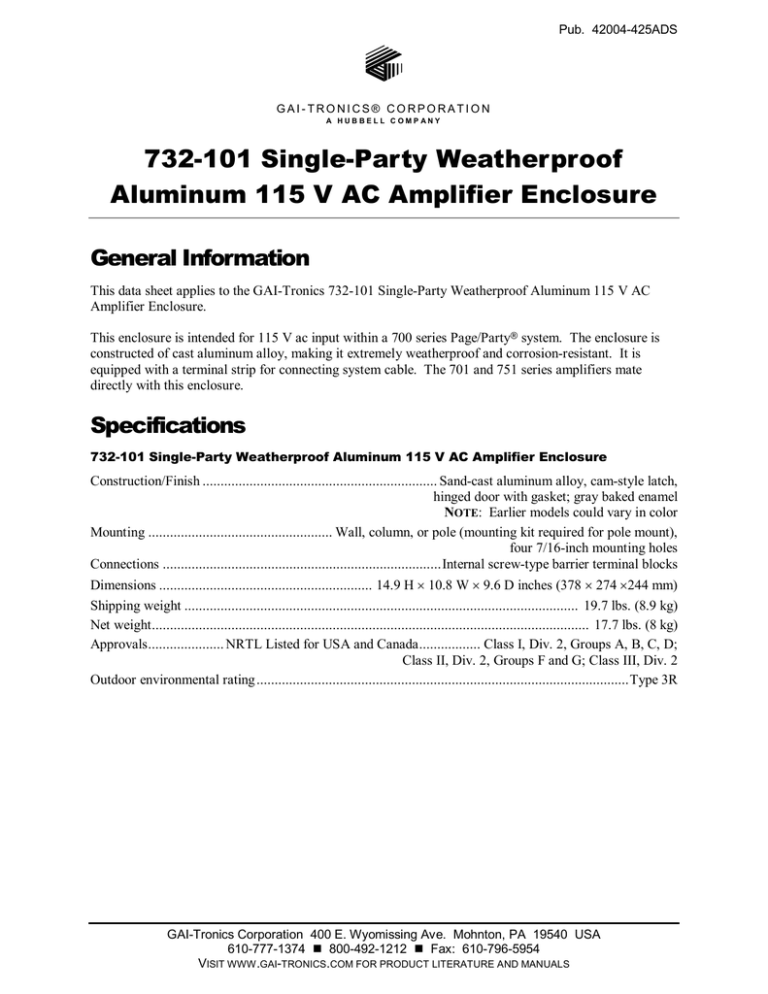

732-101 Single-Party Weatherproof
Aluminum 115 V AC Amplifier Enclosure
General Information
This data sheet applies to the GAI-Tronics 732-101 Single-Party Weatherproof Aluminum 115 V AC
Amplifier Enclosure.
This enclosure is intended for 115 V ac input within a 700 series Page/Party< system. The enclosure is
constructed of cast aluminum alloy, making it extremely weatherproof and corrosion-resistant. It is
equipped with a terminal strip for connecting system cable. The 701 and 751 series amplifiers mate
directly with this enclosure.
Specifications
732-101 Single-Party Weatherproof Aluminum 115 V AC Amplifier Enclosure
Construction/Finish ................................................................. Sand-cast aluminum alloy, cam-style latch,
hinged door with gasket; gray baked enamel
NOTE: Earlier models could vary in color
Mounting ................................................... Wall, column, or pole (mounting kit required for pole mount),
four 7/16-inch mounting holes
Connections .............................................................................Internal screw-type barrier terminal blocks
Dimensions ........................................................... 14.9 H × 10.8 W × 9.6 D inches (378 × 274 ×244 mm)
Shipping weight ............................................................................................................. 19.7 lbs. (8.9 kg)
Net weight......................................................................................................................... 17.7 lbs. (8 kg)
Approvals..................... NRTL Listed for USA and Canada................. Class I, Div. 2, Groups A, B, C, D;
Class II, Div. 2, Groups F and G; Class III, Div. 2
Outdoor environmental rating .......................................................................................................Type 3R
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374 „ 800-492-1212 „ Fax: 610-796-5954
VISIT WWW .GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
732-101 Single-Party Weatherproof Aluminum 115 V AC Amplifier Enclosure
Pub. 42004-425ADS
Page: 2 of 2
Figure 1. 732-101 Single-Party Weatherproof Aluminum 115 V AC Amplifier Enclosure
f:\standard ioms - current release\data sheets\42004-425ads\42004-425ads.doc
04/09
