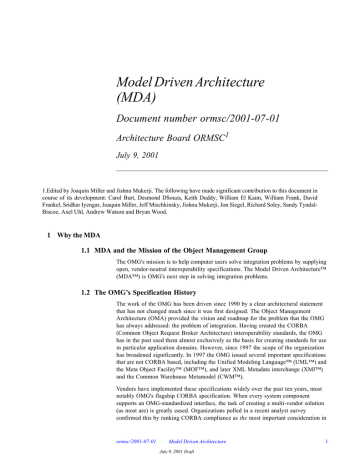

Model Driven Architecture
Document number ormsc/2001-07-01
Architecture Board ORMSC1
July 9, 2001
1.Edited by Joaquin Miller and Jishnu Mukerji. The following have made significant contribution to this document in
course of its development: Carol Burt, Desmond DSouza, Keith Duddy, William El Kaim, William Frank, David
Frankel, Sridhar Iyengar, Joaquin Miller, Jeff Mischkinsky, Jishnu Mukerji, Jon Siegel, Richard Soley, Sandy TyndalBiscoe, Axel Uhl, Andrew Watson and Bryan Wood.
1 Why the MDA
1.1 MDA and the Mission of the Object Management Group
The OMG's mission is to help computer users solve integration problems by supplying
open, vendor-neutral interoperability specifications. The Model Driven Architecture™
(MDA™) is OMG's next step in solving integration problems.
1.2 The OMG’s Specification History
The work of the OMG has been driven since 1990 by a clear architectural statement
that has not changed much since it was first designed. The Object Management
Architecture (OMA) provided the vision and roadmap for the problem that the OMG
has always addressed: the problem of integration. Having created the CORBA
(Common Object Request Broker Architecture) interoperability standards, the OMG
has in the past used them almost exclusively as the basis for creating standards for use
in particular application domains. However, since 1997 the scope of the organization
has broadened significantly. In 1997 the OMG issued several important specifications
that are not CORBA based, including the Unified Modeling Language™ (UML™) and
the Meta Object Facility™ (MOF™), and later XML Metadata interchange (XMI™)
and the Common Warehouse Metamodel (CWM™).
Vendors have implemented these specifications widely over the past ten years, most
notably OMG's flagship CORBA specification. When every system component
supports an OMG-standardized interface, the task of creating a multi-vendor solution
(as most are) is greatly eased. Organizations polled in a recent analyst survey
confirmed this by ranking CORBA compliance as the most important consideration in
Model Driven Architecture
July 9, 2001 Draft
choosing middleware for application integration2. More recent OMG interoperability
specifications like Common Warehouse Metamodel are expected, in the long term,
have equal impact.
1.3 The Emergence of New Kinds of Standards
When the OMG was issuing only CORBA-oriented standards, the manner in which its
various standards fit together was quite well understood, and clearly mapped by the
OMA. The emergence of new kinds of standards that are foundational in nature, and
their potential use in defining other standards and fitting them together, necessitates
that we expand our vision of the OMG's architecture.
There are limits to the interoperability that can be achieved by creating a single set of
standard programming interfaces. Computer systems have lives measured in decades,
and not all ancient systems written in obsolete programming languages can be
modified to support standards. Furthermore, the increasing need to incorporate Webbased front ends and link to business partners who may be using proprietary interface
sets can force integrators back to the low-productivity activities of writing glue code to
hold multiple components together. When these systems in their turn need modifying
and integrating with next year's hot new technology (and they all will) the result is the
kind of maintenance nightmare all computer users fear.
1.4 The Evolution to Model Driven Architecture
This paper is a statement by the OMG Architecture Board (AB) of the expanded vision
necessary to support interoperability with specifications that address integration
through the entire systems life cycle: from business modeling to system design, to
component construction, to assembly, integration, deployment, management, and
evolution. This vision is embodied in the OMG’s Model Driven Architecture™
(MDA™). It describes how the MDA defines the relationships among OMG standards
and how they can be used today in a coordinated fashion, and how the approach helps
in the creation, maintenance and evolution of standards. It is important to realize that
the MDA is a proposal to expand and not replace the OMA, to provide a roadmap and
vision that will include and integrate all of the work done to date, and to point the way
to future integration standards.
OMG has already specified integration with external specifications (such as XML) and
proprietary interface sets (such as Microsoft's DCOM). The MDA approach
incorporates this existing work and promises more support for rapidly and effectively
creating new specifications that integrate multiple interface standards, from both inside
and outside the organization. It is an evolutionary step from how OMG works at the
moment, but one that will offer great benefits to those using the OMG interoperability
framework. It will also indirectly help all system integrators.
2.'A surprising 70 percent of respondents cited CORBA compliance as 'important' or 'very important' to
integration, outpacing every other factor in the survey, including core functions such as integration of
legacy applications with distributed systems and corporate intranets.”-- Summary of responses from
547 organizations asked to rate middleware selection criteria in the context of application integration
in 'Middleware: what end users are buying and why” Gartner Group, February 1999
Model Driven Architecture
July 9, 2001 Draft
1.5 How the MDA Integrates Standards
An important aspect of some of the latest OMG standards is that they greatly advance
the art, science, and scope, of modeling. The combined power of these model-driven
standards forms the basis of a compelling approach to long-lived architectures for
distributed, component-based systems. This approach broadens considerably the
usability of the standards by:
1. embracing CORBA, J2EE, XML, .NET and other technologies;
2. improving portability of applications by allowing the same model to be realized on
multiple platforms through auxiliary mapping standards, or through point mappings
to specific platforms
3. improving integration based on models of relationships across different domain
application, and component interfaces allowing interoperability based on
semantically-rich interrelationships.
2 The Model Driven Architecture
2.1 Introduction
The MDA defines an approach to IT system specification that separates the
specification of system functionality from the specification of the implementation of
that functionality on a specific technology platform. To this end, the MDA defines an
architecture for models that provides a set of guidelines for structuring specifications
expressed as models.
The MDA approach and the standards that support it allow the same model specifying
system functionality to be realized on multiple platforms through auxiliary mapping
standards, or through point mappings to specific platforms, and allows different
applications to be integrated by explicitly relating their models, enabling integration
and interoperability and supporting system evolution as platform technologies come
and go.
2.2 Basic concepts
In the MDA, a model is a representation of a part of the function, structure and/or
behavior of a system3 .
A specification is said to be formal when it is based on a language that has a welldefined form (“syntax”), meaning (“semantics”), and possibly rules of analysis,
inference, or proof for its constructs. The syntax may be graphical or textual. The
semantics might be defined, more or less formally, in terms of things observed in the
world being described (e.g. message sends and replies, object states and state changes,
etc.), or by translating higher-level language constructs into other constructs that have
a well-defined meaning. The optional rules of inference define what unstated
3. We use system here in the system-theoretic sense to include not only software.
Model Driven Architecture
July 9, 2001 Draft
properties you can deduce from the explicit statements in the model. In the MDA, a
specification that is not formal in this sense, is not a model. Thus a diagram with boxes
and lines and arrows that does not have behind it a definition of the meaning of a box,
and the meaning of a line and of an arrow is not a model—it is just an informal
diagram. An MDA model must be paired unambiguously with a definition of the
modeling language syntax and semantics, as provide by the MOF.
Note that under this definition, source code is a model that has the salient characteristic
that it can be executed by a machine. Similarly, a set of IDL interfaces is a model that
can be used with any CORBA implementation and that specifies the signature of
operations and attributes of which the interfaces are composed. A UML-based
specification is a model whose properties can be expressed graphically via diagrams,
or textually via an XML document.
Abstraction, Refinement and Viewpoint
The term abstraction is used in the MDA in the sense defined in the Reference Model
of Open Distributed Processing (RM-ODP)4 Part 2: the suppression of irrelevant detail.
It is useful to characterize models in terms of the abstraction criteria that were used to
determine what is included in the model. A model that is based on specific abstraction
criteria is often referred to as a model from the viewpoint defined by those criteria, or
in short as a view of the system.
Another common use of the word abstraction is in the phrase a model at a higher level
of abstraction, which is used to characterize a model in which more of the details of
the system are elided as compared to a model at a lower level of abstraction.
Specifically, some pairs of models are in a refinement relationship in which one - the
abstraction - is more abstract than the other - the realization. The refinement relation
is itself described using a model, defining abstraction observations in terms of
realization observations while maintaining certain guarantees of the abstraction. For
example, the realization observations might be SOAP communications and replies,
while the abstraction elides differences of SOAP vs. GIOP.
Note that models that simply describe the system from different viewpoints – of legal
drinking age vs. resident of Maine – cannot necessarily be related by refinement.
Furthermore in common usage, separate viewpoints sometimes corresponds to different
levels of abstraction such that a larger amount of detail from a viewpoint may be
elided to obtain a model from that viewpoint, or a view, at a higher level of abstraction,
while little or no detail may be elided to obtain a model or view, at a low level of
abstraction for those pairs of models. It is essential to note, however, that some models
of a system from different viewpoints will not be related by refinement e.g. “of legal
drinking age” vs. “resident of Maine” as views of some person.
While the MDA provides guidelines on the architecture of models, the choice of
viewpoints to be used in a system specification is a modeling choice. For example, A
specific set of five viewpoints is defined in the RM-ODP Part 3.
4. ISO Standard 10746-2
Model Driven Architecture
July 9, 2001 Draft
“Zooming” in and out
The MDA leverages UML models as abstractions, different viewpoints, and different
levels of abstraction. In particular, as illustrated in Figure 1, the MDA permits:
(a) Zooming in/out – objects
(b) Zooming in/out – interactions
The symbol
Figure 1.
represents an interaction
“Zooming” in and out
• ”Zooming” out of a model showing a complex network of objects (e.g.
infrastructure objects like stubs, binders, etc.), to get a simplified model with fewer
large-grained objects and attributes; and correspondingly zooming in to see those
• ”Zooming” out of a model of a detailed interaction protocol (e.g. a platformspecific protocol for log-in and authentication) to get a simplified model with a
single more abstract interaction with the same overall effect; and correspondingly
zoom in to see those detailed interactions.
MDA permits zooming in to result in multiple alternative models (and vice-versa) by
separating the refinement model that relates the detailed and simplified views. The
MDA needs this flexibility to deal with the modelling of multiple platform specific
implementations of the same system functionality; it is more flexible than the 1-1
mappings sometimes assumed by ”decomposition” and “composition” models, which
are a special case of refinement.
Platform and Implementation Language Environment
In the MDA, the term platform is used to refer to technological and engineering details
that are irrelevant to the fundamental functionality of a software component. Consider,
for example, a formal definition of an operation that transfers funds from a checking
account to a savings account. The fundamental functionality of this operation is that a
specified amount is subtracted from a designated checking account and added to a
designated savings account, with a constraint that the two accounts must belong to the
same customer. This functionality remains invariant regardless of whether the
operation is performed by a CORBA object, an Enterprise Java Beans, or a SOAP
Model Driven Architecture
July 9, 2001 Draft
Thus, a platform-independent model is a formal specification of the structure and
function of a system that abstracts away technical detail6. By this definition a SOAP
specification of the funds transfer operation would be platform-specific. A
specification that depends on interfaces to artifacts of CORBA, like the ORB, Object
Services or GIOP/IIOP would be an example of a platform-specific model.
Note that platforms themselves also have a specification (e.g. of component constructs,
such as facet and receptacles, ports, and connectors, and services, such as directory and
transactions); and an implementation (the platform component constructs are realized
by some refinement e.g. receptacles as some IDL interface pattern, connectors between
event sources and sinks as a particular adapter pattern, services implemented in some
implementation language). A PSM is expressed in terms of the specification model of
the target platform. CORBA itself is implemented on an infrastructure, which could
properly be referred to as a implementation language platform. However, to avoid
confusion, we use the term implementation language environment to refer to such
infrastructures in the MDA. Thus, analogous to the dichotomy established for
platforms, CORBA specifications are implementation language environment
independent, whereas artifacts like stubs, skeletons and the ORB implemented in a
specific language are implementation language environment specific.
2.3 Models in the MDA
Architecture for MDA Models
The MDA separates certain key models of a systems, and brings a consistent structure
to these models. Figure 2 on page 7 shows that models of different systems are
structured explicitly into Platform Independent Models (PIMs), and Platform Specific
Models (PSMs). How the functionality specified in a PIM is realized is specified in a
platform-specific way in the PSM, which is derived from the PIM via some
The PIMs provide formal specifications of the structure and function of the system that
abstracts away technical details. A Platform Independent Component View describes
computational components and their interactions in a platform-independent manner.
These components and interfaces, in turn, are a way of realizing some more abstract
information system or application, which itself helps realize a computationindependent Business Model7 OMG standards are specified in terms of a PIM and,
normally, one or more PSMs, all in UML.
In addition, the MDA defines consistent relationships across these models. As shown
in Figure 2, for a given system there are cross-model refinement correspondences (the
large double-headed arrows in the figures) between business model, platform5. In fact, there are many partial specifications of transfer: s1 = move funds; s2 = notify IRS
if > 100K moved; s3 = s1 & s2; s4 = s3 & failure_spec; s5 = CORBA version of s4. Platform independence separates out s5 from the rest.
6.Note that we do not say the platform-independent model. There could be models of a system from multiple viewpoints, at multiple levels of abstraction, all of which are platformindependent e.g. RM-ODP enterprise, computational, and engineering viewpoints.
Model Driven Architecture
July 9, 2001 Draft
independent components, and platform-specific components. Similarly, across two
different systems to be integrated (e.g. in EAI), interactions may be specified at the
platform-specific, platform-independent, and even business model levels of
There could be more and less abstract models within each of the business, PIM, or
PSM levels. The PIM (including the Business Model) and the PSM are viewpoint
specifications of the system for the OMG standard. They are closely related to specific
sets of viewpoints defined by the RM-ODP Part 3.
The computation independent business model is one in which the Computational (c.f.
RM-ODP) details are hidden or as yet undetermined. It is sometimes referred to as the
business domain model.
S e r v ic e P r o v is io n i n g
B i l li n g
C omputation Independen t
Business Model
C omputation Independen t
Business Model
Platform Independent
Component View
Platform Independent
Component View
Platform Specific
Platform Specific
Figure 2.
Consistent Model Separations and Relationships in MDA
Abstracting out the fundamental precise structure and behaviour of a system in the
PIM from implementation specific concerns in the PSMs has three important benefits:
1. It is easier to validate the correctness of the model uncluttered by platform-specific
semantics. For example, PSMs have to use the platform concepts of exception
mechanisms, parameter types (including platform-specific rules about objects
references, value types, semantics of call by value, etc.), and component model
constructs; the PIM does not need these distinctions and can instead use a simpler,
more uniform model.
7. This computation-independent description is sometimes referred to as a domain model.
While it need not be explicitly present in a particular usage of the MDA scheme, MDA
accommodates it consistently in the same overall architecture.
Model Driven Architecture
July 9, 2001 Draft
2. It is easier to produce implementations on different platforms while conforming to
the same essential and precise structure and behavior of the system. Even further,
the business model defines business goals and policies in a computationindependent manner.
3. Integration and interoperability across systems can be defined more clearly in
platform-independent terms, then mapped down to platform specific mechanisms.
Where appropriate generic mappings or patterns can be shared across multiple
applications, it may be possible to automatically transform a PIM, perhaps after
annotating it with some platform information, to different target PSMs either fully or
partially. The optimal transformation depends on QoS and other requirements,
simplified in Figure 3 to a single shared PIM to CORBA generic correspondence
mapping. Figure 3 applies regardless of whether the mapping is automated or manual.
Shared Mapping
Service Provisioning
Computation Independent
Business Model
Computation Independent
Business Model
Platform Independent
Component View
Platform Independent
Component View
Platform Specific
Platform Specific
Figure 3.
Shared Patterns of PIM <-> PSM Mappings
Figure 4 shows the structure, of specifications, realizations, and refinements from
business domain to code, covering any granularity of system, sub-system, etc. A given
“platform” is a large (infrastructure) component with a specification, including
services available to other assembled components. A given usage of MDA may choose
to exploit this to a lesser extent. Recurring patterns occur across all levels, such as
between PIM and PSM. These form a important part of the architectural style.
Model Driven Architecture
July 9, 2001 Draft
Business Domain Models B1, B2
(describes knowledge about the business
domains, independent of specific software
or business processes that might be used)
Spec of software system S1
(specifiies the software independent
of the various processes it may be
configured for and deployed into,
built using a minimal model of
Spec of C1
Spec of C2
Business Process Models
(describes business processes and includes
information models; detailed versions include
how some software system, S1, is used as a
part of some business processes; cannot
violate domain knowledge in B1 and B2)
Figure 4.
Design D1 of software system S1
(a design of the software as an
assembly of other software
components C1 and C2)
Structure of specification, refinement, and design.
Platform Independent Models in UML
UML models are declarative models, as are IDL-based object models, Java interfaces,
and Microsoft IDL interfaces. However, UML models differ from these other kinds of
declarative models in some important ways.
First, UML has been defined using core UML modeling concepts and this enhances the
power of MDA.
Secondly, UML models can be expressed textually as well as graphically.
Finally, UML models can be semantically much richer than models expressed in the
other declarative model languages mentioned above, which can express syntax (i.e.
signature) but very little about constraints on usage and behavior such as:
• Static invariants constraints on combinations of attributes.
• Pairs of pre and post-conditions for specifying operations.
• Whether a single-valued parameter is allowed to be null.
• Whether an operation has side effects.
• Whether subtypes of some supertype are disjoint or form a partition.
• Patterns of specifications, designs and refinements.
Static invariants and pre/post conditions are particularly important features of an
approach to rigorous software engineering called contract based design. UML did not
invent the concept of contract based design, but it has very good support for it. UML
defines a formal assertion language called Object Constraint Language (OCL) that
facilitates specification of certain constraints. While contract based design does not
Model Driven Architecture
July 9, 2001 Draft
eliminate the need for informal textual explanations of interface usage, it can
significantly reduce dependence on them. The UML allows formalization of the
vocabulary otherwise left imprecise in interface specifications, as an abstract yet precise
model of the state of the object providing that interface and of any parameters
Some current OMG specifications including UML, MOF and CWM specifications
already use UML and OCL for specifying constraints
Specifying constraints formally rather than in free form text reduces ambiguity in
specifications and thus makes life easier for implementers in three important respects:
1. It provides the programmer with more precise instructions, thus lessening the extent
to which the programmer has to guess at the designer’s intention or track down the
designer to find out what to do.
2. It decreases the amount of work required to get different implementations of the
same specification working together, or to integrate implementations of two
specifications whose models are unambiguously related.
3. The formal specification provides a foundation for defining conformance tests for
different implementations.
A model that specifies interfaces to this much precision is profoundly different in
character from one that does not. The MDA approach allows OMG specifications to
rise to this level of rigor.
Platform Specific Models in UML
In section 2.3.1 it is stated that a PSM is expressed in UML, however, since UML is
independent of middleware technologies, it is not obvious to the casual observer how
to harness this power to express a PSM.
For example, in order to transform a PIM into a CORBA PSM certain decisions need
to be made. Are the UML classes represent CORBA interfaces, valuetypes, structs, and
unions? If so how does one make it clear that a particular UML class is an interface as
opposed to a valuetype? If not, what do the classes represent and how would they be
Such decisions can be defined by a UML profile, which is a set of extensions to UML
using the built-in extension facilities of UML, stereotypes and tagged values.
Stereotypes label a model element to denote that the element has some particular
The UML Profile for CORBA, adopted in 2000, specifies how to use UML in a
standard way to define CORBA IDL interfaces, structs, unions, etc. For example, it
defines stereotypes named CORBAInterface, CORBAValue, CORBAStruct,
CORBAUnion, etc. that are applied to classes to indicate what the class is supposed to
represent. In the graphical UML notation a stereotype is delimited by angle brackets,
as illustrated in Figure 5.
Model Driven Architecture
July 9, 2001 Draft
create_account(in number : unsigned long);
find_account(in number : unsigned long);
Figure 5.
A Stereotype Indicating that the Class Represents a CORBA Interface
Figure 6 is a fragment of the specification of a CORBA interface that uses the
semantic power of UML to formalize an invariant rule. The invariant rule cannot be
formally specified in IDL, and thus we consider this model to be a semantically
enhanced CORBA specification
number : short
balance : float
--number must be between 1000
--and 9999
number >= 1000 and
number <= 9999
Figure 6.
A Fragment of a Semantically Enhanced CORBA Specification
The model fragment in Figure 6 corresponds to the IDL shown in Figure 7, assuming
that UML attributes map directly to exposed attributes in CORBA interfaces.
interface Account {
attribute short number;
attribute float balance;
Figure 7.
IDL--By Nature Semantically Thin
Thus, with the UML Profile for CORBA, CORBA-based specifications can be made
much more complete than is possible with IDL only. The normative English text that
specifies rules such as the allowable range of the Account number today, will be
Model Driven Architecture
July 9, 2001 Draft
replaced by formal invariant rules expressed in terms of the UML Profile for CORBA
in the near future. The ORBs of today need only understand the IDL; they do not need
to understand the formal specification of behavior and constraints in the more precise
specification any more than they need to understand informal specification of behavior
and constraints in English text.
Similarly, UML profiles can be defined for other platforms, providing the essential
tools for constructing PSMs.
The technology is in place to proceed in this direction. The main barrier is that there is
a gap in knowledge of how to use the technology, and there is a lack of universal
availability of appropriate tools.
Mappings of Models
Figure 8 below presents a metamodel description of MDA. PIM, PSM and mapping
techniques are based on metamodel expressed preferably with OMG core technologies
like MOF, CWM or UML.
PIM Mapping
Tec hniques
<<based on>>
Mapping from P IM to PIM
<<expressed with>>
<<expressed with>>
<<are described with>>
<<independant of>>
Mapping from PIM to PSM
<<expressed with>>
Refactoring from PSM to PIM
<<based on>>
<<are described with>>
<<depends on>>
Infrastruc ture
PSM Mapping
Mapping from PSM to PSM
Figure 8.
MDA Metamodel Description
In MDA, one of the key feature of the whole approach is the notion of mapping. A
mapping is a set of rules and techniques used to modify one model in order to get
another model. Mappings are used for transforming:
Model Driven Architecture
July 9, 2001 Draft
1. PIM to PIM. This transformation is used when models are enhanced, filtered or
specialized during the development lifecycle without needing any platform
dependent information. One of the most obvious mapping is the analysis to design
models transformation. PIM to PIM mappings are generally related to model
2. PIM to PSM. This transformation is used when the PIM is sufficiently refined to be
projected to the execution infrastructure. The projection is based on the platform
characteristics. Describing these characteristics should be done using a UML
description (and eventually a profile for describing common platform concepts).
Going from a logical component model to a commercial existing component model
(like EJB for J2EE platform or CCM for CORBA platform) is a kind of PIM to
PSM mapping.
3. PSM to PSM. This transformation is needed for component realization and
deployment. For example, component packaging is done by selecting services and
preparing their configuration. Once packaged, the components delivery could then
be done by specifying initialization data, target machines, container generation and
configuration, etc. PSM to PSM mapping are generally related to platform
dependent model refinement.
4. PSM to PIM. This transformation is required for abstracting models of existing
implementations in a particular technology into a platform-independent model. This
procedure often resembles a "mining" process that is hard to be fully automated. It
may be supported by tools, though. Ideally, the result of this mapping will match
the corresponding PIM to PSM mapping.
UML profiles have an important role to play in MDA, since MDA leverage usage of
mappings between models. To implement the mapping, one needs to know the
metamodels of the input and output models and their mapping rules. Transformation
rules execution can be done inside UML tools (for example using scripting) or by
external tools (for example, by working on XMI files). We present in Figure 9 on
page 14 an example of PIM to PSM mapping using the OMG profile for Enterprise
Distributed Object Computing (EDOC). A component architecture is described using
the EDOC profile. The EDOC profile specifies also standard mappings between EDOC
and standard component models, like EJB. The EDOC to EJB mapping is not a profile
per se, but could be associated to the profile notion, because you know the input and
the output model and metamodel. So specifying standard rules and techniques to go
from one model to the other is then possible.
Model Driven Architecture
July 9, 2001 Draft
< <E DO C>>
CurrentV ersion
<< use> >
< <P IM> >
My Component
Architect ure Model
<< EDOC> >
EDOC_E JB _M appi ng_Rul es
< < mapping> >
< <E JB> >
E JB_20
<< PS M>>
My EJB Model
< <use>>
<< infrast ructure>>
J2E E P latform
Figure 9.
MDA Metamodel Example
Platform Independent and Platform Specific UML Models
There are multiple ways to transform a PIM expressed using UML into a
corresponding PSM expressed using UML
1. A human could study the platform-independent model and manually construct a
platform-specific model, perhaps manually constructing the one-of refinement
mapping between the two.
2. A human could study the platform-independent model and utilize models of known
refinement patterns to reduce the burden in constructing the PSM and the
refinement relation between the two.
3. An algorithm could be applied to the platform-independent model and create a
skeleton of the platform-specific model to be manually enhanced by hand, perhaps
using some of the same refinement patterns in 2.
4. An algorithm could create a complete platform-specific model from a complete
platform-independent model, explicitly or implicitly recording the refinement
relation for use by other automated tools.
Note that the above list does not address the production of executable code from a
platform-specific model.
There also are variations in which the platform-specific model is not a semantically
rich UML model but, rather, is expressed via a language such as IDL, Java interfaces,
XML, etc.
Model Driven Architecture
July 9, 2001 Draft
Fully automated transformations are feasible in certain constrained environments. The
degree to which transformations can be automated is considerably enhanced when the
following conditions are obtained:
• There is no legacy to take into account
• The model that serves as input to the transformation is semantically rich
• The transformation algorithms are of high quality
It is much easier to generate executable code for structural features (attributes, certain
associations and similar properties) of a model rather than behavioral features
(operations) because the behavior of property getters and setters are quite simple.
Automation of transformations is more tractable when the transformation is
parameterized, i.e. a human has a pre-defined set of options to select from, to
determine how the transformation is performed. For example, a system that transforms
a UML model to an XML DTD could allow some control over how a UML class’s
attributes are transformed, giving a human a chance to choose to put them in an
ATTLIST or to put each attribute in a separate ELEMENT.
Some of these points are illustrated by a CORBA-specific model, corresponding to the
fragment of a platform-independent model shown earlier in Figure 10. Note that this
model fragment has been annotated with a stereotype to denote that Account is an
entity as opposed to a process8. The model fragment has also been enhanced to
indicate that the Account number constitutes a unique identifier for Account instances.
These annotations are platform-independent, but they can directly help select an
appropriate PSM pattern
<<UniqueId>> number : Integer
balance : Float
--number must be between 1000
--and 9999
number >= 1000 and
number <= 9999
Figure 10.
Platform-Independent Model, Annotated with Stereotypes
Figure 11 shows a CORBA-specific UML model constructed from this fragment. We
are not taking a stand that this is the proper way to construct a CORBA solution from
the platform-independent UML fragment. It is simply an example of how one might do
so either manually or algorithmically. The stereotypes <<BusinessEntity>> and
<<UniqueId>> could themselves indicate the systematic application of this pattern,
8.In the field of distributed business component-based software it is now widely understood
that the entity-process distinction is crucial to building scalable systems.
Model Driven Architecture
July 9, 2001 Draft
when interpreted in the context of the CORBA Profile. Note that
Session:BaseBusinessObject is an element defined in the OMG Task and Session
Service. The logic of the construction uses the enhancements to the platformindependent model that indicate that Account is a business entity and that the Account
number constitutes an Account’s unique identity. It reflects a commonly used pattern
of specifying one interface exposed by entity instances and the other exposed by a
manager of the entity instances, including factory finder operations that use the unique
identifier as a selector. The entity instance interface has an attribute that provides a
reference to the instance manager.
< < C O R B A In terface> >
S essio n ::B aseB u sin essO b ject
< < C O R B A In terface> >
C o sL ifeC y cle::G en ericF acto ry
< < C O R B A In terface> >
A cco u n tIn stan ceM an ag er
cre ate_ acco u n t(in n u m b er : u n sig n e d lo n g : A cco u n t
fin d _ a cco u n t(in n u m b e r : u n sig n ed lo n g ) :) A cco u n t
+ m an ag er
< < C O R B A In terface> >
A cco u n t
n u m b er : sh o rt
b alan ce : flo at
--E n g lish
--n u m b er m u st b e b etw een 1 0 0 0
--an d 9 9 9 9
--O C L
in v :
n u m b er > = 1 0 0 0 an d
n u m b er < = 9 9 9 9
Figure 11.
A CORBA-Specific UML Model Derived from the PIM expressed using UML
Figure 12 contains the IDL that expresses the same CORBA-specific solution. Of
course the IDL is semantically thin. Its formal constructs do not and cannot express the
invariant rule about the account number range. Furthermore, the IDL does not and
cannot formally indicate whether a well-formed Account instance is allowed to have a
null manager reference. On the other hand, the CORBA-specific UML model makes it
clear, via the multiplicity of 1 on the manager end of the association between Account
and AccountInstanceManager, that a well-formed account must have a non-null
manager reference. If the solution designer intended to allow a null manager reference,
then the multiplicity would be 0..1 in the CORBA-specific UML model, but the IDL
would be the same as in Figure 12 below.
Model Driven Architecture
July 9, 2001 Draft
interface AccountInstanceManager : CosLifeCycle::GenericFactory {
Account create_account (in unsigned short number);
Account find_account (in unsigned short number);
interface Account : Session::BaseBusinessObject {
attribute AccountInstanceManager manager;
attribute short number;
attribute float balance;
Figure 12.
IDL Corresponding to the CORBA-Specific UML Model
Packages and Viewpoints
UML provides an important modeling element that is relevant for separating
viewpoints, levels of abstraction, and refinements in the context of MDA − the UML
package, a UML construct for grouping model elements. A package can import other
packages, making elements from the imported package available for its use. Packages
help understand the MDA since the models being interrelated for integration are
typically in different packages.
Models of a system from two different viewpoints unrelated by refinement (or models
of two distinct interfaces of a component, or models of two different systems to be
integrated) would be defined in two separate packages as in Figure 13(a). The
interrelationships between the two would be defined in a model correspondence (large
arrow), defining the integration of those two viewpoints or systems at the current level
of abstraction. Similarly, models of the same system at different levels of abstraction
are defined in two packages as in Figure 13(b); the refinement model relating them
would be another model correspondence. Refinement is a relation between model
elements that can be in separate packages, and not between the packages themselves
Naturally, the model correspondences could use recurring patterns from a shared
generic model correspondence. Also, since one can “zoom” in and out of any
granularity of object or component; the realization package P6 assembles some
subcomponents by importing their specification packages.
Package P4
Package P1
System from viewpoint 1
Package P2
System from viewpoint 2
Package P6
(a) Viewpoint Correspondence
(b) Refinement
Figure 13.
Model Correspondences (a) Viewpoints and (b) Refinement
Model Driven Architecture
July 9, 2001 Draft
The relationships between elements of the PIM expressed using UML and CORBAspecific UML models can only be partly specified in UML 1.4. Figure 14 illustrates
loosely that the AccountInstanceManager CORBA interface is a refinement, at a
different level of abstraction, of the number attribute in the PIM that constitutes
Account’s unique identifier. <<refine>> is a standard UML stereotype of dependency.
Note that UML namespaces are used to distinguish between the two Account elements.
The platform-independent Account class is contained in a namespace called
PlatformIndependent. The desired namespace separation can be achieved by putting
the two models in separate UML Packages, as suggested in Figure 13 on page 17
<<UniqueId>> number : Integer
balance :: Float
create_account(in number : unsigned long : Account
find_account(in number : unsigned long) :) Account
Figure 14.
number : short
balance : float
Tracing Between Elements of the Models
An example of the refinement relationship across levels of abstraction is shown using
plain notes to describe the mapping in Figure 15 on page 199.
9.It is generally recognized that UML’s facilities for relating models at different levels of
abstraction are rudimentary and need expansion. UML’s features do not adequately support powerful zoom-in and zoom-out capabilities. The UML 2.0 RFPs call for facilities
that address this gap, to enable a more complete definition of the refinement relationship
across levels of abstraction, such as the one shown in Figure 15 on page 19.
Model Driven Architecture
July 9, 2001 Draft
<<UniqueId>> number : integer
balance : float
mapping to CORBASpecific
new Account(n)
<<UniqueId>> number
pre/post of create_account, since
they guarantee keeping account numbers
unique, and there is no other way to create
select an account based on
create_account(in number : unsigned long): Account
find_account(in number long: unsigned long): Account
Figure 15.
number : short
balance : float
Refinement Relation between PIM and PSM levels of Abstraction
The above set of examples highlights the value of the MDA. The architect/modeler
focuses on creating the platform independent architectural and business model of the
application. The middleware/e-services designer uses UML profile for CORBA to
model the platform specific aspects of the system so that CORBA interface generation
can be automated. The programmer then uses the UML model as well as the IDL
interfaces to augment whatever generated code exists with additional code to complete
the value added business logic for the service. The explicit mapping relations across
models are used to enable potential automation of PSM generations as well as for
easier integration. All these artifacts are traced and versioned. This allows MDA to be
used by systems administrators, architects, designers as well as developers
Model Driven Architecture
July 9, 2001 Draft
3 OMG Standards and the MDA
3.1 Overview
Figure 16 illustrates how OMG standards fit together in MDA. It provides an overall
framework within which the roles of various OMG and other standards can be
uniquely identified. This section looks at the overall picture in Figure 16. The
following sections look at some issues related to specific OMG standards.
Figure 16.
OMG's Model Driven Architecture
The Core
The core of the architecture, at the center of the figure, is based on OMG’s modeling
standards: UML, the MOF and CWM. The core comprises a number of UML profiles.
One will represent Enterprise Computing with its component structure and
transactional interaction; another will represent Real-Time computing with its special
needs for resource control; more will be added to represent other specialized
environments but the total number will be small. Each UML profile represents the
common features of all of the middleware platforms appropriate for its category of
computing, but will be independent of any specific platform.
Whether your ultimate target is CCM, EJB, MTS, or some other component or
transaction-based platform, the first step when constructing an MDA-based application
will be to create a PIM of the application expressed in UML using the appropriate
UML profile. Platform specialists will transform this application model into one
Model Driven Architecture
July 9, 2001 Draft
targeted to a specific platform such as CCM, EJB, or COM+. Standard mappings will
allow tools to automate some of the transformation. In Figure 16 on page 20, these
target platforms occupy the thin ring surrounding the core.
Among these target platforms, CORBA occupies a special role in OMG’s standards
activities as the target platform of choice when an implementation language
independent target platform with the interoperability implied by the use of IIOP is
required. The other target platforms are admissible, but with the understanding that
additional work would be involved to obtain the level of out of the box interoperability
that one gets when CORBA is used as the target platform.
The PSM faithfully represents both the business and technical run-time semantics of
the application. It’s still a UML model, but is expressed (because of the transformation
step) in a dialect (i.e. a profile) of UML that precisely mirrors technical run-time
elements of the target platform. The semantics of the platform-independent original
model are carried through into the platform-specific model.
Generally, standards in the Core are developed and managed by the Platform Technical
Committee (PTC) at the OMG.
Pervasive Services
All applications, independent of their context (e.g. for the enterprise or the Internet, or
for embedded computing) rely on some or all of a set of essential services. The list
varies somewhat depending on the source but typically includes Directory services,
Event handling, Persistence, Transactions, and Security.
When these services are defined and built on a particular platform, they necessarily
take on characteristics that restrict them to that platform, or ensure that they work best
there. To avoid this, OMG will define such services as pervasive services at the PIM
level in UML. Only after the features and architecture of a pervasive service are fixed
will platform-specific definitions be generated for all of the middleware platforms
supported by the MDA.
At the abstraction level of a platform-independent business component model,
pervasive services are visible only at a very high level (similar to the view the
component developer has in CCM or EJB). When the model is mapped to a particular
platform, code will be generated (or dynamically invoked) that makes the calls to the
native services of those platforms.
In Figure 16 on page 20, the Pervasive Services are shown as a ring around the outside
of the diagram to emphasize that they’re available to all applications, in all
environments. True integration requires a common model for directory services, events
and signals, and security. By extending them to a generalized model, implementable in
the different environments and easily integrated, the MDA becomes the basis of our
goal of universal integration: the global information appliance. In Figure 16, Pervasive
services specify services that an infrastructure component offers to other assembled
Model Driven Architecture
July 9, 2001 Draft
Pervasive Services standardized at the OMG fall in the grey area where some are
standardized through the PTC and some through the Domain Technical Committee
OMG Domain Specifications
A sizeable percentage of OMG activity is focused on standardizing services and
facilities in specific vertical markets through Domain Task Forces (DTFs) of the DTC.
Initially these specifications consisted of interfaces written in OMG IDL with
accompanying semantic description in English text. Standardizing components at a
platform level, in terms of standards such as CORBA, is certainly a viable contribution
to solving the integration and interoperability problem, but the MDA offers much
A well-conceived service or facility is always based on an underlying semantic model
that is independent of the target platform. However, the model may not be distilled
explicitly, and this is the case with OMGís domain specifications because the model
for virtually every one is not expressed separately from its IDL interfaces. Since their
models are hidden, these services and facilities have received neither the recognition
nor the widespread implementation and use that they deserve outside of the CORBA
environment, especially considering the quality of their underlying models. Extending
these implied models outside of CORBA just makes sense. The Healthcare Resource
Access Decision Facility, already implemented in Java and EJB in addition to CORBA,
is an example. There are more.
Thus, in order to maximize the utility and impact of OMG domain facility
specifications in the MDA, they will be in the form of normative PIMs expressed using
UML, augmented by normative PSMs expressed using UML and interface definitions
for at least one target platform. The common basis in the MDA will promote partial
generation of implementation code as well, but implementation code of course will not
be standardized.
The DTFs of the DTC produce standard frameworks for standard functions in their
application space. For example, a Finance DTF standard for an accounts receivable
facility might include a PIM expressed using UML, a CORBA-specific UML model
and IDL interfaces and a Java-specific UML model and Java interfaces. XML DTDs or
schema generated via XMI-based mapping rules could be included as well. All of these
artifacts would be normative. Such a standard would have broad impact, in that the
platform-independent model would be useful even in middleware environments other
than those targeted by the platform-specific parts of the specification. Since accounts
receivable is an Enterprise Computing application, the normative, platform-specific
artifacts would be derived at least partially via standard mappings of the Enterprise
Computing profile to the platforms.
Today OMG has ten DTFs with several more “in the chute.” Rather than show them all
in a static diagram, only a representative sample is shown in Figure 16 on page 20
where they appear as rays emanating from the center.
Model Driven Architecture
July 9, 2001 Draft
Transparencies and Qualities of Service
Environments with specific hardware and software attributes – Scalability, Real-Time
operation, Fault Tolerance, or Embedded characteristics – may be modeled as well. By
defining UML representations for these environments or, OMG will extend the MDA
to support and integrate applications with these desirable characteristics.
3.2 System Lifecycle - MOF, UML, CWM and XMI
IT systems have historically been developed, managed and integrated using a range of
methodologies, tools and middleware and there appears to be no end to this innovation.
What we have seen in the last few years, especially as a result of efforts at OMG and
W3C is a gradual move to more complete semantic models as well as data
representation interchange standards. OMG contributions include CORBA, UML,
XMI, MOF and CWM. W3C contributions include XML, XML Schema, and the
ongoing work of the XML-P working group. These technologies can be used to
integrate more completely the value chain (or life cycle) when it comes to developing
and deploying component based applications for various target software architectures.
The life cycle of an application can vary dramatically depending on whether we are
building a new application from scratch or just surgically adding a wrapper to an
existing application. The cost of enhancement and maintenance of an application as
well as the cost of integrating new applications with existing applications far exceeds
the cost of initial development. In addition the application life cycle itself can be quite
complex, involving several vendors in each of the life cycle phases. Hence the need for
information interchange and interoperability between tools and middleware provided
by different vendors (a very common situation in enterprises today) is critical.
The MDA supports many of the commonly used steps in model driven component
based development and deployment. A key aspect of MDA is that it addresses the
complete life cycle covering analysis and design, programming (testing, component
build or component assembly) and deployment and management. An example is the
way in which UML, XMI, MOF and CWM affect the interchange of information
between tools and applications.
The MDA core is based on OMG technologies (MOF, UML, CWM). These
technologies are used to describe PIMs. A PIM can be refined n-times until the desired
system description level is obtained. Then, the infrastructure is taken into account and
the PIM is transformed into a PSM. Then, again, PSMs are refined as many times as
needed. Figure 17 on page 24, presents the development lifecycle of the system,
emphasizing the models used and the way they are typically refined.
Model Driven Architecture
July 9, 2001 Draft
Core Languages
Mappi ngs
Figure 17.
System Lifecycle and the MDA Approach
UML (Unified Modeling Language)
UML addresses the modeling of architecture, objects, interactions between objects,
data modeling aspects of the application life cycle, as well as the design aspects of
component based development including construction and assembly. Note that UML is
powerful enough to be used to represent artifacts of legacy systems. Artifacts captured
in UML models (in terms of Classes, Interfaces, UseCases, Activity Graphs etc.) can
be easily exported to other tools in the life cycle chain using XMI.
A number of UML profiles (for CORBA, EJB, EDOC etc.) are at various stages of
standardization (UML profile for CORBA is adopted). These are critical links that
bridge the UML community (model based design and analysis) to the developer
community (Java, VB, C++ developers), middleware community (CORBA, EJB,
SOAP developers) etc. Additional profiles focused on systems and application
management are needed
XMI (XML Metadata Interchange)
XMI is a standard interchange mechanism used between various tools, repositories and
middleware. XMI can also be used to automatically produce XML DTDs (and soon
XML Schemas) from UML and MOF models, providing an XML serialization
mechanism for these artifacts. XMI has been used to render UML artifacts (using the
Model Driven Architecture
July 9, 2001 Draft
UML XMI DTD), data warehouse and database artifacts (using the CWM XMI DTD),
CORBA interface definitions (using the IDL DTD), and Java interfaces and Classes
(using a Java DTD).
XMI, which marries the world of modeling (UML), metadata (MOF and XML) and
middleware (UML profiles for Java, EJB, IDL, EDOC etc.) plays a pivotal role in the
OMG’s use of XML at the core of the MDA. In essence XMI adds Modeling and
Architecture to the world of XML.
MOF (Meta Object Facility)
MOF provides the standard modeling and interchange constructs that are used in
MDA. Other standard OMG models, including UML and CWM, are defined in terms
of MOF constructs. This common foundation provides the basis for model/metadata
interchange and interoperability, and is the mechanism through which models are
analyzed in XMI. MOF also defines programmatic interfaces for manipulating models
and their instances spanning the application lifecycle.These are defined in IDL and are
being extended to Java.
CWM (Common Warehouse Metamodel)
CWM is the OMG data warehouse standard. It covers the full life cycle of designing,
building and managing data warehouse applications and supports management of the
life cycle. It is probably the best example to date of applying the MDA paradigm to an
application area.
Historically, the integration between the development tools and the deployment into
the middleware framework, has been weak. This is now beginning to change by using
key elements of the MDA – specific models and XML DTDs that span the life cycle,
and profiles that provide mappings between the models used in various life cycle
3.3 Implementation Language Independent Models and IDL
A set of IDL modules containing specifications of IDL interfaces, valuetypes and other
datatypes is a declarative syntactic model of a system. Such a model can be used to
reason about the validity or lack thereof of relationships among the entities specified
using the rules of relationship among IDL declared entities like containment,
inheritance etc. An IDL specification is an object model that can be implemented on a
CORBA platform that will implicitly verify the syntactic validity of any attempt to use
any part of the system.
However, such a specification does not contain much formal information about the
meaning of the operations of the interfaces or of the elements of the datatypes
declared, nor about the constraints that apply to them. In traditional CORBA
specifications such information has been included in a normative but informal
description in English.
Model Driven Architecture
July 9, 2001 Draft
In this approach, an IDL compiler can be used to statically verify syntactic correctness
of the model. An ORB can verify syntactic correctness of attempts to use parts of the
system dynamically. However, there is no automatic way of verifying the constraints
and functionality that appears in the specifications in informal descriptions
IDL was not designed to express a rich set of relationships among entities. The
description of relationships between different parts of a system is also to a large extent
informal, and hence prone to multiple interpretations. Traditionally, descriptions of
relationships among CORBA Services, and indeed among different artifacts that
constitute a CORBA service, appeared in the form of informal text. In more recent
specifications (e.g. POA), the use of UML to more completely describe the model has
brought additional rigor to the specifications.
Platform and Language Environment Independence of IDL Specified
IDL itself is not tied to any specific language environment or platform. This is what
made it possible for ISO to adopt IDL as a standard without any specific reference to
CORBA. Indeed there are many systems in this world which use IDL to specify the
syntactic model of the system but do not use CORBA as the underlying platform.
While OMG has not standardized any such usage of IDL with alternative platforms,
there are broadly deployed instances in the industry of such use. However, it should be
noted that in spite of being platform and language environment independent, IDL
specified models are restricted to expressing only the syntax of the interactions, i.e.
operation signatures.
OMG has chosen to use IDL together with the CORBA platform (ORB and language
mappings) as a reasonable package of facilities to standardize. This facilitates
algorithmic construction of skeletons of portable components of the system for a
specific language environment, from language independent specifications, using an
IDL compiler. The big win from this is portability of specifications from one language
environment to another, as well as portability of implementations among different
instances of the same language environment.
Additionally, given specifications of the exact syntax of interaction between objects
that constitute the system, it is also possible to automatically generate the syntactic
form that is carried on a wire that connects the two communicating objects. OMG has
standardized on GIOP/IIOP as the standard means of conveying communication
between IDL declared objects deployed on a CORBA platform. Again, IDL, and even
the CORBA platform, does not preclude use of other means of communication
between objects. Indeed, it is quite possible for two CORBA objects to communicate
with each other using DCOM or SOAP on the wire. But the adoption of a single means
of interoperation ensures interoperability of implementations.
Extensions to IDL to Capture Additional Information
Various attempts have been made to extend IDL to capture richer structural and
behavioral information and to automatically generate implementation artifacts for a
given platform that enforces the constraints as specified in the richer specification. A
recent example of this is the Components extension of IDL together with the XML
Model Driven Architecture
July 9, 2001 Draft
based deployment descriptors, which facilitates specification of entire systems in terms
of its constituent components, their interactions and deployment characteristics.
However, it should be noted, that all such extensions so far have been point solutions,
without paying much attention to a general model for specifying such extensions.
A model defined in the UML profile for CORBA (see Figure 11 on page 16and
Figure 12 on page 17) provides an alternative representation of an IDL model. The two
models are different representations of the same system. In fact, there is precisely one
IDL representation that can be derived from a model represented using the UML
profile for CORBA. The UML model may, however, provide additional information
(such as cardinality) that cannot be represented in an IDL model today. Appropriate
extensions to IDL, that allow representation of these additional relevant concepts,
would make it possible to map a model expressed in the CORBA profile of UML to an
equivalent IDL model in a reversible fashion. That is, one would be able to reconstruct
the corresponding UML from the equivalent IDL, without loss of information. The
ability to “round-trip” the transformation in this way would allow designers and
architects to work in the technology that they are comfortable with (UML or IDL) and
algorithmically generate the alternative representation for the specification.
3.4 CORBA, CORBA Services and GIOP
The OMG standard platform consists of the specifications commonly referred to as
CORBA, CORBA services, and GIOP/IIOP. A more complete overview of these and
the underlying Object Management Architecture can be found in the document [Ref:
Discussion of the OMA formal/00-06-04?]
Standard CORBA Platform and Bridging to Other Platforms
The general philosophy behind the CORBA platform standards has been to adopt a
single set of standards within a broader framework that allows alternatives if there is
such a need. The standard interoperability framework recognizes such possibilities and
explicitly defines interoperability domains in which different standards apply, and how
bridges can be specified to enable objects in different such domains to communicate
with each other, thus making it possible to construct systems that span multiple
This framework has been successfully used to specify bridges between the CORBA
platform with GIOP/IIOP based communication and the COM/DCOM platform and
communication domain in an existing OMG standard. More recently an inter-domain
bridge between the CORBA Component Model and the EJB Component Model has
also been adopted as a standard. This shows the tremendous versatility of the CORBA
and associated interoperability framework.
Portability and Bridging for Domain Specific Facilities
The problem of bridging from one platform to another becomes considerably simpler if
the two platforms in question share a common model at a higher level of abstraction. It
is fortunate that most broadly deployed distributed computing environments happen to
share such a common model, although never formally expressed as such, thus making
construction of bridges among them feasible.
Model Driven Architecture
July 9, 2001 Draft
As the basic CORBA platform and associated CORBA services specifications became
rich enough to support the building of domain specific facilities the need for
expressing the underlying model in a formal way, at an appropriate level of abstraction,
has been felt more acutely. This is somewhat analogous to the need that motivated IDL
based specifications, but at a higher level of abstraction. A formally specified model is
useful because:
• It facilitates creation of compatible platform specific models/specifications
corresponding to the same platform-independent model and hence implementations
that are easier to bridge together.
• It provides a common reference model and vocabulary with unambiguous meaning
thus reducing the chances of miscommunication among system designers and
• It facilitates standardization of more precisely specified designs and patterns, thus
allowing for portability of design, and makes it easier to support interoperability
among different realizations of the same design on different platforms.
Thus, given the experience gained working on CORBA systems specifications and of
bridges to other similar platforms, it is a natural step for OMG to adopt standardized
means of expressing richer formal models at appropriate levels of abstraction, from
multiple viewpoints.
3.5 Standards Development
The OMG’s UML Profile for EDOC RFP process currently underway will define
standard stereotypes for platform-independent models that will provide standard ways
to use UML to express the structure, behavior and constraints of components in a
platform-independent fashion. It will contain proof of concept mappings to the
CORBA Component Model and to EJB. A follow-on RFP is expected that will call for
standardization of these mappings10.
The EDOC profile will not be entirely applicable to all domains. For example, real
time applications are likely to require a different profile for platform-independent
modeling with their own mappings to platforms.
The Sun Microsystems Java Community Process is currently defining a UML Profile
for EJB (JSR #26) to support the declarative specification of EJB-specific solutions.
This profile can be considered a peer of the UML Profile for CORBA in that it
supports platform-specific modeling. Several members of the OMG Architecture Board
are members of the expert group defining the profile as are others active in the OMG.
10. The EDOC profile also addresses business process component modeling and is likely to
be integrated sooner or later with another standard in progress, the UML Profile for Event
Driven Architectures in EAI. When these standards are finalized we may end up with
more than one level of platform-independent model so that a platform-independent business process model could be mapped either to an event-based EAI model or to a more
standard component model, where the EAI and component models are still platform-independent.
Model Driven Architecture
July 9, 2001 Draft
The MOF-IDL mapping defines an algorithm for transforming any arbitrary MOFcompliant metamodel to a set of IDL interfaces. The generated IDL defines the
interfaces for CORBA objects that can represent models in a distributed repository.
The IDL generated from the CWM defines the interfaces for CORBA objects
representing specific data models in a repository. The IDL generated from the UML
defines the interfaces for CORBA objects representing specific UML models in a
Similarly, the IDL generated from the IR metamodel defines the interfaces for CORBA
objects representing specific CORBA object models in a repository.
It is generally agreed that the MOF-IDL mapping is in need of upgrading11.
Realistically we will probably have to accept the fact that for the foreseeable future,
the automatically generated transformation from PIM to PSM will have to be enhanced
by humans. As we gain more experience we will be able to define various standard
patterns and allow them to be selected in some way.
There are additional issues regarding evolution of interfaces in a backward compatible
interoperable fashion. An interface that is evolved in a UML or MOF model without
consideration for backwards compatibility will most likely not result in a newer
version of the interface that is backward compatible with the older version when
deployed in a given platform. There may need to be additional enhancements to
modeling standards that allow specification of platform specific restrictions to the
ways in which interfaces can be evolved, so they continue to be usable by older clients.
3.6 Conformance Testing
To support this effort, the OMG must also concentrate extra effort on conformance
testing and certification of products (branding). While OMG has been involved in the
past with various testing & branding efforts for its standards, the expanded role of the
OMG must be built on rock-solid testing, certification and branding. In many cases
these efforts will depend on strong relationships with outside organizations with
relevant expertise. Focusing on this problem is critical to the success of OMG’s
expanded role.
4 Conclusion
MDA is OMG's next step in solving integration problems through open, vendor-neutral
interoperability specifications. MDA is an evolution of the OMA that addresses
integration and interoperability spanning the life cycle of a system from business
modeling and design, to component construction, assembly, integration, deployment,
11.The problem is that the generated interfaces are not efficient in distributed systems.
Firstly, the mapping predates CORBA valuetypes and thus does not make use of them.
Secondly, a class with N attributes is always mapped to a CORBA interface with N separate getter/setter operations. In a distributed system one would want to group attributes
based upon use cases, cache attribute values, or implement other optimizations to reduce
the number of distributed calls.
Model Driven Architecture
July 9, 2001 Draft
management and evolution. It is built upon the experience gained in creating standards
for implementation language independent models in CORBA and the development of
the IDL, UML, MOF, CWM and XMI standards.
The MDA defines an architecture for structuring models that effectively separates
concerns relevant for integration, interoperability, and portability. It exploits the ability
to “zoom” in and out of any model of a system, exposing or eliding details of objects
and interactions, with an architecture that uniformly separates specifications from their
realizations. It uses these to enable the standardization of platform-independent models
which can then be realized in implementation on multiple platforms with traceability
between the platform independent models and the platform specific realizations of the
models in implemented form.
5 Glossary
This glossary is included for the convenience of the reader. It explains how these terms
are used in this document.
Abstraction: An abstraction is a description of something that omits some details that
are not relevant to the purpose of the abstraction; the converse of “refinement”. The
notion of abstraction is used in MDA in the sense defined in the Reference Model of
Open Distributed Processing (RM-ODP) Part 2: the suppression of irrelevant detail.
Execution Environment: An execution environment depends on hardware and
software infrastructure and is realized by one or several platforms.
Infrastructure: An infrastructure (also called computing infrastructure) is a set of
software pieces or hardware pieces assumed to be already present by some
stakeholders when he/she develops a software artifact.
Mapping: Set of rules and techniques used to modify one model in order to get
another model. Mapping are used for PIM to PIM, PIM to PSM, PSM to PSM and
PSM to PIM transformations.
Model: A model is a representation of part of the function, structure and/or behavior of
a system.
Platform Independent Models (PIM): The PIM provide formal specifications of the
structure and function of the system that abstracts away technical details.
Platform Specific Models (PSM): A PSM is expressed in terms of the specification
model of the target platform. PSM have to use the platform concepts of exception
mechanisms, parameter types (including platform-specific rules about objects
references, value types, semantics of call by value, etc.), and component model.
Platform: A platform is a software infrastructure implemented with a specific
technology (Unix platform, CORBA platform, Windows platform) on specified
hardware technology.
Refinement: A refinement is a more detailed description that conforms to another (its
abstraction). Everything said about the abstraction still holds, perhaps in a somewhat
different form, in the refinement. In MDA, we would like to permit that more detailed
descriptions are built in a systematic way from abstract ones.
Model Driven Architecture
July 9, 2001 Draft
Software Infrastructure: A software infrastructure is a computing infrastructure
comprising software artifact with tools and guidelines to use them.
View: A representation of a whole system from the perspective of a related set of
concerns [IEEE STD 1471-2000]. Views are not necessarily orthogonal, but each view
generally contains specific information. In MDA, a view is a collection of models that
represent one aspect of an entire system. A view applies to only one system, not to
generalizations across many systems. The IEEE concept of "view" is equivalent to the
RM-ODP concept of "viewpoint specification", which is the specification of a system
from a given viewpoint.
Viewpoint: A specification of the conventions for constructing and using a view. A
pattern or template from which to develop individual views by establishing the
purposes and audience for a view and the techniques for its creation and analysis
[IEEE STD 1471-2000]. The IEEE concept of "viewpoint" is eqivalent to the RM-ODP
concept, which is "a form of abstraction achieved using a selected set of architectural
concepts and structuring rules, in order to focus on particular concerns within a
Model Driven Architecture
July 9, 2001 Draft
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
